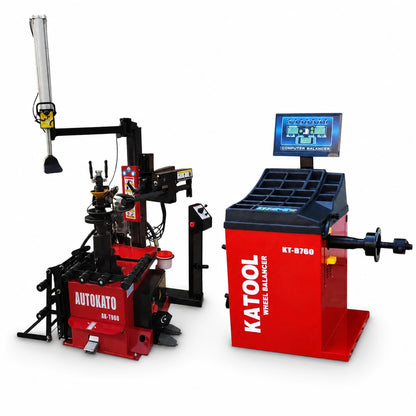

Katool KT-T900 & KT-B760 - Complete Professional Tire Service Combo

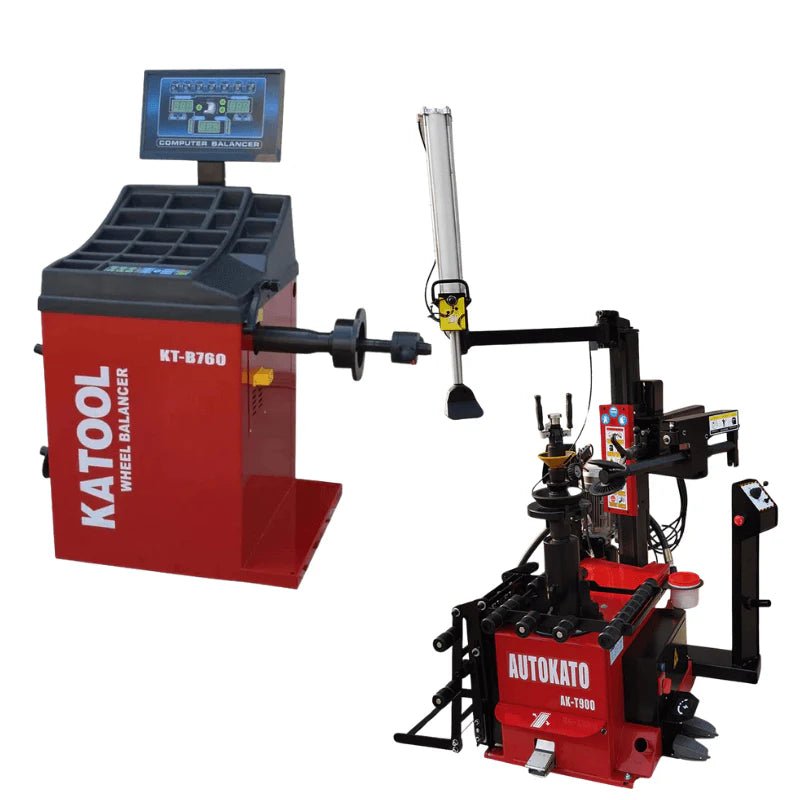

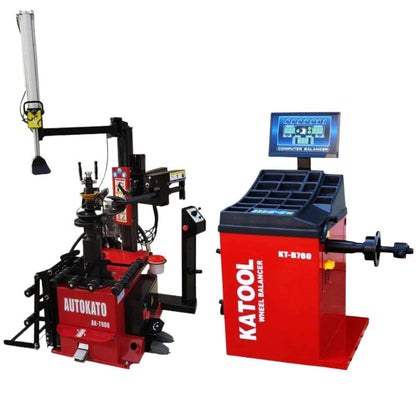

The Katool KT-T900 & KT-B760 combo combines a fully hydraulic center-post tire changer with a precision wheel balancer for professional automotive service operations. The KT-T900 handles wheels up to 47" diameter using leverless, hydraulic operation with integrated assist systems, while the KT-B760 provides ±1g balancing accuracy with 7-second measurement cycles at 180 RPM.
Key Features & Benefits
Hydraulic Center-Post Advantage

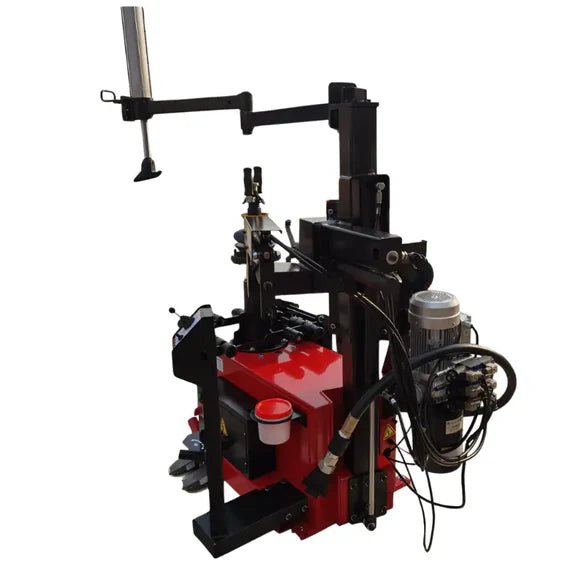

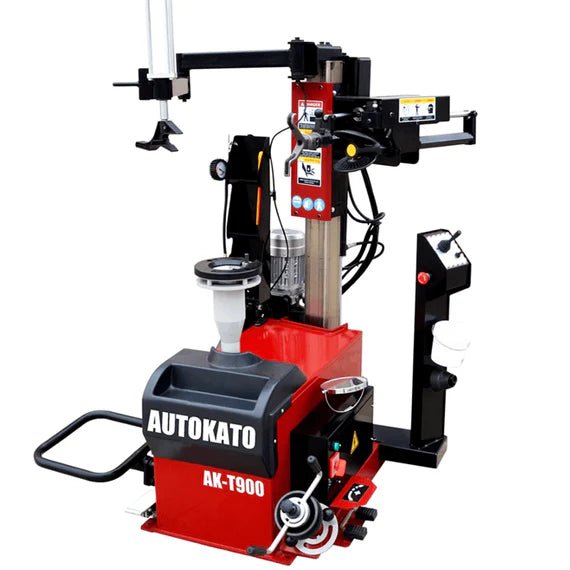

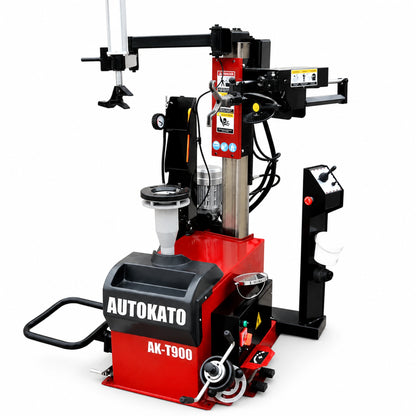

The KT-T900's fully hydraulic, leverless design eliminates mechanical stress points through 1.5 kW gearbox power and 1.1 kW hydraulic systems. Uses fluid pressure rather than mechanical leverage for wheel mounting and dismounting, protecting wheel surfaces from contact damage. The stainless steel mounting head with plastic rim protectors maintains wheel finish integrity, reducing costly wheel replacement claims.
Rapid Precision Balancing

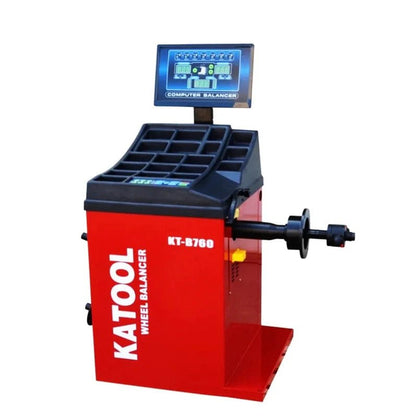

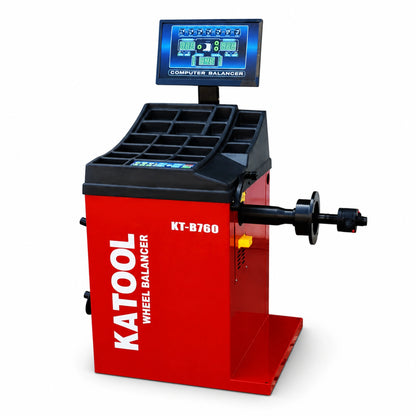

The KT-B760 delivers ±1g balancing accuracy with 7-second measurement cycles at 180 RPM balancing speed. The automatic measurement ruler eliminates manual data entry while the 3mm steel body with 8mm sensor supports minimizes vibration interference. Self-calibration system maintains consistent accuracy over time, reducing rework and customer comebacks.
Wide Capacity Range
Handles wheels from 12" to 30" clamp range with 47" maximum wheel diameter on the tire changer. The balancer accommodates wheel widths from 3" to 12" with maximum assembly weights up to 143 lb. Covers passenger cars through light trucks in a single equipment solution, eliminating the need for separate machine investments.
Integrated Assist Systems

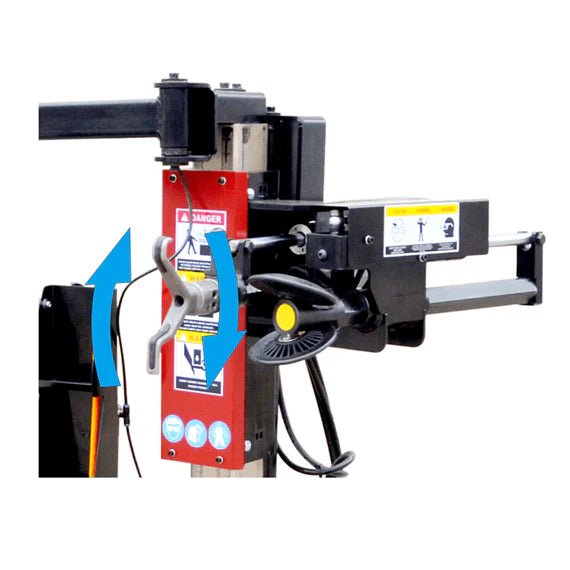

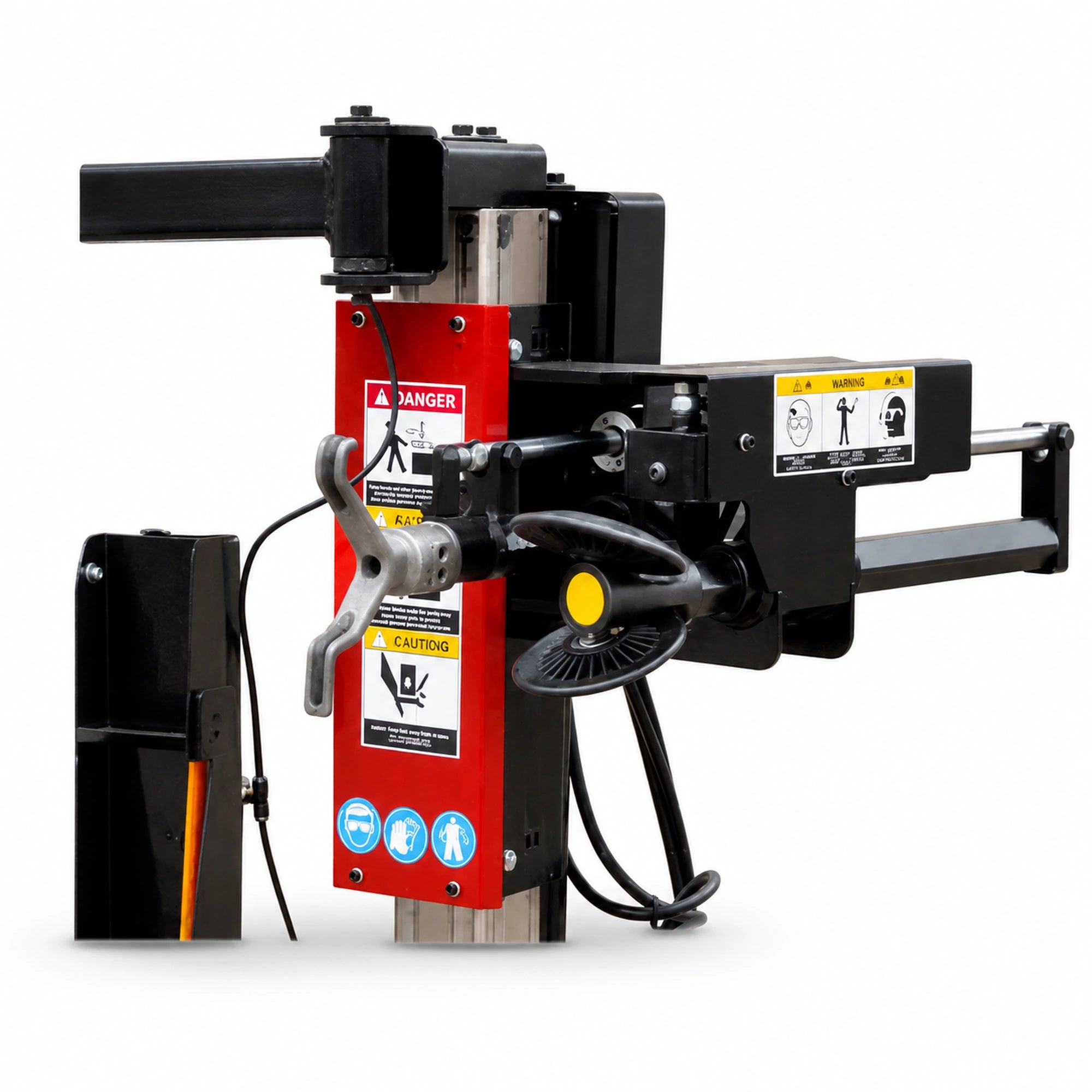

The KT-T900 features a built-in wheel lift assistant and top assist arm for handling heavy wheel assemblies and difficult tire mounting. The copper-wound motor design provides superior heat dissipation during extended use, while advanced air filtration extends pneumatic system service life. Allows one technician to handle operations that typically require two people.
Self-Calibrating Operation
The KT-B760 includes automatic fault diagnosis and self-calibration systems with moisture-proof, dust-proof, and anti-static control board protection. Multiple balance modes adapt to different rim types while the automatic measurement ruler eliminates pre-set parameter requirements. Protected electronics maintain accuracy in demanding shop environments.
Product Demonstration
Applications & Use Cases
- Automotive Repair Shops: General tire service for passenger vehicles and light trucks with rim protection systems
- Tire Service Centers: High-volume tire mounting and balancing for diverse vehicle types
- Performance Garages: Specialty service for aftermarket wheels and ultra-high performance tires
- Light Truck Service: Commercial and pickup truck tire service with capacity for assemblies up to 143 lb
- Run-Flat Tire Service: Specialized mounting and balancing requiring leverless operation and top assist systems
Technical Specifications
| Specification | Value |
|---|---|
| Max Wheel Diameter | 47" (1,200 mm) |
| Max Wheel Width | 16" (406 mm) |
| Wheel Clamp Range | 12" - 30" external |
| Gearbox Motor Power | 1.5 kW (2.0 HP) |
| Hydraulic Power | 1.1 kW (1.5 HP) |
| Rotation Speed | 6.8 RPM |
| Air Pressure Requirement | 0.8 - 1.0 MPa (116-145 psi) |
| Net Weight | 188 kg (414 lb) |
| Specification | Value |
|---|---|
| Rim Diameter Capacity | <30" |
| Wheel Width Range | 3" - 12" |
| Max Wheel Diameter | <880 mm (34.64") |
| Max Wheel Weight | <65 kg (143 lb) |
| Balancing Accuracy | ±1g |
| Measuring Time | 7 seconds |
| Balancing Speed | 180 RPM |
| Motor Power | 0.25 kW |
Installation Requirements
Power Requirements
- KT-B760 Balancer: 110V, 1-phase, 60 Hz
- KT-T900 Tire Changer: Verify with dealer (110V or 220V configurations available)
- Circuit Protection: Dedicated circuits recommended
Air Supply
- Operating Pressure: 0.8 - 1.0 MPa (116-145 psi)
- Air Quality: Clean, dry compressed air recommended
- Filtration: Advanced air filtration system included
Installation Notes
- Delivery: Forklift or equivalent required for unloading
- Floor Surface: Level concrete recommended
Shipping & Delivery
Freight Coverage
Shipping: Shipping to commercial addresses within 48 contiguous US states. Surcharges may apply for residential, rural, Alaska, and Hawaii.
Delivery Timeframe: 3-10 business days (subject to inventory availability).
Delivery Requirements
Forklift Required: Customer responsible for unloading equipment.
Delivery Type: Standard curbside freight. Liftgate available for additional cost.
Receiving: Inspect all packages before signing. Note any visible damage on BOL before driver departs.
Damage Reporting
Within 15 days: Full coverage for replacement parts and freight
Within 30 days: Shared cost coverage
After 30 days: No coverage
Warranty Coverage
12-Month Parts Warranty
12 Months - Parts Coverage: Manufacturing defects on both tire changer and wheel balancer
Exclusions: Labor costs, freight shipping, and damage from misuse or normal wear not included
Warranty Requirements
Eligibility: Original purchaser only (non-transferable)
Maintenance: Proper installation and maintenance required
Product Documentation
Ready to Upgrade Your Shop?
Get expert guidance on the right tire service equipment for your facility. Our team can help with product selection, installation planning, and technical specifications.
Frequently Asked Questions
What is the maximum wheel diameter capacity for the KT-T900 tire changer?
47" diameter with 12" to 30" external clamp range. Max wheel width 16" (406 mm). Suitable for passenger cars through light trucks.
What accessories are included with the Katool combo package?

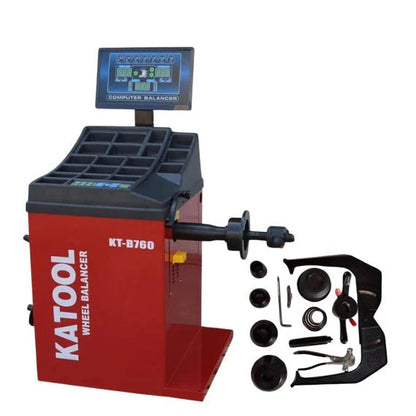

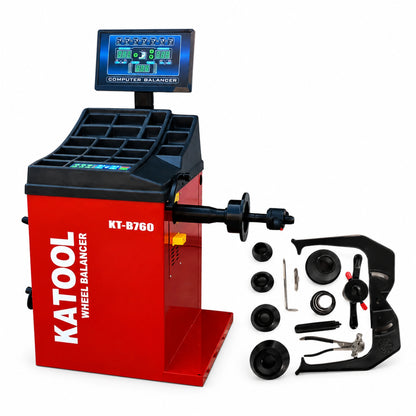

Wheel lift assistant, top assist arm, stainless mounting head with plastic rim protectors, automatic measurement ruler, and standard cone set. Call to confirm specific included accessories.
What are the power requirements for installation?
KT-B760 balancer: 110V, 1-phase. KT-T900 tire changer: verify with dealer (110V or 220V configurations available). Dedicated circuits recommended.
What is the balancing accuracy and speed of the KT-B760?
±1g accuracy with 7-second measurement cycles at 180 RPM balancing speed.
Can this equipment handle run-flat and low-profile tires?
Yes. The KT-T900 features leverless hydraulic operation and built-in top assist arm specifically for run-flat and low-profile tires without rim damage.
What is the warranty coverage for both machines?
12-month parts warranty against manufacturing defects. Original purchaser only; non-transferable. Labor and freight not included.
What air pressure is required for the tire changer operation?
0.8 to 1.0 MPa (116-145 PSI). Clean, dry compressed air recommended. Advanced air filtration included.
How does this combo compare to separate equipment purchases?
Eliminates compatibility issues and provides unified training. Covers 12" to 47" wheel diameter in a single package, reducing floor space requirements and total investment.
