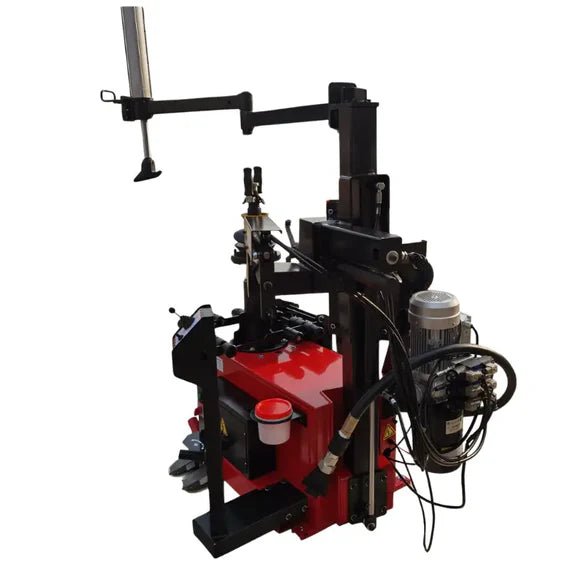

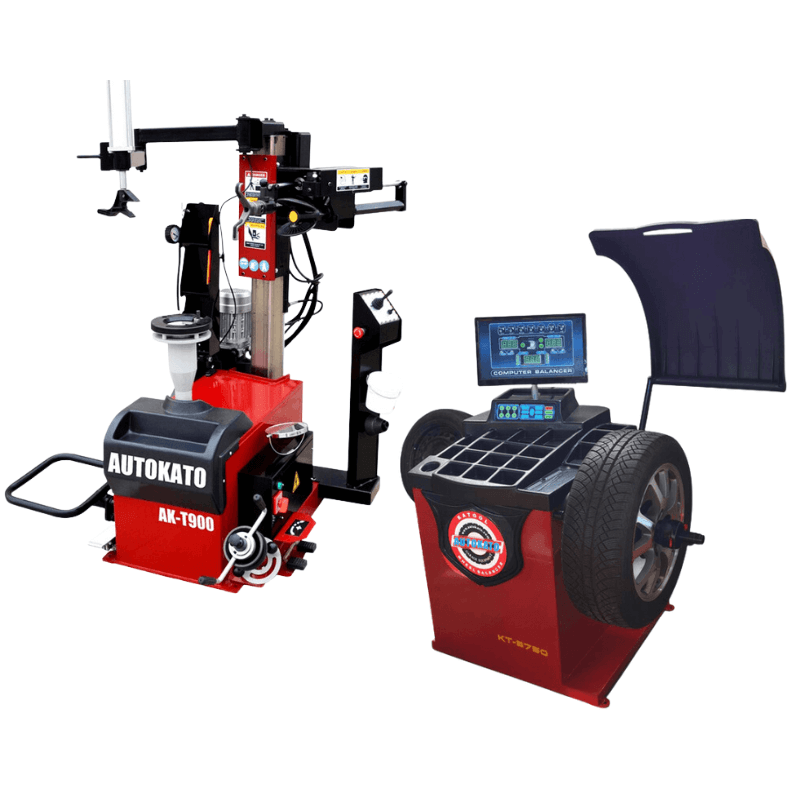

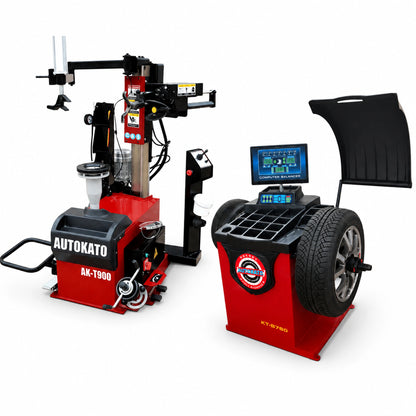

Katool KT-T900 + KT-B750 – Tire Changer + Wheel Balancer (Combo)
Katool KT-T900 & KT-B750 Tire Machine and Balancer Combo for Pro Shops

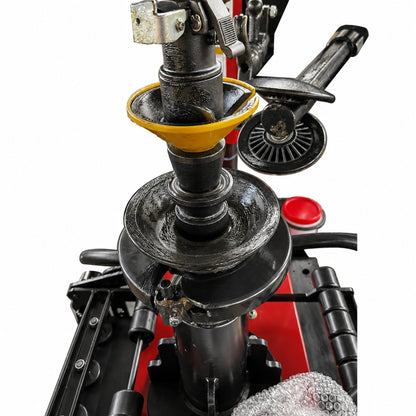

The Katool KT-T900 and KT-B750 form a complete tire machine and balancer combo designed for professional shops. This package features a 47-inch wheel capacity hydraulic center-post tire changer with leverless operation, paired with a precision wheel balancer offering a 7-second cycle time. This combo handles passenger cars, SUVs, and light trucks, with built-in top assist capability for run-flat tires.
Key Features & Benefits

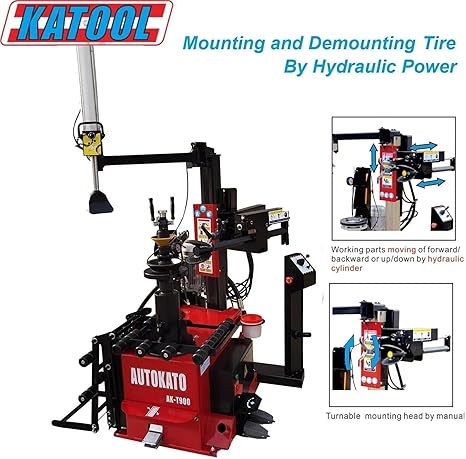

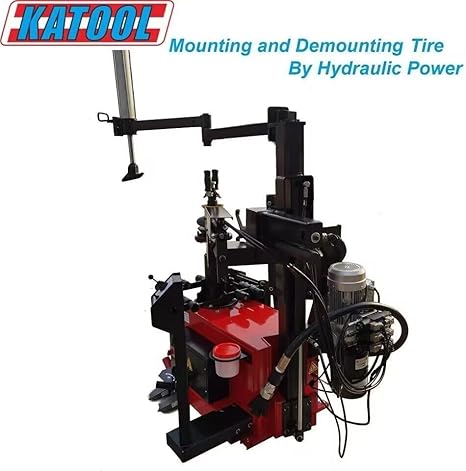

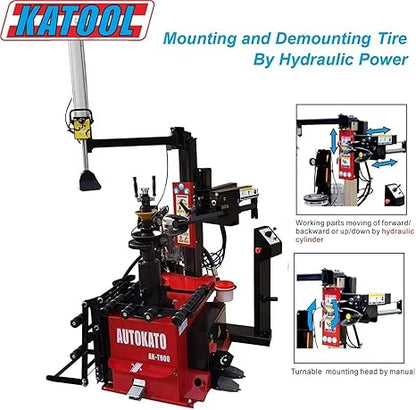

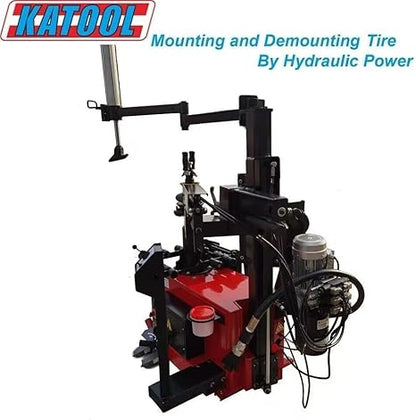

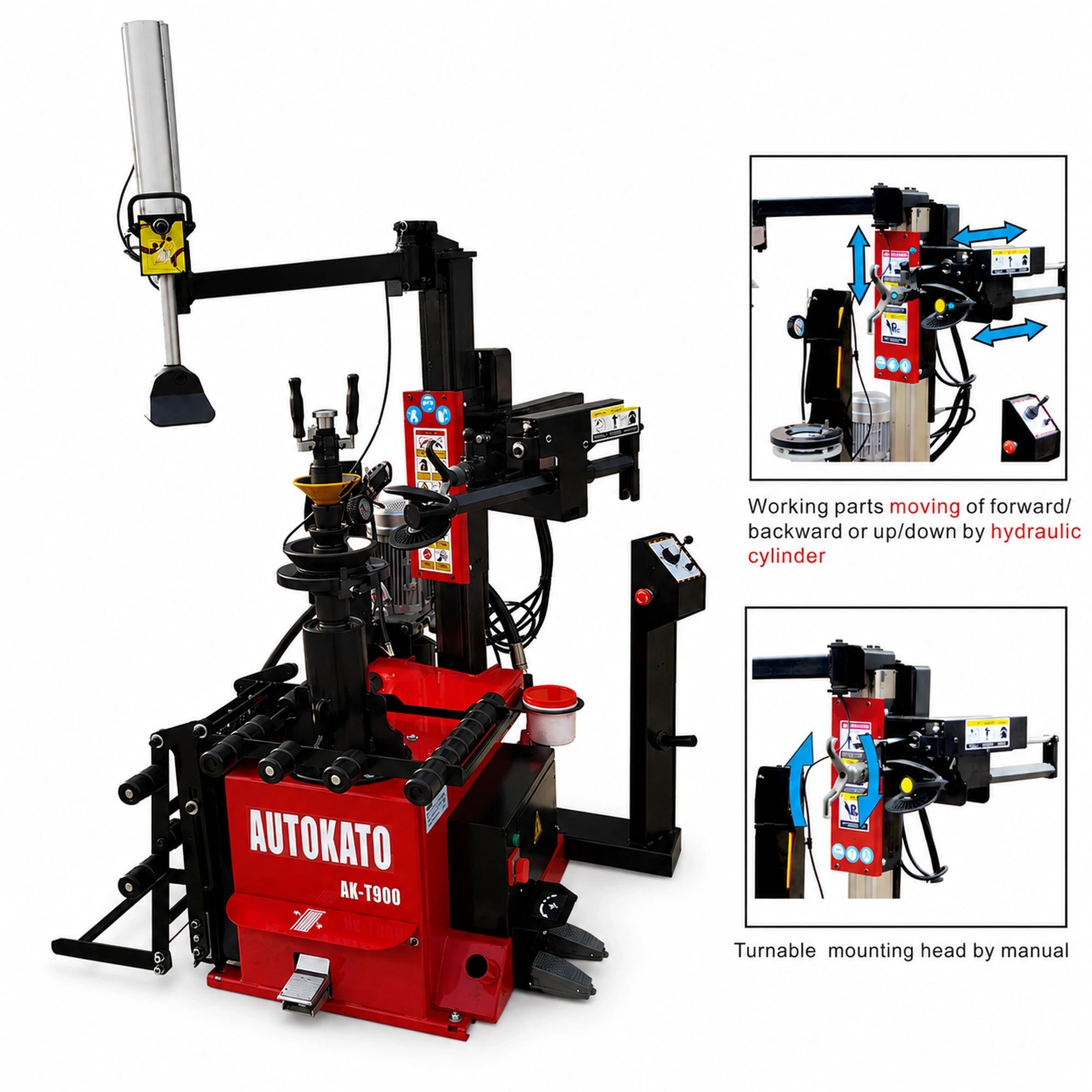

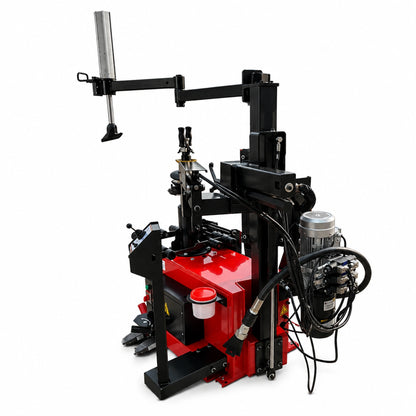

All-Hydraulic Power System
The KT-T900's all-hydraulic operation ensures consistent force throughout tire removal and installation, eliminating the jerky operation common in pneumatic-assisted models. The 1.5 HP hydraulic system combined with a 2.0 HP gearbox motor delivers reliable power for heavy-duty commercial applications, maintaining smoothness regardless of shop air supply fluctuations.

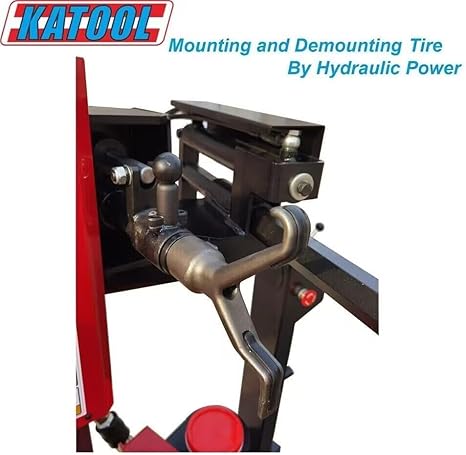

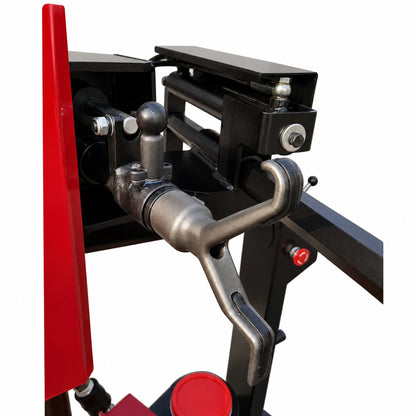

Leverless Rim Protection Technology
The stainless steel mounting head with protective plastic covers combined with a leverless design eliminates traditional pry bar risks. This system safely handles expensive alloy and custom wheels using controlled hydraulic pressure rather than manual force. It reduces wheel damage liability and preserves the finish of high-value custom rims.

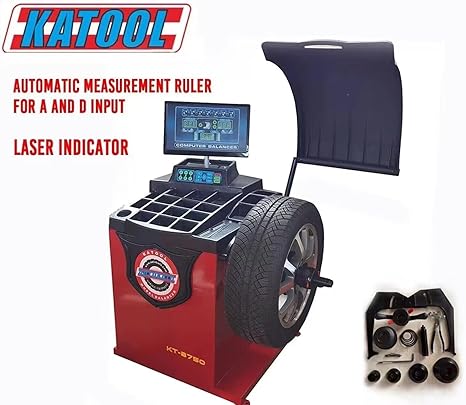

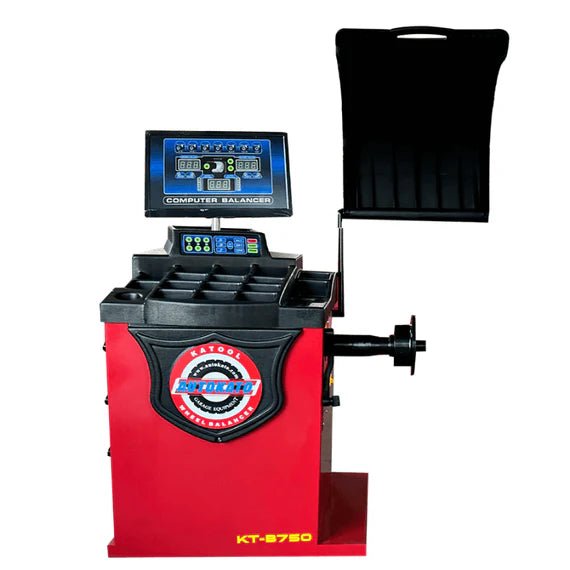

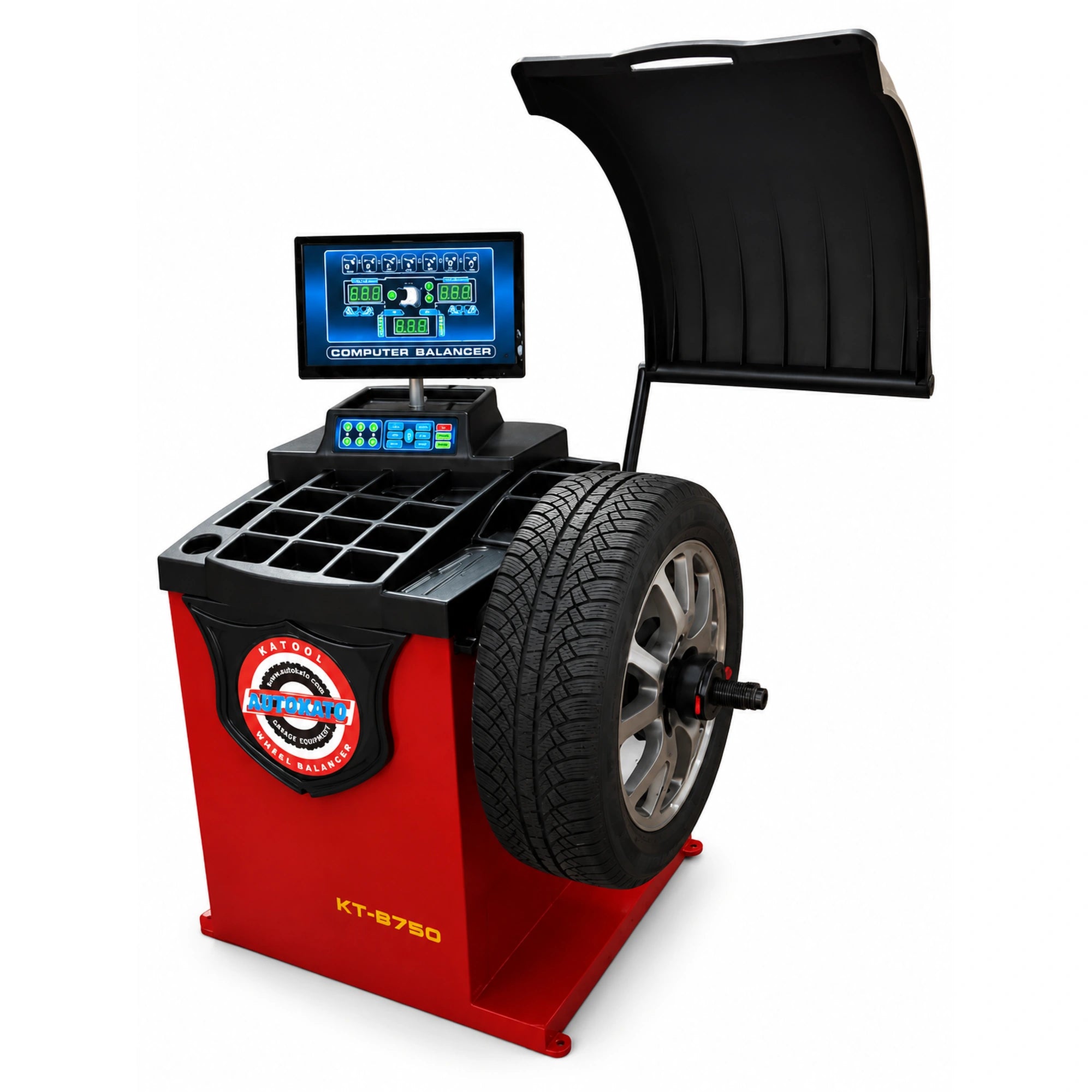

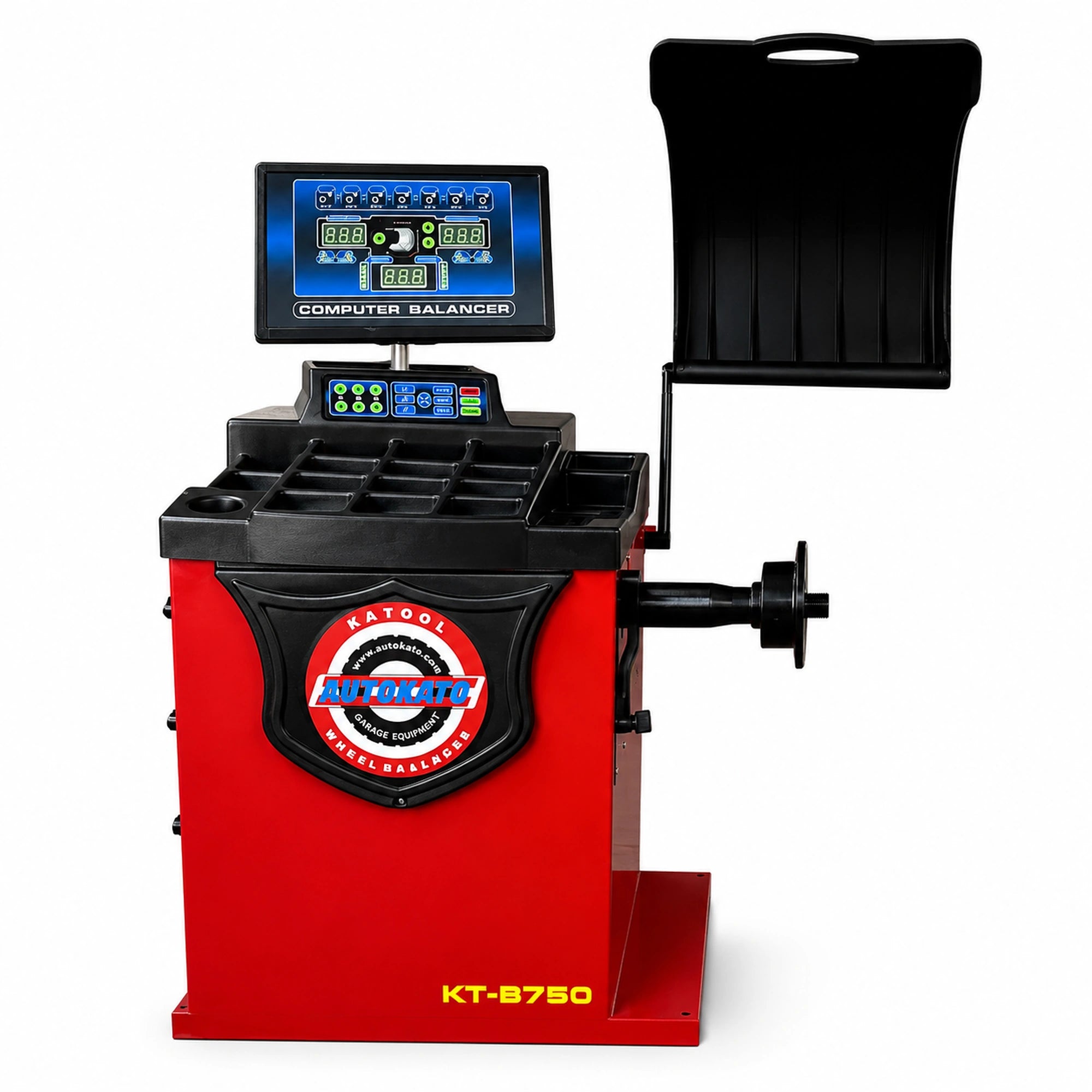

Professional Balancing Speed and Precision
The KT-B750 delivers 7-second measurement cycles and ±1g accuracy to meet modern vehicle manufacturer specifications. The 180 RPM balancing speed with automatic measurement ruler optimizes shop workflow by significantly reducing setup time between operations, increasing daily throughput.
Run-Flat and Low-Profile Capability
The built-in top assist arm and hydraulic assist provide the force needed for modern OEM tire technologies, including run-flat tires with reinforced sidewalls and ultra-low-profile applications. The wheel lift assistant device reduces manual handling of heavy wheel assemblies during service, expanding your shop's capability to service performance vehicles.
Commercial-Grade Construction
Pure copper-wound motors offer superior heat dissipation, while the KT-B750's 3mm steel body thickness and 8mm sensor plate construction reduce vibration and extend service life. The moisture-proof control board is built to withstand demanding workshop environments.
Product Demonstration
Applications & Use Cases
- Professional Automotive Repair Shops: High-volume tire service for passenger cars and light trucks.
- Tire Service Centers: Commercial operations processing run-flat and low-profile performance tires.
- Independent Service Garages: Upgrading from manual equipment to hydraulic systems for efficiency.
- Fleet Maintenance Facilities: Servicing fleet vehicles with standardized wheel specifications.
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Wheel Diameter | 47 inches (1,200 mm) |
| Maximum Wheel Width | 16 inches (406 mm) |
| Wheel Clamp Range | 12-30 inches |
| Motor Power | 2.0 HP (1.5 kW) |
| Hydraulic Power | 1.5 HP (1.1 kW) |
| Rotation Speed | 6.8 RPM |
| Air Pressure Requirement | 0.8-1.0 MPa (116-145 PSI) |
| Net Weight | 414 lb (188 kg) |
| Power Supply | 110V / 1PH / 60Hz |
| Specification | Value |
|---|---|
| Rim Diameter Capacity | 8-30 inches |
| Wheel Width Range | 3-12 inches |
| Maximum Wheel Weight | 143 lb (65 kg) |
| Balancing Speed | 180 RPM |
| Balancing Accuracy | ±1g |
| Measuring Time | 7 seconds |
| Motor Power | 0.25 kW |
| Power Supply | 110-120V single-phase |
Product Manuals
Operation Manuals
KT-T900 Tire Changer Manual: Download PDF
KT-B750 Wheel Balancer Manual: Download PDF
Installation Requirements
Power Requirements
- KT-T900: 110V single-phase dedicated circuit.
- KT-B750: 110-120V single-phase dedicated circuit.
- Installation: Electrical connections must comply with local codes.
Compressed Air Supply
- Operating Pressure: 0.8-1.0 MPa (116-145 PSI).
- Supply Line: Dedicated air line to KT-T900 tire changer.
- Compressor Capacity: Adequate CFM rating for continuous operation.
Foundation and Space
- Floor Surface: Solid, level concrete surface required.
- Clearance: Ensure adequate space for wheel loading and operator movement.
- Unloading: Forklift required for freight delivery handling.
Shipping & Delivery
Freight Coverage
Shipping: Free freight shipping to commercial addresses within the continental United States. Surcharges may apply for residential locations.
Delivery Requirements
Unloading Equipment: Forklift or equivalent required. Drivers do not unload.
Receiving: Inspect all packages before signing the bill of lading.
Warranty Coverage
12-Month Limited Warranty
1 Year - All Parts: Covers defects in motors, hydraulics, electronics, and control systems.
Coverage Includes: Replacement parts and freight shipping provided at no cost.
Warranty Requirements
Registration: Product registration required within 30 days of purchase.
Eligibility: Valid for original purchaser only.
Ready to Upgrade Your Shop?
Talk with our team about whether this tire machine and balancer combo is the right fit for your volume and wheel sizes. Call to confirm included accessories and installation requirements.
Frequently Asked Questions
What is the maximum wheel size the KT-T900 can handle?
The KT-T900 handles wheels up to 47 inches in diameter and 16 inches in width with a wheel clamp range of 12-30 inches. This capacity covers passenger cars, SUVs, and light trucks including oversized applications.
What accessories are included with the combo package?
The KT-T900 includes a stainless steel mounting head, top assist arm, and wheel lift assistant. The KT-B750 includes an automatic measurement ruler, safety guard, mounting cones, and wheel weight tools.
What are the power requirements for installation?
Both units require 110V single-phase power with dedicated circuits. The KT-T900 also requires a compressed air supply at 0.8-1.0 MPa (116-145 PSI).
Can these units handle run-flat tires?
Yes. The KT-T900 features a built-in top assist arm and 1.5 HP hydraulic power system specifically designed for run-flat and low-profile tires.
How accurate is the KT-B750 wheel balancer?
The KT-B750 provides ±1g balancing accuracy with a 7-second measurement time at 180 RPM balancing speed.
What is covered under the warranty?
The 12-month limited warranty covers all parts and product defects including motors, hydraulics, and electronics. Replacement parts and freight shipping are provided at no cost.
Is Katool a good brand for tire machines?
Yes. Katool offers commercial-grade features like hydraulic operation and leverless heads at a competitive price point, backed by a robust parts warranty. It is a solid choice for professional shops seeking value without sacrificing capability.
