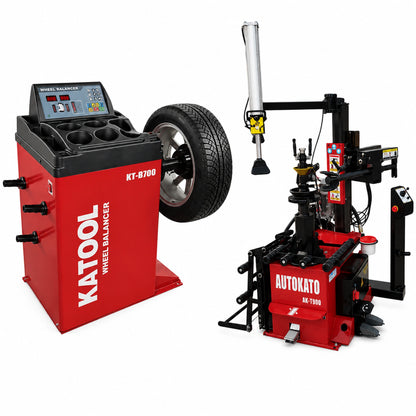

Katool KT-T900 & KT-B700 - Professional Tire Changer & Wheel Balancer Combo

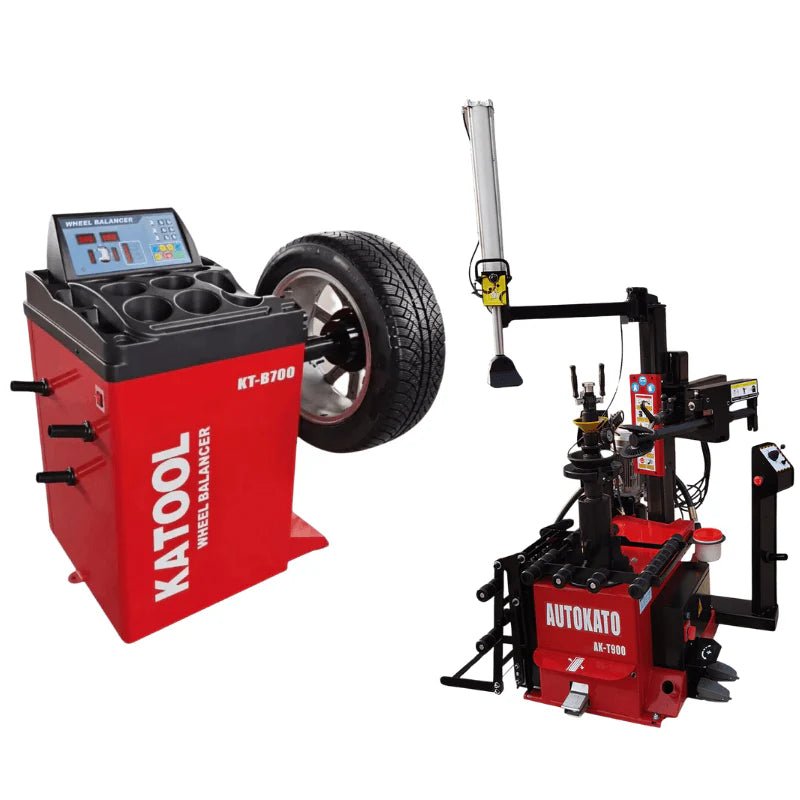

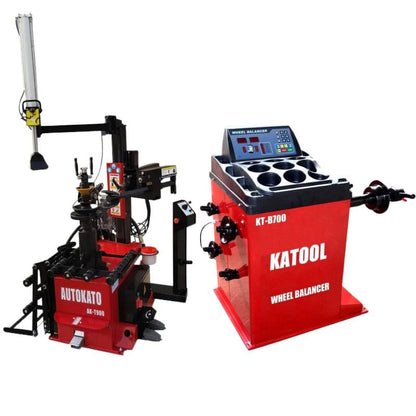

The Katool KT-T900 & KT-B700 combo delivers professional wheel service capabilities with fully hydraulic operation and precision balancing. Featuring a 47-inch wheel diameter capacity and ±1g balancing accuracy, this system handles passenger vehicles and light trucks. It includes a lever-less mounting design and integrated top assist arm for safe, efficient operation on modern alloy wheels.
Key Features & Benefits

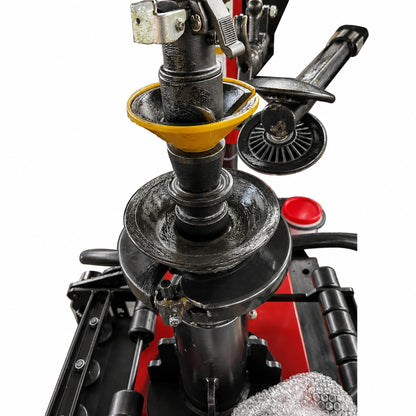

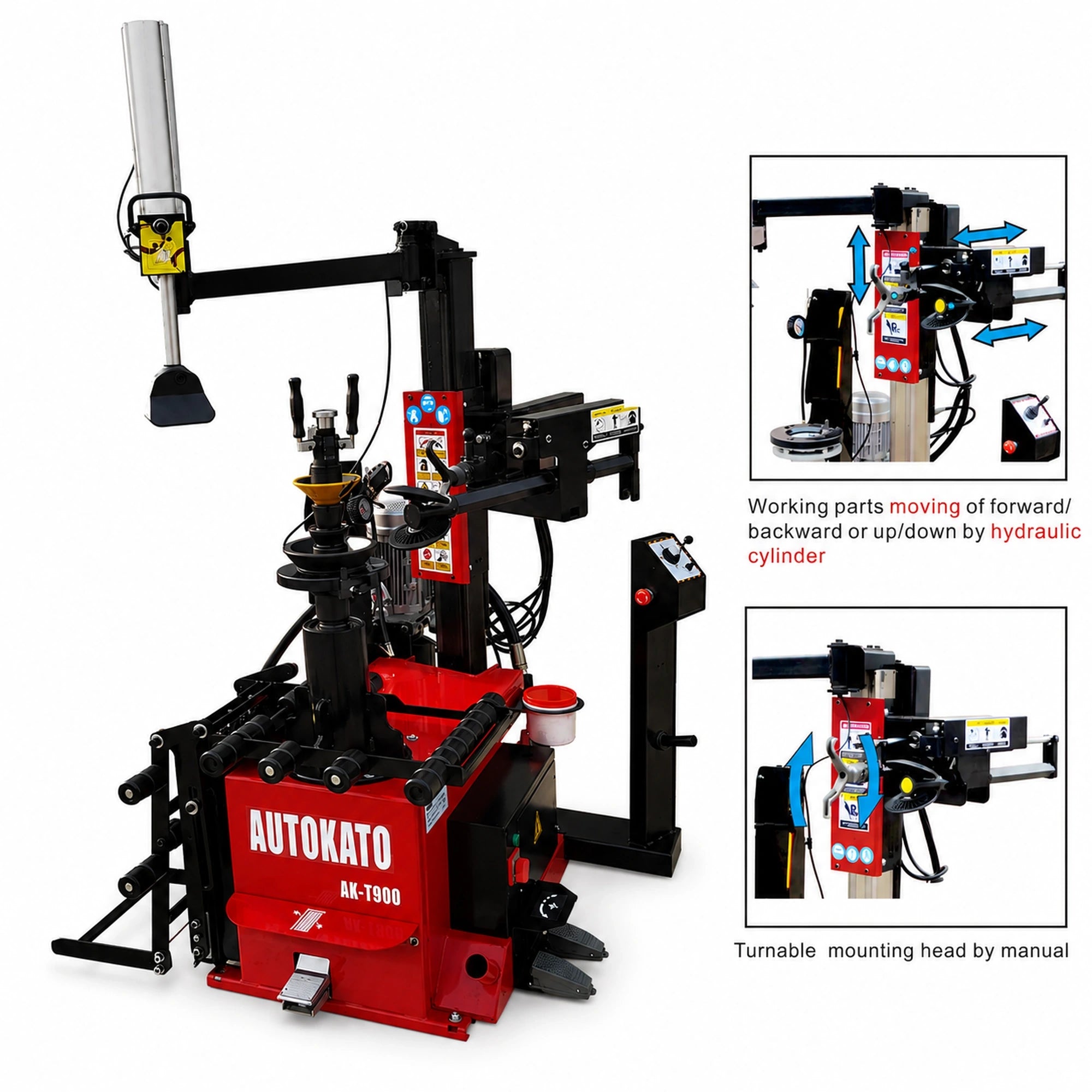

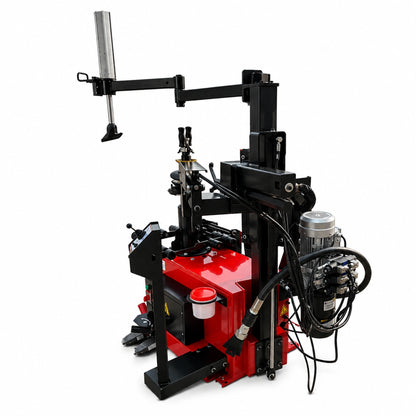

Fully Hydraulic Center-Post System

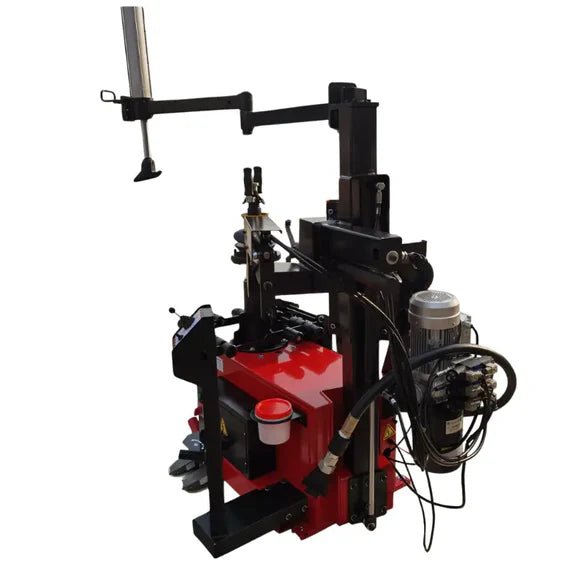

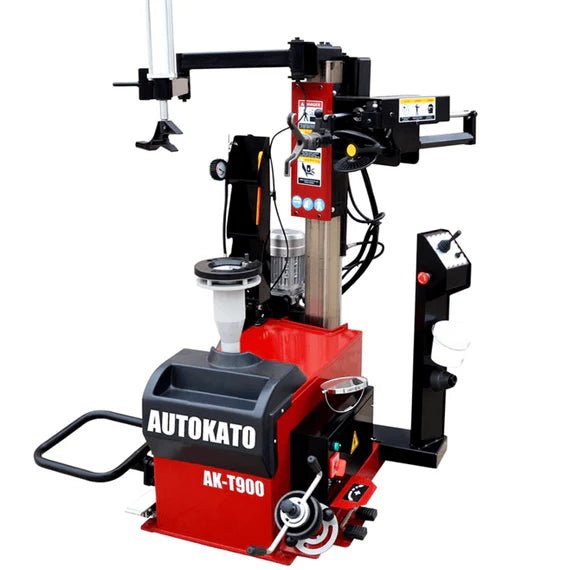

The KT-T900 operates with 1.5 kW gear motor power plus 1.1 kW hydraulic drive, delivering consistent force throughout the tire changing process. This all-hydraulic design provides automatic, consistent pressure regardless of tire stiffness, eliminating the mechanical stress points and power fluctuations common in pneumatic systems.
Integrated Assist Arm for Run-Flat Tires

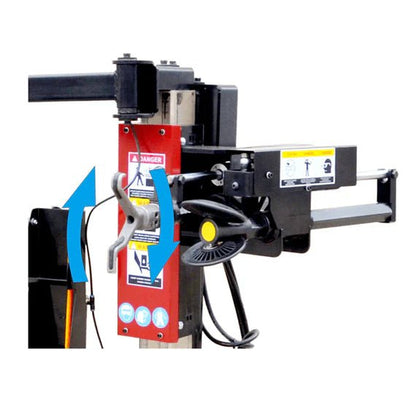

The built-in top assist arm delivers targeted pressure for mounting challenging run-flat and low-profile tires without requiring separate equipment. This system applies controlled force at the optimal contact point during bead seating operations, eliminating the need for expensive add-on assist devices.

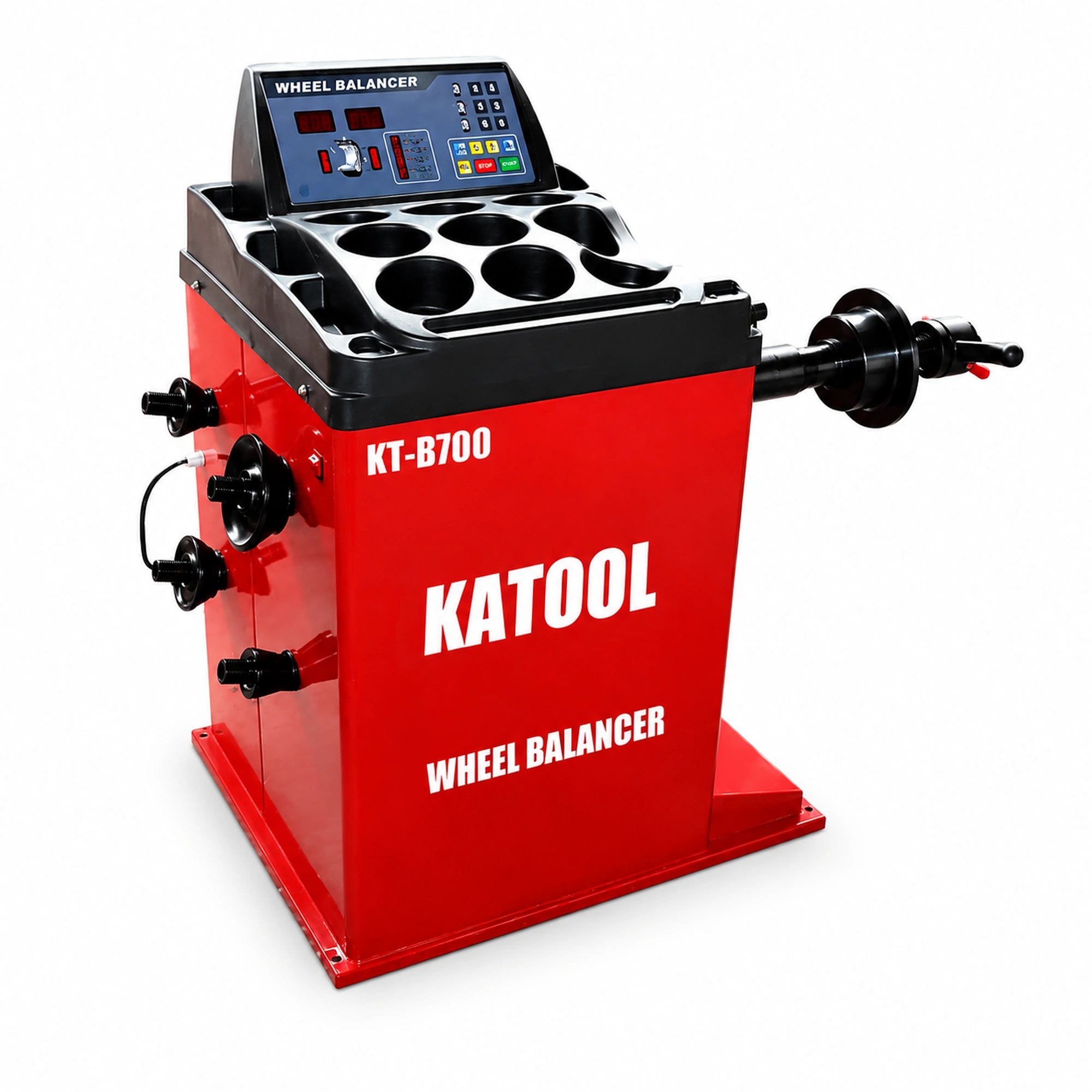

7-Second Precision Balancing with Self-Calibration

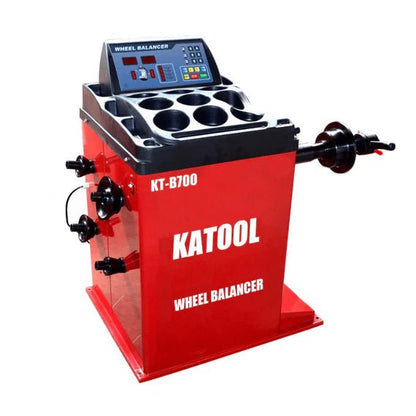

The KT-B700 delivers ±1g balancing accuracy with a fast 7-second measurement cycle and 180 RPM operation. The built-in self-calibration program and automatic measurement ruler ensure consistent accuracy over time, reducing manual setup errors and technician training requirements.
110V Single-Phase Power Compatibility
Both machines operate on standard 110V single-phase power, eliminating the need for expensive three-phase electrical upgrades. The motors feature pure copper windings for superior heat dissipation and efficiency, making professional tire service accessible to shops with standard electrical infrastructure.

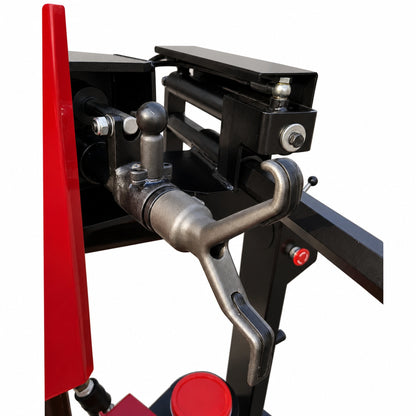

Lever-Less Design with Rim Protection
The lever-less stainless steel mounting head with plastic rim protectors prevents wheel damage by eliminating the need for tire irons. This system applies controlled hydraulic pressure to lift the bead, protecting expensive custom and OEM alloy wheels from scratches and gouges.
CE Certification with 12-Month Parts Warranty
Both machines carry CE certification and include comprehensive 12-month parts warranty coverage. This ensures compliance with safety standards and provides protection against manufacturing defects for all major components, including motors, hydraulics, and electronics.
Product Demonstration
Applications & Use Cases
- Automotive Repair Facilities: General passenger car and light truck tire service.
- Tire Retail Businesses: High-volume tire mounting and balancing operations.
- Performance Shops: Specialized service for low-profile and custom wheels.
- Fleet Maintenance: Commercial vehicle tire service for delivery and service fleets.
- Wheel Repair Shops: Precision service for bent rim repair and wheel straightening workflows.
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Wheel Diameter | 47 inches (1,200 mm) |
| Maximum Wheel Width | 16 inches (406 mm) |
| Wheel Clamp Range | 12-30 inches |
| Gearbox Motor Power | 1.5 kW (2 HP) |
| Hydraulic Power Unit | 1.1 kW (1.5 HP) |
| Rotation Speed | 6.8 RPM |
| Power Supply | 110V / 1-phase / 60Hz |
| Air Pressure Requirement | 0.8-1.0 MPa (116-145 PSI) |
| Net Weight | 188 kg (414 lb) |
| Specification | Value |
|---|---|
| Maximum Rim Diameter | 30 inches |
| Wheel Width Range | 3-12 inches |
| Maximum Wheel Diameter | 880 mm (34.6 inches) |
| Maximum Wheel Weight | 65 kg (143 lb) |
| Balancing Speed | 180 RPM |
| Balancing Accuracy | ±1g |
| Measuring Time | 7 seconds |
| Motor Power | 0.25 kW |
| Power Supply | 110-120V / 1-phase |
Installation Requirements
Power Requirements
- Electrical Supply: 110V single-phase dedicated circuit for both machines.
- Tire Changer Power: 2.6 kW total (1.5 kW gear motor + 1.1 kW hydraulic).
- Wheel Balancer Power: 0.25 kW motor power.
- Circuit Protection: Dedicated breakers recommended.
Air Supply Requirements
- Air Pressure: 0.8-1.0 MPa (116-145 PSI) for tire changer operation.
- Connection: Standard shop air coupling with adequate flow.
Environmental Requirements
- Floor Surface: Level concrete floor capable of supporting combined equipment weight.
- Clearances: Ensure space for assist arm operation and wheel handling.
Shipping & Delivery
Freight Coverage
Shipping: Freight shipping to commercial addresses within the lower 48 United States. Surcharges apply for rural or residential locations.
Delivery Requirements
Unloading: Forklift or liftgate service required. Curbside delivery standard.
Inspection: Inspect all packages before signing the Bill of Lading.
Warranty Coverage
12-Month Parts Warranty
Coverage: All components covered for manufacturing defects for 12 months.
Shipping: Replacement parts shipped at no cost.
Requirements
Eligibility: Valid for original purchaser only.
Registration: Recommended within 30 days of purchase.
Product Documentation
Ready to Upgrade Your Shop?
Get expert guidance on the right tire service equipment for your facility. Call to confirm included accessories and installation requirements.
Frequently Asked Questions
What is the maximum wheel diameter that the KT-T900 can handle?
The KT-T900 handles wheels up to 47 inches (1,200 mm) in diameter with a maximum wheel width of 16 inches. The wheel clamp range is 12-30 inches.
What components are included with the combo package?

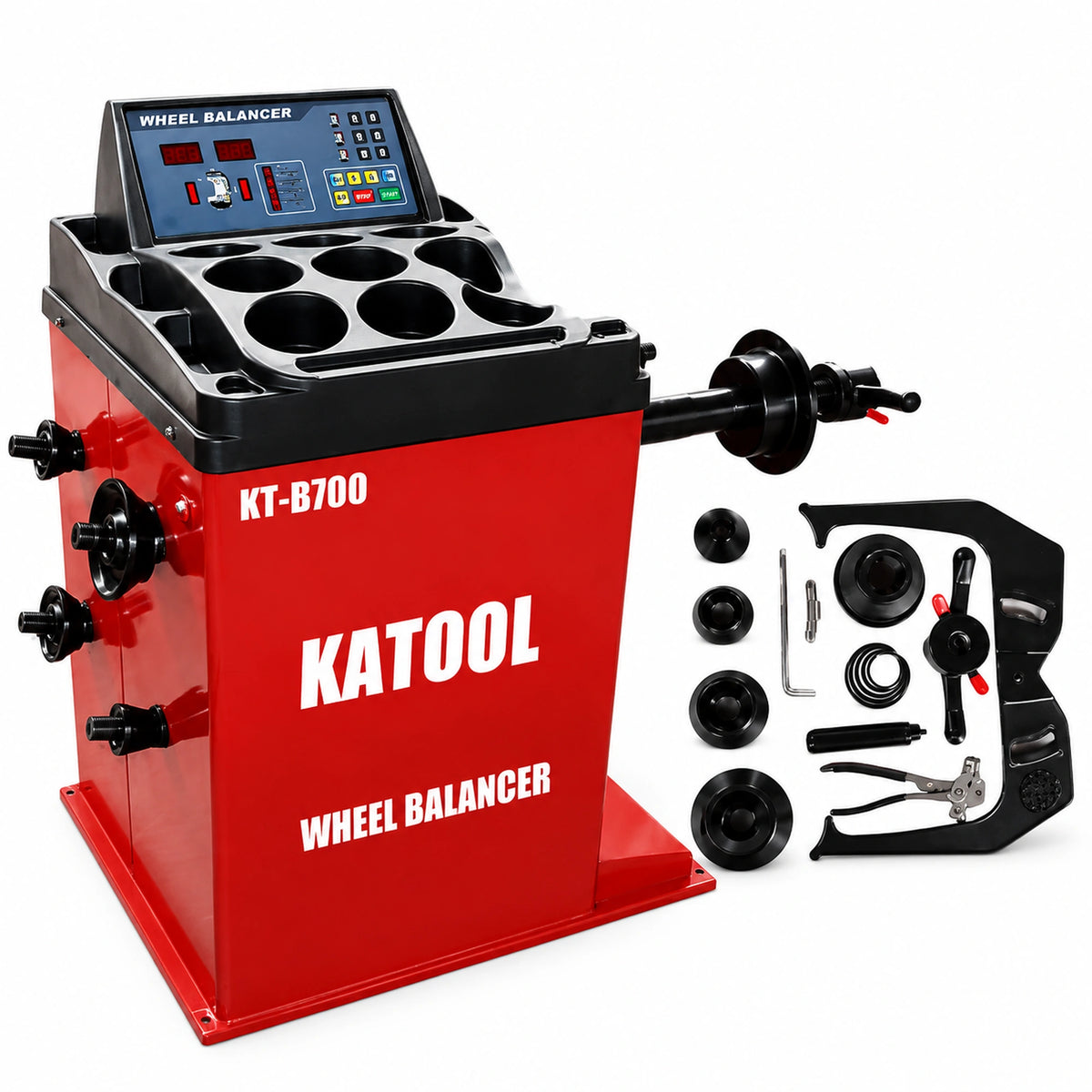

The combo includes the wheel lift, top assist arm, stainless mounting head with plastic rim protectors, standard cone set, calipers, and advanced computer board features.
What are the power requirements?
Both machines operate on 110V single-phase power. The KT-T900 requires approx 2.6 kW total, and the KT-B700 uses 0.25 kW. Dedicated circuits are recommended.
Can these machines handle run-flat tires?
Yes. The KT-T900 features a built-in top assist arm and lever-less mounting head specifically designed to handle run-flat and low-profile tires safely.
What is the balancing accuracy?
The KT-B700 delivers ±1 gram accuracy with a 7-second measuring cycle and automatic measurement capability.
