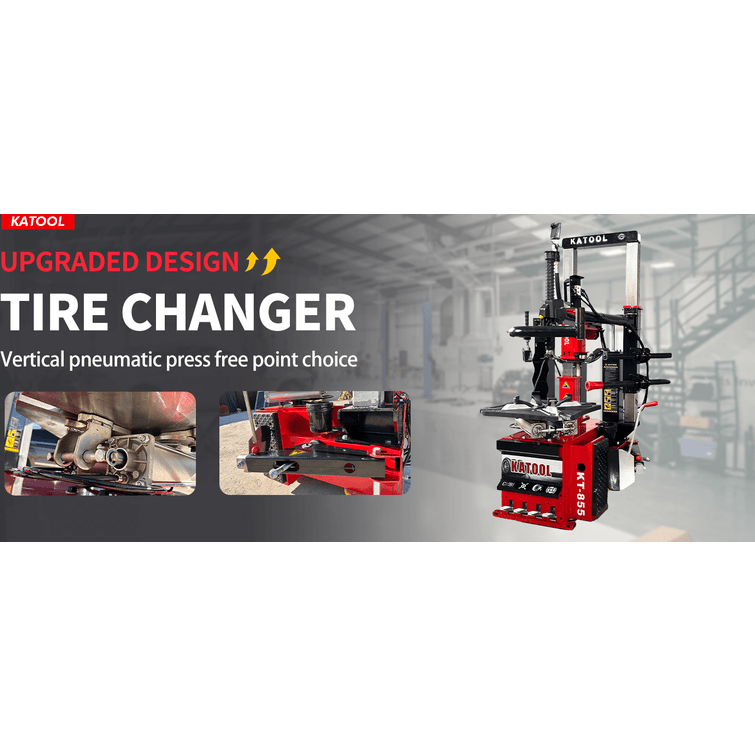

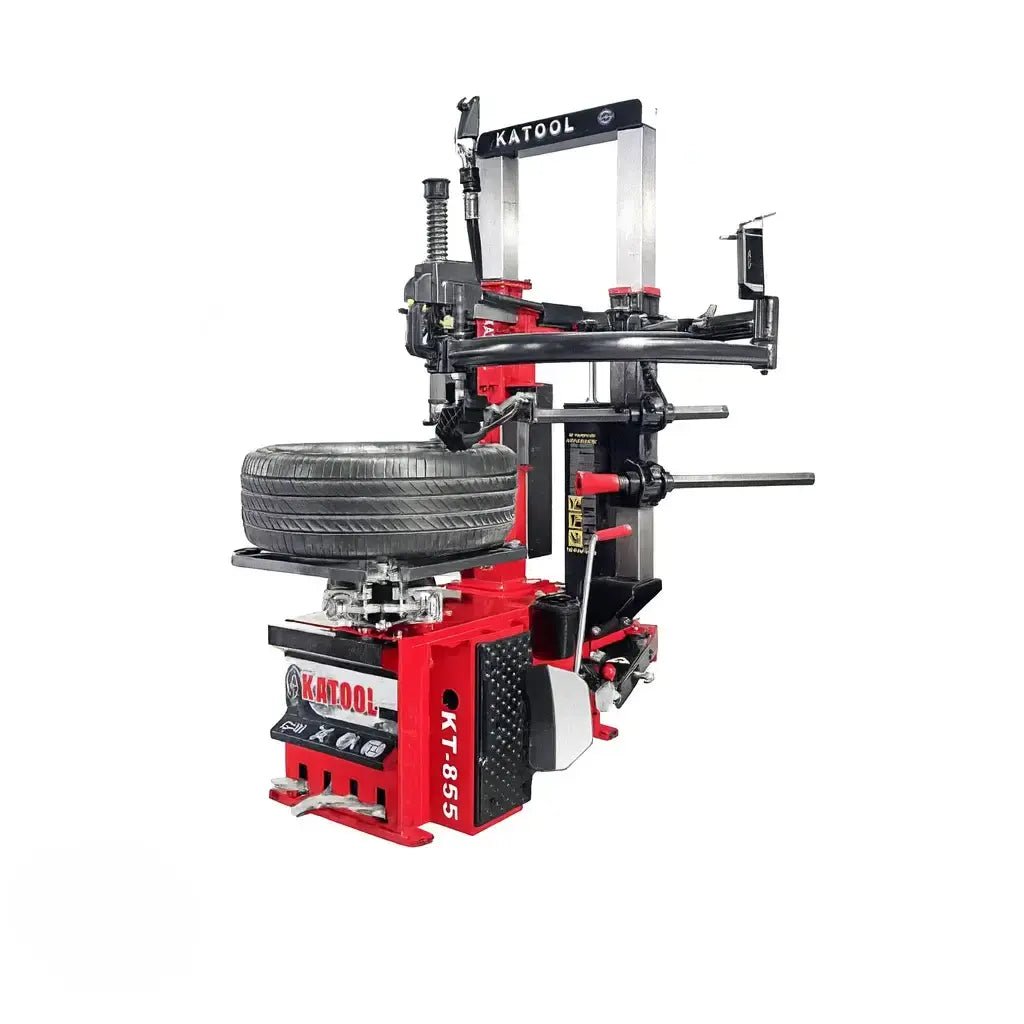

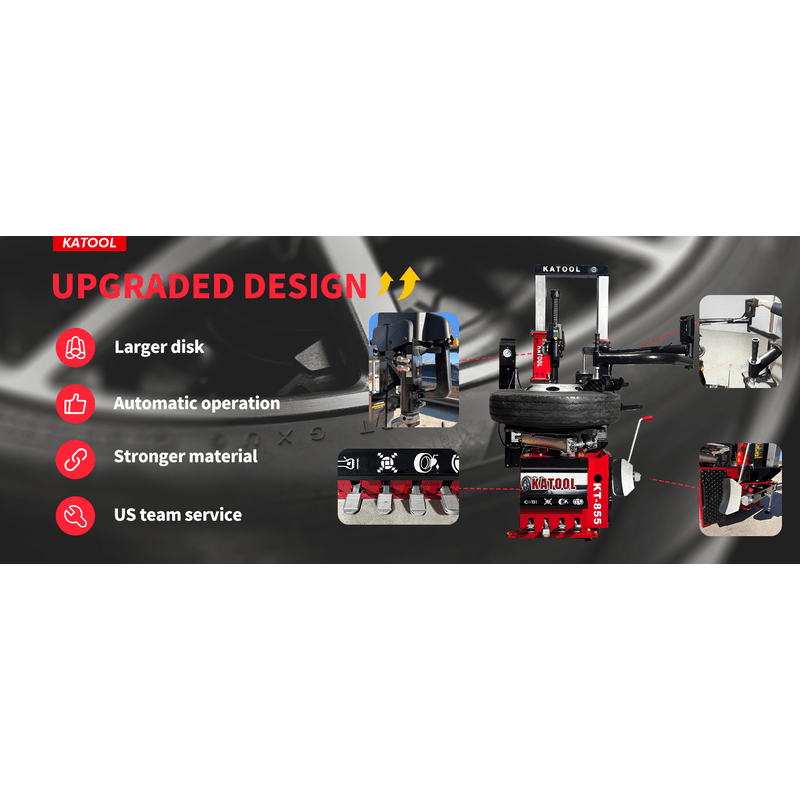

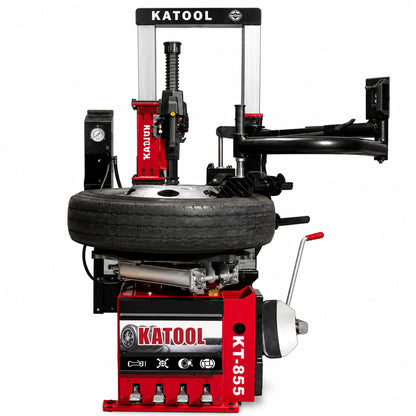

Katool KT-T855 Vertical Press Tire Changer Machine for Professional Shops
The Katool KT-T855 is a vertical press tire changer machine that delivers 2,500 kg of downward bead-breaking force through a pneumatic press mechanism. Featuring a 1.5 kW motor on standard 110V/60Hz power, this 110V tire machine handles passenger vehicle and light truck tires with rim sizes from 12 to 28 inches while operating at less than 70dB.
Key Features & Benefits

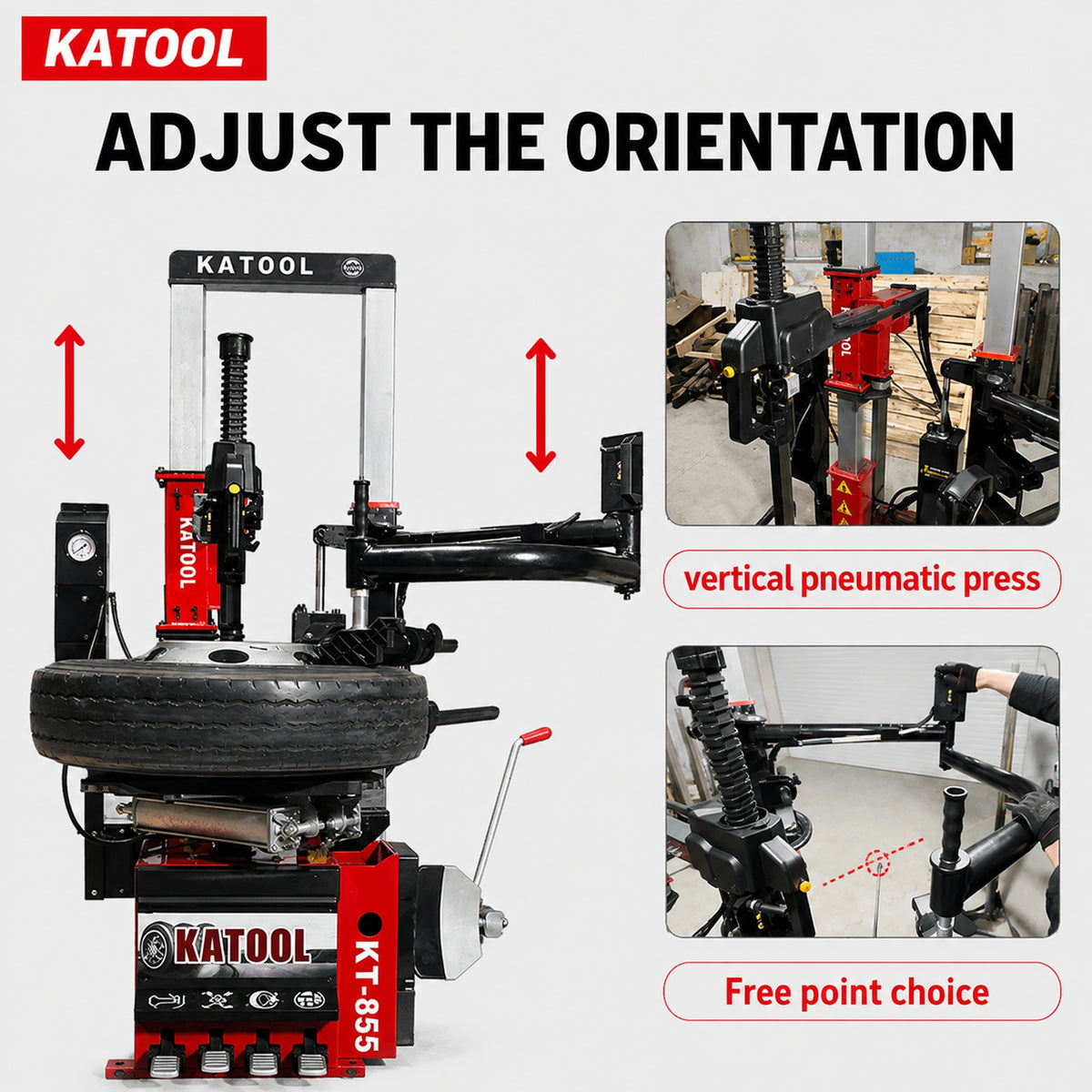

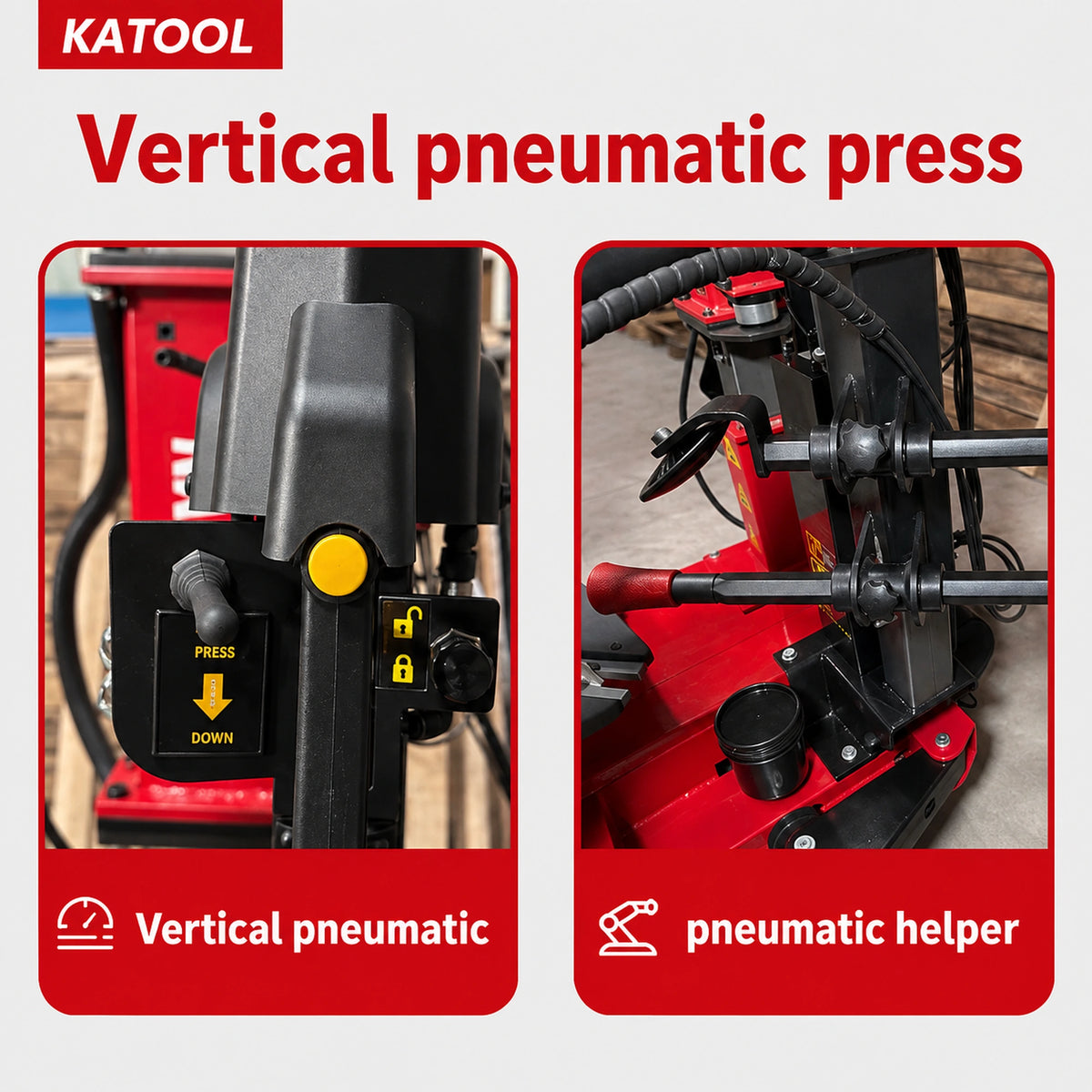

Vertical Press Tire Changer Design for Difficult Tires

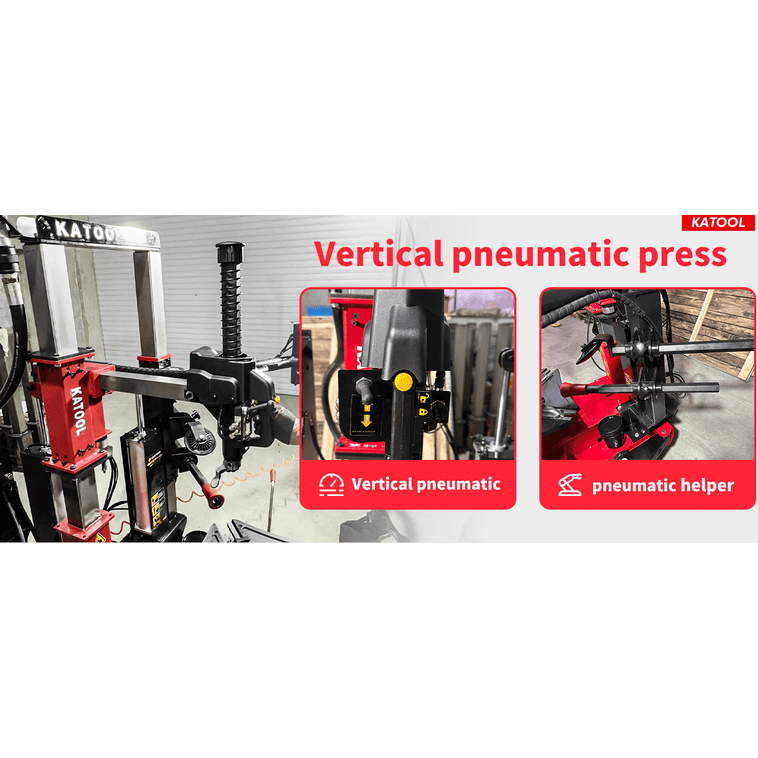

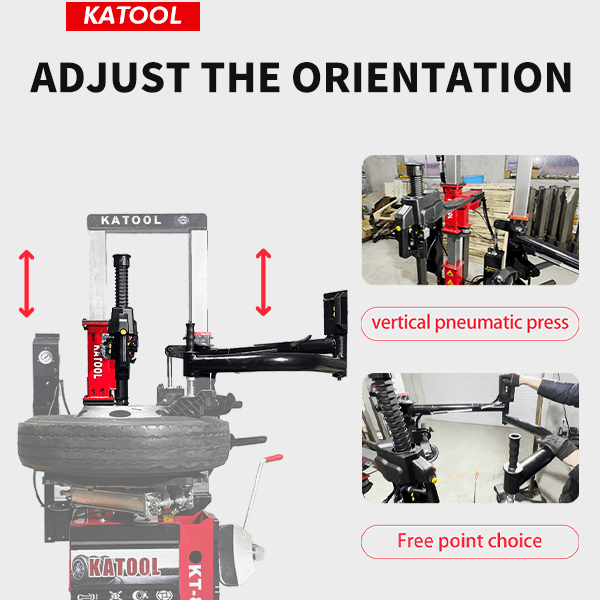

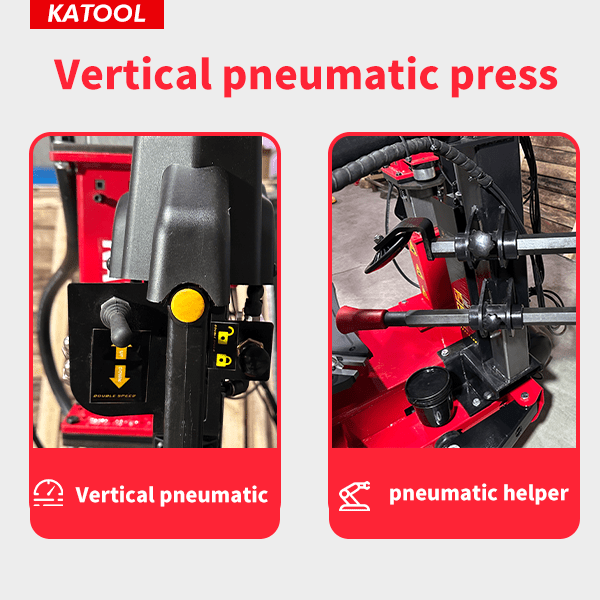

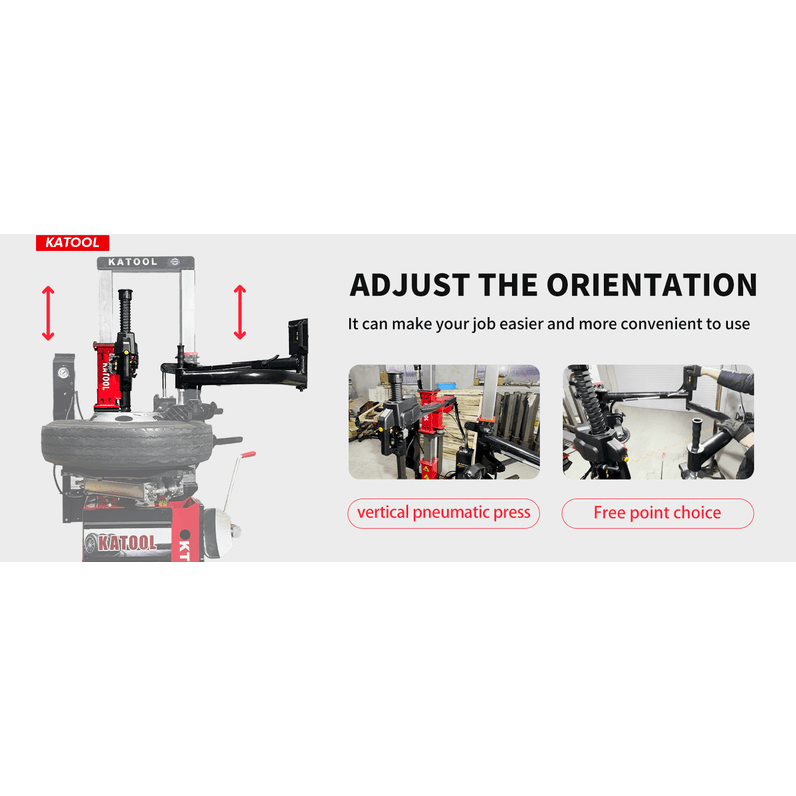

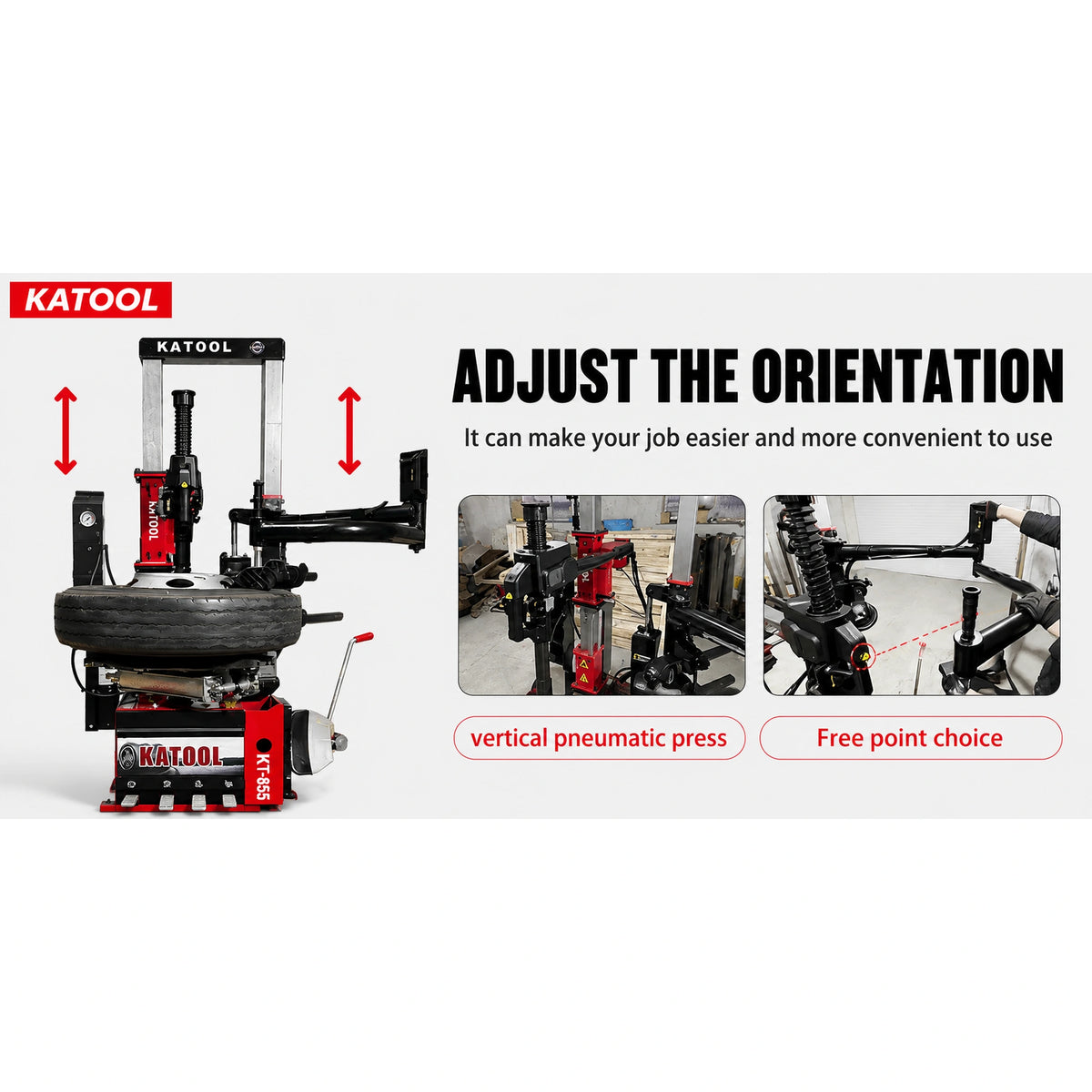

The KT-T855's vertical press mechanism delivers 2,500 kg of direct downward force for bead breaking and mounting operations. Requires 0.8 to 1.0 MPa (116 to 145 PSI) shop air pressure. Unlike swing-arm designs that apply force at an angle, the vertical press applies force perpendicular to the rim, maintaining alignment throughout the stroke. This enables faster tire changes on run-flat tires, performance tires with reinforced sidewalls, and aging rubber bonded to the rim.
Standard 110V Tire Machine with Commercial-Grade Output
Delivers 1.5 kW motor output on standard 110V/60Hz single-phase power with a full-load current of 4.7 amps. Installs on a standard 20-amp circuit without the electrical upgrades that many heavy-duty tire changers require. The pure copper winding motor maintains torque under load while running efficiently on the lower voltage supply.

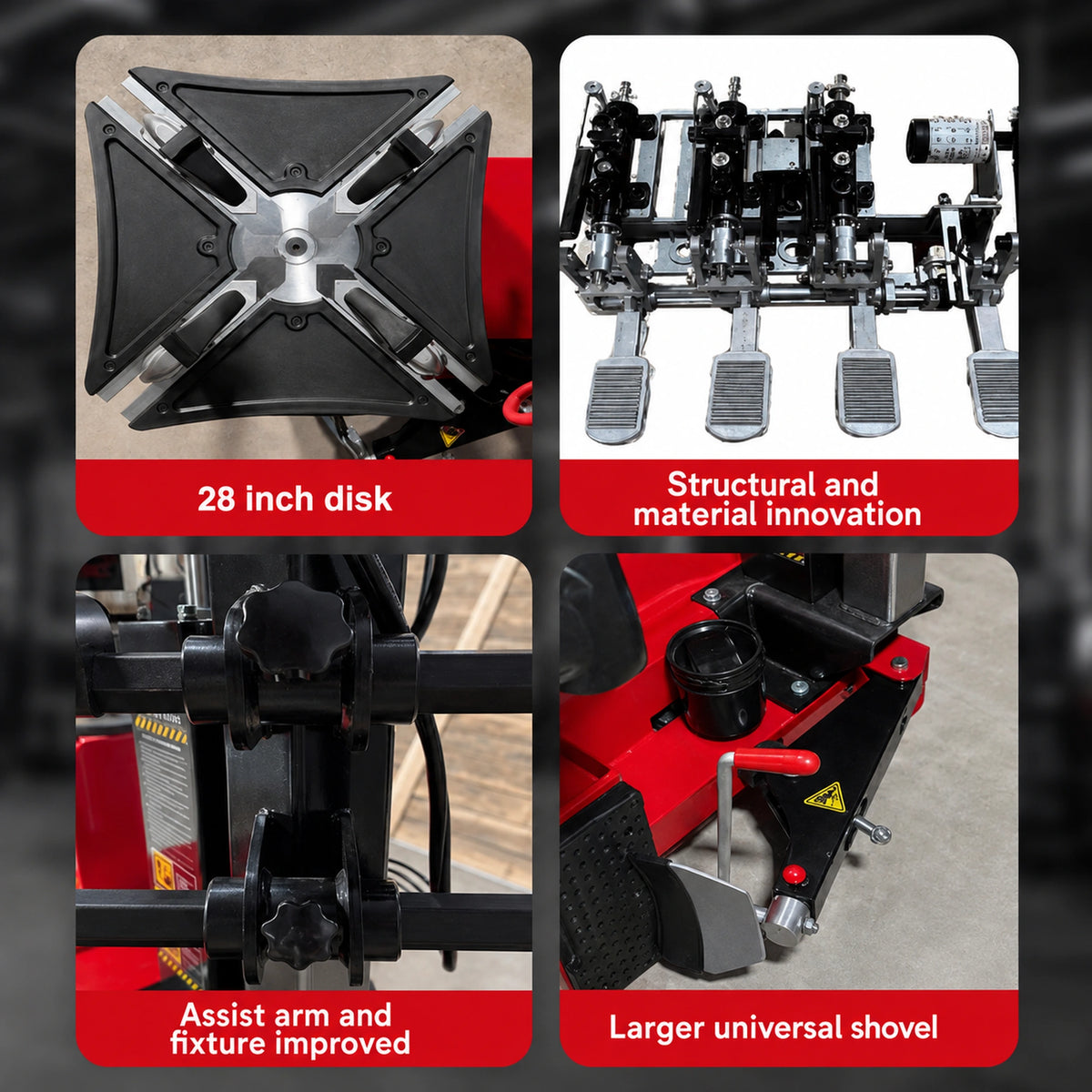

Wide Rim Capacity Tire Mounting Machine with Dual Clamping Systems

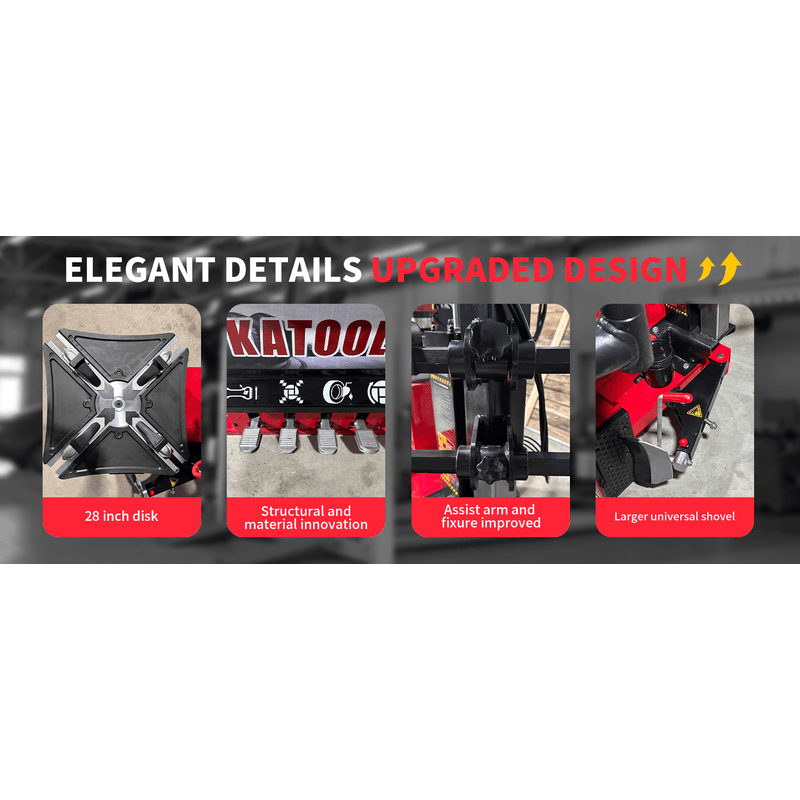

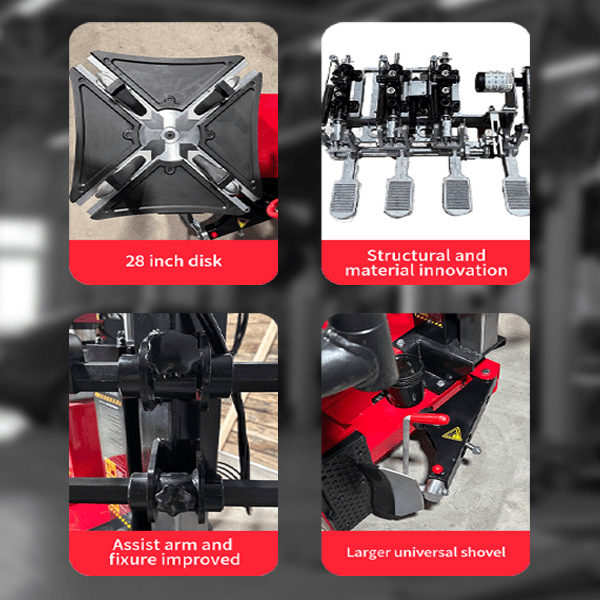

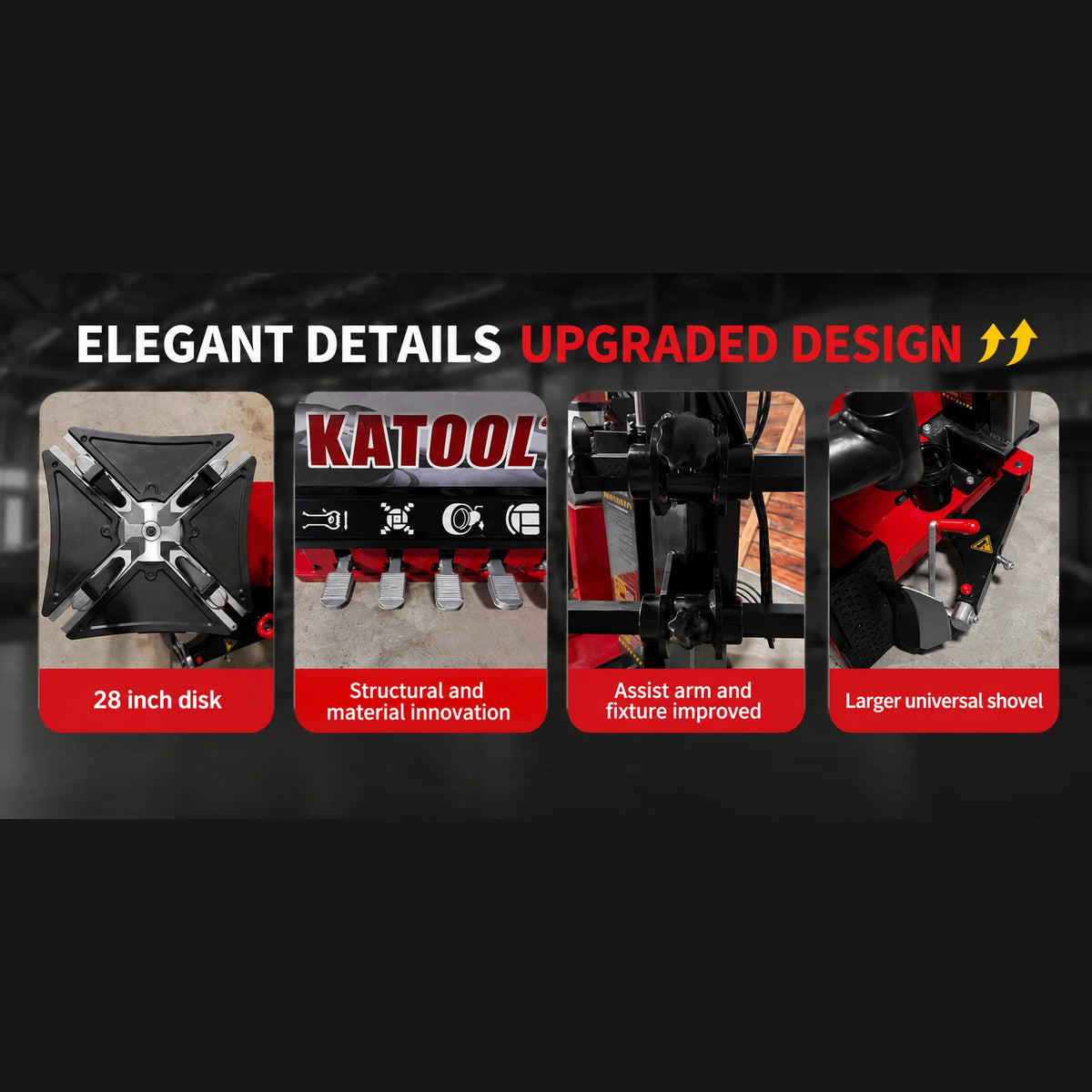

Accommodates 12 to 24 inch rims via external clamping and 14 to 28 inch rims via internal support, handling tire widths up to 325 mm (12.8 inches). The external clamp grips the outer rim edge for smaller passenger wheels, while the internal support system centers larger wheels from within the barrel. Technicians can switch between modes based on wheel size and design.
Quiet Operation Under 70dB
Operates at less than 70dB, roughly equivalent to normal conversation levels. Many tire changers with pneumatic impact bead breakers exceed 80dB during operation. The controlled vertical press mechanism produces consistent, lower-frequency sound, improving the working environment and enabling better communication between technicians.

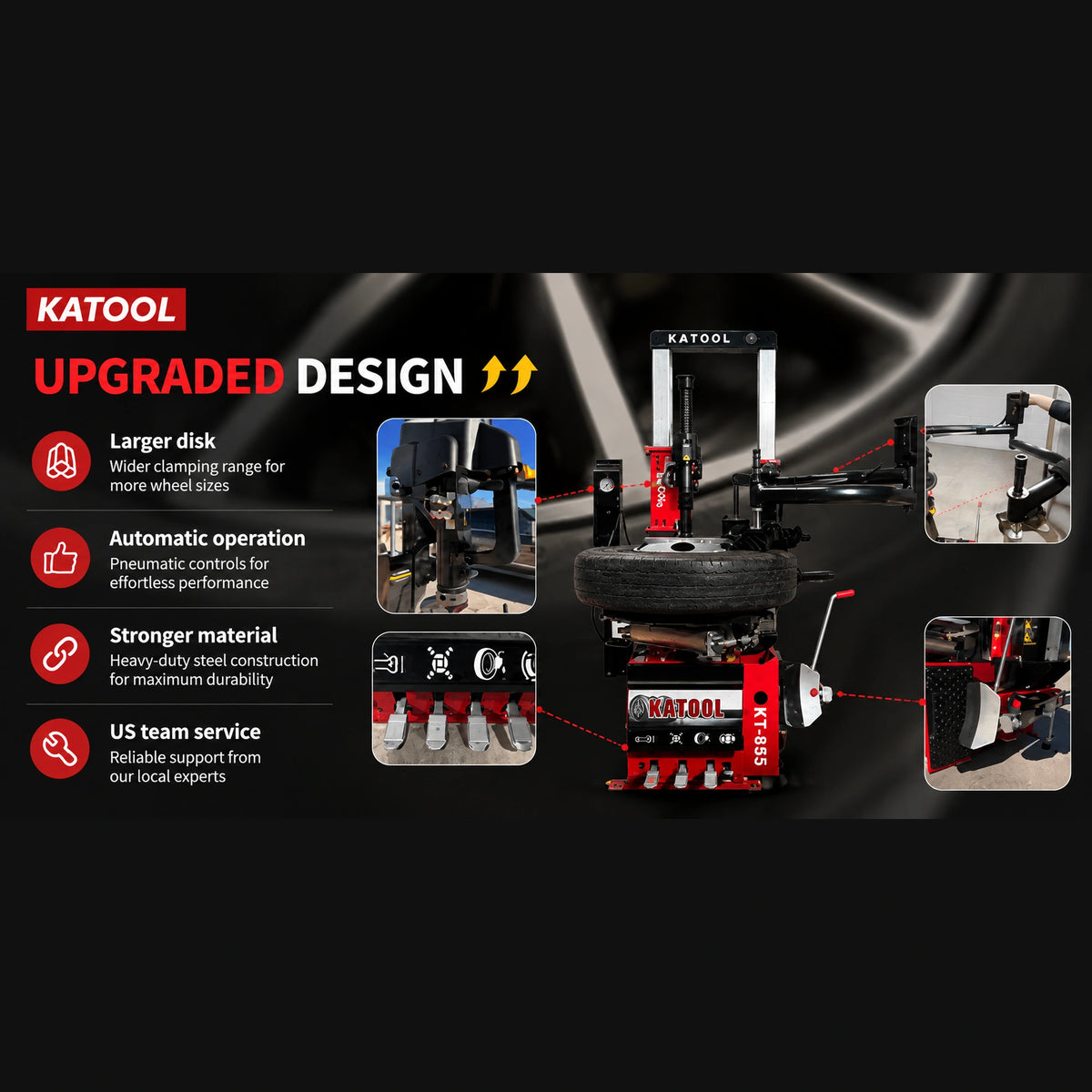

Heavy-Duty Steel Construction
Frame constructed from Q235 and Q245 steel with a welded body and quenched shaft thread (36mm diameter) on the press arm. This provides the rigidity required to transfer the full 2,500 kg of press force without deflection. The quenched shaft thread resists wear from repeated vertical travel under load.
Clear Warranty Structure with USA Distribution
Includes a 1-year warranty on all parts and 3-year warranty on structural components, with free shipping on replacement parts. Katool operates from 6 warehouse locations across Texas, California, Illinois, and Georgia for faster parts availability.
Product Demonstration
Applications & Use Cases for This Tire Changing Machine
- Professional Tire Service Centers: High-volume tire mounting and balancing for passenger vehicles, SUVs, and light trucks with stiff sidewalls and low-profile tires
- Automotive Repair Shops: General service facilities adding tire change capability without 220V electrical infrastructure
- Fleet Maintenance Facilities: Commercial operations servicing delivery vans, service trucks, and company vehicles
- Car Dealerships: Service departments handling pre-delivery inspections, seasonal tire swaps, and customer tire purchases
- Performance and Specialty Shops: Run-flat tires, low-profile performance rubber, and aftermarket wheels requiring controlled vertical press force
Technical Specifications
| Specification | Value |
|---|---|
| Voltage | 110V / 60Hz, single-phase |
| Motor Power | 1.5 kW |
| Full-Load Current | 4.7 A |
| Tire Shovel/Press Force | 2,500 kg |
| Required Air Pressure | 0.8 - 1.0 MPa (116 - 145 PSI) |
| Operating Noise | Less than 70 dB |
| Specification | Value |
|---|---|
| External Clamping Range | 12 - 24 inch wheel diameter |
| Internal Support Range | 14 - 28 inch wheel diameter |
| Maximum Tire Width | 325 mm (12.8 inches) |
| Maximum Tire Diameter | 1,100 mm (43.3 inches) |
| Specification | Value |
|---|---|
| Body Material | Q235 and Q245 steel |
| Shaft Thread | 36mm diameter with quenching treatment |
| Motor Type | Pure copper winding |
Installation Requirements
Electrical Requirements
- Power Supply: 110V / 60Hz single-phase circuit
- Circuit Capacity: 20-amp dedicated circuit recommended for 1.5 kW / 4.7 A load

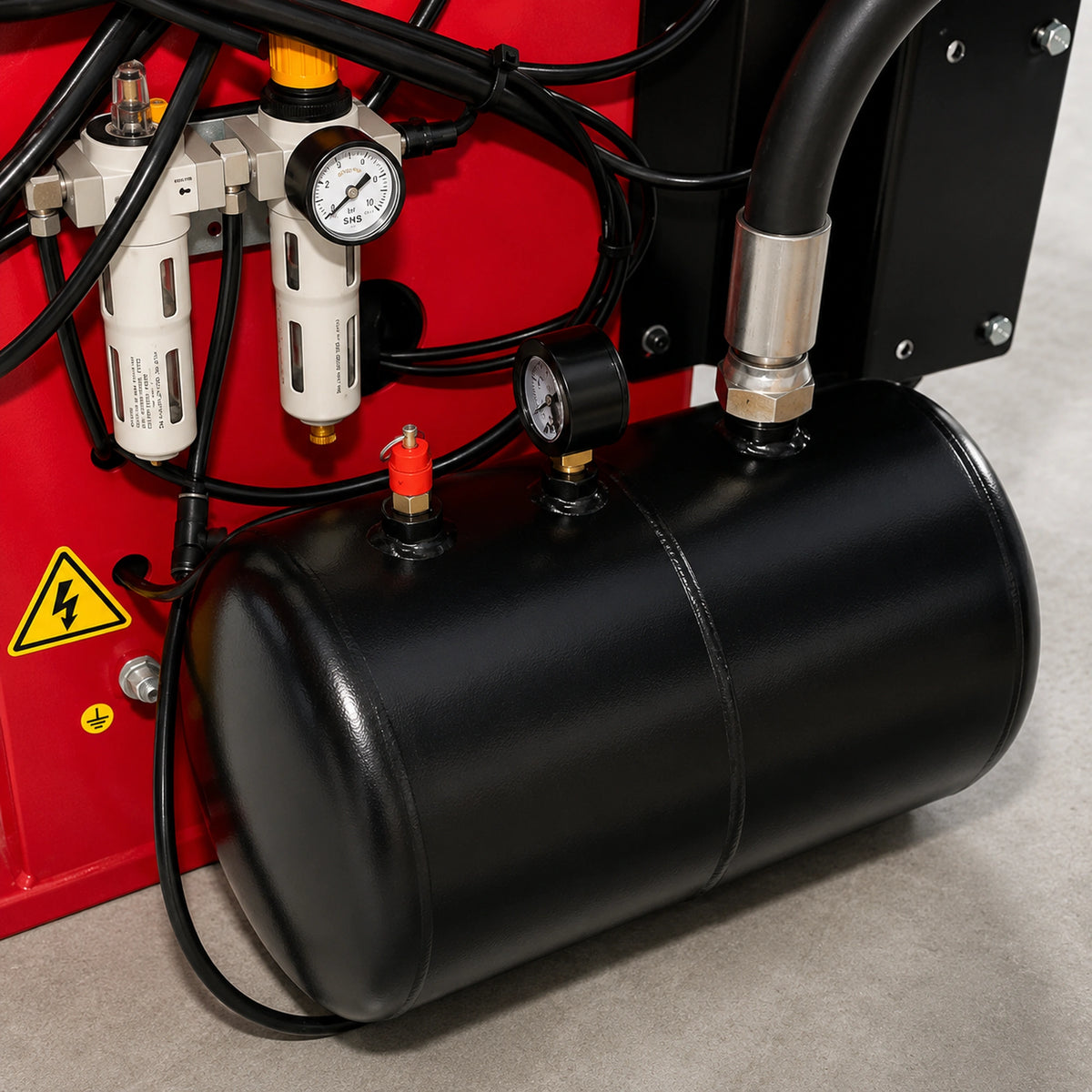

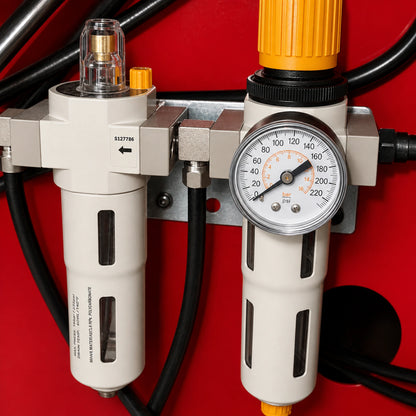

Compressed Air Requirements
- Supply Pressure: 0.8 - 1.0 MPa (116 - 145 PSI)
- Compressor Capacity: 5+ CFM at 150 PSI typical for this class
Space and Handling
- Floor Surface: Level concrete floor recommended
- Unloading Equipment: Forklift or dock access required (635 lb machine weight)
Shipping & Delivery
Freight Coverage
Shipping: Freight shipping to lower 48 US states.
Residential Delivery: $90 additional fee.
Warehouse Pickup: Available at Katool locations in Texas, California, Illinois, and Georgia.
Delivery Requirements
Unloading: Buyer responsible. Forklift or dock access recommended for 635 lb machine.
Liftgate Service: $90 additional. Lowers equipment to street level only.
Receiving: Inspect all packages before signing. Note any visible damage on BOL before driver departs.
Warranty Coverage
Standard Warranty Program
1 Year - Parts: Full coverage on all parts with free shipping on replacements.
3 Years - Structural Components: Extended coverage on frame and structural components.
Labor: Not included.
Warranty Requirements
Eligibility: Must purchase from Katool or registered vendor. Non-transferable; requires original order number.
Extended Coverage: 2-year extended warranty plan available.
Ready to Upgrade Your Shop?
Get expert guidance on the right tire changer for your facility. Our team can help with product selection, installation planning, and technical specifications.
Frequently Asked Questions
What is the bead-breaking force of the Katool KT-T855?
2,500 kg through its vertical press mechanism, applying direct downward pressure for stiff sidewalls and low-profile tires.
What are the electrical requirements for the Katool KT-T855?
110V/60Hz single-phase power with 1.5 kW motor drawing 4.7 amps. 20-amp dedicated circuit recommended. No 220V required.
What rim sizes can the KT-T855 handle?
12 to 24 inch rims via external clamping; 14 to 28 inch rims via internal support. Max tire width 325 mm (12.8 inches); max tire diameter 1,100 mm (43.3 inches).
What air pressure is required for the KT-T855?
0.8 to 1.0 MPa (116 to 145 PSI). A compressor capable of 5+ CFM at 150 PSI is typical.
What is the warranty coverage for the Katool KT-T855?
1-year on all parts; 3-year on structural components. Free shipping on replacements. Labor not included. 2-year extended warranty available.
How loud is the KT-T855 during operation?
Less than 70dB, roughly equivalent to normal conversation. Quieter than many tire changers with pneumatic impact bead breakers.
What equipment is needed to unload the KT-T855?
Machine weighs 635 lb. Requires forklift or dock access. Liftgate service available for $90 (lowers to street level only).
What types of tires is the KT-T855 designed for?
Passenger vehicles, light trucks, and SUVs. Particularly effective for run-flat tires, low-profile performance tires, and aging rubber with stiff sidewalls.
Is the Katool KT-T855 a good tire changer for a small shop?
Yes. Designed for professional and small commercial shops that want 110V power, strong shovel pressure, and quieter operation than many comparable tire machines.
