Katool KT-T850 + KT-B750 – Tire Changer + Wheel Balancer (Combo)
Katool KT-T850 and KT-B750 Tire Changer and Wheel Balancer Combo for Commercial Shops

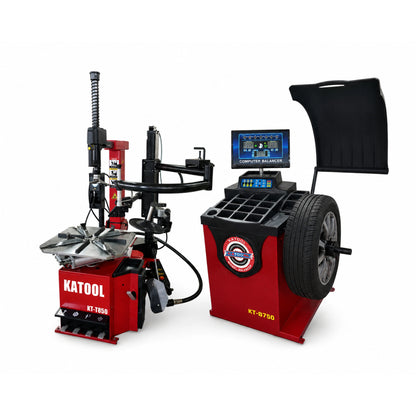

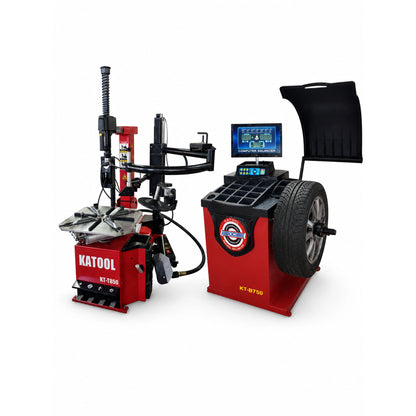

The Katool KT-T850 and KT-B750 tire changer and wheel balancer combo pairs a tilt arm wheel clamp tire changer with a computerized wheel balancer for professional automotive shops. This tire machine combo handles wheels up to 47 inches in diameter with a 2.0HP motor and delivers ±1 g balancing accuracy through automated measurement systems.
Key Features and Benefits of This Tire Changer and Wheel Balancer Combo
Maximum Wheel Capacity with Single-Phase Power

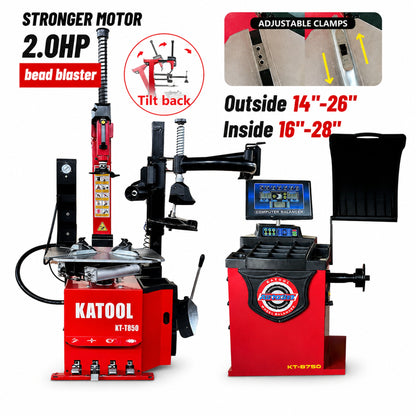

The KT-T850 tire changer offers a 47-inch wheel diameter and 28-inch inside clamping capacity on standard 110-120V single-phase power, delivering commercial-grade performance without special electrical upgrades. Its 2.0HP motor runs at 6.8 rpm for efficient, repeatable tire mounting in busy shops.
Precision Balancing with Speed

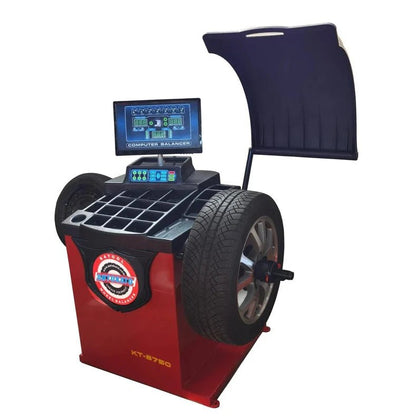

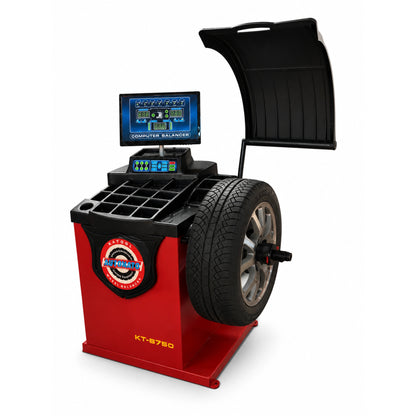

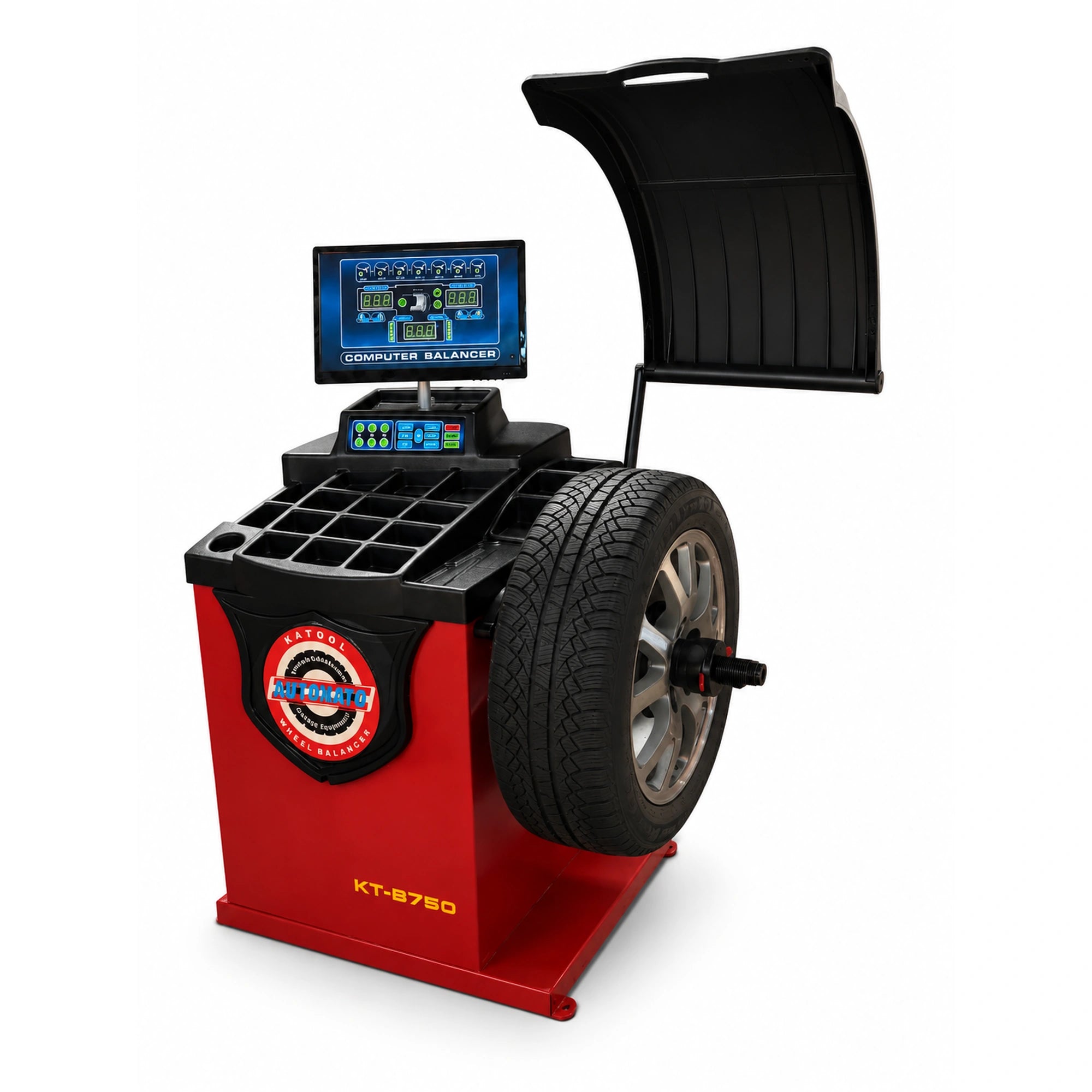

The KT-B750 wheel balancer delivers verified ±1 g balancing accuracy with 7-second measurement cycles using automatic measurement ruler technology. Operating at 180 rpm with a 36 mm hardened shaft and 8 mm sensor supports, it provides stable, vibration-free balancing for consistent results.
Heavy-Gauge Construction with Documented Specifications
Both machines feature specific steel thickness documentation including 3mm body construction, 8mm sensor supports, and 36mm hardened shaft diameter rather than general "heavy-duty" claims. The KT-T850 includes carburized alloy steel jaws with protective rim covers and a 200mm aluminum bead-breaker cylinder.
Comprehensive Pneumatic System Protection
The integrated air filtration and lubrication system extends pneumatic component life and maintains consistent performance under varying shop air quality conditions. The system requires 0.8-1.0 MPa (116-145 psi) operating pressure with built-in conditioning for reliable pneumatic operation.
Professional Automation Features
The automatic measurement ruler eliminates manual A and D value input while multiple balance modes, fault diagnosis, and self-calibration reduce operator training requirements. The system includes unit selection capability for oz/gram and mm/inch measurements with automatic calculation of weight placement positions.
Complete Combo Integration
This factory-matched tire changer and wheel balancer combo uses coordinated specifications and unified 12-month warranty coverage to eliminate compatibility concerns. Both machines share 110-120V single-phase power requirements and complementary capacities for seamless workflow integration at the tire bay.
Product Demonstration
Applications & Use Cases
- Professional Automotive Repair Shops: Complete tire service with a tire changer and wheel balancer combo for passenger cars and light trucks, with capacity for wheels up to 47 inches in diameter
- Tire Service Centers: High-volume commercial operations requiring reliable tire mounting and precision balancing with automated measurement systems
- Fleet Maintenance Operations: Commercial vehicle tire service for diverse fleet vehicles including light trucks and performance vehicles
- Performance and Racing Tire Service: Precision balancing for performance wheels requiring ±1g accuracy with specialized rim protection features
- High-Volume Garages: Commercial tire operations handling diverse wheel sizes with single-phase power compatibility for existing electrical systems
Technical Specifications
| Specification | Value |
|---|---|
| Max Wheel Diameter | 47 inches (1,200 mm) |
| Max Wheel Width | 15 inches (380 mm) |
| Outside Clamping Range | 14-26 inches |
| Inside Clamping Range | 16-28 inches |
| Motor Power | 2.0HP / 1.5kW |
| Power Supply | 110-120V, 1-phase |
| Rotation Speed | 6.8 rpm |
| Air Pressure Requirement | 0.8-1.0 MPa (116-145 psi) |
| Net Weight | 340 kg (750 lb) |
| Specification | Value |
|---|---|
| Max Rim Diameter | 30 inches |
| Max Wheel Weight | 65 kg (143 lb) |
| Balancing Speed | 180 rpm |
| Motor Power | 0.25 kW |
| Balancing Accuracy | ±1g |
| Measurement Time | 7 seconds |
| Power Supply | 110-120V, 1-phase |
| Rim Center Hole | 135 mm (5.31 inches) max |
| Shaft Diameter | 36 mm, hardened treatment |
What's Included

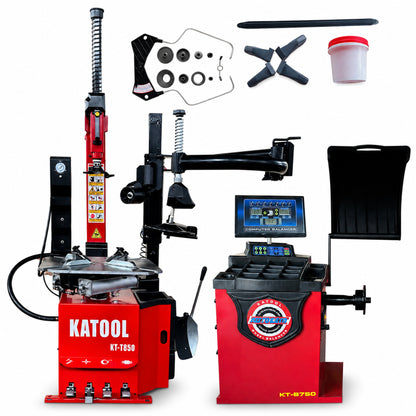

KT-T850 Components: Assist arms (helper arms), bead blast seater, 200mm aluminum bead-breaker cylinder, alloy steel jaws with carburized treatment, stainless steel mounting head with rim protectors, integrated air lubrication system

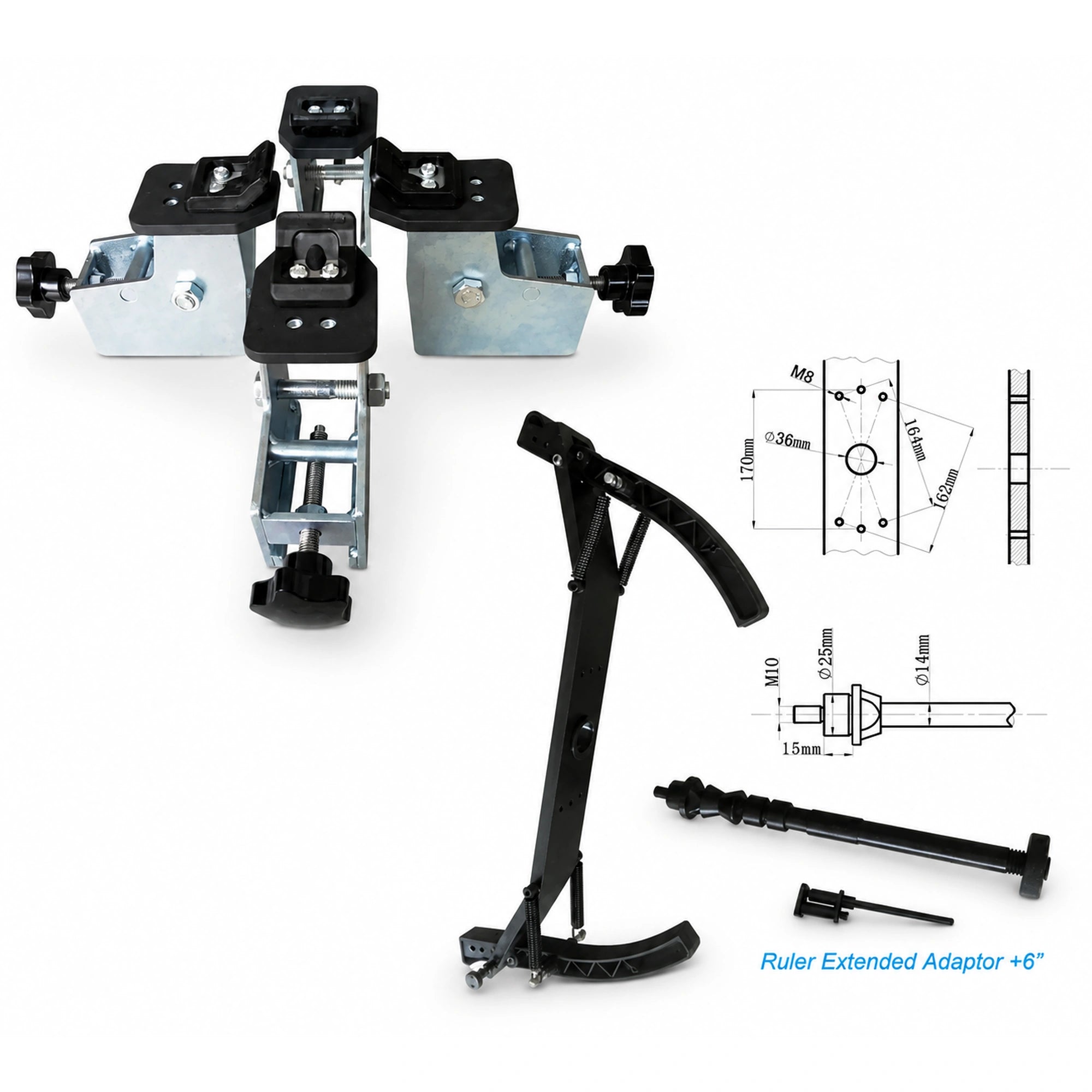

KT-B750 Components: Automatic measurement ruler, multiple balance modes with fault diagnosis, self-calibration system, unit selection capability (oz/gram, mm/inch), wheel guard (availability varies by supplier)
Product Manuals & Documentation
Operation Manuals
KT-T850 Tire Changer Manual: Download PDF Manual
KT-B750 Wheel Balancer Manual: Download PDF Manual
These operation manuals include setup instructions, operating procedures, maintenance schedules, troubleshooting guides, and safety information for both machines.
Installation Requirements
Power Requirements
- Electrical Supply: Both machines require 110-120V single-phase power supply
- Circuit Requirements: Appropriate circuit sizing for motor loads per local electrical code
- KT-T850 Motor Load: 2.0HP / 1.5kW motor with appropriate breaker sizing
- KT-B750 Motor Load: 0.25kW motor load
Compressed Air System
- Operating Pressure: 0.8-1.0 MPa (116-145 psi) for KT-T850 pneumatic operations
- Air Quality: Shop air system with adequate filtration for pneumatic components
- Air Supply: Consistent pressure supply for reliable pneumatic cylinder operation
Foundation and Space
- Floor Requirements: Level concrete floor recommended for proper balancer operation
- Vibration Control: Solid foundation for KT-B750 vibration-free balancing accuracy
- Clearance: Adequate space for KT-T850 tilt-arm operation and wheel handling
- Crate Dimensions: KT-B750 crate 42" × 30" × 44" for delivery planning
Installation Notes
- Professional Installation: Equipment setup and calibration should be performed by qualified personnel
- Permits: Verify local code compliance and permit requirements before installation
Shipping & Delivery
Freight Coverage
Shipping: Freight shipping only within lower 48 states to commercial addresses standard. Residential delivery available with additional charges.
Delivery Requirements: Free shipping to commercial addresses with dock or forklift access.
Special Delivery: Liftgate service available for locations without dock access.
Delivery Requirements
Unloading Equipment: Forklift or loading dock required for safe equipment handling due to weight and size.
Customer Responsibility: Customer responsible for unloading from delivery truck.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warranty Coverage
Standard Warranty Program
12 Months - Parts Coverage: Both KT-T850 and KT-B750 units covered for parts replacement
Extended Options: Extended warranty coverage available through certain dealers (up to 3 years structural coverage)
Structural Coverage: Varies by purchase channel with extended structural warranty options
Warranty Requirements
Registration: Non-transferable warranty requiring original purchase verification
Eligibility: Valid for original purchaser only
Coverage Scope: Parts replacement warranty with extended structural options through authorized dealers
Ready to Upgrade Your Shop?
Get expert guidance on the right tire service equipment for your facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm included accessories and installation requirements for your specific application.
Frequently Asked Questions
What is the maximum wheel capacity of the Katool KT-T850 tire changer?
The KT-T850 handles wheels up to 47 inches diameter with 15 inches maximum width. Inside clamping range is 16-28 inches, outside clamping range is 14-26 inches. This capacity covers passenger cars, light trucks, and performance vehicles with oversized wheels, making it suitable for diverse commercial tire service operations.
What components are included with the KT-T850 and KT-B750 combo package?
KT-T850 includes assist arms, bead blast seater, 200mm aluminum bead-breaker cylinder, carburized alloy steel jaws, stainless steel mounting head with rim protectors, and integrated air lubrication system. KT-B750 includes automatic measurement ruler, multiple balance modes with fault diagnosis, self-calibration system, and unit selection capability.
What are the power requirements for the Katool KT-T850 and KT-B750?
Both machines in this tire changer and balancer combo operate on 110-120V single-phase power. The KT-T850 uses a 2.0HP motor and the KT-B750 uses a 0.25 kW motor, so standard electrical service is sufficient with no special three-phase installation. This simplifies setup compared to many commercial tire service machines that require 220V three-phase power and higher electrical upgrade costs.
What is the balancing accuracy and speed of the KT-B750 wheel balancer?
The KT-B750 delivers ±1 gram balancing accuracy with 7-second measurement cycles at 180 rpm balancing speed. The automatic measurement ruler eliminates manual dimension input for faster operation. This precision meets professional shop requirements while the 7-second cycle time significantly reduces balancing time compared to typical 10-15 second cycles found in this price range.
What are the installation requirements for this tire service equipment?
Requires 110-120V single-phase electrical supply with appropriate circuit sizing for the 2.0HP motor on the KT-T850 and 0.25kW motor on the KT-B750. KT-T850 needs shop air at 0.8-1.0 MPa (116-145 psi). Level concrete floor recommended for proper balancer operation and vibration control. Forklift or loading dock required for delivery and setup due to the 340kg weight of the tire changer.
What vehicles and tire types are compatible with this equipment combo?
Suitable for passenger cars and light trucks with wheels up to 47 inches diameter and maximum weight of 65kg on the balancer. Handles performance wheels requiring precision balancing accuracy of ±1 gram, fleet maintenance operations, and high-volume commercial tire service applications. The rim center hole capacity is 135mm maximum, accommodating most standard passenger and light truck wheel configurations.
What warranty coverage is provided with the Katool KT-T850 and KT-B750 combo?
Both units include 12-month parts warranty coverage as standard. Extended warranty options available through certain dealers with up to 3 years structural coverage for enhanced protection. Warranty is non-transferable and requires original purchase verification. The factory warranty covers parts replacement while extended options provide additional structural component protection beyond the standard term.
How is this equipment shipped and what are the delivery requirements?
Freight shipping is available within the lower 48 states with free shipping to commercial addresses that have dock access. The customer is responsible for unloading from the delivery truck due to the 340 kg weight of the tire changer and wheel balancer combo, so a forklift or loading dock is required for safe handling. Liftgate service is available for an additional charge for locations without dock access, and residential delivery is available with surcharges.
