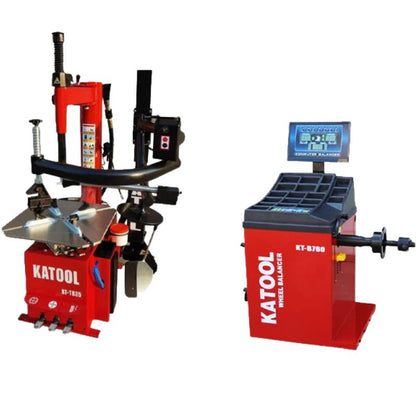

Katool KT-T835 + KT-B760 – Tire Changer + Wheel Balancer (Combo)
Katool KT-T835 and KT-B760 Tire Changer and Wheel Balancer Combo for Professional Tire Service

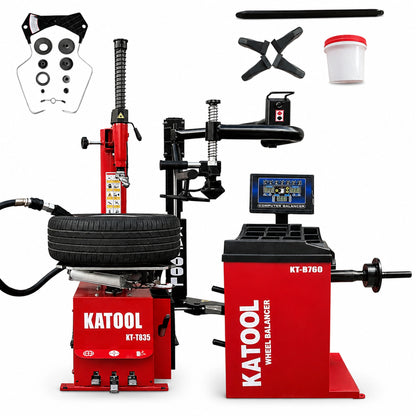

The Katool KT-T835 and KT-B760 tire changer and balancer combo pairs a rim clamp tire changer with an automatic measurement wheel balancer for complete tire service, handling wheels up to 41 inches with single phase power and ±1g balancing precision in 7 second cycles.
Complete Tire Service Solution
This tire changer and balancer combo pairs a rim clamp tire changer (up to 41 inches) with an automatic measurement wheel balancer (7 second cycles). The system packages both functions with coordinated 110V power and unified warranty coverage.
The KT-T835 and KT-B760 deliver 41 inch wheel capacity, standard electrical compatibility, and ±1g automatic balancing. This tire changer wheel balancer combo sits between entry level 26 to 30 inch systems and premium three phase commercial equipment.
Best Tire Changer and Balancer Combo: Buying Guide
How to Choose the Right Tire Machine Combo
Entry level units max out at 26 to 30 inch wheels (passenger cars only). Mid range systems like the KT-T835 extend to 41 inches (light trucks and performance vehicles). Premium systems reach 47+ inches but require three phase power and higher investment.
The best tire changer and balancer combo depends on customer mix. Shops serving mainly passenger cars with occasional SUV or truck service benefit from 41 inch capacity. Commercial truck specialists need 47+ inches. High volume passenger car shops may prioritize balancer speed over wheel capacity.
Tire Machine and Wheel Balancer Combo vs Separate Units
Factory matched systems offer coordinated power requirements (both run on same electrical service), lower cost than separate units, and single manufacturer warranty and support.
Separate purchases allow mixing capacity levels. A shop might pair a high capacity tire changer with a standard balancer if they mount large wheels but mainly balance passenger tires. For most shops, the coordinated specifications of a combo system outweigh separate selection flexibility.
Key Specifications for Tire Changer Combo Selection
Wheel Diameter Capacity: This system handles 41 inches (covers passenger cars, SUVs, light trucks, performance vehicles). Passenger car focused shops can use 30 to 35 inches. Commercial facilities need 47+ inches.
Balancing Precision: The KT-B760's ±1g precision prevents vibration comebacks. Entry level balancers at ±5g often require multiple attempts.
Power Requirements: Single phase 110V eliminates electrical upgrade costs that 220V or three phase systems require.
Cycle Time: 7 seconds processes 8 to 10 wheels hourly. Slower 10 to 12 second systems reduce throughput significantly.
Tire Changer and Balancer Combo for Sale: What to Look For
Professional systems range from basic 26 inch capacity units to premium three phase commercial equipment. Mid range packages like the KT-T835 and KT-B760 balance capacity and power requirements.
A shop processing 20 tire changes daily can benefit from efficient equipment with extended lifespan.
When comparing listings, verify included accessories (bead seaters, assist arms, rim protection). Budget systems often exclude these items.
Key Features & Benefits
Large Wheel Capacity with Standard Power

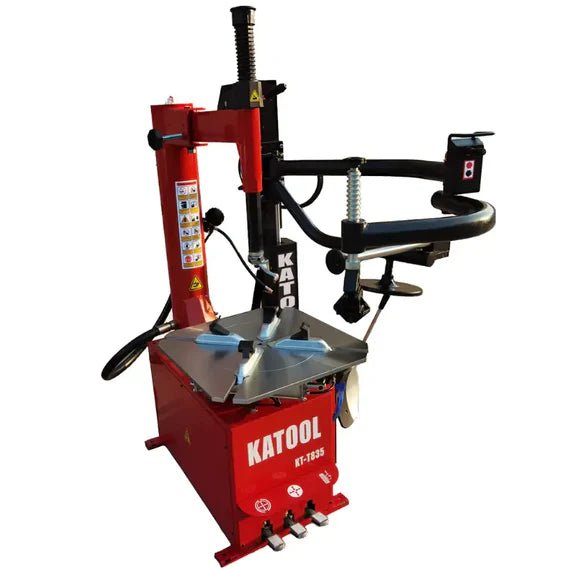

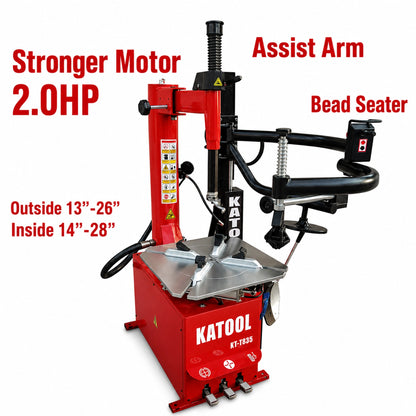

The KT-T835 handles 41 inch wheels on standard 110V single phase power. This rim clamp tire changer combo services large modern wheels (SUVs, light trucks, oversized passenger cars) without industrial 220V electrical service.
Where higher capacity machines require costly electrical upgrades, this single phase tire machine combo plugs into standard shop panels.
Service the full range of modern wheels on existing shop power without electrical upgrade costs.
Automatic Measurement Technology

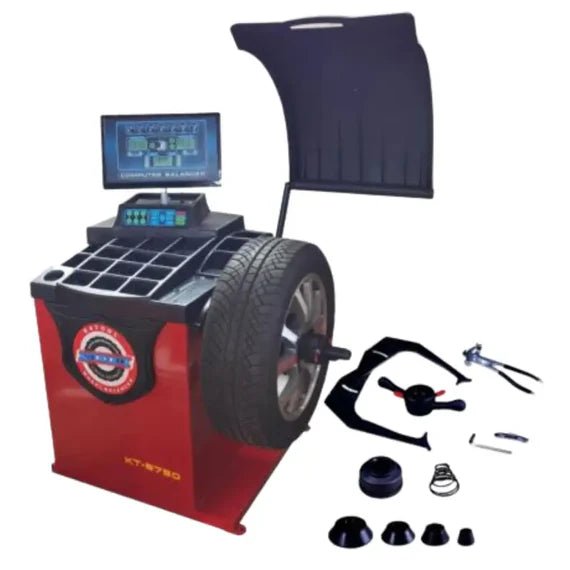

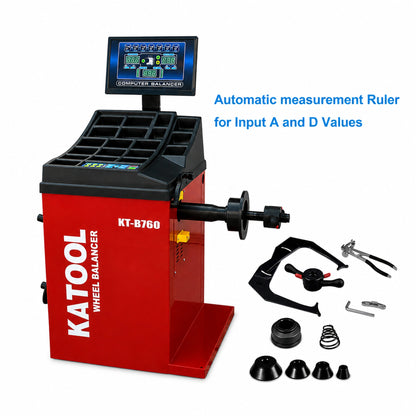

The KT-B760 features automatic measurement ruler with ±1g accuracy and 7 second cycles. The system measures wheel dimensions and calculates weight placement automatically at 180 rpm.
Automatic measurement eliminates manual steps while improving accuracy through consistent digital measurement.
Process more tire jobs per day with fast, accurate balancing that delivers smooth on road performance.
Heavy Gauge Construction

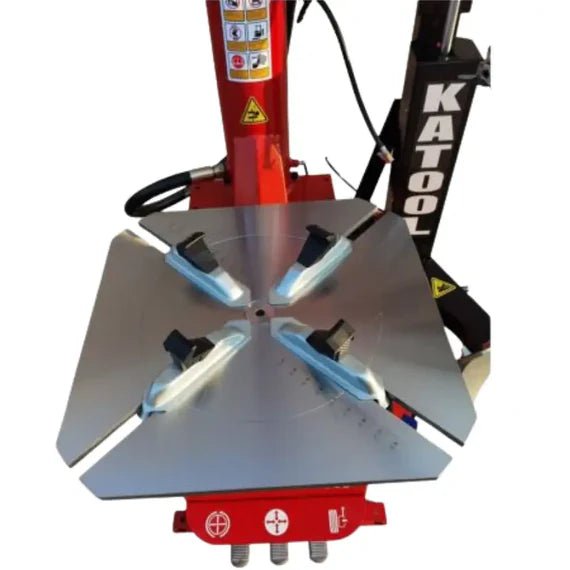

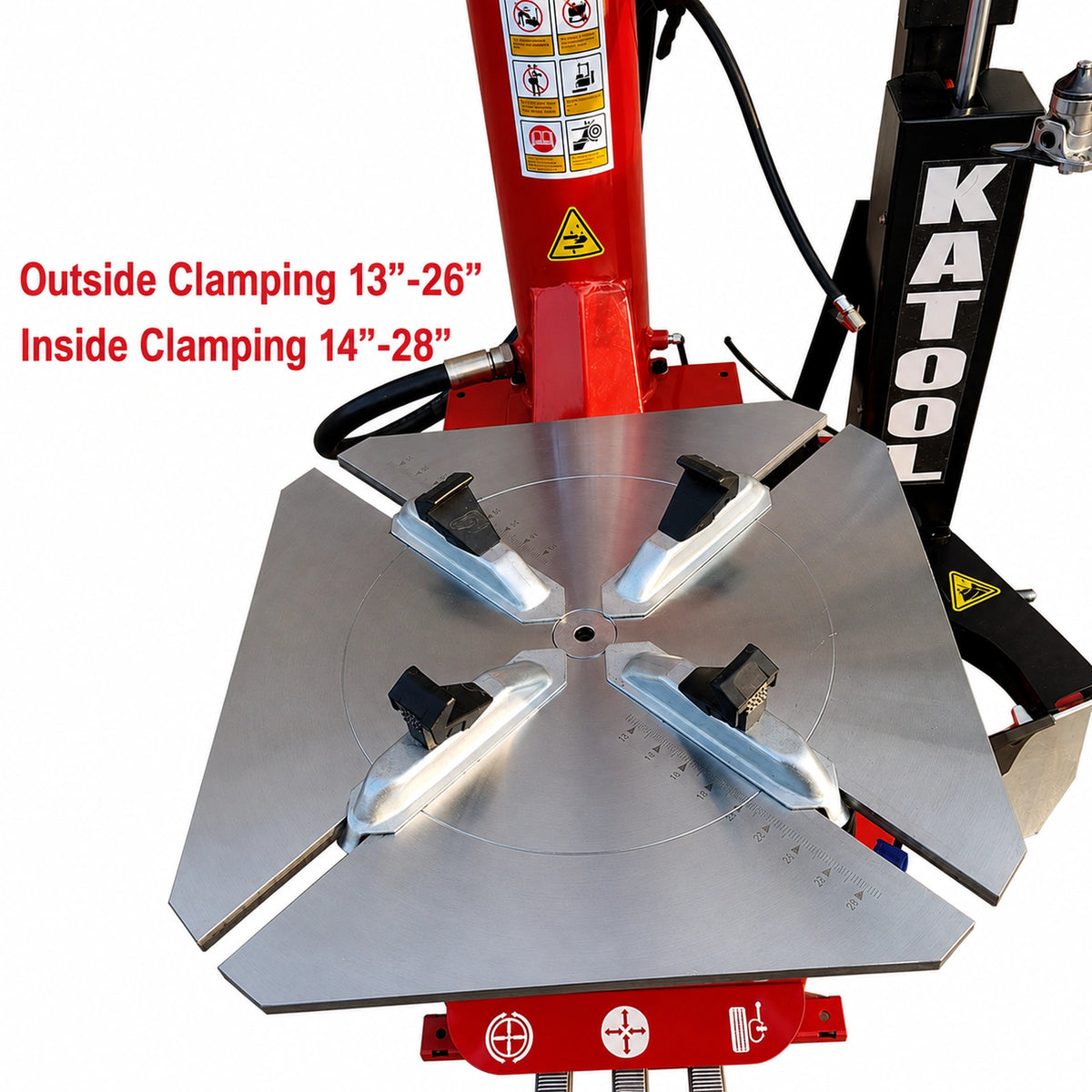

The KT-B760 uses 3mm steel body with 8mm base plates for vibration resistance. The KT-T835 incorporates carburization treated alloy steel jaws with protective covers and stainless steel mounting head for repeated heavy duty cycles.
Hardened surfaces resist wear from repeated clamping and mounting. Heavy gauge construction reduces vibration during high speed balancing.
Consistent performance over thousands of tire changes cuts maintenance costs and reduces downtime.
Factory Matched Combo System

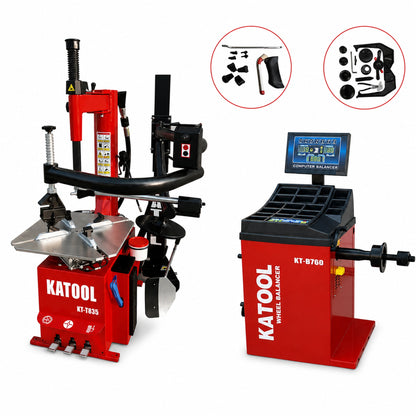

This tire changer and wheel balancer combo provides unified warranty and guaranteed compatibility between the KT-T835 and KT-B760 units. Both machines include complete accessory sets with centering cones, assist arms, calibration weights, and mounting hardware.
Unified system eliminates compatibility concerns with single source warranty support and optimal workflow between changing and balancing.
This tire machine and balancer combo packages both functions with streamlined technical support.
Product Demonstration
Applications & Use Cases
- General Repair Shops: Complete tire service with a tire changer combo for passenger cars and light trucks with wheels up to 41 inches
- Tire Service Centers: High volume mounting and balancing with a tire machine and wheel balancer combo for SUVs, pickup trucks, and oversized passenger wheels
- Automotive Service Facilities: Professional wheel service with a tire changing machine combo for precision balancing and heavy duty tire changing
Technical Specifications
| Specification | Value |
|---|---|
| Max Wheel Diameter | 41" (1,040 mm) |
| Max Wheel Width | 15" (350 mm) |
| Motor Power | 2.0HP (1.5KW) |
| Power Supply | 110V, 1 phase, 60Hz |
| Rotation Speed | 6.1 rpm |
| Air Pressure | 0.8-1.0 MPa (116-145 psi) |
| Net Weight | 582 lb |
| Bead Breaker | φ186mm stainless cylinder |
| Specification | Value |
|---|---|
| Rim Diameter Range | Up to 30" |
| Wheel Width Range | 3"-12" |
| Max Wheel Diameter | 34.64" (880 mm) |
| Max Wheel Weight | 143 lb (65 kg) |
| Balancing Speed | 180 rpm |
| Balancing Accuracy | ±1g |
| Measuring Time | 7 seconds |
| Power Supply | 110-120V, 1 phase |
| Motor Power | 0.25kW |
| Construction | 3mm steel body, 8mm base plates |
Complete Accessory Sets Included

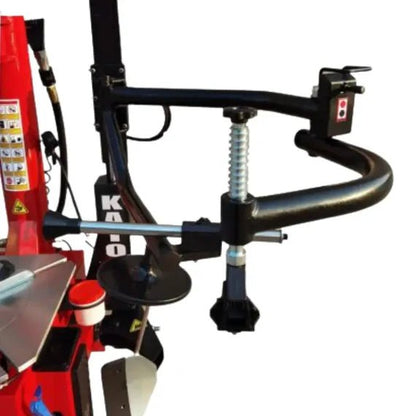

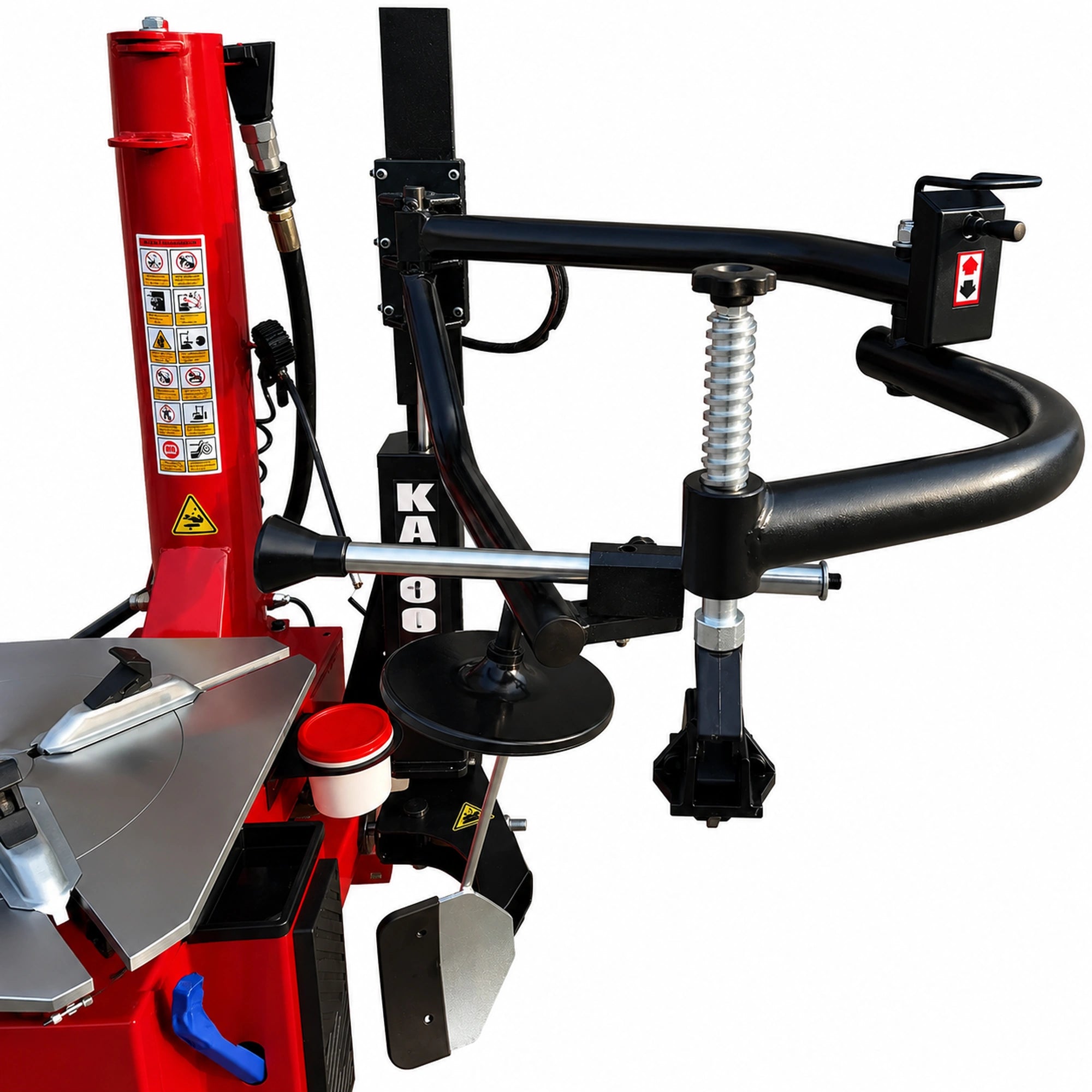

KT-T835 Tire Changer: Bead blast seater with tank, double assist arms, alloy steel jaw with protective covers, stainless mounting head, inflation gauge, air filter, tire lubricator

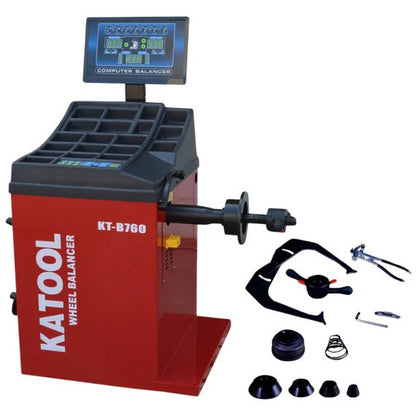

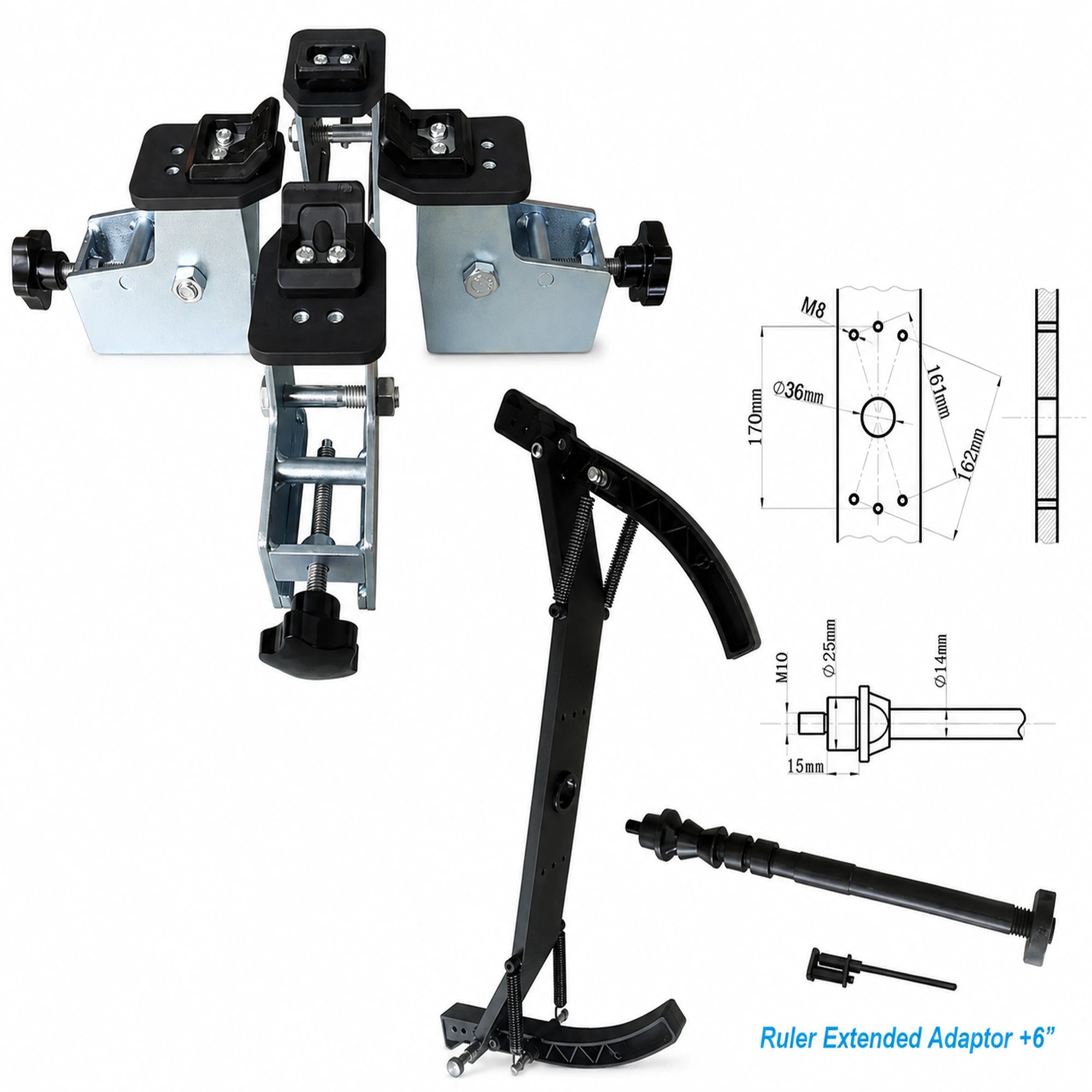

KT-B760 Wheel Balancer: Automatic measurement ruler, centering cone set, quick release mechanism, calibration weight, control unit with display, measuring calipers, balance weight pliers
Installation Requirements
Power Requirements
- KT-T835: 110V single phase 60Hz with adequate amperage capacity
- KT-B760: 110 to 120V single phase electrical supply
- Circuit Protection: Dedicated circuits recommended for each unit
Pneumatic Requirements
- Air Pressure: 0.8 to 1.0 MPa (116 to 145 psi) shop air supply
- Air Quality: Clean, dry compressed air with filtration system
- Air Volume: Adequate CFM capacity for bead seating operations
Foundation and Space
- Floor Surface: Concrete floor recommended for stability and vibration control
- Clearance: Adequate space for 41 inch wheel handling and assist arm operation
- Unloading: Forklift or loading dock required for freight delivery
Product Manuals
Installation & Operation Documentation
KT-T835 Tire Changer Manual: Download Installation & Operation Manual (PDF)
KT-B760 Wheel Balancer Manual: Download Operation Manual (PDF)
Complete installation instructions, operation procedures, maintenance guidelines, and troubleshooting information for both units.
Shipping & Delivery
Freight Coverage
Shipping: Freight shipping only within continental United States. Free shipping typically available to commercial addresses, with residential delivery potentially incurring additional charges.
Delivery Requirements: Buyer responsible for unloading with forklift or equivalent equipment.
Inspection: Inspect all packages before signing delivery receipt. Note any visible damage on bill of lading before driver departs.
Warranty Coverage
Standard Manufacturer Warranty
1 Year - Parts: Coverage on all components and replacement parts
3 Years - Structural: Coverage on structural components and framework
Warranty Parts: Ship free of charge (labor costs not included)
Warranty Requirements
Documentation: Original purchase documentation required for all warranty claims
Eligibility: Valid for original purchaser only (non-transferable)
Ready to Upgrade Your Shop?
Get expert guidance on the right tire service equipment for your facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm included accessories and installation requirements for your facility.
Frequently Asked Questions
What is the maximum wheel capacity for the KT-T835 tire changer?
The KT-T835 tire changer combo handles wheels up to 41 inches in diameter and 15 inches in width for modern passenger cars, SUVs, and light trucks with rim clamp design and 2.0HP motor power.
What accessories are included with the Katool combo?
The KT-T835 includes bead blast seater with tank, double assist arms, alloy steel jaw with protective covers, stainless mounting head, inflation gauge, air filter, and tire lubricator. The KT-B760 wheel balancer comes with automatic measurement ruler, centering cone set, quick release mechanism, calibration weight, control unit with display, measuring calipers, and balance weight pliers.
What are the electrical requirements for this combo?
The KT-T835 requires 110V single phase 60Hz power for the 2.0HP motor. The KT-B760 operates on 110 to 120V single phase power for its 0.25kW motor. Both work with standard electrical service without 220V upgrades. Dedicated circuits recommended for each unit.
How accurate is the KT-B760 wheel balancer?
The KT-B760 provides +/- 1 gram balancing accuracy with automatic measurement completing balance calculations in 7 seconds at 180 rpm for passenger cars, SUVs, and light trucks up to 143 pounds wheel weight and 3 to 12 inch width range.
What vehicles can this equipment service?
This tire changer and balancer combo handles passenger cars, SUVs, and light trucks with wheels up to 41 inches diameter and 143 pounds maximum weight. Ideal for general repair shops, tire service centers, and automotive facilities requiring large wheel capacity.
What air pressure is required for the tire changer?
The KT-T835 requires 0.8 to 1.0 MPa (116 to 145 psi) compressed air from a clean, dry shop air system with adequate CFM capacity. Integrated air filter protects internal components.
What warranty coverage is provided?
Standard warranty: 1 year on all parts and components, 3 years on structural framework. Warranty parts ship free to original purchaser. Labor not included. Non-transferable.
How is this equipment shipped and delivered?
Freight shipping within continental US. Free shipping typically to commercial addresses, residential may incur charges. Buyer responsible for forklift unloading (582 lb tire changer weight). Inspect before signing delivery receipt.
