Katool KT-T835 + KT-B750 – Tire Changer + Wheel Balancer (Combo)

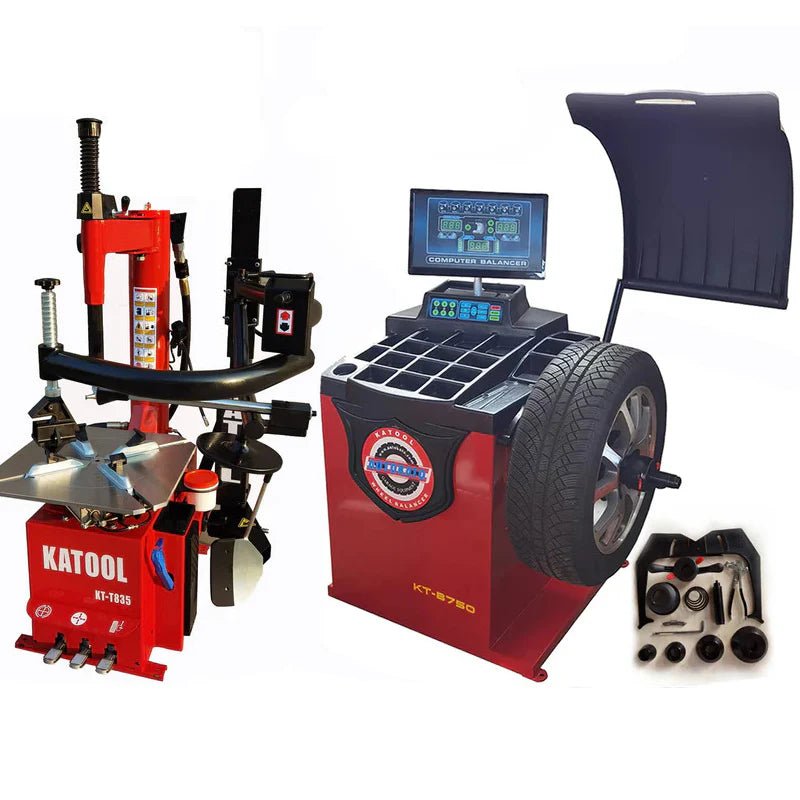

Katool KT-T835 and KT-B750 Tire Changer and Wheel Balancer Combo for Professional Tire Service

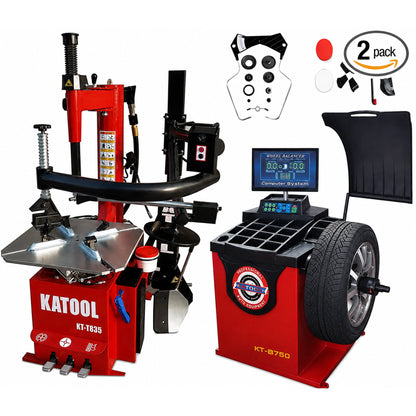

The Katool KT-T835 and KT-B750 tire changer and balancer combo pairs a swing arm tire changer with a computer wheel balancer for complete wheel service, handling passenger cars and light trucks with single phase power and a 41 inch maximum wheel diameter capacity.
Complete Tire Service Solution
This tire changer balancer combo delivers professional wheel service capabilities without requiring separate equipment purchases. The swing arm tire changer handles mounting and demounting operations up to 41 inches, while the computerized wheel balancer provides precision correction in 7 second cycles. Unlike purchasing individual units, this tire machine combo packages both functions with coordinated specifications, single phase power requirements, and unified warranty coverage.
For shops evaluating tire changing machine combo options, the KT-T835 and KT-B750 combination addresses three critical decision factors: wheel capacity for modern oversized applications, electrical compatibility with standard shop power, and balancing precision that prevents customer callbacks. The 41 inch diameter capacity and ±1g accuracy position this tire changer wheel balancer combo between entry level equipment and premium three phase systems, offering professional performance at mid market investment levels.
Key Features & Benefits
Large Wheel Capacity Advantage
The KT-T835 tire changer handles wheels up to 41 inches (1,040mm) in diameter and 15 inches (350mm) wide, giving your shop capacity for oversized truck, SUV, and performance wheels that exceed typical mid market equipment limits.
Many mid market tire changers top out around 26 to 30 inches, so the KT-T835's extended capacity helps you capture growing demand for larger wheel packages without turning work away.
By keeping large wheel work in house, this tire changer and balancer combo reduces outsourcing, limits the need for extra machines, and helps maximize shop floor efficiency.

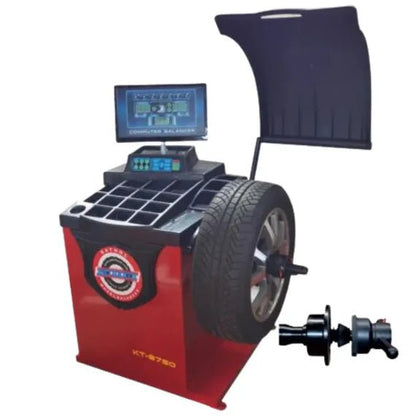

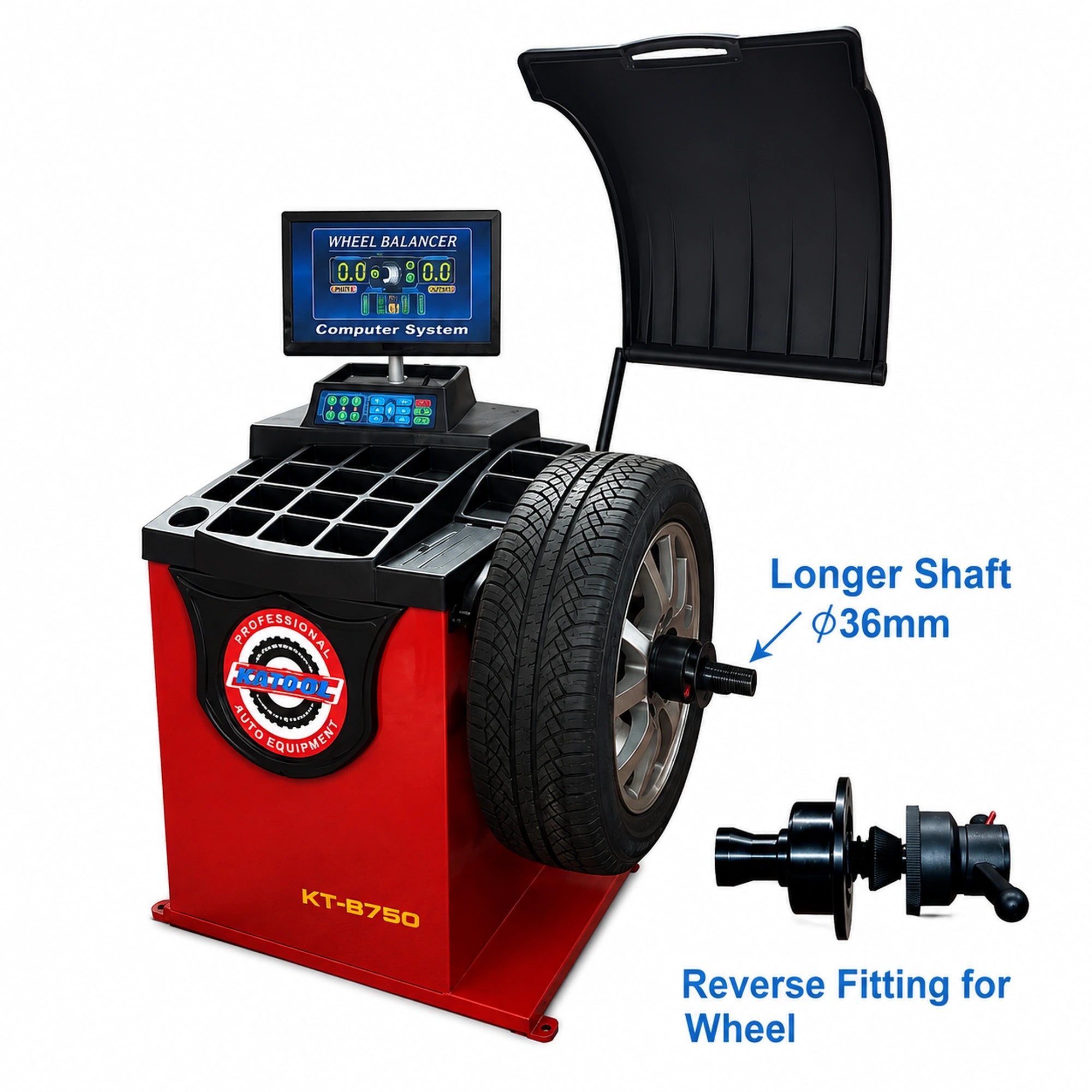

High Speed Precision Balancing
The KT-B750 wheel balancer delivers ±1g accuracy with a 7 second measuring time at 180 RPM, giving you faster cycles than many mid market balancers that need 8 to 9 seconds for similar precision.

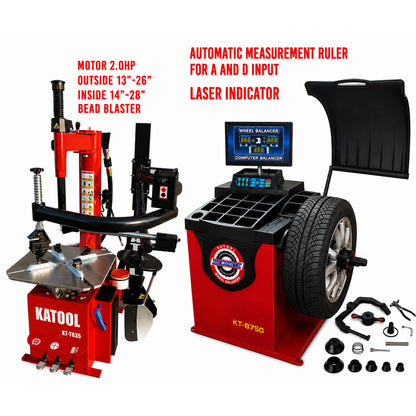

The KT-B750's computer controlled system with automatic measurement ruler is engineered to maintain both speed and accuracy in a single measurement cycle, helping reduce customer wait times at the balancer.
Faster, accurate balancing improves shop throughput so technicians can complete more tire jobs per day while still delivering smooth on road performance.

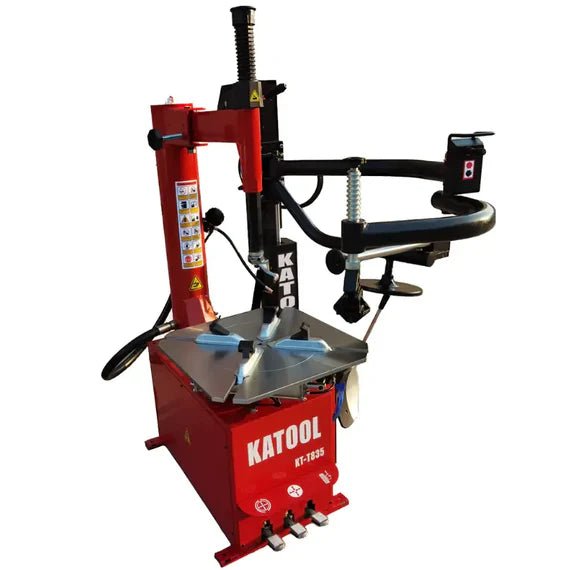

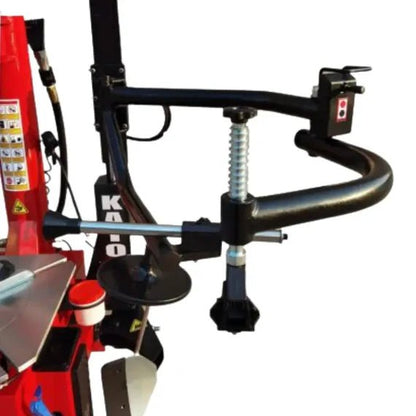

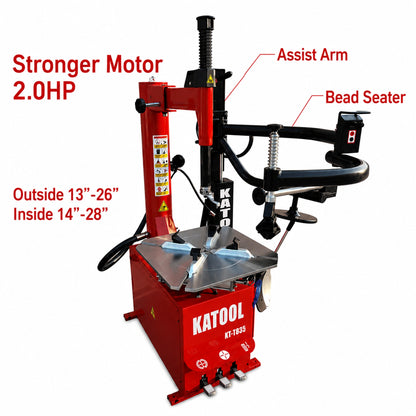

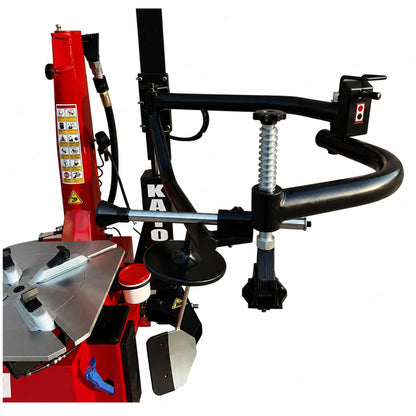

Double Assist Arm System

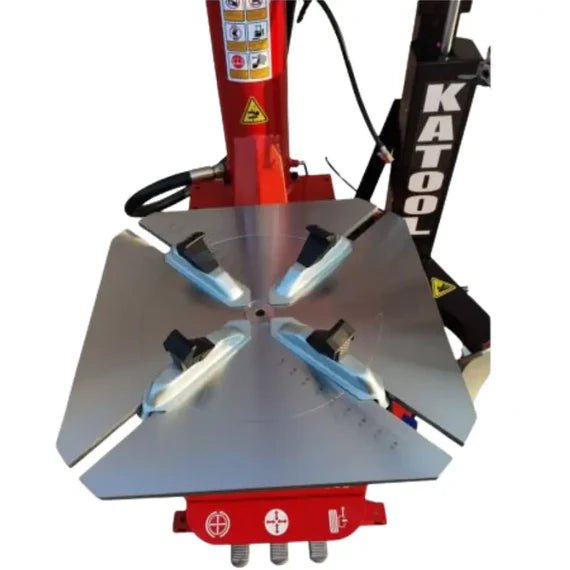

The KT-T835 uses double assist arms powered by a 2.0HP (1.5KW) motor at 6.1 RPM, with carburization treated alloy steel jaws for longer service life than standard steel jaws on typical tire changers. This tire machine combo design distributes mounting forces evenly across the wheel assembly.
The double assist configuration distributes mounting forces evenly while the high torque motor powers through difficult tire installations, reducing technician fatigue and the risk of wheel damage during heavy or low profile tire mounting.
Consistent mounting performance on challenging tire and wheel combinations helps cut service time and reduces damage liability for expensive alloy wheels.
Single Phase Power Compatibility
Both units run on 110V single phase, 60Hz power, so the combo plugs into standard shop electrical service without requiring 220V upgrades that add installation costs and complexity.
Where many higher capacity machines require 220V service, this single phase tire machine and wheel balancer combo is a practical fit for shops with standard electrical panels.
Avoiding electrical upgrades helps control install costs and lets you get the combo up and running quickly on existing outlets.
Integrated Bead Blast Seater
The KT-T835 includes a bead blast seater with post tank operating at 0.8 to 1.0 MPa (116 to 145 PSI) for controlled air blast delivery on difficult tire mounting situations, particularly with low profile and run flat tire configurations.
The controlled blast pressure ensures proper bead positioning on stiff sidewall constructions that often fail to seat with standard shop air inflation methods.
Single attempt mounting success on challenging tire types reduces labor time per wheel service while maintaining tire integrity and extending service life.
Product Demonstration
Applications & Use Cases
- Professional Automotive Repair Shops: Complete wheel service with a tire changer and balancer combo for passenger cars, SUVs, and light trucks, including mounting and precision balancing
- Tire Centers and Retail Outlets: Mid volume tire installation and balancing with a tire changer combo serving consumer and light commercial vehicles with professional grade precision and capacity
- Commercial Vehicle Service Facilities: Light truck and delivery vehicle maintenance within capacity limits (up to 41 inch diameter, 143 lb wheel weight)
- Fleet Maintenance Operations: Company vehicle fleets requiring on site tire service with professional grade precision
- Performance and Custom Wheel Specialists: Shops servicing oversized wheels, low profile tires, and specialty wheel configurations
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Wheel Diameter | 41 inches (1,040 mm) |
| Maximum Wheel Width | 15 inches (350 mm) |

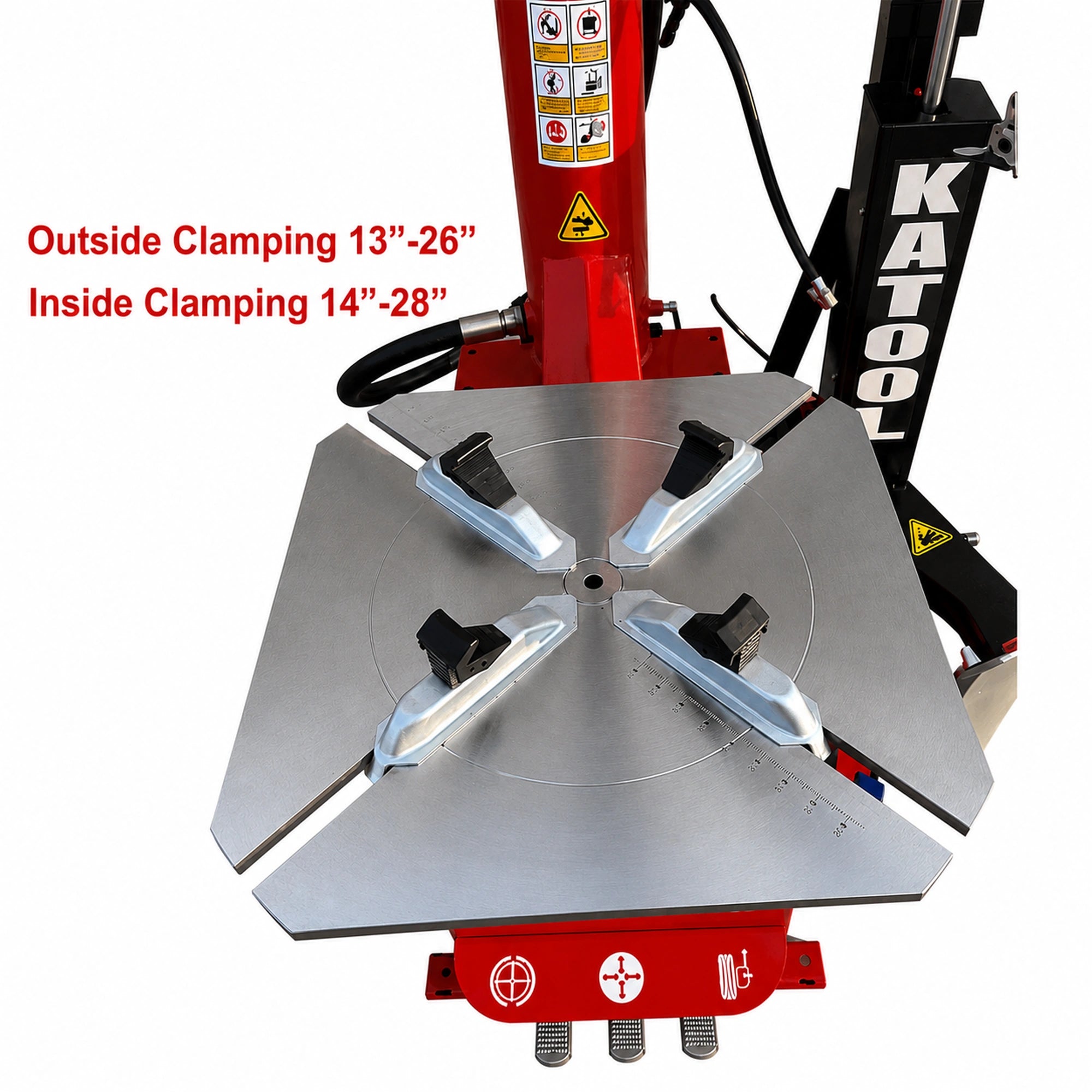

| Outside Clamp Range | 13-26 inches |
| Inside Clamp Range | 14-28 inches |
| Motor Power | 2.0HP / 1.5KW |
| Rotation Speed | 6.1 RPM |
| Air Pressure Requirement | 0.8-1.0 MPa (116-145 PSI) |
| Net Weight | 582 lb |
| Specification | Value |
|---|---|
| Maximum Rim Diameter | 30 inches |
| Maximum Wheel Weight | 65 kg (143 lb) |
| Balancing Accuracy | ±1g |
| Measuring Time | 7 seconds |
| Balancing Speed | 180 RPM |
| Motor Power | 0.25KW |
| Cabinet Steel Thickness | 3mm |
Product Manuals
KT-T835 Tire Changer Manual
Complete installation and operation guide for the KT-T835 tire changer, including setup instructions, operating procedures, maintenance guidelines, and troubleshooting information.
Download KT-T835 Manual (PDF)KT-B750 Wheel Balancer Manual
Complete operation guide for the KT-B750 wheel balancer, including operating procedures, calibration instructions, maintenance guidelines, and troubleshooting information.
Download KT-B750 Manual (PDF)Installation Requirements
Power Requirements
- Voltage: 110V single phase, 60Hz (both units)
- Installation: Standard electrical outlets, no 220V upgrades required
- Power Compatibility: Integrates with existing shop electrical systems
Air Supply Requirements
- Operating Pressure: 0.8 to 1.0 MPa (116 to 145 PSI) for KT-T835
- Air Supply: Shop compressor with adequate CFM capacity
- Bead Seater: Dedicated air tank for blast seating operations
Delivery and Setup Requirements
- Unloading Equipment: Forklift or equivalent required for safe handling
- Floor Requirements: Level concrete surface recommended
- Installation: Professional installation recommended for optimal performance
Shipping & Delivery
Freight Coverage
Shipping: Freight shipping to continental United States included. Processing time 1 to 2 business days, transit 4 to 7 business days typical.
Delivery Requirements: Buyer responsible for unloading arrangements and dock or forklift access.
Delivery Process
Unloading: Forklift or dock facility required for largest crate or pallet handling.
Inspection: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departure.
Damage Claims: Report concealed damage within timeframe specified in manufacturer documentation.
Warranty Coverage
12 Month Limited Warranty
Coverage: All parts including motors, electronics, and structural components
Duration: 12 months from date of purchase
Extended Options: Additional warranty coverage available through select authorized dealers
Ready to Upgrade Your Shop?
Get expert guidance on the right tire equipment for your facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm included accessories and installation requirements for your specific application.
Frequently Asked Questions
What are the maximum wheel dimensions the KT-T835 can handle?
The KT-T835 tire changer combo accommodates wheels up to 41 inches in diameter and 15 inches in width, with outside clamp range of 13 to 26 inches and inside clamp range of 14 to 28 inches. This capacity covers oversized performance wheels, light truck applications, and custom wheel configurations that smaller tire changing machine combo units cannot service.
What components are included with the KT-T835 and KT-B750 combo?

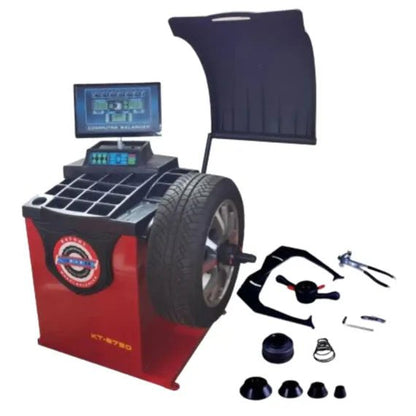

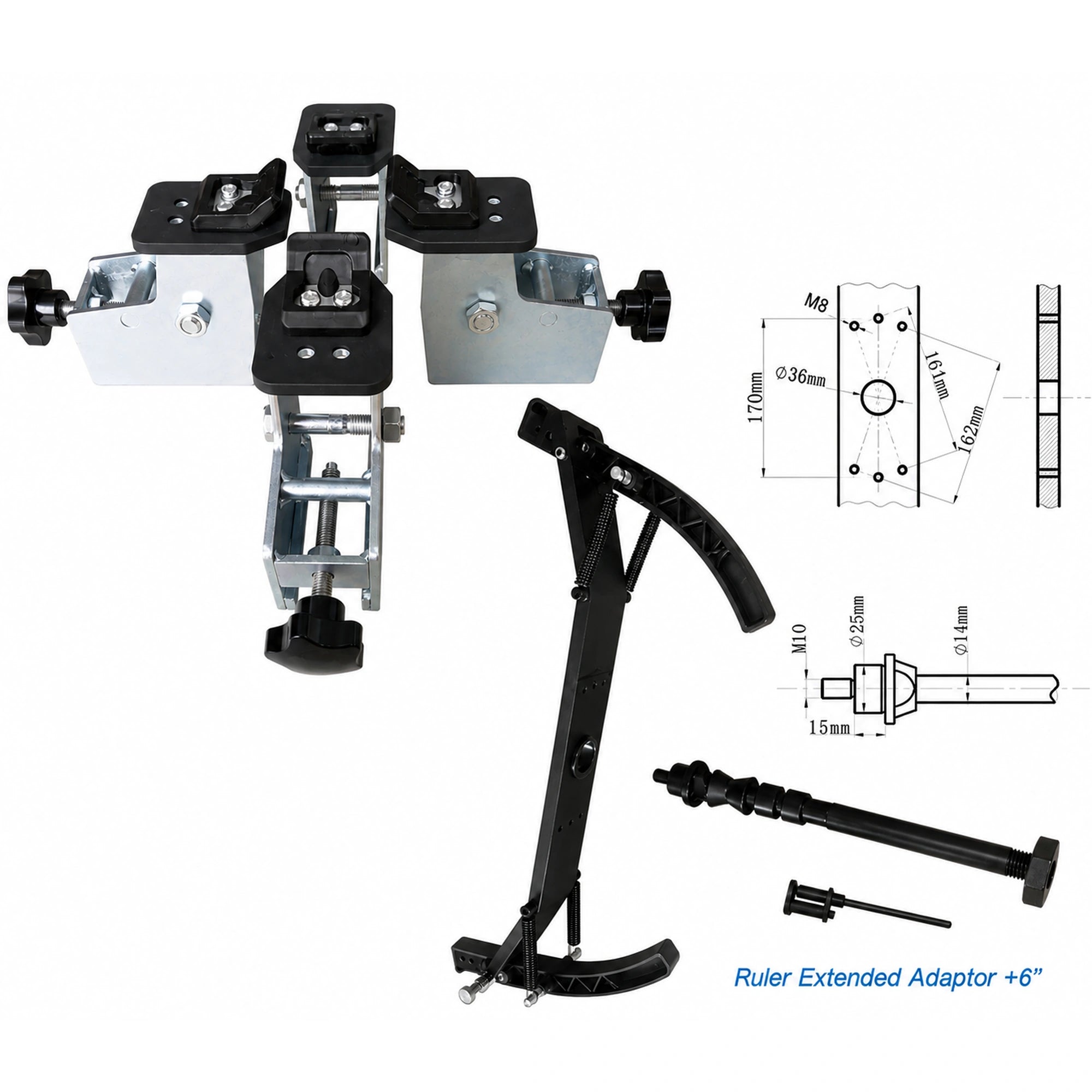

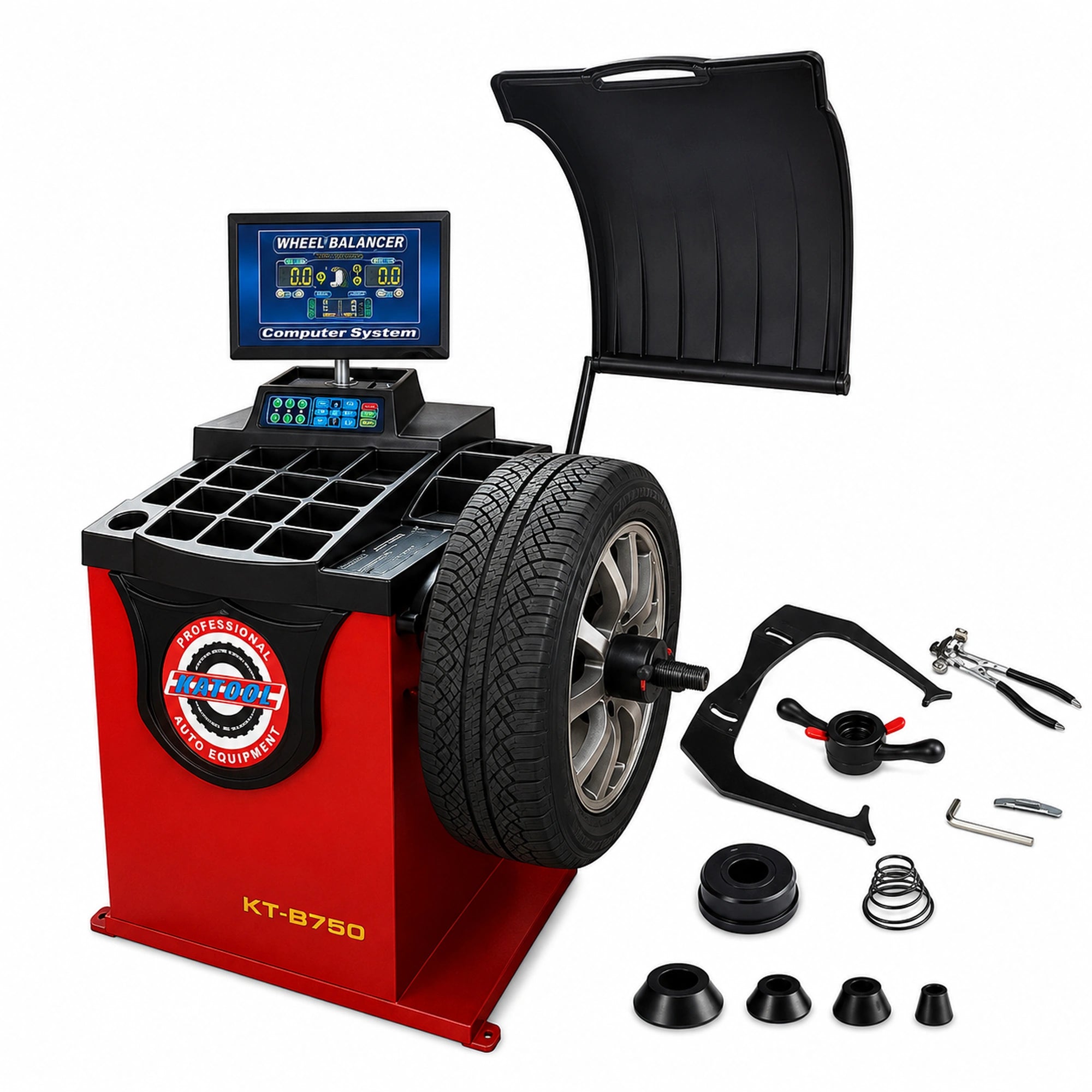

The combo includes the KT-T835 tire changer with double assist arms, KT-B750 wheel balancer with automatic measurement ruler, bead blast seater with post tank, protective plastic covers, rim guards, and standard balancing cones with mounting hardware. This package provides everything needed for complete wheel service operations without requiring additional accessory purchases.
What are the power requirements for installation?
Both units operate on standard 110V single phase, 60Hz power, eliminating the need for 220V electrical upgrades. The KT-T835 also requires 0.8 to 1.0 MPa (116 to 145 PSI) air pressure from a shop compressor. This standard power configuration integrates seamlessly with existing shop electrical systems, reducing installation costs and complexity.
What balancing accuracy does the KT-B750 provide?
The KT-B750 wheel balancer delivers +/- 1g balancing accuracy with 7 second measuring cycles at 180 RPM, handling wheels up to 65kg (143 lbs) in weight and 30 inches in diameter. This precision level matches premium balancing equipment while maintaining rapid cycle times for high volume operations.
What types of vehicles can this equipment service?
This tire changer and balancer combo is designed for professional shops, tire centers, and commercial vehicle service facilities serving passenger cars, SUVs, light trucks, and commercial vehicles within the specified capacity limits. The 41 inch wheel capacity and 143 pound weight handling cover most standard automotive applications while extending into specialized vehicle categories.
What safety features are included with this equipment?
Safety features include alloy steel jaws with carburization treatment, stainless steel mounting head with protective plastic covers, safety guard system on the balancer, and closed cabinet design for operator protection during operation. The protective covers prevent wheel damage during service while the closed cabinet design protects operators from rotating components.
What warranty coverage is provided?
The equipment includes a 12 month limited warranty covering all parts including motors, electronics, and structural components, with extended warranty options available through select authorized dealers. This comprehensive coverage protects your investment in professional tire equipment and ensures parts availability for critical components.
What are the delivery requirements for this equipment?
Freight shipping is included to the continental US. Forklift or equivalent unloading equipment is required due to the weight (582 lbs for KT-T835). Buyers are responsible for unloading and damage inspection before driver departure. Professional installation is recommended to ensure proper setup and optimal performance.
