Katool KT-T830 Tire Changer Machine – 2.0 HP Katool Tire Changer with Dual Assist Arms

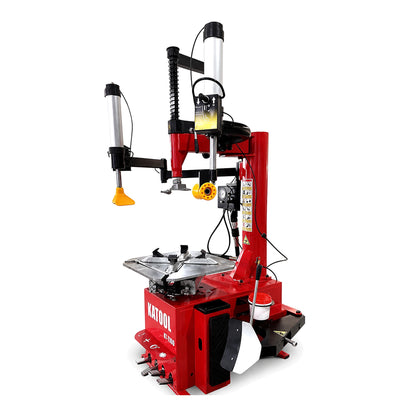

The Katool KT-T830 is a semi-automatic rim-clamp swing-arm tire changer and tire mounting machine with dual assist arms and an integrated bead blaster. This Katool tire machine handles passenger car, SUV, and light-truck tires up to 41-inch diameter and 15-inch width. Powered by a 2.0 HP motor on standard 110-120 V single-phase power, it's built for small to mid-size repair shops and well-equipped home garages.
Key Features of the Katool Tire Changer Machine
2.0 HP Motor on 110-120 V Single-Phase Power
The KT-T830 delivers 2.0 HP (1.5 kW) on standard North American single-phase 110-120 V—no 220 V electrical upgrades required. The extra power over typical 1.5 HP machines maintains consistent turntable rotation under load when working with modern low-profile and stiff-sidewall tires. 6.8 rpm rotation speed balances power with control during mounting and demounting.

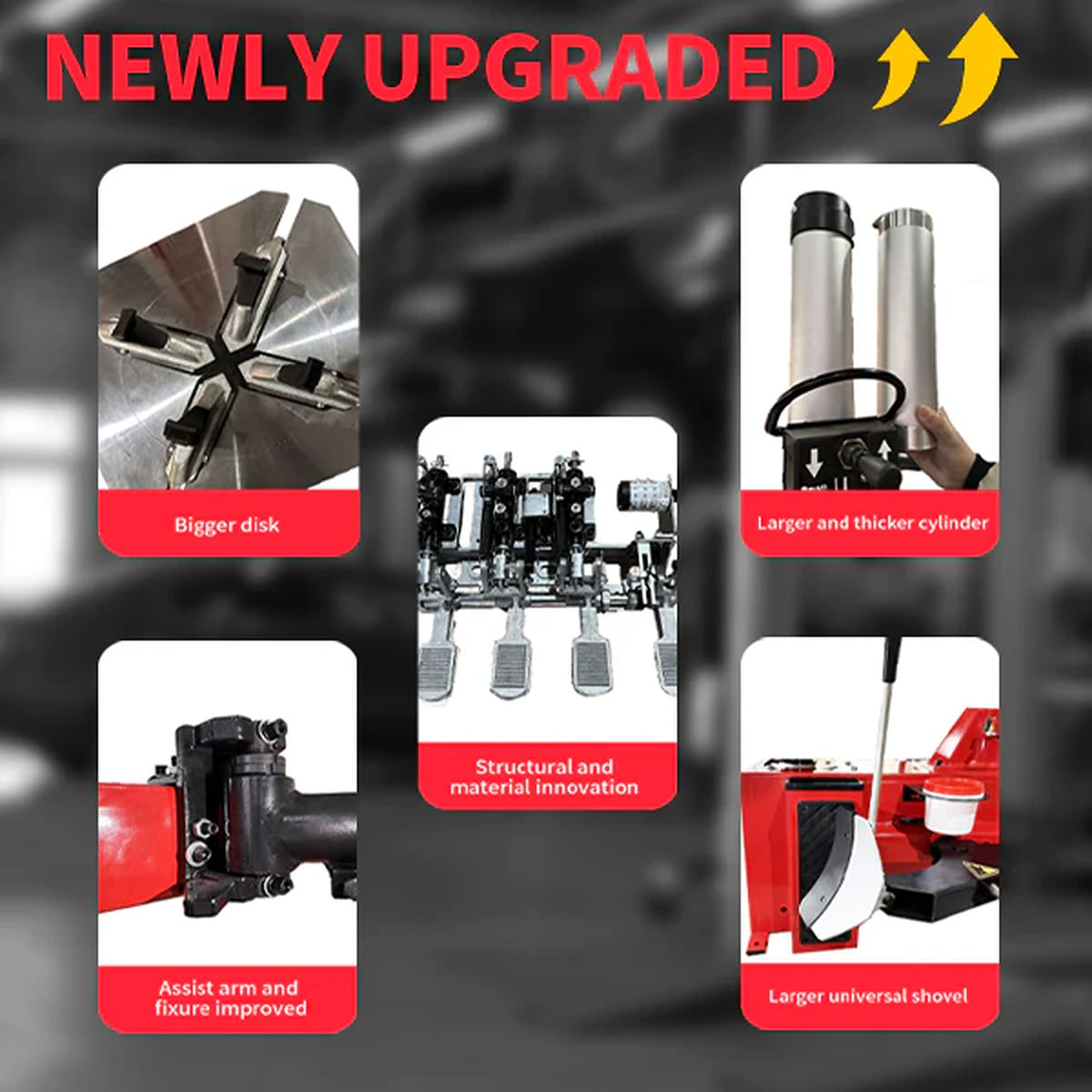

Dual Assist Arms as Standard Equipment
The KT-T830 ships with double side assist arms mounted to the machine—a feature that's optional or absent on many basic changers. These pneumatic arms provide controlled pressure to manipulate tire beads during mounting and demounting, particularly for low-profile, run-flat, and wide performance tires. This improves success rates on challenging tire-and-wheel combinations and reduces the risk of cosmetic damage to alloy wheels.
Expanded Capacity Envelope

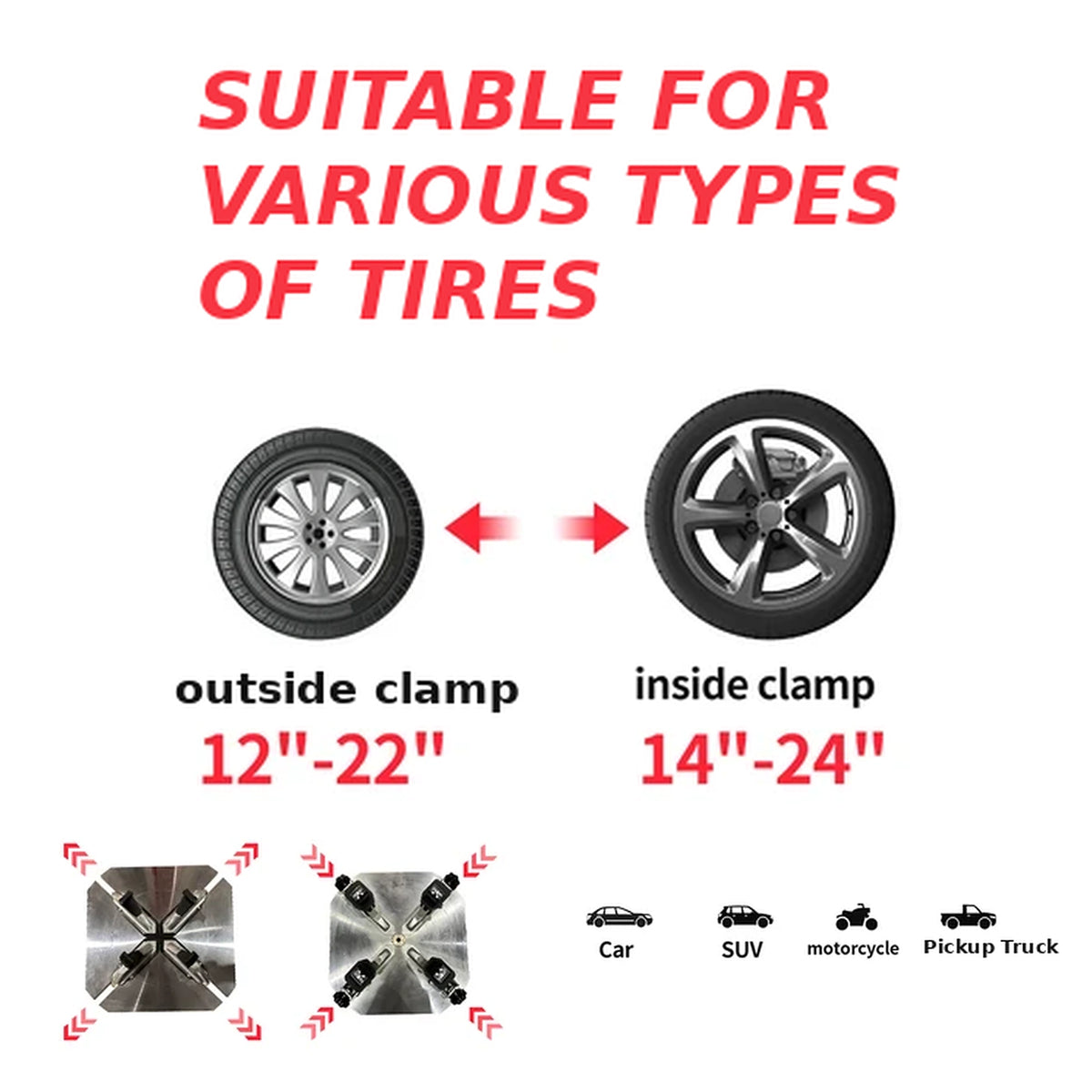

The KT-T830 offers 41-inch max wheel diameter, 15-inch max width, and 12-22 inch outside clamping / 14-24 inch inside clamping ranges. This covers a broad mix of passenger and light-truck fitments, including larger SUV and light-truck tires that exceed the 39-40 inch limits of many entry-level machines.
Rim Protection Through Carburized Jaws and Stainless Mounting Head
Alloy steel jaws with 0.8-1.1 mm carburization depth and full quenching create a hard outer surface that resists deformation. The mounting head is stainless steel with solution treatment and interface polishing. Both components include replaceable jaw covers and plastic rim protectors to shield wheel surfaces during clamping and mounting.
Integrated Bead Blaster with Post Tank

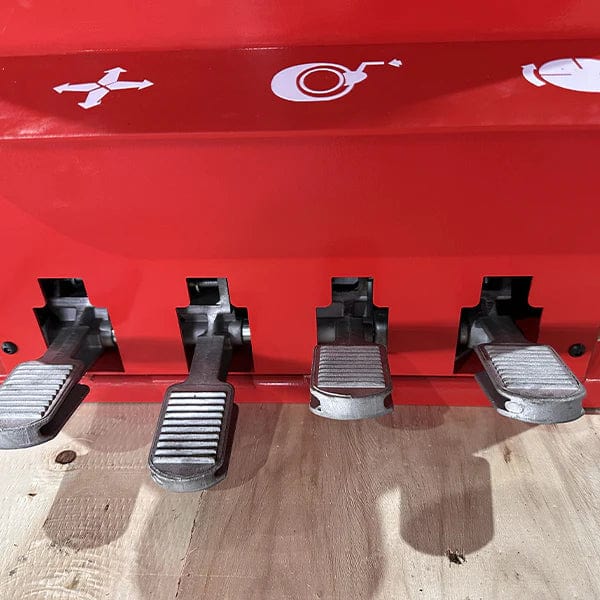

Built-in bead blast system with a post-mounted air tank, controlled by a dedicated pedal. Delivers a high-volume burst of air to seat stubborn tire beads without unsafe inflation methods. Pedal control allows hands-free operation while positioning the tire.
Closed Cabinet and Integrated Pneumatic Lubrication

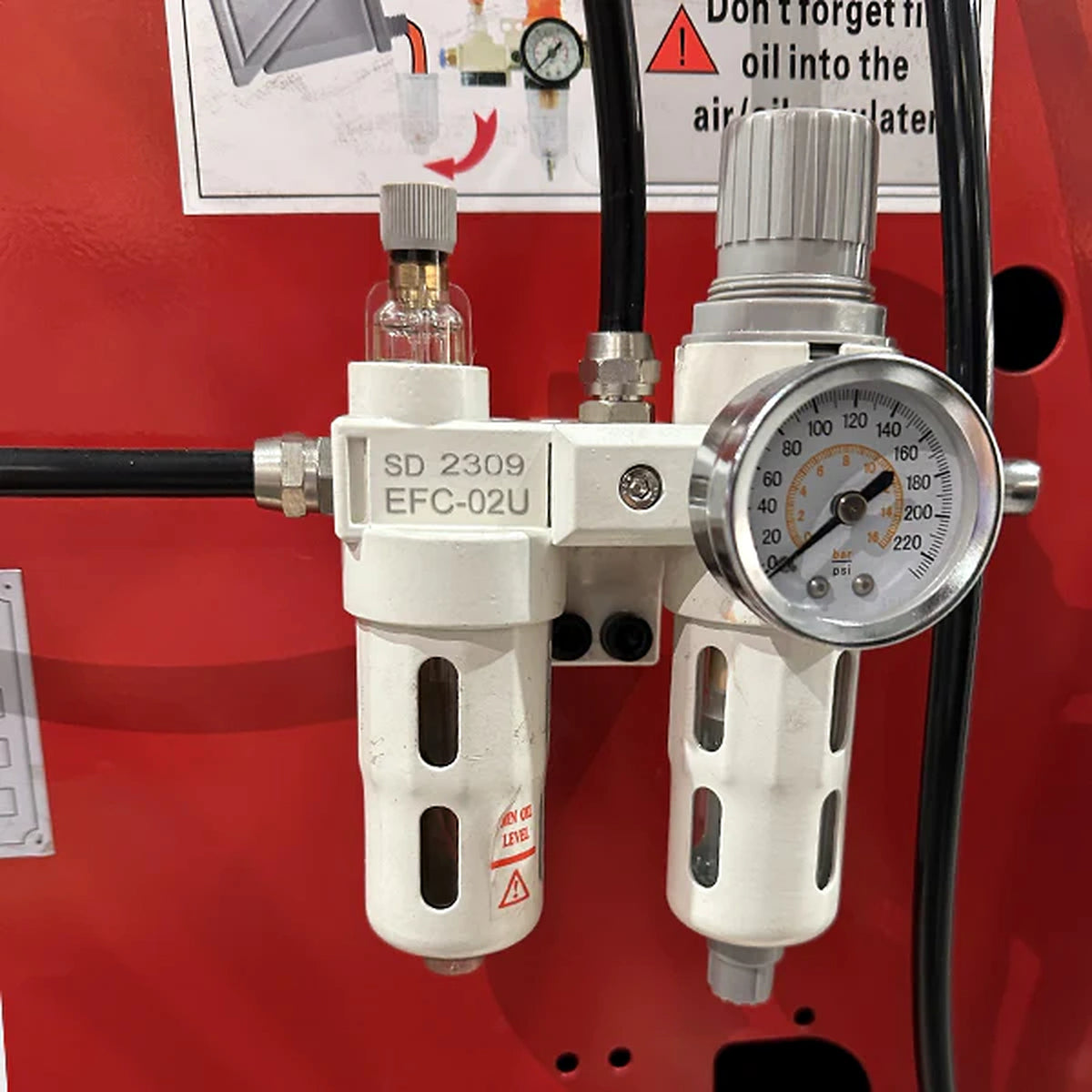

Closed-body cabinet design shields internal pneumatic components and drive systems from dust, debris, and moisture. Integrated lubricator and filter unit ensures consistent pneumatic system performance and extends service intervals.
Product Demonstration
Applications & Use Cases
This Katool tire changing machine is sized for shops that need a full-capacity tire machine without stepping up to heavy commercial truck equipment.
- Small to mid-size automotive repair shops: In-house tire service for passenger cars, SUVs, and light trucks
- Independent tire shops: Routine mounting and demounting including low-profile and performance fitments
- Alignment and brake shops: Supporting wheel service during suspension and brake work
- Mobile tire services: Portable wheel service with appropriate power and air supply
- Well-equipped home garages: Full-size rim-clamp changer for serious DIY mechanics
- Fleet maintenance facilities: Servicing mixed passenger and light-truck fleets
Tire Changer vs. Tire Machine and Balancer Combo
When to Choose a Standalone Tire Changer
Choose a dedicated tire changer like the KT-T830 when you already own a quality wheel balancer, need to replace aging equipment, or want to add a second machine for increased throughput.
When to Choose a Tire Changer and Balancer Combo
A tire machine and balancer combo offers cost savings and simplified purchasing for new shops or complete equipment refreshes. Contact us to discuss tire changer balancer combo options featuring the KT-T830 paired with Katool's wheel balancers.
Technical Specifications
| Specification | Value |
|---|---|
| Max Wheel Diameter | 41 inches (1,040 mm) |
| Max Wheel Width | 15 inches (380 mm) |
| Outside Clamping Range | 12-22 inches |
| Inside Clamping Range | 14-24 inches |

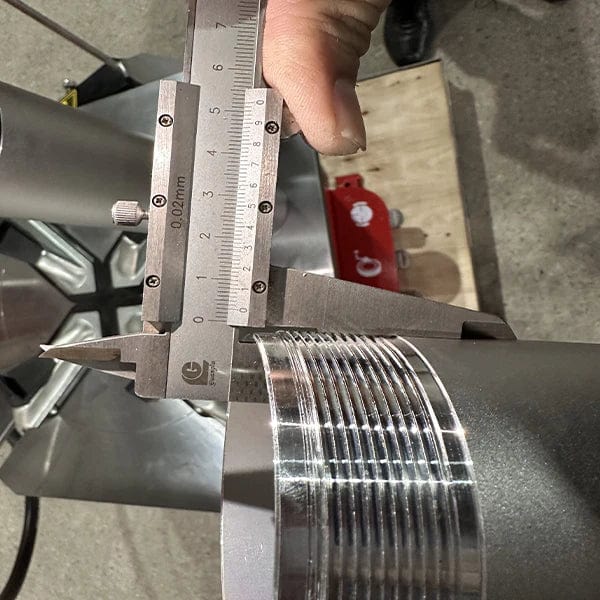

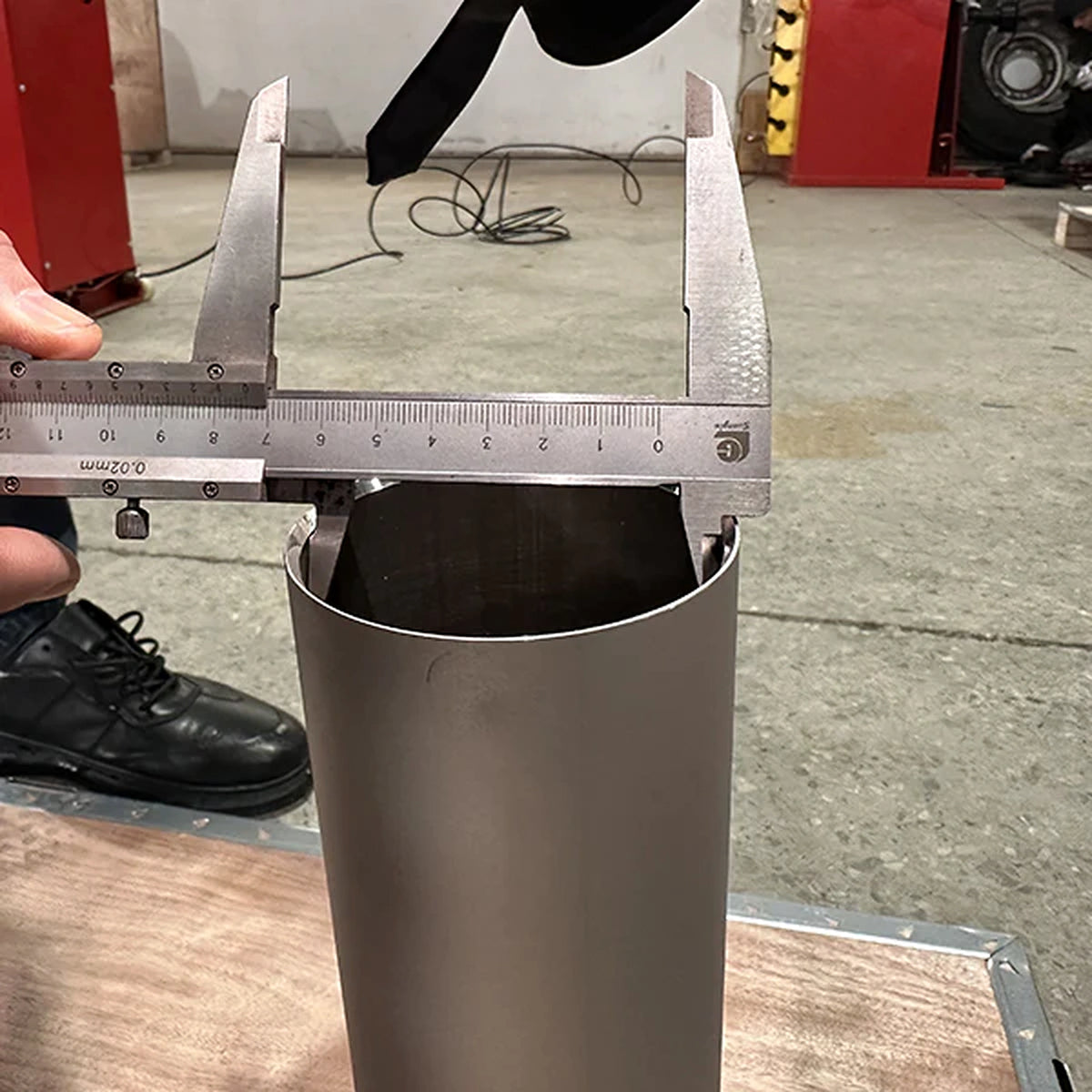

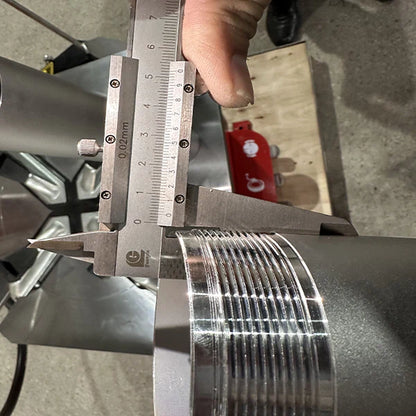

| Bead Breaker Cylinder | 186 mm (7.32 inches), stainless steel |
| Specification | Value |
|---|---|
| Motor Power | 2.0 HP (1.5 kW) |
| Power Supply | 110-120 V, 1-phase |
| Rotation Speed | 6.8 rpm |
| Air Pressure | 0.8-1.0 MPa (116-145 psi) |
| Net Weight | 240 kg (529 lb) |
Installation Requirements
Power Requirements
- Voltage: 110-120 V, single-phase
- Motor: 2.0 HP (1.5 kW) with pure copper winding
- Circuit: Grounded circuit required; confirm breaker size from official manual
Air Supply
- Pressure: 0.8-1.0 MPa (116-145 psi)
- Air Preparation: Integrated lubricator and filter unit included
Physical Handling
- Shipping Weight: Crated, palletized freight unit; 529 lb net weight
- Unloading Equipment: Buyer responsible; forklift or equivalent recommended
Shipping & Delivery
Freight Coverage
Shipping: Freight shipping to contiguous lower-48 U.S. states. Surcharges may apply for residential deliveries or remote locations.
Inspection: Inspect all crates upon delivery and note any visible damage on the delivery receipt before the driver departs.
Delivery Requirements
Unloading Equipment: Buyer responsible. Forklift, loading dock, or equivalent recommended.
Liftgate Service: May be available; contact seller for options.
Warranty Coverage
Standard Warranty
1 Year - Parts Coverage: Limited one-year warranty on all parts against defects.
Warranty Requirements
Eligibility: Proof of purchase from authorized seller required.
Claims Process: May require photo/video documentation; covers parts shipment but not labor.
Exclusions: Misuse, improper installation, or normal wear not covered.
Product Documentation
Ready to Upgrade Your Shop?
Get expert guidance on the right Katool tire changer for your facility. Our team can help you compare tire machines for sale and confirm the KT-T830 is the best tire changer machine for your shop.
Frequently Asked Questions
What do reviews say about Katool tire changers?
Katool tire changer reviews highlight professional-grade construction, reliable pneumatic systems, and strong value. Users praise carburized jaw durability, smooth assist-arm operation, and 110V convenience.
Is Katool a good brand for tire changing equipment?
Yes. Katool is known for heavy-duty construction, responsive warranty support, and readily available Katool tire changer parts. Many shops choose Katool as a cost-effective alternative to premium brands.
Are Katool tire changer parts available?
Yes. Katool tire machine parts are readily available through authorized dealers. Common replacements include plastic jaw covers, mounting head covers, bead-breaker components, and pneumatic seals.
Where are Katool products made?
Katool equipment is manufactured in China with engineering focused on North American requirements. Products feature 110V power options, imperial specifications, and English documentation.
Are there reviews and parts support for the Katool KT-T830?
Yes. Katool tire changer reviews highlight the KT-T830's value compared to more expensive brands. Replacement Katool tire changer parts are available through authorized dealers.
What are the power requirements for the Katool KT-T830?
110-120 V single-phase for the 2.0 HP motor; 0.8-1.0 MPa (116-145 psi) shop air. Grounded circuit required.
What is included with the Katool KT-T830 tire changer?

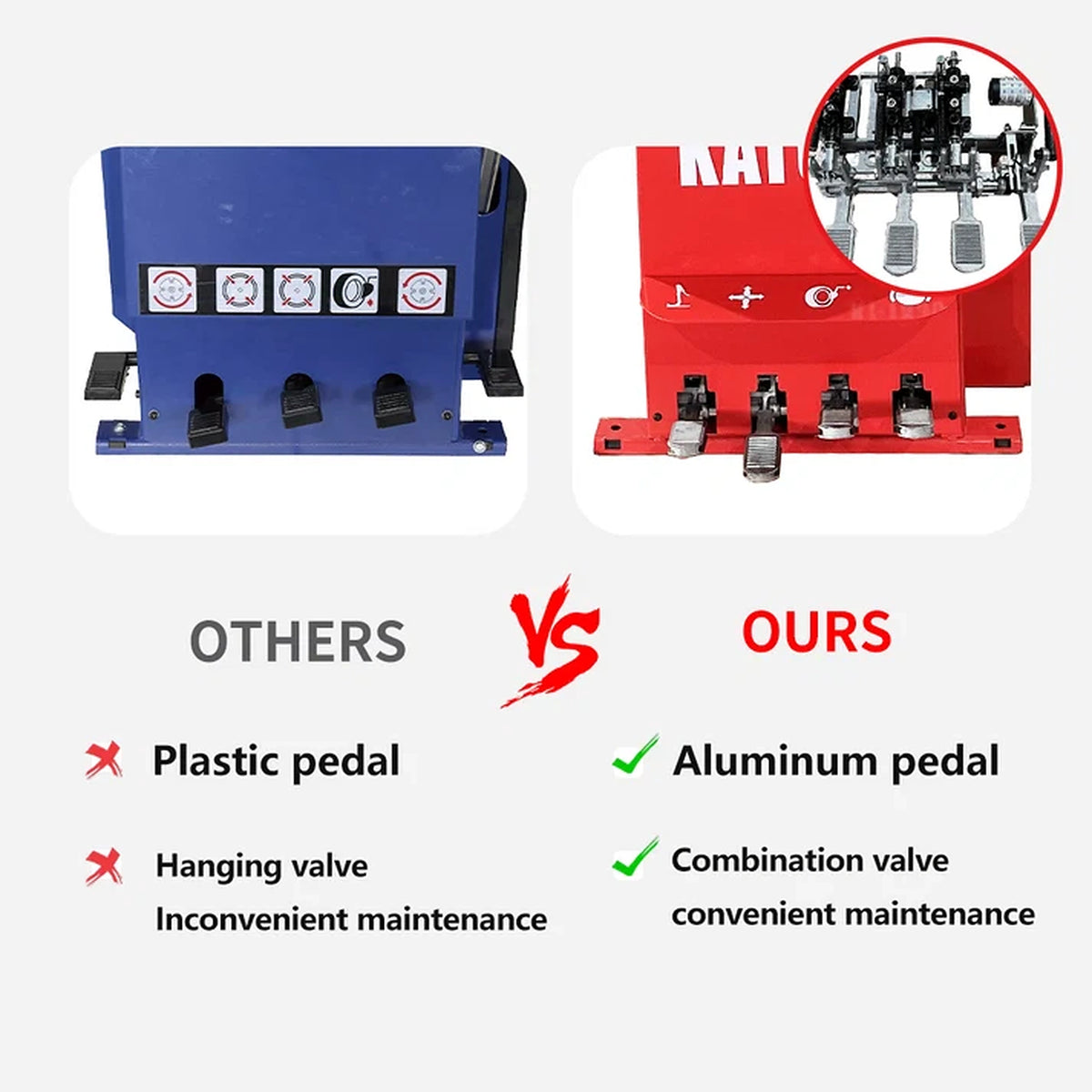

Main tire changer unit with closed cabinet and turntable, dual assist arms, bead breaker assembly with 186 mm stainless cylinder, integrated bead blaster with post air tank, jaw covers and plastic rim-protection covers, pull-type pedal control cluster with inflation gauge, integrated pneumatic lubricator/filter unit, and operation manual.
What size tires can the KT-T830 handle?
Up to 41 inches diameter and 15 inches width. Clamping: 12-22 inches outside, 14-24 inches inside. Covers most passenger car, SUV, and light-truck sizes.
Is the KT-T830 suitable for low-profile and run-flat tires?
Yes. Dual assist arms and integrated bead blaster are standard. The 2.0 HP motor provides adequate torque for challenging tire-and-wheel combinations.
How is the KT-T830 shipped and what unloading equipment is needed?
Ships as crated, palletized freight (529 lb net weight). Buyer responsible for unloading; forklift or equivalent recommended.
What warranty coverage does the KT-T830 come with?
Limited one-year warranty on all parts against defects. Requires proof of purchase. Parts shipment covered; labor not included.
Can the KT-T830 be used in a home garage?
Yes, for well-equipped home garages with 110-120 V single-phase power, shop air at 116-145 psi, and adequate floor support for the 529 lb machine.
How does the KT-T830 protect alloy wheels from damage?
Alloy steel jaws with 0.8-1.1 mm carburization depth; stainless steel mounting head with interface polishing; replaceable jaw covers and plastic rim protectors.
