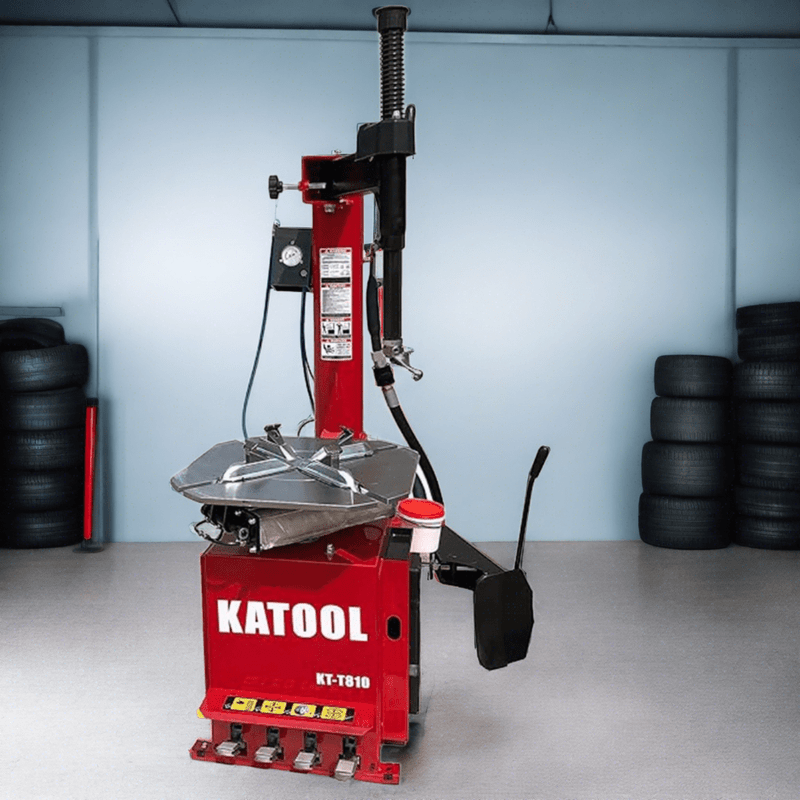

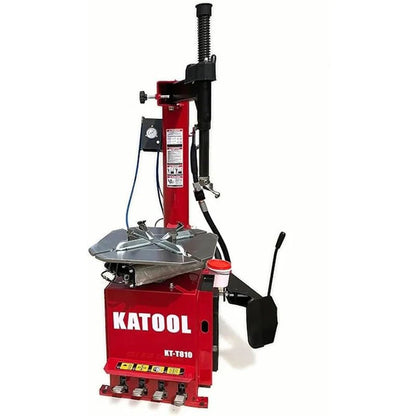

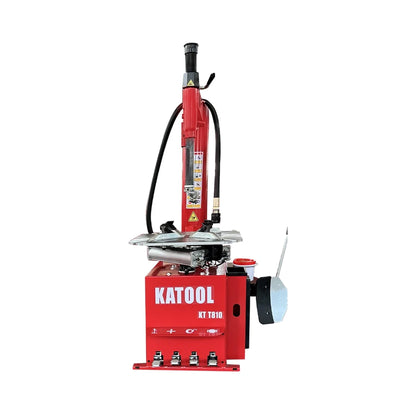

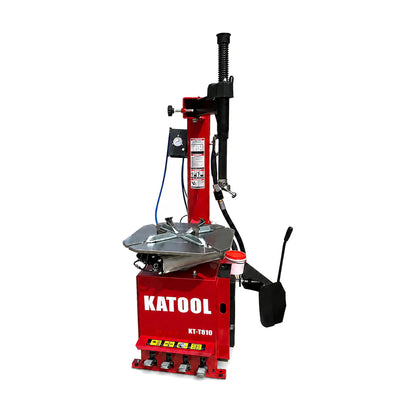

Katool KT-T810 – Tire Changer (Swing-Arm, Bead Blaster)

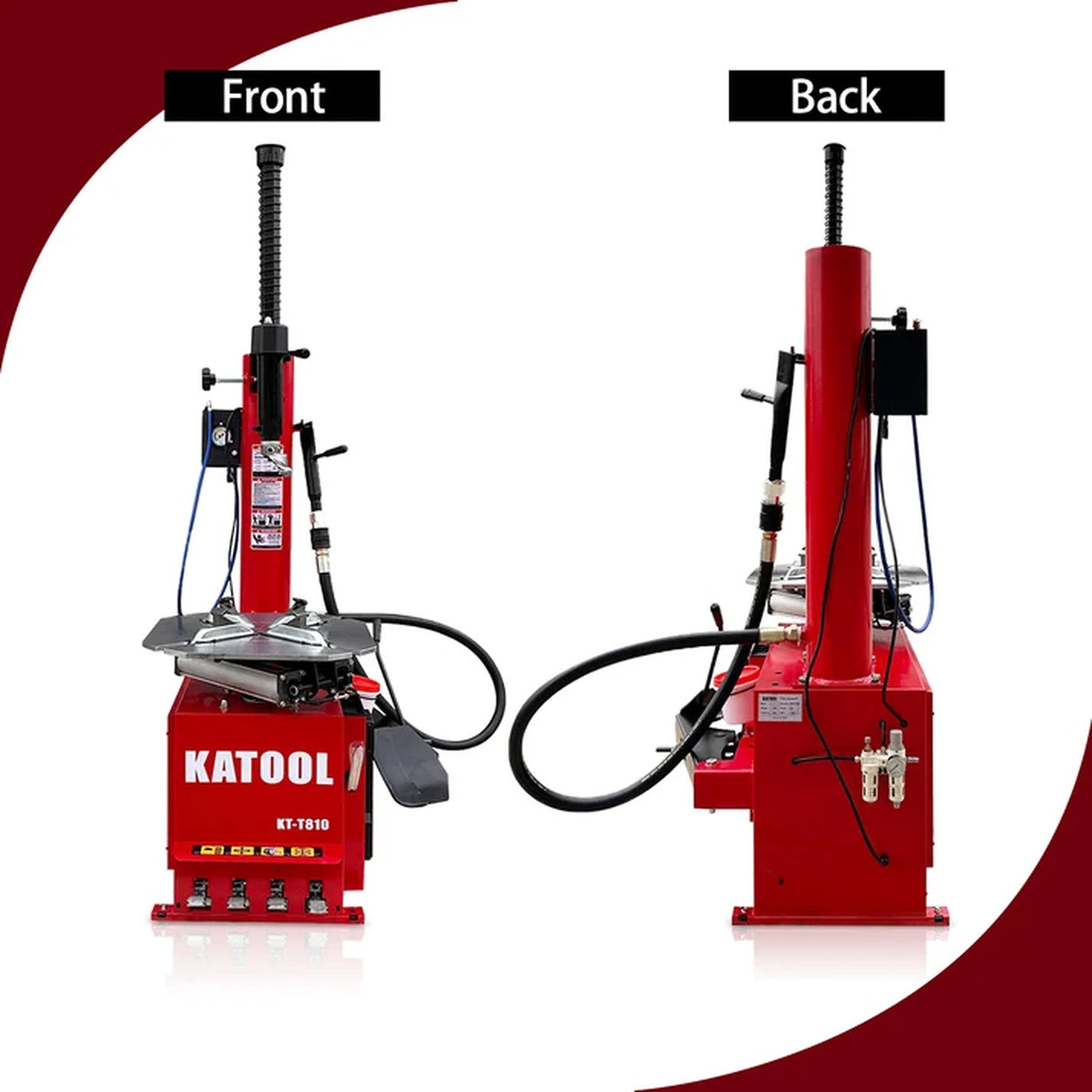

Katool KT-T810 120V Professional Swing Arm Tire Changer with Integrated Bead Blaster
The Katool KT-T810 delivers professional tire service with a 2.0 HP motor on standard 120V power. Features an integrated bead blaster, carburized alloy steel jaws, and comprehensive rim protection. Handles wheels up to 41" diameter with 14" to 24" inside clamping range.
Key Features & Benefits
Integrated Bead Blaster
Built-in bead seating as standard equipment. The KT-T810 combines tire mounting and bead seating in a single 2.0 HP unit, eliminating the need for separate bead seating equipment. Mount and seat in one continuous operation without moving wheels between stations.

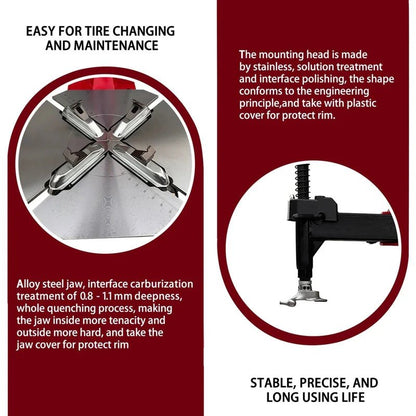

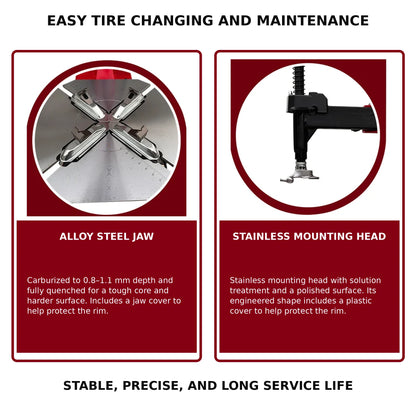

Advanced Jaw Metallurgy
Carburized alloy steel with 0.8-1.1mm treatment depth. This creates a hardened surface layer while maintaining a tough core, delivering better wear resistance and clamping force than standard hardened steel. Reduces jaw replacement frequency and maintains consistent grip across different tire types.
Comprehensive Rim Protection
Triple protection system. Carburized jaw construction with protective covers, plus a stainless steel mounting head with plastic guard. Protection at every wheel contact point during mounting and dismounting, even when protective covers become worn.
120V High-Power Operation
2.0 HP on standard 120V power. No 220V electrical upgrades required. The motor runs at 6.8 RPM rotation speed while maintaining full torque for stiff sidewall tires and high-pressure mounting. Deploy immediately using existing electrical infrastructure.

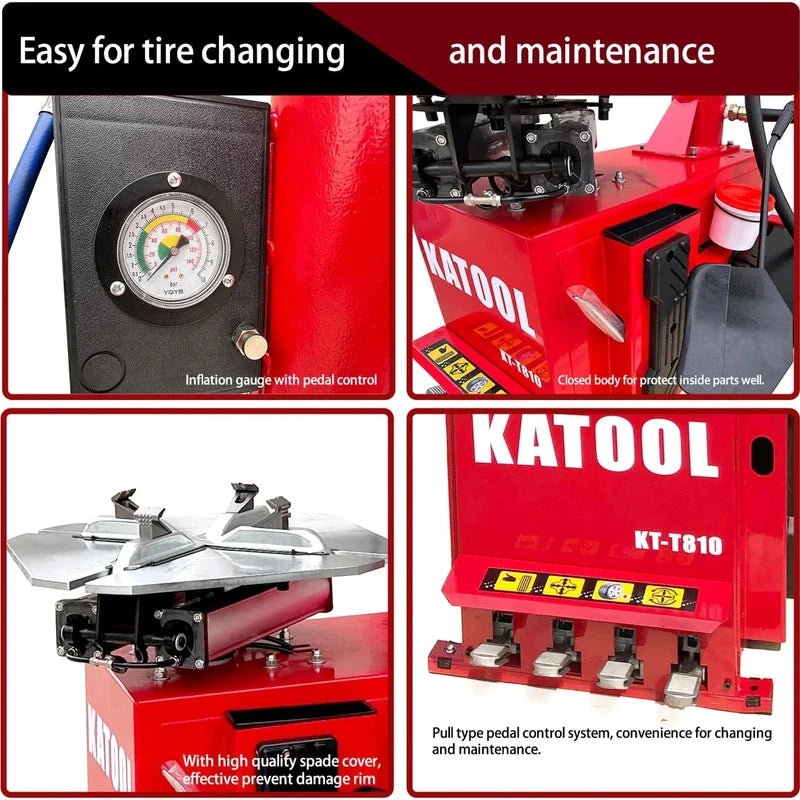

Complete Pneumatic Integration
Built-in filter/regulator/lubricator system. Closed body design protects internal components from shop debris and moisture. Operates at 116-145 PSI with integrated air filtration and automatic lubrication, reducing external air preparation requirements.
Product Demonstration
Applications & Use Cases
- Professional Automotive Repair Shops: Passenger cars and light trucks with 12" to 24" rim diameters
- Tire Service Centers: High-volume operations needing integrated bead seating
- Specialty Tire Shops: Custom wheel installations requiring comprehensive rim protection
- Advanced Home Garages: Enthusiast-level tire service with professional-grade equipment

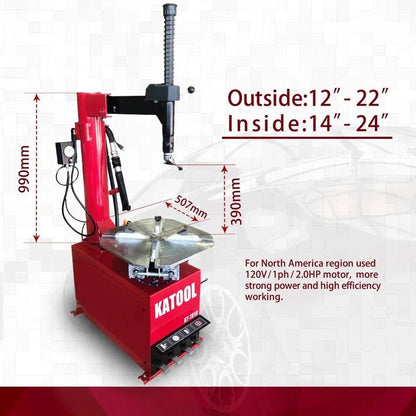

Technical Specifications
For detailed setup and maintenance procedures, see the KT-T810 installation and operation manual.

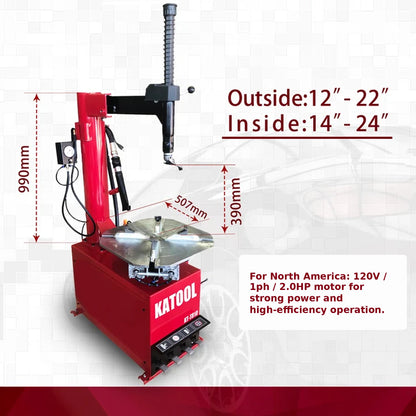

| Specification | Value |
|---|---|
| Max Wheel Diameter | 41 in (1,040 mm) |
| Max Wheel Width | 15 in (380 mm) |
| Outside Clamp Range | 12" to 22" |
| Inside Clamp Range | 14" to 24" |
| Motor Power | 2.0 HP (1.5 kW) |
| Rotation Speed | 6.8 RPM |
| Specification | Value |
|---|---|
| Power Supply | 120V, 1-Phase |
| Air Pressure | 116-145 PSI (0.8-1.0 MPa) |
| Net Weight | 410 lb (186 kg) |
| Jaw Construction | Carburized alloy steel |
| Carburization Depth | 0.8-1.1 mm |
| Mounting Head | Stainless steel with plastic cover |
Installation Requirements
Power Requirements
- Electrical: 120V single-phase dedicated circuit
- Motor Load: 2.0 HP (1.5 kW) at full operation
- Circuit Protection: Appropriate breaker sizing per code
Compressed Air System
- Working Pressure: 116-145 PSI continuous supply
- Air Quality: Clean, dry compressed air recommended
- Connection: Standard industrial quick-connect
Foundation and Space
- Floor Surface: Level concrete with anchoring capability
- Clearance: Adequate space for swing arm operation
- Anchoring: Bolt-down installation for stability
Shipping & Delivery
Freight Coverage
Method: LTL freight with protective wooden crate.
Handling: Forklift or pallet jack required (410 lb shipping weight).
Receiving: Inspect before signing. Note any visible damage on BOL before driver departs.
Warranty Coverage
12-Month Parts Warranty
Coverage: All mechanical and electrical components for 1 year from purchase
Exclusions: Normal wear items and labor not included
Registration: Original purchase documentation required
Ready to Upgrade Your Shop?
Questions about the KT-T810? Our team can help with product selection and installation planning.
Frequently Asked Questions
What is the maximum wheel size the KT-T810 can handle?
Up to 41 inches diameter with 15 inches max width. Inside clamp range is 14" to 24", outside is 12" to 22". Covers virtually all passenger car and light truck wheels.
What components are included?
Main unit with swing arm, integrated bead blaster, inflation gun with gauge and pedal control, filter/regulator/lubricator unit, protective jaw covers, plastic mounting head cover, and lube bucket with brush.
What are the electrical requirements?
Standard 120V single-phase with a 2.0 HP motor. No 220V upgrade required. Needs a dedicated circuit with appropriate breaker sizing per code.
What air pressure is required?
116-145 PSI working pressure. Clean, dry compressed air recommended with standard industrial quick-connect fitting. The built-in FRL unit helps maintain consistent air quality.
What applications is the KT-T810 suitable for?
Professional repair shops, tire service centers, specialty tire shops, and advanced home garages. Handles passenger car and light truck wheels from 12" to 24" rim diameter.
What safety features are included?

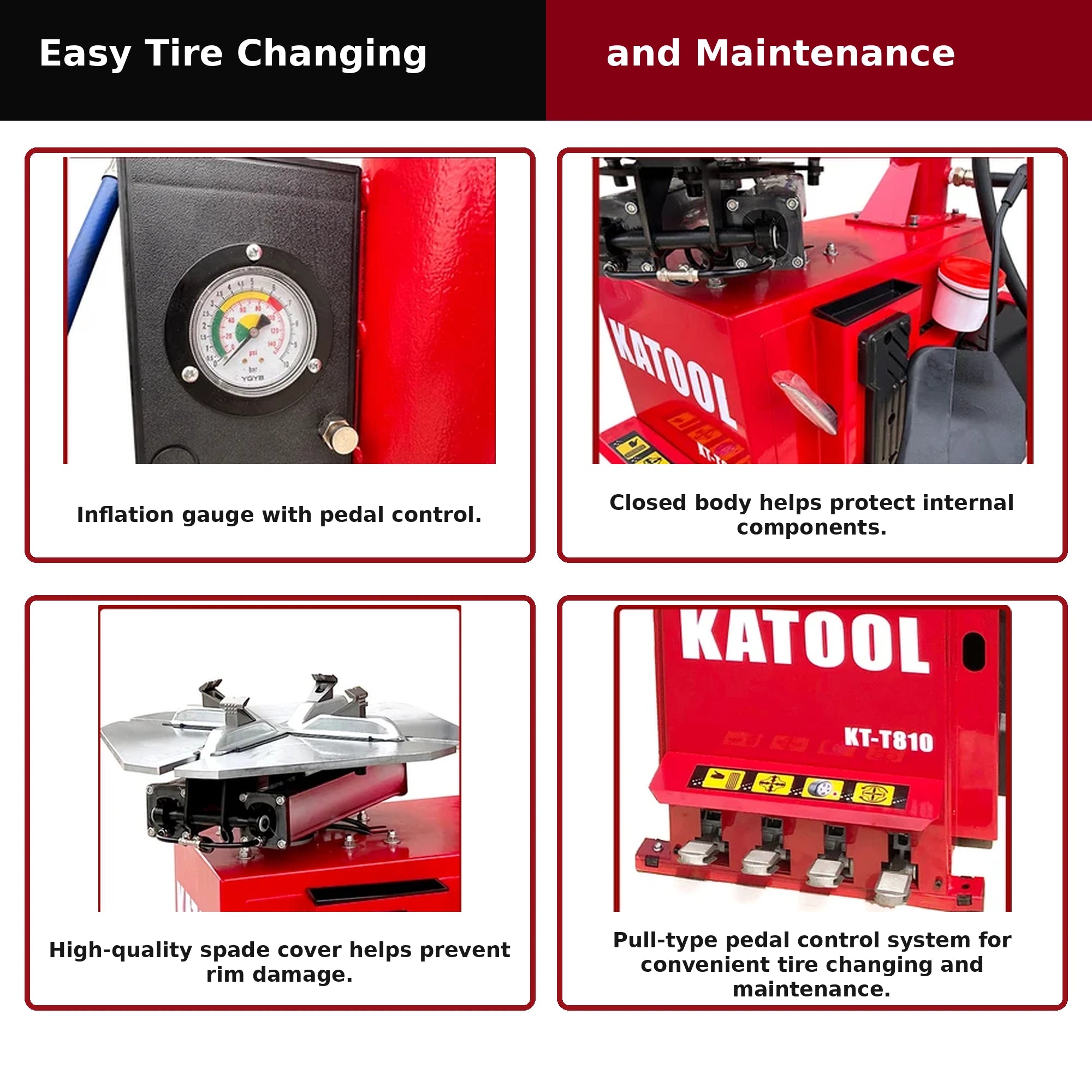

Carburized alloy steel jaws with protective covers, stainless steel mounting head with plastic rim guard, closed body protecting pneumatic components, pull-type pedal control, and integrated air filtration with automatic lubrication.
What warranty coverage is included?
12-month parts warranty covering all mechanical and electrical components. Requires registration with purchase documentation. Normal wear items and labor excluded.
How is the KT-T810 shipped?
LTL freight in a protective wooden crate. Total shipping weight is 410 lb, requiring forklift or pallet jack. Inspect before signing and note any damage on the BOL.
