Katool KT-T800 + KT-B760 – Tire Changer + Wheel Balancer (Combo)

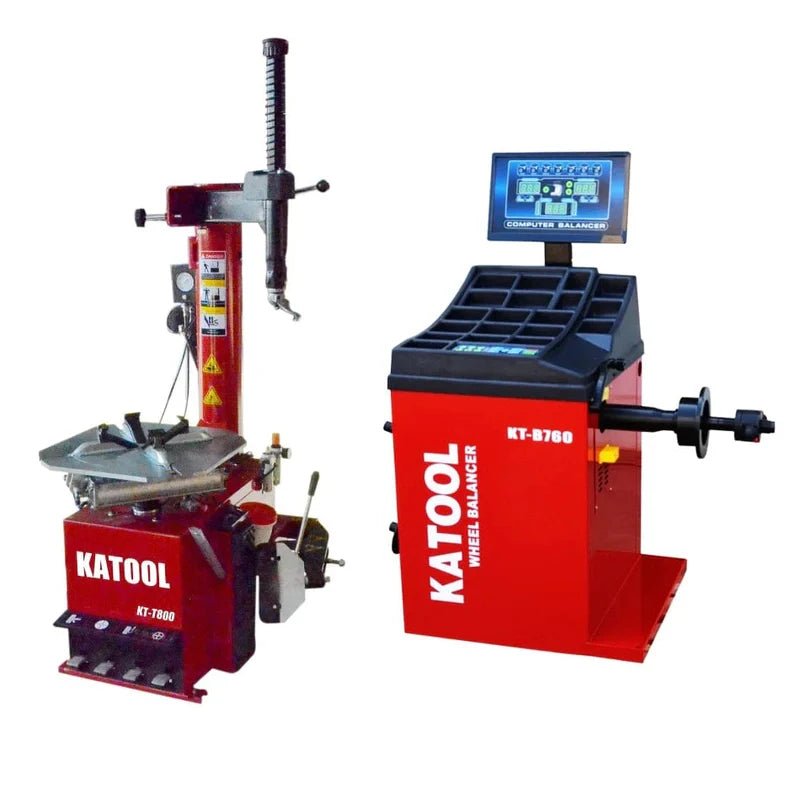

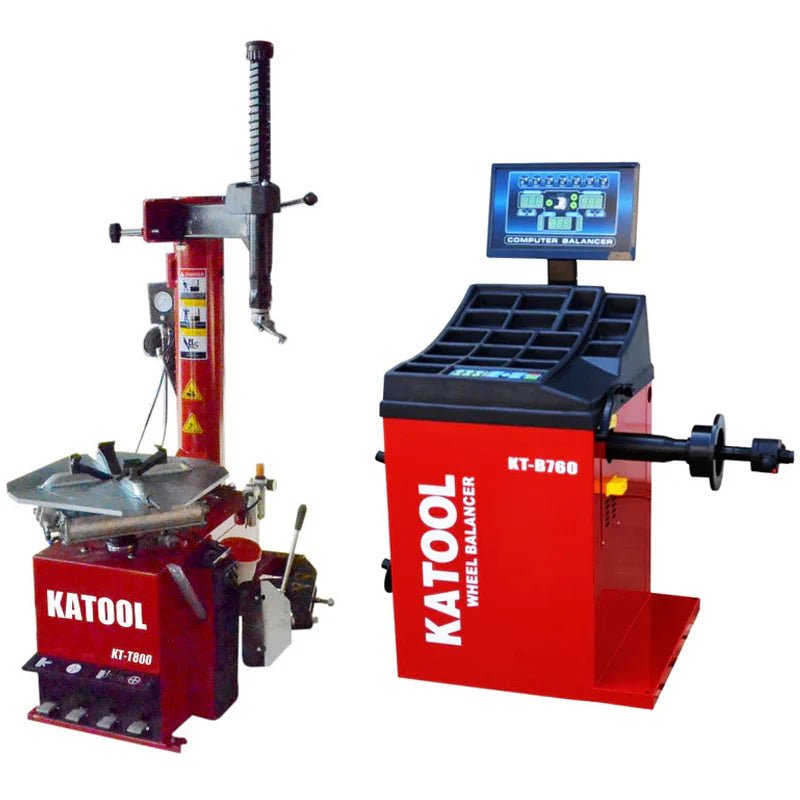

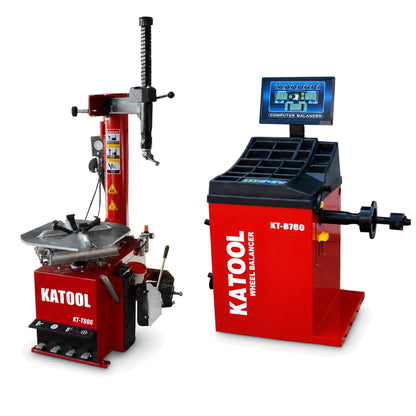

Katool KT-T800 & KT-B760 Tire Changer and Balancer Combo for Sale

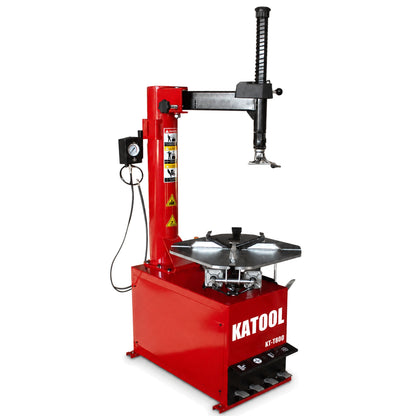

The Katool KT-T800 & KT-B760 tire machine and balancer combo pairs a 2.0 HP swing-arm tire changer with an automatic wheel balancer for passenger and light-truck service. This tire changer combo handles wheels up to 41 inches in diameter with 12-22 inch clamping range, while the KT-B760 delivers ±1 g accuracy in 7 seconds. Both units run on 120V single-phase power for straightforward installation in small to mid-size shops.
Key Features of This Tire Changer and Balancer Combo
This tire changing equipment delivers professional-grade performance in a tire machine and wheel balancer combo designed for small to mid-size shops.

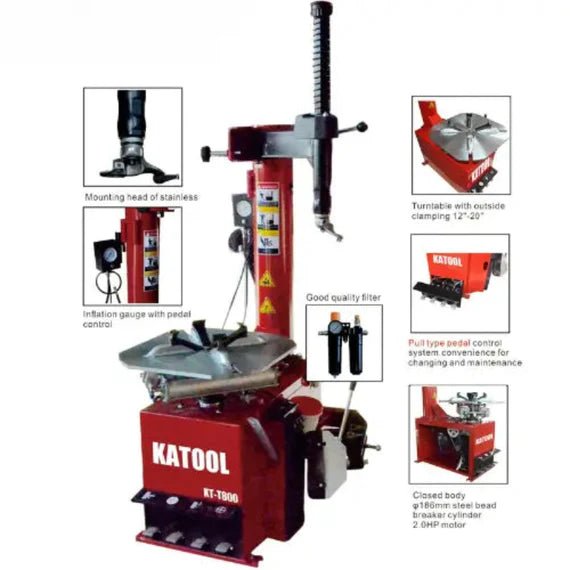

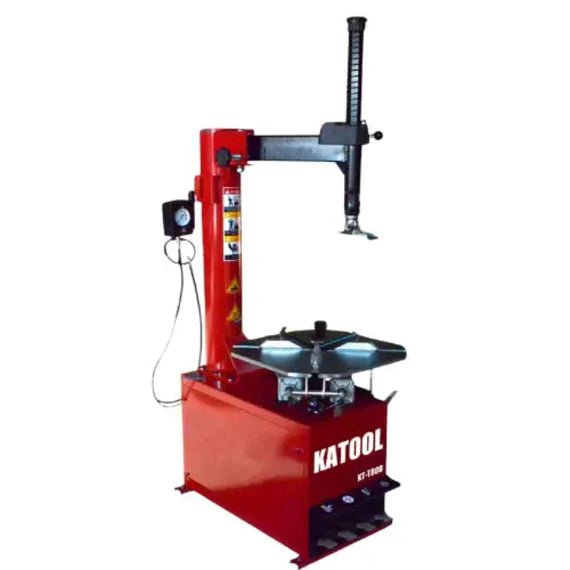

Carburized Alloy Steel Jaws with Rim Protection
The KT-T800's clamping jaws feature alloy steel with 0.8-1.1 mm carburization depth and full quenching for extended service life. Each jaw includes a plastic rim protector cover, while the stainless steel mounting head features a protective sleeve to prevent marring on alloy wheels. The carburization process creates a hard outer surface while maintaining a tough inner core, reducing jaw replacement frequency compared to through-hardened designs.
Automatic Measurement Ruler for Faster Balancing

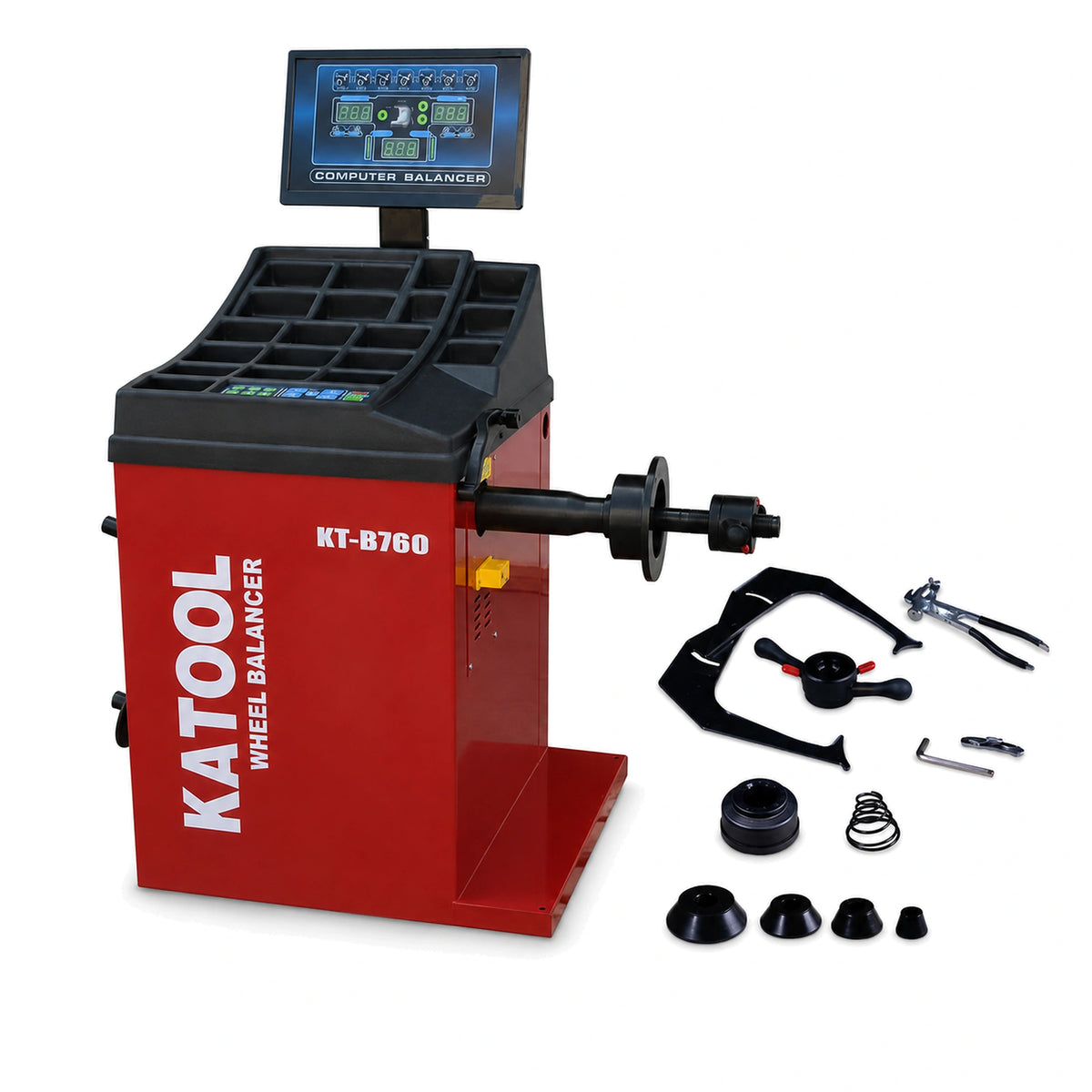

The KT-B760 includes an automatic measurement ruler that directly inputs wheel dimensions during setup, eliminating manual entry of critical A and D values. This system captures rim diameter, width, and offset measurements as you position the wheel, feeding data directly to the balancer's control board. This tire changing machine combo improves workflow efficiency by reducing setup time and eliminating the most common source of balancing errors.
120V Single-Phase Operation
Both the KT-T800 tire changer (2.0 HP motor) and KT-B760 wheel balancer (0.25 kW motor) are configured for 120V single-phase North American power. The 120V requirement allows installation using standard 15-20 amp circuits already present in most automotive bays, eliminating electrician fees, permit requirements, and downtime associated with major electrical work for this tire machine and balancer combo for sale.
High-Precision Balancing with Multiple Modes
The KT-B760 delivers ±1 g accuracy at 180 RPM with 7-second measuring cycles. The balancer supports dynamic, static, and multiple ALU modes for different alloy rim scenarios, with built-in fault diagnosis and self-calibration routines. The 7-second cycle time maintains throughput even with higher precision, while automatic fault diagnosis catches calibration drift before it affects service quality in this tire changer wheel balancer combo.

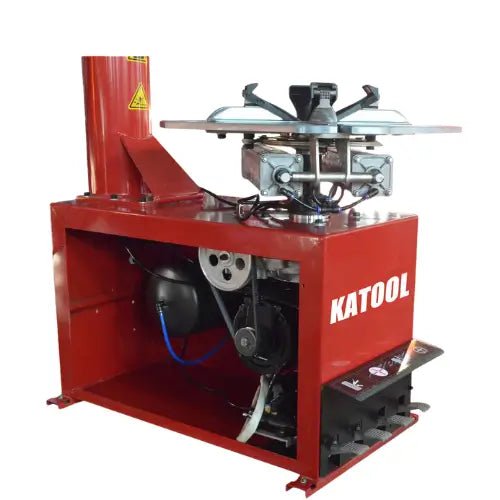

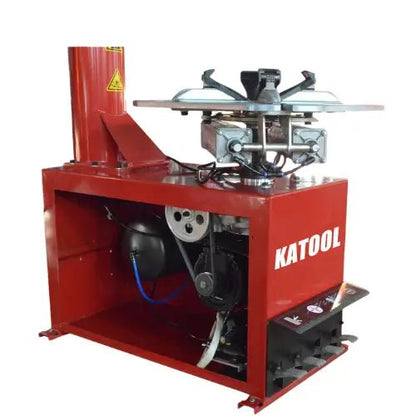

Closed-Body Design with Air Filtration

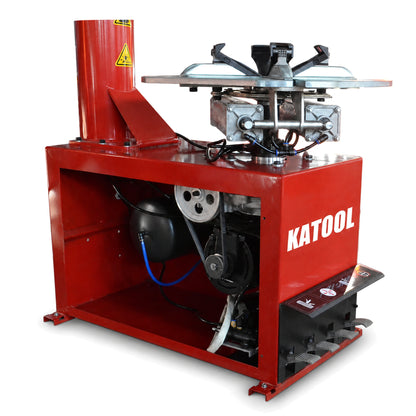

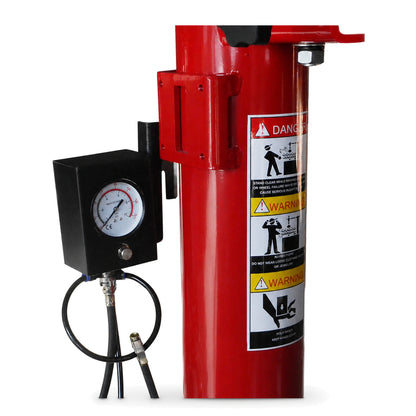

The KT-T800 features a closed cabinet body that protects internal pneumatic components from shop contamination. The integrated air system includes a high-quality lubricator-filter unit positioned between the shop air supply and the machine's pneumatic circuits, removing moisture and particulates. This best tire changer and balancer combo reduces maintenance frequency and unplanned downtime by extending pneumatic component service life.

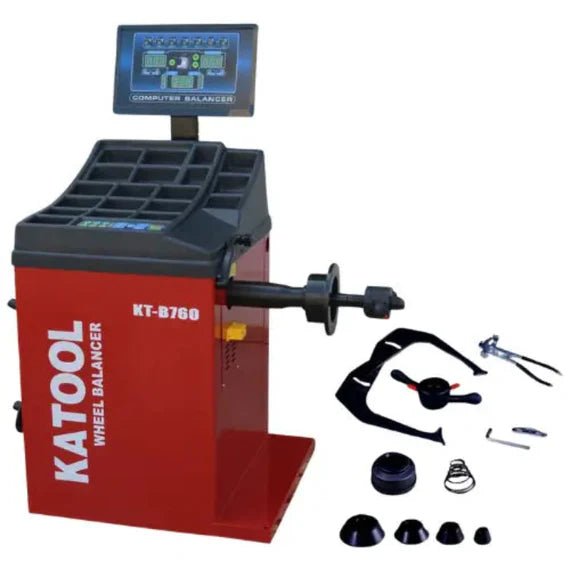

Robust Balancer Construction

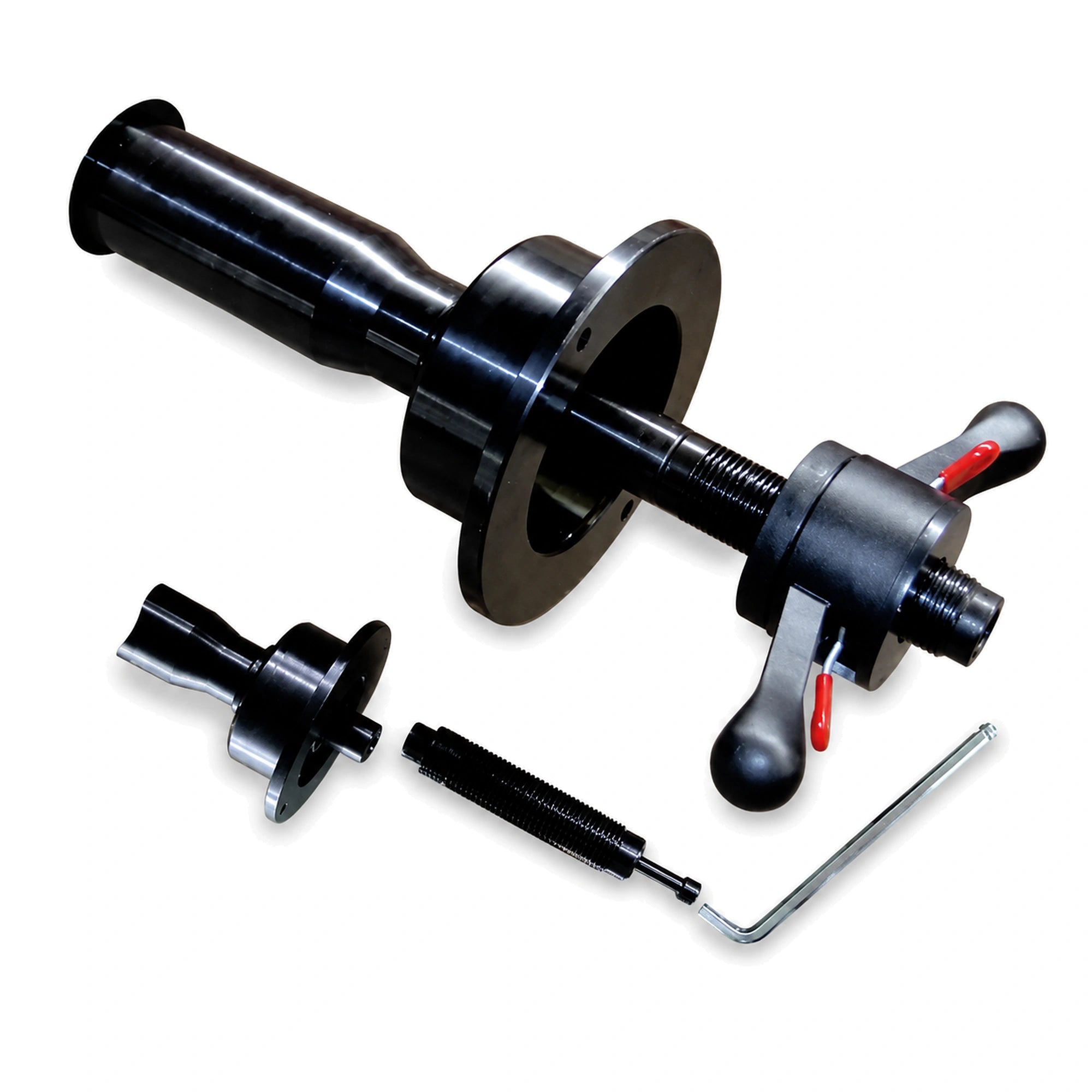

The KT-B760 is built with a 3 mm thick high-strength steel cabinet and 8 mm thick bottom and side plates supporting the sensor assembly. The main shaft is 36 mm in diameter with quenched threading, providing rigid support for wheels up to 65 kg (143 lb) during high-speed rotation. The reinforced sensor supports maintain precise component alignment even after years of service in this tire changer balancer combo.
Product Demonstration
Applications & Use Cases
- Small to Mid-Size Automotive Repair Shops: Complete tire mounting machine capability for passenger cars, crossovers, and SUVs
- Light-Truck Service Operations: Tire mounter and balancing for pickup trucks and light commercial vehicles up to 41-inch wheel diameter
- Mobile Tire Service Providers: Portable tire changing and balancing equipment operating on standard 120V power with compact footprint
- Specialty and Custom Wheel Shops: Rim-safe processing for alloy wheels and custom finishes requiring carburized jaw protection
- Fleet Maintenance Facilities: High-volume passenger vehicle tire service with fast 7-second balancing cycles
- Advanced Home Garage Setups: Professional-style tire equipment for enthusiasts on household electrical service
Technical Specifications
| Specification | Value |
|---|---|
| Max Wheel Diameter | 41 inches (1,040 mm) |
| Max Wheel Width | 15 inches (380 mm) |
| Outside Clamping Range | 12-20 inches |
| Inside Clamping Range | 14-24 inches |
| Power Supply | 120V single-phase, 60 Hz |
| Motor Power | 2.0 HP (1.5 kW) |
| Rotation Speed | 6.8 RPM |
| Working Air Pressure | 0.8-1.0 MPa (116-145 psi) |
| Net Weight | 186 kg (410 lb) |
| Jaw Carburization Depth | 0.8-1.1 mm |
| Specification | Value |
|---|---|
| Rim Diameter Capacity | Up to 30 inches |
| Wheel Width Capacity | 3-12 inches |
| Max Wheel Weight | 65 kg (143 lb) |
| Max Wheel Diameter | 880 mm (34.6 inches) |
| Balancing Accuracy | ±1 g |
| Balancing Speed | 180 RPM |
| Measuring Time | 7 seconds per cycle |
| Power Supply | 120V single-phase |
| Motor Power | 0.25 kW |
| Cabinet Thickness | 3 mm steel |
| Sensor Support Plates | 8 mm thick |
| Main Shaft Diameter | 36 mm |
Installation Requirements
Power Requirements
- KT-T800 Tire Changer: 120V single-phase, 60 Hz with dedicated 15-20 amp circuit recommended
- KT-B760 Wheel Balancer: 120V single-phase with standard household-style outlet
- Circuit Protection: Use appropriately rated circuit breakers and verify outlet condition
Compressed Air Requirements
- Operating Pressure: 0.8-1.0 MPa (116-145 psi) for KT-T800 tire changer
- Air Quality: Clean, dry compressed air with shop air filtration system recommended
- Compressor Capacity: Verify CFM rating supports intermittent pneumatic operation
Installation Notes
- Freight Handling: Units ship crated on pallets via LTL freight. Forklift required for safe unloading
- Floor Surface: Solid, level concrete floor recommended for balancer accuracy and tire changer stability
- Clearances: Provide adequate working space for wheel handling and service access
- Permits: Verify local code compliance before installation
Shipping & Delivery
Freight Coverage
Shipping: Free or reduced-rate LTL freight shipping to commercial addresses in the contiguous 48 states. Residential or remote destinations may incur additional fees.
Warehouse Locations: Ships from U.S. warehouses to minimize transit time.
International: Coverage restricted to lower-48 states. Contact for Alaska, Hawaii, and international availability.
Delivery Requirements
Unloading Equipment: Forklift or equivalent required. Standard LTL carriers do not provide offloading services.
Delivery Type: Curbside freight delivery standard. Units arrive crated on pallets.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Damage Reporting
Re-delivery Fees: If delivery cannot be completed on first attempt, re-delivery fees typically apply.
Damage Claims: Concealed damage must be reported promptly. Review carrier and manufacturer guidelines for time limits.
Warranty Coverage
Standard Warranty Program
12 Months - Parts Coverage: Limited parts-only warranty covers defects in materials and workmanship for motors, cylinders, electronics, and structural components.
Labor Exclusion: Labor costs for diagnosis, removal, or installation not included.
Coverage Transfer: Warranty is non-transferable and requires proof of purchase from authorized seller.
Warranty Requirements
Authorized Seller: Verify seller authorization before purchase to ensure warranty validity.
Normal Use: Covers defects from normal shop use within published capacity limits. Misuse excluded.
Extended Coverage: Some dealers offer optional extended warranty programs.
Product Documentation
Ready to Upgrade Your Shop?
Get expert guidance on the right tire service equipment for your facility. Call to confirm included accessories with your tire changer combo package.
Frequently Asked Questions
What is a tire changer and balancer combo?
A tire changer and balancer combo includes both a tire changing machine and wheel balancer for complete tire service capability. The Katool KT-T800 & KT-B760 is a tire changer balancer combo designed for 120V operation, making it accessible for small to mid-size facilities without complex electrical requirements.
How does this tire machine and balancer work for passenger and light-truck wheels?
The KT-T800 tire machine uses pneumatic-powered clamping jaws and a swing-arm mount head to hold wheels from 12-22 inches while rotating them for mounting and demounting. The KT-B760 balancer spins the wheel at 180 RPM, measuring imbalance to ±1 g accuracy. Together, this tire change machine and balancer handles passenger cars, SUVs, and light trucks.
Is this tire changer for sale separately or only as a combo?
This listing is for the complete tire changer and balancer combo package. Contact us to check availability of standalone units. Purchasing as a tire changing machine in combo form typically offers better value and ensures compatibility.
Are Katool tire changers reliable and can I get Katool tire changer parts?
Katool tire changer reviews from shop owners highlight the brand's reliability and value. Katool tire changers feature carburized alloy steel jaws and pure copper motor windings. Katool tire changer parts are available through authorized dealers—contact us for replacement components.
What electrical requirements does this tire changer machine combo need?
Both units operate on 120V single-phase, 60 Hz power. The KT-T800 has a 2.0 HP motor (dedicated 15-20 amp circuit recommended) and the KT-B760 has a 0.25 kW motor (standard outlet). This eliminates the need for 220V electrical service.
What vehicles and wheel sizes can this tire machine and wheel balancer combo handle?
The KT-T800 handles wheels up to 41 inches diameter and 15 inches wide, with 12-20 inch outside clamping and 14-24 inch inside clamping. The KT-B760 balances up to 30-inch rims, 3-12 inches wide, and 65 kg max weight. Covers passenger cars, SUVs, and light trucks.
What compressed air pressure does this tire changing machine combo require?
The KT-T800 requires clean, dry compressed air at 0.8-1.0 MPa (116-145 psi). Verify your compressor maintains this pressure and has adequate CFM for intermittent pneumatic cycling.
How accurate is the KT-B760 wheel balancer in this tire machine wheel balancer combo?
The KT-B760 delivers ±1 g accuracy with 7-second measuring cycles at 180 RPM. Includes fault diagnosis and self-calibration, plus dynamic, static, and ALU modes with automatic measurement ruler.
What accessories are included with this tire changer combo?
Includes KT-T800 tire changer and KT-B760 wheel balancer main units. Accessories like cone sets, quick-release nut, and rim protectors vary by listing—contact seller to confirm what ships with your order.
What warranty coverage does this tire machine and balancer combo for sale include?
12-month limited parts-only warranty covering defects in materials or workmanship. Labor not included. Requires proof of purchase from authorized seller and is non-transferable. Extended warranty may be available from some dealers.
How does this tire changer and balancer combo for sale ship?
Ships crated on pallets via LTL freight from U.S. warehouses. Forklift required for unloading. Free/reduced shipping to commercial addresses in contiguous 48 states. Inspect packages and note damage on BOL before signing.
Can I use this best tire changer and balancer combo in a home garage?
Yes, both units run on standard 120V household power. You'll need adequate space, level concrete floor, compressed air at 116-145 psi, and forklift access for delivery.
