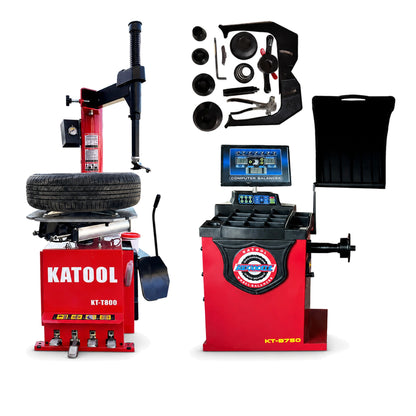

Katool KT-T800 + KT-B750 – Tire Changer + Wheel Balancer (Combo)
Katool KT-T800 & KT-B750 Tire Changer and Balancer Combo for Sale

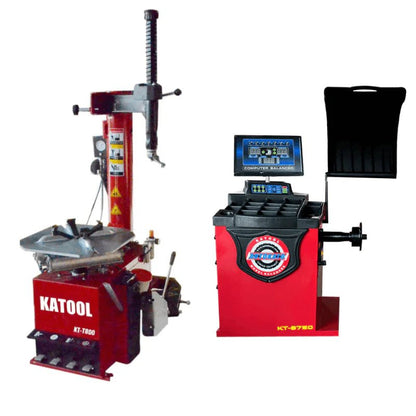

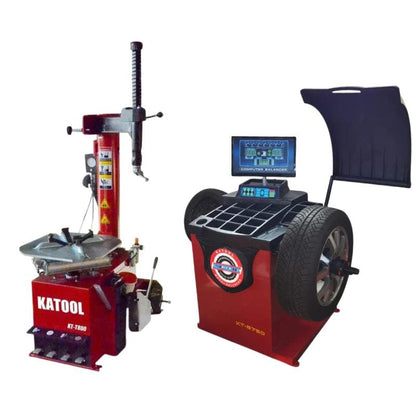

The Katool KT-T800 & KT-B750 tire machine and balancer combo delivers complete wheel service for automotive repair shops and serious mechanics. It combines a 41-inch capacity tire changer with 2.0 HP motor and a precision wheel balancer providing ±1g accuracy in 7 seconds, all running on standard 110V single-phase power.
Key Features & Benefits
41-Inch Wheel Capacity

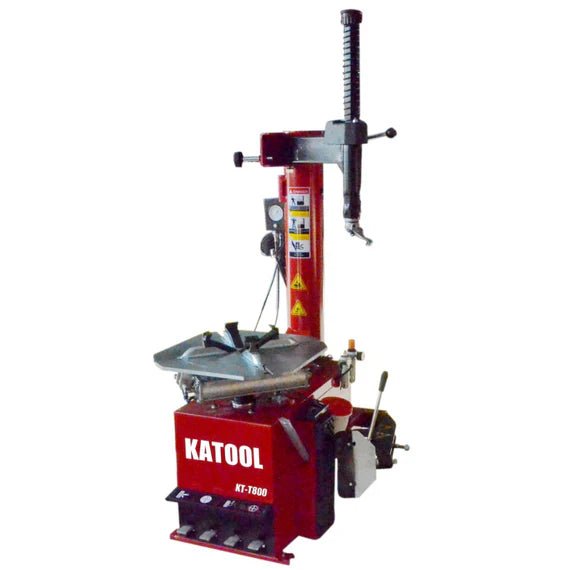

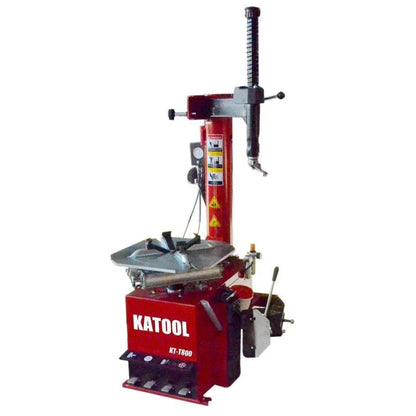

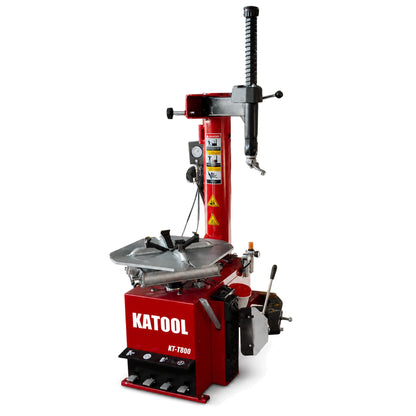

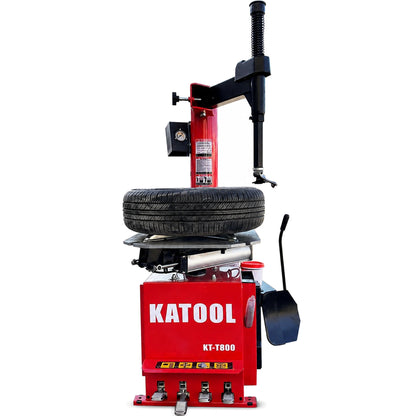

The KT-T800 tire changer handles wheels up to 41 inches (1,040mm) diameter and 15 inches (380mm) width, with clamp ranges of 12-20 inches outside and 14-24 inches inside. Traditional tire changers limit capacity to 34-inch wheels, restricting service on newer vehicles with larger factory wheels. This tire changer combo extends capacity for modern truck, SUV, and performance vehicles without needing specialized equipment.
Fast Precision Balancing

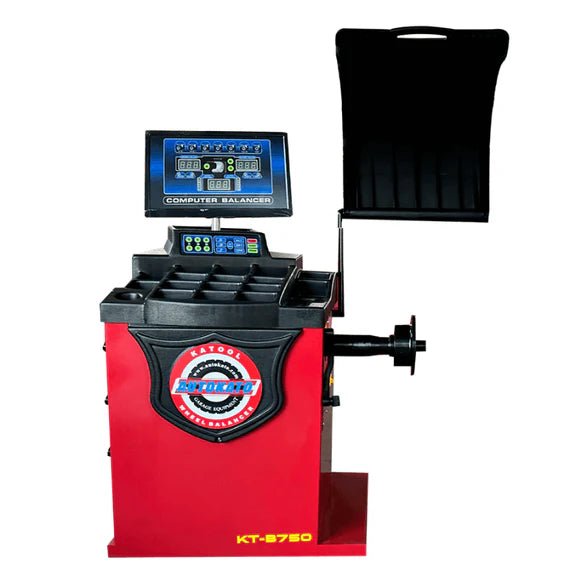

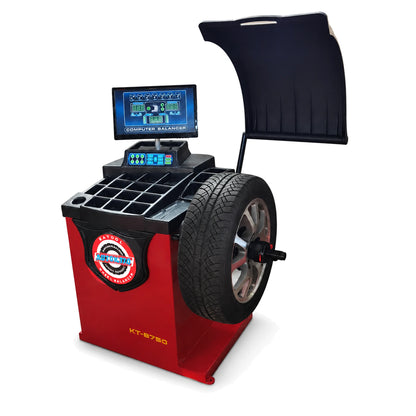

The KT-B750 wheel balancer delivers ±1g accuracy with automatic measurement completing each cycle in 7 seconds at 180 RPM. Traditional balancers require manual measurement setup and longer cycle times, reducing productivity in high-volume environments. The automatic measurement ruler and built-in fault diagnosis eliminate operator error and enable consistent results across all technicians.
Standard 110V Power
Both units in this tire machine and wheel balancer combo operate on 110V single-phase power, with the tire changer using 2.0 HP (1.5 kW) and the balancer using 0.25 kW. Industrial tire service equipment typically requires 220V three-phase power, adding thousands in electrical upgrades. Standard voltage compatibility enables installation in any shop without electrical modifications or installation delays.
Heavy-Duty Construction
The KT-T800 features alloy steel jaws with carburization treatment and a stainless steel mounting head with plastic rim protection. The motor uses pure copper windings for enhanced durability and heat dissipation compared to aluminum alternatives. Standard equipment uses basic steel and aluminum motor windings that deteriorate under heavy use, while carburization treatment creates a hardened surface layer that resists wear from repeated clamping.
Automated Operation
The KT-B750 includes an automatic measurement ruler and integrated fault diagnosis system that detects operational issues during balancing. The tire changer operates with pedal control at 6.8 RPM rotation speed for precise positioning. Manual systems require technician input for dimensions and weight placement, introducing variability and errors, while this tire changer wheel balancer combo reduces training requirements and maintains consistent output quality.
Product Demonstration
Applications & Use Cases
- Automotive Repair Shops: Complete tire and wheel service for cars, crossovers, and minivans with this tire changing machine combo
- Light Truck and SUV Service: Handles larger wheel combinations typical of pickup trucks, SUVs, and commercial vans up to 41-inch diameter
- Performance Vehicle Service: Specialized capability for sports cars and performance vehicles with low-profile tires and oversized wheels
- Tire Service Businesses: Dedicated tire shops and quick-lube facilities requiring a best tire changer and balancer combo for high-volume operations
- Advanced DIY Garages: Serious automotive enthusiasts requiring professional-grade tire changer balancer combo capability
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Wheel Diameter | 41 inches (1,040 mm) |
| Maximum Wheel Width | 15 inches (380 mm) |
| Outside Clamp Range | 12-20 inches |
| Inside Clamp Range | 14-24 inches |
| Motor Power | 2.0 HP (1.5 kW) |
| Power Supply | 110V, single-phase |
| Rotation Speed | 6.8 RPM |
| Air Pressure Requirement | 116-145 PSI (0.8-1.0 MPa) |
| Net Weight | 410 lb (186 kg) |
| Specification | Value |
|---|---|
| Maximum Rim Diameter | 30 inches |
| Maximum Wheel Diameter | 34.6 inches (880 mm) |
| Maximum Wheel Width | 15 inches |
| Maximum Wheel Weight | 143 lb (65 kg) |
| Balancing Accuracy | ±1g |
| Measuring Time | 7 seconds |
| Balancing Speed | 180 RPM |
| Motor Power | 0.25 kW |
| Power Supply | 110V/120V, single-phase |
Installation Requirements
Product Manuals
Download the complete operation manuals for detailed setup, calibration, and operating instructions:
- KT-T800 Tire Changer: Download Operation Manual (PDF)
- KT-B750 Wheel Balancer: Download Operation Manual (PDF)
Power Requirements
- Electrical Supply: 110V single-phase outlets for both units
- KT-T800 Power: 2.0 HP (1.5 kW) motor capacity
- KT-B750 Power: 0.25 kW motor capacity
- Circuit Requirements: Dedicated circuits recommended for each unit
Air Supply
- Air Pressure: 116-145 PSI (0.8-1.0 MPa) for tire changer operation
- Compressor Capacity: Adequate CFM rating to maintain pressure during operation
- Air Quality: Clean, dry compressed air recommended
Foundation Requirements
- Floor Surface: Concrete floor recommended for stability and vibration dampening
- Levelness: Level installation surface required for proper operation
- Clearance: Adequate space for wheel handling and equipment access
Installation Notes
- Professional Installation: Qualified technician recommended for setup and calibration
- Permits: Verify local code compliance and permit requirements before installation
Shipping & Delivery
Freight Coverage
Shipping: Free shipping to commercial addresses in lower 48 states. Surcharges may apply for residential delivery or remote locations.
Delivery Timeframe: Freight shipping timeline varies based on destination and carrier availability (subject to inventory availability).
Delivery Requirements
Unloading Equipment: Forklift recommended for safe unloading of heavy equipment crates. Customer responsible for unloading from delivery truck.
Delivery Type: Freight delivery to dock or carrier terminal. Lift gate service available for residential delivery at additional cost.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warranty Coverage
Limited Warranty Program
1 Year - Parts and Product Defects: Coverage for manufacturing defects and component failures under normal use conditions
Replacement Parts: Covered parts and shipping included during warranty period
Labor: Labor not included in warranty coverage (customer responsible for installation and service labor costs)
Extended Warranty Options
Optional 2-Year Extension: Additional warranty coverage available for extended protection beyond standard 1-year terms
Ready to Upgrade Your Tire Service Equipment?
Get expert guidance on the Katool KT-T800 & KT-B750 tire machine combo for your facility. Our team can help with product selection, installation planning, and technical specifications.
Frequently Asked Questions
What is the maximum wheel size this tire changer and balancer combo can handle?
The KT-T800 tire changer accommodates wheels up to 41 inches (1,040mm) diameter and 15 inches (380mm) width, with clamp ranges of 12-20 inches outside and 14-24 inches inside. The KT-B750 balancer handles rims up to 30 inches diameter and wheels up to 143 lb (65 kg), making this tire machine and balancer combo compatible with most passenger vehicles, light trucks, SUVs, and performance vehicles.
What accessories are included with this tire changer balancer combo?
The combo includes the KT-T800 tire changer with alloy steel jaws and protective covers, stainless steel mounting head with plastic rim protection, KT-B750 wheel balancer with automatic measurement ruler, composite splash guard, integrated control electronics, and standard cones and adapters. Call to confirm specific adapter kit contents and part numbers for your tire machine and balancer combo.
What are the electrical and air requirements for this tire changing machine combo?
Both units operate on standard 110V single-phase power - the tire changer requires 2.0 HP (1.5 kW) and the wheel balancer uses 0.25 kW. The tire changer needs compressed air at 116-145 PSI (0.8-1.0 MPa). Installation on a concrete floor is recommended for stability and proper vibration dampening with this tire machine wheel balancer combo.
How fast and accurate is the wheel balancer in this tire changer combo?
The KT-B750 delivers ±1g balancing accuracy with automatic measurement and balancing completion in just 7 seconds. Operating at 180 RPM balancing speed, it handles wheels up to 143 lb (65 kg) with a maximum rim diameter of 30 inches, providing professional-grade precision for high-volume tire service operations.
What types of shops is this best tire changer and balancer combo suitable for?
This tire changer and wheel balancer combo is ideal for automotive repair shops, tire service businesses, and advanced DIY garages. It handles passenger vehicles, light trucks, SUVs, and performance cars with wheels up to 41 inches diameter, making it suitable for shops requiring professional-grade tire service capability for modern vehicles with oversized wheels.
What warranty coverage comes with this tire machine and balancer combo for sale?
The combo includes a 1-year limited warranty covering parts and manufacturing defects under normal use. Replacement parts and shipping are included during the warranty period, though labor costs are not covered. An optional 2-year extended warranty is available for additional protection beyond the standard coverage terms.
How is this tire changer machine combo shipped?
Free freight shipping to commercial addresses in the lower 48 states. A forklift is recommended for safe unloading of heavy equipment crates, and customers are responsible for unloading from the delivery truck. Lift gate service is available for residential delivery at additional cost. Inspect all packages before signing the bill of lading.
What makes this tire machine wheel balancer combo different from standard equipment?
Key differentiators include 41-inch wheel capacity (exceeding typical 34-inch limits), standard 110V power requirements (no electrical upgrades needed), ±1g balancing accuracy in 7 seconds, premium alloy steel construction with carburization treatment, and automatic measurement features that reduce operator error compared to manual systems in competing tire changer and balancer combos.
