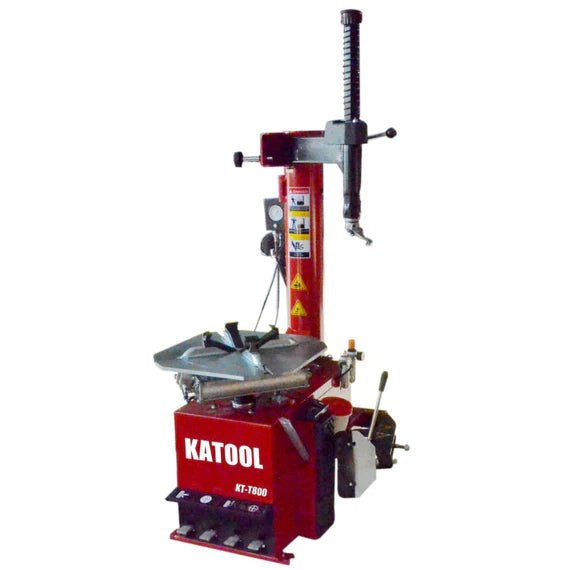

Katool KT-T800 + KT-B700 – Tire Changer + Wheel Balancer (Combo)
Katool Tire Changer KT-T800 & Wheel Balancer KT-B700 Combo - Professional Wheel Service Package for Shops & Garages

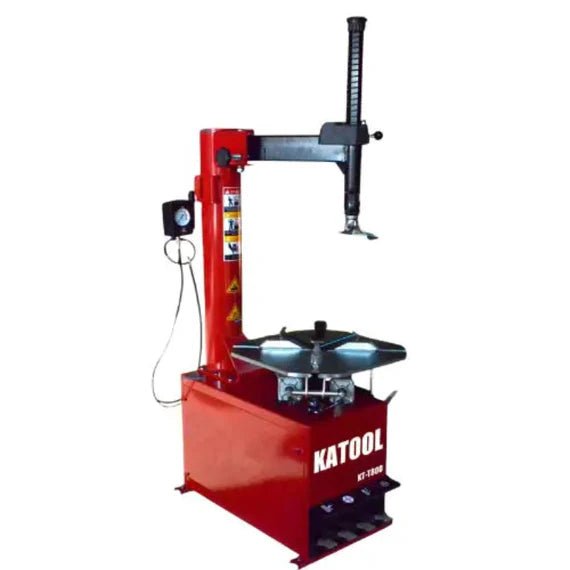

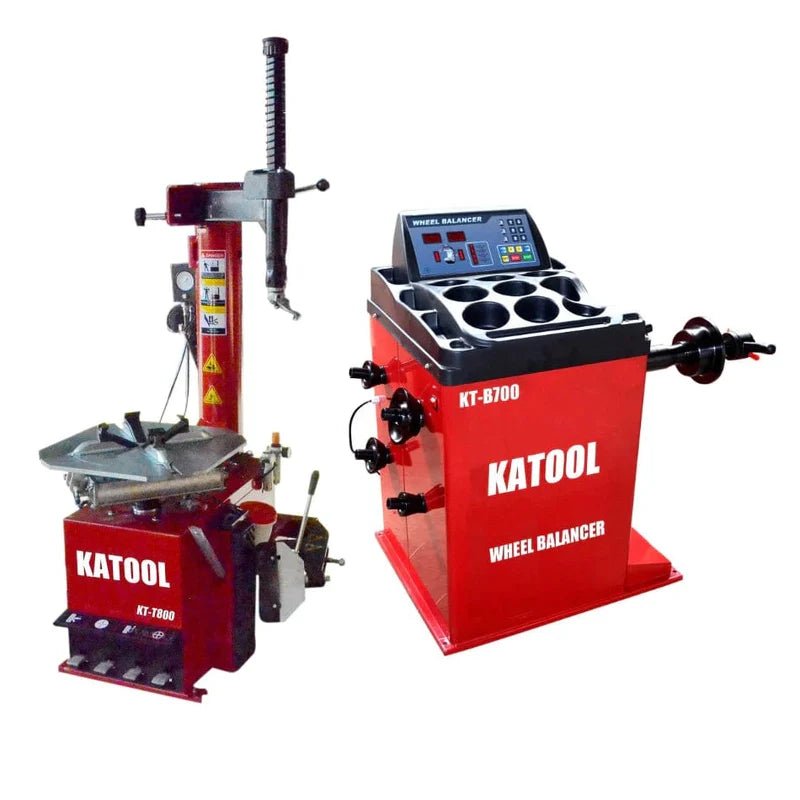

The Katool KT-T800 & KT-B700 Combo combines a swing-arm, wheel-clamp tire changer with a computerized wheel balancer for passenger car and light-truck wheel service. Featuring a 2.0 HP motor, 41-inch wheel capacity, and ±1 g balancing accuracy with 7-second measuring cycles, this package delivers professional-grade performance on standard 110-120V single-phase power.
Key Features & Benefits
Hardened Alloy Steel Jaws with Advanced Surface Treatment
The KT-T800's wheel clamp jaws feature alloy steel with a 0.8-1.1 mm carburized surface layer and full quench treatment, combining surface hardness with core toughness. This dual-treatment process creates jaws that resist wear and deformation while gripping wheels securely across the 12-20 inch outside clamp range and 14-24 inch inside clamp range.
The carburization hardens the outer surface where contact occurs, while the quenched core maintains structural integrity under high clamping pressures. Plastic jaw covers provide additional rim protection for servicing high-value alloy wheels.
Stainless Steel Mounting Head with Rim Protection System
The mounting head is machined from stainless steel with solution treatment and interface polishing, then fitted with plastic protection covers to minimize metal-to-metal contact. The ergonomic design distributes leverage forces evenly across the bead, reducing physical effort when working with stiff sidewalls or low-profile tires.
The polished interface and protective covers enable safer handling of painted, powder-coated, or chrome-finished wheels. Stainless construction resists corrosion from tire lubricants and shop chemicals.
2.0 HP Motor with Pure Copper Winding
The KT-T800 uses a 2.0 HP (1.5 kW) motor with pure copper winding delivering consistent torque at 6.8 r/min rotation speed on standard 110V single-phase power. Copper winding provides faster heat dissipation than aluminum alternatives, allowing continuous operation without thermal derating during busy service periods.
This motor design maintains full torque output during extended operation, eliminating unexpected shutdowns during critical mounting operations.
±1 g Balancing Accuracy with 7-Second Measurement Cycles

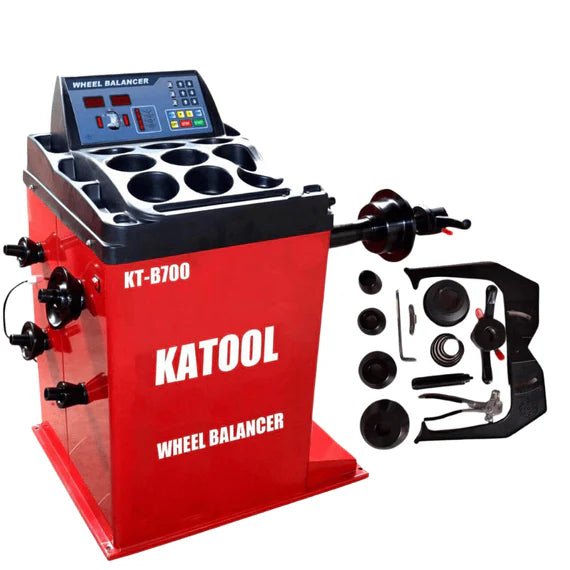

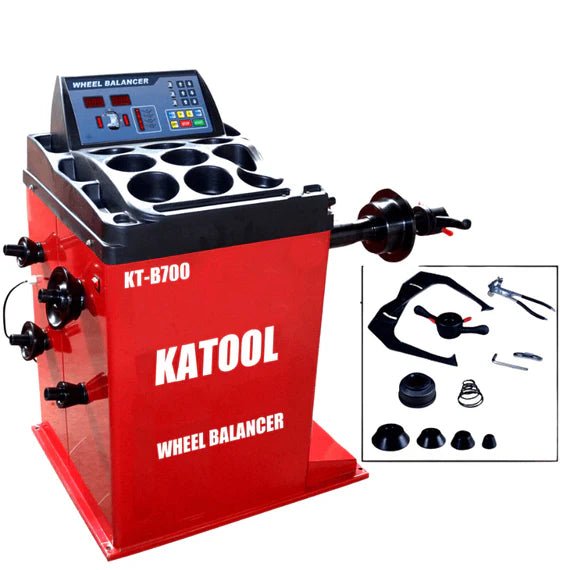

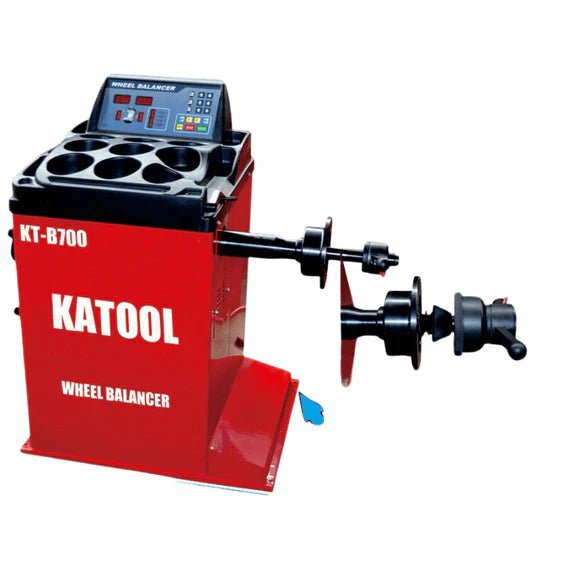

The KT-B700 wheel balancer delivers ±1 g precision through an advanced pressure sensor system mounted on 8 mm-thick steel support plates that minimize flex and vibration. The sensor design includes moisture-proof, dust-proof, and anti-static protection. Each measurement cycle completes in 7 seconds at 180 rpm balancing speed.
The reinforced sensor platform maintains stable readings in demanding shop environments, while built-in self-calibration and fault diagnosis help identify setup issues before they compromise accuracy.
Reinforced Cabinet Construction with Strategic Thickness Distribution

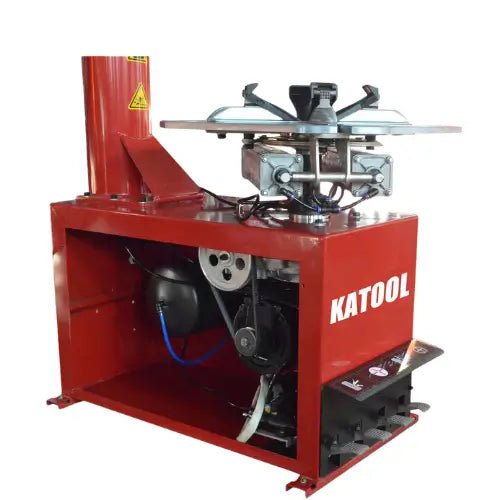

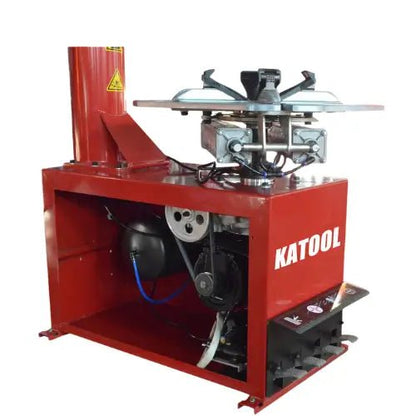

The KT-B700 uses 3 mm-thick cabinet walls with 8 mm-thick plates around critical sensor mounting points. The tire changer features a closed cabinet design protecting internal pneumatic components. The balancer's 36 mm shaft undergoes quench treatment for dimensional stability and wear resistance under repeated mounting and high-speed rotation.
Reinforced construction reduces vibration transmission to sensors, maintaining measurement consistency across the full 65 kg (143 lb) wheel weight capacity. The enclosed tire changer cabinet protects air control valves and cylinders from debris.
Structured Warranty with Extended Coverage Option
The combo includes a 1-year parts warranty and 3-year structural warranty on major load-bearing elements, with free shipping on warranty parts. An optional 2-year extended warranty is available, extending parts coverage for shops planning high-volume use.
The tiered warranty structure provides long-term coverage on structural components most likely to handle stress over the equipment's service life.
Product Demonstration
Applications & Use Cases
- Automotive Repair Shops: Tire mounting, balancing, and rotation for passenger vehicles, crossovers, and SUVs
- Tire Shops & Specialty Retailers: Seasonal tire changeovers and new tire sales within 41-inch diameter and 15-inch width capacity
- Fleet Maintenance Facilities: Periodic tire service for company sedans, SUVs, and light-duty trucks
- Advanced Home Garages: Professional-grade capability for DIY enthusiasts maintaining multiple vehicles
- Small Independent Garages: Complete wheel service on standard single-phase power without large footprint requirements
- Motorcycle Service: With optional KT-MC1 tire changer adapter and KT-MC2 balancer adapter kits (sold separately)
Technical Specifications
| Specification | Value |
|---|---|
| Max Wheel Diameter | 41 inches (1,040 mm) |
| Max Wheel Width | 15 inches (380 mm) |
| Rim Clamping Range (Outside) | 12-20 inches |
| Rim Clamping Range (Inside) | 14-24 inches |
| Power Supply | 110V single-phase |
| Motor Power | 2.0 HP (1.5 kW) |
| Rotation Speed | 6.8 r/min |
| Required Air Pressure | 0.8-1.0 MPa (116-145 psi) |
| Net Weight | 186 kg (410 lb) |
| Specification | Value |
|---|---|
| Rim Diameter Capacity | <30 inches |
| Wheel Width Range | 3-12 inches |
| Overall Wheel Diameter | <880 mm (34.64 inches) |
| Max Wheel Weight | <65 kg (143 lb) |
| Balancing Speed | 180 rpm |
| Balancing Accuracy | ±1 g |
| Measuring Time | 7 seconds |
| Power Supply | 120V single-phase |
| Motor Power | 0.25 kW |
| Shaft Diameter | 36 mm (quench treated) |
Installation Requirements
Power Requirements
- KT-T800 Tire Changer: 110V single-phase power, 2.0 HP motor
- KT-B700 Wheel Balancer: 120V single-phase power, 0.25 kW motor
- Installation Note: Both machines operate on standard North American single-phase power—no 220V circuits required
Compressed Air Requirements
- Working Pressure: 0.8-1.0 MPa (116-145 psi) at the tire changer
- Air Supply: Shop compressor capable of maintaining pressure during bead-breaking and inflation
- Air Quality: Included high-quality lubricator filters compressed air to protect pneumatic components
Physical Installation
- Location: Indoor installation on level floor with clearance for swing arm operation
- Environment: Standard shop or garage; protect from excessive moisture and temperature extremes
- Space Planning: Allow clearance for operator movement and wheel maneuvering
Installation Notes
- Assembly Required: Some assembly and setup required; refer to included manuals
- Initial Calibration: KT-B700 includes built-in self-calibration function
- Safety: Ensure adequate lighting and ventilation; maintain clear floor space
Shipping & Delivery
Freight Coverage
Shipping: Freight shipping to lower 48 US states. Free freight commonly offered to commercial addresses and nearby carrier terminals.
Residential Delivery: Residential delivery and liftgate service available as extra-cost options.
Lead Time: Delivery may take up to three weeks during high-volume periods. Contact seller for current estimates.
Delivery Requirements
Unloading Equipment: Customer responsible for forklift, pallet jack, or equivalent unless liftgate service purchased.
Receiving: Inspect all packages before signing. Note any damage on bill of lading before driver departs.
Concealed Damage: Report promptly; claims filed after signing clean receipt may have limited coverage.
Customer Responsibilities
- Delivery Access: Ensure address accessible for freight vehicles
- Appointment Availability: Re-delivery fees apply if delivery cannot be completed due to unavailability
- Inspection Protocol: Document any visible damage with photos and detailed notes on BOL
Warranty Coverage
Standard Warranty Program
1 Year - All Parts: Coverage on cylinders, power units, motors, displays, electronics, and all functional components.
3 Years - Product Structure: Extended coverage on major load-bearing elements.
Warranty Parts Shipping: Replacement parts ship free; labor not included.
Extended Warranty Option
2-Year Extended Warranty: Optional plan extending parts coverage for high-volume commercial use.
Eligibility: Available for any Katool tire changer and wheel balancer equipment.
Warranty Requirements
Claims Process: Subject to approval; photos/videos of defects may be requested.
Purchase Verification: Non-transferable; requires original order number and proof of purchase from authorized vendor.
Equipment Condition: Do not disassemble before issue determined by warranty department.
Exclusions: Consumables, wear parts, and damage from improper installation or misuse.
Product Documentation
Ready to Upgrade Your Shop?
Get expert guidance on tire changing and wheel balancing equipment. Call to confirm included accessories and verify compatibility.
Frequently Asked Questions
What is the maximum wheel capacity of the Katool KT-T800 tire changer?
The KT-T800 handles wheels up to 41 inches diameter and 15 inches width, with 12-20 inch outside clamp and 14-24 inch inside clamp ranges, covering most passenger cars, SUVs, and light trucks.
How accurate is the KT-B700 wheel balancer and how long does a measurement take?
The KT-B700 delivers ±1 g accuracy with 7-second measurement cycles at 180 rpm. Handles wheels up to 65 kg (143 lb) and rim diameters under 30 inches, with 3-12 inch width accommodation.
What are the electrical and air pressure requirements for this combo?
The KT-T800 requires 110V single-phase power (2.0 HP motor) and 0.8-1.0 MPa (116-145 psi) compressed air. The KT-B700 operates on 120V single-phase (0.25 kW motor). Both run on standard North American circuits.
What is included with the Katool KT-T800 and KT-B700 combo package?

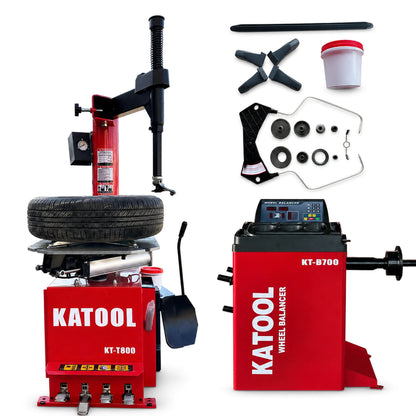

Includes KT-T800 tire changer with turntable, bead breaker, alloy steel jaws with protective covers; KT-B700 balancer with 36 mm shaft, electronics, and display; standard balancer cone set. Motorcycle adapters (KT-MC1, KT-MC2) sold separately.
Can this equipment be used for motorcycle wheels?
Yes, with optional KT-MC1 (tire changer) and KT-MC2 (balancer) adapter kits sold separately. These enable handling smaller rim diameters and narrower widths typical of motorcycle applications.
What warranty coverage is included with the Katool KT-T800 and KT-B700 combo?
1-year warranty on all parts, 3-year warranty on product structure, with free shipping on warranty parts (labor not included). Optional 2-year extended warranty available.
Is the KT-T800 and KT-B700 combo suitable for home garage use or is it only for commercial shops?
Designed for both professional shops and advanced home garages. The 41-inch capacity, ±1 g accuracy, and standard 110-120V power make it accessible for DIY users while delivering commercial-grade performance.
How is the Katool combo shipped and what are the delivery requirements?
Ships via freight to lower 48 US states. Free shipping commonly offered to commercial addresses. Customer needs forklift or pallet jack unless liftgate purchased. Inspect packages and note damage on BOL before signing.
