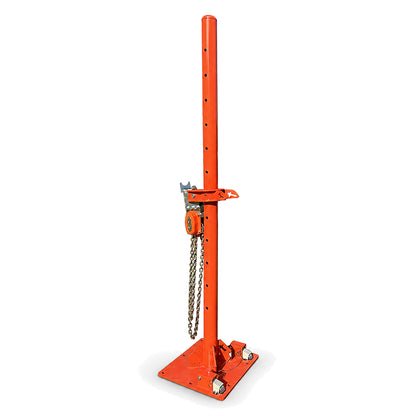

Katool KT-SB288 Compact Portable Auto Body Frame Straightener 50 KN Truck Pulling Tower

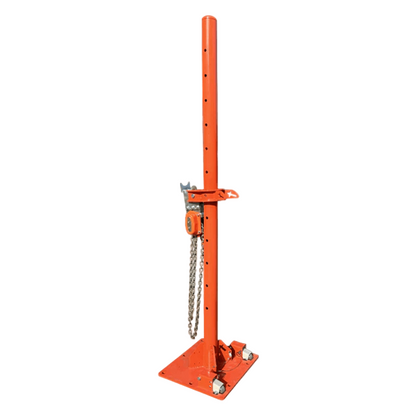

The Katool KT-SB288 is a portable hydraulic auto body frame straightener and pulling tower that delivers 50 KN of force through a manual hand pump with no external air required. Its 3.5 meter chain reach gives body and frame shops the pulling stroke needed for truck frame rails, side panel corrections and structural adjustments in a compact footprint.
Key Features & Benefits
Complete Air-Free Hydraulic Frame Straightener System
The manual hydraulic system delivers 50 KN of pulling force through an integrated hand pump, so this hydraulic frame straightener runs with no external air or compressor. This self-contained design simplifies installation and lets shops deploy frame straightening equipment anywhere in the bay or in mobile repair setups.
Traditional frame straightening machines rely on shop air and hard-plumbed lines, which limits mobility and adds setup cost.
This enables frame straightening capability in mobile repair scenarios, remote locations, or shops without adequate compressed air capacity while maintaining full 50 KN performance.
Truck-Optimized Auto Body Frame Puller Force and Reach
The 3.5 meter chain and 50 KN capacity are optimized for truck and commercial vehicle frame repair, giving this portable frame machine the reach and power needed for frame rails and long body pulls. The six claw pulling hook spreads load across multiple contact points for secure gripping on structural components.
Standard portable pullers typically offer 1.5-2 meter chains with lower force ratings, limiting their effectiveness on truck applications where extended reach and higher pulling forces are required.
This enables comprehensive truck frame straightening including long-stroke pulling operations, downward pulls for structural corrections, and side panel restoration work.

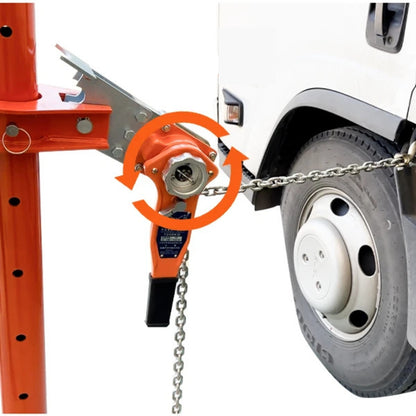

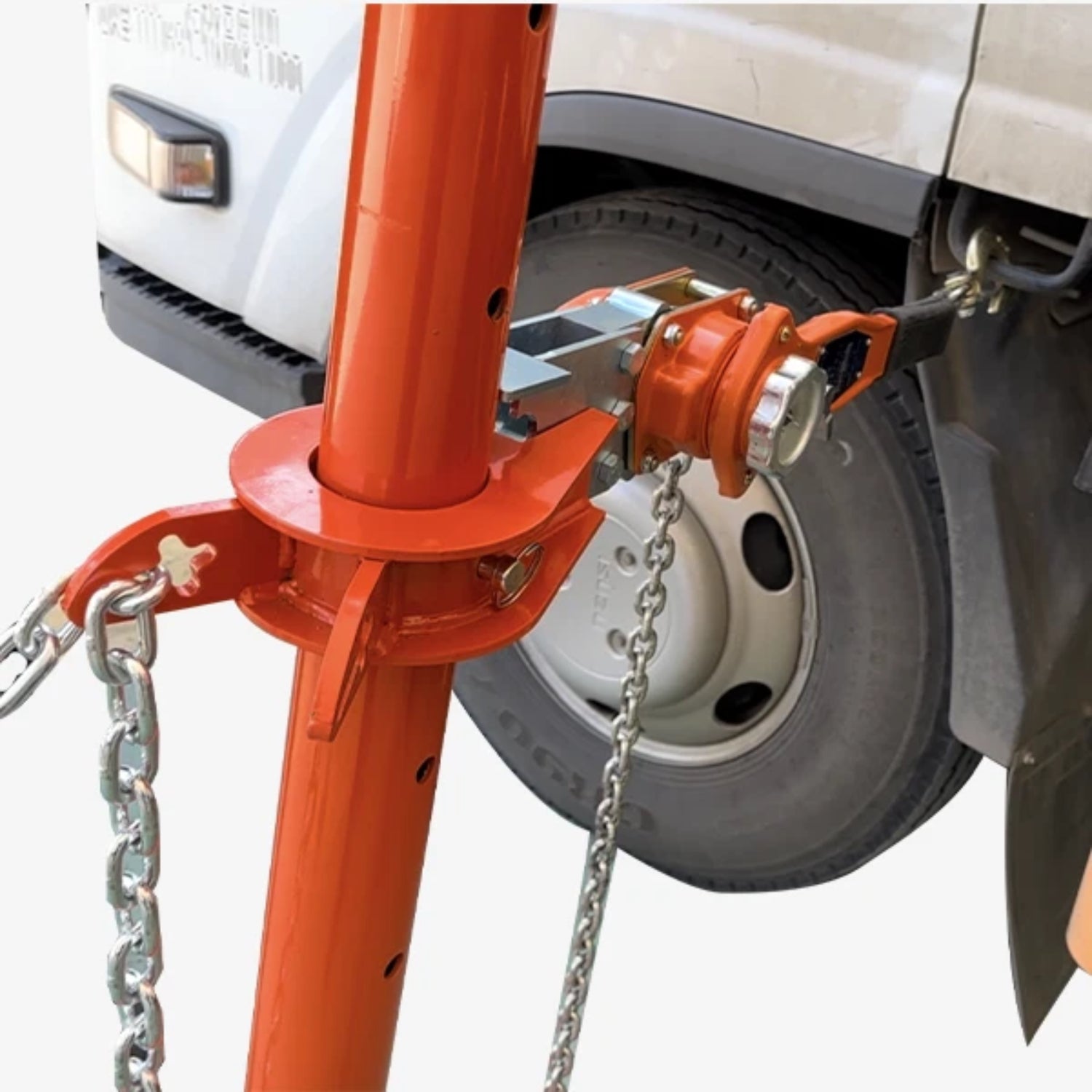

Saw Tooth Chain Fixing System for Precise Frame Pulls
The integrated saw tooth chain fixing system locks the chain mechanically to prevent slippage during frame pulling operations, giving precise positioning control. Compared with smooth chains and basic hooks, it offers finer adjustment for accurate frame alignment.
Traditional portable pulling systems rely on smooth chains with basic hook or clamp attachments that can slip under load, especially during complex repair geometries.
This eliminates chain slippage issues common in portable pullers while enabling precise positioning for complex repair geometries without requiring constant operator adjustment.
Professional Grade Q235 Q245 Steel Frame Machine Construction
Q235 and Q245 structural steel give this auto body frame machine rack-level durability in a compact tower. The 70 MPa maximum working pressure supports repeated high force pulls without compromising structural integrity.
Standard portable frame pullers often utilize lighter construction materials and lower pressure ratings to reduce costs, resulting in reduced durability under demanding professional use.
This provides long-term reliability for professional collision repair environments while delivering the structural integrity needed for repeated high-force frame straightening operations.
Complete Ready to Use Frame Straightening Kit Configuration
Ships as a complete auto frame puller kit with pulling tower, manual hydraulic hand pump, 3.5 meter chain with hook and six claw pulling hook, so shops can start frame straightening work immediately without sourcing extra accessories.
Modular frame straightening systems require separate accessory purchases and compatibility verification, creating selection complexity and potential for missing components.
This enables immediate operational capability upon delivery without additional accessory purchases. The complete kit approach ensures all components work together as an engineered system.
Product Demonstration
Applications and Use Cases for Auto Body Frame Straightening

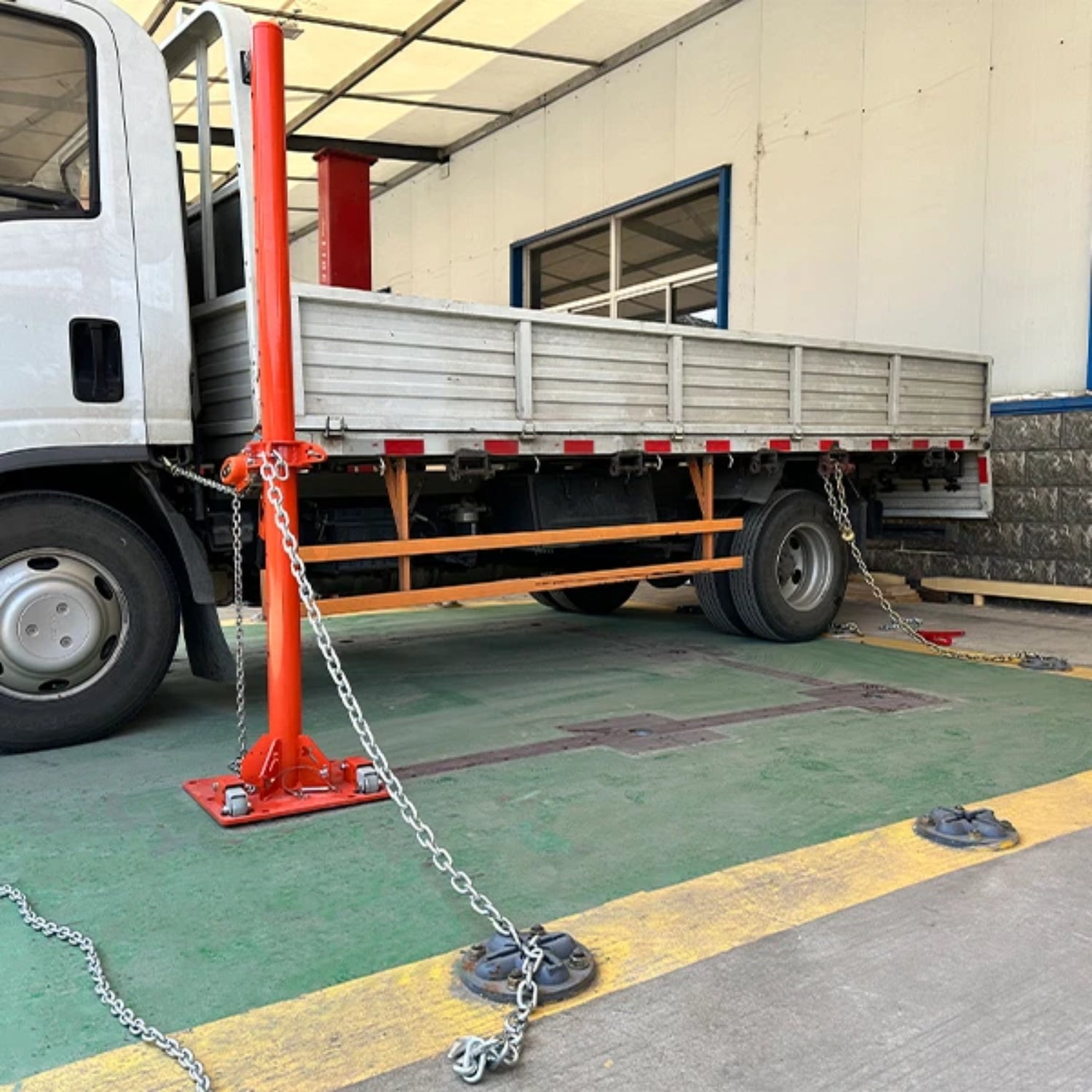

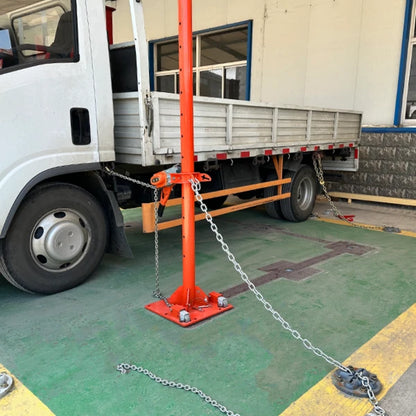

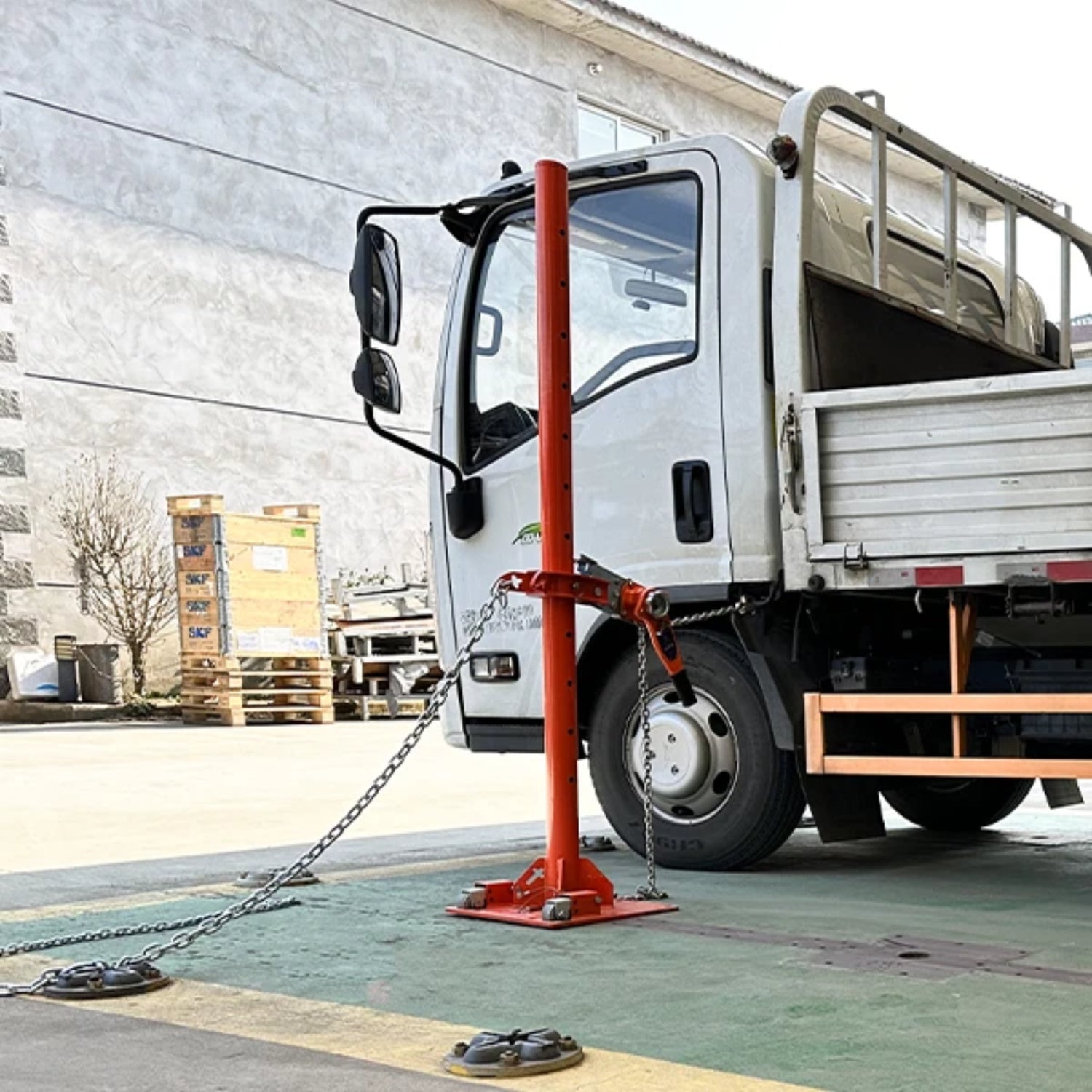

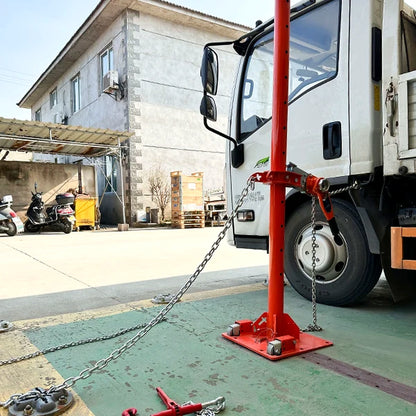

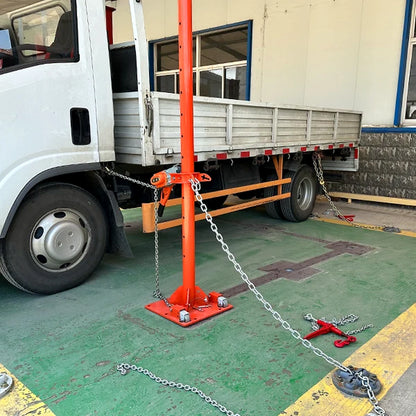

- Truck Frame Rail Straightening: Frame rail corrections and alignment for commercial vehicles using a portable hydraulic frame straightening machine with extended reach and high pulling force
- Auto Body Panel Correction: Side panel, roof section, and structural component repair for collision damage restoration
- Mobile Repair Operations: Field repair applications where compressed air supply is unavailable or impractical
- Small to Medium Shop Applications: Professional frame straightening capability for shops with space constraints or budget limitations. Ideal when you need the pulling power of an auto body frame machine without committing to a full frame rack.
- Downward Pulling Operations: Structural corrections requiring downward force application for frame geometry restoration
- Minor to Moderate Collision Damage: Frame straightening for collision repairs that don't require full rack system capability
Technical Specifications
| Specification | Value |
|---|---|
| Hydraulic Pushing Force | 50 KN (11,200 lb) |
| Working Pressure | 70 MPa maximum |
| Chain Length | 3.5 meters (11.5 feet) |
| Operation Method | Manual hydraulic hand pump |
| Specification | Value |
|---|---|
| Length | 39.6 inches |
| Width | 25.6 inches |
| Height | 35.4 inches |
| Weight | 143.3 lb (65 kg) |
| Component | Material/Specification |
|---|---|
| Structural Components | Q235 & Q245 structural steel |
| Power Requirements | No external air source required |
| Chain System | Saw tooth chain fixing system |

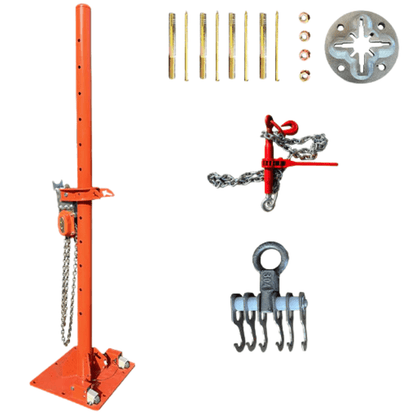

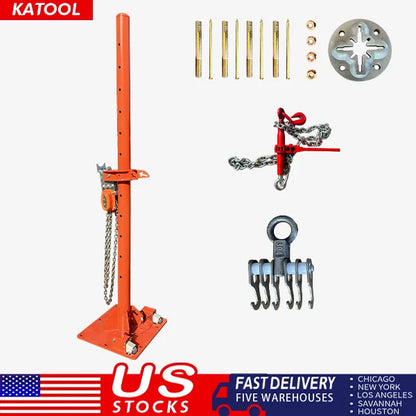

What's Included
- Quick repair pulling tower: 1 set
- Manual hydraulic hand pump: 1 set
- Chain with hook: 3.5 meters length, 1 piece
- Six-claw pulling hook: 1 unit
Shipping & Delivery
Freight Coverage
Shipping: Freight shipping required for all deliveries to lower 48 states. Residential addresses may incur additional surcharges.
Delivery Timeframe: 3–7 business days from warehouse (subject to inventory availability).
Delivery Requirements
Unloading Equipment: Forklift or loading dock recommended due to crated weight and dimensions.
Delivery Type: Curbside freight delivery standard. Customer responsible for unloading from delivery truck.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warranty Coverage
Standard Warranty Program
1 Year - Parts Coverage: All product components including hydraulic cylinders, hand pump, chain, and pulling mechanisms
3 Years - Structural Components: Frame structure and structural steel components (manufacturer direct coverage)
Warranty Requirements
Eligibility: Valid for original purchaser with proof of purchase from authorized dealer
Claims Process: All warranty claims subject to approval by manufacturer warranty department
Replacement Parts: Free shipping included on warranty replacement parts
Exclusions: Labor costs and freight return shipping not included in warranty coverage
Ready to Upgrade Your Shop?
Get expert guidance on the right frame straightener for your facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm included accessories and components.
Frequently Asked Questions
What is the maximum pulling force of the Katool KT-SB288?
The KT-SB288 delivers 50 KN (11,200 lb) of hydraulic pulling force through a manual hand pump at 70 MPa working pressure. This capacity is designed for truck frame straightening and auto body panel correction on commercial vehicles while still allowing single-operator use.
What components are included with the frame straightener?
Complete kit includes quick repair pulling tower (1 set), manual hydraulic hand pump (1 set), 3.5-meter chain with hook (1 piece), and six-claw pulling hook (1 unit). All components needed for immediate operation are included in the package. The six-claw pulling hook provides multiple attachment points for secure gripping on various vehicle components.
Does the KT-SB288 require compressed air to operate?
No external air source is required. The manual hydraulic hand pump gives complete independence from shop air systems, which is ideal for mobile repair applications and facilities with limited compressor capacity while still delivering the full 50 KN pulling force.
What types of vehicles can this frame straightener handle?
Designed for truck frame rail straightening, auto body panel correction, and structural component repair. The 50 KN force capacity and 3.5-meter chain reach make it suitable for commercial vehicles, cars, and light trucks requiring professional frame alignment work. Applications include collision damage repair, minor frame corrections, and structural adjustments on vehicles ranging from passenger cars to medium-duty commercial trucks.
What are the dimensions and weight of the KT-SB288?
The KT-SB288 measures 39.6 inches long × 25.6 inches wide × 35.4 inches high and weighs 143.3 lb (65 kg). The compact footprint is designed for shops with space constraints while maintaining professional frame straightening capability. The portable design allows for positioning flexibility within the shop bay and enables single-operator setup for various pulling angles required in frame straightening work.
What warranty coverage is provided with this equipment?
Katool provides a 1-year warranty on all parts and components, plus a 3-year warranty on structural frame components. Free shipping is included on warranty replacement parts. Labor costs and return freight are not covered under warranty terms. Warranty claims require approval from the manufacturer warranty department and may require photos or videos of defects.
How is the KT-SB288 shipped and what are delivery requirements?
Ships via freight delivery to the lower 48 states with typical delivery in 3–7 business days. Customer is responsible for unloading from the delivery truck. A forklift or loading dock is recommended due to the crated weight and dimensions. Residential addresses may incur additional freight surcharges. Inspect all packages thoroughly before signing the bill of lading and note any visible damage.
What materials are used in the construction of this frame straightener?
The KT-SB288 is constructed from Q235 and Q245 structural steel, providing professional-grade durability typically found in higher-priced rack systems. These materials ensure long-term reliability for repeated high-force frame straightening operations in professional collision repair environments. The structural steel construction can withstand the stress and fatigue associated with 50 KN force applications over extended service life.
