Katool KT-MP2 – Lift Height Extensions (Set of 4)
Adjustable Height Extensions - Katool KT-MP2 Two-Post Lift Adapters (Set of 4)

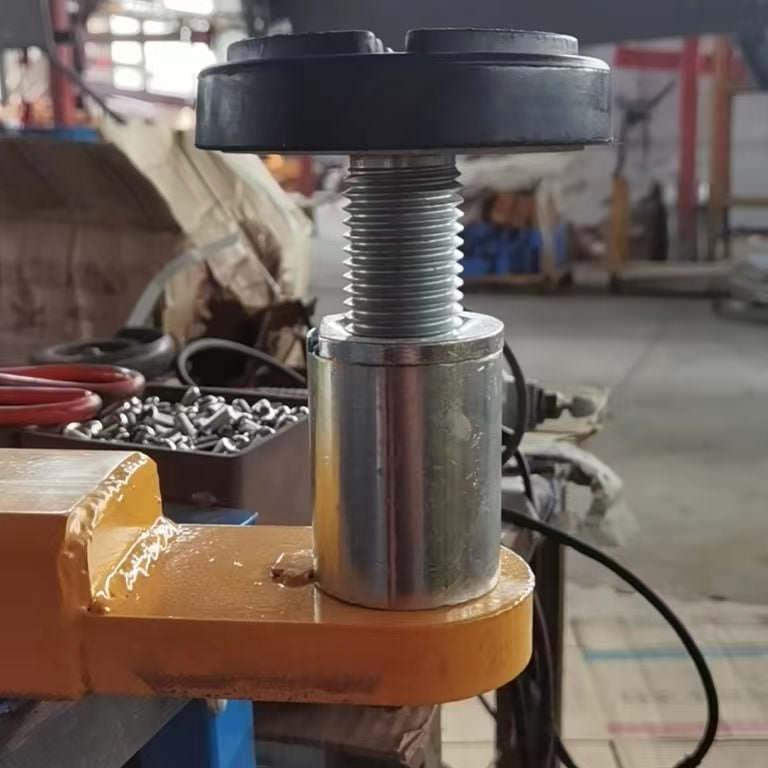

The Katool KT-MP2 is a set of four adjustable height adapters designed for use with Katool two-post lifts. These extensions allow operators to safely reach lift points on trucks with running boards, lifted SUVs, and high-clearance vehicles. The rotatable mechanism increases lift pad elevation from 3.94 inches to approximately 6 inches, enabling service on taller vehicles without requiring a new lift system.
Designed exclusively for all Katool two-post lift models, these drop-in adapters require no special tools. The simple rotation mechanism provides dual-height positioning, making it easy to transition between standard passenger vehicles and taller trucks.
Key Features and Benefits
Dual-Height Rotatable Design - Provides two working heights from a single adapter unit. Quick adjustment between 3.94 inches base and 6 inches maximum enables efficient transitions without swapping components.
Universal Katool Lift Compatibility - Engineered for seamless integration across all Katool two-post lift models (8,000 lbs to 12,000 lbs). Factory-designed fitment ensures proper pin diameter match and preserves your lift's warranty coverage.
Heavy-Duty Steel Construction - Built from structural steel for superior load-bearing and resistance to deformation under repeated cycling. Maintains dimensional stability where softer materials develop compression wear in high-volume shops.
Applications
- Trucks and SUVs with running boards or aftermarket side steps.
- Lifted vehicles with aftermarket suspension modifications.
- Light-duty commercial trucks with frame height variations.
- Fleet service operations handling mixed vehicle types.
- High-clearance specialty vehicles where standard lift arm height is insufficient.
Specifications
| Specification | Details |
|---|---|

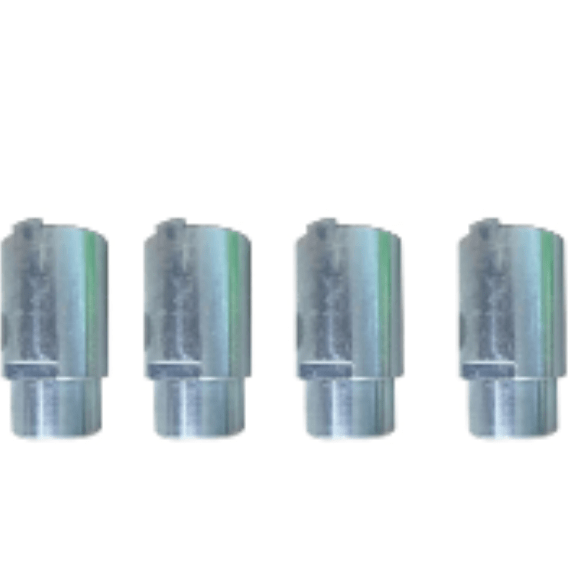

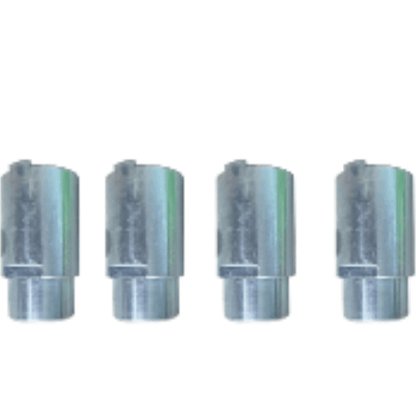

| Quantity | Set of 4 extension adapters |
| Base Height | 3.94 inches (100mm) |
| Maximum Height | Approximately 6 inches (152mm) |
| Weight | 12 lbs (complete set) |
| Material | Steel construction |
| Compatibility | All Katool two-post lift models |
| Installation | Drop-in style, no special tools required |
Warranty and Shipping
Warranty: 1-year limited warranty on extension adapter components. Shipping: Free shipping to commercial addresses in the lower 48 United States with delivery typically within 3-10 business days.
Expand Your Service Capabilities
Install in seconds and start servicing taller vehicles today. Backed by Katool's 1-year parts warranty with free shipping included.
Frequently Asked Questions
Are the KT-MP2 extensions compatible with all Katool two-post lift models?
Yes. The KT-MP2 extensions are designed for universal compatibility with all Katool two-post lift models including KT-H100, KT-H105, KT-M110, KT-M120, KT-H120D, KT-AS110D, and KT-PMRL200. They feature factory-designed fitment with proper pin diameter specifications to ensure seamless integration.
How does the rotatable height adjustment mechanism work?
The integrated rotation mechanism provides two distinct height positions: a 3.94-inch base position and an extended position of approximately 6 inches. Height adjustment can be performed without removing the adapter from the lift arm, enabling quick transitions between vehicle service requirements.
What tools are required to install the KT-MP2 extensions?
No special tools are required. The KT-MP2 adapters use a drop-in design that inserts into existing Katool lift arm pad assemblies in seconds. There are no electrical connections or structural modifications required.
What types of vehicles benefit most from these height extensions?
These are ideal for trucks and SUVs with running boards, lifted vehicles with aftermarket suspension, and light-duty commercial trucks where standard lift arm height is insufficient to clear side steps or frame rails.
