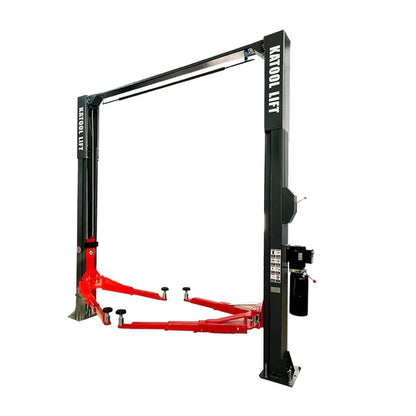

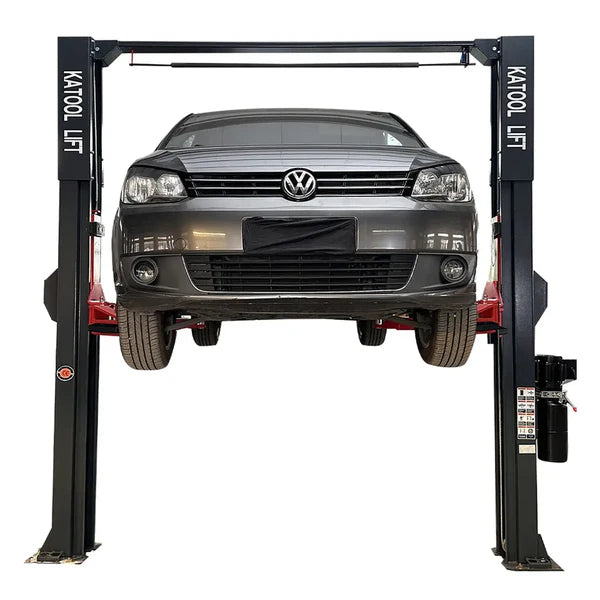

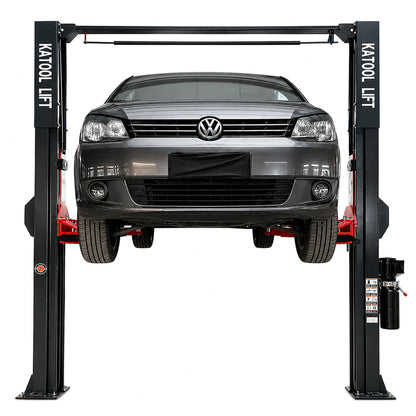

Katool KT-M140XD 14,000 lb 2-Post Overhead Car Lift
Your shop's running trucks, vans, and fleet vehicles all day. You need a 2-post overhead car lift that doesn't flinch when a loaded-out F-250 rolls in. The Katool KT-M140XD delivers 14,000 lb of lifting capacity through a dual S-column reinforced frame, giving you the structural rigidity to handle full-size pickups and commercial vans without worrying about column flex halfway through a brake job.

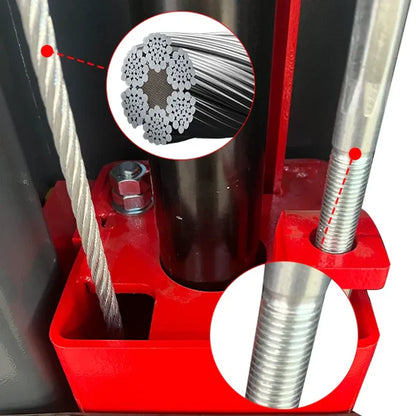

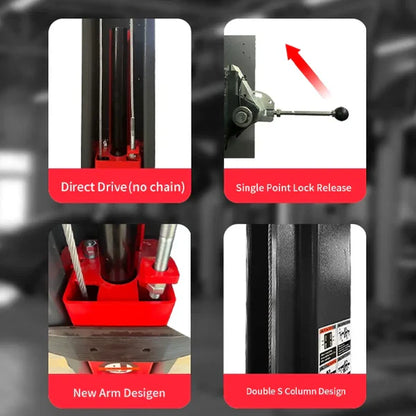

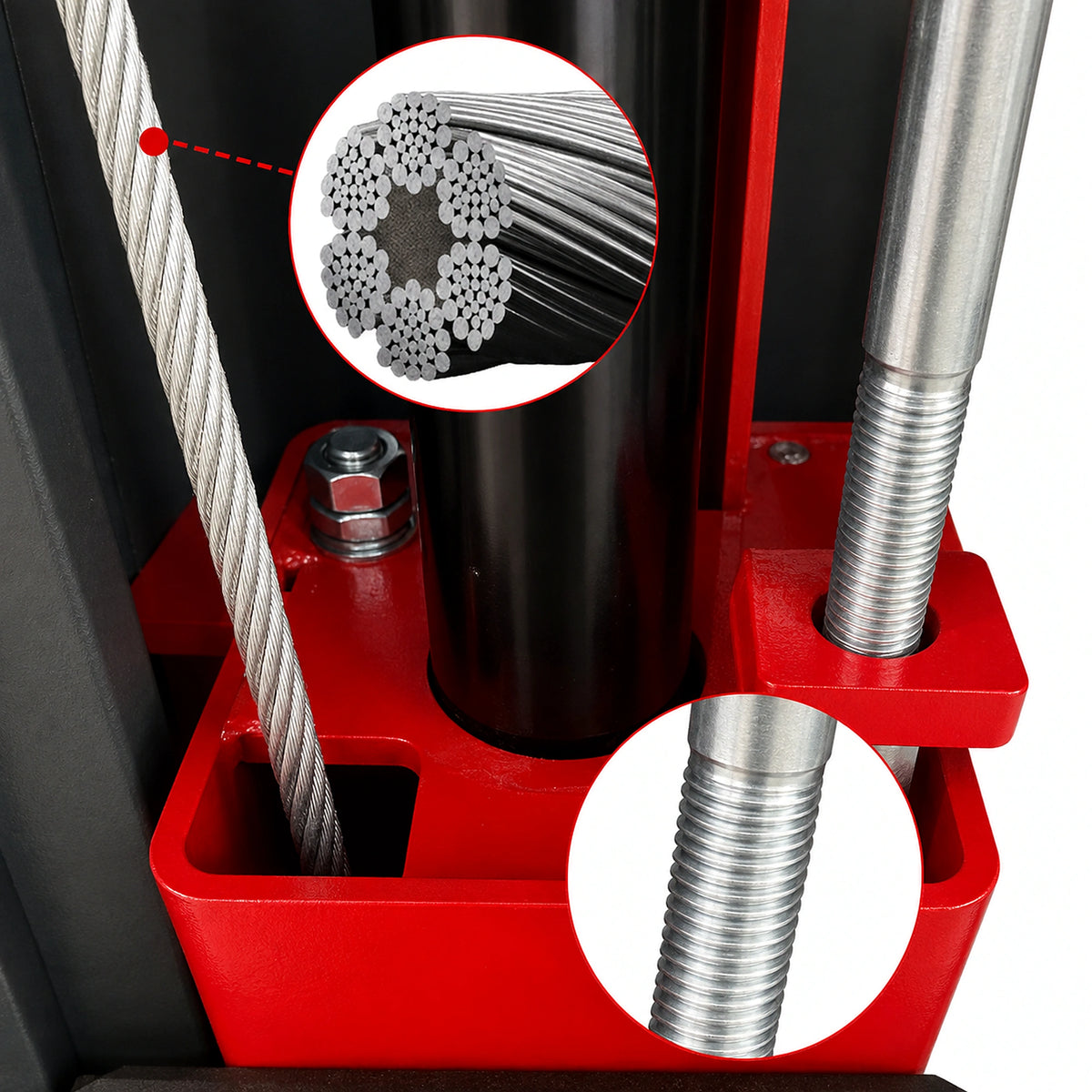

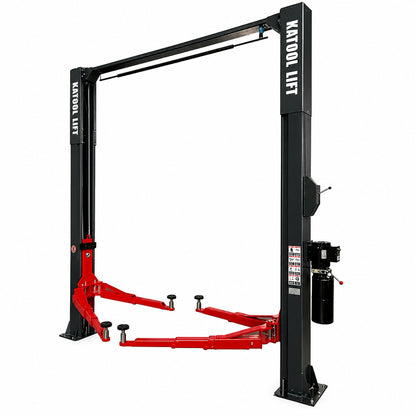

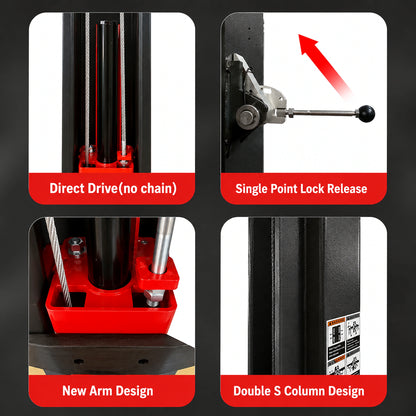

The overhead clear-floor design keeps your bay wide open. No baseplate running across the floor means rolling jacks, creepers, and transmission jacks move freely underneath the vehicle. That matters when you're working tight turnarounds and can't afford to maneuver around obstacles between every service. A direct-drive system replaces the traditional chain mechanism, cutting down on noise, reducing maintenance intervals, and delivering smoother lifting cycles you'll notice from the first raise.

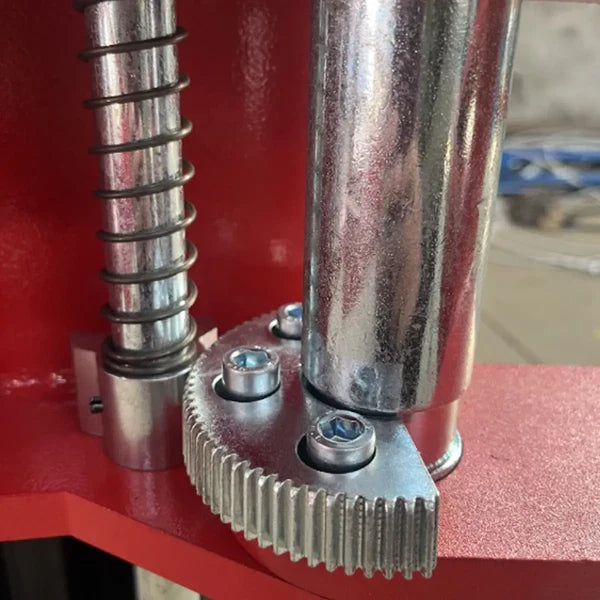

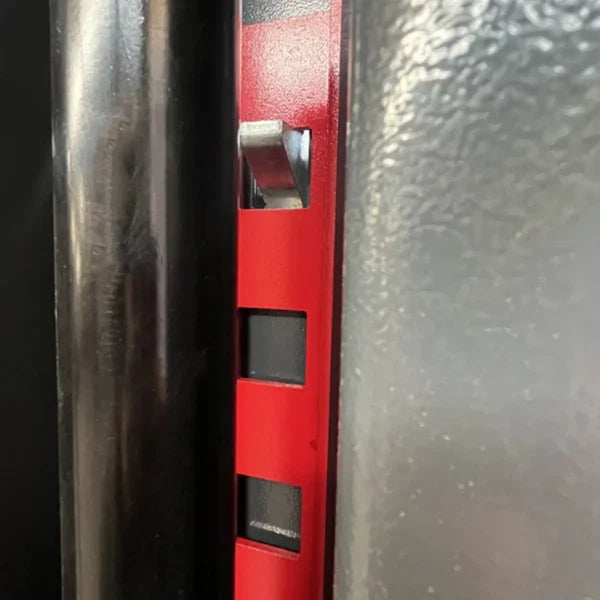

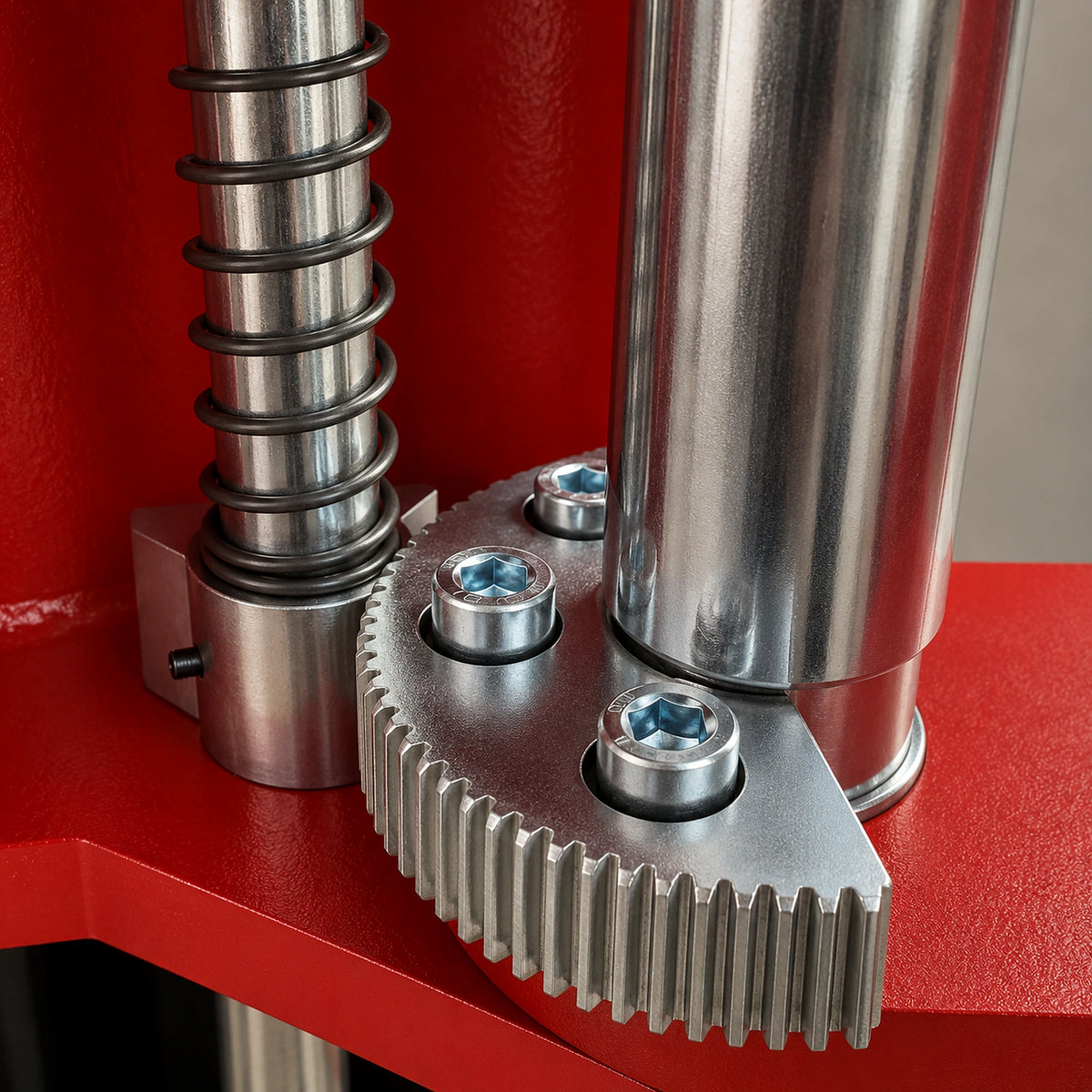

Single-point lock release lets you disengage all safety locks from one control point, so you're not walking back and forth between columns. Symmetric lifting arms give you balanced positioning across a wide range of wheelbases, from midsize SUVs to extended cargo vans. At 2,050 lb net weight with industrial-grade alloy steel construction, this lift is built for shops that measure uptime in years, not months.
When you buy from Garage Supply Guys, you get direct access to our team for pre-sale questions, freight coordination, and post-purchase support. We stock replacement parts and keep your lift running long after installation day.
Specifications
| Lifting Capacity | 14,000 lb |

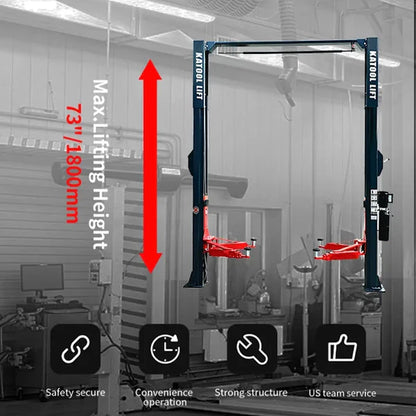

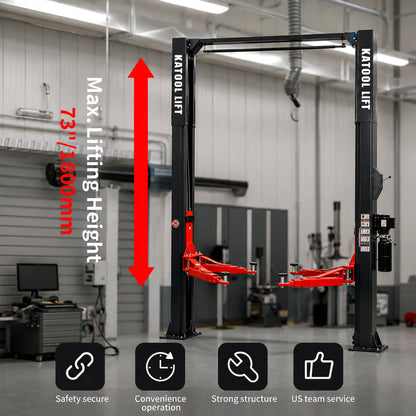

| Max Lifting Height | 73" (1,800 mm) |
| Overall Height | 167" |
| Overall Width | 158" |
| Drive-Thru Clearance | 133" |
| Motor Power | 4 HP |
| Power Supply | 220V / 1 Phase |
| Material | Alloy Steel |
| Net Weight | 2,050 lb (930 kg) |
| Shipping Weight | 1,960 lb |
What's Included
Call to confirm included accessories.
Installation & Setup
The KT-M140XD requires a 220V / 1 phase power supply. Before installation, verify your bay has adequate electrical service and that your concrete slab meets the thickness and PSI requirements for a 14,000 lb rated 2-post lift. The unit ships at 1,960 lb, so you'll need a forklift on-site to unload and position the columns. Plan your bay layout around the 158" overall width and 167" overall height to confirm ceiling and wall clearance. Professional installation by a qualified technician is strongly recommended to ensure proper anchoring, hydraulic setup, and safety lock calibration.
Applications
Brake jobs, suspension work, exhaust repairs, and undercarriage inspections on full-size trucks, SUVs, and passenger vehicles. The clear-floor design gives you room to work underneath without obstruction.
High-volume shops servicing commercial vans, delivery trucks, and utility vehicles on tight schedules. The direct-drive system keeps cycle times short and maintenance downtime minimal.
Shops specializing in heavier vehicles that push past the limits of a standard 10,000 lb lift. The 14,000 lb capacity gives you headroom for loaded work trucks and heavy-duty pickups.
Quick-service tire shops handling high daily vehicle counts. Symmetric arms and single-point lock release speed up positioning and lowering between vehicles.
Shipping
Our team coordinates freight shipping within the lower 48 states, with fulfillment times of 6-10 business days. Seasonal delays may extend delivery up to 3 weeks. Shipping to Alaska and Hawaii is available; contact us for a quote before ordering.
A forklift is required for unloading. If no forklift is available, we can arrange terminal delivery for customer pick-up. Please select the correct shipped or pick-up option before adding to your cart.
Need residential delivery ($80) or liftgate service? Liftgate is not available for two-post lifts. Contact us before ordering to confirm your delivery setup and any accessorial charges.
Inspect your shipment carefully before signing the Bill of Lading. Note any visible damage or missing items on the delivery receipt at the time of delivery. Report concealed damage or shortages within 48 hours. Do not sign for damaged or incomplete shipments; contact our customer service team immediately.
Warranty
The Katool KT-M140XD is covered by a 1-year warranty on all product parts and a 3-year warranty on product structure. Free shipping is provided on warranty parts. Labor is not included in warranty coverage.
Warranty registration may be required after purchase. Refer to included documentation for details.
Questions Before You Buy?
Talk to our team about bay requirements, freight logistics, or anything else before you order. Call us at (855) 498-2147.
Frequently Asked Questions
What power supply does the KT-M140XD require?
This lift runs on a 220V, single-phase power supply with a 4 HP motor. That's a standard setup for most commercial shop electrical panels, but you'll want to verify your bay has a dedicated circuit available before installation. Single-phase power is common in smaller to mid-size shops that don't have three-phase service.
How much ceiling height do I need for this lift?
The KT-M140XD has an overall height of 167", which comes out to just under 14 feet. You'll want at least a few inches of clearance above that for the overhead beam and any lighting or ductwork in your bay. Measure your ceiling height at the planned installation point before ordering to make sure everything fits.
Can this lift handle dually trucks and heavy-duty pickups?
With a 14,000 lb lifting capacity, it handles most full-size trucks, including many dually configurations. The key is calculating per-arm weight distribution, not just total vehicle weight. A truck that weighs 10,000 lb but has uneven front-to-rear distribution could exceed individual arm limits, so always check your heaviest vehicle's axle weights against the lift's specs.
What's the advantage of a direct-drive system over a chain-drive lift?
The direct-drive system eliminates the chain entirely, which means fewer moving parts, less noise during operation, and reduced long-term maintenance. Chains stretch over time and need periodic adjustment or replacement. Direct-drive lifts deliver smoother, more consistent lifting cycles and tend to have longer service intervals between maintenance.
Do I need a forklift to receive this lift?
Yes. The KT-M140XD ships at 1,960 lb, so freight delivery requires a forklift or dock access for unloading. If you don't have a forklift at your location, contact us before ordering and we can arrange terminal delivery where you pick up from the carrier's facility with appropriate equipment.
What is the drive-thru clearance on the KT-M140XD?
Drive-thru clearance is 133", giving you just over 11 feet between columns. That's wide enough to drive most full-size trucks, extended cab pickups, and commercial vans straight through without tight maneuvering. Wider vehicles with aftermarket fender flares or mirrors should be measured before positioning.
How does the single-point lock release work?
Instead of releasing safety locks on each column individually, the single-point system disengages all locks simultaneously from one control location. This saves time during high-volume service and reduces the chance of an operator forgetting to disengage a lock on one side, which can stress the lift's hydraulic system.
What does the warranty cover on this lift?
The warranty includes 1 year of coverage on all product parts and 3 years on the structural components. Shipping on warranty parts is covered at no additional charge. Labor costs for warranty repairs are not included. Refer to the documentation included with your lift for registration requirements and full terms.
Is residential delivery available for this lift?
Residential delivery is available for an $80 fee, but liftgate service is not offered for two-post lifts. You'll still need a forklift or equivalent equipment at the delivery location to offload. Contact us at (855) 498-2147 before ordering to confirm your delivery setup and discuss any accessorial charges.
What concrete requirements should I plan for?
Two-post lifts rated at 14,000 lb need a reinforced concrete slab that meets minimum thickness and compressive strength standards, typically at least 4 inches thick at 3,000 PSI or higher. Your slab should be free of cracks, voids, or rebar obstructions at the anchor points. A professional installer can assess your floor before drilling.
