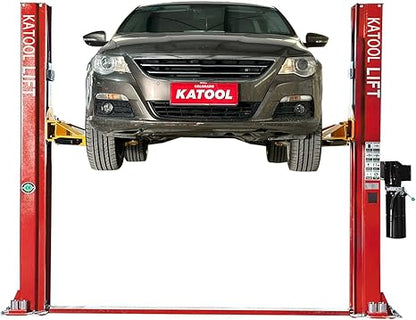

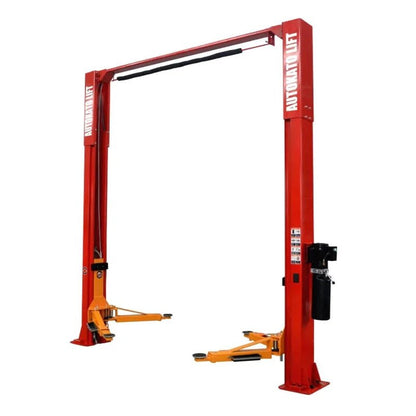

Katool KT-M120 – 12,000 lb Symmetric Clear-Floor 2 Post Car Lift

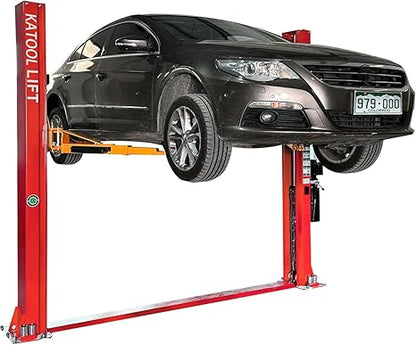

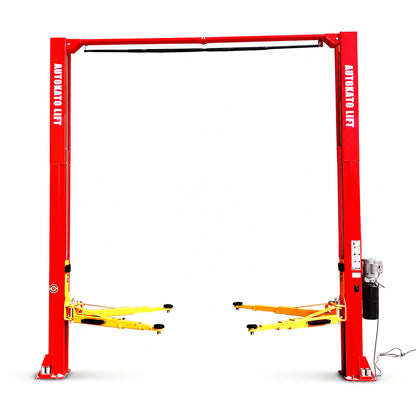

The Katool KT-M120 is a 12,000 lb symmetric, clear-floor 2 post car lift engineered for professional automotive shops, fleet maintenance operations, and serious home garages. This symmetric two post lift features dual hydraulic chain-drive cylinders, symmetric triple-telescoping arms, and an overhead cross-beam, delivering stable lifting across a wide range of passenger vehicles, SUVs, and light trucks while keeping the bay floor completely unobstructed.
Key Features & Benefits

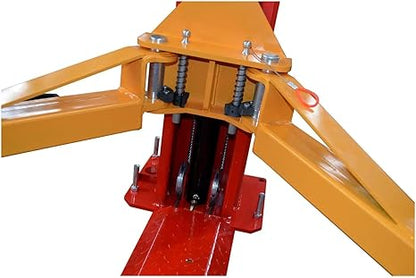

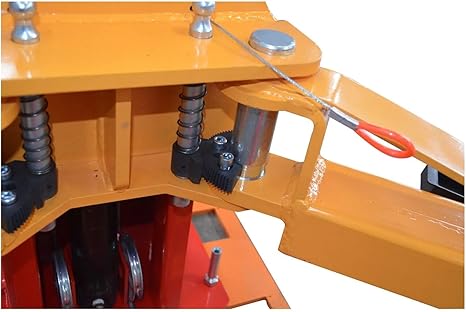

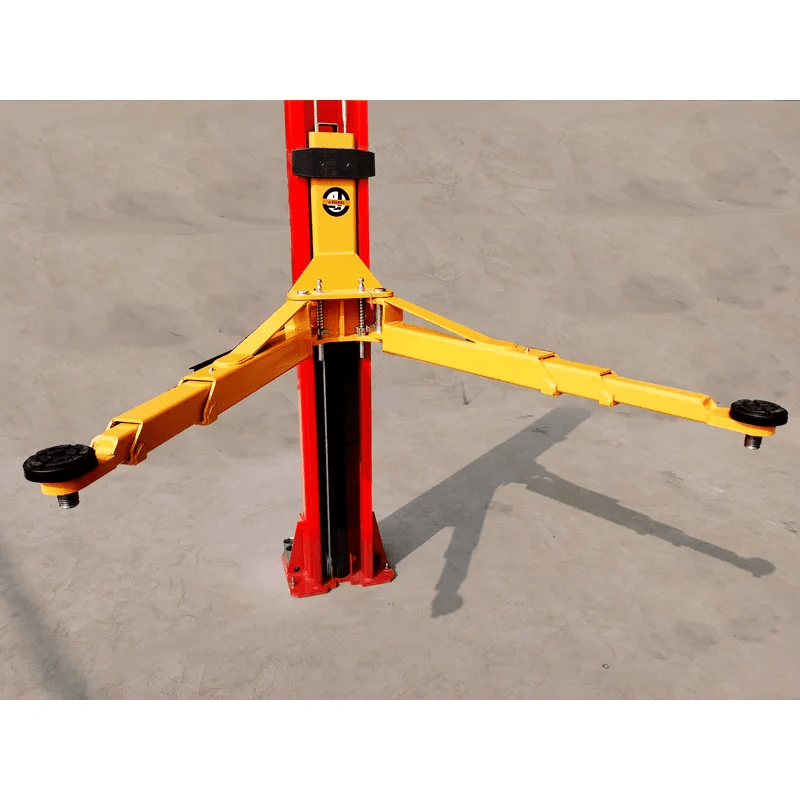

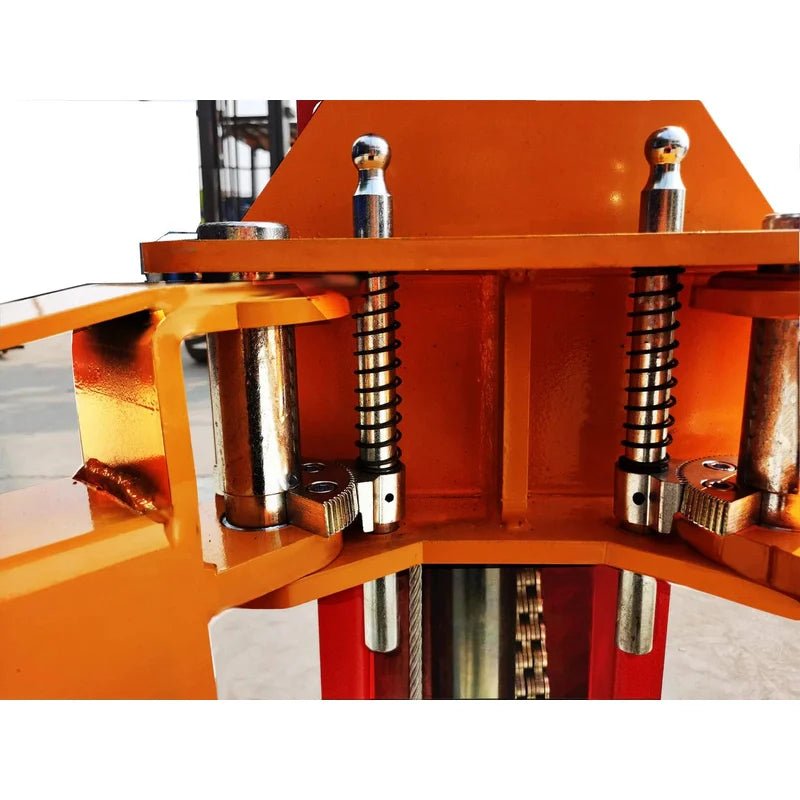

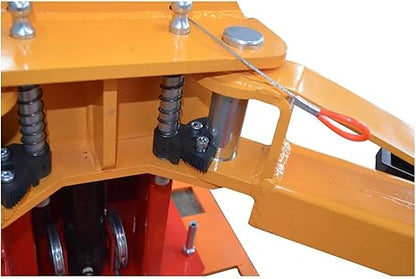

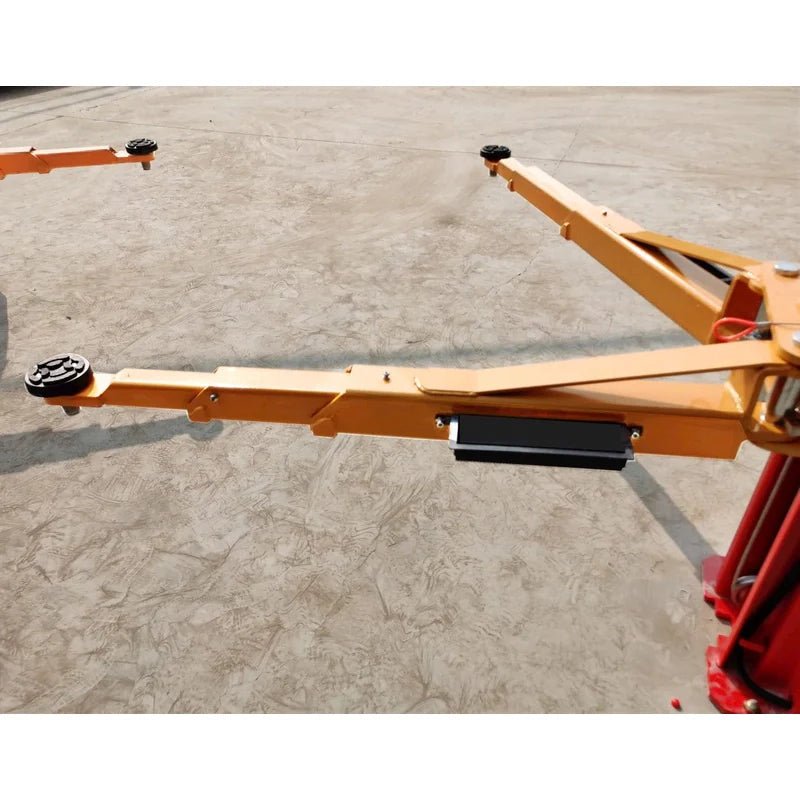

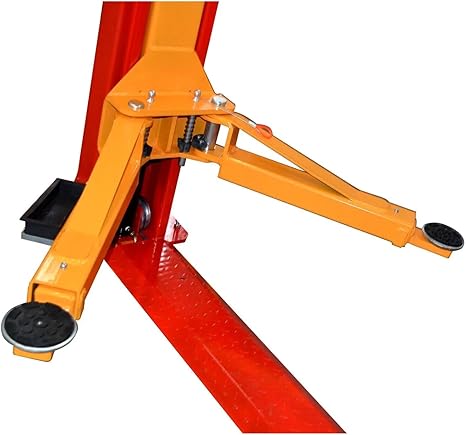

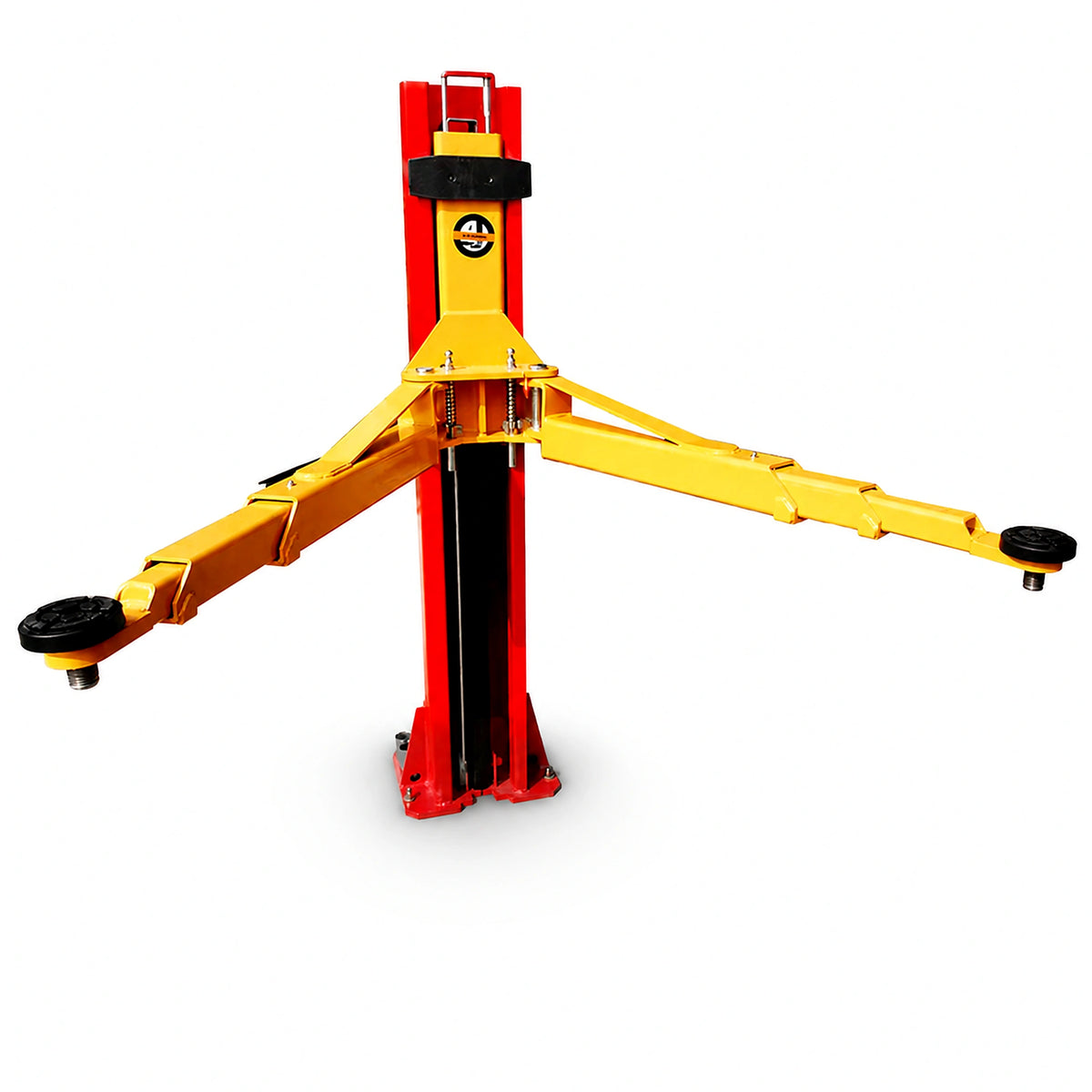

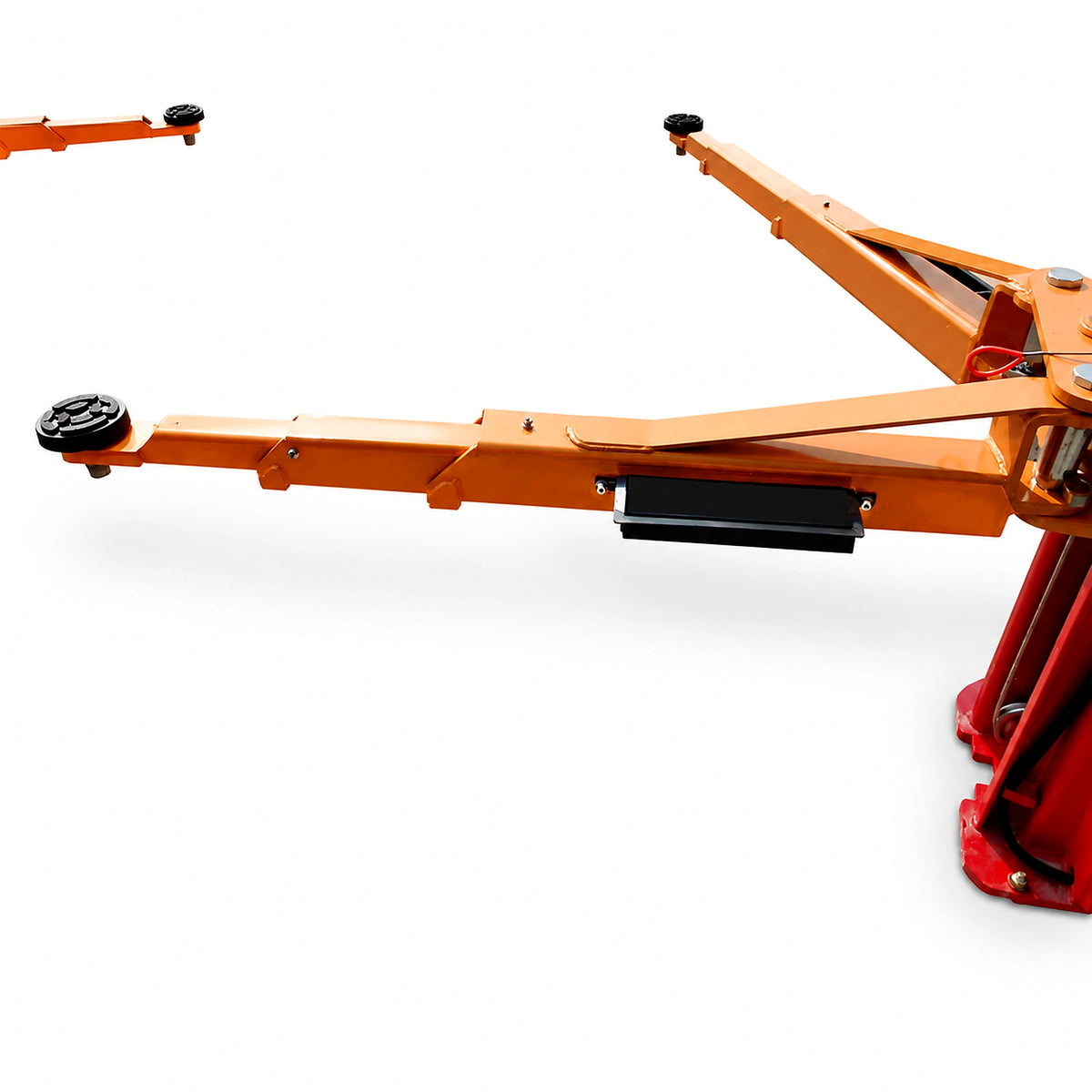

Symmetric Two-Post Lift Triple-Telescoping Arm Design
Supports a wide range of wheelbases for cars, SUVs, and trucks, making this 12000 lb two post lift suitable for heavy trucks and work vans that exceed typical 10,000 lb ratings. Triple-stage arms provide extended reach while maintaining stability, reducing repositioning during service.

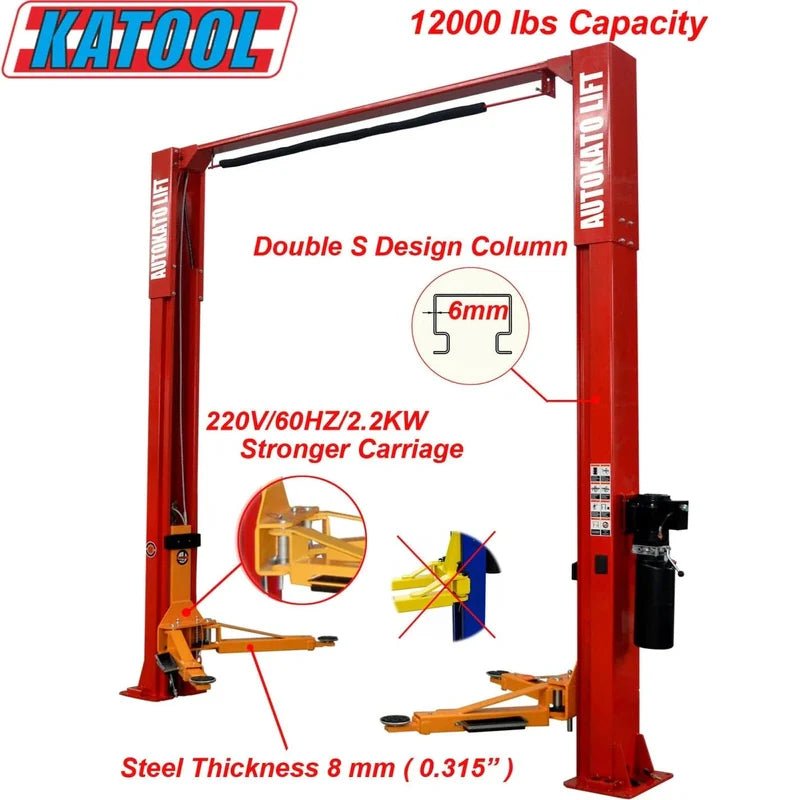

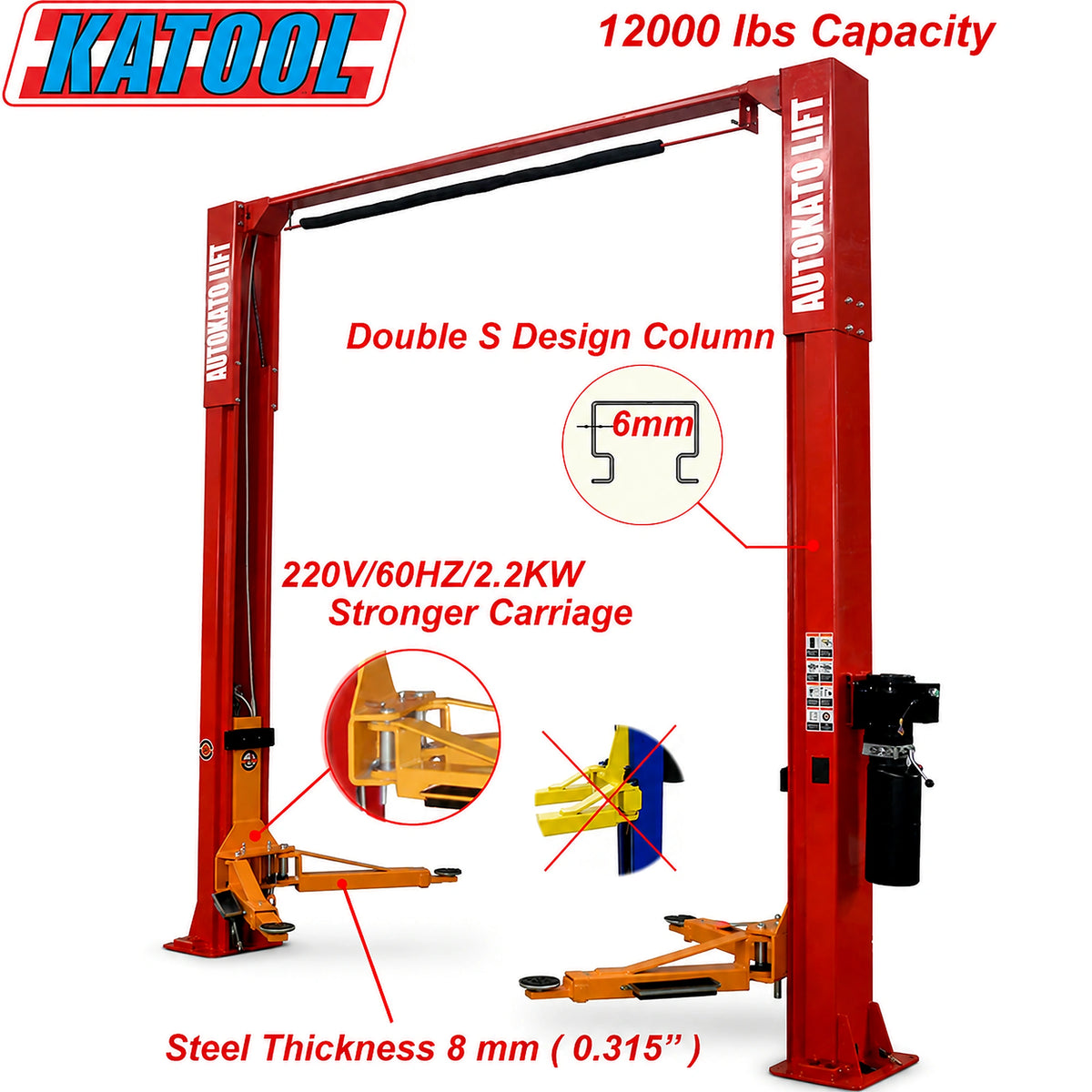

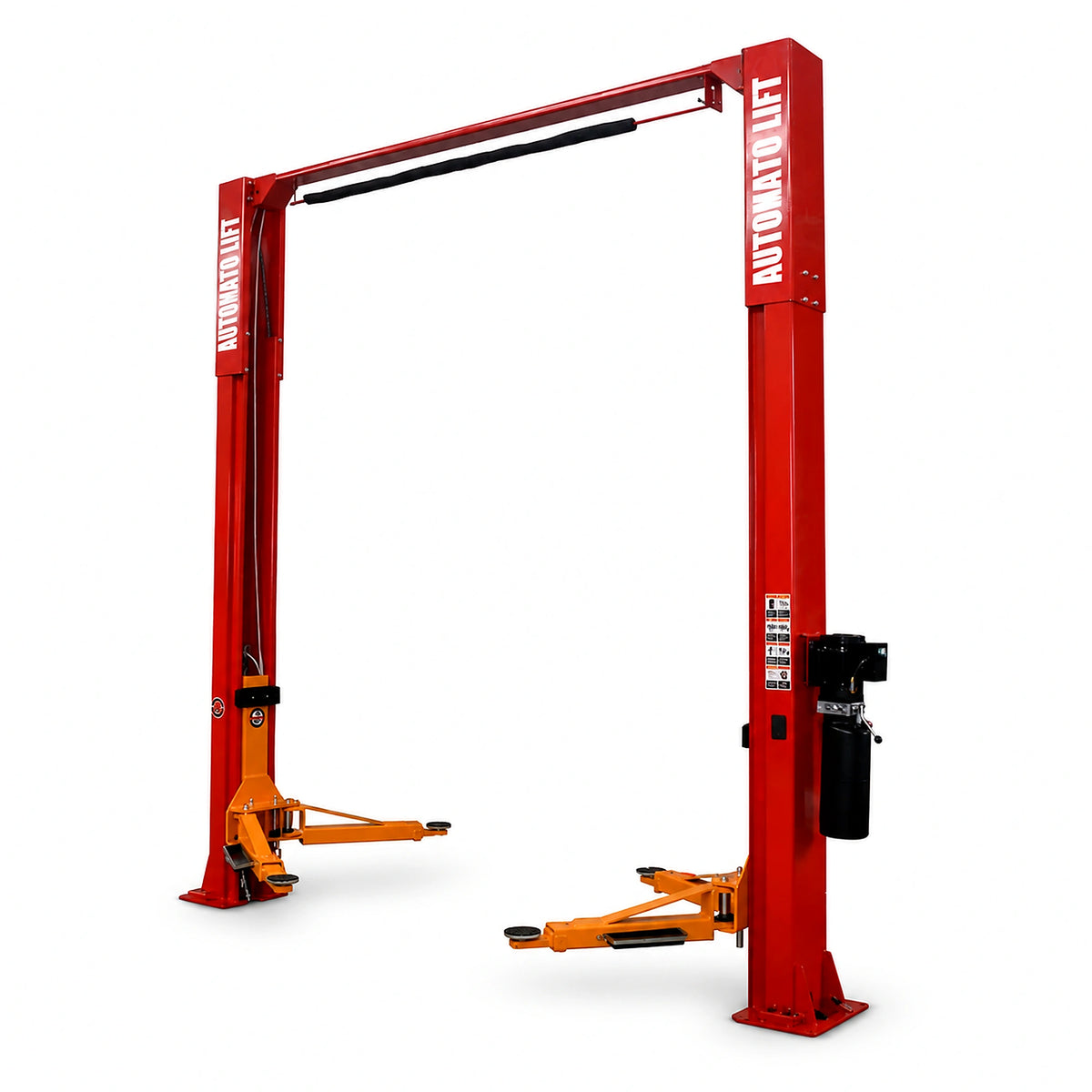

S-Column Clear-Floor Design
6 mm formed steel columns deliver rigidity without a base plate. Full clear-floor access improves movement of tools and equipment around the vehicle.

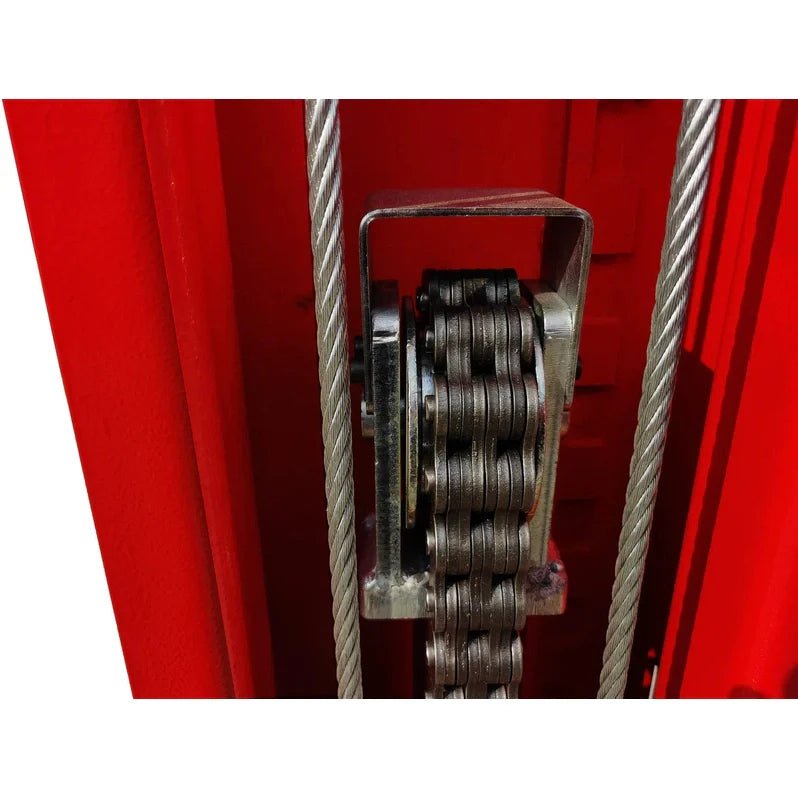

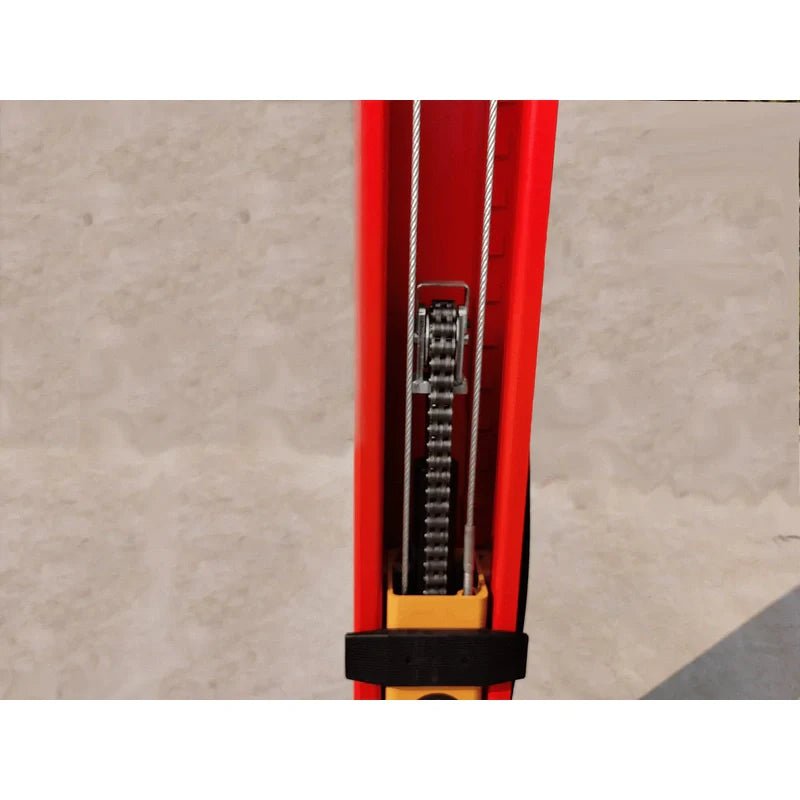

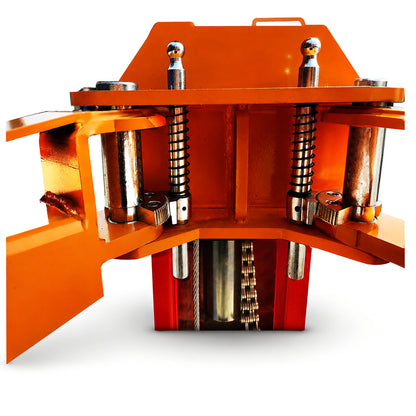

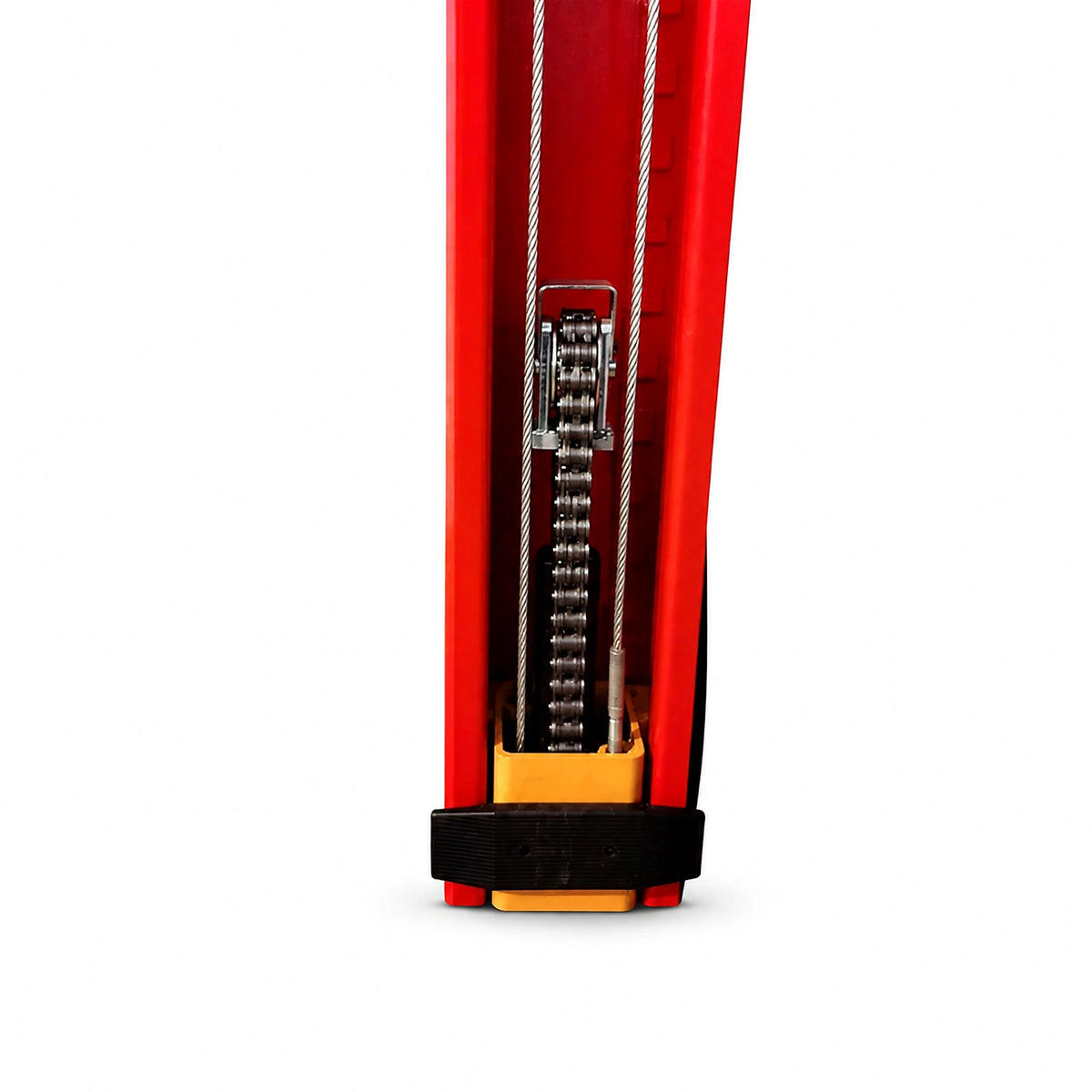

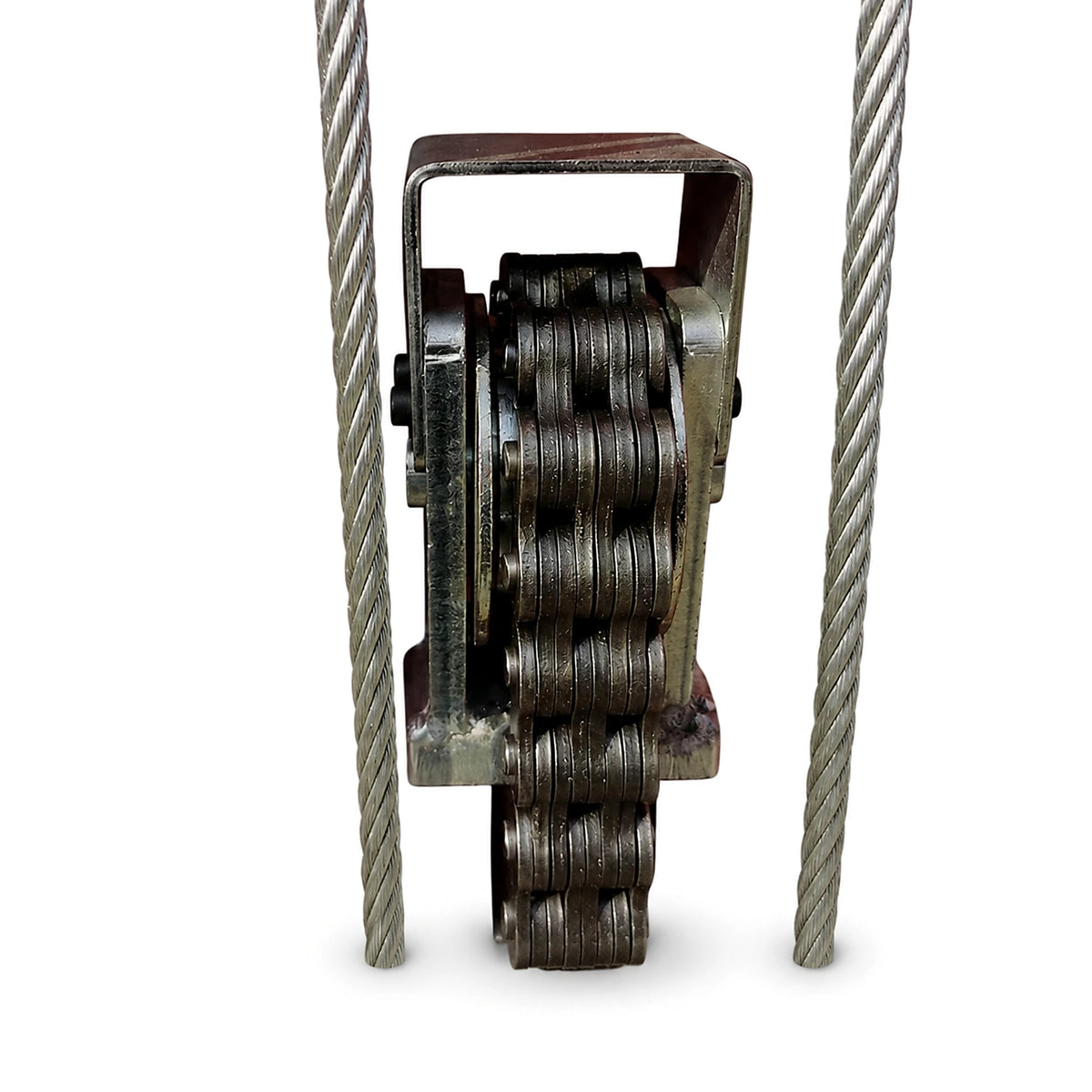

Dual Hydraulic Chain-Drive Cylinders
Independent cylinders ensure smooth, synchronized lifting with a rise time under 50 seconds. Designed for reliable performance under uneven vehicle loads.

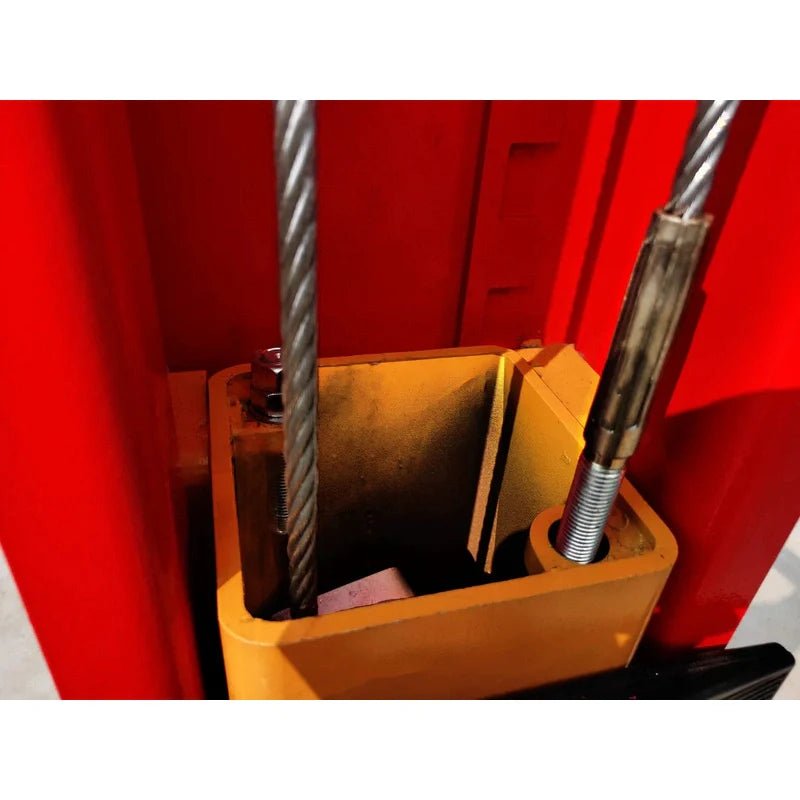

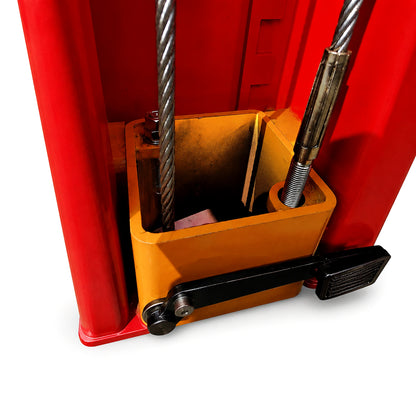

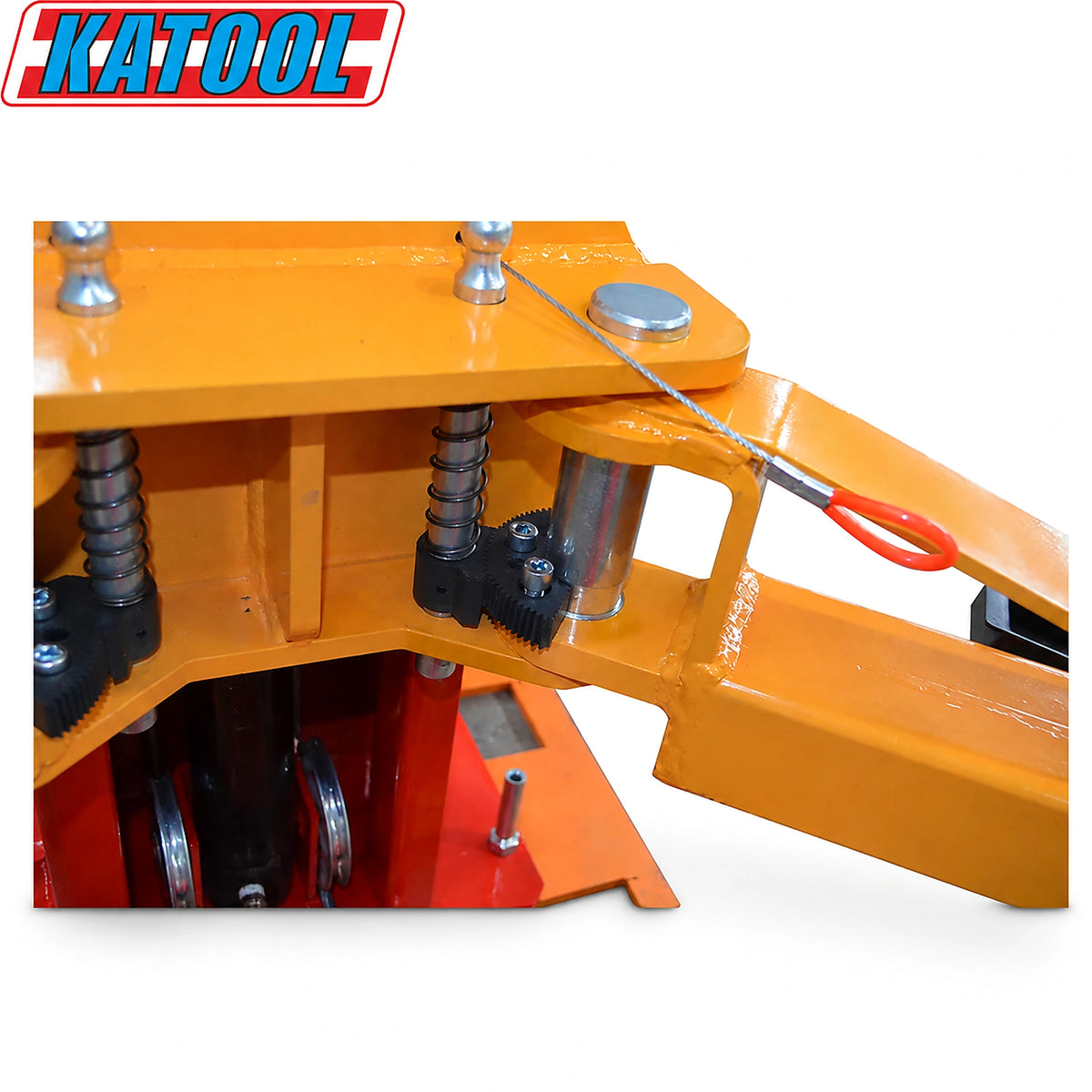

20-Position Mechanical Safety Locks
Locks spaced at 2.8-inch intervals allow precise working height adjustment. Dual-point manual release provides controlled, secure lowering.

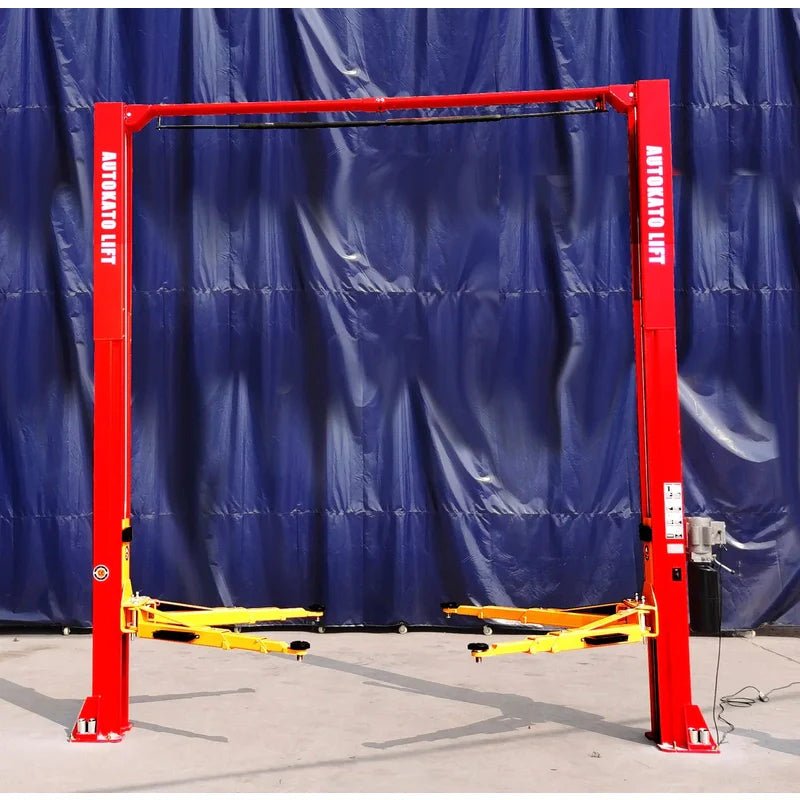

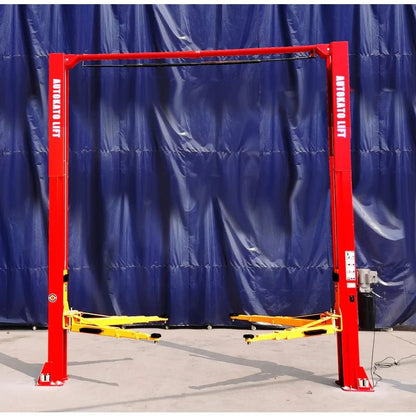

Overhead Two-Post Lift Safety Shutoff Bar
Integrated limit switch stops the lift at maximum height to prevent vehicle or ceiling contact. Overhead beam also increases structural stability.

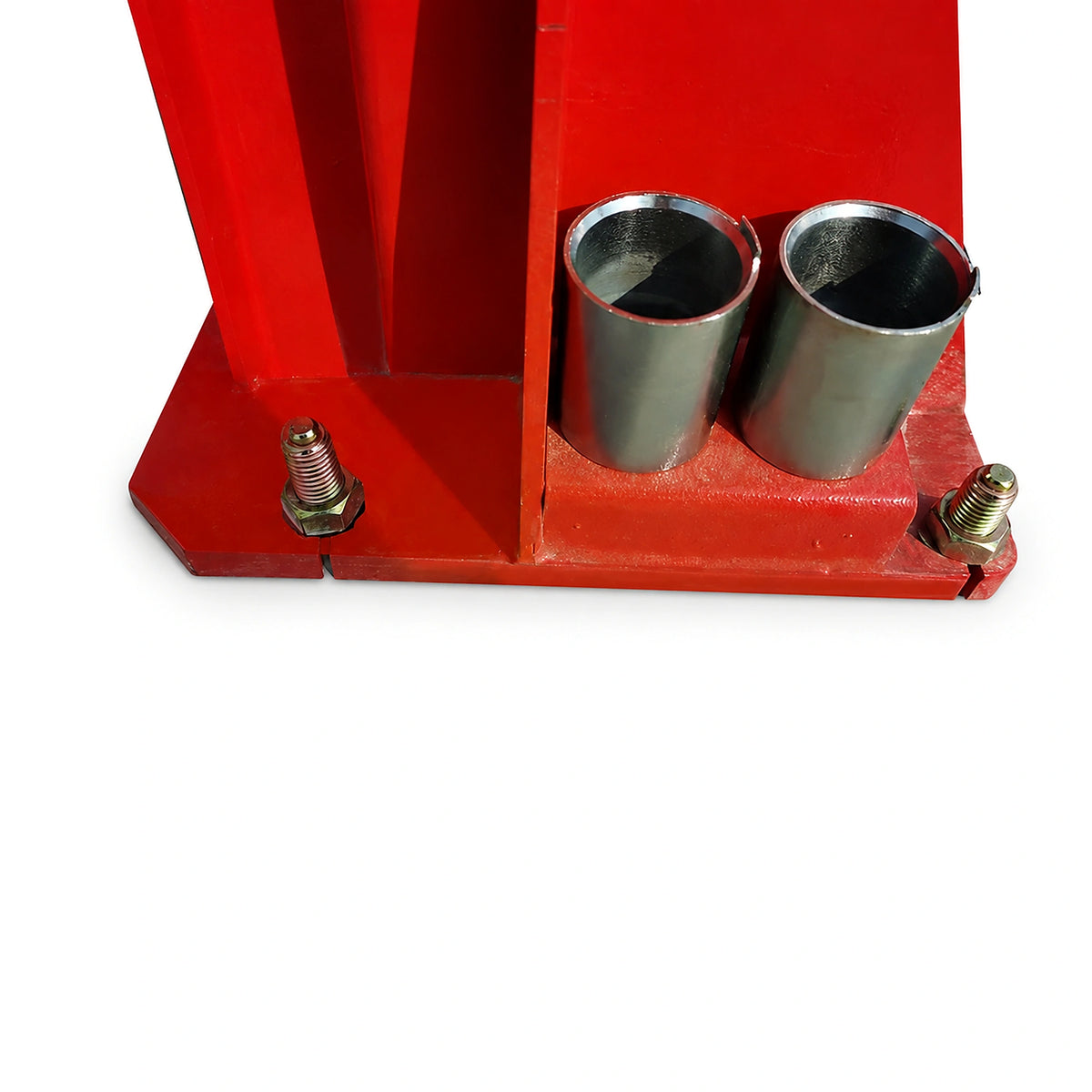

Included Adapter Kit
Comes with four stackable pads plus +30 mm and +120 mm extensions for low-profile and high-clearance vehicles. No additional adapter purchase required.
Product Demonstration
Applications & Use Cases
- Professional Automotive Repair Shops: Service a diverse fleet of passenger vehicles, crossovers, SUVs, and light trucks up to 12,000 lb with this two post car lift, including brake and suspension work, exhaust and undercarriage repairs, and drivetrain maintenance.
- Fleet Maintenance Operations: Efficiently service multiple trucks and work vans simultaneously with symmetric lifting, extra drive-through clearance, and clear-floor design that accommodates mobile service carts and diagnostic equipment.
- Serious Home & Enthusiast Garages: Provides full-size professional 2-post lift capacity for home shops with adequate ceiling height and electrical service, enabling owners to perform complex suspension, transmission, and component work on their own vehicles.
- Heavy Truck and Light-Duty Commercial Service: Handles the increased weight of modern work vans, crew cabs, and upfitted vehicles that often exceed typical 10,000 lb lift ratings, providing extra capacity without premium-tier pricing.
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Lifting Capacity | 12,000 lb (5,500 kg) |
| Certification | CE approved with 115% dynamic and 150% static load testing |
| Rise Time to Full Height | 50 seconds or less |
| Lifting Arm Configuration | Symmetric triple-telescoping (front and rear) |
| Safety Lock Positions | 20 positions at 2.8-inch intervals |

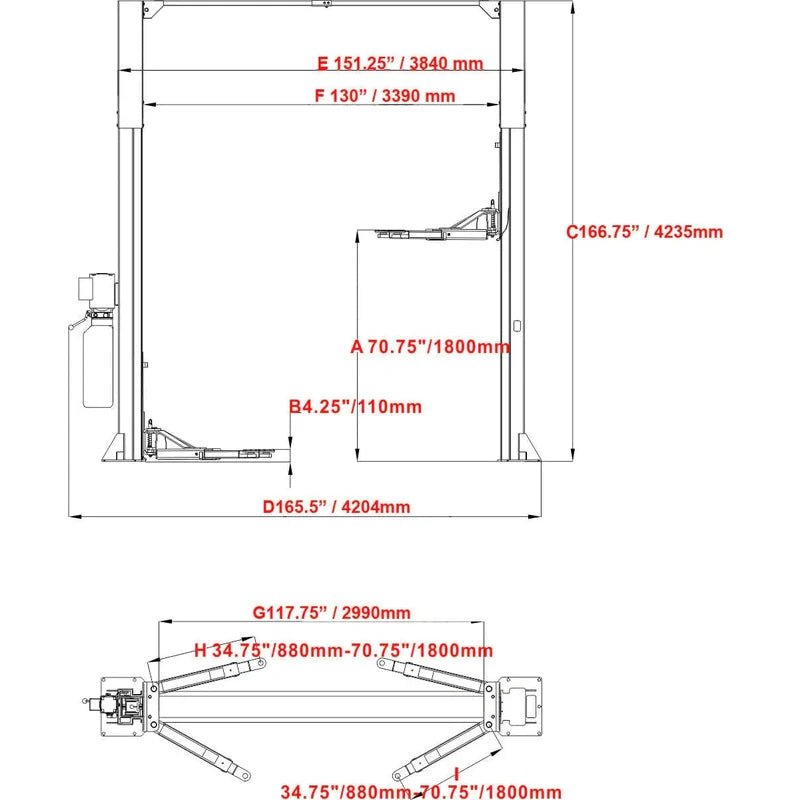

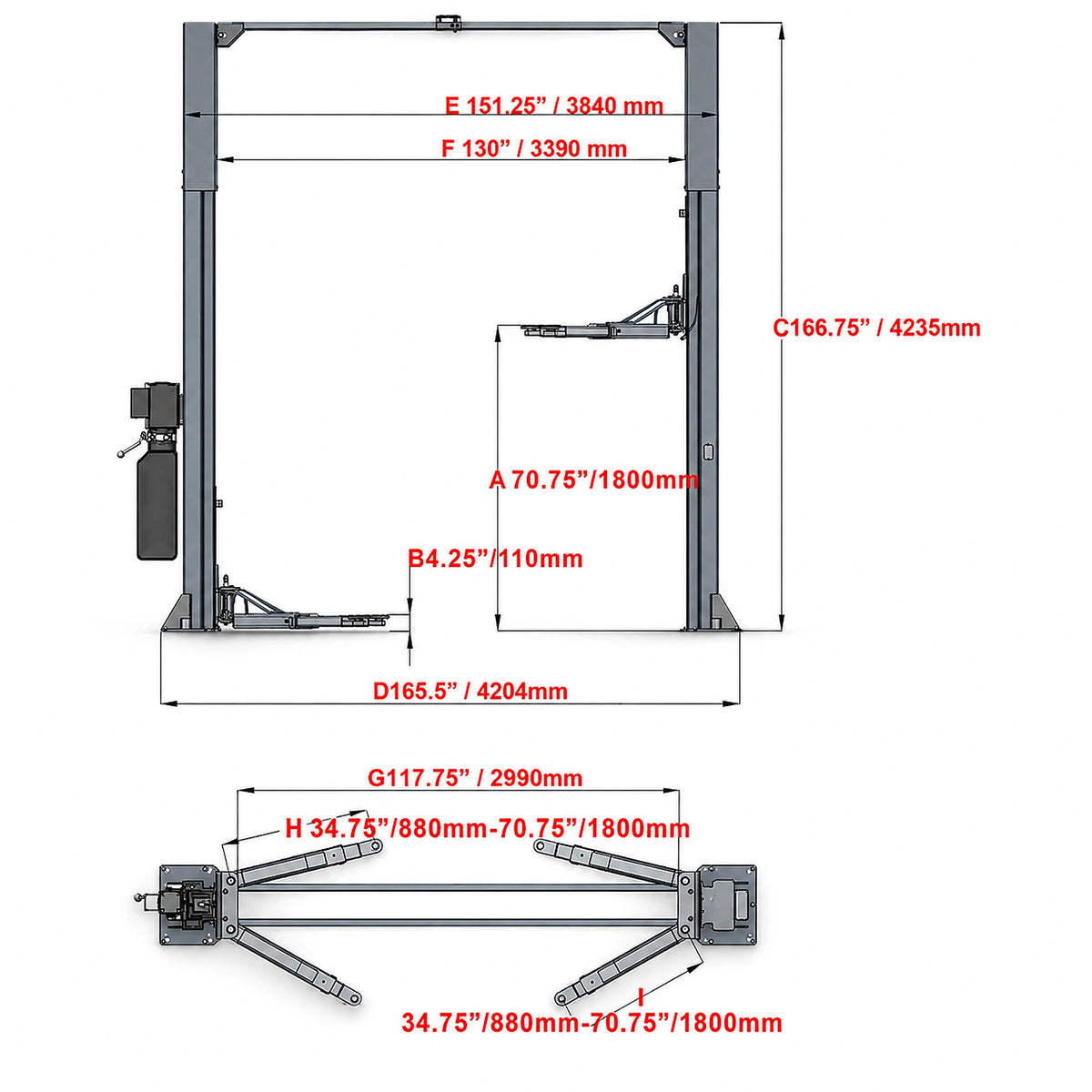

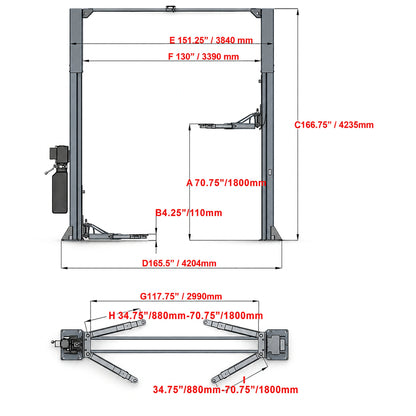

| Specification | Value |
|---|---|
| Maximum Lifting Height (pad to floor) | 70.75 in (1,800 mm) |
| Minimum Pad Height | 4.25 in (110 mm) |
| Overall Height | 166.75 in (4,235 mm) |
| Overall Width | 165.5 in (4,204 mm) |
| Outside Column Width | 151.25 in (3,840 mm) |
| Inside Column Width | 130 in (3,390 mm) |
| Drive-Through Clearance | 117.75 in (2,990 mm) |
| Net Weight | 1,653 lb (750 kg) |
| Specification | Value |
|---|---|
| Electrical Supply Requirement | 220 V, 60 Hz |
| Drive System | Dual hydraulic chain-drive cylinders (one per column) |
| Column Structure | S-Column design, 6 mm thick steel |
| Control System | Manual dual-point safety release (both columns) |
Installation Requirements
Installation & Operation Manual
Download the complete installation and operation manual for detailed instructions on mechanical installation, electrical wiring, hydraulic system setup, lift adjustment, bleeding procedures, maintenance schedules, and safety guidelines.

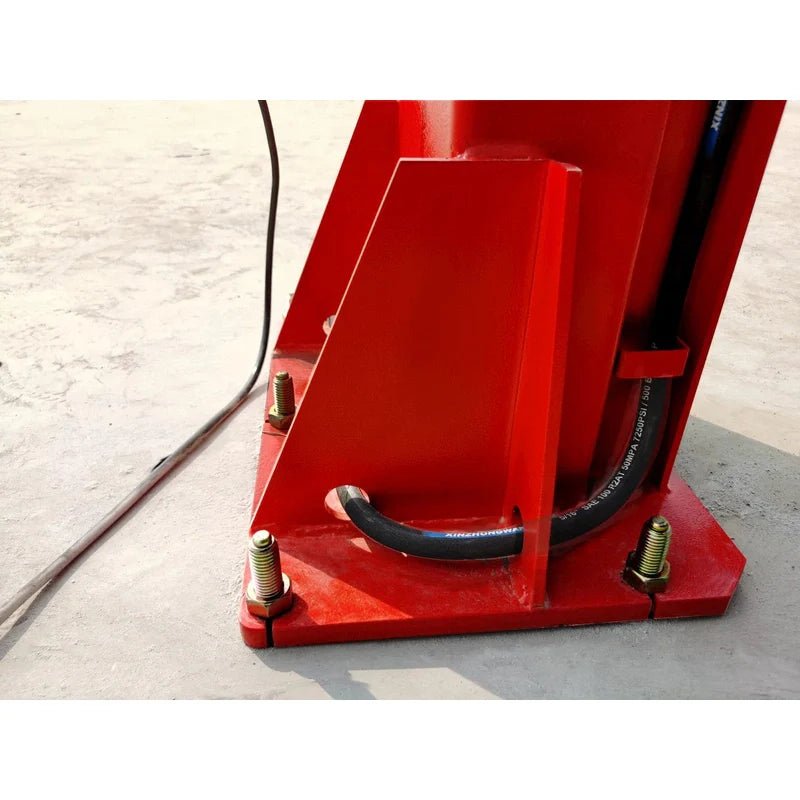

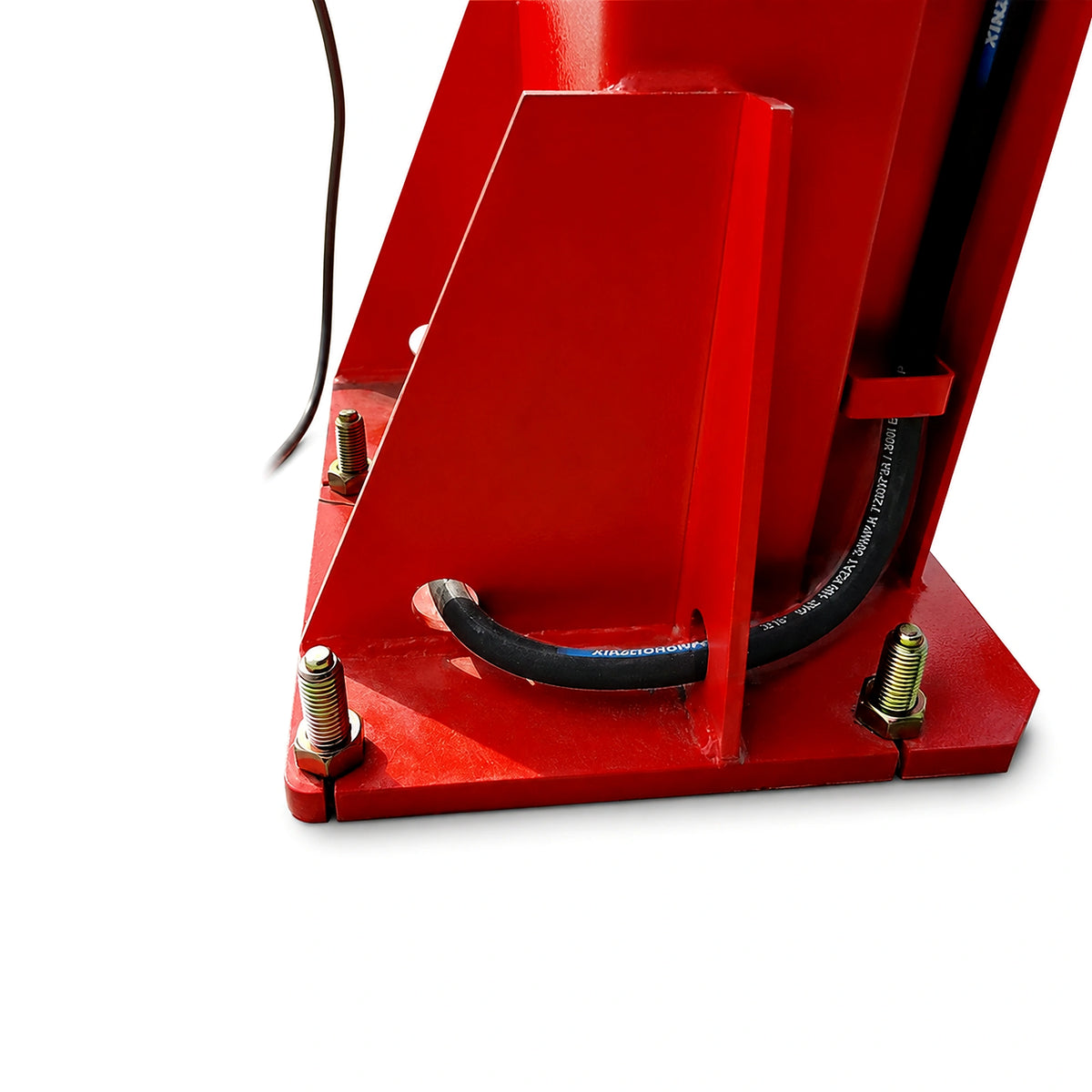

Foundation & Mounting
- Concrete Thickness: Minimum 5.9 inches (150 mm) reinforced slab required
- Concrete Compressive Strength: Minimum 3,000 PSI
- Slab Condition: Must be fully cured, level, and structurally sound with no cracks or settling
- Surface Type: Indoor concrete flooring only—not suitable for asphalt, pavers, or non-structural slabs without professional engineering review
- Installation Responsibility: Customer must verify concrete quality and suitability before installation; installation must comply with local building codes
Electrical Requirements
- Supply Voltage: 220 V, 60 Hz (North American market)
- Motor Phase Configuration: Confirm specific phase requirement (1-phase or 3-phase) with seller at order time, as specs vary across dealer listings
- Breaker & Wiring: Breaker size and wire gauge must be determined by a licensed electrician in compliance with local electrical codes and current manufacturer specifications
- Installation: Electrical connections must be performed by a qualified electrician
Environmental & Clearance
- Installation Environment: Indoor installation only; designed for typical shop environments with moderate temperature and humidity
- Minimum Ceiling Height: 14 feet (4,270 mm) or greater to accommodate 166.75-inch lift height plus adequate clearance for vehicle overhang and safe installation
- Bay Space: Minimum 165.5-inch width for lift structure, plus adequate workspace on all sides for technician access and vehicle positioning
- Ventilation: Refer to manufacturer manual for specific environmental operating specifications
Installation Notes
- Permits: Verify local code compliance and any required installation permits before beginning work
- Professional Installation: Installation should be performed by qualified personnel following the complete manufacturer installation manual, which includes anchor specifications, wiring diagrams, and safety procedures
- Concrete Verification: Core sampling or other testing may be required to confirm concrete thickness and strength meet specifications
Shipping & Delivery
Freight Coverage
Shipping: Typically available with free shipping in the lower 48 United States; surcharges apply for remote, rural, Alaska, and Hawaii deliveries.
Delivery Timeframe: 5–14 business days from order placement, depending on inventory availability and distance from warehouse location.
Freight Method: LTL (Less-Than-Truckload) freight from US-based Katool warehouses and authorized dealer distribution centers.
Delivery Requirements
Equipment Required: Forklift (minimum 2,000 lb capacity) or equivalent material handling equipment required for unloading. Liftgate service is not available for 2-post lifts due to size and weight distribution.
Delivery Type: Standard freight delivery to dock, loading area, or specified business address. Residential delivery may not be available; confirm address requirements with seller.
Receiving & Inspection: Inspect all shipment components before signing the bill of lading. Note any visible damage on the BOL document before the driver departs. Damaged components and freight claims must be reported according to the seller's damage reporting procedure.
Damage Reporting & Coverage
Within 15 days: 100% replacement coverage for damaged components and freight costs
Within 30 days: Shared-cost coverage for replacement parts and freight (coverage percentage per seller policy)
After 30 days: No coverage; customer responsible for all parts and freight costs for concealed damage claims
Warranty Coverage
Tiered Warranty Structure
3 Years – Structural Components: Covers lift structure including columns, crossbeam, arms, and main welded assemblies for defects in materials and workmanship under normal use conditions.
1 Year – Parts & Hydraulics: Covers power unit, hydraulic cylinders, valves, hoses, electrical controls, and replacement parts for defects in materials and workmanship.
Warranty Terms & Conditions
Eligibility: Valid for original purchaser only (non-transferable); warranty is voided if lift is resold or transferred to another owner.
Registration: Product registration may be required within 30 days of purchase to validate warranty coverage; confirm registration requirements with authorized seller.
Installation: Installation must be performed by qualified personnel following the manufacturer installation manual; installation by unqualified parties may void warranty coverage.
Labor & Freight: Warranty covers parts replacement only; labor for service, repair, or installation is not included. Freight costs for warranty repairs are typically not covered.
Coverage Exclusions: Warranty does not cover damage from misuse, neglect, accident, improper installation, unauthorized modifications, or use outside specified environmental conditions.
Extended Warranty Options
Many authorized dealers offer optional extended warranty programs adding coverage years to parts and hydraulic systems beyond the base manufacturer warranty structure. Consult your seller for available extended warranty options and pricing at time of purchase.
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility. Our team can help with product selection, installation planning, technical specifications, and concrete requirement verification to ensure successful deployment in your shop environment.
Frequently Asked Questions
What is a symmetric two post lift?
A symmetric two post lift has arms positioned at equal distances from the column centerline on both sides, creating balanced weight distribution. This design ensures stable lifting for passenger cars, SUVs, and trucks up to the rated capacity without complex repositioning, making it ideal for general-purpose automotive service.
Is a 12k two post lift enough for heavy trucks?
A 12k two post lift with 12,000 lb capacity handles most light-duty trucks, full-size SUVs, work vans, and crew cab pickups. Modern light trucks typically weigh 6,000-10,000 lb, so a 12,000 lb lift provides adequate margin. For commercial trucks or vehicles exceeding 11,000 lb, verify exact vehicle weight before lifting.
What is the maximum lifting capacity of the Katool KT-M120?
The KT-M120 has a rated lifting capacity of 12,000 lb (5,500 kg) and is CE certified with factory testing to 115% dynamic and 150% static load capacity, meaning it has been tested to handle loads well above its rated capacity.
What components are included with the KT-M120 2-post lift?
The package includes the complete 2-post clear-floor lift assembly, symmetric triple-telescoping arms (front and rear), four stackable height adapters (approximately 70 mm each), extended adapters (+30 mm and +120 mm), rubber door protection pads, foot protection components, hydraulic power unit, anchor and mounting hardware, and installation and operation manuals.
What concrete thickness and strength are required for KT-M120 installation?
The KT-M120 requires a minimum concrete thickness of 5.9 inches (150 mm) reinforced slab with a minimum compressive strength of 3,000 PSI. The concrete must be fully cured, level, structurally sound, and suitable for anchoring. Core sampling may be required to verify thickness and strength meet these specifications.
What electrical supply does the KT-M120 require?
The KT-M120 requires a 220 V, 60 Hz electrical supply. Confirm whether your model requires 1-phase or 3-phase power with your seller at order time, as specifications vary across dealer listings. A qualified electrician should determine the appropriate breaker size and wire gauge in compliance with local electrical codes.
What is the minimum ceiling height required for KT-M120 installation?
The KT-M120 has an overall height of 166.75 inches (13 feet 11 inches). A minimum ceiling height of 14 feet (4,270 mm) or greater is recommended to accommodate the lift height plus adequate clearance for vehicle overhang and safe installation and operation.
What vehicles can be lifted on the Katool KT-M120?
The KT-M120 is designed for passenger cars, crossovers, SUVs, and light trucks up to 12,000 lb, including work vans and many upfitted vehicles that exceed typical 10,000 lb lift capacity. The symmetric triple-telescoping arms and extra 117.75-inch drive-through clearance accommodate a wide range of wheelbases and widths.
What warranty does the Katool KT-M120 include?
The KT-M120 includes a 3-year structural warranty covering the lift columns, crossbeam, arms, and main welded components, plus a 1-year parts warranty covering the power unit, hydraulics, valves, hoses, and controls. Warranty covers defects in materials and workmanship under normal use; labor and freight are not included.
How is the KT-M120 delivered, and what equipment is needed for unloading?
The KT-M120 ships via LTL freight from US warehouses with typical free shipping to the lower 48 states. Unloading requires a forklift (minimum 2,000 lb capacity) or equivalent equipment; liftgate service is not available. Inspect for damage upon delivery and note any damage on the freight bill before the driver departs.
