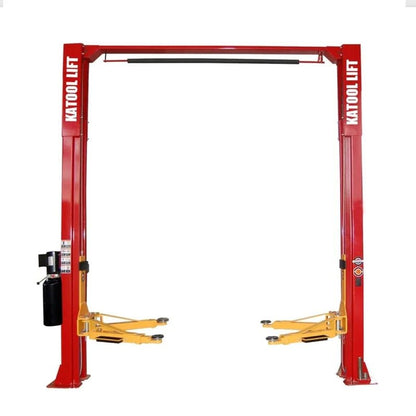

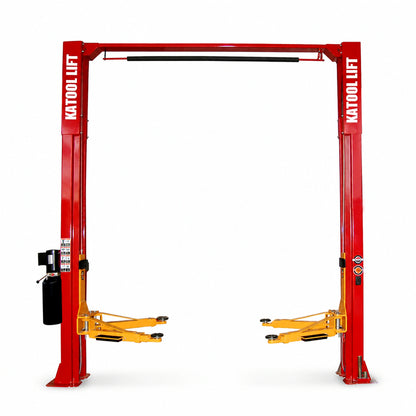

Katool KT-M110 - 2-Post Car Lift (11,000 lb, Clearfloor)
SKU: KT-M110
$2,099.00
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Product highlights
- Clearfloor Layout
- Symmetric 11,000 lb
- Overhead Shutoff Bar
Talk to a lift specialist
Expert product and freight support before you order
855-498-2147
- Authorized Katool Dealerdirect manufacturer relationship
- Manufacturer Warrantyincluded with purchase
- Price Match Guaranteefind it lower and we will beat it
- No Sales Tax Collected Outside PAPA orders include sales tax
Clearfloor means nothing between the posts: the Katool KT-M110's cables run overhead, the floor stays clean for trans jacks and oil drains, and the tradeoff is the ceiling height the top bar needs.
It's the 11,000 lb symmetric layout, both arms the same length, vehicle centered. Symmetric loads the columns evenly; the cost is the door opening against the post on some vehicles.
Ceiling height is the go/no-go number on clearfloor lifts, so measure before you fall in love.
Features
Clearfloor Layout

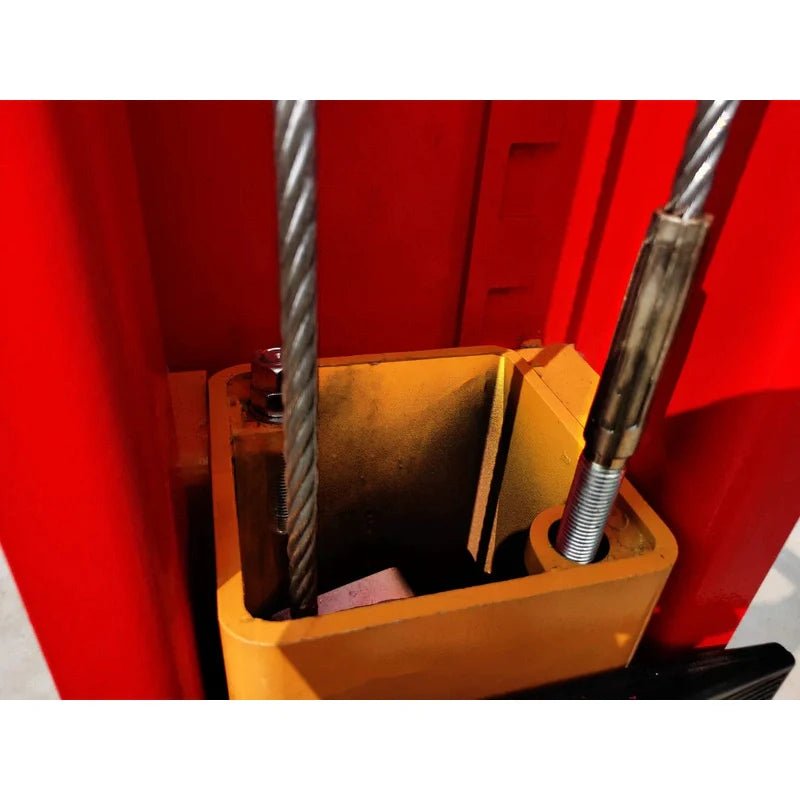

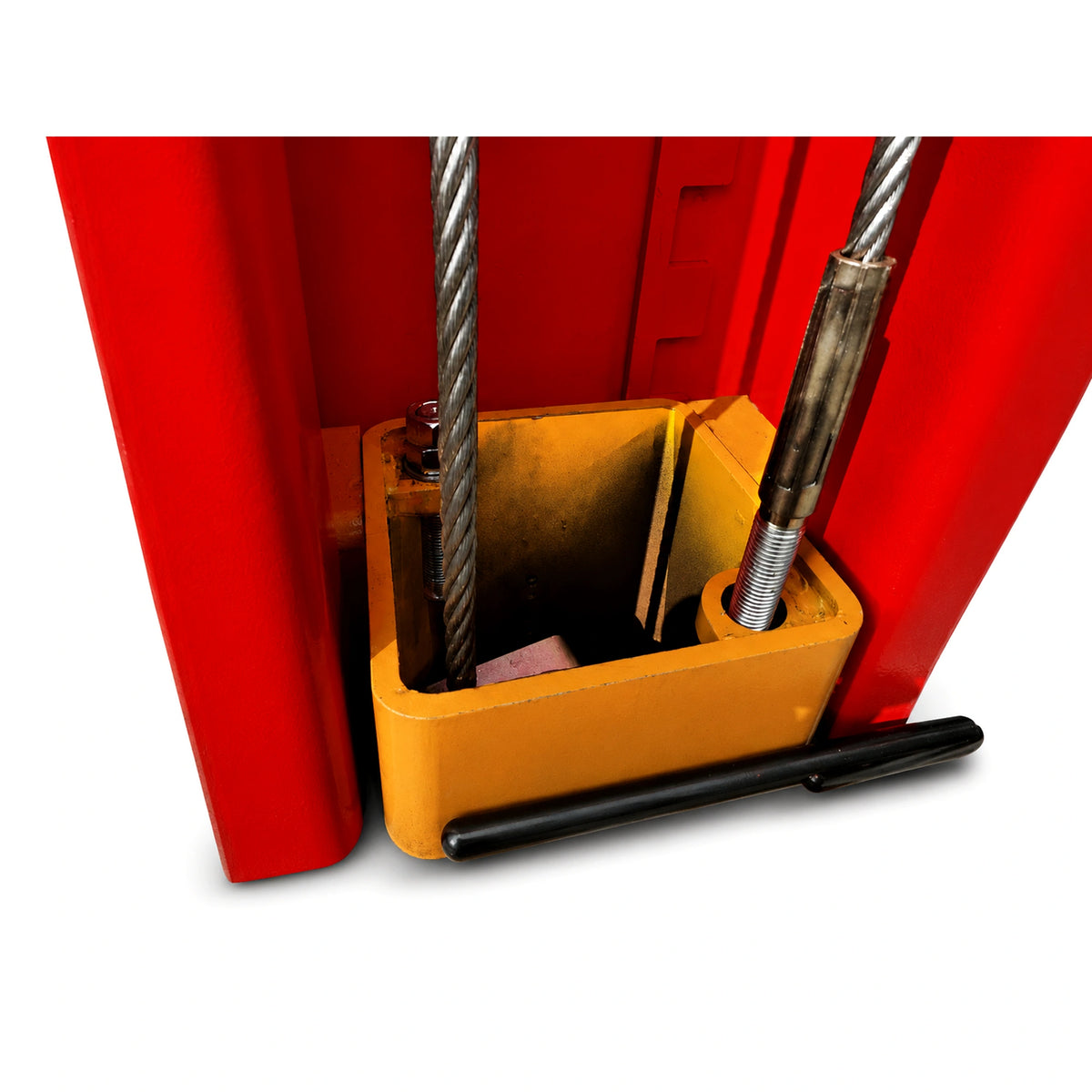

Cables and hoses cross overhead, leaving the floor between posts empty for jacks, drains, and creepers.
Symmetric 11,000 lb
Equal-length arms center the vehicle, loading both columns evenly.
Overhead Shutoff Bar
The top bar carries the travel stop that protects tall vehicles from the ceiling.

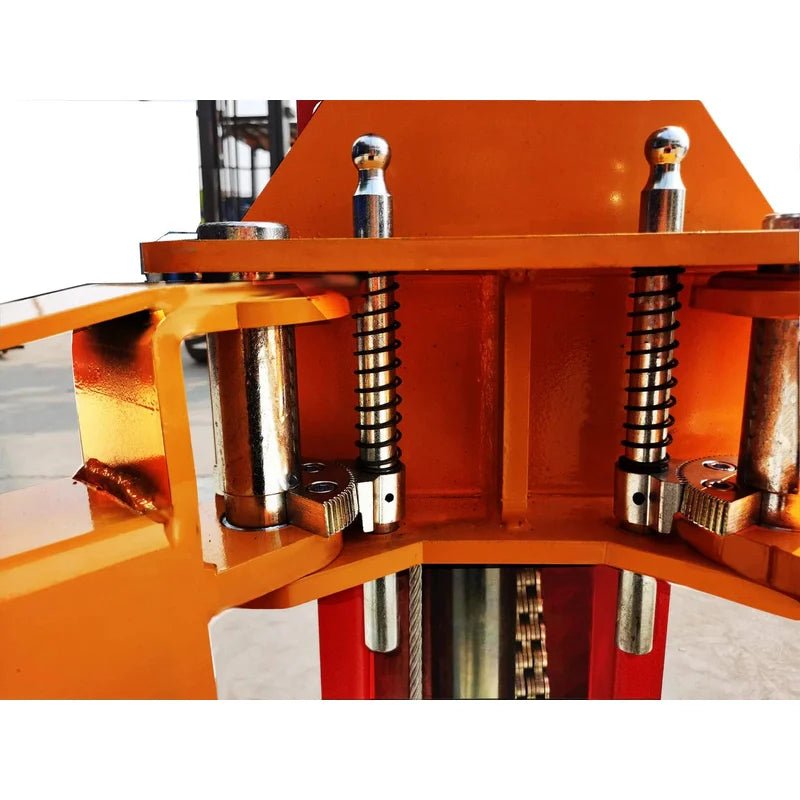

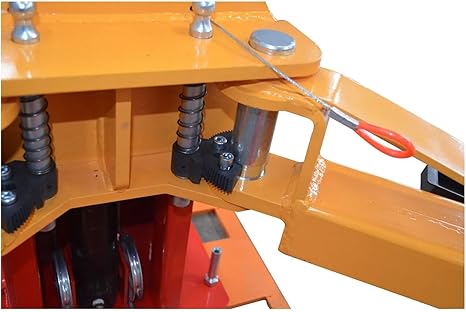

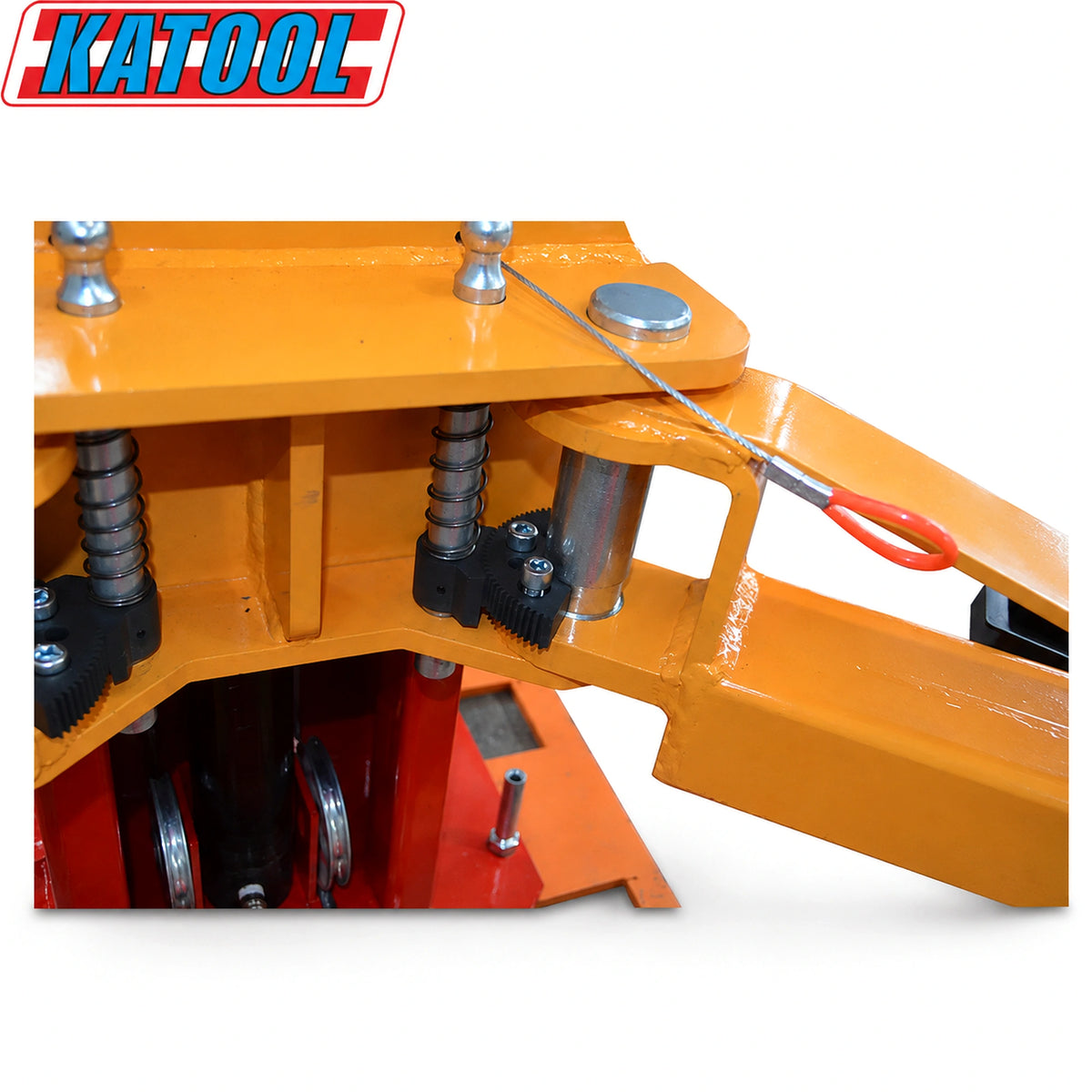

Multi-Position Locks
Column locks engage through the travel range; the vehicle rests on steel while you work.
Open Floor for Trans Work
The layout exists for exactly this: rolling a transmission jack straight under the car.

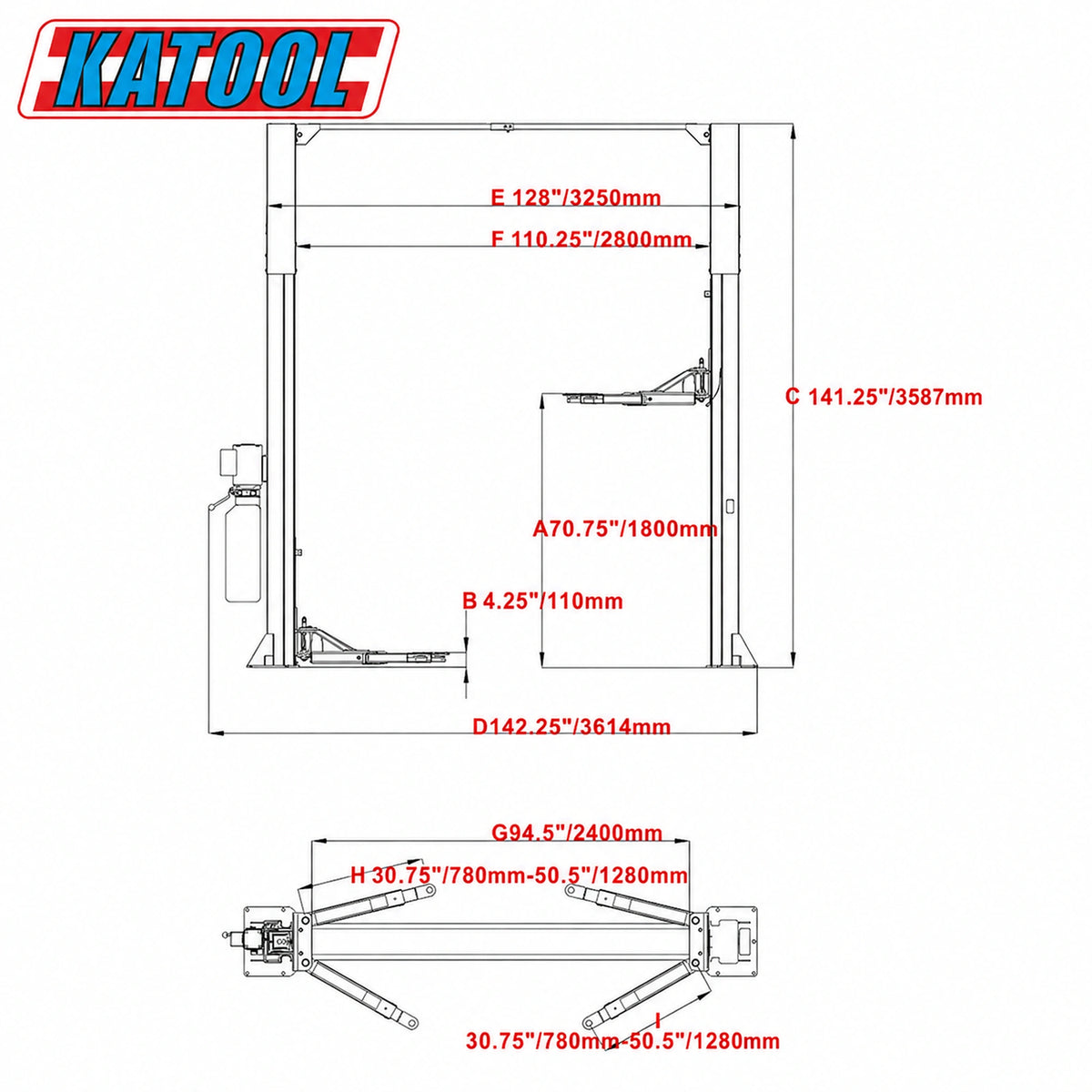

Specifications

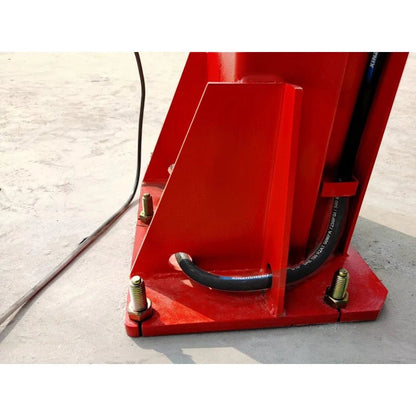

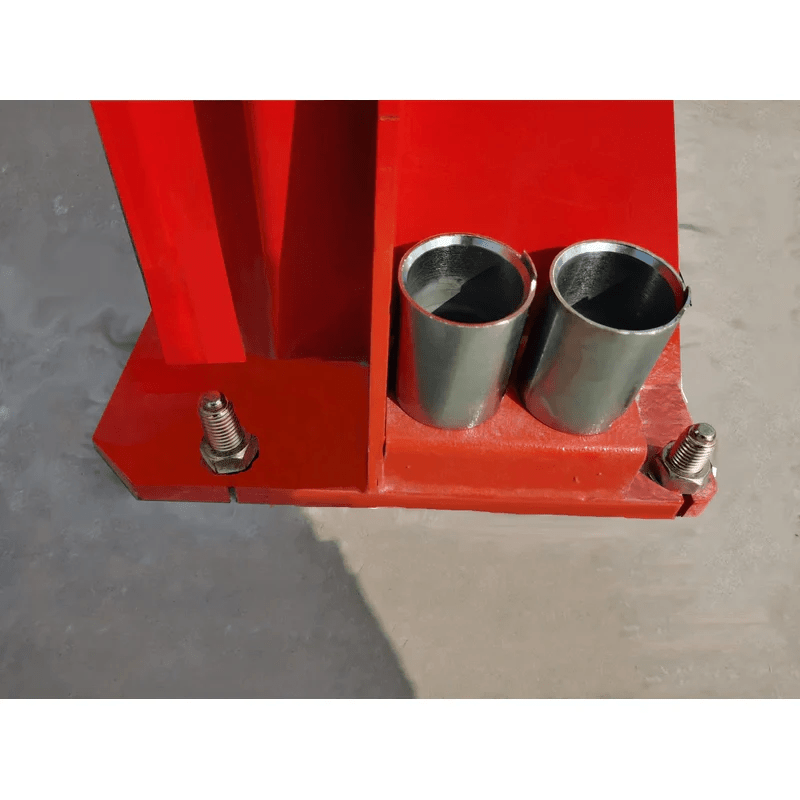

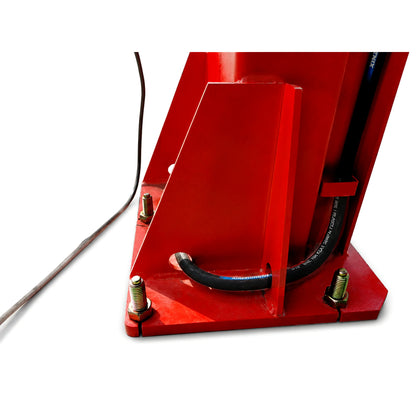

| Concrete requirement | 5.9 in (150 mm) minimum, 3,000 PSI; anchor each post with five supplied concrete anchors. |
|---|

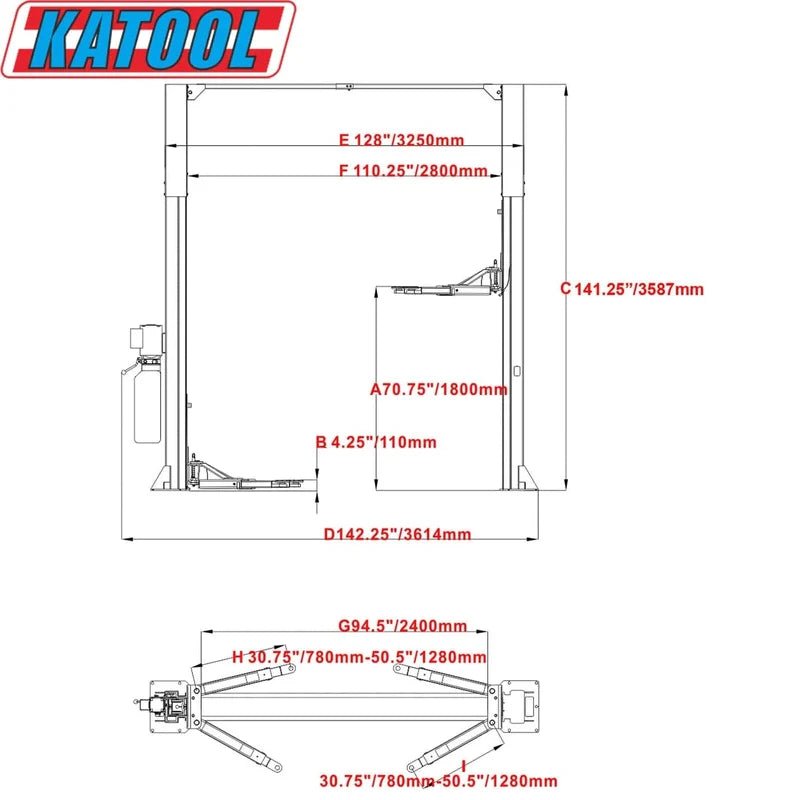

| Maximum Lifting Height (Pads) | 70.75 inches (1,800 mm) |
|---|---|
| Minimum Pad Height | 4.25 inches (110 mm) |
| Time to Full Rise | 50 seconds or less |
| Swing Arm Reach (Front, 2-Stage) | 30.75 to 50.5 inches (781 to 1,283 mm) |
| Swing Arm Reach (Rear, 2-Stage) | 30.75 to 50.5 inches (781 to 1,283 mm) |

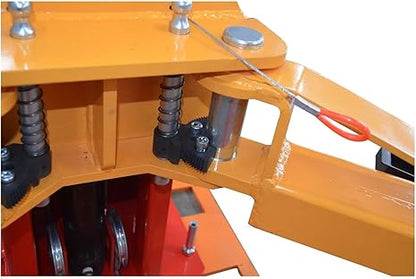

| Mechanical Safety Lock Positions | 20 positions (2.8 inch spacing) |

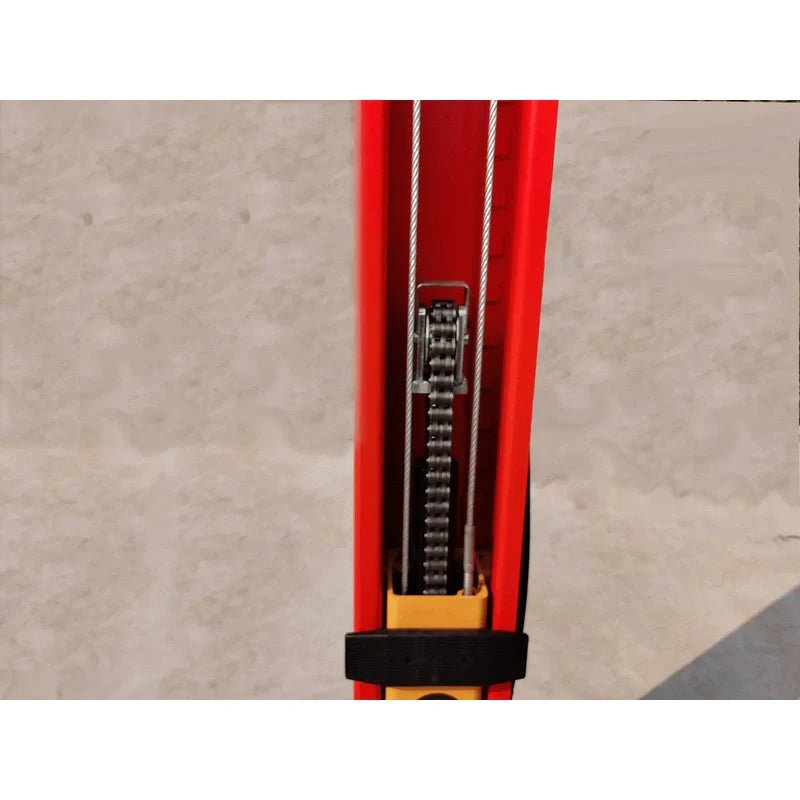

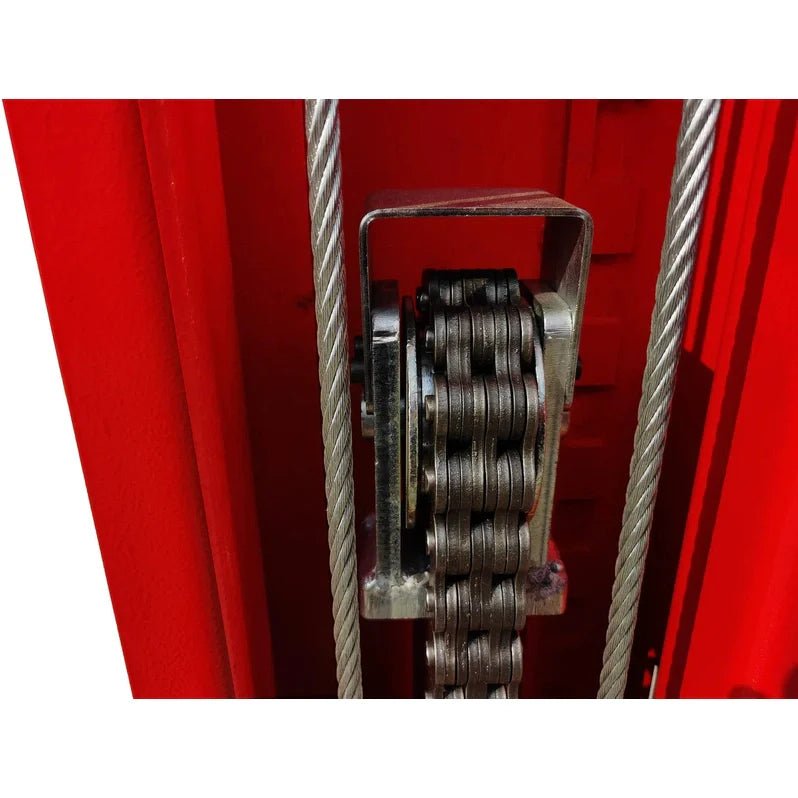

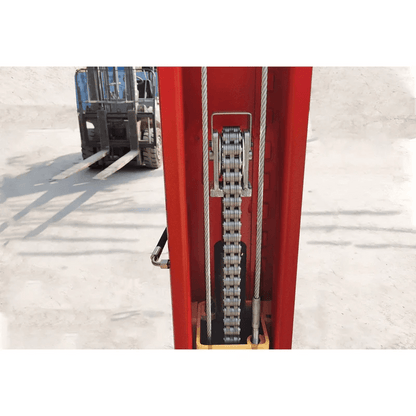

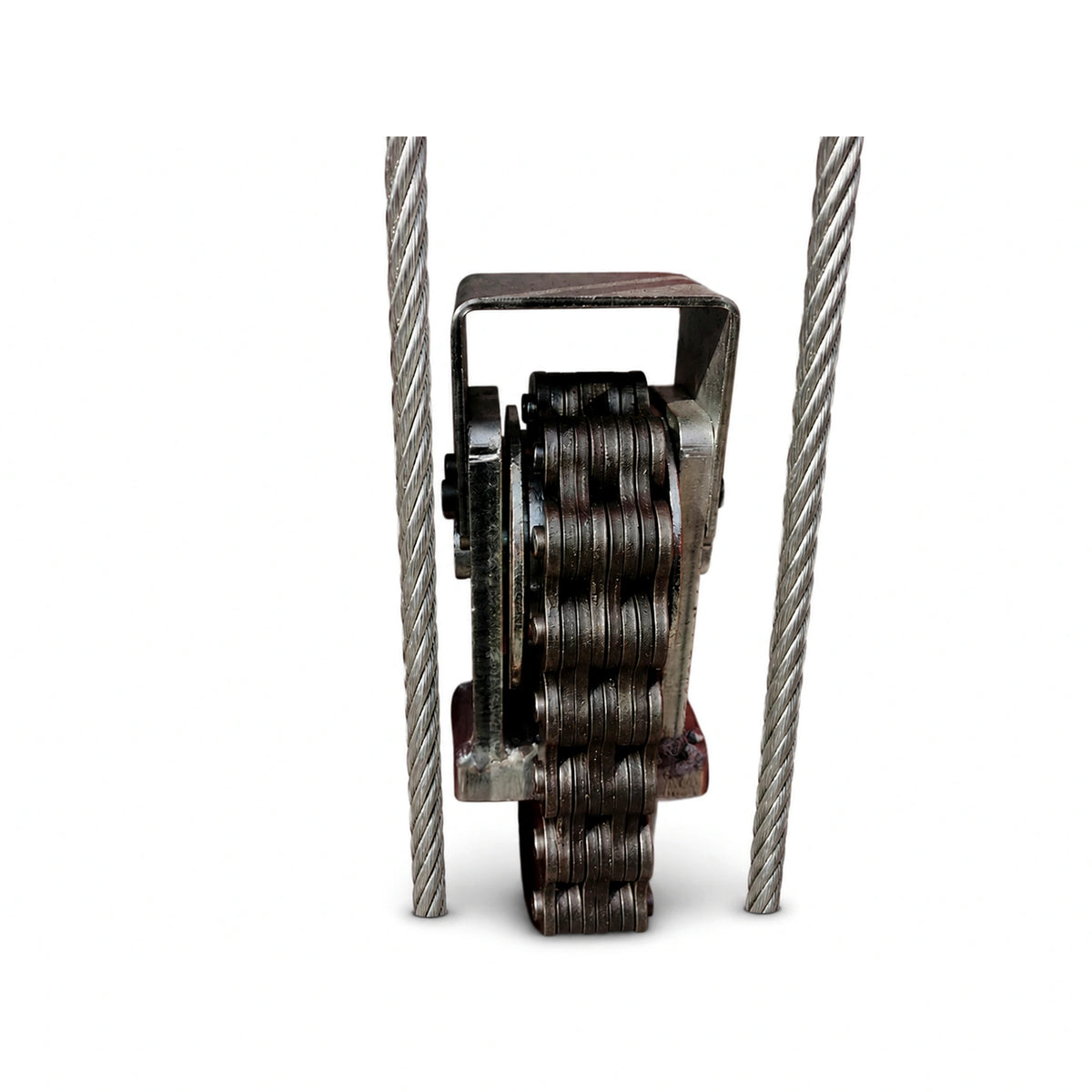

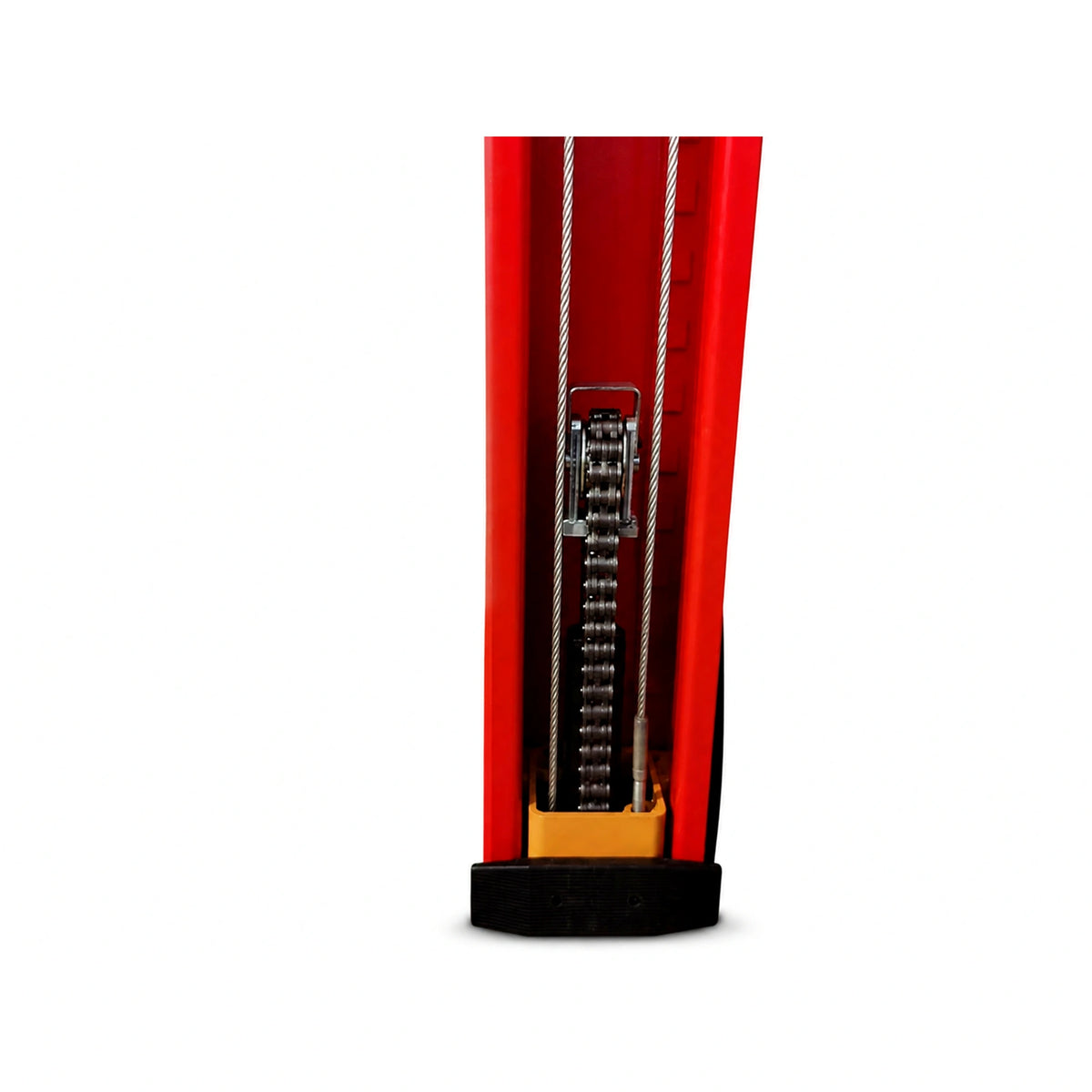

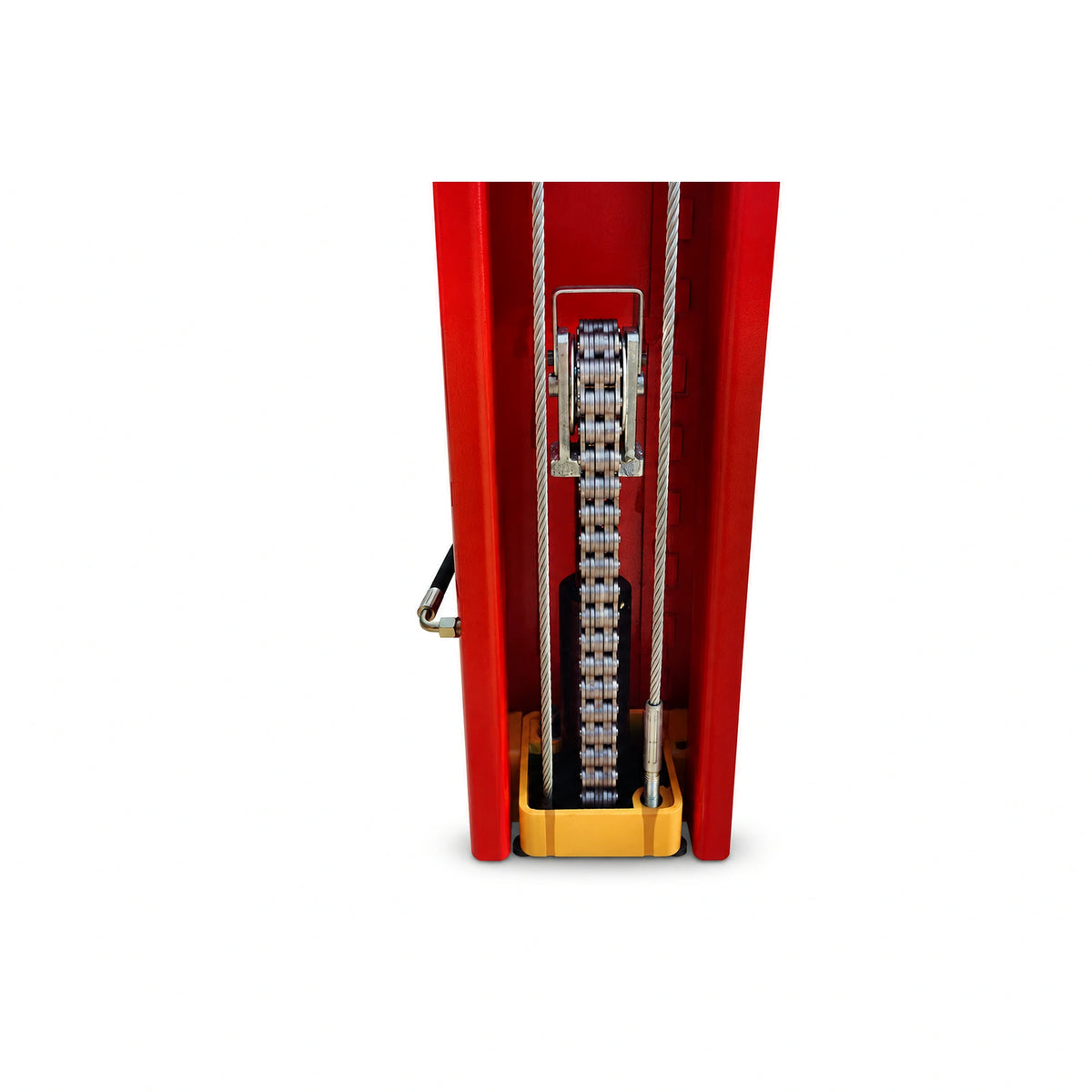

| Drive System | Dual hydraulic cylinders with chain-drive |

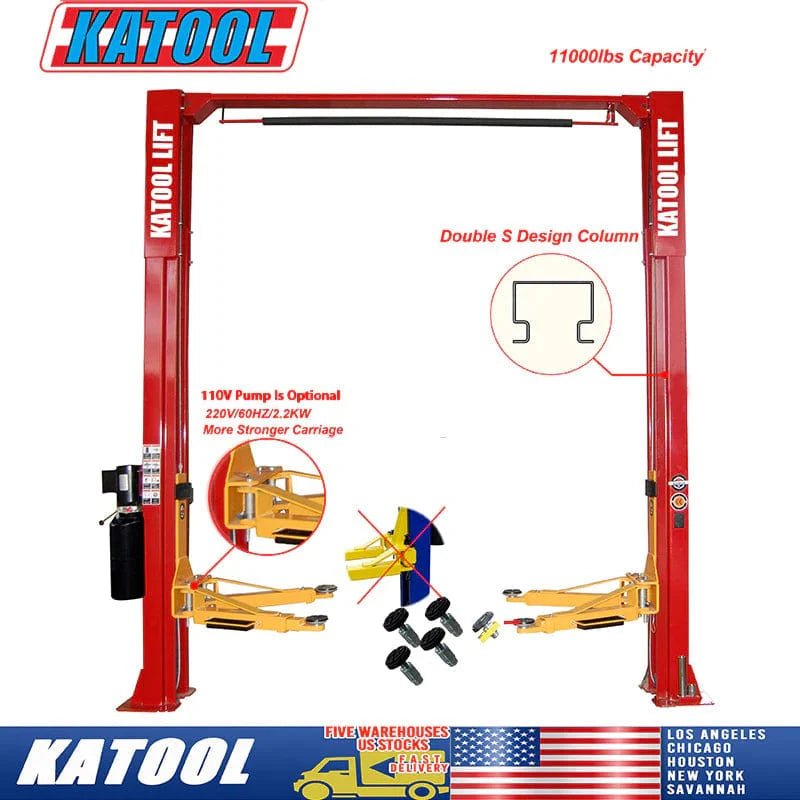

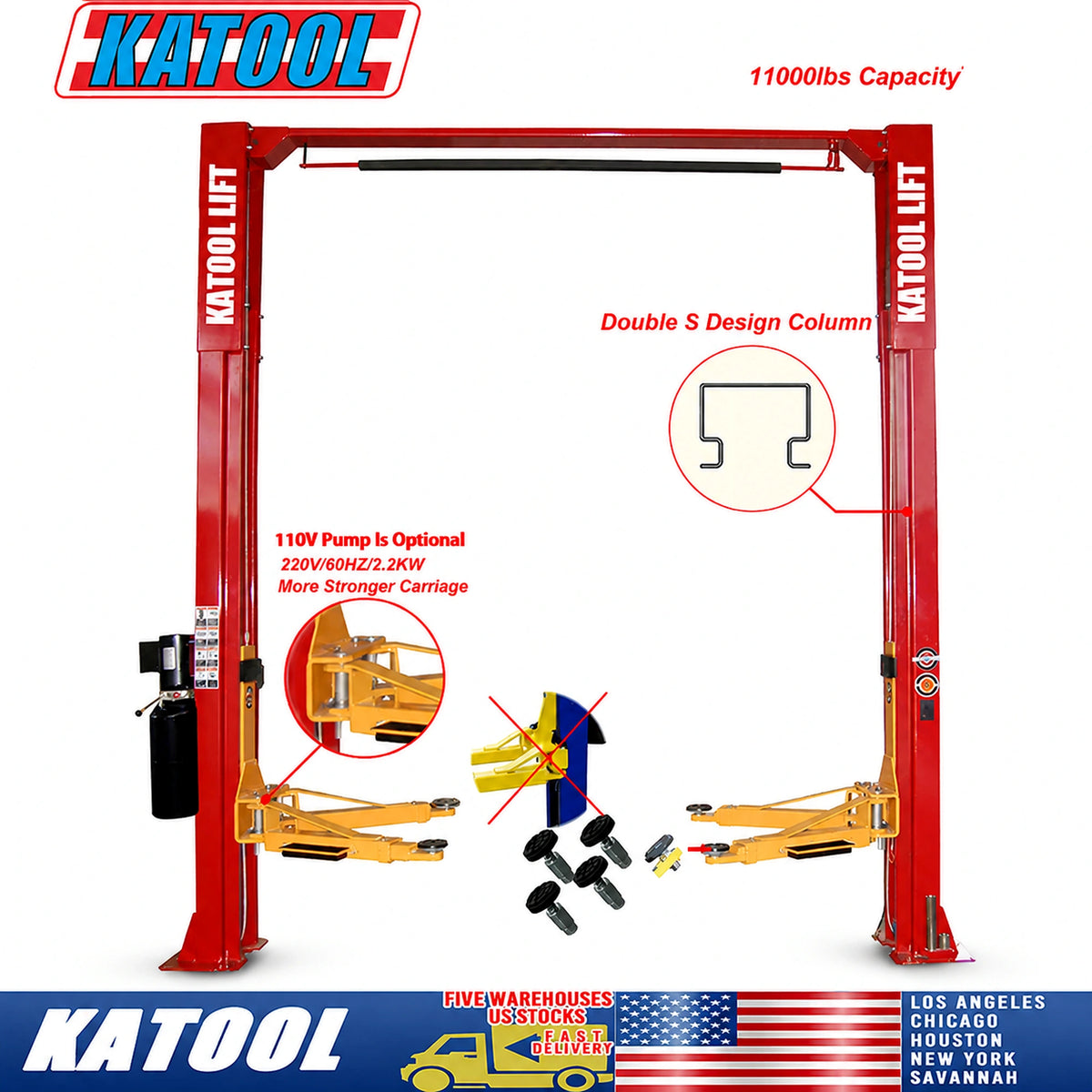

| Lift Type | Symmetric 2-post, clear-floor, overhead cross-beam |
| Net Weight | 1,367 lb (620 kg) |

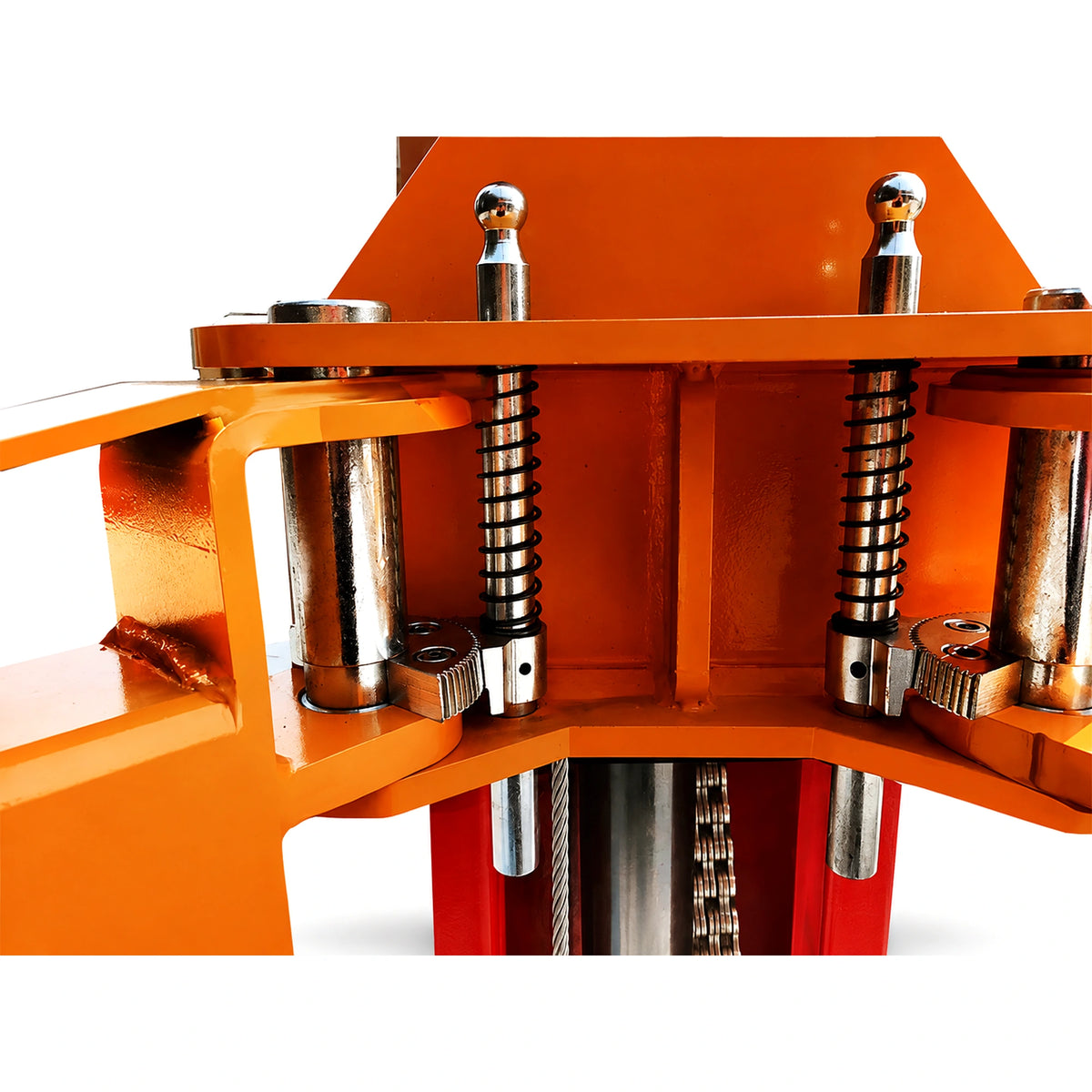

| Main Lift Structure | Two-post frame with overhead cross-beam, dual vertical columns, and carriage assemblies |

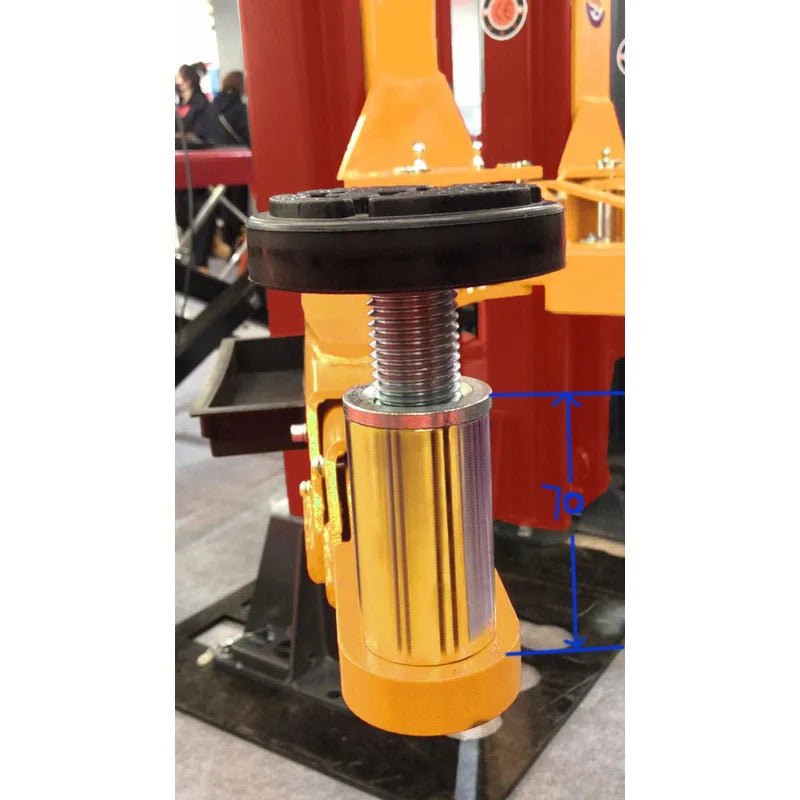

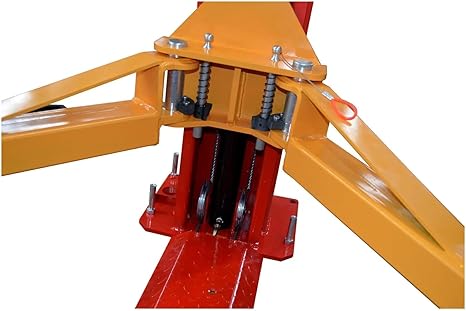

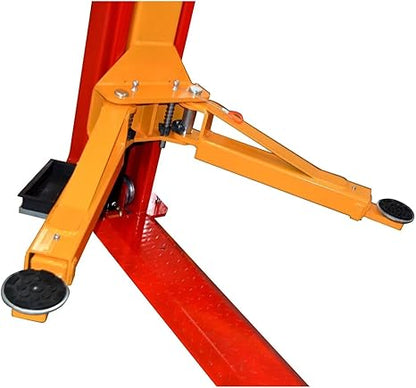

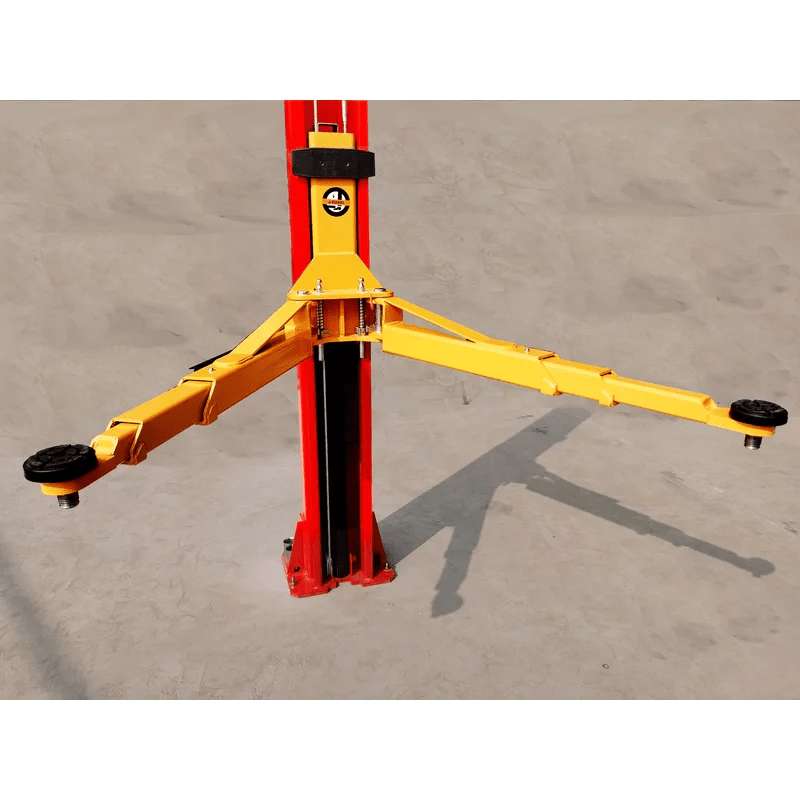

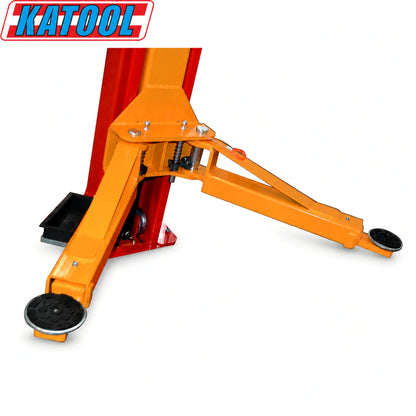

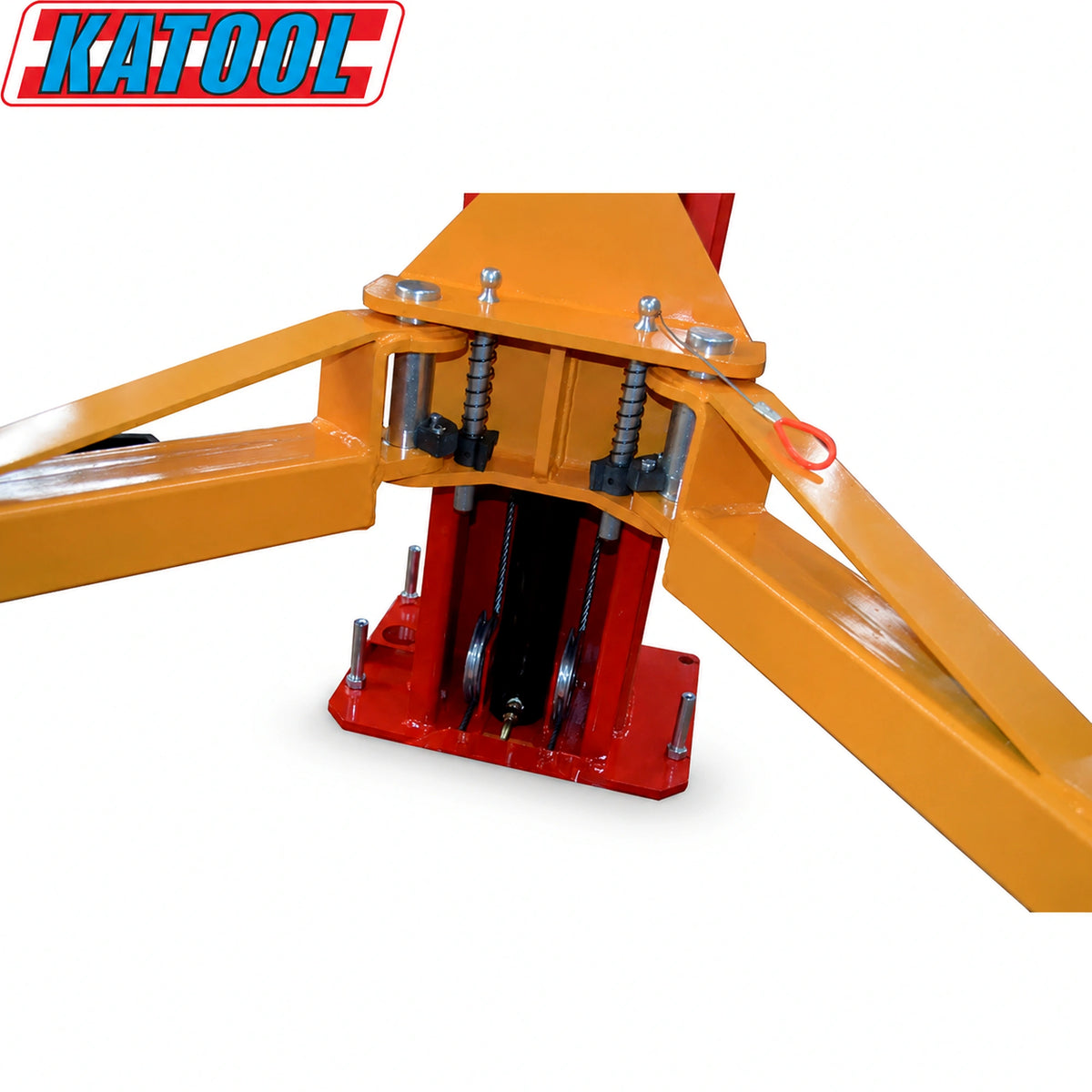

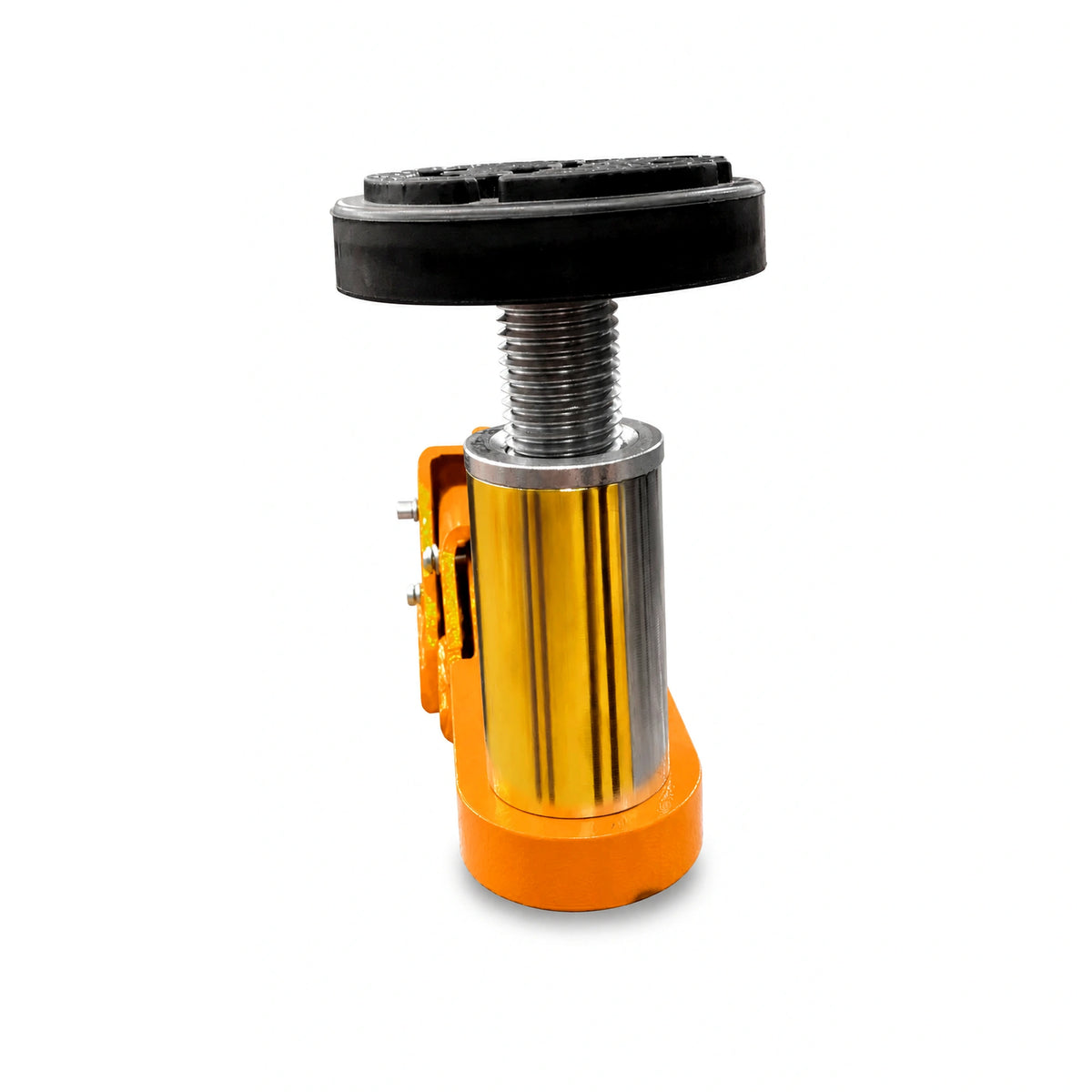

| Swing Arms | Four symmetric 2-stage swing arms with adjustable rubber contact pads |
| Safety Systems | Overhead limit bar, 20-position mechanical locks with dual engagement, door-protection pads, base guardrail elements |
| Mounting Hardware | Concrete anchor bolts, fasteners, and complete installation kit |
| Maximum Lifting Capacity | 11,000 lb (5,000 kg) |
|---|---|
| Overall Height | 141.25 inches (3,587 mm) |
| Overall Width | 142.25 inches (3,614 mm) |
| Outside Column Width | 128 inches (3,250 mm) |
| Inside Column Width | 110.25 inches (2,800 mm) |
| Drive-Through Clearance | 94.5 inches (2,400 mm) |
Shipping & Delivery
Warranty
Questions About This Product?
Our team can help with installation planning, freight coordination, and configuration.
Call (855) 498-2147Frequently Asked Questions
How much ceiling does the Katool KT-M110 need?
The overhead bar sets the minimum, and your tallest raised vehicle has to clear beneath the shutoff. Measure ceiling and tallest roofline; we'll check both against the manual's figures with you.
Symmetric or asymmetric: which two-post do I want?
Symmetric centers the vehicle and loads the columns evenly, but doors can meet posts on wide vehicles. If door swing is a daily annoyance, the asymmetric AS110D exists for exactly that. Your vehicle mix answers this one.
