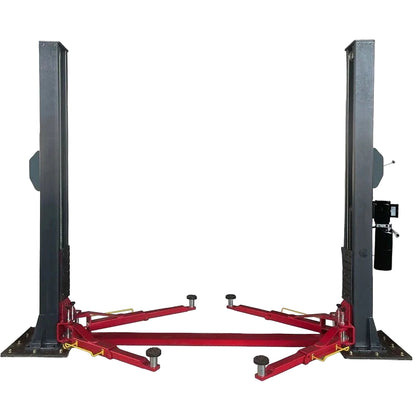

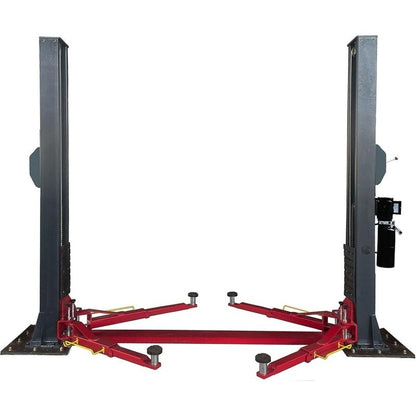

Katool KT-H120D – Two-Post Lift (12,000 lb, Floorplate)

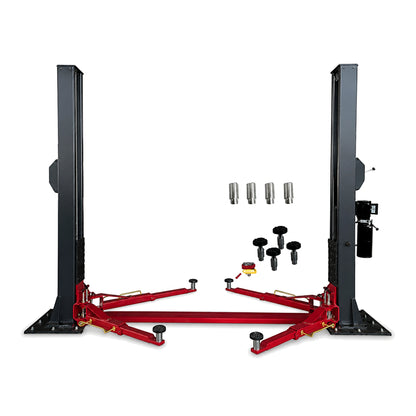

Katool KT-H120D 12,000 lb Two Post Lift - Symmetric Base Plate Design for Professional Shops![]()
The Katool KT-H120D is a 12,000 lb two post lift engineered for professional repair shops and fleet operations. This symmetric two post lift features a base plate design ideal for low ceiling installations, dual hydraulic chain-drive cylinders, a 4 HP power unit, and single-point lock release for simplified operation. The 12k two post lift handles trucks, vans, SUVs, and passenger cars with CE-certified safety testing to 115% dynamic and 150% static load capacity.
Key Features of This 12k Two Post Lift

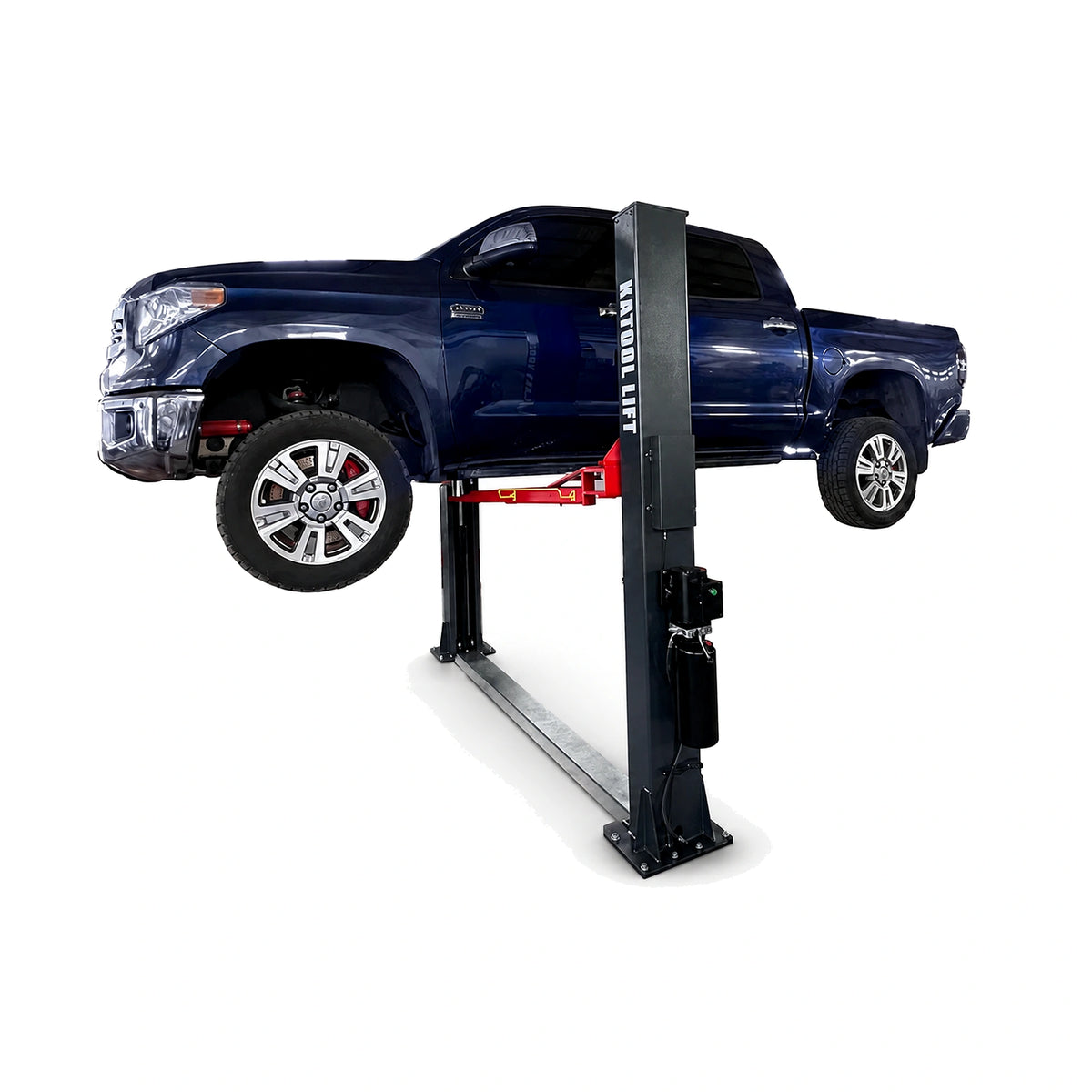

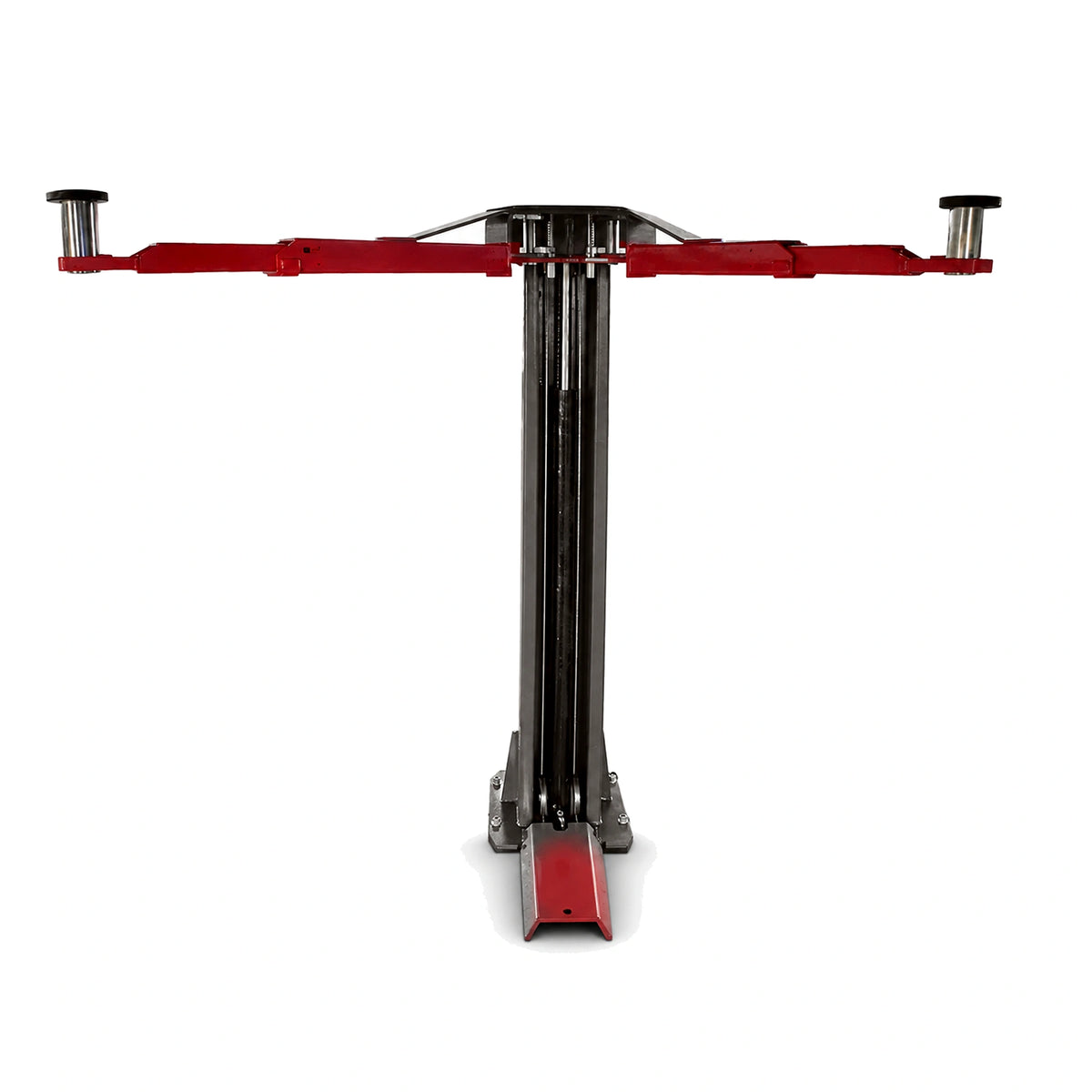

12,000 lb Capacity with Symmetric Arm Design
This symmetric two post lift delivers 12,000 lb capacity through balanced arms that keep the vehicle's center of gravity aligned over the columns. Tested to 115% dynamic load (13,800 lb) and 150% static load (18,000 lb) under CE certification. Services heavier light-duty trucks, full-size SUVs, and commercial vans that exceed standard 9,000-10,000 lb lift capacity.

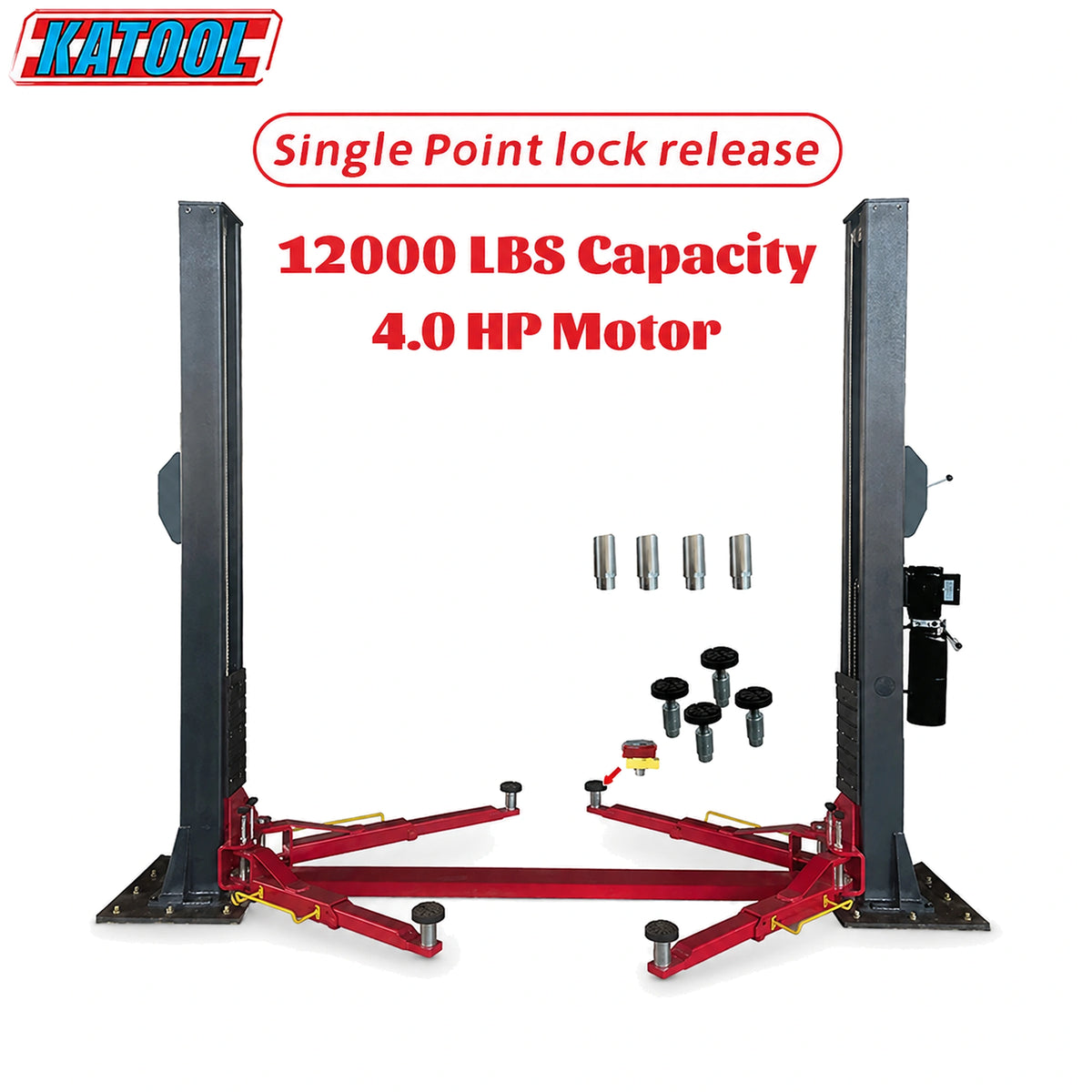

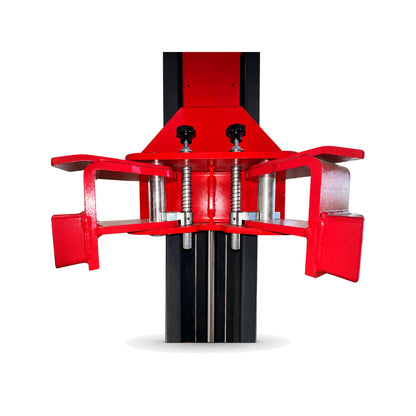

Single-Point Lock Release System
The single-point lock release controls both column locks from one side, eliminating the need to walk around the vehicle. The synchronized mechanism ensures both columns unlock simultaneously for even descent. Faster operation and reduced operator error compared to dual-release systems.

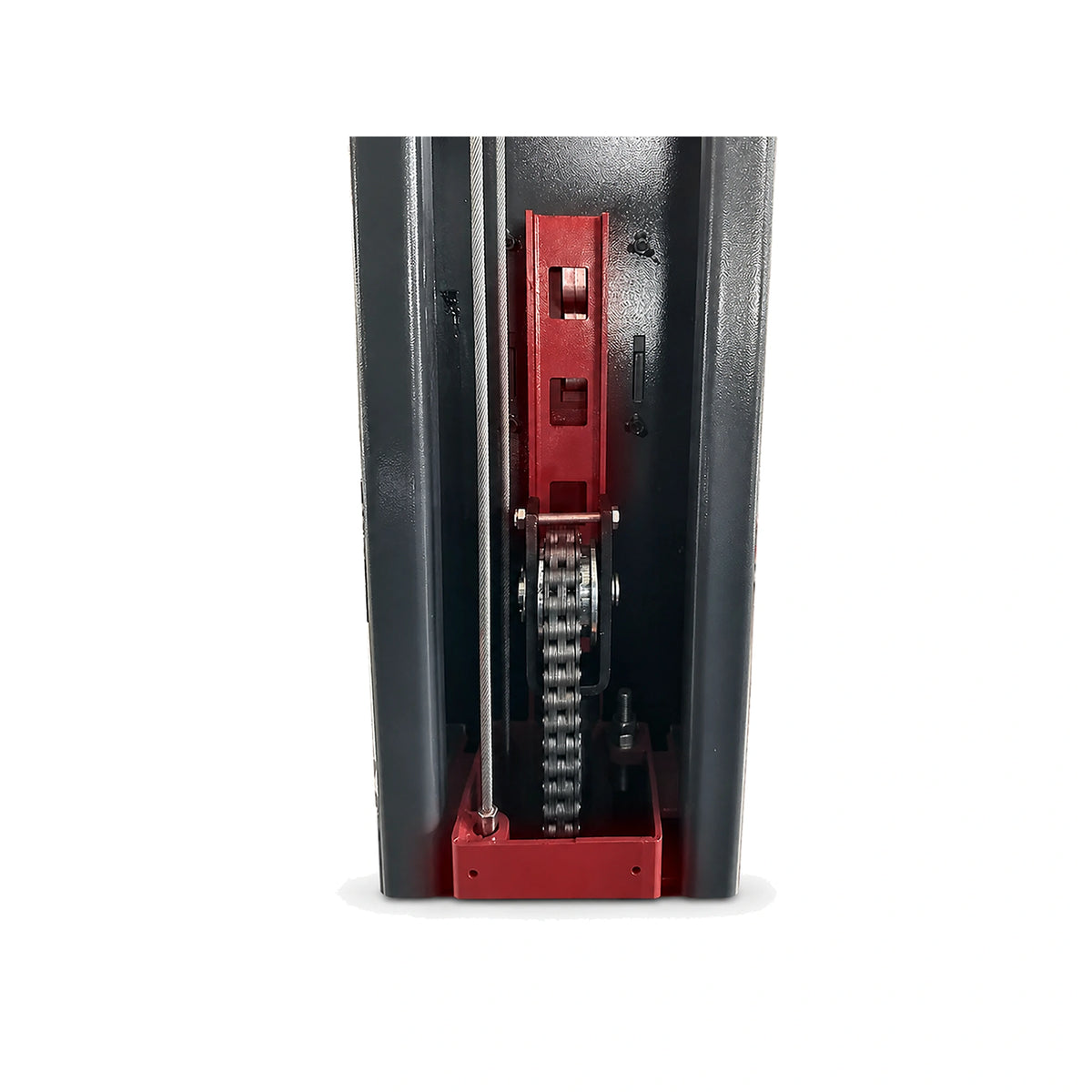

Dual Hydraulic Chain-Drive System
Dual hydraulic cylinders with chain-drive lifting powered by a 4 HP motor on 220V single-phase. Chain provides positive engagement without slippage risks. The 3/8-inch cable provides redundant load support for heavy trucks and commercial vehicles.

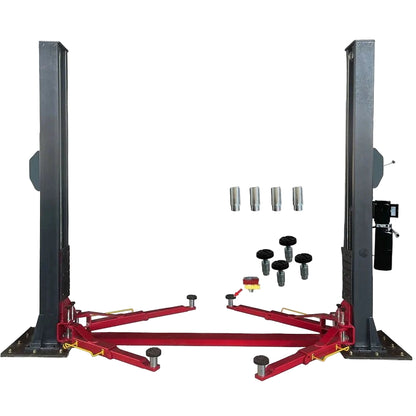

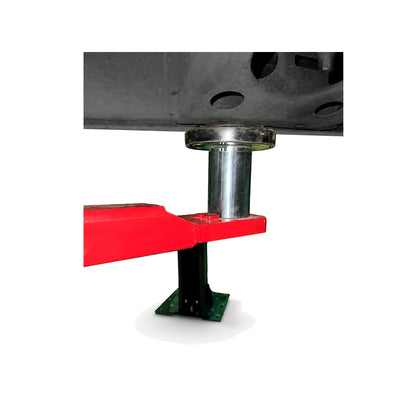

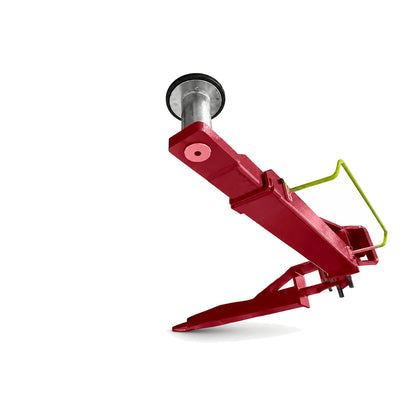

Screw-On Lift Pads and Extension Adapters
Includes screw-on lift pads with extension support adapters providing 100 mm (4 inches) additional height for vehicles with higher frame rails. Rubber door protection pads prevent door damage near columns.
Low Ceiling Two Post Lift Installation
Base Plate Design Engineered for Low Ceiling Shops
The base plate two post lift anchors directly to the floor without requiring an overhead crossbeam, making this low ceiling two post lift ideal for facilities with ceiling height constraints or obstructions like HVAC ducts and electrical conduit.
Traditional clearfloor two post lifts with overhead crossbeams require additional clearance above maximum vehicle lift height. This low ceiling two post lift eliminates overhead structure, allowing shops with 12-14 foot ceilings to use full available height for vehicle lifting. Base plate anchoring concentrates structural loads into floor mounting points, simplifying permitting in some jurisdictions.
Product Demonstration Video
Applications & Use Cases

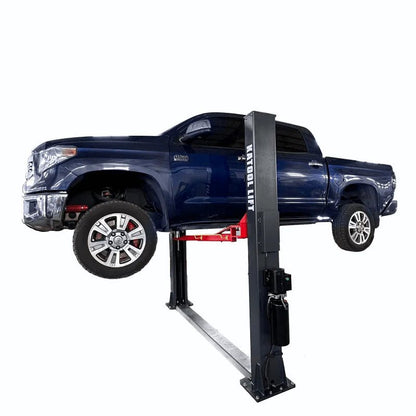

- Professional Automotive Repair Shops: Service and repair for passenger cars, SUVs, and light to medium-duty trucks requiring undercar access.
- Fleet Maintenance Operations: Service and inspection of commercial vans, utility trucks, and fleet vehicles up to 12,000 lb.
- Low Ceiling Facilities: Shops with ceiling constraints requiring a base plate two post lift instead of overhead crossbeam configurations.
- Serious Home and Enthusiast Garages: High-capacity lifting for full-size pickups, large SUVs, and diesel trucks.
- Small Commercial Shops: Cost-effective professional-grade capacity without premium brand pricing.

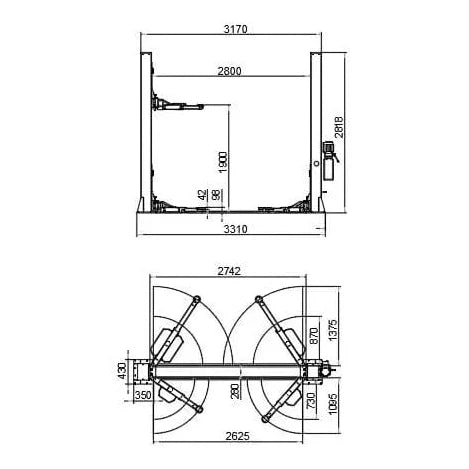

Technical Specifications
| Specification | Value |
|---|---|
| Lift Type | Two-post vehicle lift |
| Configuration | Base plate (floor plate) design |
| Arm Design | Symmetric lifting arms |
| Rated Lifting Capacity | 12,000 lb (5,500 kg) |
| Dynamic Load Test | 115% (13,800 lb) |
| Static Load Test | 150% (18,000 lb) |
| Specification | Value |
|---|---|
| Motor | 4 HP (4.0 HP) |
| Power Supply | 220V, 60Hz, single-phase (1PH) |
| Hydraulic System | Dual hydraulic chain-drive cylinders |
| Cable Specification | 3/8 inch |
| Specification | Value |
|---|---|
| Certification | CE approved |
| ALI Certification | Not ALI-certified |
| Locking System | Manual single-point mechanical lock release |
| Intended Use | Indoor installation only |
Installation Requirements
Installation & Operation Manual
Download the KT-H120D Installation & Operation Manual (PDF)
Complete documentation including safety instructions, parts inventory, mechanical and electrical installation procedures, hydraulic system diagrams, lift adjustment, maintenance schedules, and troubleshooting. Read this entire manual before installation and operation begins.
Concrete Foundation
- Minimum Concrete Thickness: 5.9 inches (150 mm)
- Minimum Concrete Strength: 3,000 PSI
- Concrete Condition: Properly cured, sound, free of major cracks
- Anchor Bolts: Included; follow torque specifications in manual
Power Requirements
- Electrical Supply: 220V, 60Hz, single-phase power for 4 HP motor
- Wiring & Breaker: Use appropriate wire gauge and breaker per manufacturer manual
- Code Compliance: Must comply with local electrical codes
Environmental & Clearance
- Location: Indoor installation only
- Ceiling Height: Base plate design requires less overhead clearance than clearfloor lifts with crossbeams—consult manual for specific requirements
- Lateral Clearance: Adequate space around columns for arm swing and door opening
Installation Notes
- Professional Installation: Strongly recommended by qualified personnel
- Manual Compliance: Follow all Katool/Autokato manual specifications
- Permits: Verify local code compliance and permit requirements
Shipping & Delivery
Freight Coverage
Shipping: Many dealers offer free freight within the contiguous US. Surcharges may apply for Alaska, Hawaii, or remote locations.
Format: Ships as large freight on multiple crates/pallets.
Delivery Requirements
Unloading: Forklift or equivalent lifting equipment generally required. Standard lift-gate often unavailable for this size/weight.
Receiving: Inspect packages before signing bill of lading. Note any visible damage on BOL.
Warranty Coverage
Standard Warranty
1 Year Parts: Covers components against defects for 12 months.
3 Years Structural: Covers columns, arms, and carriage for 36 months.
Warranty Conditions
Eligibility: Non-transferable, original purchaser only. Parts only—labor not included. For exact terms, refer to manufacturer and dealer written warranty documents.
Ready to Upgrade Your Shop?
Get expert guidance on selecting the right Katool lift for your facility. Our team can help with product selection, low ceiling installation planning, and technical specifications.
Frequently Asked Questions
Can a 12,000 lb two-post lift be installed in a low-ceiling shop?
Yes, the Katool KT-H120D uses a base plate design specifically engineered for low ceiling installations. Unlike traditional clearfloor two-post lifts with overhead crossbeams, this base plate two post lift anchors directly to the floor without requiring overhead structure, allowing shops with 12-14 foot ceilings to utilize full available height for vehicle lifting. This makes it an ideal low ceiling two post lift solution for facilities with height constraints or overhead obstructions.
What is a symmetric two-post lift?
A symmetric two post lift has arms positioned at equal distances from the column centerline, creating a balanced configuration where the vehicle's center of gravity is aligned directly over the columns. This design distributes weight evenly across both posts during lifting and lowering, reducing stress and improving stability. The Katool KT-H120D uses symmetric arms for balanced load distribution across its 12,000 lb capacity, making it suitable for passenger cars to heavier trucks and SUVs.
What is the rated lifting capacity of the Katool KT-H120D?
The Katool KT-H120D has a rated capacity of 12,000 lb (5,500 kg) and has been tested to 115% dynamic load (13,800 lb) and 150% static load (18,000 lb) under CE certification requirements.
What are the concrete foundation requirements?
Minimum 5.9 inches (150 mm) thickness with 3,000 PSI strength. Concrete must be properly cured, sound, and free of major cracks. Anchor bolts included; follow torque specifications in manufacturer manual.
What electrical power does the lift require?
220V, 60Hz, single-phase (1PH) power for the 4 HP motor. Use appropriate wire gauge and breaker per manufacturer manual. Installation must comply with local electrical codes.
What components are included?
Two-post assembly with symmetric arms and base plate, dual hydraulic cylinders with power unit, screw-on lift pads, rubber door protection pads, extension adapters (100 mm/4 inches additional height), anchor bolts, and installation manual.
Is the Katool KT-H120D ALI-certified?
No, the KT-H120D is not ALI-certified. It is CE approved with verified load testing to 115% dynamic and 150% static of rated capacity.
What vehicles can the KT-H120D lift?
Passenger cars, SUVs, light to medium-duty trucks, commercial vans, utility trucks, and fleet vehicles up to 12,000 lb capacity. Designed for professional shops, fleet operations, and serious home garages.
What warranty coverage is included?
1 year parts warranty and 3 years structural warranty. Non-transferable, original purchaser only, parts only (labor not included). Refer to manufacturer and dealer documents for exact terms.
What are delivery and unloading requirements?
Ships as large freight on multiple crates/pallets. Forklift or equivalent generally required for unloading. Many dealers offer free freight within contiguous US. Inspect packages before signing bill of lading.
