Katool KT-H100 – 10,000 lb Base Plate Two Post Car Lift for Low-Ceiling Garages

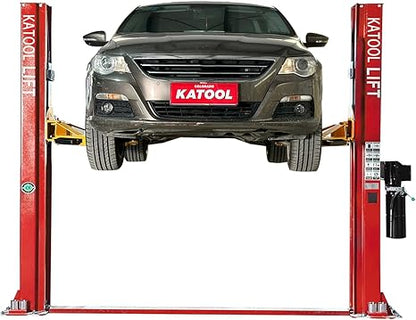

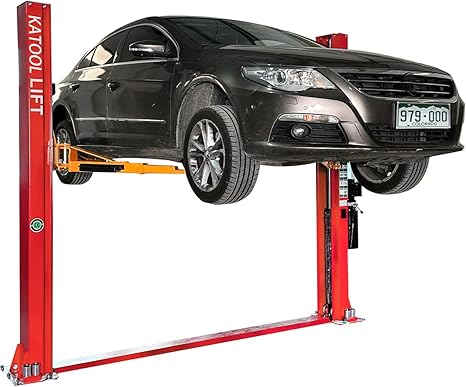

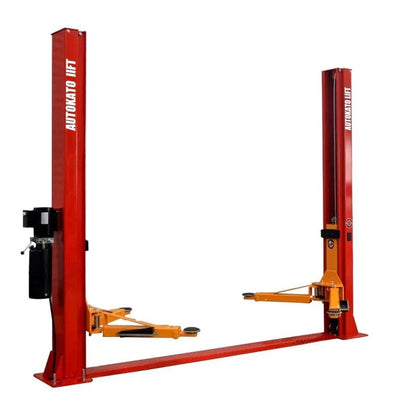

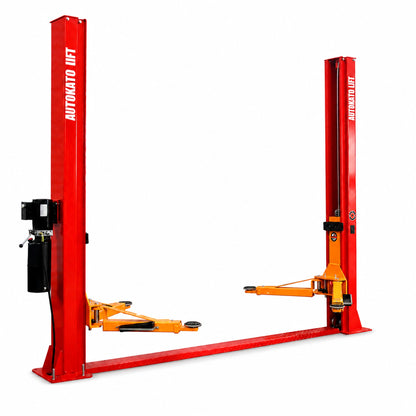

The Katool KT-H100 is a 10,000 lb symmetric two post car lift engineered for professional auto repair shops and home garages with limited ceiling height. This base plate two post lift features dual hydraulic chain-drive cylinders, symmetric lifting arms, and included height adapters for passenger cars, SUVs, and light-duty trucks. CE certification with 115% dynamic and 150% static load testing provides documented safety margins for continuous professional use.
Key Features & Benefits
Dual Hydraulic Chain-Drive Cylinders

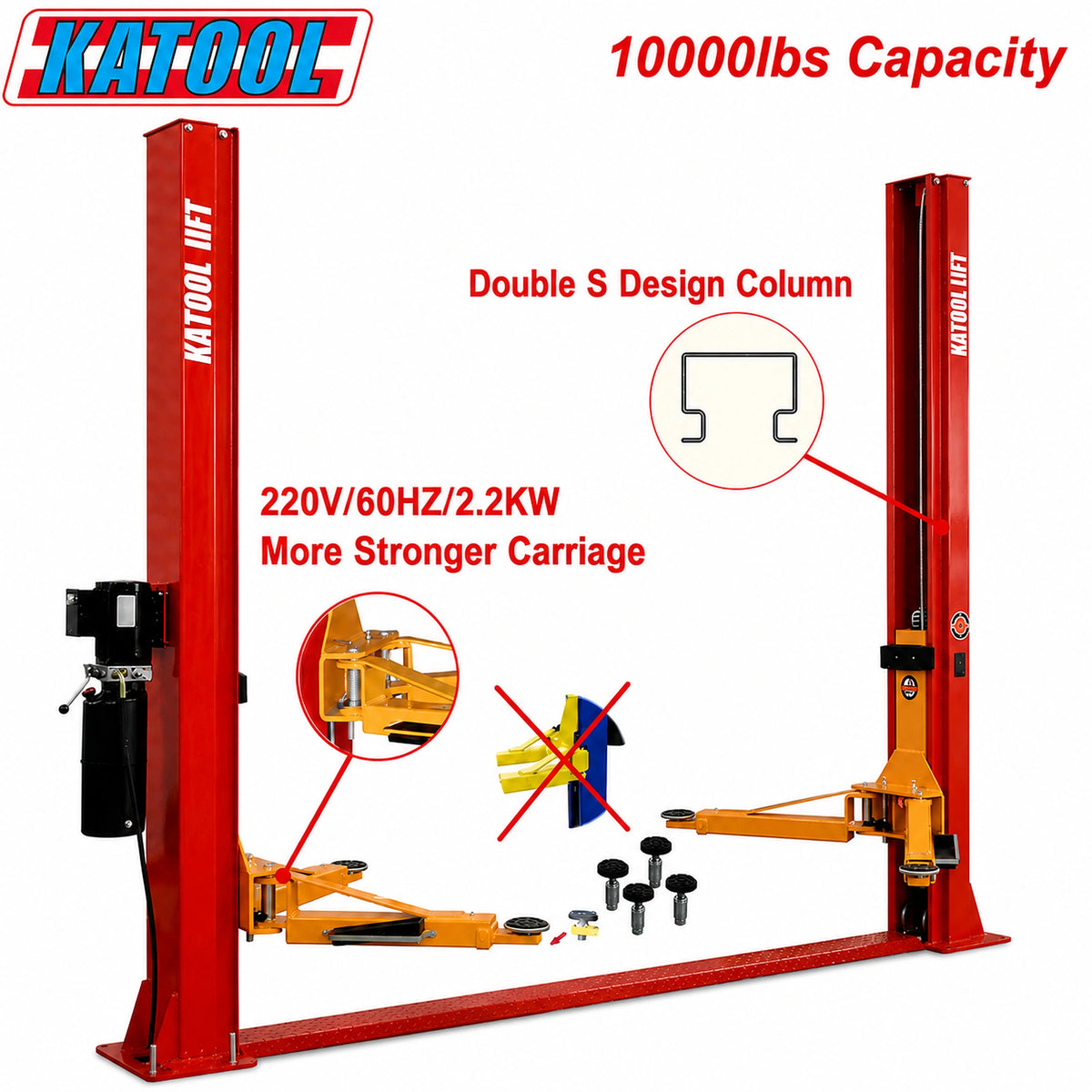

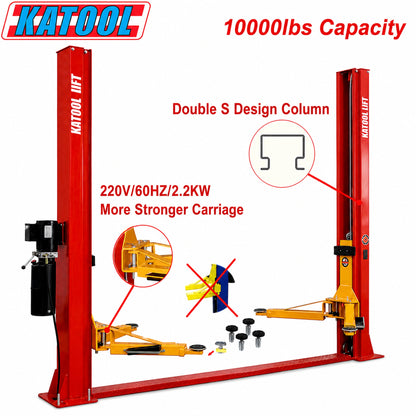

Dual hydraulic cylinders with chain-drive engagement deliver synchronized lifting across symmetric arms. The 2.2 kW motor powers this 10000 lb two post lift to full height in approximately 50 seconds, maintaining consistent performance across repeated service cycles.
Base Plate Design – The Low Ceiling Two Post Lift Solution
The KT-H100's base plate design eliminates the overhead cross-bar found on traditional 2-post lifts. With an overall height of 110.25 inches (2,800 mm), this low ceiling two post lift fits standard 9-10 foot garage and shop ceilings where overhead lifts exceeding 120+ inches cannot install.

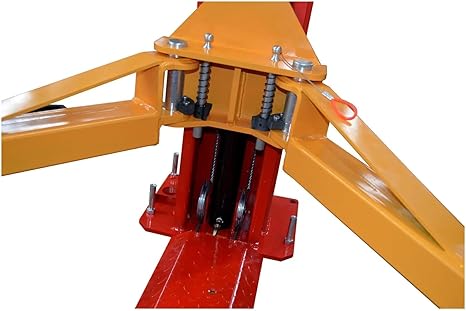

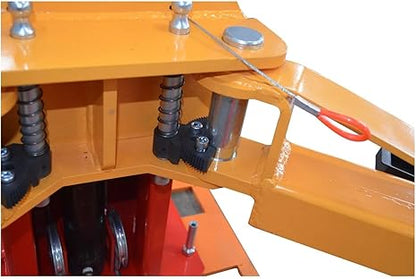

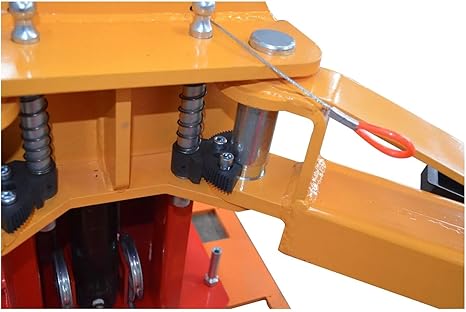

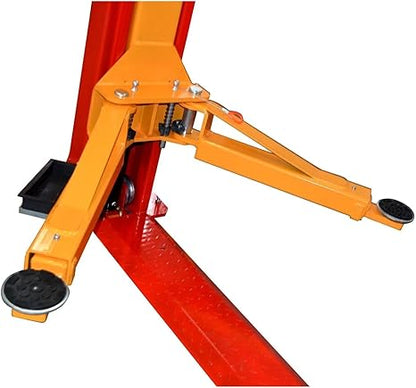

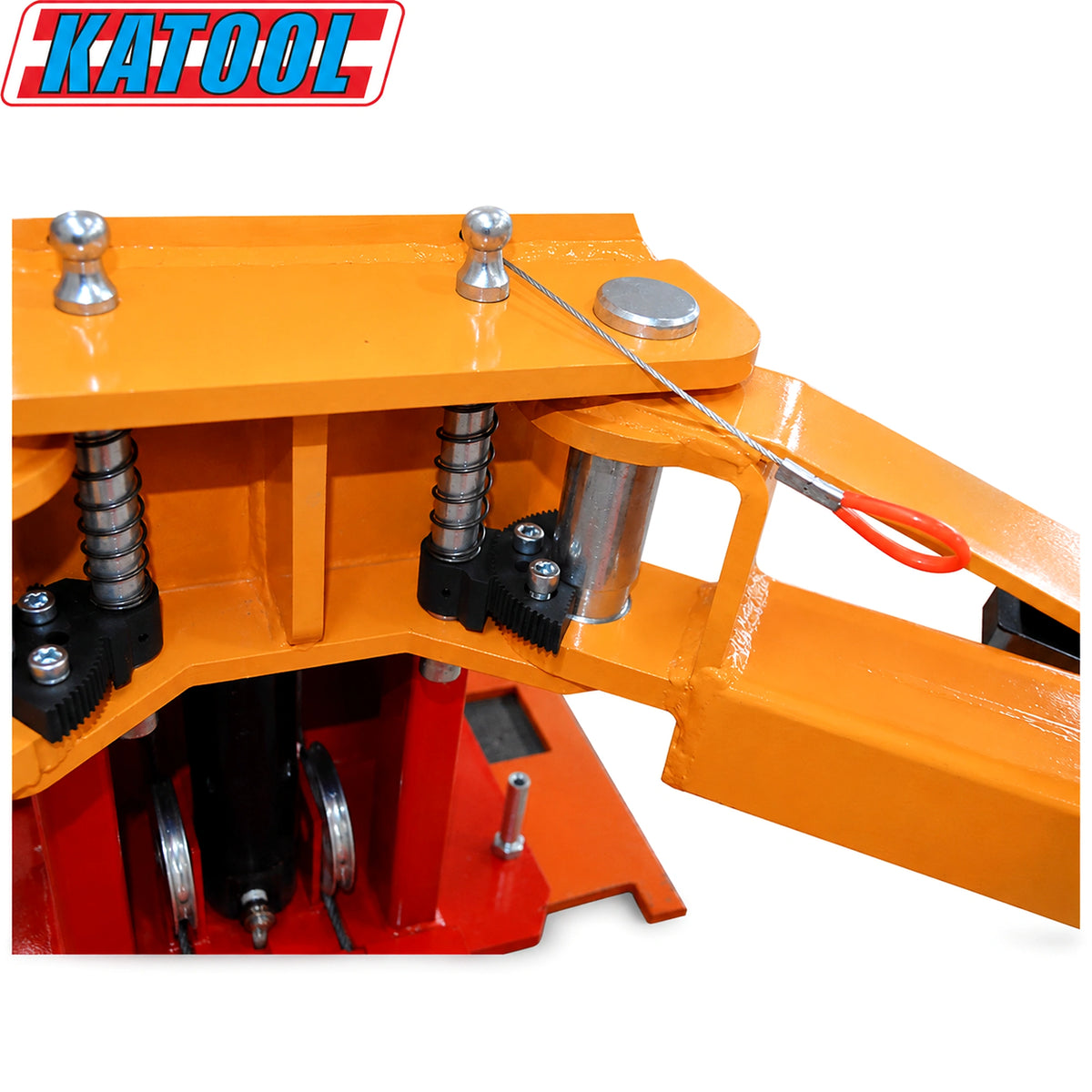

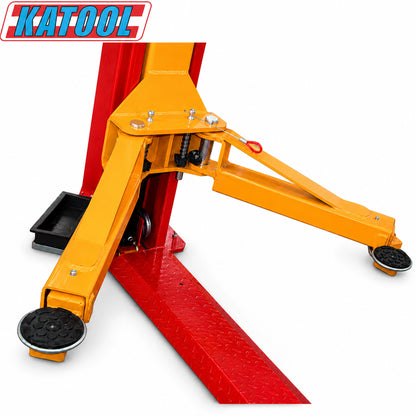

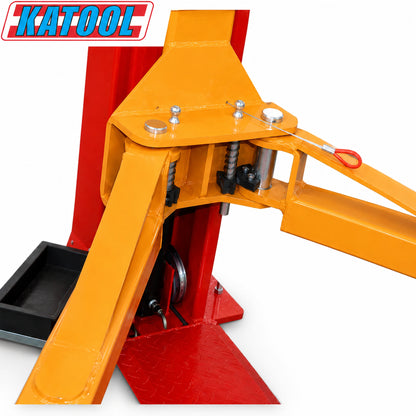

Symmetric Arms with Included Height Adapters
The KT-H100 ships with symmetric lifting arms and a complete adapter set: +30 mm and +120 mm height extensions. This symmetric two post lift configuration enables service of both low-slung passenger cars and high-frame trucks without aftermarket adapters.
Complete Safety Hardware Package
The KT-H100 includes dual-side manual safety release, rubber door guards, and feet-protection safety guardrails with integrated toolbox as standard equipment. These essential safety components ship ready for installation, eliminating additional purchases.
CE Certification with Documented Load Testing
The KT-H100 carries CE certification with 115% dynamic and 150% static load testing of its rated 10,000 lb capacity. Third-party verification confirms the lift safely handles 11,500 lbs during operation and 15,000 lbs in static hold without structural failure.
Flexible Power: 220V Standard, 110V Optional
The KT-H100 ships standard with 220V AC / 60 Hz / single-phase / 2.2 kW motor configuration. An optional 110V power unit is available for installations where 220V service is not readily accessible, expanding compatibility to residential garages and small shops.
Product Demonstration
Applications & Use Cases
- Professional Automotive Repair Shops: Full-service shops performing brake service, suspension repair, exhaust work, and undercarriage inspections on mixed-fleet vehicles.
- Independent Garages: Specialized shops focused on specific vehicle brands or service types (tire service, brake specialist, suspension) requiring dedicated lift capacity in limited space.
- Tire Service Centers: Tire rotation, wheel balancing, and brake access operations for high-volume customer vehicles.
- Home Garages with Low Ceilings: Serious enthusiasts and mechanics working on personal vehicles in residential garages or small home shops where traditional tall lifts don't fit. This two post lift for home garage fits standard 9-10 foot ceilings.
- Passenger Cars & Sedans: Full compatibility with compact, mid-size, and full-size passenger cars within the 10,000 lb total vehicle weight limit.
- SUVs & Crossovers: Light to mid-size SUVs and crossovers with typical axle weights and wheelbase configurations compatible with symmetric arm reach.
- Light-Duty Pickup Trucks: Compact and standard-bed pickups within weight limits; higher-frame trucks require the +120 mm adapter for optimal pad contact.

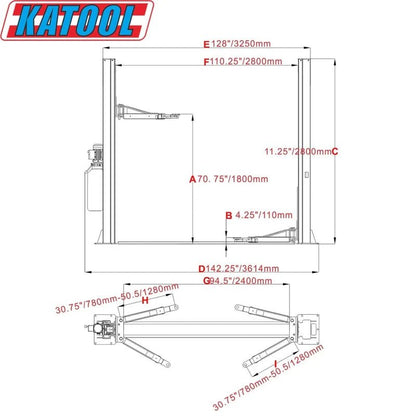

Technical Specifications
| Specification | Value |
|---|---|
| Maximum Lifting Capacity | 10,000 lb (4,500 kg) |
| Certification & Load Testing | CE Approved; 115% Dynamic / 150% Static |
| Maximum Pad Height | 70.75 inches (1,800 mm) |
| Minimum Pad Height | 4.25 inches (110 mm) |
| Lifting Range | 66.5 inches (1,690 mm) |
| Arm Configuration | Symmetric 2-stage telescoping arms |
| Specification | Value |
|---|---|
| Overall Height | 110.25 inches (2,800 mm) |
| Overall Width | 142.25 inches (3,614 mm) |
| Outside Column Width | 128 inches (3,250 mm) |
| Inside Column Width | 110.25 inches (2,800 mm) |
| Drive-Through Clearance | 94.5 inches (2,400 mm) |
| Arm Reach (Minimum) | 30.75 inches (780 mm) |
| Arm Reach (Maximum) | 50.5 inches (1,280 mm) |
| Net Weight | 1,256 lb (570 kg) |
| Specification | Value |
|---|---|
| Standard Power Configuration | 220V AC / 60 Hz / Single-Phase |
| Optional Power Configuration | 110V AC / 60 Hz / Single-Phase |
| Motor Power | 2.2 kW |
| Drive System | Dual Hydraulic Chain-Drive Cylinders |
| Safety Release | Manual dual-side release |
Installation Requirements
Installation & Operation Manual
Download the complete installation and operation manual for detailed setup instructions, safety procedures, hydraulic system diagrams, electrical wiring specifications, and maintenance guidelines.
Foundation & Mounting
- Concrete Thickness: Minimum 5.9 inches (150 mm).
- Concrete Compressive Strength: Minimum 3,000 PSI.
- Surface Condition: Floor must be level. Installer is responsible for verifying slab thickness, composition, and adequacy before anchoring.
- Anchor Pattern: Consult official installation manual for specific bolt torque and spacing specifications.
Electrical Requirements
- Standard Configuration: 220V AC / 60 Hz / single-phase with 2.2 kW motor.
- Optional Configuration: 110V AC / 60 Hz / single-phase power unit available from manufacturer.
- Installation: Electrical hookup must be performed per local electrical codes by a qualified electrician. Verify local code requirements for breaker size and wiring gauge before installation begins.
Space & Bay Requirements
- Overhead Clearance: 110.25 inch overall height suits standard 9-10 foot shop and garage ceilings with typical cross-beam clearance.
- Bay Width: 142.25 inch overall width dictates minimum bay opening; confirm overhead doors and structural beams provide adequate clearance.
- Approach Clearance: 94.5 inch drive-through clearance determines vehicle entry angles; verify sufficient floor space for approach geometry.
- Base-Plate Footprint: Floor-plate design eliminates overhead structure but introduces a base plate across the floor; technicians must account for this when moving around work area.
Installation Notes
- Professional Installation: This lift requires skilled installation by qualified personnel familiar with automotive lift assembly, electrical work, and concrete anchoring.
- Permits & Inspections: Verify local building code requirements and obtain necessary permits before installation. Some jurisdictions require inspection of lift installation and electrical work.
- Damage Inspection: Inspect all components immediately upon delivery before signing the bill of lading. Note any visible damage and photograph affected areas.
Shipping & Delivery
Freight Coverage
Shipping: LTL freight delivery available to the contiguous 48 United States. Surcharges may apply for residential addresses or remote/rural areas.
Delivery Timeframe: Delivery timeframe is 7-14 business days from order placement, subject to inventory availability and logistics scheduling.
International: International shipping not available through standard channels. Contact for special order inquiries.
Delivery Requirements
Unloading Equipment: Customer must provide forklift or equivalent equipment with minimum 2,000 lb capacity to unload the pallet/crate from the freight truck. Carriers do not provide unloading assistance for lifts of this size.
Delivery Type: Standard LTL freight to dock or facility entrance. Inside delivery and placement are not included; customer is responsible for moving the crate to final installation location.
Receiving & Inspection: Inspect all visible damage before signing the bill of lading. Request driver to note any damage on the BOL. Concealed damage claims must be filed within 15 days of delivery.
Damage Reporting
Within 15 Days: 100% coverage for visible and concealed damage; freight carrier covers replacement parts and shipping.
Within 30 Days: 50% coverage for concealed damage discovered after 15 days; shared cost between freight insurance and customer.
After 30 Days: No coverage; customer responsible for all parts and freight costs.
Warranty Coverage
Multi-Tier Warranty Program
1 Year - Parts: Manufacturer warranty covers defects in materials and workmanship on all hydraulic, electrical, and mechanical components. Excludes wear items and damage from improper installation or misuse.
Multiple Years - Structural: Many authorized dealers offer extended structural warranty coverage (commonly 3 years) on the main lift frame and base-plate assembly. Exact term and scope vary by dealer; confirm coverage details at purchase.
Warranty Requirements: Product must be installed per manufacturer installation manual by qualified personnel. Warranty is valid for the original purchaser only and is non-transferable.
What's Included
- Two main posts with base-plate assembly, hydraulic cylinders, chains, and power unit.
- Symmetric lifting arms with 2-stage telescoping design.
- Extension adapter sets: +30 mm and +120 mm height extensions for varied vehicle frames.
- Feet-protection safety guardrails along base-plate with integrated toolbox.
- Rubber pad door opening protection on columns to reduce door damage risk.
- Dual manual safety release mechanism operable from either side.
Ready to Get Your Lift Installed?
Get expert guidance on installation planning, space requirements, electrical setup, and technical specifications. Our team can help verify your facility meets the KT-H100 requirements and support the setup process.
Frequently Asked Questions
Why choose a base plate two post lift over other designs?
A base plate two post lift uses floor-mounted structural support instead of overhead cross-bars, reducing overall height to 110.25 inches. This makes it compatible with standard 9-10 foot garage ceilings where overhead lifts exceeding 120+ inches cannot install.
Is the KT-H100 a good two post lift for home garage use?
Yes, the KT-H100 is an excellent two post lift for home garage installations with standard 9-10 foot ceilings. The 10,000 lb capacity handles most passenger cars, SUVs, and light trucks, while optional 110V power eliminates the need for 220V electrical upgrades.
What is the maximum lifting capacity of the Katool KT-H100?
The KT-H100 has a maximum lifting capacity of 10,000 lb (4,500 kg) and is CE certified with explicit testing to 115% dynamic and 150% static loads, meaning it has been verified to safely handle up to 11,500 lbs during operation and 15,000 lbs in static hold.
What is the minimum overhead clearance required for the Katool KT-H100?
The KT-H100 has an overall height of 110.25 inches (2,800 mm), making it compatible with standard 9-10 foot garage and shop ceilings. The base-plate design eliminates overhead cross-bars, significantly reducing ceiling height requirements compared to traditional 2-post lifts.
What concrete requirements must be met before installation?
The concrete foundation must be at least 5.9 inches (150 mm) thick with a minimum compressive strength of 3,000 PSI. The floor must be level. Verify slab composition and adequacy before anchoring, as the installer is responsible for confirming the surface meets these specifications.
What accessories are included with the KT-H100 purchase?
The KT-H100 ships with symmetric lifting arms, +30 mm and +120 mm height extension adapters, dual manual safety release, rubber door guards, feet-protection safety guardrails with integrated toolbox, and the complete hydraulic power unit.
Does the KT-H100 work with both 220V and 110V electrical service?
The KT-H100 ships standard with a 220V AC / 60 Hz / single-phase / 2.2 kW motor configuration. An optional 110V AC / 60 Hz / single-phase power unit is available from the manufacturer for facilities without 220V service. Electrical installation must be performed by a qualified electrician per local codes.
What vehicles are compatible with the Katool KT-H100?
The KT-H100 is compatible with passenger cars, sedans, SUVs, crossovers, and light-duty pickup trucks within the 10,000 lb weight limit and 30.75-50.5 inch arm reach range. Included height adapters enable compatibility with both low-slung sports cars and high-frame trucks.
What warranty coverage does the KT-H100 include?
The KT-H100 includes a 1-year manufacturer warranty on parts covering defects in materials and workmanship. Many authorized dealers also offer extended structural warranty coverage (commonly 3 years) on the lift frame and base-plate. Confirm specific coverage terms with your seller at purchase.
How is the KT-H100 shipped, and what unloading equipment is needed?
The KT-H100 ships via LTL freight on a large pallet/crate to the contiguous 48 states. You must provide a forklift or equivalent equipment with 2,000+ lb capacity to unload; carriers do not provide unloading assistance. Inspect for damage before signing the bill of lading.
