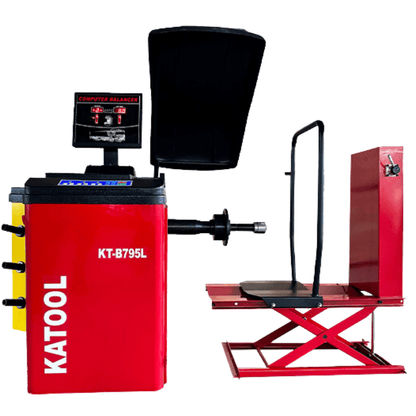

Katool KT-B795L – Truck Wheel Balancer (Heavy-Duty)
Katool KT-B795L - Heavy Duty Truck Wheel Balancer for Commercial Fleets & Tire Shops
The Katool KT-B795L delivers 150 kg (331 lb) wheel capacity with 8-second measurement cycles in a compact 529 lb chassis. This commercial wheel balancer handles truck, bus, and commercial vehicle wheels up to 51 inches in diameter while maintaining car and light-truck capability through included wheel balancer cones and adapter sets.
Key Features & Benefits
8-Second Measurement Cycle for Maximum Throughput
The KT-B795L completes wheel measurements in 8 seconds per spin, regardless of wheel size within its operating range. Traditional heavy-duty balancers often require 15-20 seconds—this faster cycle enables tire shops and fleet operations to service more vehicles per shift without sacrificing measurement accuracy.
Laser-Guided Weight Placement Accuracy
Position lasers provide exact weight placement location on the wheel rim, a feature typically found on balancers priced at $4,000+. The laser guidance projects the precise mounting point for adhesive or clip-on weights, eliminating guesswork and reducing "chasing weight" re-spins that waste time and consumables.
Heavy-Duty Capacity in a Compact Chassis
Handles wheels up to 150 kg (331 lb) and 51 inches in diameter with a footprint of only 98-118 inches and machine weight of approximately 529 lb. Significantly lighter than comparable heavy-duty balancers that often exceed 700-900 lb. Rim diameter range: 13-24 inches; width range: 1.5-20 inches.
Single-Phase 220V Power for Simplified Installation
Operates on 220V single-phase, 60 Hz power with a 0.55 kW motor. No three-phase electrical service required. Works with existing shop electrical infrastructure without costly panel upgrades or dedicated three-phase circuits.
Complete Adapter Kit for Multi-Vehicle Service

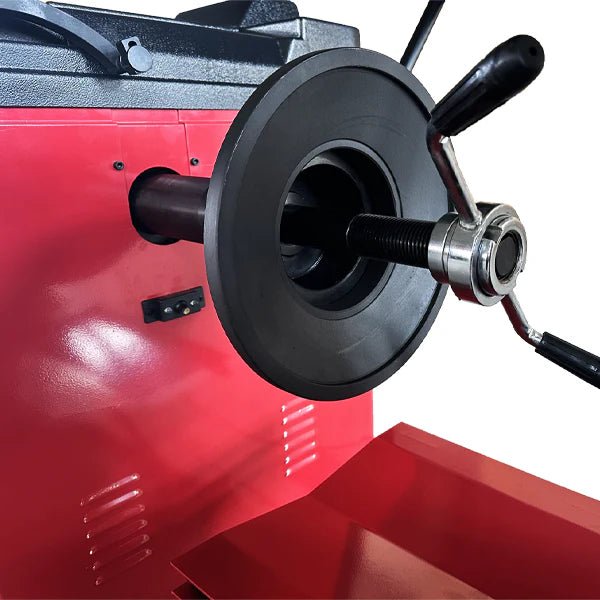

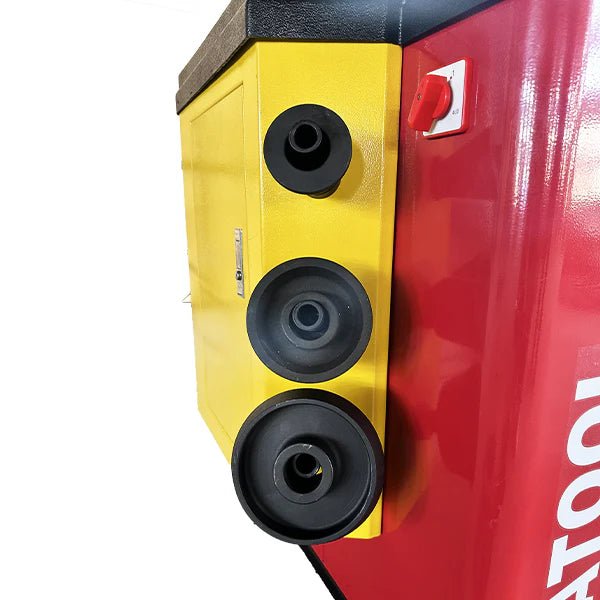

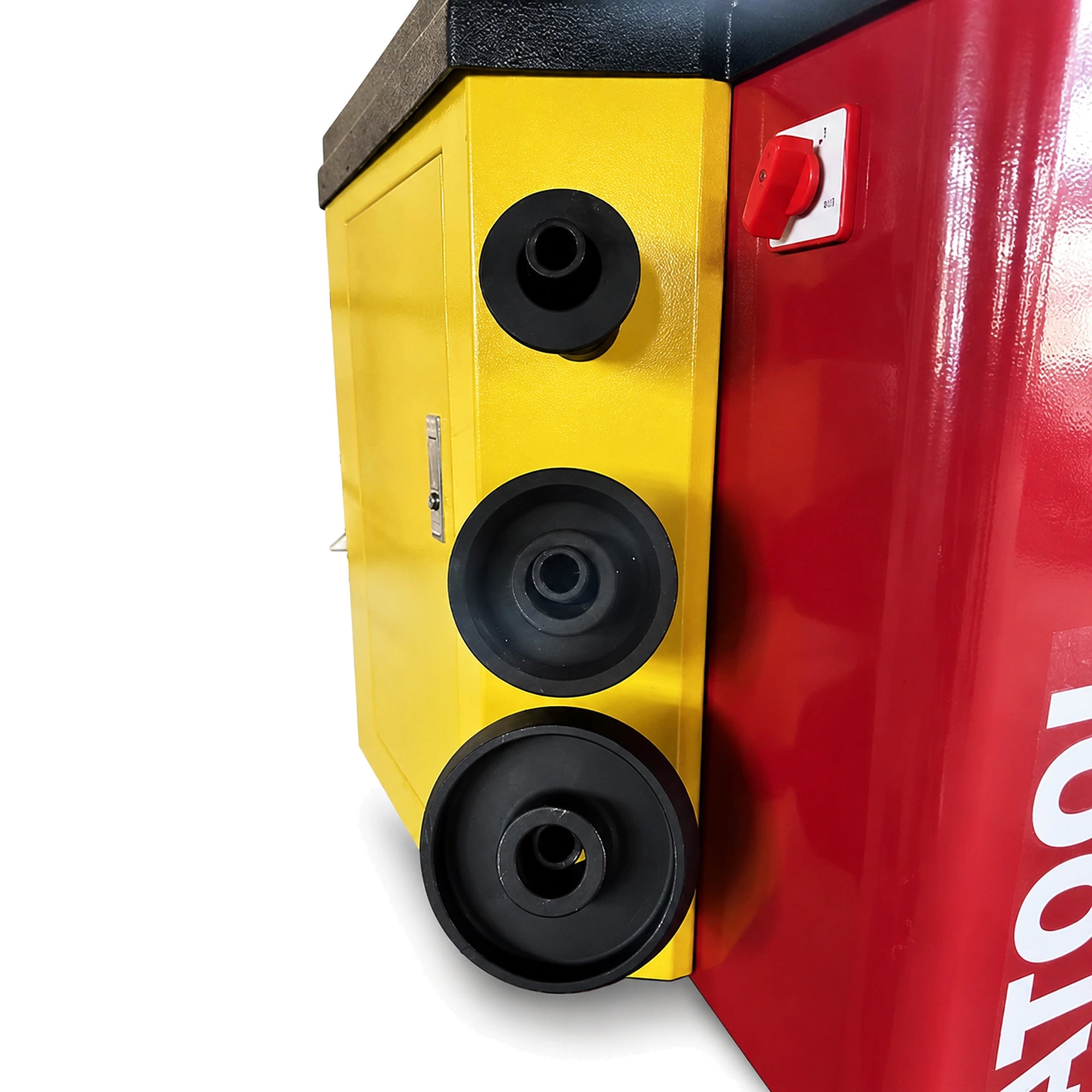

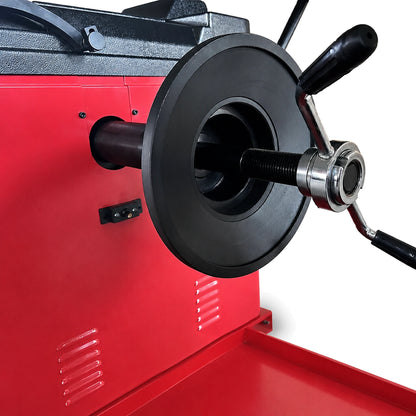

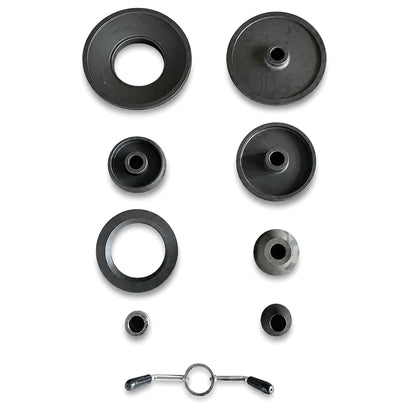

Ships with cone sets for car and light-truck wheels plus cone and spacer sets for truck, bus, and implement tires, along with a heavy-duty steel wing nut and protective safety hood. Service the full spectrum of passenger cars through heavy commercial vehicles immediately after installation—no additional adapter purchases required.
Low-Noise Operation for Shop Comfort
Running noise levels under 65 dB, quieter than typical conversation. Reduces hearing fatigue during long shifts and enables better communication between technicians during operation.
Product Demonstration
Applications & Use Cases
- Commercial Tire Dealers: High-volume balancing for walk-in truck, bus, and fleet customers
- Fleet Maintenance Operations: In-house balancing for trucking companies and delivery fleets; semi truck tire balancer applications
- Municipal Fleet Garages: Transit buses, refuse trucks, fire apparatus, and heavy equipment
- Transit Authority Shops: Bus tire balancer capability for school buses, coach buses, and public transit
- Independent Truck Service Centers: Semi tire balancer service for owner-operators and small trucking companies
- Agricultural and Construction Equipment Dealers: Farm equipment, loaders, and construction vehicles within the 51-inch / 331 lb capacity
- RV and Recreation Vehicle Service: Motorhomes, travel trailers, and large recreational vehicles
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Wheel Weight | 150 kg (331 lb) |
| Maximum Wheel Diameter | 51-51.18 inches (1,300 mm) |
| Rim Diameter Range (Steel Cycle) | 13-24 inches |
| Rim Width Range (Steel Cycle) | 1.5-20 inches |
| Specification | Value |
|---|---|
| Measurement Time | 8 seconds |
| Balancing Speed | 180 rpm |
| Running Noise | <65 dB |
| Specification | Value |
|---|---|
| Power Supply | 220V, single phase, 60 Hz |
| Motor Power | 0.55 kW |
| Operating Temperature | 0-45°C (32-113°F) |
| Specification | Value |
|---|---|
| Net Weight | 529 lb (240 kg) |
| Footprint | 98-118 inches |
Installation Requirements
Electrical Requirements
- Power Supply: 220V single-phase, 60 Hz
- Motor Power: 0.55 kW
- Circuit: Dedicated circuit recommended; consult installation manual for breaker amperage
- Installation Manual: Download Operation Instructions (PDF)
Space Requirements
- Footprint: 98-118 inches total operating space
- Floor Surface: Flat, stable floor recommended
- Clearance: Allow adequate space for wheel handling and technician movement
Unloading Requirements
- Equipment: Forklift or equivalent required (529 lb machine weight)
- Delivery: Ships via LTL freight; standard curbside delivery
Shipping & Delivery
Freight Coverage
Shipping: LTL freight. Many dealers offer free or flat-rate shipping to contiguous US commercial addresses. Surcharges may apply for liftgate, residential, limited access, or call-before-delivery.
Delivery Requirements
Unloading: Forklift or equivalent required (529 lb). Liftgate available at additional cost.
Receiving: Inspect all packages before signing. Note any visible damage on BOL before driver departs.
Warehouse Pickup
Locations: CA, TX, MI, GA, NJ, IL, MD. Pickup discount often available. Contact dealer to schedule.
Warranty Coverage
Katool Manufacturer Warranty
1 Year - Parts Coverage: All parts covered against defects for 12 months
Labor: Not included
Shipping: Free shipping on replacement parts during warranty period
Warranty Requirements
Eligibility: Original purchaser only (non-transferable); requires original order number
Extended Warranty: 2-year extended plan available from select dealers
Ready to Add Heavy-Duty Balancing to Your Shop?
Get expert guidance on the Katool KT-B795L for your facility. Our team can help with product selection, installation planning, and shipping logistics.
Frequently Asked Questions
What is the maximum wheel weight capacity of the Katool KT-B795L?
150 kg (331 lb). Rim diameter: 13-24 inches; width: 1.5-20 inches. Max wheel diameter: 51-51.18 inches.
What are the electrical requirements for the Katool KT-B795L?
220V single-phase, 60 Hz with 0.55 kW motor. No three-phase required. Dedicated circuit recommended.
What adapters and accessories are included with the KT-B795L?

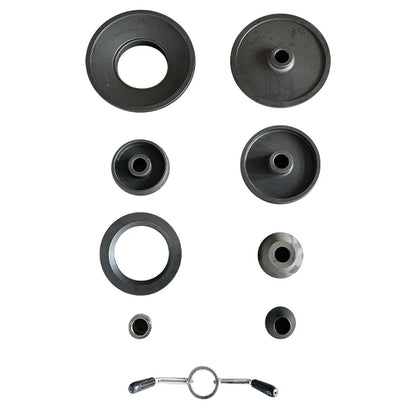

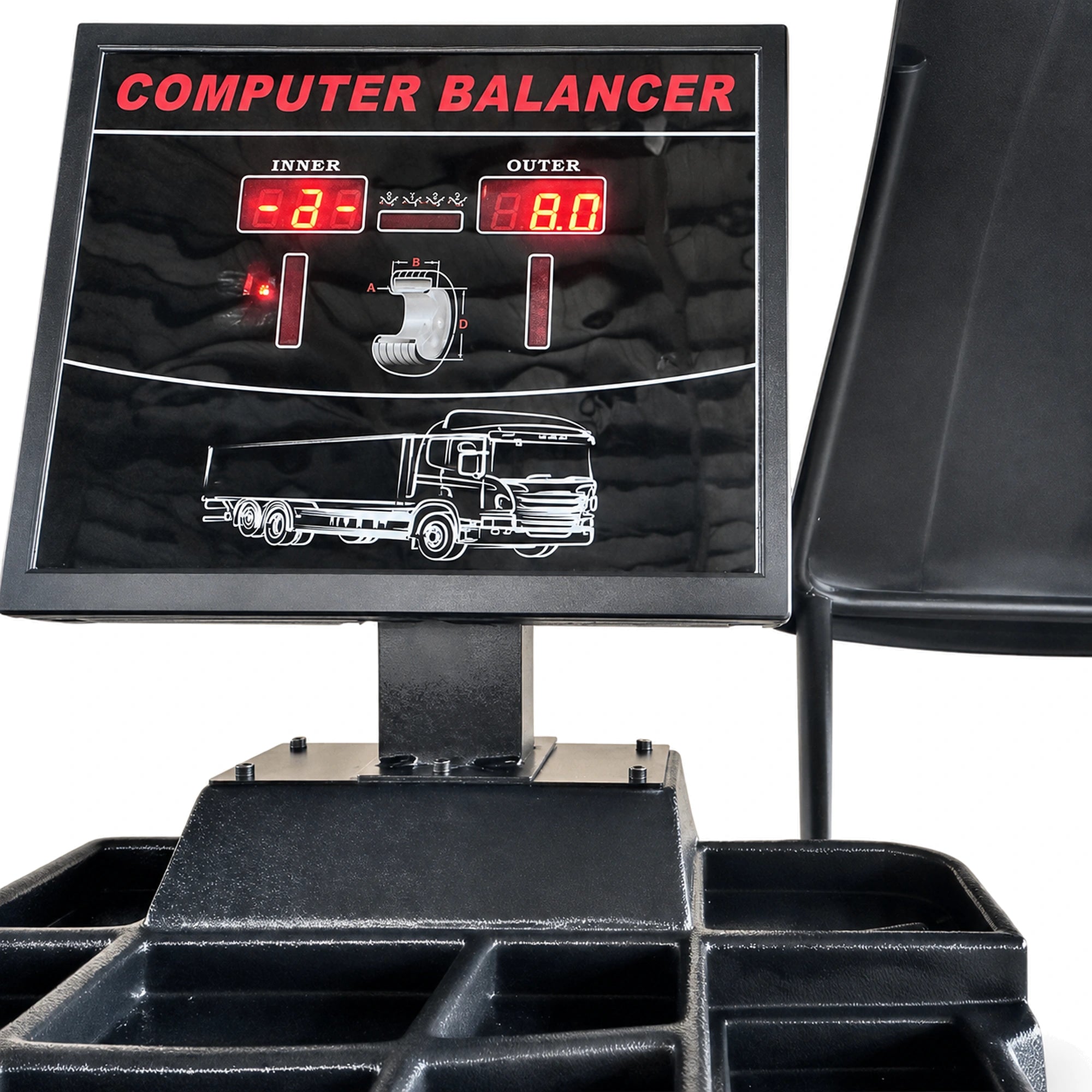

Wheel balancer cones for car/light-truck (13-24 inch rim range), cone and spacer sets for truck/bus/implement tires (up to 150 kg), heavy-duty steel wing nut, protective safety hood, illuminated display, and laser positioning.
Can the KT-B795L balance semi truck and bus tires?
Yes. Handles wheels up to 150 kg (331 lb) and 51 inches diameter, covering most semi truck and bus sizes. Works as a semi truck tire balancer and bus tire balancer.
What is the warranty coverage for the Katool KT-B795L?
1-year parts warranty. Labor not included. Free shipping on replacement parts. Non-transferable. 2-year extended warranty available from select dealers.
Do I need a forklift to unload the KT-B795L?
Yes. Machine weighs 529 lb. Liftgate service available at additional cost for locations without forklift access.
How do you calibrate the Katool KT-B795L wheel balancer?
Calibration procedures included in product manual. Mount a test wheel, run the 8-second cycle, adjust per displayed values. Recommended every 3-6 months or after relocating.
Is the KT-B795L a good value compared to premium balancers?
Yes. Delivers heavy-duty capability at a fraction of premium brands (Coats, Hunter, Ranger: $5,000-$18,000). Built for commercial use with 150 kg capacity, 8-second cycles, and laser positioning—a cost-effective professional-grade alternative.
