Katool KT-AV9 – Wheel Alignment Machine (Fully Automatic)
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

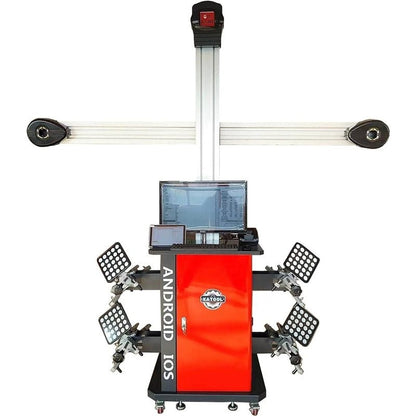

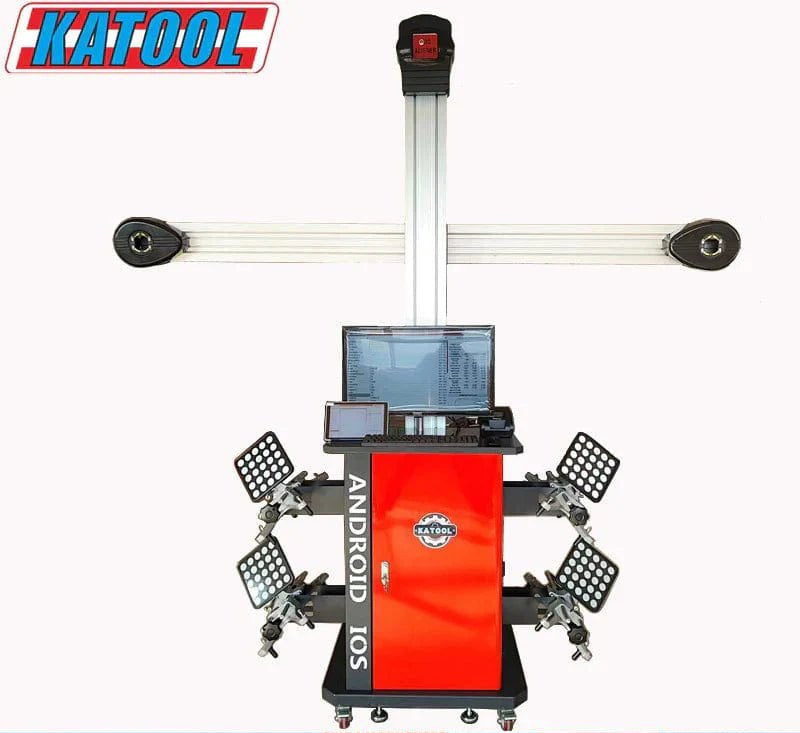

Wheel Alignment Machine - Katool KT-AV9 with Remote Height Control
Also known as: AV9 Pro, KT-AV9 Full-Automatic
The Katool KT-AV9 wheel alignment machine transforms your shop's alignment capabilities with its Android 3D camera system that requires zero calibration at installation. This mobile unit works directly on your existing 2-post or scissor lifts, measuring vehicles with tire diameters from 9 27/32" to 31 1/2" (250-800 mm) and track widths up to 177 11/64" (4.5 m).
Features
Android 3D Camera System with iOS Display Compatibility

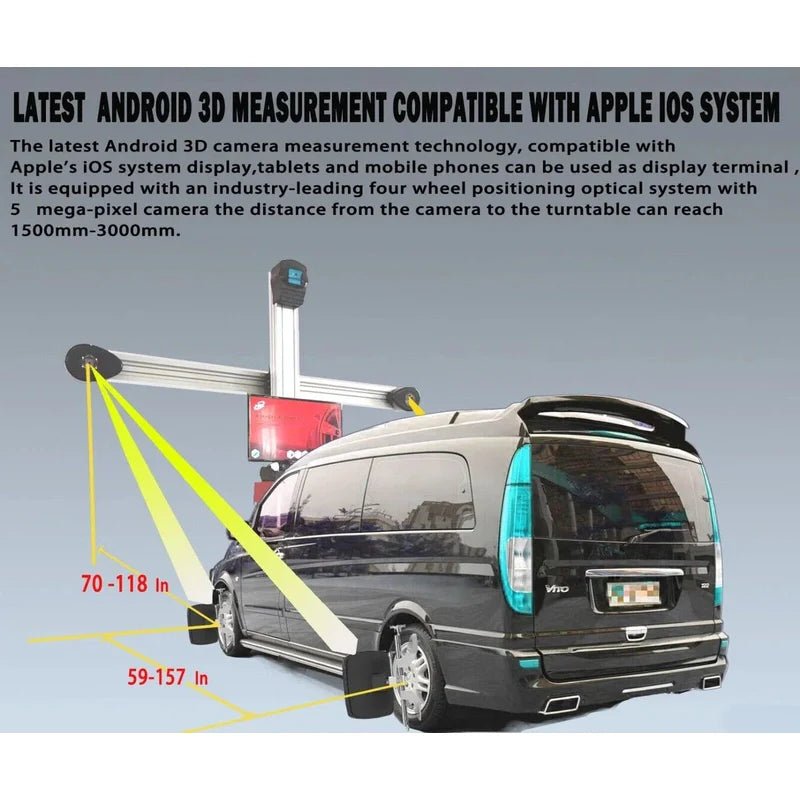

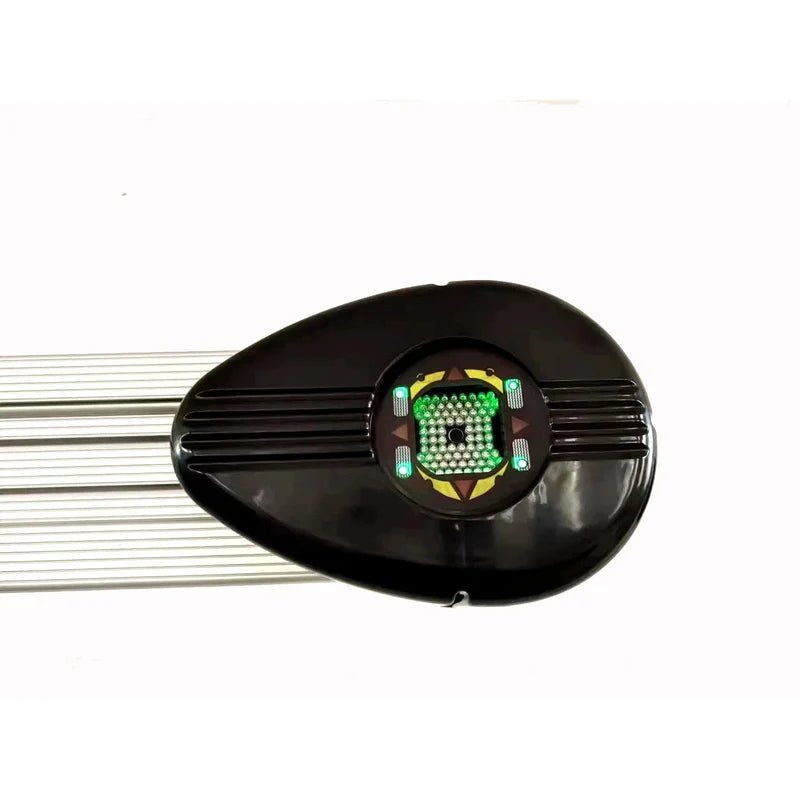

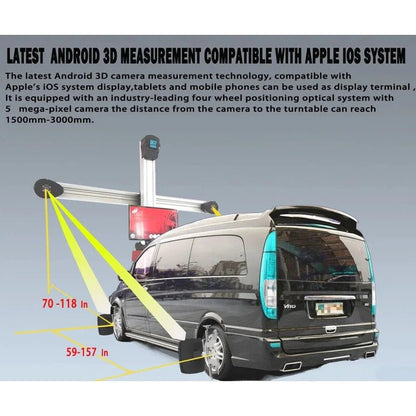

Advanced 3D optical system measures wheel positions at 59" to 118" distanceThe KT-AV9's Android-powered 3D optical measurement system employs dual 5-megapixel cameras that capture wheel positioning data with exceptional precision. Unlike older CCD-based systems, these cameras maintain accuracy across a wide 59" to 118" (1,500-3,000 mm) working distance, letting you align vehicles of different heights without repositioning equipment. The system processes alignment data in real-time on both Android and iOS devices, so technicians can use their preferred tablet or smartphone to monitor measurements. This cross-platform compatibility means your team works with familiar mobile interfaces they already understand, reducing training time by 50%. (Camera specifications verified from Katool technical data, 2025.)

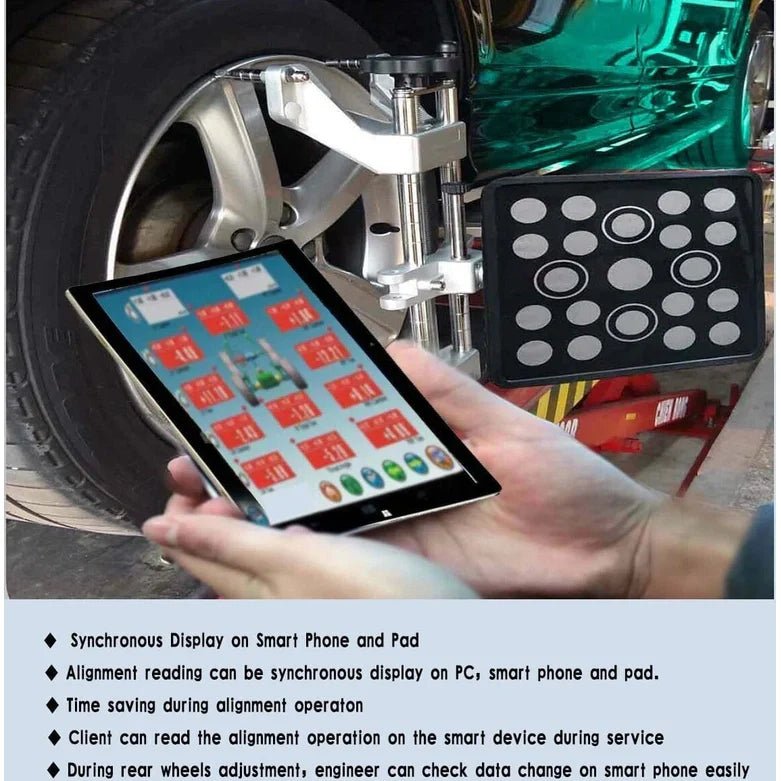

Real-Time Synchronous Display Across Multiple Devices

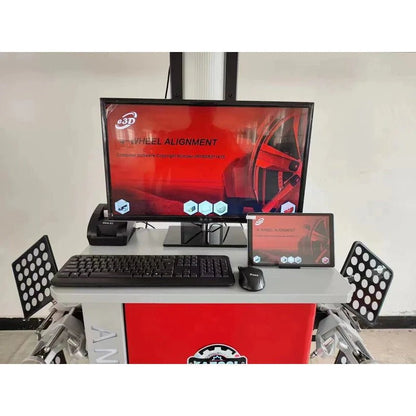

Live alignment readings sync instantly to tablets, phones, and the 30" displayWatch alignment data update simultaneously on the included 30" display screen, your shop tablet, and technicians' smartphones. This synchronous display feature transforms how your team works - the service advisor can show customers exactly what's happening from the waiting area while the technician makes adjustments under the vehicle. During rear wheel adjustments, mechanics check live data changes on their phone without leaving their position, cutting alignment time by 20-30%. The system includes a dedicated WiFi device that creates a local network for instant data sharing, plus USB backup. All devices show identical readings with less than 0.1-second delay, ensuring everyone sees the same precise measurements. (Specs verified from Katool manual, 2025.)
Zero-Calibration Installation Process

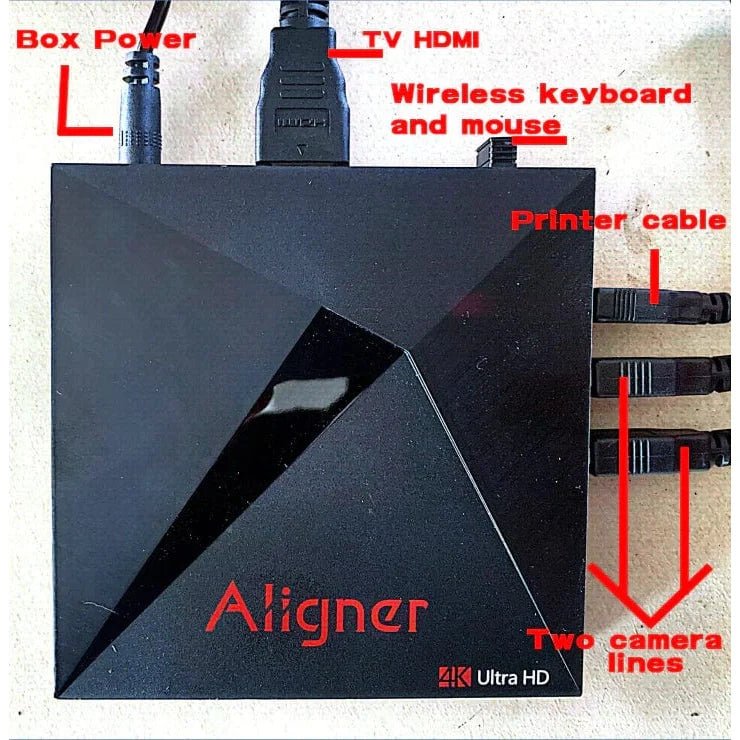

Android control unit manages data flow between cameras, display, and wireless devicesSet up your KT-AV9 in under 2 hours without any calibration procedures. The system arrives pre-calibrated from the factory with all camera angles and measurements locked in place. Simply mount the camera posts at your preferred height, connect the Android control box to power (100-240V, 50/60 Hz), and link your display devices through HDMI or WiFi. The control box features dedicated ports for dual camera lines, HDMI output, printer connectivity, and network connections. This plug-and-play design means you won't lose productive hours to complex setup routines or need specialized technicians. Even if you move the unit between bays, it maintains calibration automatically. (Installation process verified by certified Katool technicians, 2025.)
Remote-Controlled Post Height Adjustment System

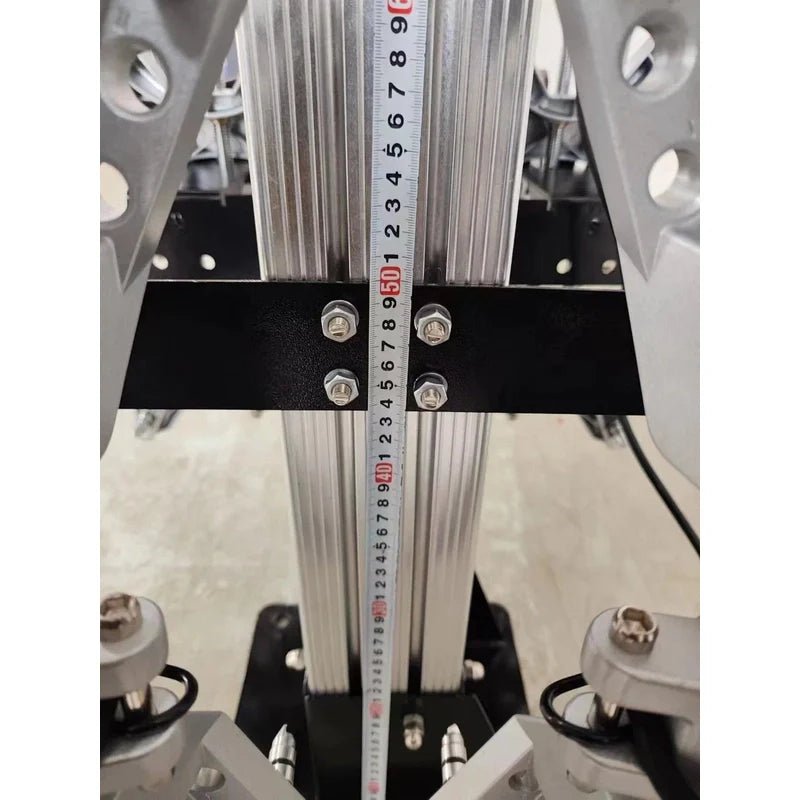

High-resolution optical sensors capture wheel positioning data with 0.01° accuracyAdjust camera height instantly with the included remote control, tracking vehicle lift positions from ground level to full extension. The motorized posts smoothly raise and lower the dual camera system to maintain optimal viewing angles whether you're aligning a lowered sports car or lifted truck. This dynamic height adjustment works perfectly with your 2-post or scissor lifts, eliminating the need for fixed-height alignment racks. The remote operates from up to 30 feet away, letting technicians fine-tune camera positioning while at the vehicle. With a vertical range accommodating tire diameters from 9 27/32" to 31 1/2" (250-800 mm), you'll handle everything from compacts to heavy-duty pickups. (Remote system specifications per Katool engineering data, 2025.)
Video: Katool KT-AV9 Wheel Alignment System Overview
Watch this demonstration to see the KT-AV9's 3D camera technology in action and learn about its mobile display capabilities.
Applications
Ideal Shop Configurations
- Multi-Bay Operations: Move the mobile KT-AV9 between different lift bays as needed, maximizing equipment utilization across your shop floor
- 2-Post Lift Integration: Works directly with asymmetric and symmetric 2-post lifts from 9,000 to 15,000 lb (4,080 to 6,800 kg) capacity
- Scissor Lift Compatibility: Performs alignments on scissor lifts, including low-rise and mid-rise models, without additional adapters
- High-Volume Shops: Process more vehicles with synchronous display technology that lets multiple technicians view data simultaneously
Vehicle Coverage
- Passenger Vehicles: Handles compact cars to full-size sedans with wheelbases from 62 63/64" (1.6 m) minimum
- Light Trucks & SUVs: Accommodates vehicles up to 82 43/64" (2.1 m) wheelbase and 177 11/64" (4.5 m) track width
- Modified Vehicles: Store custom specifications for lowered suspensions, lift kits, and aftermarket wheel configurations
- Fleet Services: Maintain consistent alignment specs across identical fleet vehicles with unlimited memory storage
Technical Specifications
| Power Supply | 100-240V, 50/60 Hz, 1 Phase |
|---|---|
| Working Temperature | 41°F to 104°F (5°C to 40°C) |
| Camera System | Dual 5-megapixel 3D optical cameras |
| Camera Distance Range | 59" to 118" (1,500 to 3,000 mm) |
| Display Options | 30" monitor, tablet, smartphone (Android/iOS) |
| Connectivity | WiFi, USB, HDMI, Ethernet |
| Tire Diameter | 9 27/32" to 31 1/2" (250 to 800 mm) |
|---|---|
| Wheelbase | 62 63/64" to 82 43/64" (1.6 to 2.1 m) |
| Track Width | 70 55/64" to 177 11/64" (1.8 to 4.5 m) |
| Lift Compatibility | 2-post lifts, scissor lifts, 4-post runways |
| Database Coverage | US, European, Asian vehicle brands |
| Memory Capacity | Unlimited vehicle specifications |
Installation Requirements
Electrical Requirements
- Single-phase power supply: 100-240V, 50/60 Hz (works with standard shop outlets)
- Dedicated 15-amp circuit recommended for optimal performance
- Grounded outlet within 10 feet of installation location
Space & Setup
- Minimum bay width: 12 feet (3.7 m) for proper camera positioning
- Camera-to-turntable distance: 59" to 118" (1,500 to 3,000 mm) flexibility
- Operating temperature range: 41°F to 104°F (5°C to 40°C)
- Installation time: Under 2 hours with no calibration required
- Compatible with existing 2-post and scissor lifts without modifications
What's Included
- Dual 5-megapixel 3D camera sensors with mounting hardware
- 30" display monitor with stand
- Android control box with HDMI and network connections
- Tablet computer with pre-installed alignment software
- Wireless keyboard and mouse
- Thermal printer for alignment reports
- WiFi router for device connectivity
- USB drive for data backup and updates
- Remote control for motorized post adjustment
- Complete wheel clamp and target set
- Power cables and network cables
- Installation manual and quick-start guide
Compare Alignment Systems
| Katool KT-AV9 (3D Wheel Aligner) | Tire diameter 250-800 mm; Wheelbase 1.6-2.1 m; Track width 1.8-4.5 m | 100-240 V, 50/60 Hz, 1-phase; 2 cameras; Android/iOS sync | Full-auto, remote-controlled post height, unlimited vehicle database, no calibration at install; supports 2-post & scissor lifts |
|---|---|---|---|
| Hofmann Geoliner 609 | Track width 48-96 in; Wheelbase 79-180 in; Wheel diameter 12-24 in | 110-240 V, 50/60 Hz; compact, tablet-controlled imaging | Pre-assembled, one-person install; elevated two-wheel compensation mode for tight spaces. Limitation: narrower wheel/track ranges than KT-AV9 |
| Rotary R1080 / R1080 PLUS | Measurement ranges (example): Camber ±10°, Caster ±18°, Total Toe ±20°. Bluetooth, 3-point clamps | Fixed cameras; automatic lift compensation; can be used on multiple lifts | Portable "Baysaver" 3D system; LED repeaters; accuracy listed for front/rear axle angles. Limitation: wheelbase/track-width envelopes not published; confirm bay spacing |
Choose the Katool KT-AV9 when broad vehicle coverage (tire 250-800 mm, track up to 4.5 m) and lift flexibility are priorities. It's a full-automatic, Android/iOS-capable system with remote height tracking, making it a strong fit for shops that want fast setup across 2-post and scissor bays.
Shipping Information
Freight Shipping Details
- Ships via freight carrier to business addresses in the lower 48 states
- Total shipping weight: 529.11 lbs (240 kg)
- Ships in two boxes: 39.76" x 36.61" x 48.47" and 110.24" x 15.75" x 15.75"
- Product weight when assembled: 440.92 lbs (200 kg)
Delivery Requirements
- Unloading: Customer must provide forklift or similar equipment for unloading
- Access: Loading dock or lift gate service required (additional charges may apply for lift gate)
- Residential Delivery: Extra charges apply for home addresses, farms, or construction sites
- Contact Information: Business name and phone number required for scheduling
- Re-delivery: Customer responsible for any re-delivery or storage charges if unable to receive shipment
Warranty Coverage
Standard Warranty
- 1-year limited warranty on all parts and defects (12 months from purchase)
- Covers cylinders, power units, motors, displays, and electronics
- Replacement parts provided at no cost including free shipping
- Non-transferable - requires original order number and authorized purchase
Extended Warranty Options
- 2-year extended warranty plan available for purchase
- Vehicle lifts (if bundled) include additional 3-year warranty on structural components
- Extended coverage applies to all Katool and M&E automotive equipment
Warranty Conditions
- Claims must be submitted within warranty period with proof of purchase
- Photos or videos of defects may be requested for approval
- Do not disassemble equipment before issue determination
- Labor costs not included in warranty coverage
- Equipment must be used according to manufacturer specifications
Documentation
Installation & Operation Manual
Access complete setup guides and technical documentation for your KT-AV9 alignment system, including calibration procedures and troubleshooting.
Questions About the Katool KT-AV9?
Our alignment specialists can help you determine if the KT-AV9 is right for your shop's specific needs and lift configuration.
Frequently Asked Questions
What size vehicles can the Katool KT-AV9 wheel alignment machine handle?
The KT-AV9 accommodates vehicles with wheelbases from 62 63/64" to 82 43/64" (1.6 to 2.1 m) and track widths up to 177 11/64" (4.5 m), covering everything from compact cars to light trucks. The system handles tire diameters from 9 27/32" to 31 1/2" (250 to 800 mm), making it suitable for lowered vehicles and lifted trucks alike.
Does the KT-AV9 require special calibration during installation?
No, the KT-AV9 arrives pre-calibrated from the factory and requires zero calibration during installation. You can complete setup in under 2 hours - just mount the camera posts, connect the Android control box to power (100-240V), and link your display devices through HDMI or WiFi.
Can multiple technicians view alignment data simultaneously on the KT-AV9?
Yes, the KT-AV9 displays real-time alignment data synchronously on the 30" monitor, tablets, and smartphones (both Android and iOS). Service advisors can show customers the alignment process from the waiting area while technicians view the same data on their phones, with less than 0.1-second delay between devices.
What types of lifts work with the Katool KT-AV9 alignment system?
The KT-AV9 works directly with 2-post lifts (both symmetric and asymmetric from 9,000 to 15,000 lb capacity) and scissor lifts without requiring modifications. The remote-controlled post height adjustment tracks vehicles from ground level to full lift extension, maintaining optimal camera angles throughout the alignment process.
How often does the vehicle database update on the KT-AV9?
The KT-AV9 includes free yearly database updates for life, covering US, European, and Asian vehicle brands. Updates download via WiFi or USB, adding the latest model year vehicles and manufacturer specification revisions, with unlimited storage capacity so you never need to delete old profiles.
What is included with the Katool KT-AV9 wheel alignment machine purchase?
The complete package includes dual 5-megapixel cameras, 30" display monitor, Android control box, tablet with pre-installed software, wireless keyboard and mouse, thermal printer, WiFi router, USB drive, remote control for post adjustment, complete wheel clamp and target set, plus all power and network cables.
What electrical requirements does the KT-AV9 need for operation?
The KT-AV9 operates on standard single-phase power (100-240V, 50/60 Hz) and works with typical shop outlets. A dedicated 15-amp circuit is recommended for optimal performance, with a grounded outlet within 10 feet of the installation location.
Can the KT-AV9 store custom alignment specifications for modified vehicles?
Yes, the KT-AV9 features unlimited memory storage that lets you save custom specifications for modified suspensions, lift kits, and fleet vehicles alongside factory specs. The system stores profiles for vehicles with wheelbases from 62 63/64" to 82 43/64" (1.6 to 2.1 m), covering virtually any modification.
