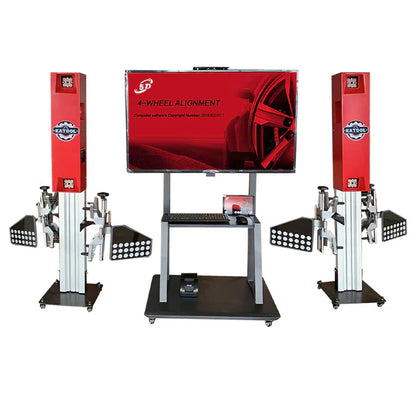

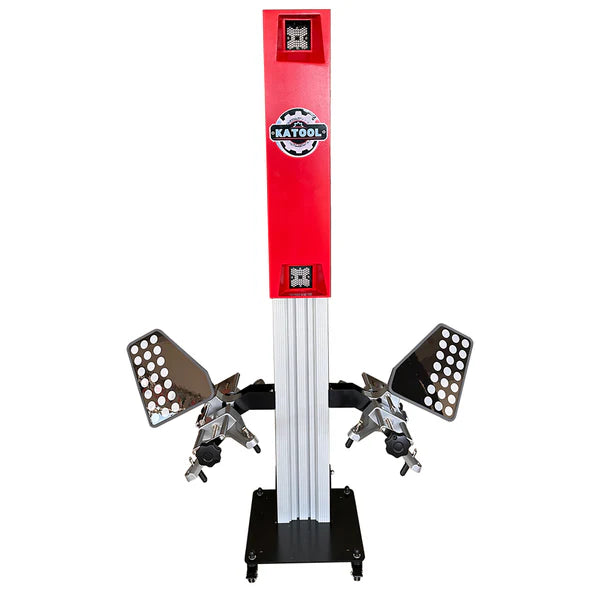

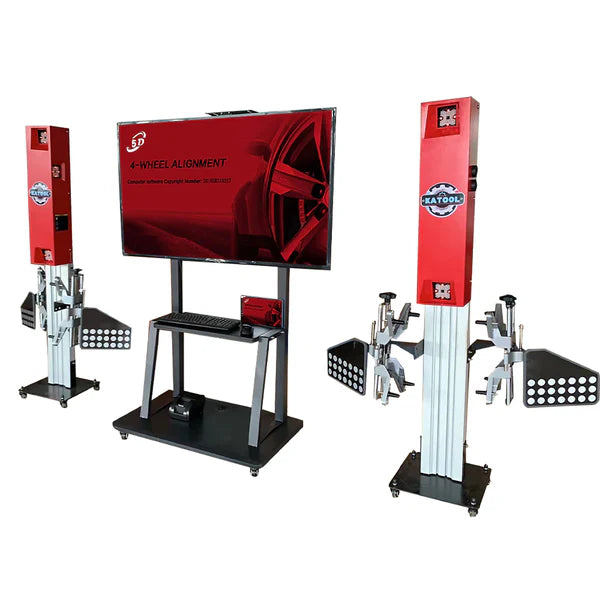

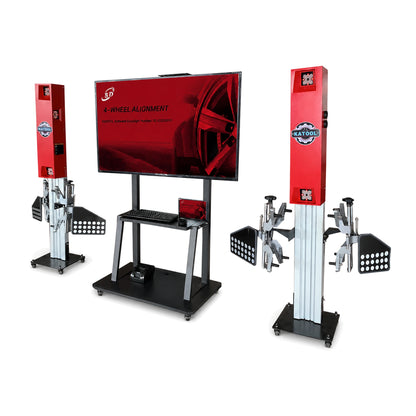

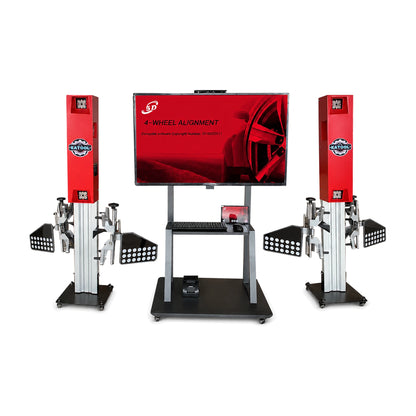

KATOOL KT-5DA 3D Wheel Alignment Machine
You're tired of chasing alignment callbacks. Vehicles come back because the first pass wasn't precise enough, or the tech couldn't verify adjustments in real time. The KATOOL KT-5DA 3D wheel alignment machine solves that problem with advanced 5D measurement technology that captures five-axis alignment angles, giving you tighter accuracy than standard 3D-only systems. That means fewer re-dos, faster turnarounds, and customers who stay satisfied.

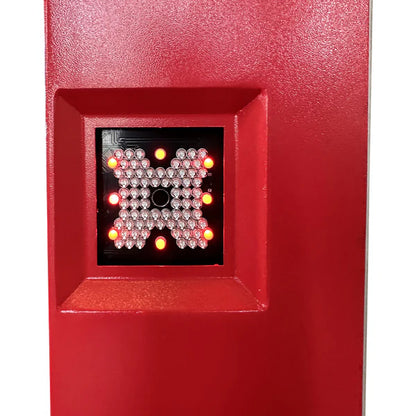

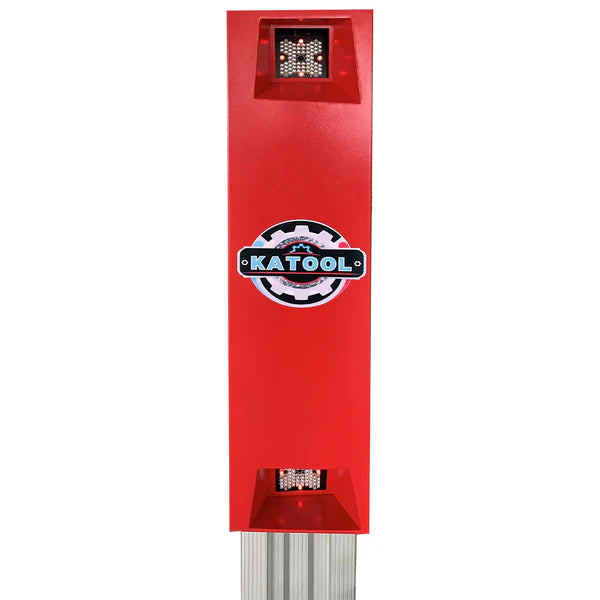

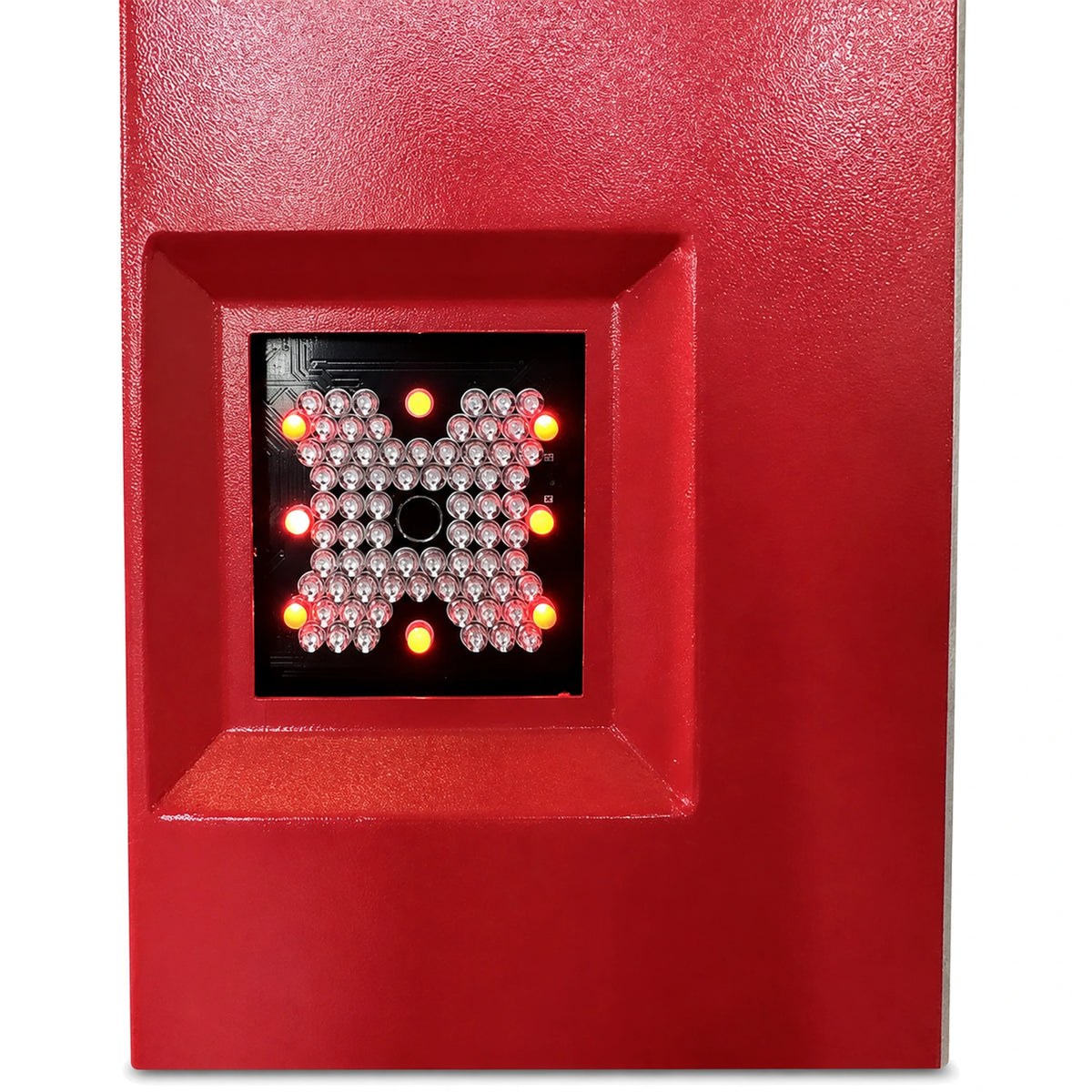

Real-time live imaging is the feature that changes your workflow. High-resolution cameras track every adjustment as you make it, so you're not stepping back and forth between the vehicle and a screen hoping the numbers settle. You see the correction happen live, dial it in, and move on to the next car. For shops running alignments back to back, that kind of speed compounds fast across a full day's ticket count.

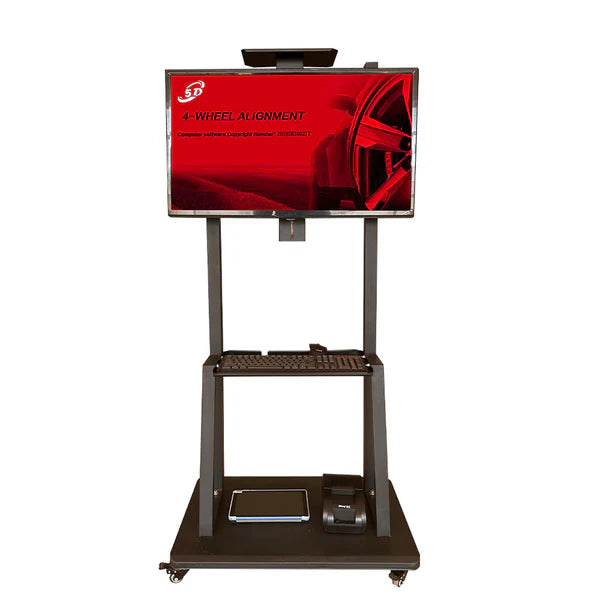

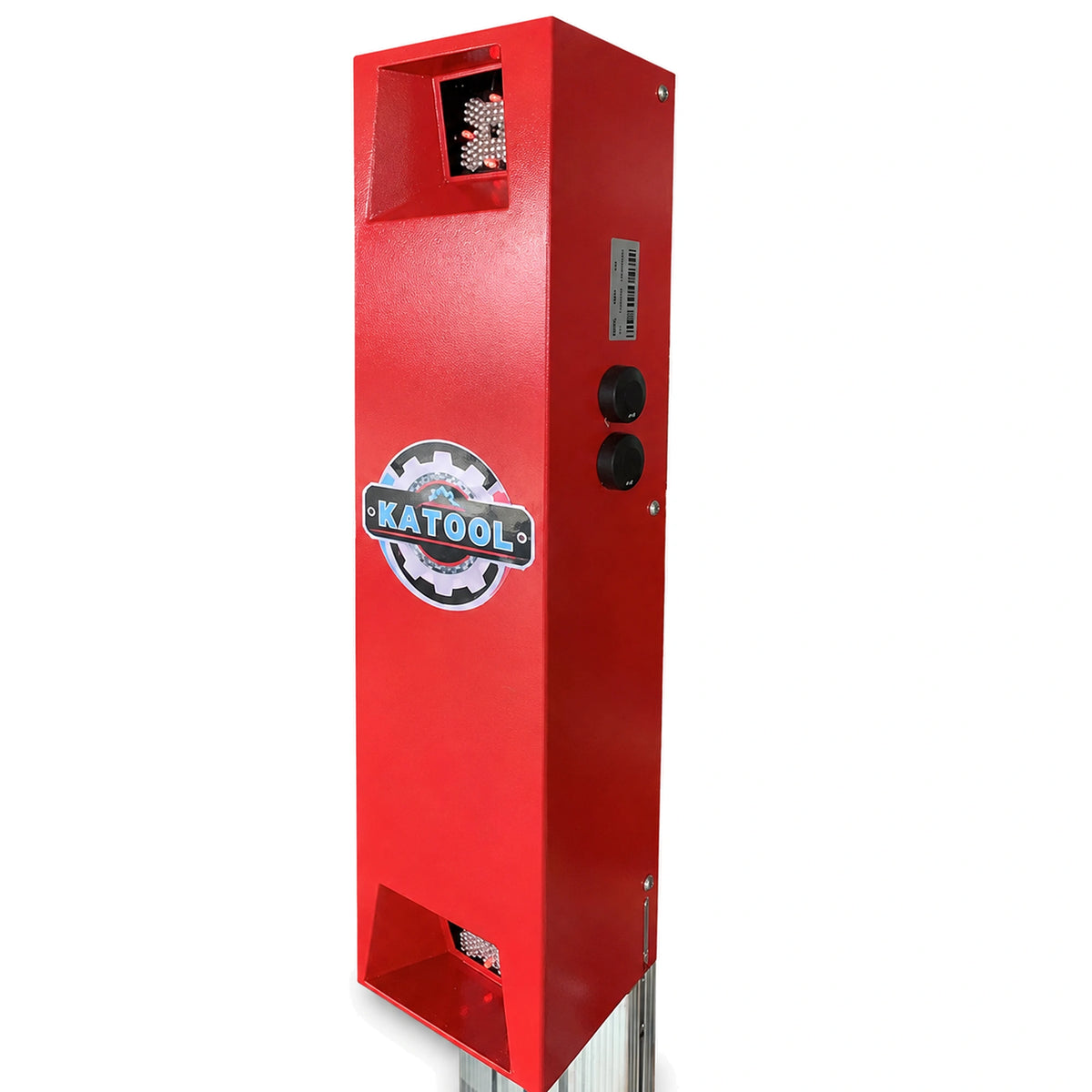

The KT-5DA comes factory-calibrated and ready for professional use out of the box. Its computer-controlled operation and intuitive software interface keep the learning curve short, so new techs get up to speed quickly without sacrificing accuracy. Alloy steel construction and reinforced sensor housings hold up in high-traffic bays where equipment takes a beating daily. At 229 lb with a compact 29 x 47 x 48 in footprint, it fits comfortably into most alignment bays without a major shop rearrangement.
When you buy from Garage Supply Guys, you get direct support from a team that knows this equipment. Need help with setup questions or want to confirm compatibility with your lift? Call us before you order.
Specifications
| Model | KT-5DA |
| Alignment Type | 3D / 5D Measurement System |
| Technology | Real-Time Camera Imaging |
| Operation | Computer-Controlled Alignment |
| Material | Alloy Steel |
| Color | Red |
| Power Requirement | Standard Shop Power |
| Product Dimensions | 29 x 47 x 48 in |
| Product Weight | 229 lb |
| Shipping Weight | 441 lb |
What's Included
Call to confirm included accessories.
Applications
Your bread-and-butter alignment work gets faster and more accurate. The 5D measurement system catches angles that standard setups miss, reducing comebacks and building trust with repeat customers.
When your customers are chasing lap times or dialing in aggressive suspension setups, precision matters down to the fraction of a degree. Real-time imaging lets you verify adjustments live as you work.
Every tire installation and suspension job benefits from a proper alignment check. The KT-5DA's repeatable accuracy ensures consistent results regardless of which tech runs the machine.
When you're pushing 15 or 20 alignments a day, setup speed and software simplicity become critical. The intuitive interface cuts time between vehicles so your bays keep turning.
Shipping
Our team coordinates freight shipping within the lower 48 states. Fulfillment times are 6-10 business days. Please be aware of seasonal shipping delays; orders may take up to 3 weeks to arrive.
Shipping to Alaska and Hawaii is available. Contact us for a shipping quote before ordering.
Residential delivery and liftgate service are each available for an additional fee. Customers are responsible for unloading freight from the truck. A forklift or unloading dock is strongly recommended.
Do not sign for damaged or incomplete shipments. All visible damage or missing items must be noted on the delivery receipt at the time of delivery. Report concealed damage or shortages within 48 hours of delivery. If no issues are noted, the shipment will be considered received in satisfactory condition.
Need a delivery window, residential delivery, or liftgate service? Contact us before ordering so we can confirm the best delivery setup and any accessorial charges.
Warranty
The KATOOL KT-5DA is covered by a manufacturer warranty: 1 year on all product parts and 3 years on product structure. Free shipping on warranty parts. Labor is not included in warranty coverage.
Warranty registration may be required after purchase. Refer to included documentation for details.
Questions Before You Buy?
Talk to our team about the KATOOL KT-5DA wheel alignment machine, compatibility with your lift setup, or shipping details. Call us at (855) 498-2147.
Frequently Asked Questions
What's the difference between 3D and 5D alignment measurement?
Standard 3D systems measure alignment angles across three axes. The KT-5DA's 5D measurement technology adds two additional axes of measurement, which improves precision and helps catch alignment issues that a 3D-only system can miss. This results in more accurate corrections and fewer callbacks after the vehicle leaves your shop.
How much space does the KT-5DA need in my shop?
The unit measures 29 x 47 x 48 inches and weighs 229 lb, so it fits comfortably in most standard alignment bays. You'll want to ensure clear line of sight between the cameras and the wheel targets, but the compact footprint won't require a major shop rearrangement in most cases.
Does the KT-5DA require special power or wiring?
The KT-5DA runs on standard shop power. No special high-voltage circuits or dedicated wiring are required. Confirm your shop's outlet availability near the alignment bay before installation so the cable reach works for your layout.
Is the machine factory-calibrated or do I need to calibrate it on-site?
The KT-5DA ships factory-calibrated and is ready for professional use once set up. The professional calibration system is built for consistent, repeatable results across different vehicle types without requiring field calibration before first use.
How long does it take a new tech to learn the software?
The software interface is designed for intuitive operation with minimal training. Computer-controlled alignment simplifies the workflow, so most techs with basic alignment experience can get comfortable within a few jobs. The real-time imaging feedback loop also helps new operators learn faster because they can see results instantly.
Can this alignment machine work with any two-post or four-post lift?
The KT-5DA is compatible with a wide range of lift setups commonly found in alignment shops. Camera positioning relative to the vehicle is the main consideration. Call us at (855) 498-2147 before ordering if you want to confirm compatibility with your specific lift brand and model.
What does the warranty cover and for how long?
KATOOL provides a 1-year warranty on all product parts and a 3-year warranty on product structure. Warranty parts ship free. Labor costs are not covered. Warranty registration may be required after purchase, so check the included documentation when your unit arrives.
How does the unit ship and what do I need for delivery?
The KT-5DA ships via freight within the lower 48 states, with a shipping weight of 441 lb. Fulfillment takes 6-10 business days. You'll need the ability to unload freight from a truck, so a forklift or dock access is recommended. Residential delivery and liftgate service are available for an additional fee. Contact us before ordering to set up the right delivery option.
