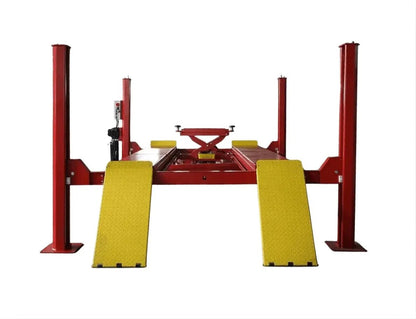

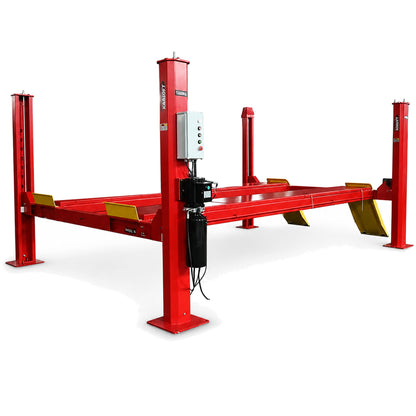

4 Post Alignment Lift for Sale - Katool KT-4H150 with Rolling Jack Included
Also known as: KT-4H150, Katool 4H150, Autool 4H150
The Katool KT-4H150 is a heavy duty 4 post truck lift for professional shops handling passenger cars to diesel trucks. This Katool 4 post lift delivers 15000 lb capacity with a 6,000 lb rolling bridge jack included for wheel-free service. The 3 kW motor achieves full 92.52 inch rise in 95 seconds. Single-point manual safety release and redundant mechanical locks on each column provide technician protection.
Features

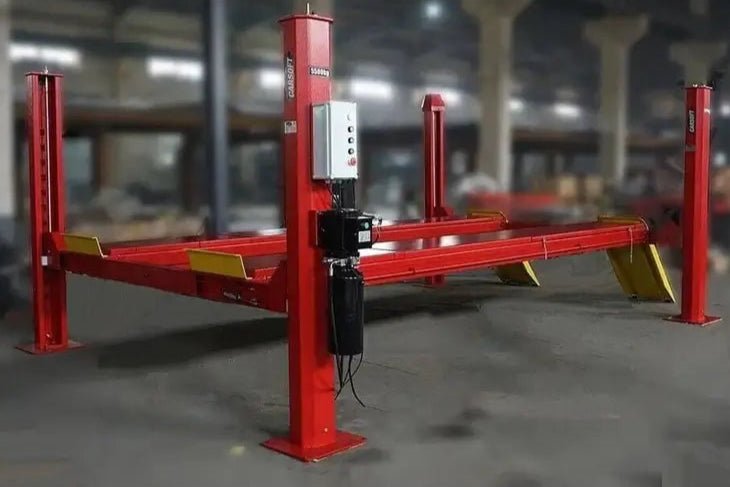

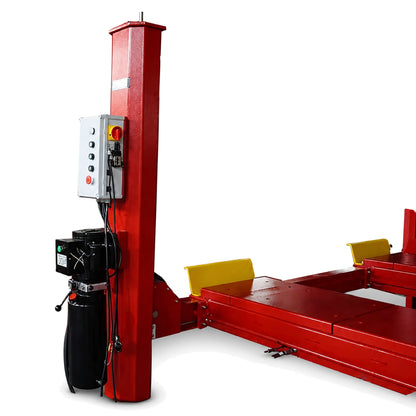

Heavy Duty 4 Post Lift Control System with Emergency Stop
Control panel integrates emergency stop with hydraulic power unit for centralized operation
The operator control column houses the 3 kW hydraulic power unit in an accessible side-mount configuration. The emergency stop button sits above the raise/lower switches for instant shutdown. Cable routing runs internally through the column. The 220V single-phase motor works with most commercial garages running 30-amp circuits.

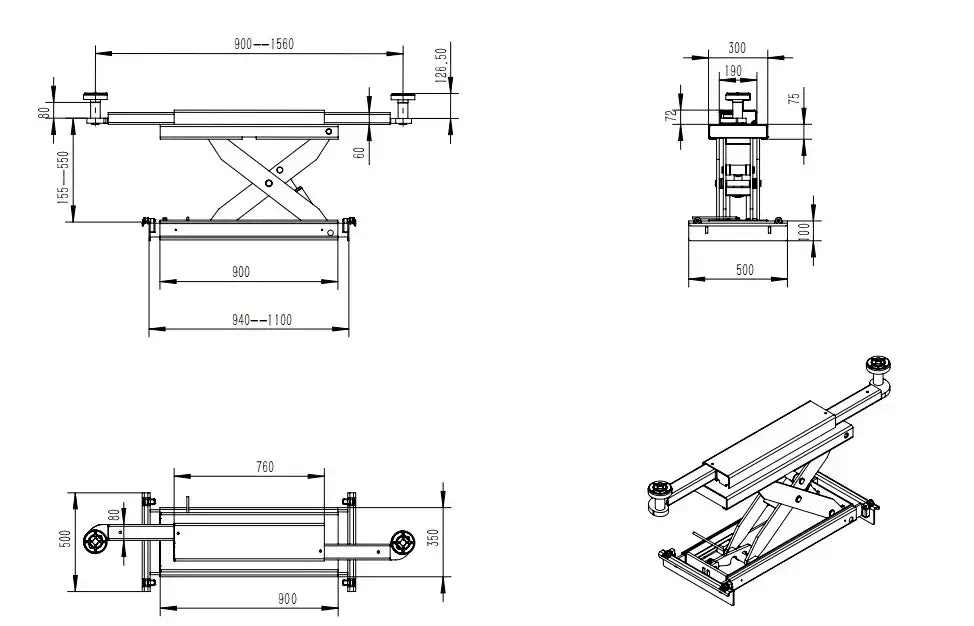

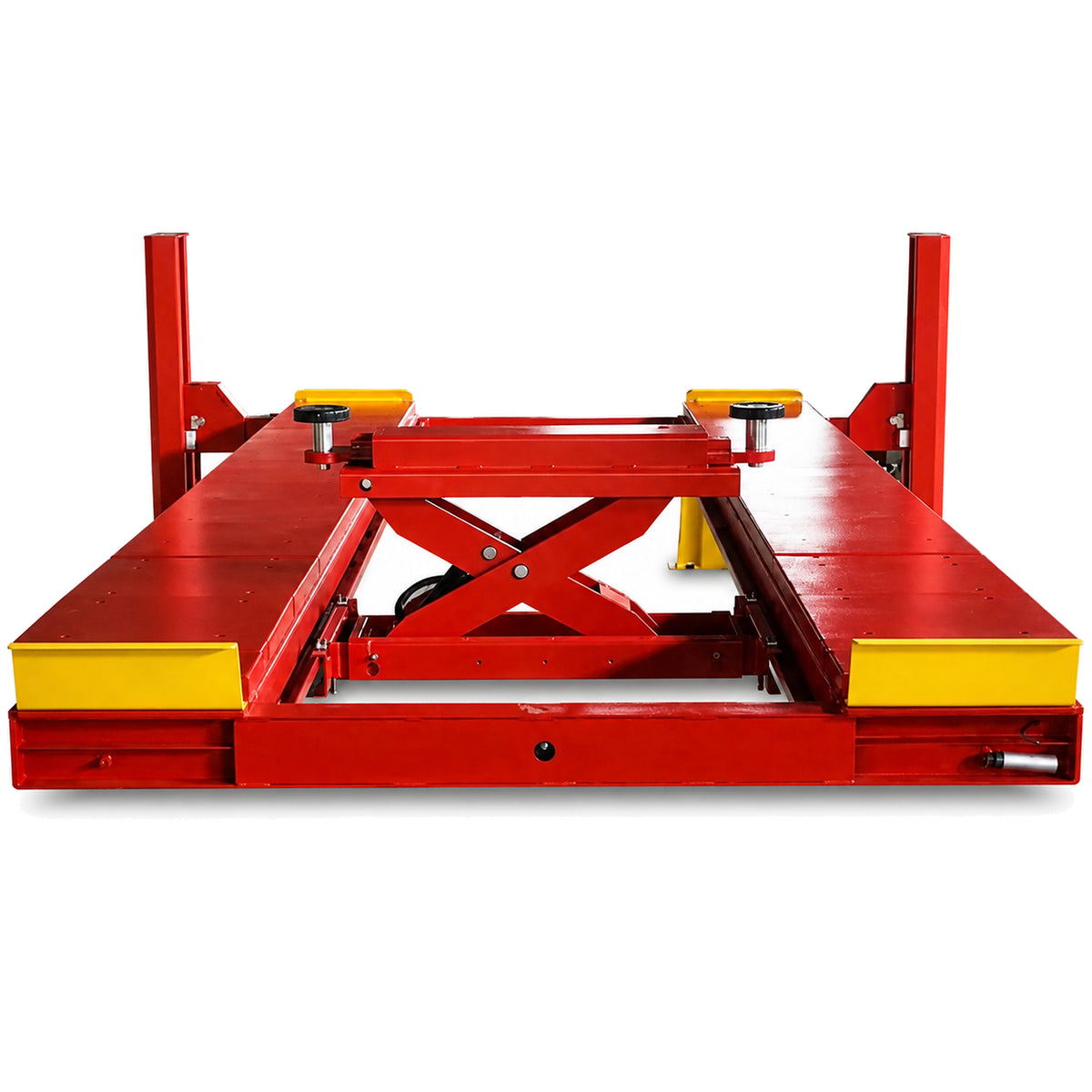

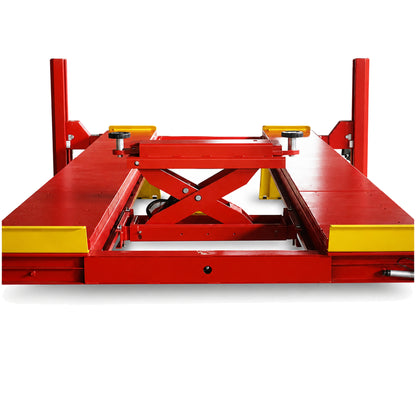

4 Post Lift with Jacks Included - 6,000 lb Rolling Bridge Jack
Rolling jack travels full runway length to lift any axle for alignment work
This is a 4 post lift with jacks included. The 6,000 lb capacity rolling bridge jack comes standard. The jack rides on precision bearings between the 43-inch-wide runways, positioning under any lifting point without moving the vehicle. Its scissor mechanism provides 24 inches of additional lift beyond runway height for wheel-free brake, suspension, and alignment work. Four adjustable rubber contact pads accommodate frame widths from compact cars to one-ton trucks. The unit integrates with the lift's main hydraulic system through a quick-connect coupler.

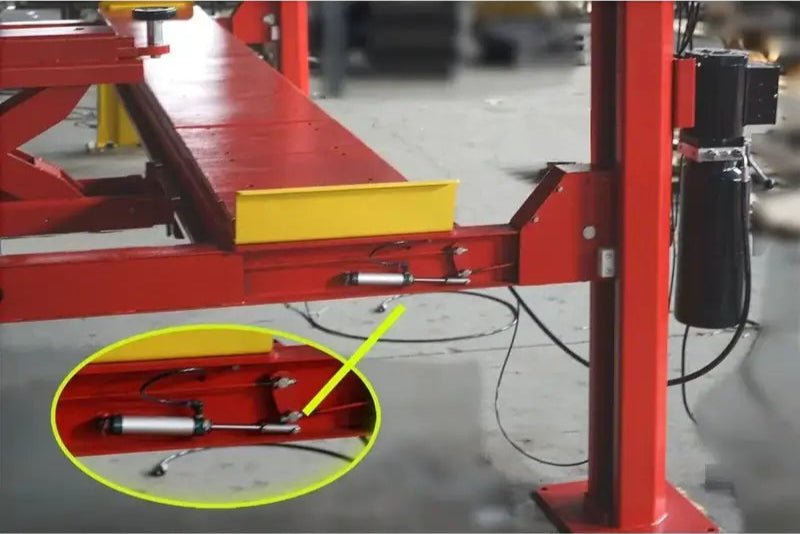

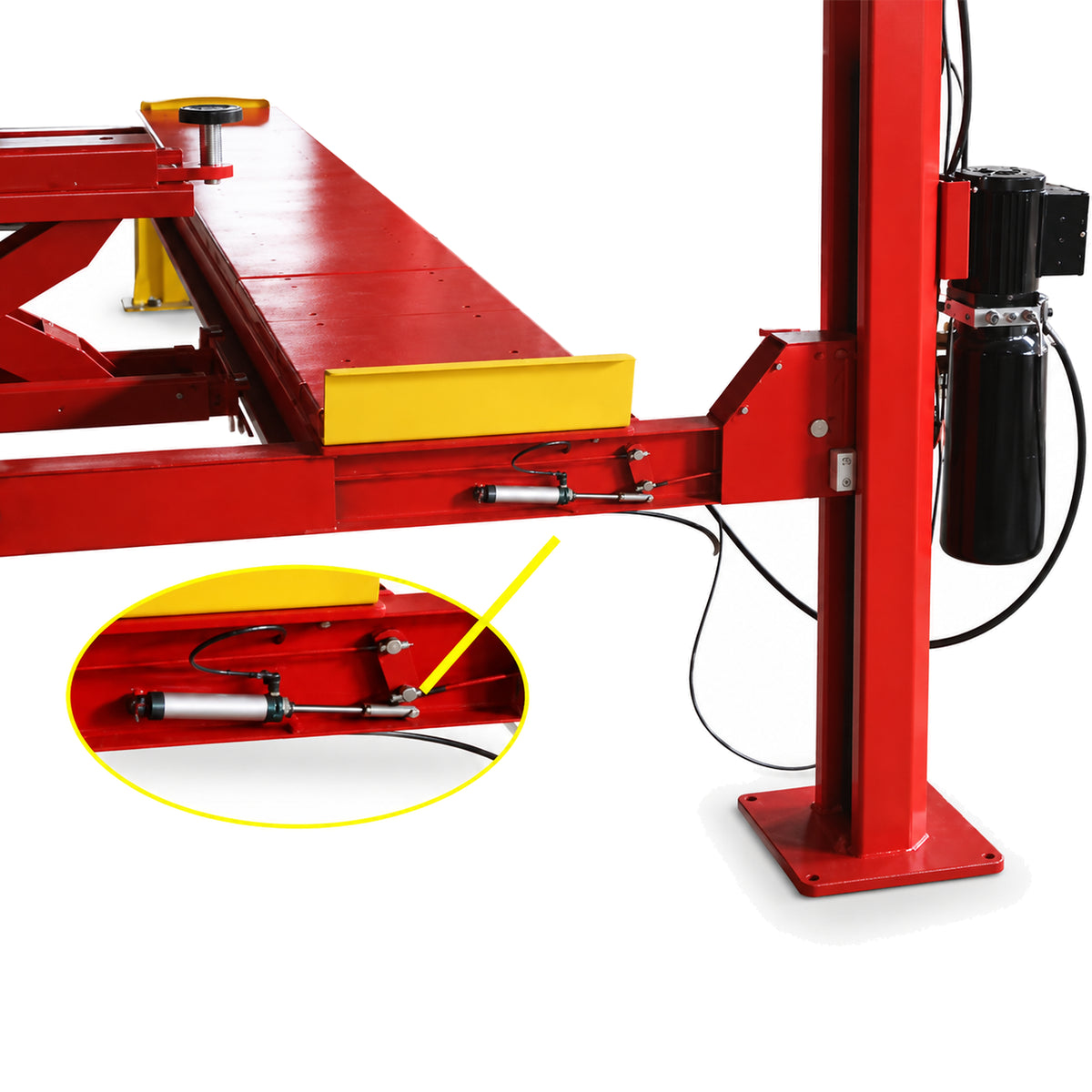

Single-Point Safety Lock Release System
Pneumatic cylinder releases all four column locks simultaneously for synchronized lowering
The single-point manual safety release uses shop air at 90 psi to disengage all four column locks simultaneously. Each column contains dual mechanical locks: a primary pawl engaging every 4.7 inches and a secondary cable-actuated safety preventing drop if hydraulic pressure fails. The pneumatic release cylinder mounts under the runway, connecting to each lock through sealed air lines. The system requires deliberate two-handed operation: holding the release button while activating the lower control.

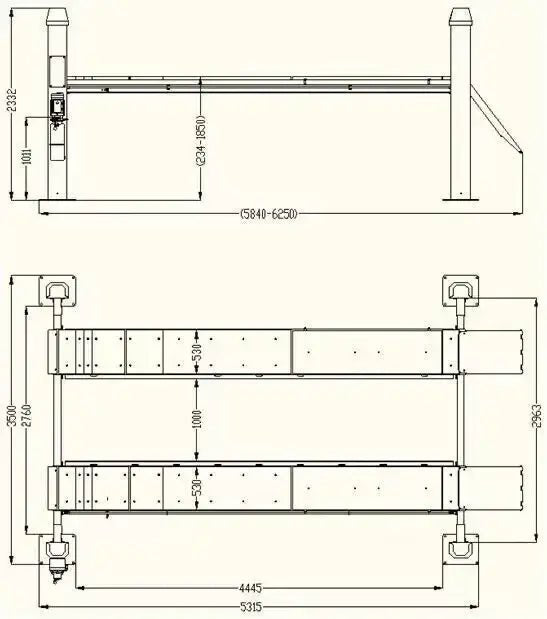

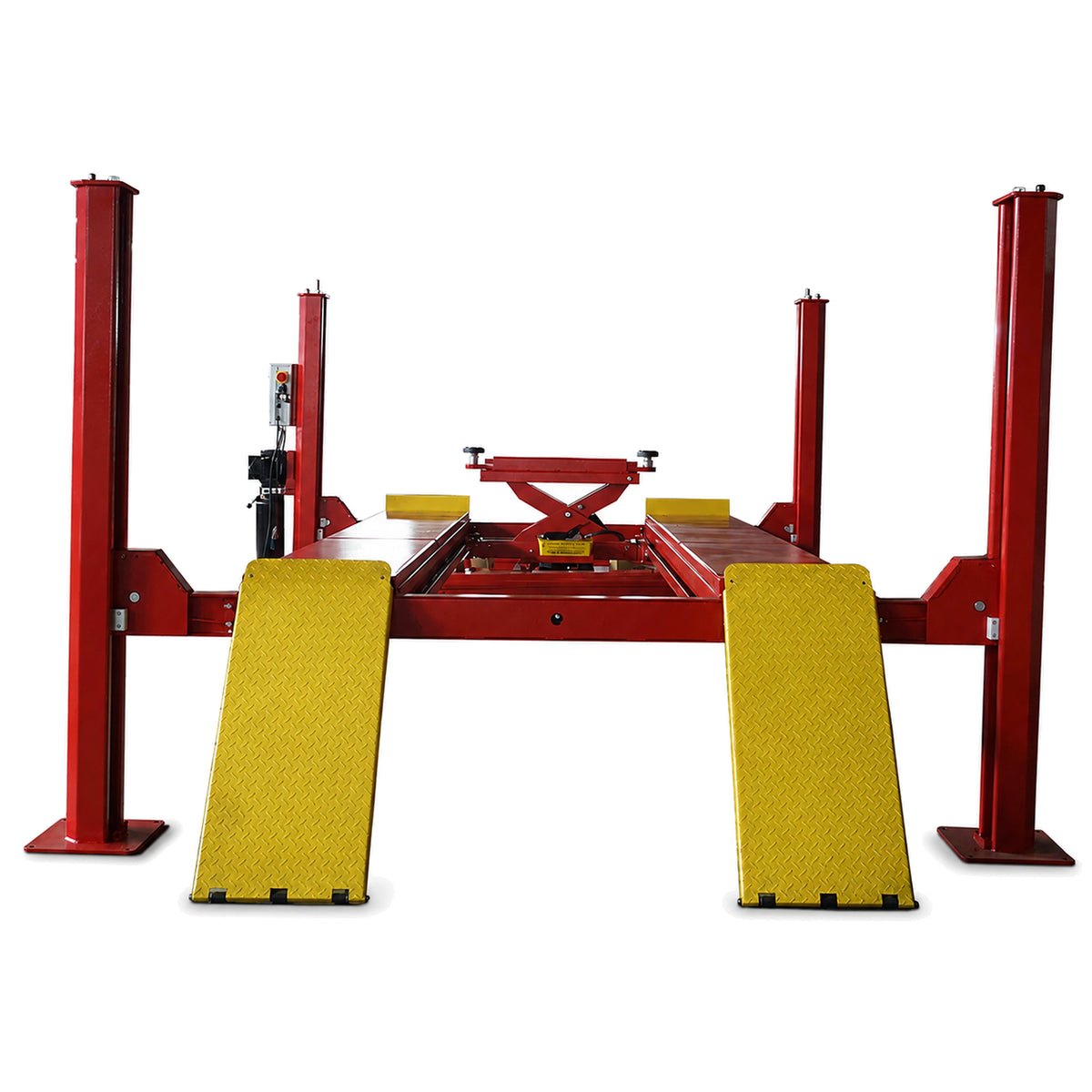

Four Post Alignment Lift Platform with Non-Skid Surface
Extended runways accommodate vehicles up to 208 inches without approach ramps
The runway platform stretches 245.31 inches with approach ramps for extended wheelbase trucks and vans. Diamond-plate steel surfaces offer traction in wet conditions. The 118.11-inch spacing between columns accommodates wide-body trucks without door interference while fitting a standard 14-foot bay. Adjustable wheel stops prevent roll-off during lifting. The platform sits 9.3 inches off the floor when lowered. Steel thickness measures 0.25 inches throughout the runways.

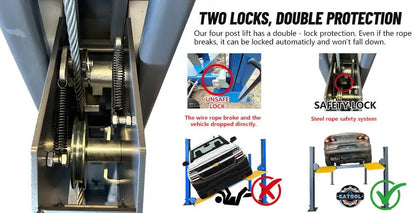

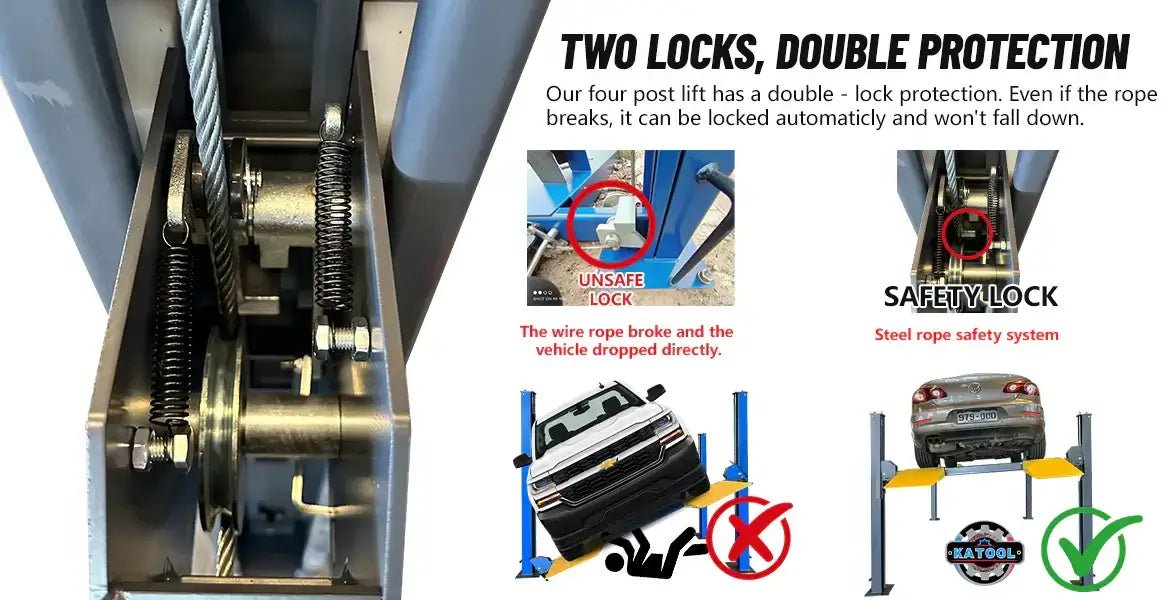

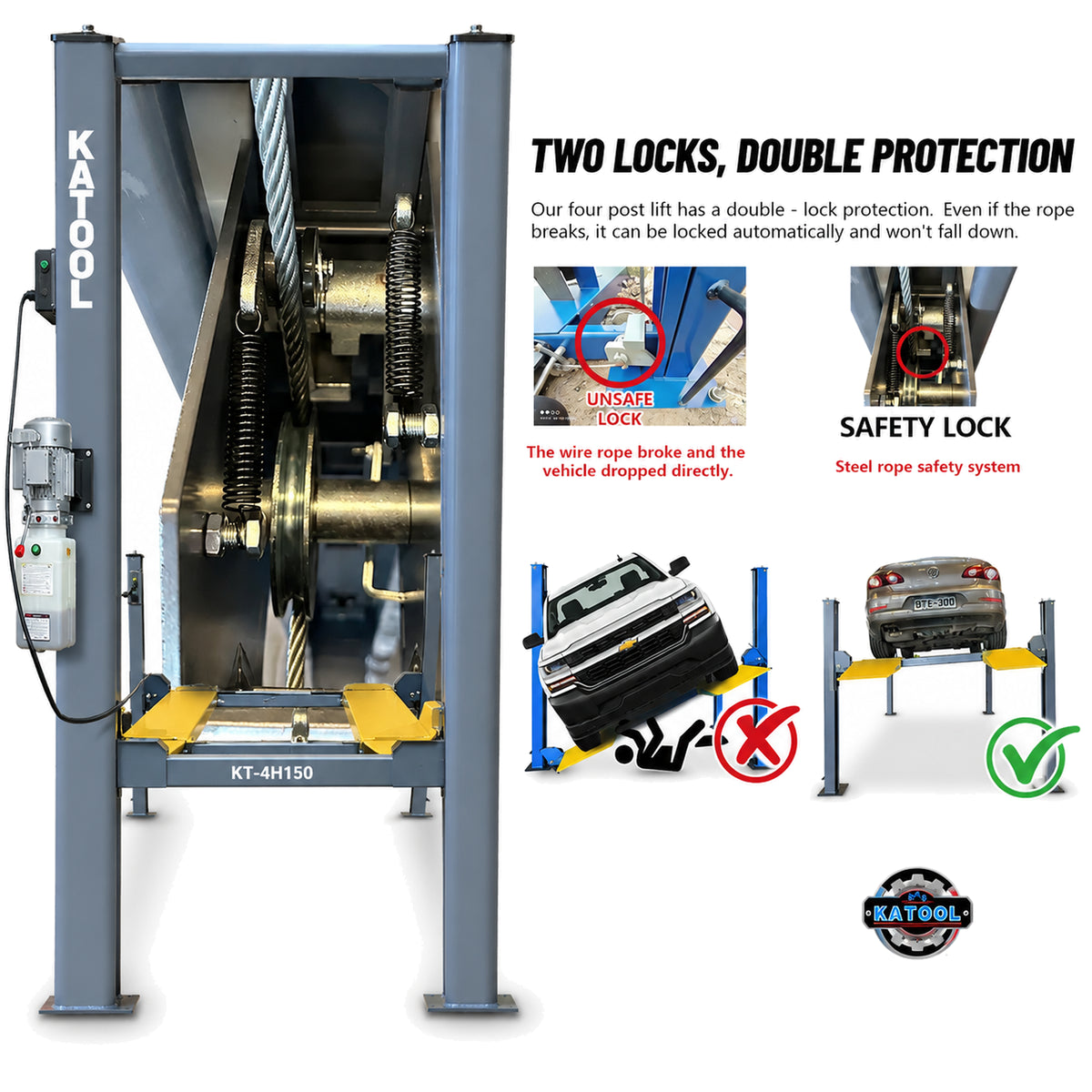

Dual Lock Safety System with Cable Backup
Redundant mechanical locks engage automatically every 4.7 inches during lift ascent
Inside each column, the dual-lock safety mechanism provides redundant protection against hydraulic failure. The primary system uses spring-loaded pawls that automatically engage ladder bars spaced every 4.7 inches, supporting the full 15,000 lb capacity even with total hydraulic loss. Secondary protection comes from 0.5-inch steel cables connected to mechanical locks that activate if primary pawls fail. The ladder bars are laser-cut from 0.75-inch steel plate and heat-treated. Visual inspection windows in each column allow lock engagement verification before working under vehicles.
Video: KT-4H150 Installation and Operation
Watch the complete setup process for this Katool lift, from concrete anchoring through first vehicle lift, including alignment of the columns and cable tensioning procedures.
Applications

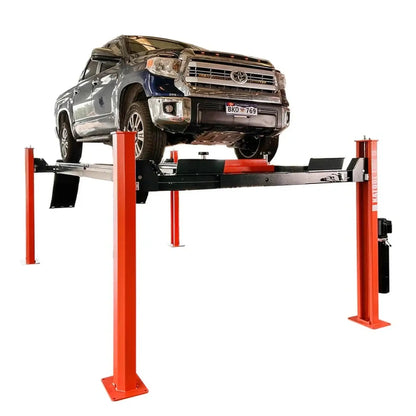

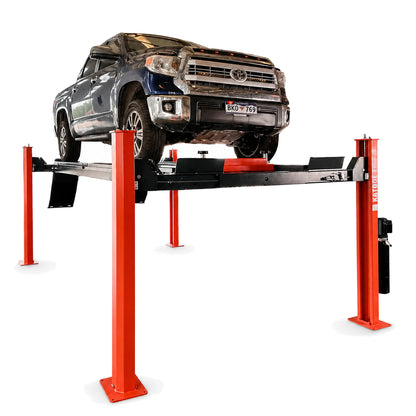

The KT-4H150 serves professional automotive shops requiring versatile lifting for mixed vehicle fleets. This heavy duty 4 post lift accommodates compact cars to diesel trucks with 15000 lb capacity and 92.52-inch maximum height.
Wheel Alignment Services
Wide runway design and optional turntables (contact for pricing) enable four-wheel alignment on vehicles up to 208 inches wheelbase. The included rolling bridge jack allows camber and caster adjustments with wheels hanging free. Lock positions every 4.7 inches dial in exact working height.
General Repair and Maintenance
Full undercarriage access at 92.52 inches lets technicians stand upright while servicing transmissions, exhaust systems, and differentials. Open-front design permits engine removal without repositioning the vehicle. 118-inch column spacing provides clearance for opening doors during electrical diagnosis.
Vehicle Storage and Display
Stable four-point support and 15,000 lb capacity suit long-term vehicle storage, freeing floor space by stacking vehicles. The low 9.3-inch collapsed height preserves ceiling clearance in shops with height restrictions.

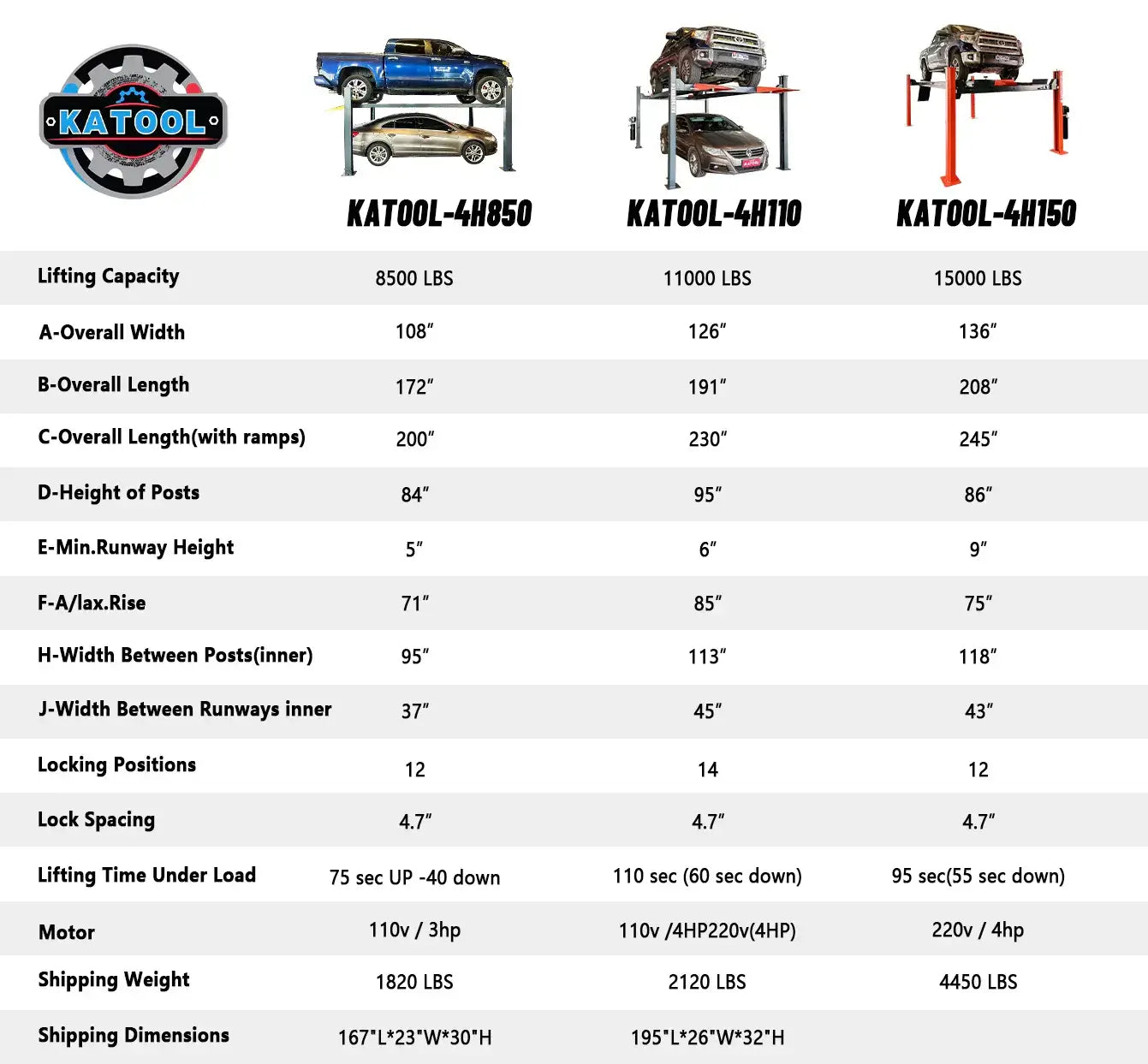

Specifications
| Lifting Capacity | 15,000 lbs (6,803 kg) |
|---|---|
| Max Lifting Height | 92.52" (2,350 mm) |
| Min Runway Height | 9.3" (236 mm) |
| Lifting Time | 95 seconds up |
| Lowering Time | 55 seconds down |
| Lock Positions | 12 total (every 4.7") |
| Safety Testing | 150% static load tested |
| Rolling Jack Capacity | 6,000 lbs included |
| Overall Width | 136.06" (3,456 mm) |
|---|---|
| Overall Length w/Ramps | 245.31" (6,231 mm) |
| Platform Length | 208" (5,283 mm) |
| Between Columns | 118.11" (3,000 mm) |
| Inside Runways | 43" (1,092 mm) |
| Post Height | 85.63" (2,175 mm) |
| Motor Power | 3 kW (220V/60Hz/1PH) |
| Net Weight | 4,850 lbs (2,200 kg) |
Installation Requirements
Professional 4 post lift installation requires proper concrete thickness and electrical infrastructure. The lift anchors to the shop floor through base plates measuring 14.56" x 17.12" at each column.
Concrete Specifications
Minimum concrete thickness of 5.9 inches (150mm) with 3,000 PSI rating. Some documentation shows 3.93 inches (100mm) minimum. Verify with your installer based on local codes. Concrete must cure at least 28 days before anchor installation. Each column requires four 0.75-inch diameter wedge anchors embedded 4 inches deep.
Electrical Requirements
The 3 kW motor operates on single-phase 220V/60Hz power, drawing approximately 15 amps under full load. Requires a dedicated 30-amp circuit. Optional 110V/60Hz configuration available, though this reduces lifting speed by approximately 20%. Control box includes thermal overload protection.
Compressed Air System
Shop air at 0.5-0.7 MPa (72-101 PSI) powers the pneumatic safety lock release. Air connection uses standard 0.25-inch NPT fittings. Daily air consumption averages less than 5 CFM.
Shipping Information
Freight Details
Ships as commercial freight on multiple pallets totaling approximately 4,894 lbs. Requires loading dock or forklift. Main lift platform pallet: 4,057 lbs, 200" x 27" x 33".
- Main lift assembly: 4,057 lbs, 200" x 27" x 33"
- Hydraulic pump unit: 441 lbs, 40" x 24" x 15"
- Approach ramps (2): 66 lbs, 47" x 20" x 12"
- Rolling jack: 330 lbs, 46" x 25" x 13"
Delivery Options
Warehouse pickup available at select locations. Residential delivery requires liftgate service (additional charge). Allow 2-3 weeks for delivery. Inspect all packages before signing, noting damage on the bill of lading.
Warranty Coverage
12-Month Parts Warranty
12-month warranty on all parts and manufacturing defects. Covers hydraulic cylinders, power unit, motor, control electronics, and mechanical components.
Structural Components
Columns, runways, and cross members carry an extended 36-month warranty against structural failure. Covers cracking, bending, or weld failure. Excludes surface rust or cosmetic wear.
Warranty Terms
Claims require photo or video documentation. Approved warranty parts ship free; labor costs are customer responsibility. Warranty is non-transferable. Modifications or exceeding 15,000 lb capacity void coverage.
Documentation
Product Documentation
Access complete technical documentation for installation, operation, and maintenance of your KT-4H150 lift.
- Installation Manual (PDF) - Step-by-step setup instructions with anchor patterns and electrical diagrams
- Technical Specifications (PDF) - Complete dimensions, capacities, and component details
Questions About the Katool KT-4H150?
Our lift specialists can help you determine if this heavy duty 4 post truck lift meets your shop's requirements. We can verify bay dimensions, electrical setup, and concrete specifications.
Frequently Asked Questions
What vehicles can the Katool KT-4H150 4 post alignment lift handle?
Vehicles up to 15,000 lbs with wheelbases up to 208 inches. The 118.11 inches between columns provides clearance for wide-body vehicles.
How fast does the KT-4H150 lift raise and lower?
Full 92.52-inch rise in 95 seconds, lowers in 55 seconds. Complete lift cycles in under 3 minutes.
Is the KT-4H150 a 4 post lift with jacks included?
Yes. 6,000 lb capacity rolling bridge jack comes standard. Rides between runways on precision bearings, connects to main hydraulic system, provides 24 inches of additional lift for wheel-free service.
What electrical requirements does the KT-4H150 need?
220V single-phase 60Hz on a dedicated 30-amp circuit. Optional 110V available but reduces lifting speed by ~20%. Motor draws about 15 amps under full load.
How thick does the concrete need to be for installation?
Minimum 5.9 inches (150mm) with 3,000 PSI rating. Some documentation shows 3.93 inches (100mm) minimum. Verify with installer. Four 0.75-inch wedge anchors per column, embedded 4 inches deep.
What safety features does the KT-4H150 have?
Dual mechanical locks per column with spring-loaded pawls engaging every 4.7 inches. Secondary cable-actuated safety prevents drop with total hydraulic failure. 150% static load tested.
Can I add alignment turntables to the KT-4H150?
Yes. Alignment turntables available as optional upgrade (contact for pricing). Mount to runways for camber, caster, and toe adjustments.
How much space do I need for the KT-4H150?
Minimum 14 feet wide by 22 feet deep. Posts stand 85.63 inches tall, requiring at least 8 feet ceiling clearance.
Is this Katool 4 post lift for sale with the rolling jack included in the price?
Yes. 6,000 lb rolling bridge jack included as standard equipment. Ships on its own pallet. Call (855) 498-2147 for pricing and shipping quotes.
