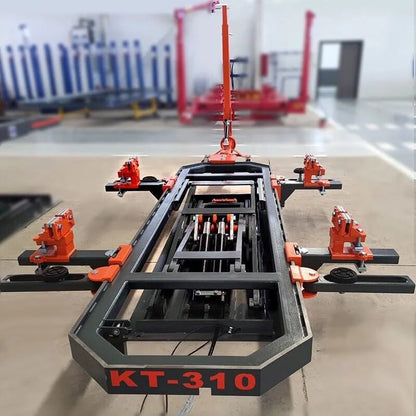

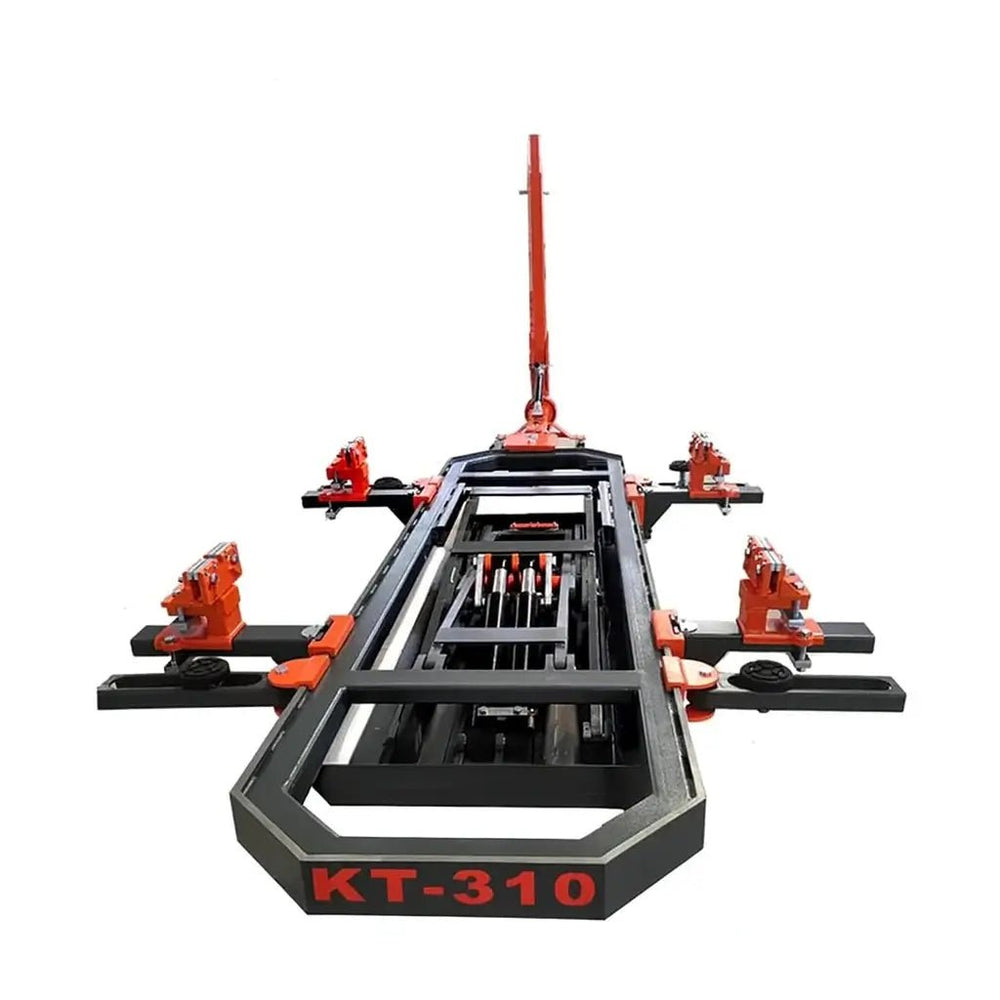

Auto Body Frame Machine - Katool KT-310 with 360-Degree Pulling Tower

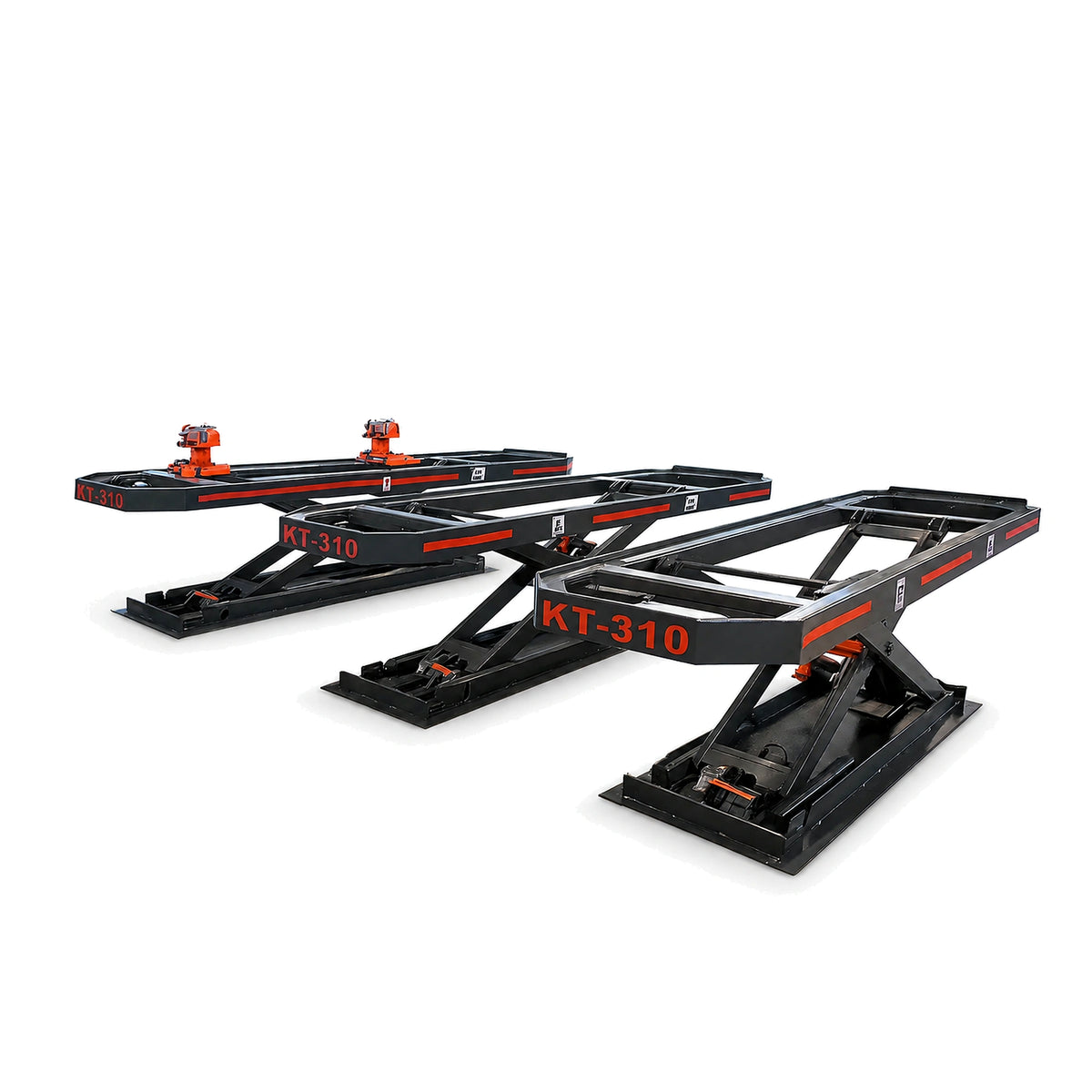

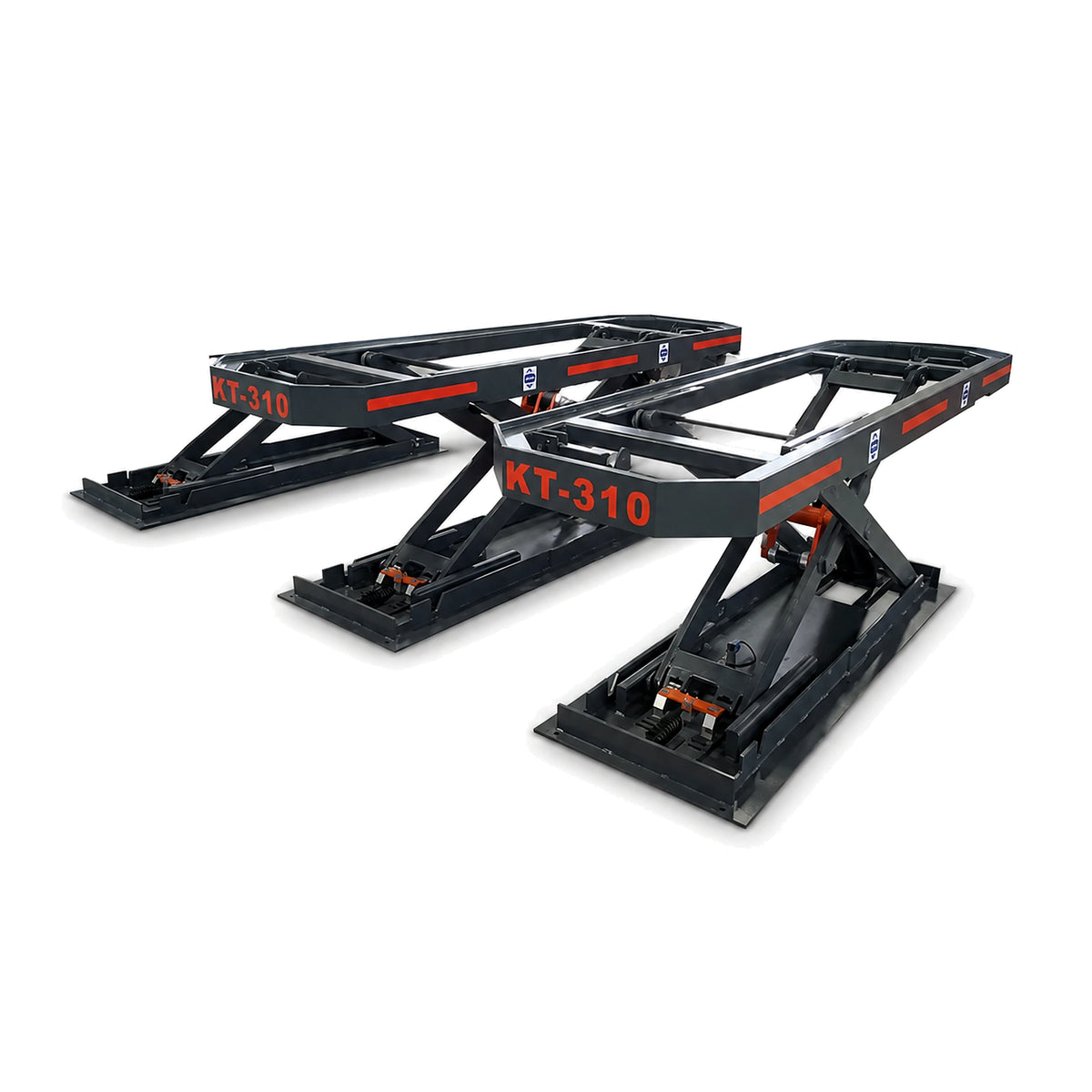

The Katool KT-310 is a hydraulic frame straightener for collision repairs on vehicles up to 7,000 lbs, with a platform that adjusts from 4.3 to 67 inches. CE-certified with Q235/Q245 steel construction, this unit delivers 60 kN pulling force through 360-degree rotating towers on 220V power.
Auto Body Frame Machine Features

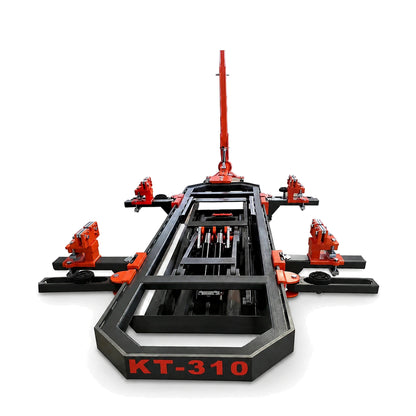

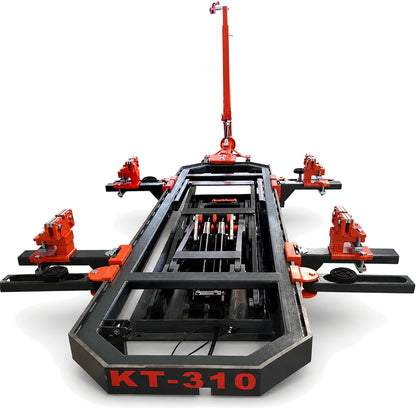

360-Degree Pulling Tower with 60 kN Force
Heavy-duty tower mount with secure locking mechanism60 kN (13,488 lbf) pulling force with full 360-degree rotation. Towers lock at any angle using the bench supporter system so you can pull directly from the damage point without repositioning the vehicle. Quick-fix mounting lets you move towers between positions in under 2 minutes.

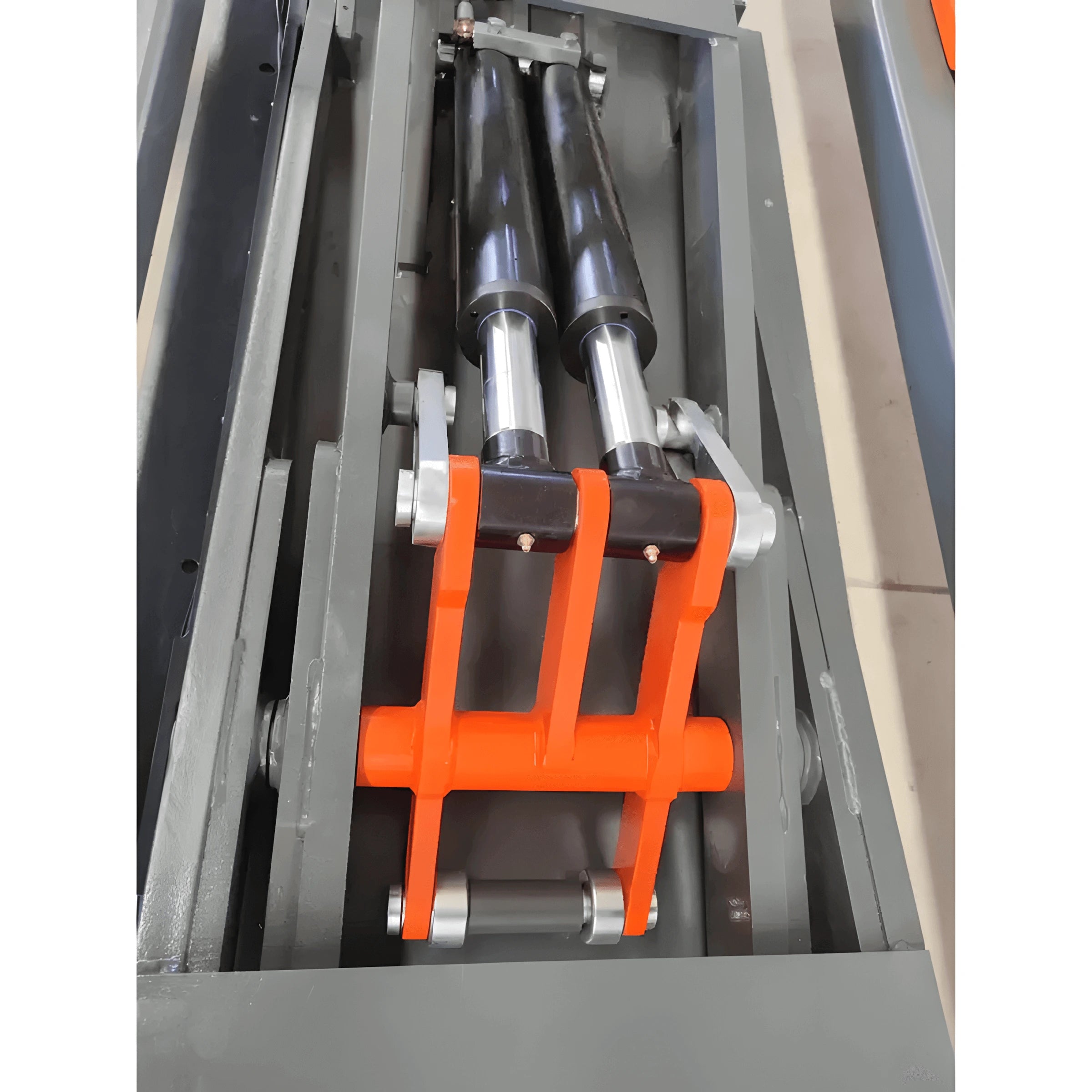

Low 4.3-Inch Drive-On Height

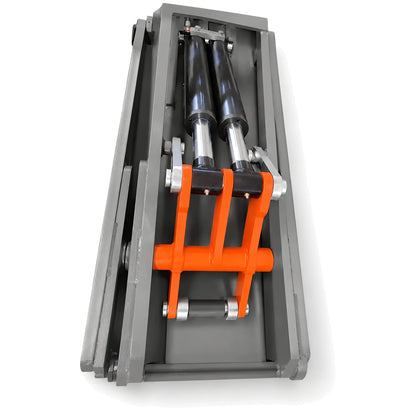

Dual hydraulic cylinders lift from 4.3" to 67"110 mm (4.3") entry height so damaged vehicles roll straight on without steep ramps or extra lifting equipment. Platform rises to 67" on dual hydraulic cylinders with nine locking positions for comfortable working height whether you're under the car or aligning roof structures.

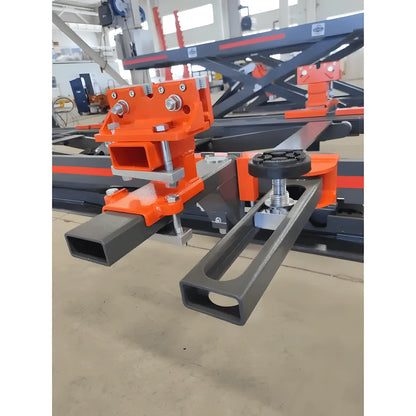

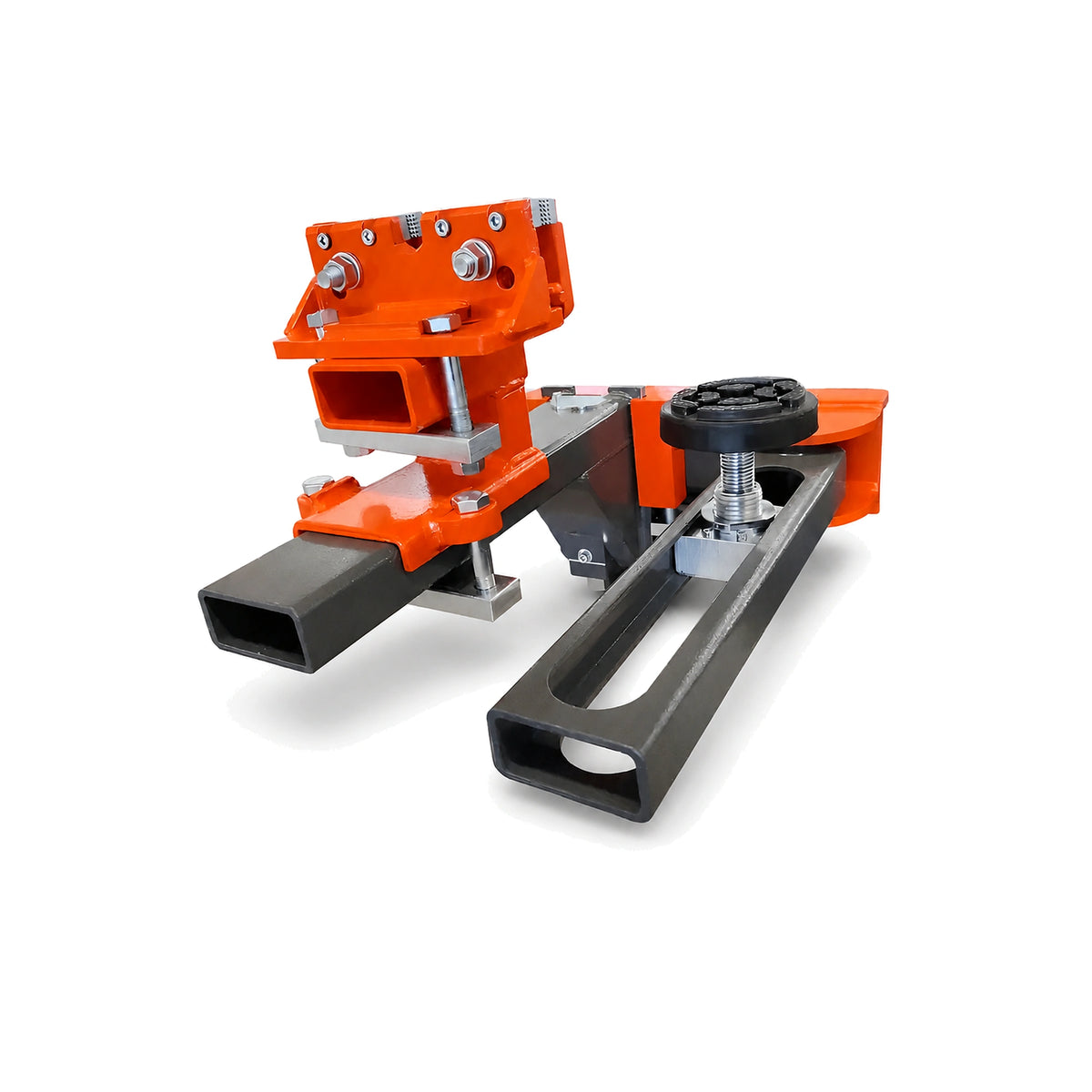

Quick-Fix Clamp System
Two-screw clamps versus traditional four-bolt systemsTwo screws instead of four or six bolts cuts setup time to about 5 minutes per vehicle. Each clamp adjusts to grip frame rails 3-8" wide and slides anywhere along the 130.8" deck. One clamp set covers compact cars through mid-size SUVs.

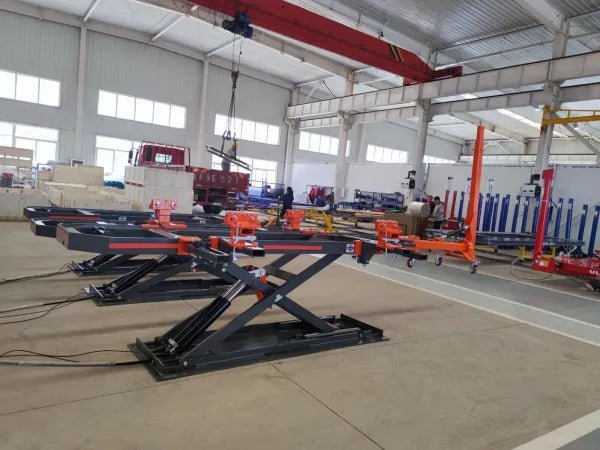

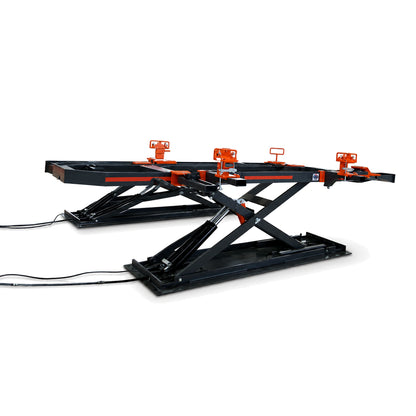

Four Rotating Lifting Arms for Scissor-Lift Mode
180-degree rotating arms turn the bench into a scissor-lift style frame machine. Each arm extends independently to match wheelbases from 90 to 120 inches and locks at 15-degree intervals. This dual-function design can eliminate the need for a separate vehicle lift in tight bays.
Compact 34.5-Inch Width
Fits a standard 12-foot bay with room to work around all sides. Welded Q235/Q245 steel frame with 100mm x 50mm rectangular tubing (5mm wall thickness) supports full 7,000 lb capacity. Detachable towers store vertically when not in use.
Video: KT-310 Frame Machine Operation
Applications
The KT-310 handles light to medium-duty vehicles up to 7,000 lbs, covering most passenger vehicles and light trucks.
- Front-end collision repair on sedans and compact SUVs
- Quarter panel and rear frame straightening (wheelbases up to 130")
- Rocker panel and floor pan alignment after side impacts
- Suspension mounting point correction using 360-degree pulling
- Light truck frame rail straightening (under 7,000 lb gross weight)
- Multi-angle pulls for complex damage requiring simultaneous correction
Specifications
For complete setup and maintenance procedures, see the KT-310 installation manual.
| Specification | Value |
|---|---|
| Frame Length | 130.8" (3,322 mm) |
| Frame Width | 34.5" (876 mm) |
| Height Range | 4.3" to 67" (109 to 1,702 mm) |
| Drive-On Height | 4.3" (110 mm) |
| Max Load Capacity | 7,000 lbs (3,175 kg) |
| Frame Material | Q235 & Q245 Steel |
| Certification | CE Certified |
| Specification | Value |
|---|---|
| Pulling Tower Force | 60 kN (13,488 lbf) |
| Tower Working Range | 360 degrees |
| Rated Voltage | 220V |
| Height Positions | 9 locking grades |
| Lifting Arms | 4 arms, 180° rotation |
| Clamp Type | Quick-fix, 2-screw |
| Hydraulic Cylinders | Dual cylinder system |
Installation Requirements
Electrical
- 220V single-phase or three-phase with dedicated 30-amp breaker
- Outlet within 10 feet of power unit
- GFCI protection recommended
Space & Floor
- Minimum bay: 16' L x 12' W for full tower rotation
- Concrete: 4" minimum thickness, 3,000 psi rated
- Level within 0.25" across footprint
- Overhead clearance: 12' minimum at max height
Assembly
- Two-person assembly: 4-6 hours
- Forklift or engine hoist required (main frame: 1,850 lbs)
- 10 gallons ISO 32 hydraulic oil (not included)
- Eight 0.75" concrete anchors rated 5,000 lbs each (not included)
Shipping Information
- Ships LTL freight: 132" x 36" x 24" pallet, 1,950 lbs
- Residential/liftgate delivery: +$295
- Transit time: 5-7 business days from TX or CA warehouse
- 24-hour delivery notification by phone
- Inspect before signing — note any damage on BOL
Warranty Coverage
Standard Coverage
- 12 months: All parts including cylinders, motors, and electronics
- 36 months: Structural components including frame, towers, and lifting arms
- Replacement parts shipped free
Extended Options
- 2-year extended plan available within 30 days of delivery
- Covers hydraulic and electrical systems
Conditions
- Original purchaser only (non-transferable)
- Photos/video required for claims
- Do not disassemble before approval
- Parts and shipping only — labor not included
- Void if modified or used beyond 7,000 lb capacity
Documentation
- Installation & Operation Manual (PDF) with setup instructions, hydraulic diagrams, and troubleshooting
Questions About the Katool KT-310?
Our frame equipment specialists can help you determine if the KT-310 fits your shop's needs.
Frequently Asked Questions
What size vehicles can the KT-310 handle?
Vehicles up to 7,000 lbs with wheelbases from 90 to 120 inches. That covers most passenger cars, compact SUVs, and light trucks under 3.5 tons.
Does the KT-310 require special electrical wiring?
Yes, 220V power with a dedicated 30-amp breaker. Most shops need a licensed electrician if only 110V outlets exist.
How much floor space do I need?
Minimum 16' x 12' bay for full 360-degree tower rotation with 3' clearance on all sides. The 34.5" width fits narrower bays than competing 7,000 lb machines.
Can one person operate the KT-310?
Yes, once the vehicle is positioned. Quick-fix clamps take about 5 minutes total, and all controls operate from a single panel.
What's included with the KT-310?
Main frame platform, pulling towers, quick-fix clamps, four rotating lifting arms, bench supporter, and hydraulic power unit with control panel. You supply hydraulic fluid (10 gal ISO 32), anchor bolts, and 220V connection.
How does scissor-lift mode work?
Four lifting arms rotate 180 degrees to create vehicle lift points. Each locks at 15-degree intervals and extends to match different wheelbases, raising vehicles from 4.3" to 67".
What maintenance does the KT-310 require?
Check hydraulic fluid monthly, inspect clamp threads and tower bearings every 50 uses, lubricate pivot points weekly. Replace fluid annually or after 500 hours.
How does setup time compare to traditional frame racks?
5-7 minutes with two-screw clamps versus 20-30 minutes for traditional four/six-bolt systems. The 360-degree tower rotation eliminates mid-repair vehicle repositioning.
