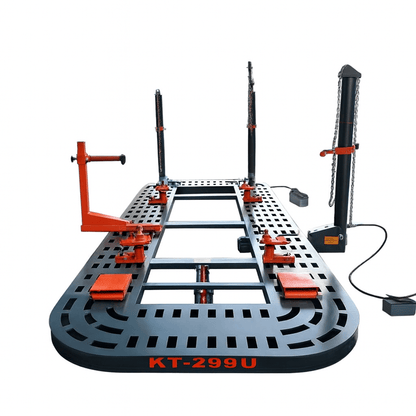

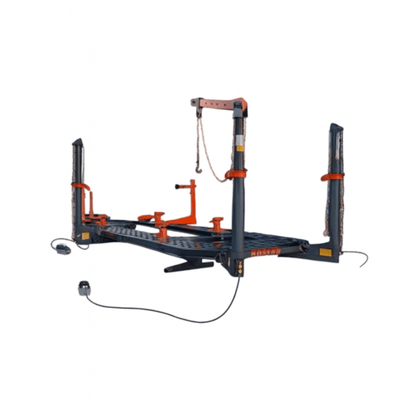

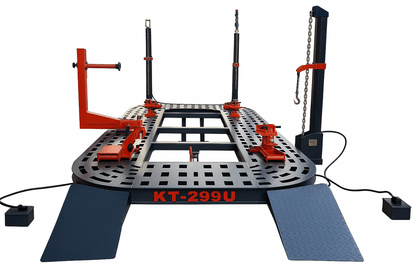

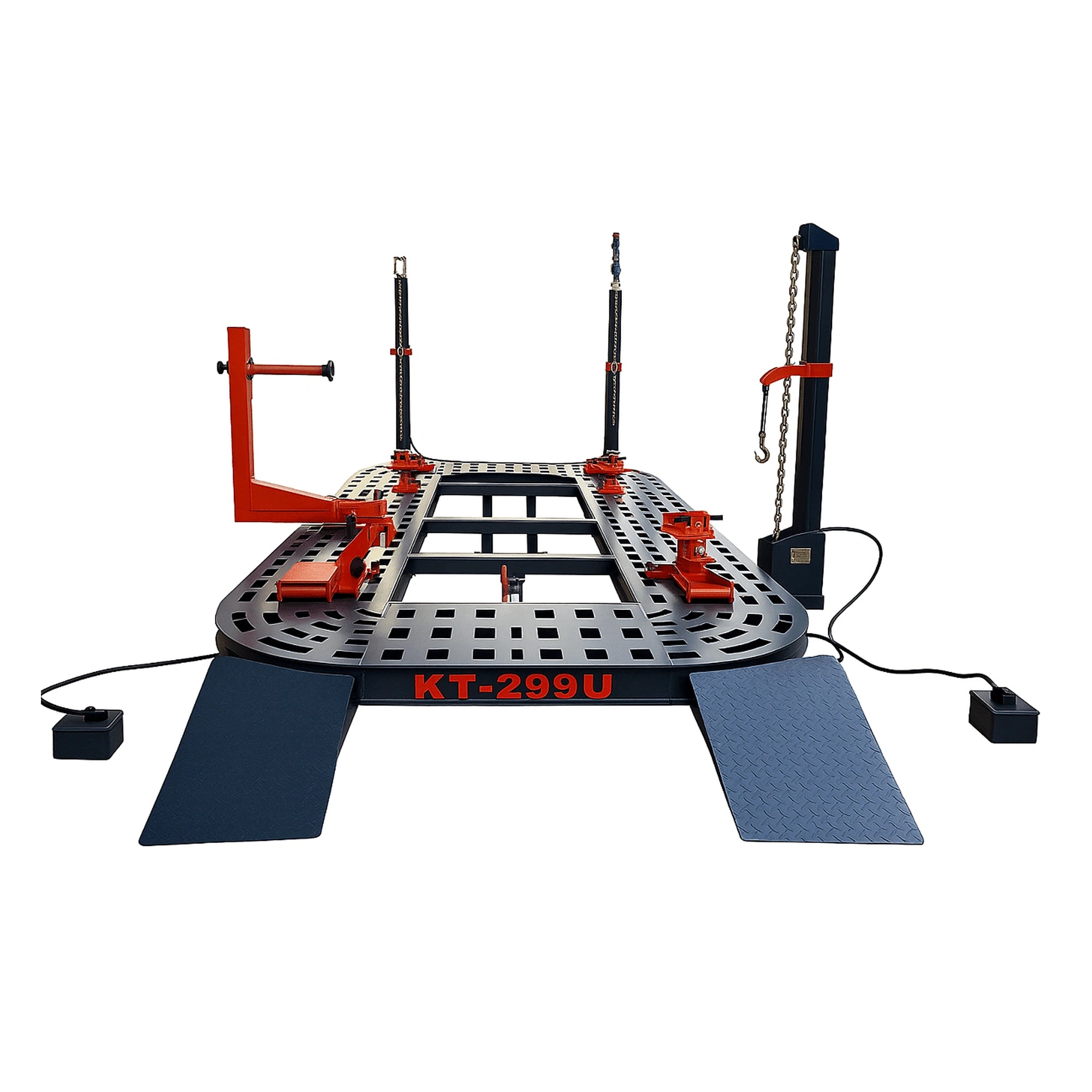

Katool KT-299U Automotive Frame Machine - 10-Ton Frame Machine & 20-ft Frame Rack with 360° Towers

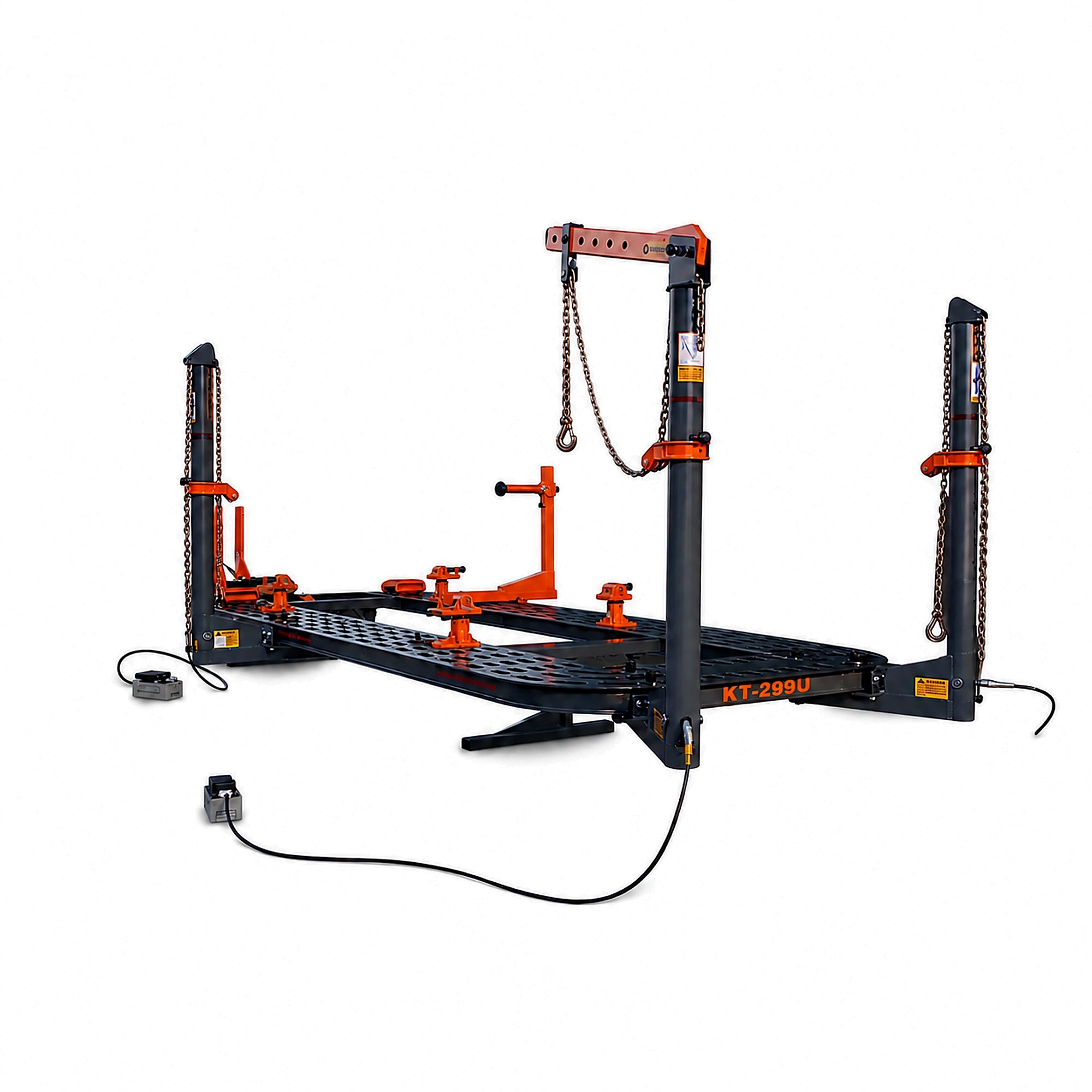

The Katool KT-299U automotive frame machine is a 20-ft collision frame rack delivering 10-ton pulling power and 360° rotating towers. With a 256.1-inch slotted platform and CE-certified 7,700 lbs capacity, this unit handles car frame repair and structural realignment with precision.
Key Features & Benefits

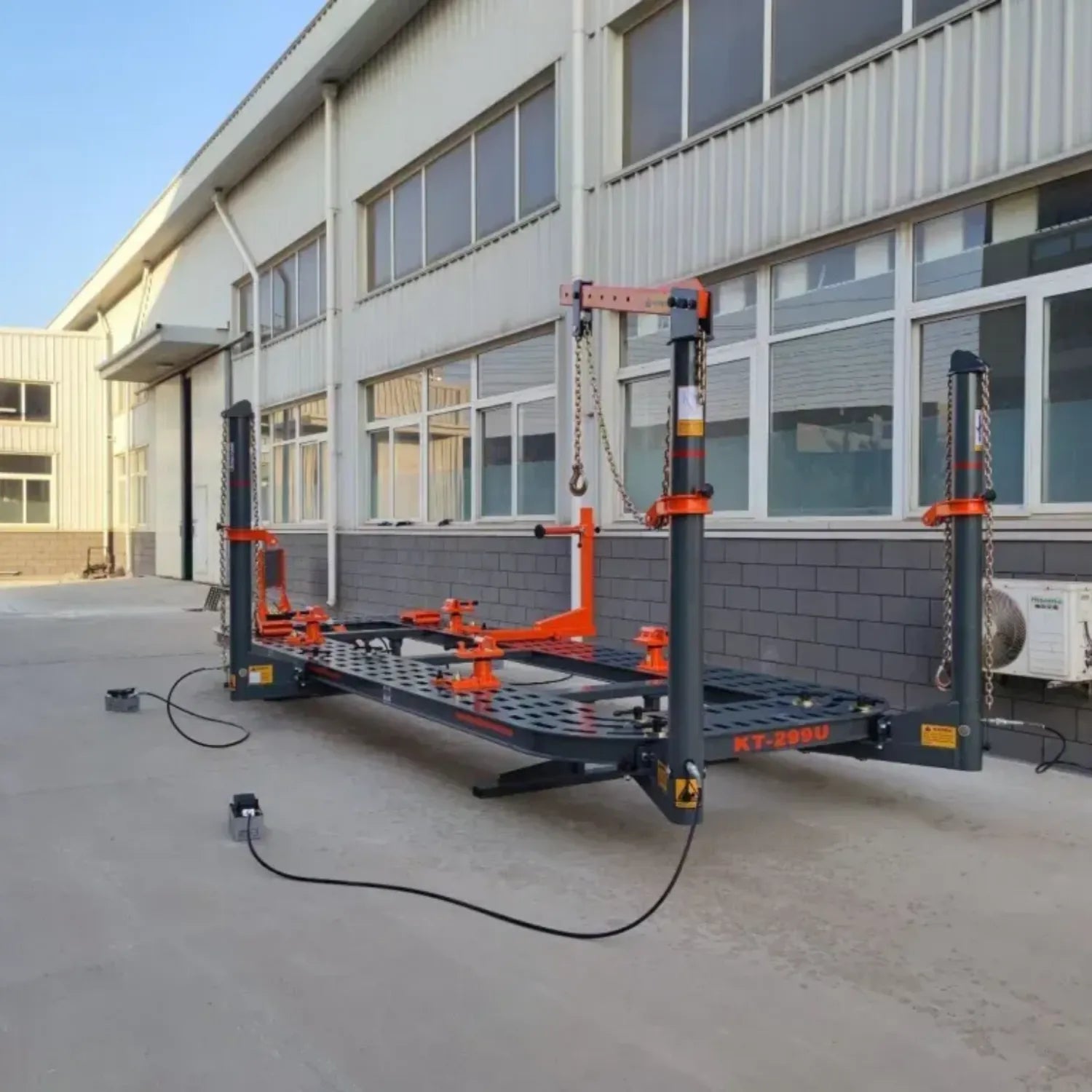

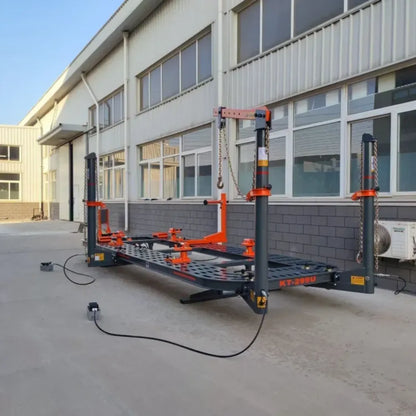

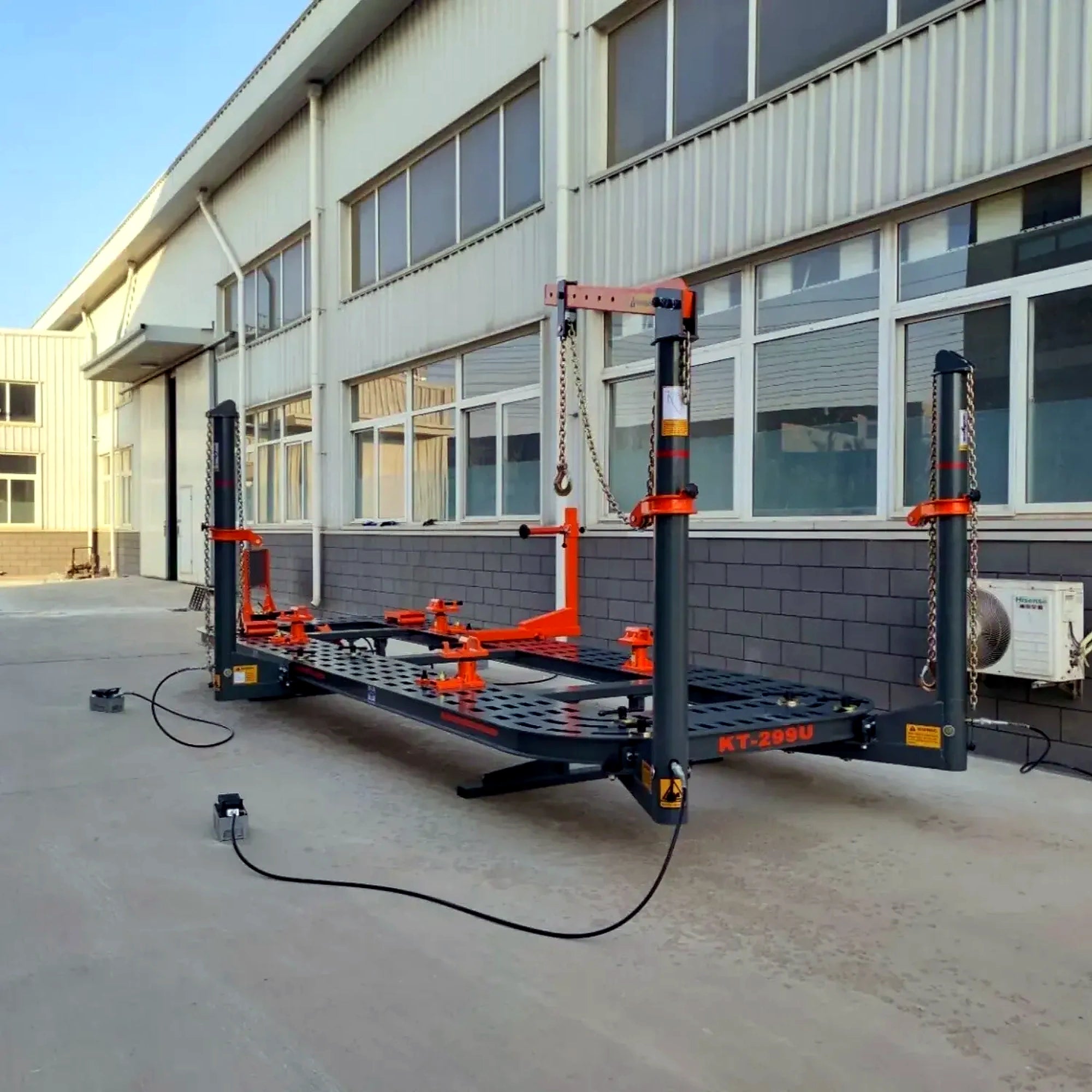

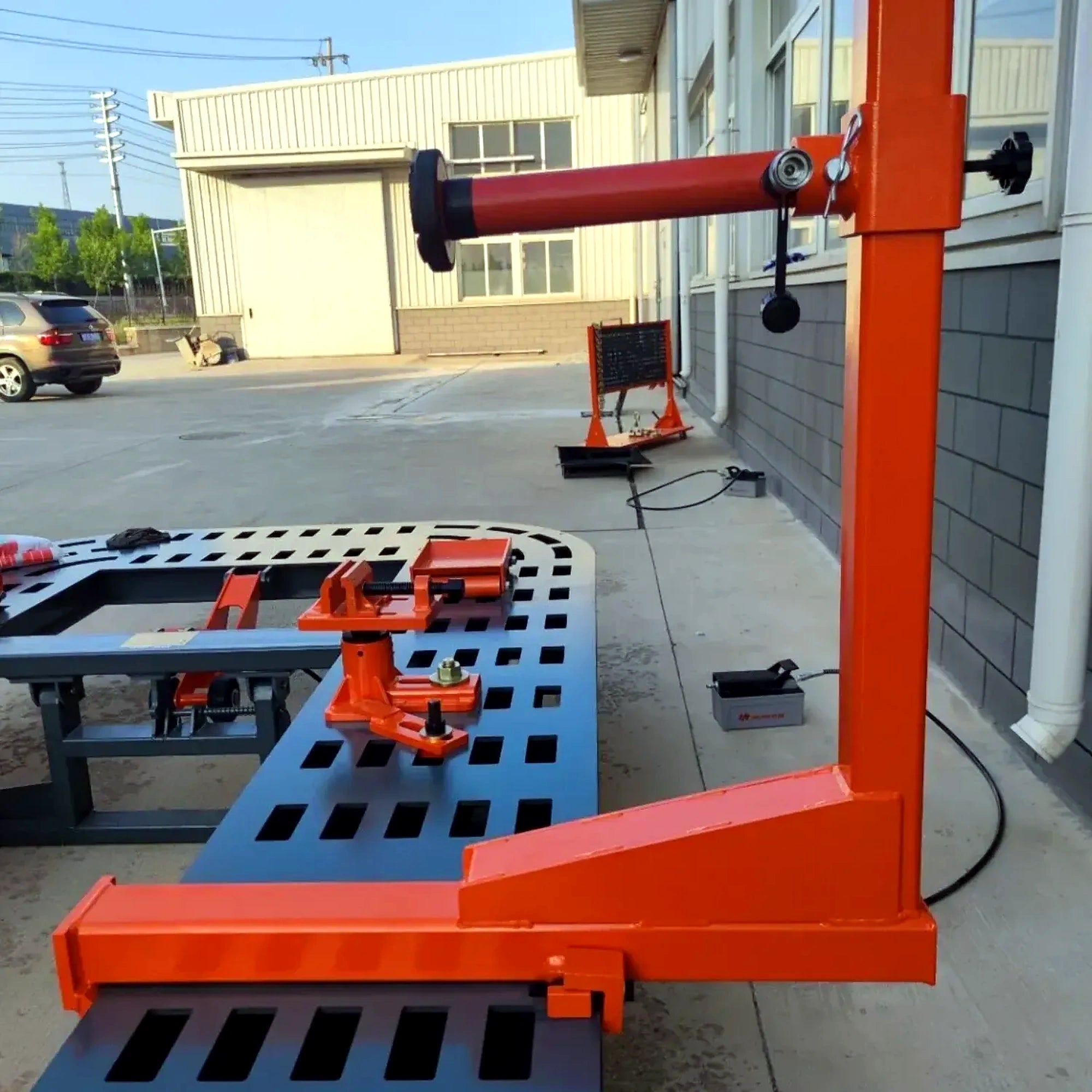

360-Degree Rotating Pull Towers
Four independent towers rotate completely around the platform perimeter, allowing pulls from any angle without repositioning. Each tower delivers 10 tons (100 kN) of pulling force through seamless steel construction, eliminating blind spots and enabling multi-directional correction.

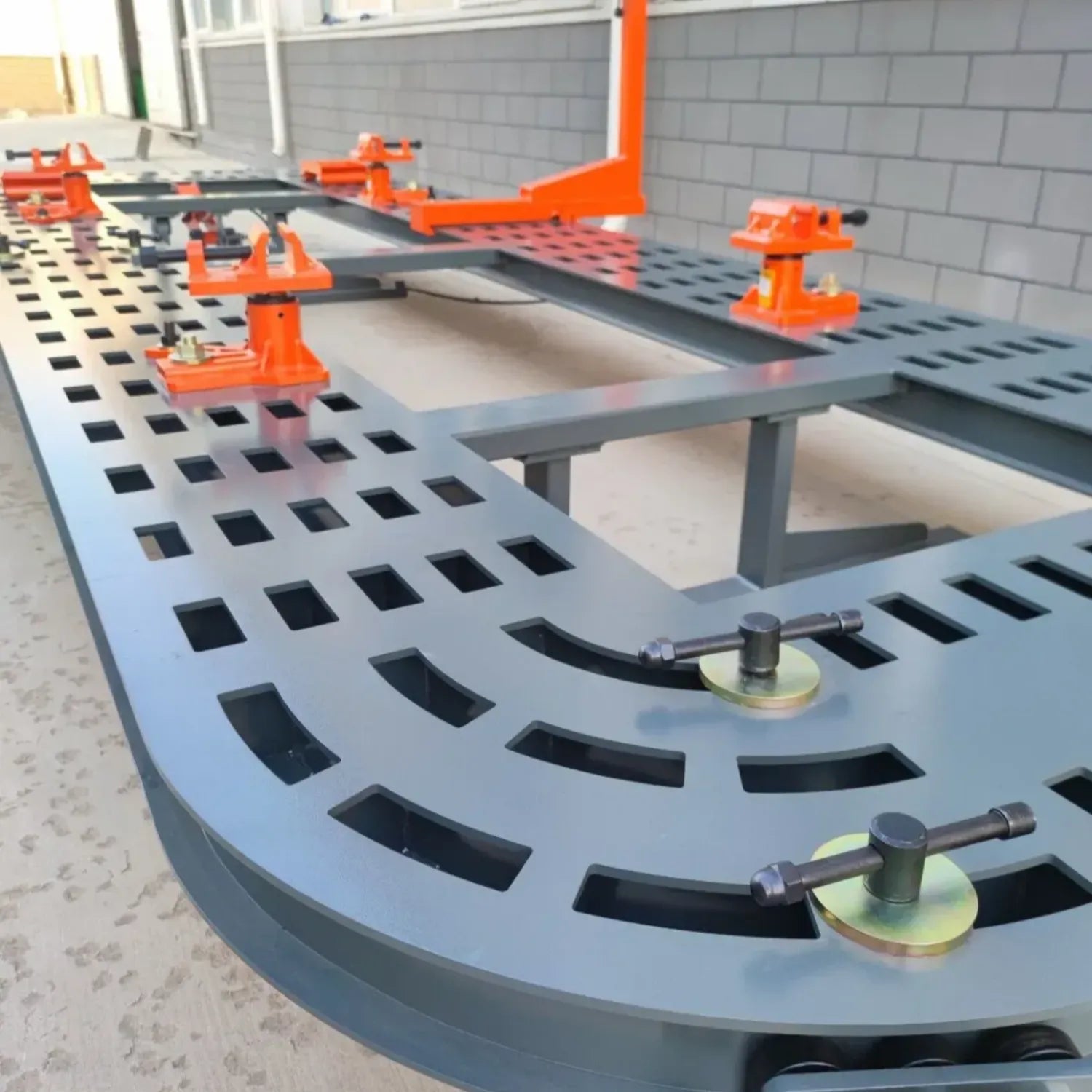

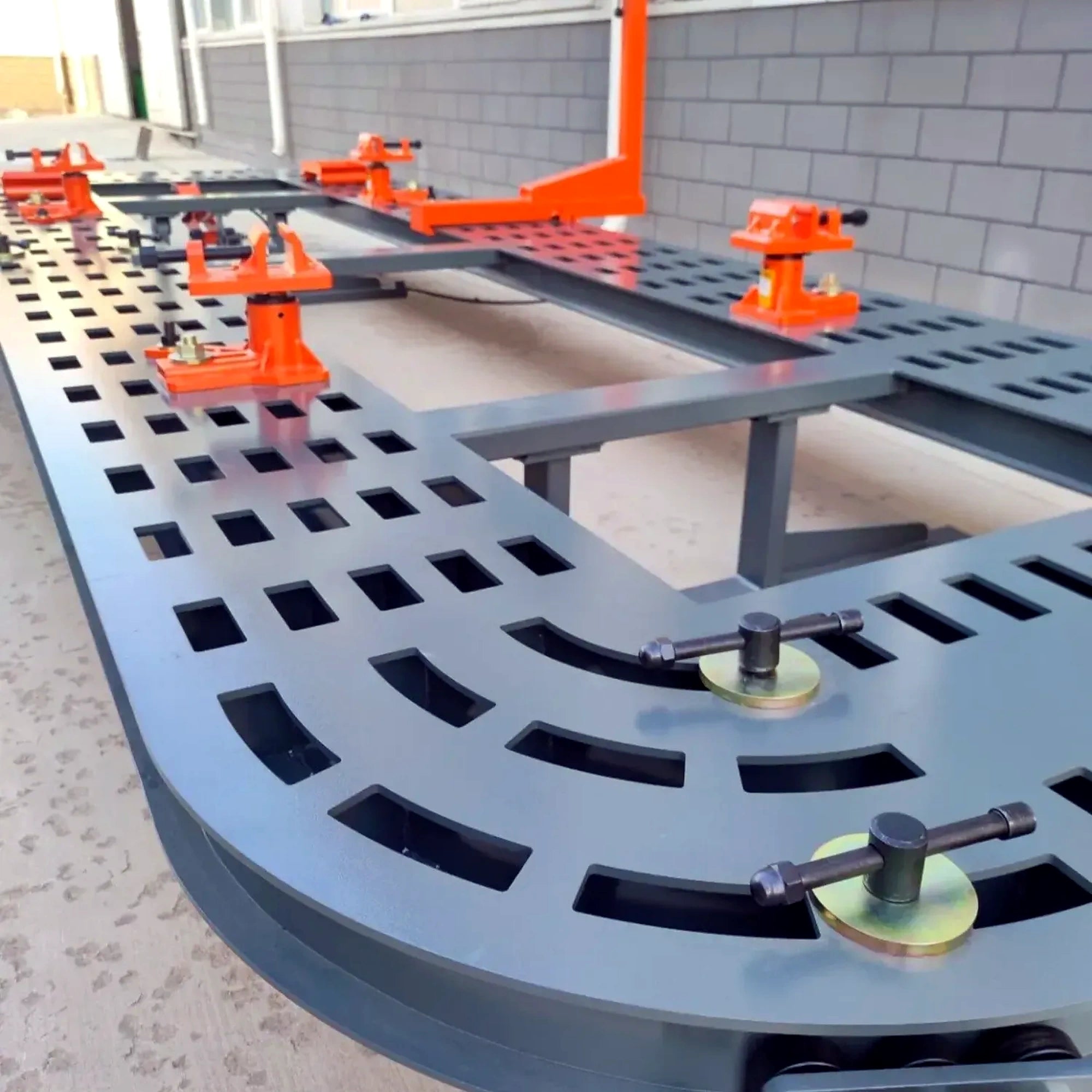

20-Foot Slotted Platform Design

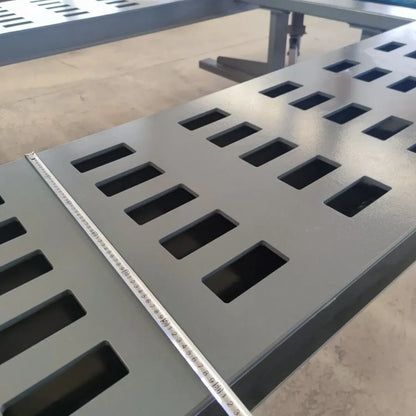

The 256.1 x 86.68 inch platform features continuous positioning slots that eliminate clamp placement restrictions. This design allows anchoring anywhere along the deck surface, accommodating vehicles from compact cars to full-size trucks without compromising pull angles.

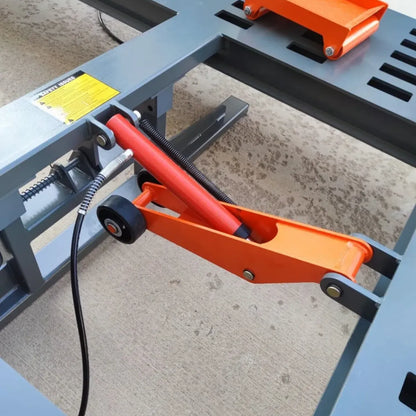

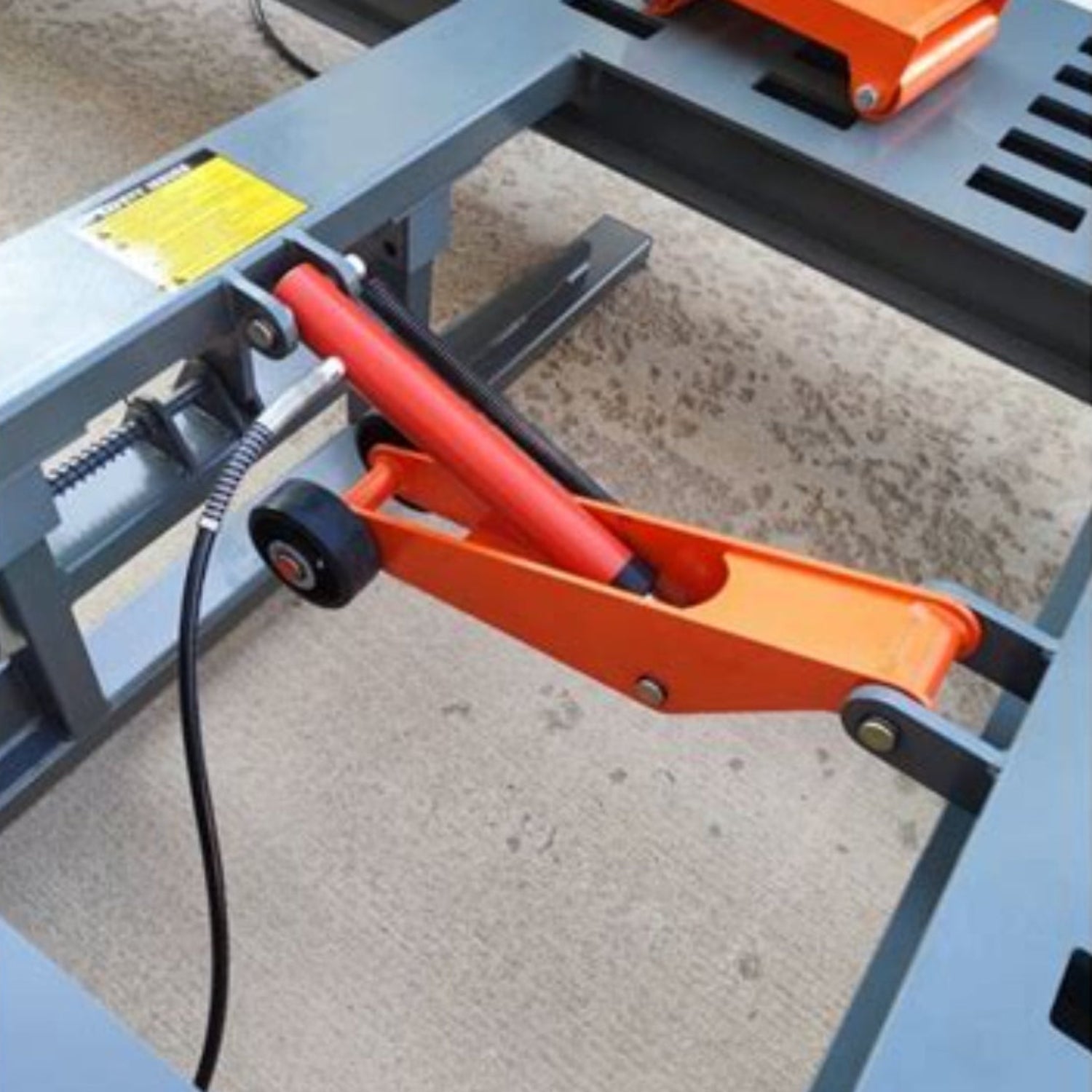

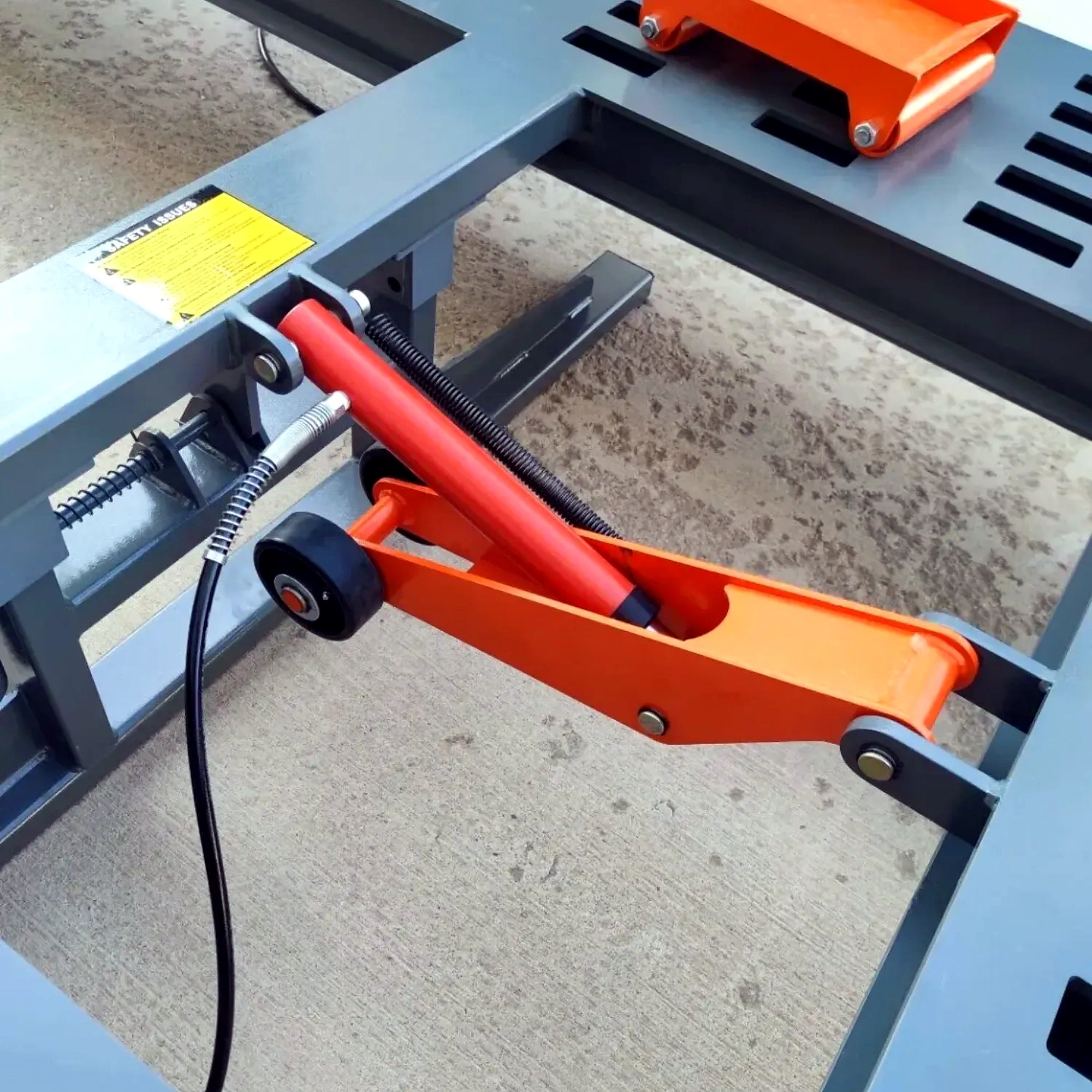

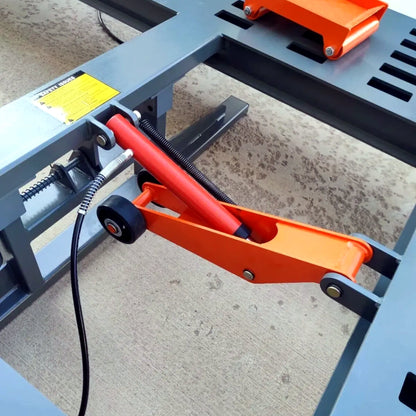

Hydraulic Tilt Lifting System
The platform adjusts from 4.3 to 67 inches via a hydraulic lifting mechanism. This range simplifies loading disabled vehicles at low heights and provides ergonomic access for undercarriage work and pulling operations at full extension.

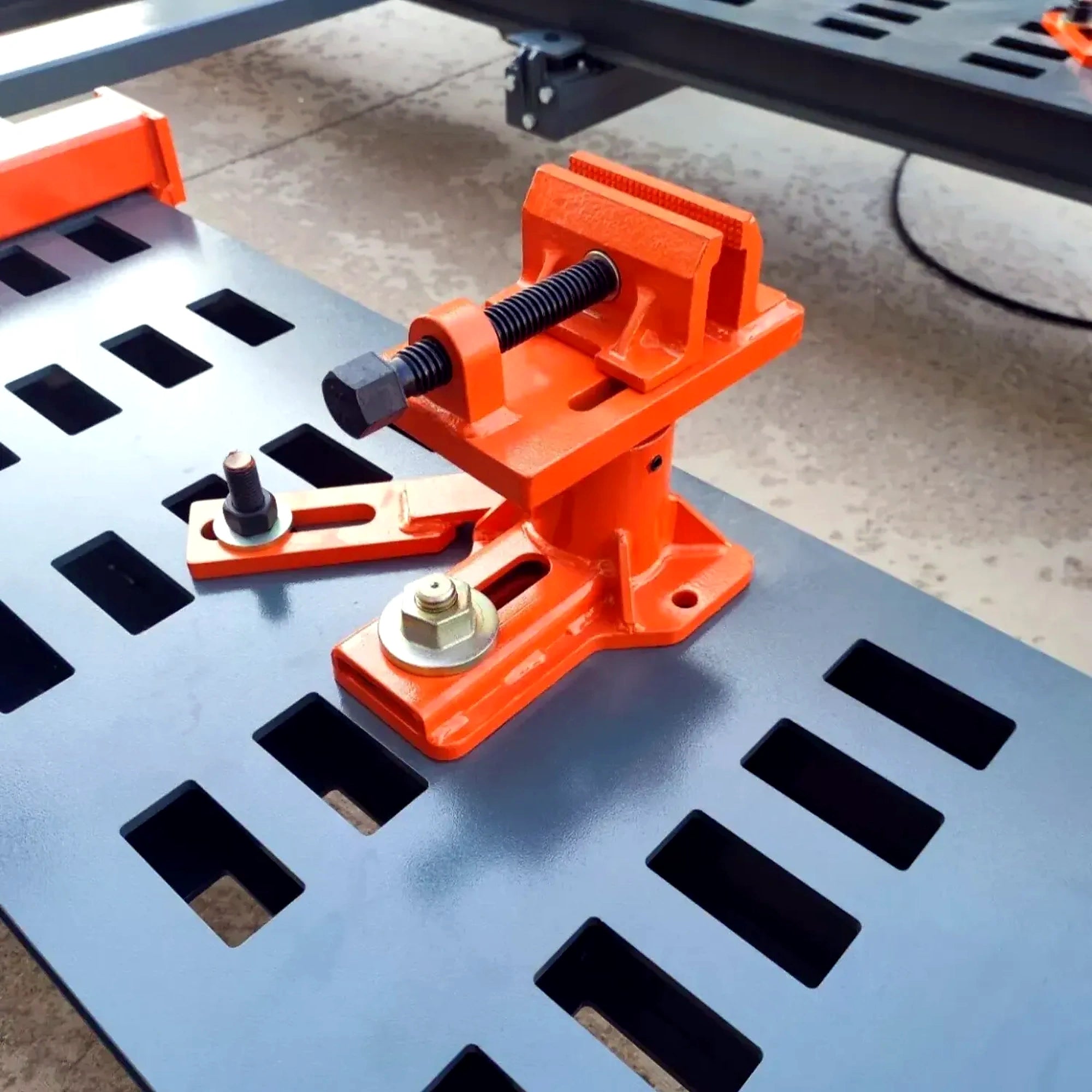

Spiral Movement Main Clamps
Unique spiral-action main clamps provide progressive tightening to prevent slippage during high-force pulls. This design distributes holding force evenly across pinch welds, reducing the risk of metal tearing and maintaining secure grip throughout the repair.
Heavy-Duty Construction Standards

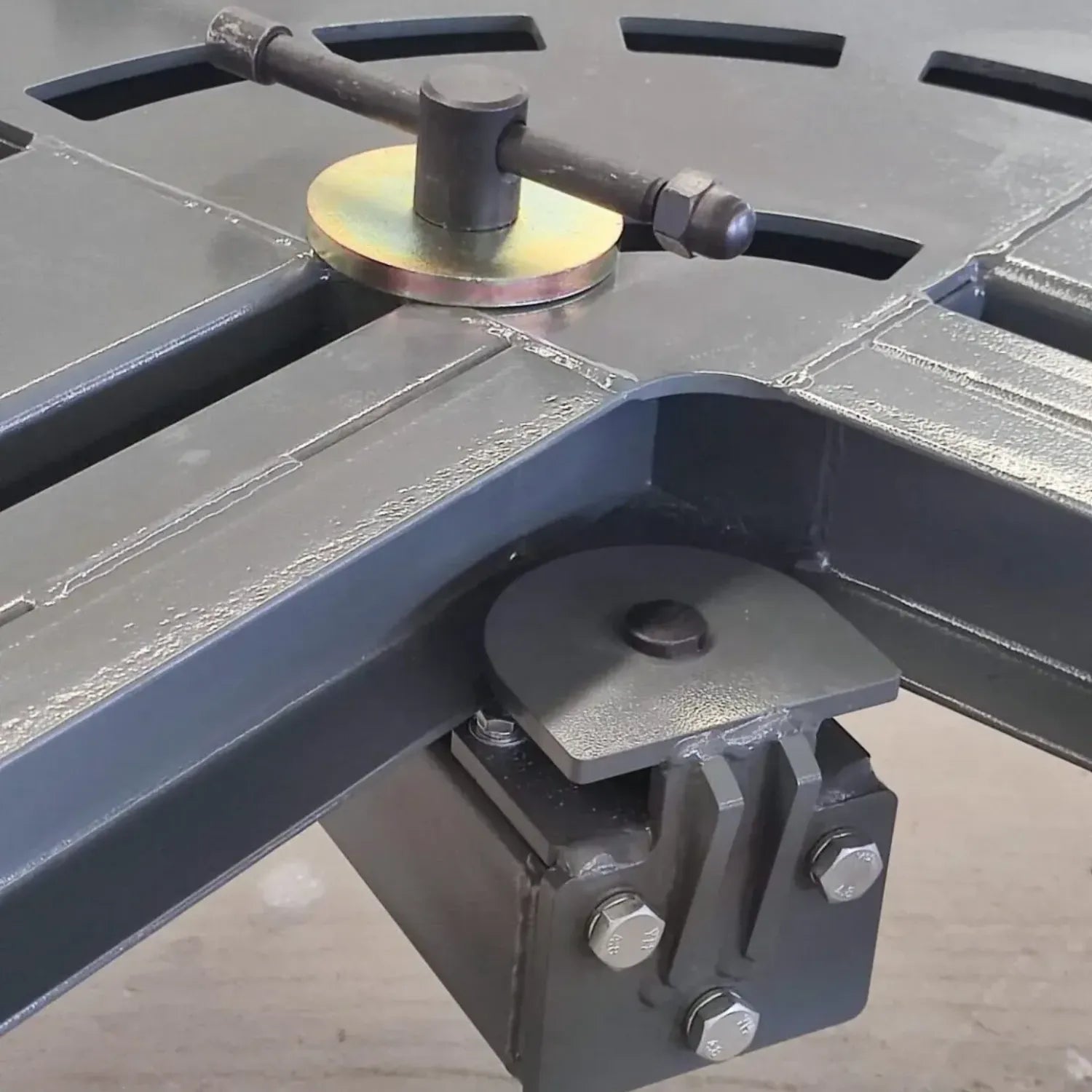

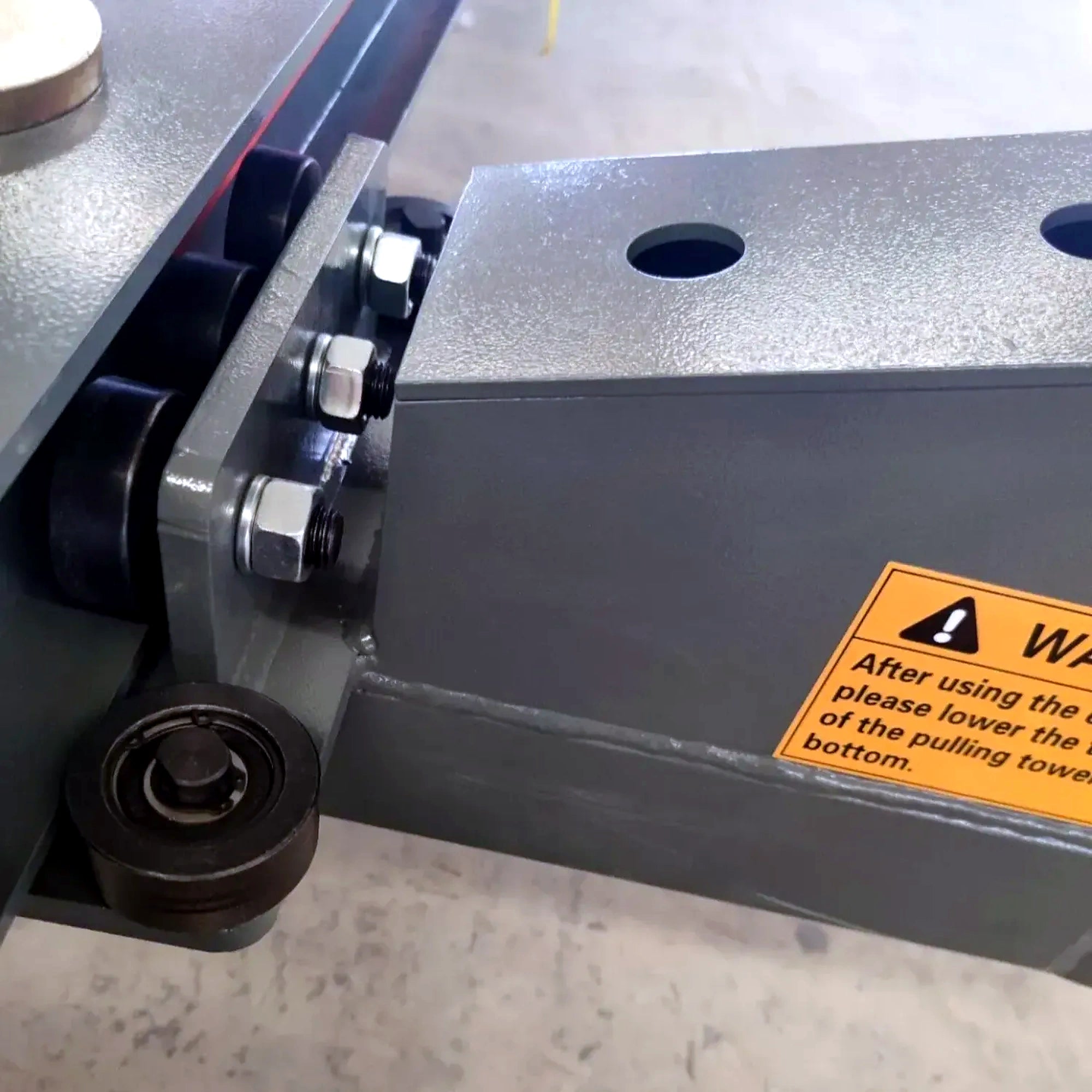

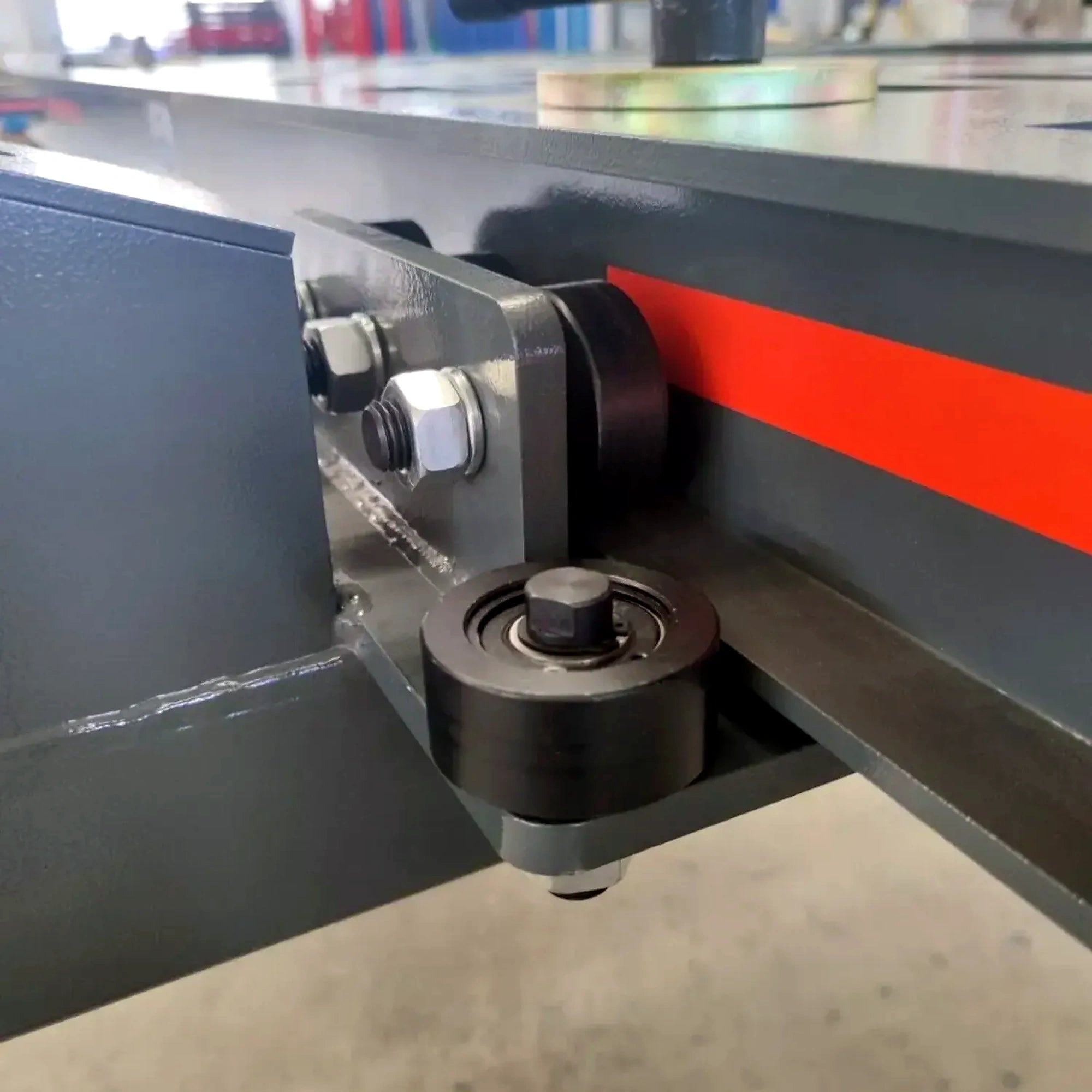

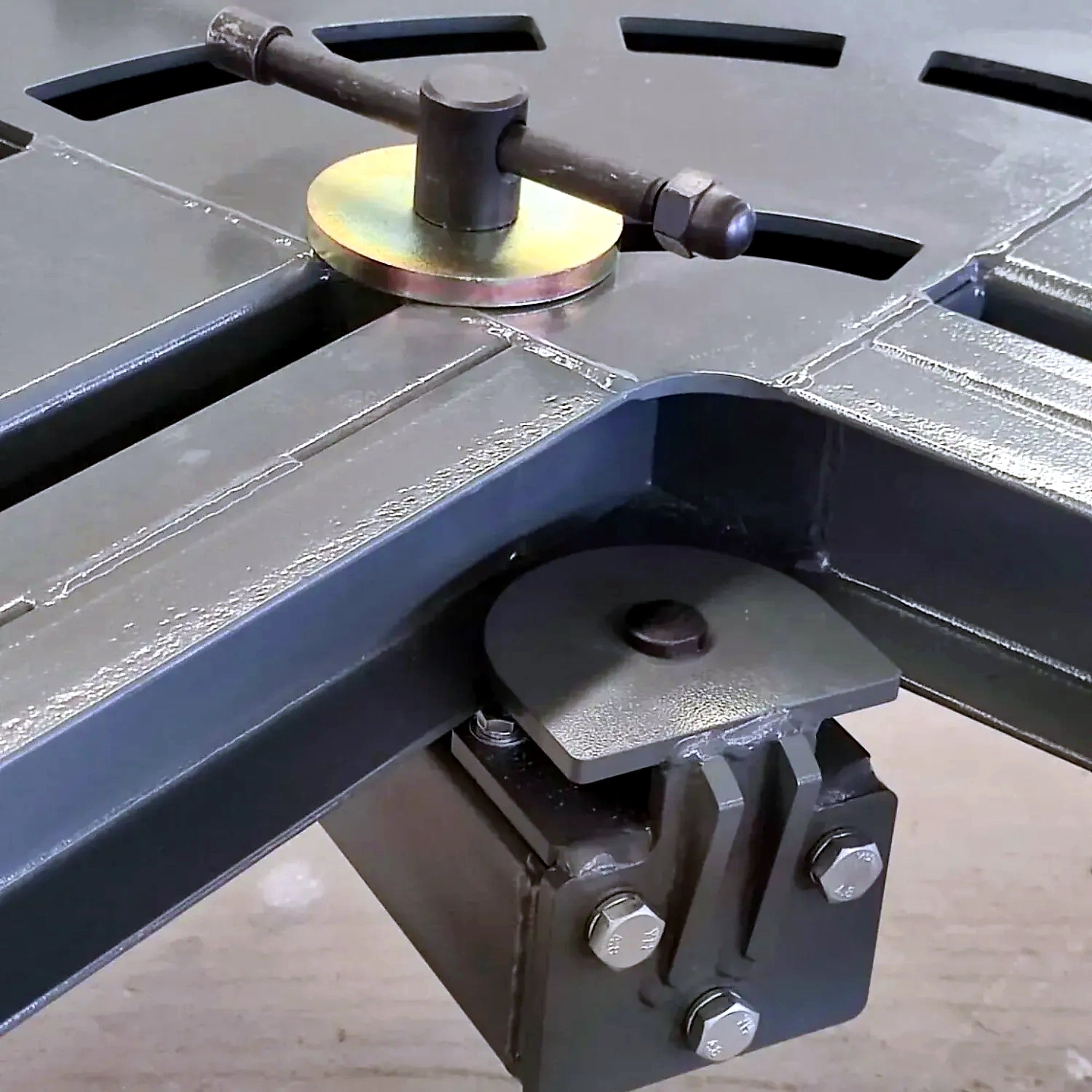

Built with professional-grade welding and precision-cut steel components, this unit meets CE certification standards for a 7,700 lb loading capacity. Reinforced connection points and roller-wheel hinge joints ensure long-term stability and safety.
Complete Accessory Package Included
The KT-299U ships with a comprehensive accessory package including pulling clamps, hooks, chains, and a wheeled storage board. This eliminates additional purchases and ensures all components are compatible for immediate operation.
Applications & Use Cases
- Collision Repair Facilities: Unibody pulls on modern vehicles with integrated frames.
- Body Shops: Full-size truck rail straightening and cab alignment.
- Insurance Repair Centers: Documented structural realignment.
- Fleet Maintenance: Structural repair for delivery trucks and service vehicles.
- Performance Shops: Precise chassis correction for high-value vehicles.
Technical Specifications
| Specification | Value |
|---|---|
| Platform Length | 256.1 inches (21.3 ft / 6.5 m) |
| Platform Width | 86.68 inches (7.2 ft / 2.2 m) |
| Height Range | 4.3 to 67 inches (109 to 1,702 mm) |
| Max Loading Capacity | 7,700 lbs (3,493 kg) CE Certified |
| Tower Construction | Heavy-duty seamless steel construction |
| Specification | Value |
|---|---|
| Pulling Capacity | 100 kN (22,480 lbs / 10 tons) |
| Radius of Pulling | 360 degrees full rotation |
| Power Requirements | 220V single phase |
| Air Supply Required | 0.8 MPa (116 PSI) |
| Number of Towers | 4 independent towers |
Installation Requirements
Power Requirements
- Electrical Supply: 220V single-phase dedicated circuit.
- Power Unit: Integrated hydraulic pump system.
- Circuit Protection: Dedicated breaker recommended.
Air Supply Requirements
- Air Pressure: 0.8 MPa (116 PSI).
- Air Quality: Clean, dry compressed air with filtration.
- Connection: Standard shop air coupling.
Space Requirements
- Minimum Floor Space: 30 x 15 feet.
- Clearances: 4-5 feet on all sides.
- Ceiling Height: Minimum 12 feet.
- Floor Surface: Level concrete capable of supporting load.
Installation Notes
- Professional Installation: Recommended for safety and warranty.
- Permits: Verify local codes.
- Delivery: Forklift or dock required for unloading.
Shipping & Delivery
Freight Coverage
Shipping: Included to commercial addresses within lower 48 US states. Surcharges for residential/remote areas.
Delivery Requirements
Unloading: Forklift or dock required. Curbside delivery standard.
Inspection: Inspect shipment before signing BOL.
Damage Reporting
Within 15 days: Full coverage for replacement parts/freight.
Warranty Coverage
12-Month Parts Warranty
Coverage: All components (cylinders, motors, electronics) covered for manufacturing defects.
3-Year Structural Warranty
Coverage: Main frame, platform, and tower assemblies.
Requirements
Validation: Proof of purchase required. Do not disassemble before approval.
Product Documentation
Ready to Upgrade Your Collision Repair Capability?
Get expert guidance on the Katool KT-299U frame machine. Call to confirm included accessories and installation requirements.
Frequently Asked Questions
What is the pulling force of the KT-299U?
It delivers 100 kN (10 tons) per tower.
What are the electrical requirements?
It requires 220V single-phase power.
How does the slotted deck help?
It eliminates dead spots, allowing flexible clamp placement anywhere on the platform.
What is the max vehicle weight?
7,700 lbs (CE certified).
What is the height range?
4.3 to 67 inches via hydraulic lift.
Are accessories included?
Yes, a complete package with clamps, chains, hooks, and storage board is included.
Is this a new machine?
Yes, it is brand-new equipment directly from Katool distribution.
```
