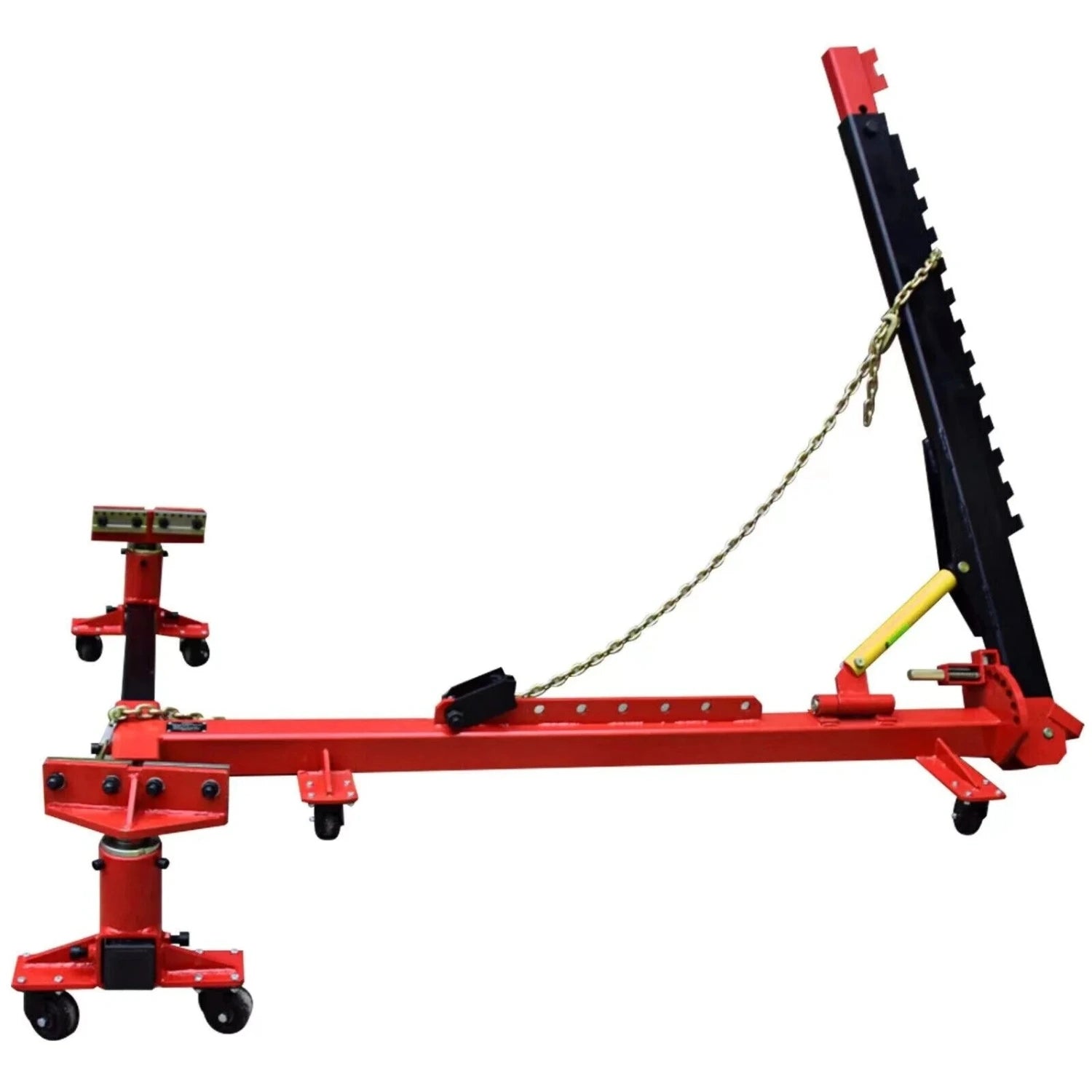

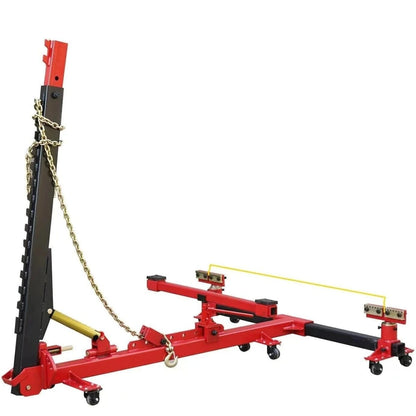

Katool KT-255 Auto Body Frame Machine (Mobile, 3-Ton)
Katool KT-255 Mobile Auto Body Frame Machine, Puller & Frame Straightener with 3-Ton Air Jack
The Katool KT-255 is a professional-grade auto body frame machine and frame straightener that delivers 49KN pulling force through a 90-degree swiveling tower system. This mobile frame machine combines hydraulic frame straightener capability with an integrated 3-ton air bag jack, giving shops a compact auto frame puller and lifting solution that rolls anywhere in the bay. With 70 MPa hydraulic maximum pressure and a fully mobile 617 lb chassis, the KT-255 handles medium-duty car frame straightening without a permanent frame rack.
Also referred to as the Katool KT-255 frame machine, mobile frame straightener, and auto body frame puller for professional collision repair shops.
Key Features & Benefits of the KT-255 Frame Machine
Mobile Workshop Integration
The KT-255's 617-pound chassis with rolling design allows positioning around vehicles rather than requiring vehicle repositioning. This mobile frame straightener functions as a portable frame machine, letting technicians set up the frame puller at the optimal angle for each repair while maintaining workflow efficiency in space-constrained shops. The rolling chassis positions precisely where needed and stores out of the way between jobs, eliminating dedicated floor space for frame repair equipment.
90-Degree Multi-Angle Access System

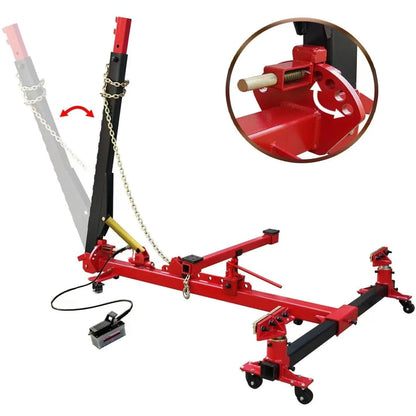

The pulling tower provides full 90-degree swivel capability enabling side, front, and rear damage access from a single equipment setup. This swivel range lets the KT-255 operate as a true frame pulling machine, covering all primary collision damage orientations without requiring repositioning of the vehicle or frame straightener. The single-setup capability addresses complex collision damage patterns that typically require multiple equipment configurations, reducing setup time and physical strain on technicians.
Dual-Function Design Integration
The KT-255 combines 49KN pulling force with integrated 3-ton pneumatic lifting capability in a single frame repair machine. The air bag jack operates independently from the pulling system, enabling simultaneous lifting and straightening operations when repair procedures require both functions. That means no separate jacks needed, reducing equipment costs and floor space while technicians work continuously without switching tools.
Air-Powered Operational Simplicity
The system operates on 0.8 MPa shop air supply without requiring dedicated electrical or hydraulic power units. All pulling and lifting functions for this auto frame straightening equipment are powered through the shop's compressed air system, eliminating the need for additional power infrastructure or electrical connections. This enables immediate operational capability in shops with standard compressed air systems without requiring electrical upgrades or dedicated power installations.
Applications & Use Cases
- Professional Auto Body Shops: Frame straightening operations using a dedicated auto body frame machine / frame straightener for collision repair including side impact, front end, and rear damage requiring medium-duty pulling force.
- Mobile Repair Operations: Workshop environments requiring equipment mobility and flexible positioning around different vehicle types and damage configurations
- Multi-Bay Facilities: Shops needing frame repair capability without dedicating permanent floor space to a fixed frame rack or permanently installed frame machine.
- Serious DIY Mechanics: Advanced garage setups with adequate compressed air systems for occasional frame straightening and body work on personal or project vehicles
- Down-Pull Applications: Vertical and overhead repairs on roof rails, floor pans, and structural components requiring pulling from above
Technical Specifications
| Specification | Value |
|---|---|
| Pulling Tower Capacity | 49KN (11,000 lb) |
| Hydraulic Maximum Pressure | 70 MPa |
| Air Jack Capacity | 3 tons (6,000 lb) |
| Swivel Tower Range | 90 degrees |
| Specification | Value |
|---|---|
| Overall Length | 2320 mm (91.34 inches) |
| Overall Width | 2000 mm (78.74 inches) |
| Total Weight | 280 kg (617 lb) |
| Specification | Value |
|---|---|
| Air Supply Required | 0.8 MPa (116 PSI) |
| Floor Space Minimum | 2.3m x 2.0m plus working clearance |
| Power Requirements | Compressed air only (no electrical) |
Installation Requirements
Air Supply Requirements
- Minimum Pressure: 0.8 MPa (116 PSI) continuous supply capability
- Compressor Capacity: Shop air compressor capable of maintaining pressure during extended pulling operations
- Air Quality: Clean, dry compressed air free from oil and moisture contamination
Floor and Space Requirements
- Minimum Floor Space: 2.3m x 2.0m (91.34" x 78.74") plus working clearance around vehicle
- Floor Surface: Level, solid flooring capable of supporting 280kg plus vehicle load
- Anchoring: No permanent anchoring or concrete work required due to mobile design
Installation Notes
- Mobility: Rolling chassis design allows positioning and storage without fixed installation
- Setup Time: Immediate operational capability upon connection to shop air supply
Shipping & Delivery
Freight Coverage
Shipping: Freight shipping only within lower 48 U.S. states. Additional charges may apply for rural or remote delivery locations.
Delivery Requirements: Customer responsible for unloading from delivery truck. Forklift or loading dock access strongly recommended due to 617 lb total weight.
Delivery Requirements
Unloading Equipment: Forklift or loading dock access recommended for safe unloading of 617 lb unit. Manual unloading possible with adequate personnel but not recommended.
Delivery Type: Curbside freight delivery standard. Inside delivery may be available at additional cost.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warehouse Pickup
Alternative Option: Multiple warehouse pickup locations available for customers preferring direct pickup over freight delivery.
Warranty Coverage
Manufacturer Warranty Program
1 Year - Parts Coverage: All parts and components covered against manufacturing defects, including cylinders, power units, hydraulic components, and mechanical assemblies
3 Years - Structural Components: Extended coverage on main frame and structural components only, exceeding typical industry standard
Warranty Requirements
Eligibility: Warranty is non-transferable and requires original purchase documentation from authorized dealer
Coverage Terms: Replacement parts provided at no cost including shipping. Labor costs not included in warranty coverage
Claims Process: All warranty claims subject to approval by manufacturer warranty department. Photos or videos of defects may be requested
Ready to Upgrade Your Shop?
Get expert guidance on the right frame machine or frame straightener for your facility. Our team can help with product selection, installation planning, and air supply requirements. Call to confirm included accessories and components.
Frequently Asked Questions
What is the pulling capacity of the Katool KT-255?
The KT-255 provides 49KN pulling force (11,000 pounds) suitable for medium-duty collision repair work. The hydraulic system operates at 70 MPa maximum pressure through a 90-degree swiveling tower that provides multi-angle access for comprehensive frame straightening operations. This capacity handles typical collision damage on passenger vehicles, light trucks, and SUVs requiring professional frame repair.
What components are included with the KT-255 frame straightener?

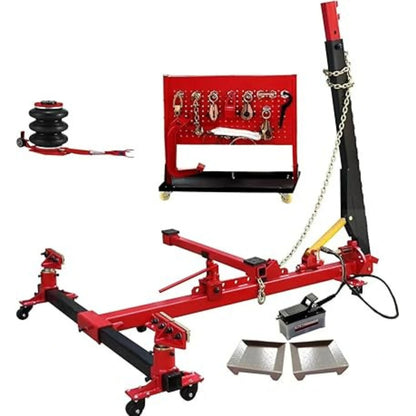

The unit includes the main frame straightener with mobile chassis, 90-degree swivel pulling tower, 3-ton pneumatic air bag jack, and down-pull attachment. Basic pulling chains and clamps are included, though specific inventory may vary by dealer. Call to confirm complete accessory list for your specific order.
What air compressor requirements does the KT-255 have?
The system requires 0.8 MPa (116 PSI) shop air supply with continuous pressure capability. No electrical power is required as all functions operate on compressed air. Your shop compressor should be capable of maintaining pressure during extended pulling operations for optimal performance.
Is permanent installation required for the KT-255?
No, the KT-255 features a mobile rolling chassis design that requires no permanent anchoring or concrete work. The unit can be positioned where needed and stored when not in use. You'll need level, solid flooring capable of supporting 617 pounds plus vehicle load, with minimum floor space of 91.34" x 78.74" plus working clearance.
What types of collision damage can the KT-255 handle?
The KT-255 is designed for medium-duty collision repair including side impact, front end, and rear damage. The 90-degree swivel tower and down-pull attachment enable repairs on roof rails, floor pans, and vertical structures. With 49KN pulling force, it's suitable for professional auto body work and serious DIY applications.
What warranty coverage is provided with the KT-255?
Katool provides 1-year warranty on all parts and components, plus 3-year structural warranty on frame components. Warranty is non-transferable and requires original purchase documentation. Replacement parts are provided at no cost including shipping, though labor costs are not covered.
How is the KT-255 shipped and what are delivery requirements?
The unit ships via freight within the lower 48 states. Customer is responsible for unloading from delivery truck. Forklift or loading dock access strongly recommended due to 617 lb total weight. Warehouse pickup is available through select dealers as an alternative to freight delivery.
What are the dimensions and space requirements for the KT-255?
The unit measures 91.34" long by 78.74" wide and weighs 617 pounds. Minimum floor space needed is 2.3m x 2.0m plus working clearance around the vehicle being repaired. The mobile design allows positioning and storage without dedicating permanent floor space to frame repair equipment.
Is the KT-255 a frame machine or a portable frame puller?
The KT-255 is a mobile auto body frame machine that also functions as a frame puller and frame straightener. It gives shops frame straightening machine capability similar to a traditional frame rack, but in a compact, mobile format that doesn't require permanent installation.
