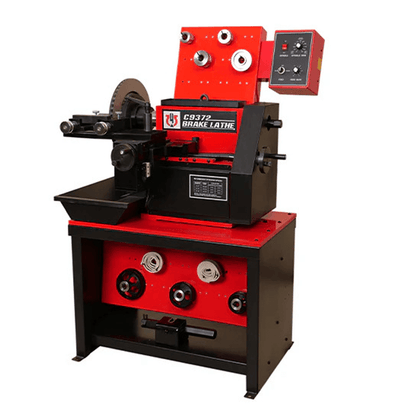

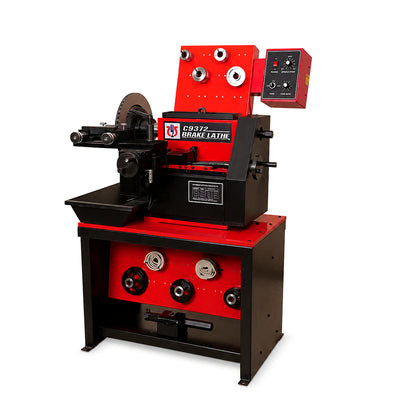

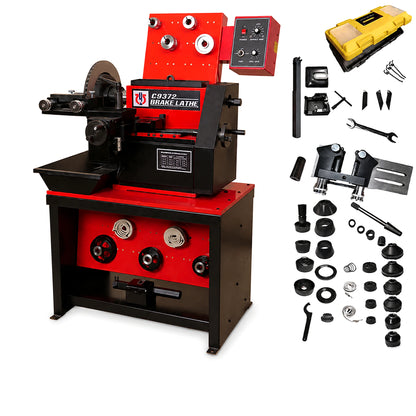

Katool C9372 - Combination Disc and Drum Brake Lathe Machine
Brake Lathe Machine - Katool C9372 with Combination Disc & Drum Capability
This professional brake lathe machine delivers combination disc and drum resurfacing for shops needing one solution. The Katool C9372 handles 4–20 inch rotors and 6–19.5 inch drums with adjustable feed rates and three spindle speeds for consistent, precision finishes.
Jump to: Features · Applications · Specs · Installation · Compare · Shipping · Warranty · Documentation · FAQ
Features & Benefits
Key Takeaways
- The C9372 brake lathe machine handles an extensive range of brake components with rotor diameters from 4 to 20 inches and drum diameters from 6 to 19.5 inches.
- Three selectable spindle speeds (70-320 RPM) combined with infinitely adjustable feed rates ensure optimal cutting performance for both rough cuts and precision finishing.
- Quick changeover design allows rapid transitions between rotor and drum machining, maximizing shop productivity.
- The automatic stop position after cutting promotes safety while streamlining workflow in busy commercial shops.
- Complete adapter package included to accommodate various brake components without additional purchases.
- Dual voltage motor (110V/220V) provides flexibility for different shop electrical configurations.
Versatile Machining Range
The C9372 brake lathe accommodates 4–20 inch rotors, 6–19.5 inch drums, and flywheels up to 24 inches. This single machine replaces multiple units and expands service capacity from compact cars to heavy-duty trucks.

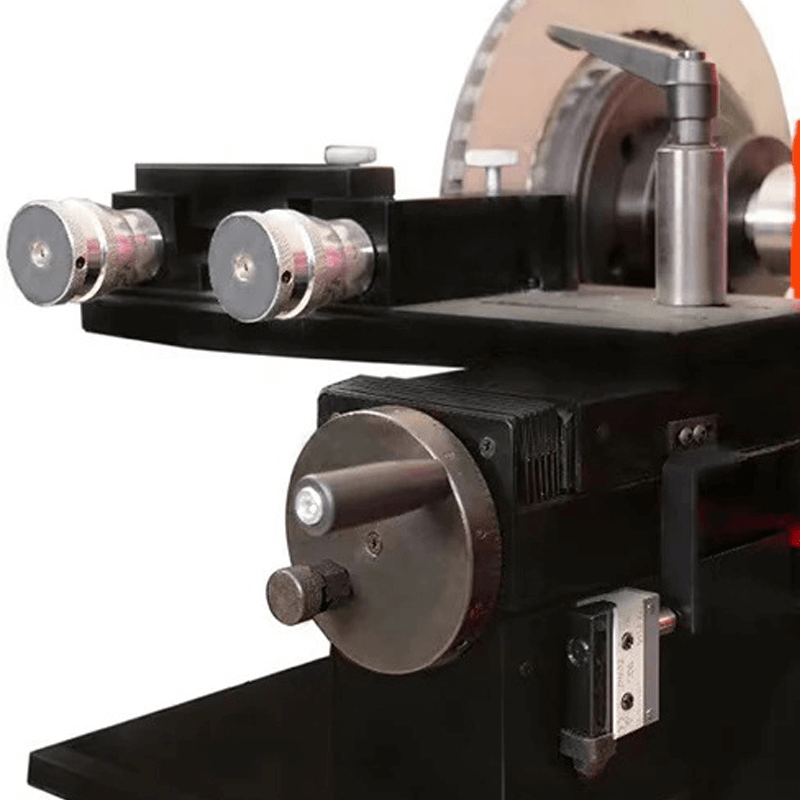

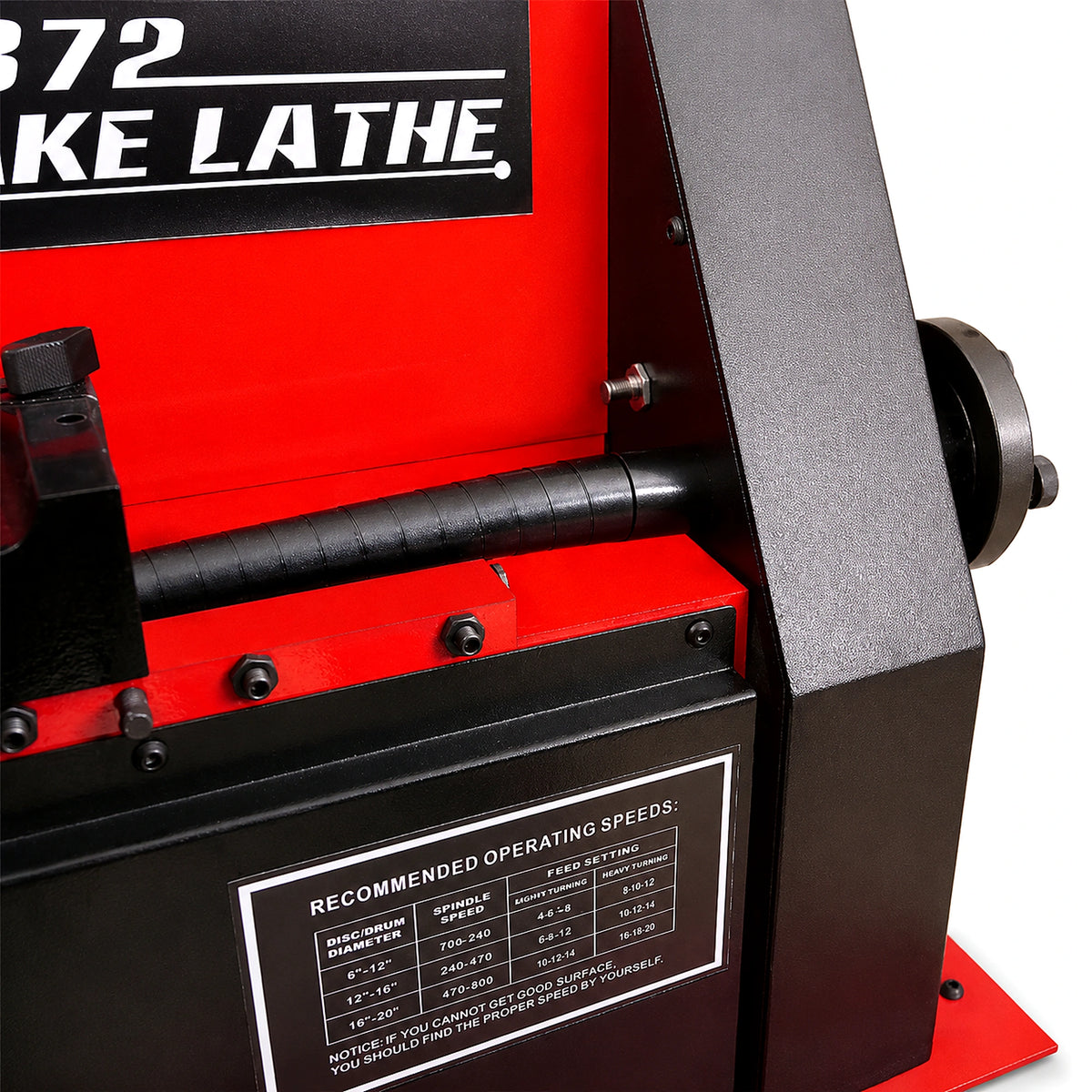

Precision Speed Control System
The three-speed spindle system operates from 70–320 RPM with adjustable feed rates from 0–0.026 inches per revolution for controlled material removal and consistent rotor and drum finishes.
Rapid Setup & Changeover Design
Maximize billable hours with the C9372's quick changeover system that transitions seamlessly between rotor and drum configurations. The convenient design minimizes setup time between different brake components, allowing technicians to complete more jobs per day. The included comprehensive adapter package ensures you're ready to service virtually any vehicle that enters your shop without hunting for additional tooling or accessories.
Enhanced Safety Features
Safety meets efficiency with the automatic stop function that halts operation after each cutting cycle. This feature not only protects operators from potential hazards but also prevents over-cutting and ensures consistent results across multiple brake components. The 150-pound spindle weight capacity on the standard 1-inch arbor provides stable, vibration-free operation even when machining heavy commercial vehicle components.

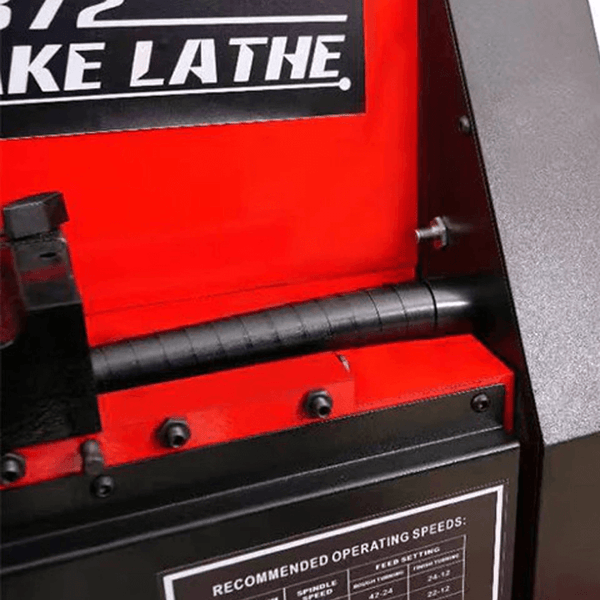

Heavy-Duty Construction
Built from Q235 and Q245 steel, this brake lathe machine weighs 661.3 pounds, providing the stability required for precision machining operations. The robust construction minimizes vibration and ensures long-term reliability in high-volume commercial environments. The dual-voltage motor (110V/220V 50/60Hz) adapts to various shop electrical configurations, making installation straightforward regardless of your facility's power setup.
Commercial Applications for Brake Lathe Machine
The Katool C9372 brake lathe machine serves diverse automotive service environments, from independent repair shops to fleet maintenance facilities. Its versatility makes it ideal for businesses servicing mixed vehicle populations.
- Independent Auto Repair Shops: Handle complete brake service for all customer vehicles, from compact cars to light trucks, maximizing service revenue opportunities.
- Fleet Maintenance Operations: Maintain consistent brake performance across diverse vehicle fleets with one versatile machine capable of servicing everything from delivery vans to service trucks.
- Dealership Service Centers: Meet manufacturer specifications for brake resurfacing on both new and older model vehicles, ensuring warranty compliance and customer satisfaction.
- Specialty Brake Shops: Deliver precision resurfacing for performance applications with variable speed control and fine feed rate adjustments for optimal surface finishes.
- Heavy Equipment Service: Accommodate larger commercial vehicle brake components with the extended capacity for drums up to 19.5 inches and flywheels up to 24 inches.
- Mobile Brake Service Operations: Despite its robust construction, the C9372's consolidated design makes it suitable for larger mobile service vehicles serving on-site fleet maintenance contracts.
Technical Specifications - Katool C9372
| Brand | Katool |
|---|---|
| Model | C9372 |
| Technology | Combination Disc & Drum Lathe |
| Weight | 661.3 lbs (300 kg) |
| Dimensions | 43.3 × 28.7 × 28.3 inches (1100 × 730 × 720mm) |
| Vehicle Compatibility | Passenger Cars to Light/Medium Trucks |
| Power Requirements | 110V/220V 50/60Hz Dual Voltage |
| Rotor Diameter | 4"-20" (102-508mm) |
|---|---|
| Maximum Rotor Thickness | 2.85" (73mm) |
| Drum Diameter | 6"-19.5" (152-500mm) |
| Drum Depth | 6.5" (165mm) |
| Flywheel Diameter | 6"-24" (152-610mm) |
| Spindle Speed Range | 70-320 RPM |
| Feed Rates | 0"-0.026" (0-0.66mm) per revolution |
| Feed Rate Per Minute | 2.54" (64.5mm) |
| Spindle Weight Capacity | 150 lbs (68 kg) on 1" Arbor |
Professional Installation Requirements for Brake Lathe Machine
Foundation & Power Specifications
Proper installation of this brake lathe machine ensures safety compliance and maximizes equipment lifespan:
- Floor Requirements: Level concrete surface capable of supporting 700+ pounds of operating weight plus workpiece loads.
- Electrical Configuration: Dedicated circuit for 110V or 220V operation with appropriate amperage rating for motor specifications.
- Space Allocation: Minimum 6 feet of clearance on operator side for safe loading and unloading of brake components.

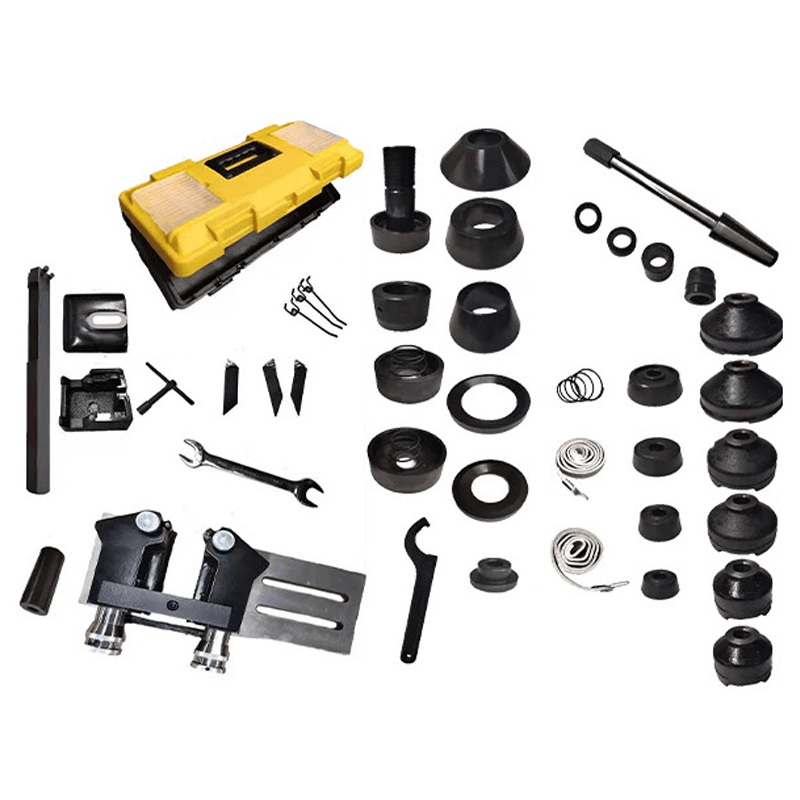

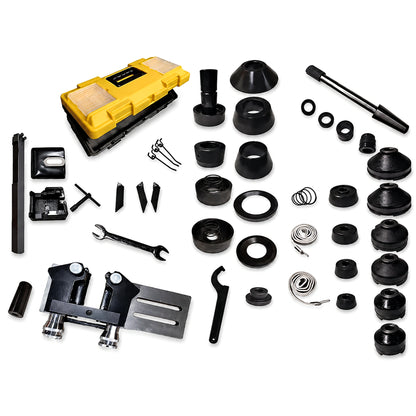

Complete Brake Lathe Machine Package Includes
- C9372 brake lathe machine base unit with dual-voltage motor
- Comprehensive adapter package for various rotor and drum configurations
- Complete cutting tool set for different brake component materials
- Standard 1" arbor with 150-pound weight capacity
- Operating and safety documentation
Compare Brake Lathe Machines
See how the Katool C9372 brake lathe machine outperforms other brake lathes in versatility, precision, and professional shop value.
| Disc & Drum Capability | Both in one machine - 4"-20" rotors, 6"-19.5" drums, plus flywheels up to 24" | Usually disc OR drum only; limited size range | May handle both but often require expensive add-ons |
|---|---|---|---|
| Speed Control | 70-320 RPM with infinitely adjustable feed rates (0-0.026") | Fixed speeds; limited adjustment range | Variable speeds but complex controls |
| Spindle Capacity | 150 lb capacity handles heavy commercial components | Often limited to 100 lbs or less | Similar or higher but at much greater cost |
| Quick Changeover | Fast rotor-to-drum transition minimizes downtime | Single purpose or slow changeover | Quick change but more complex setup |
| Safety Features | Automatic stop function prevents over-cutting | Manual stop only; operator dependent | Auto-stop standard but adds complexity |
| Power Flexibility | Dual voltage 110V/220V fits any shop | Single voltage limits installation options | Usually 220V only; requires rewiring |
| Included Accessories | Complete adapter package included | Basic tooling; adapters sold separately | Full kit but significantly higher investment |
| Shop Footprint | Compact 43.3" × 28.7" fits standard bays | Smaller but limited capability | Larger footprint requires more space |
Why Choose the C9372 Over Other Brake Lathes?
- Maximum Versatility: One machine covers more brake jobs than multiple single-purpose lathes, from compact car rotors to heavy truck drums.
- Precision Control: Infinitely adjustable feed rates deliver smoother finishes and reduce heat buildup compared to fixed-speed machines.
- Time & Labor Savings: Automatic stop and quick changeover features increase throughput while reducing operator fatigue.
- Installation Flexibility: Dual voltage compatibility means no expensive electrical work required for most shops.
- Complete Package Value: Full adapter kit included means you're ready to work immediately without hidden accessory costs.
Freight Shipping Information
Delivery Options & Requirements
The Katool C9372 brake lathe machine ships via freight carrier with specific delivery considerations:
- Shipping Weight: 661.3 pounds requires freight delivery with proper unloading equipment.
- Commercial Delivery: Free shipping to commercial addresses with loading dock or forklift access.
- Terminal Pickup: Available for customers preferring to arrange their own final delivery.
- Residential Delivery: Additional charges apply for residential addresses without commercial unloading capabilities.
- Unloading Responsibility: Customer must provide forklift or appropriate equipment for unloading from delivery truck.
Note: Inspect shipment thoroughly before signing delivery receipt. Note any damage on the bill of lading immediately.
Warranty Coverage
12-Month Parts Warranty
Katool provides 12-month parts warranty coverage for the C9372 brake lathe machine:
- 12-month coverage on all parts and manufacturing defects
- Free replacement parts including shipping during warranty period
- 2-year extended warranty plan available for purchase
- Warranty requires original purchase order and authorized vendor verification
Note: Labor costs not included. Photos or videos may be required for warranty claims. Equipment must not be disassembled before claim approval.
Professional Documentation & Support
Access comprehensive resources for your Katool C9372 Brake Lathe Machine:
- Download Professional Installation & Operation Manual (PDF)
- Technical support for commercial installation and troubleshooting
- Maintenance schedules optimized for high-volume use
- Parts availability guarantee for commercial customers
Ready to Upgrade Your Brake Lathe Machine?
Have questions about installation, delivery, or selecting the right brake lathe for sale for your shop? Our specialists are ready to help.
Frequently Asked Questions
What size rotors and drums can the Katool C9372 brake lathe machine handle?
The C9372 accommodates rotors from 4" to 20" in diameter with up to 2.85" thickness, and drums from 6" to 19.5" in diameter with up to 6.5" depth. It also handles flywheels up to 24" in diameter.
How much does the C9372 brake lathe weigh and what are the power requirements?
The machine weighs 661.3 pounds (300 kg) and operates on dual voltage – either 110V or 220V at 50/60Hz, providing flexibility for different shop electrical configurations.
What spindle speeds are available on this brake lathe?
The C9372 offers variable spindle speeds from 70 to 320 RPM with three selectable speed ranges, allowing optimal cutting speeds for different materials and surface finish requirements.
Does the brake lathe come with adapters for different vehicle applications?
Yes, the C9372 includes a fully equipped adapter package to accommodate various brake components, so you can service different vehicles without purchasing additional accessories.
How quickly can I switch between machining rotors and drums?
The C9372 features a convenient quick changeover design that allows rapid transitions between rotor and drum configurations, minimizing downtime and maximizing shop productivity.
What safety features does the Katool C9372 include?
The brake lathe includes an automatic stop function that halts operation after each cutting cycle, promoting operator safety and preventing over-cutting of brake components.
What warranty coverage comes with the C9372 brake lathe machine?
Katool provides a 12-month warranty on all parts and manufacturing defects with free replacement parts including shipping. An optional 2-year extended warranty is also available.
Do I need special equipment to receive delivery of this brake lathe?
Yes, due to the 661.3-pound shipping weight, you'll need a forklift or appropriate unloading equipment. Free freight shipping is available to commercial addresses with proper unloading capabilities.
