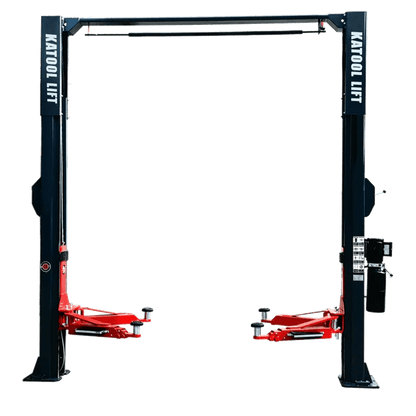

Katool AS110D – Two-Post Lift (11,000 lb, Asymmetric)
Katool AS110D - 11,000 lb Two-Post Lift | Clear-Floor Asymmetric Overhead Design

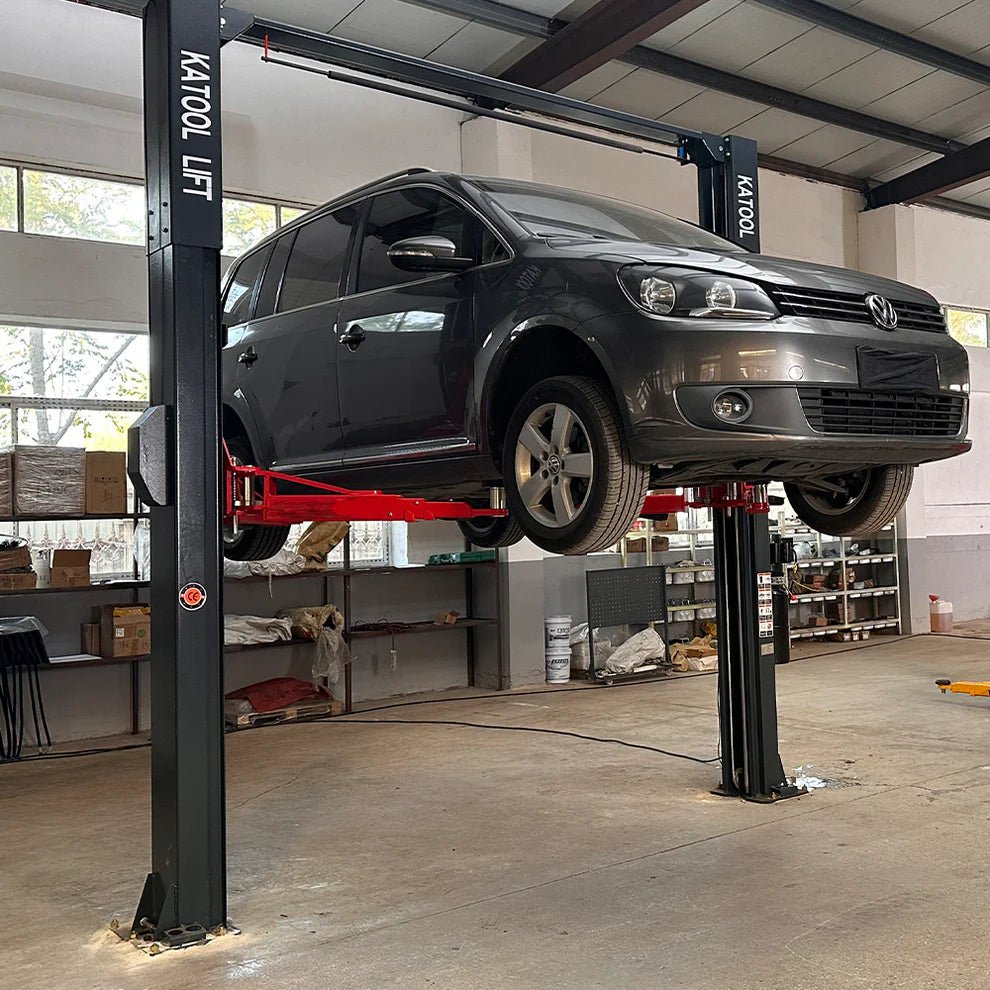

The Katool AS110D is an 11,000 lb two-post lift engineered for professional automotive shops. This clear-floor two-post lift features an overhead two-post lift design with asymmetric two-post lift arms for improved door clearance, dual direct-drive hydraulic cylinders, and single-point lock release. The 11k two-post lift handles sedans, SUVs, and light trucks with CE-certified safety testing to 115% dynamic and 150% static load capacity.

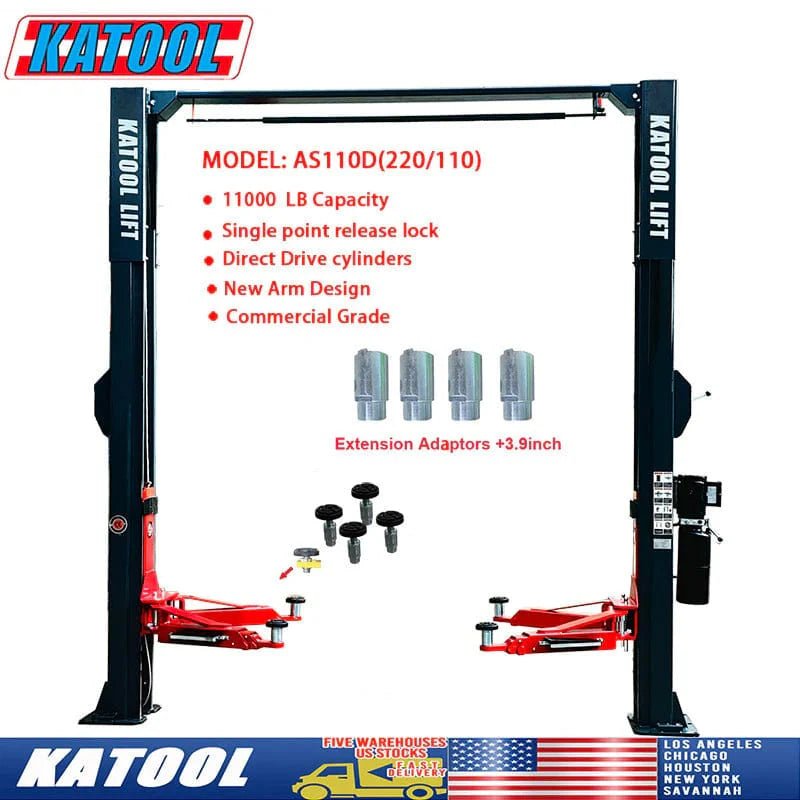

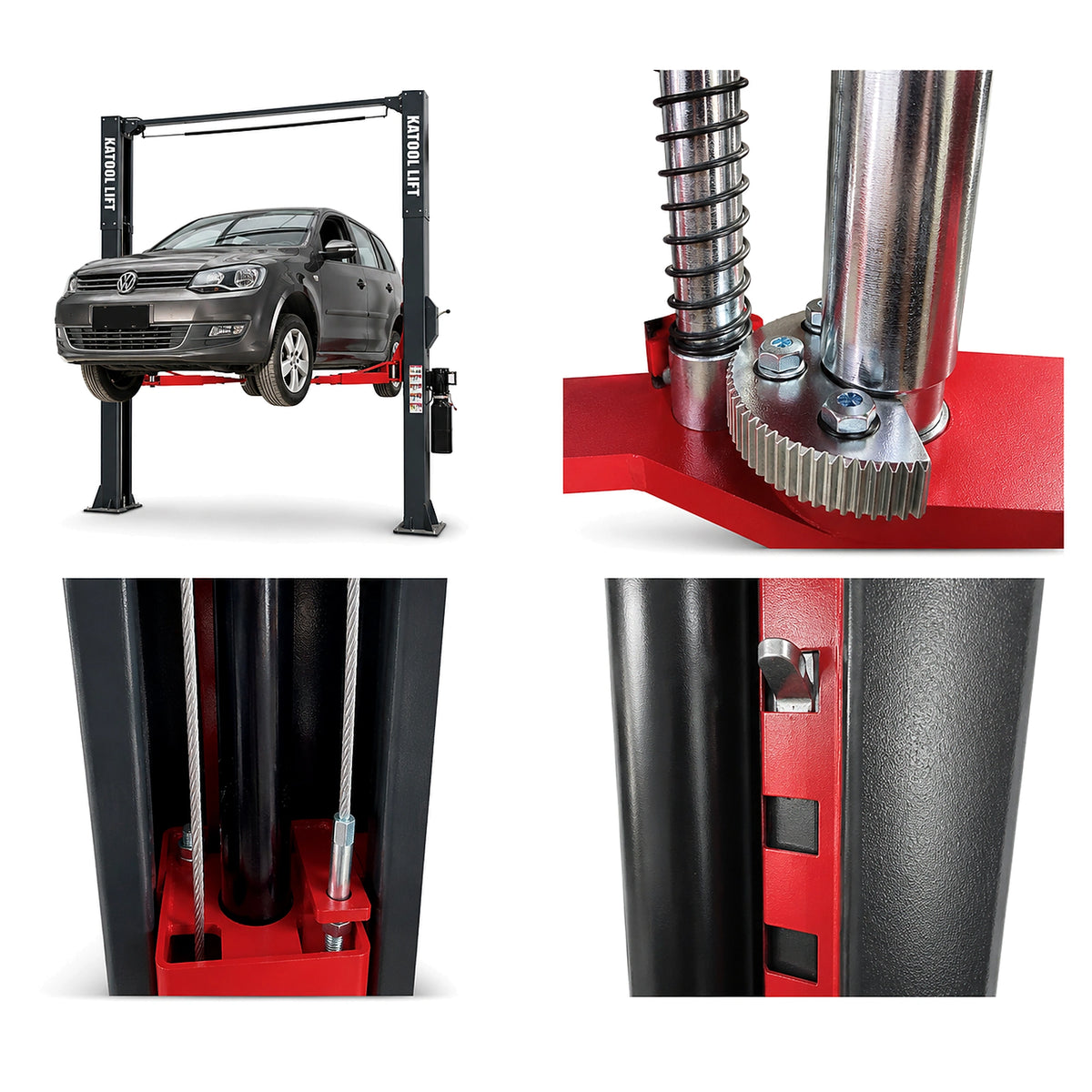

Key Features of This 11k Two-Post Lift

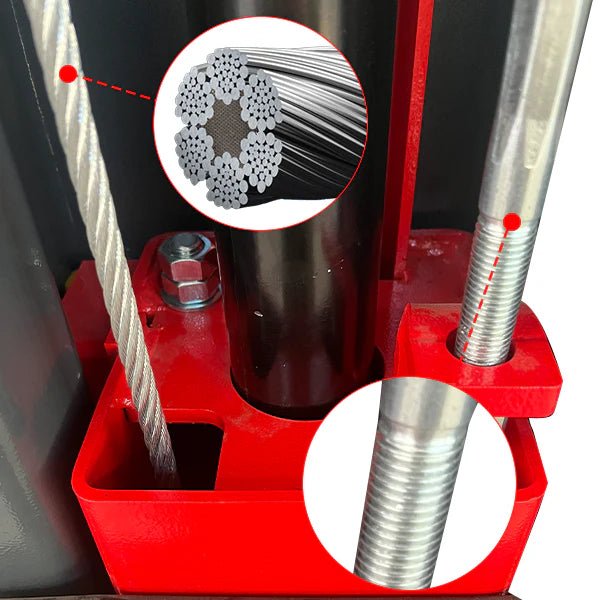

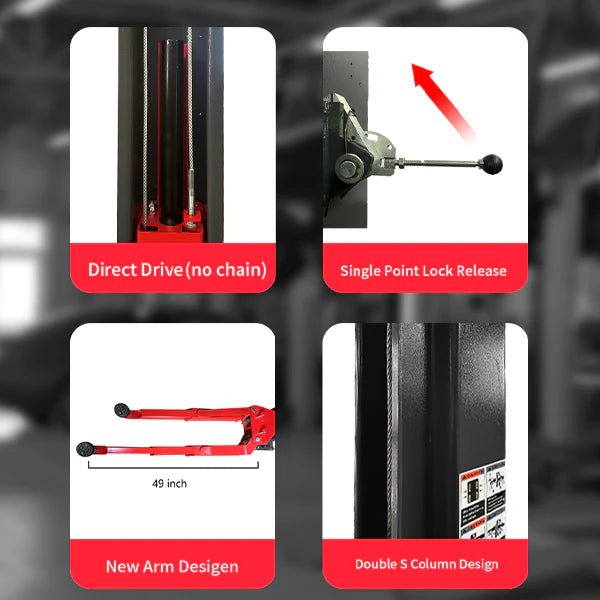

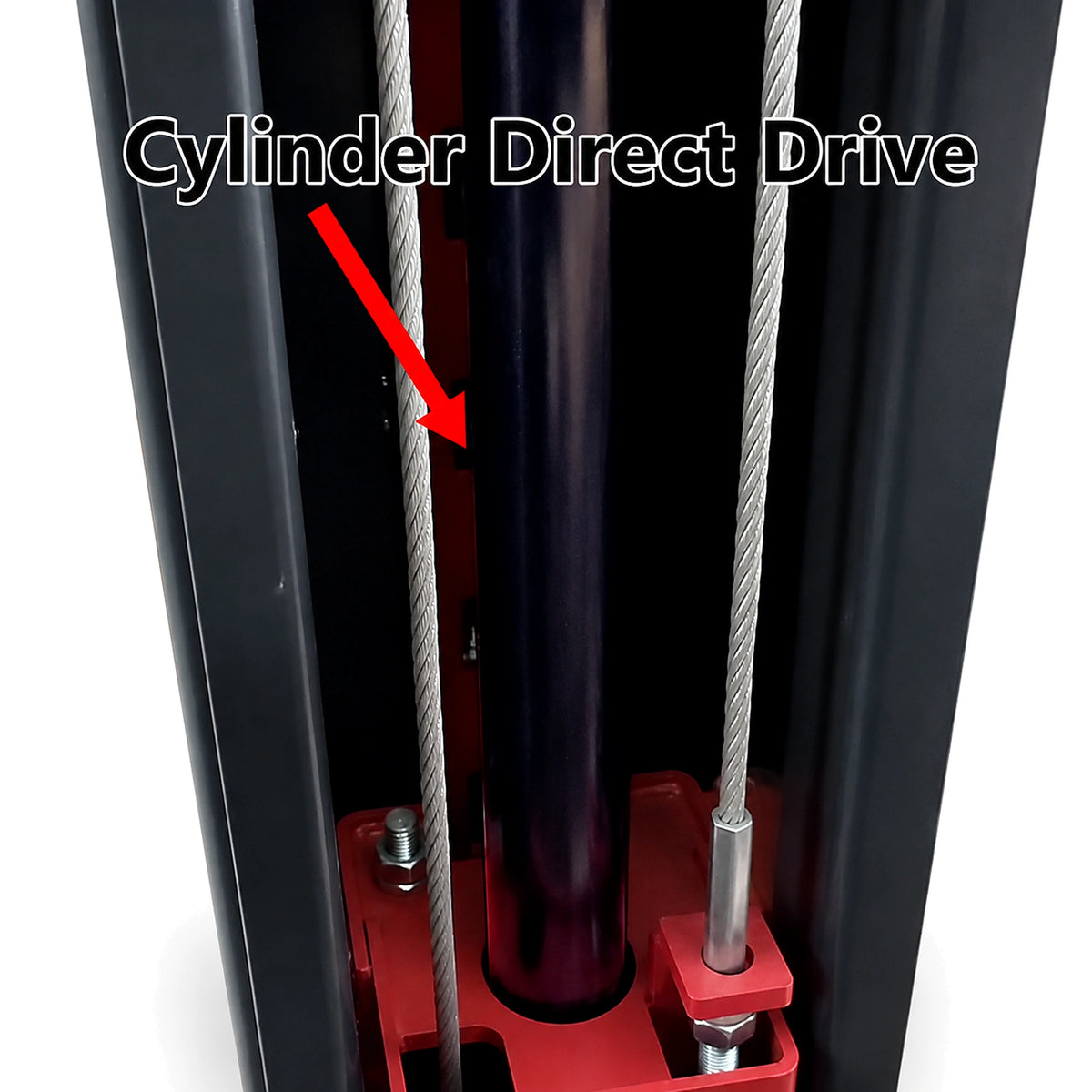

Direct-Drive Dual Hydraulic Cylinders
The Katool AS110D uses dual direct-drive hydraulic cylinders, eliminating chains, rollers, and associated wear components from the lifting path. This direct transmission of hydraulic force ensures consistent, smooth operation across thousands of cycles without the maintenance overhead of chain-driven systems. The simpler architecture means fewer failure points and faster diagnostics if service is needed, keeping your lift operational and reducing downtime.

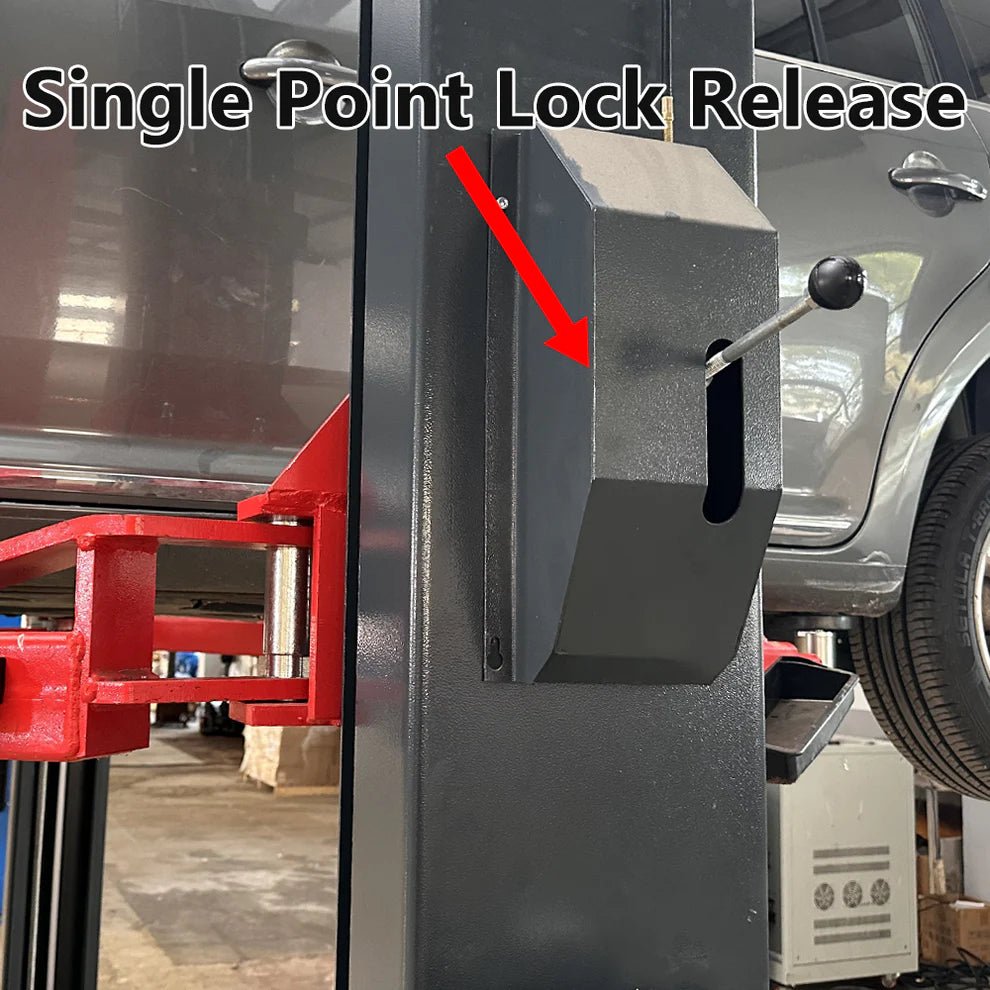

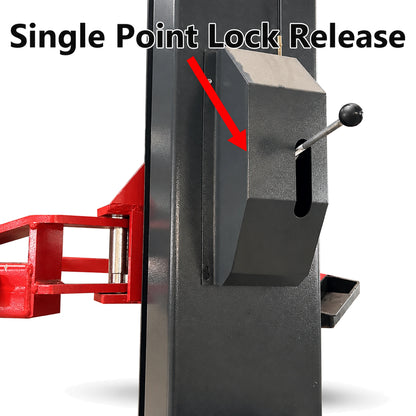

Asymmetric Two-Post Lift Design with Single-Point Lock Release

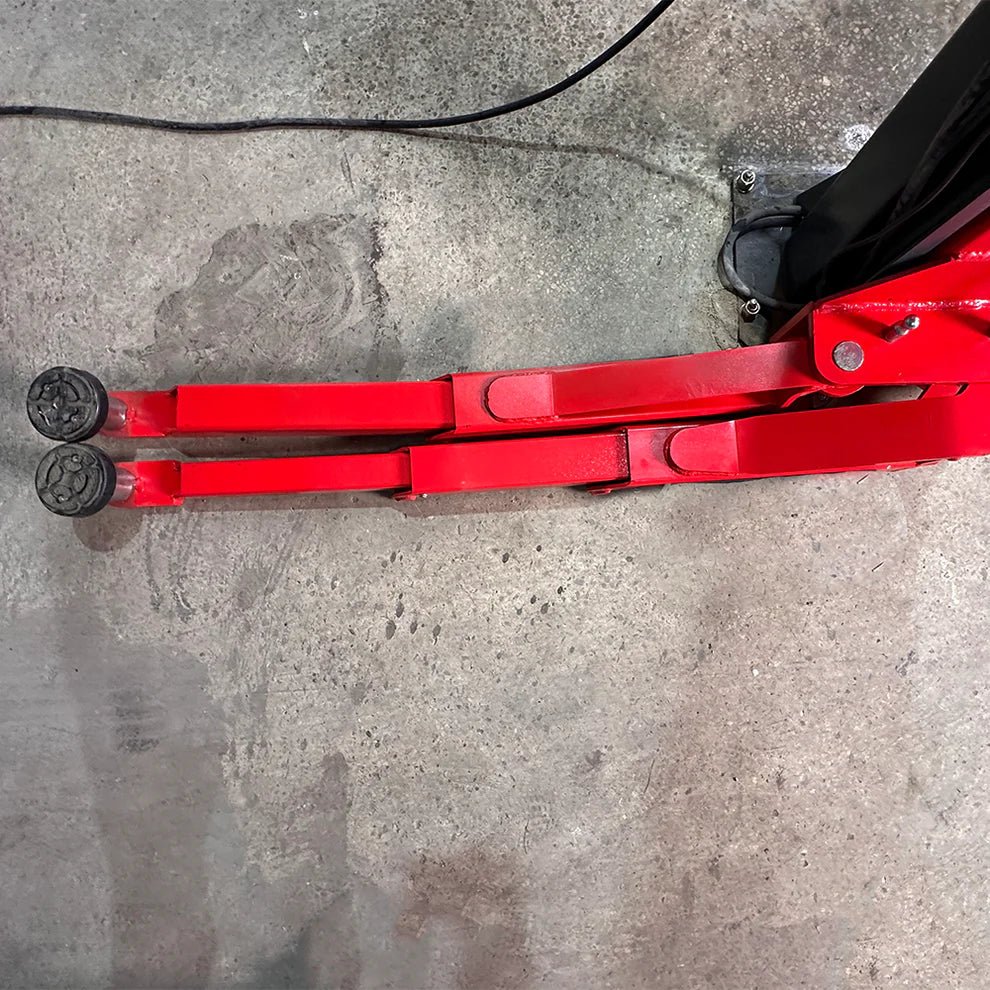

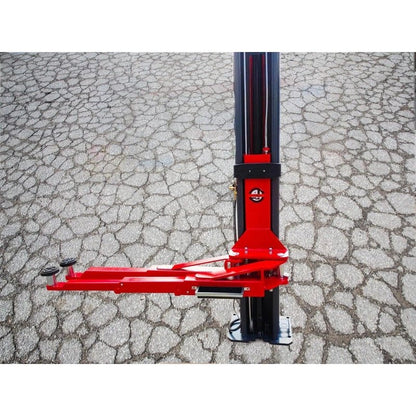

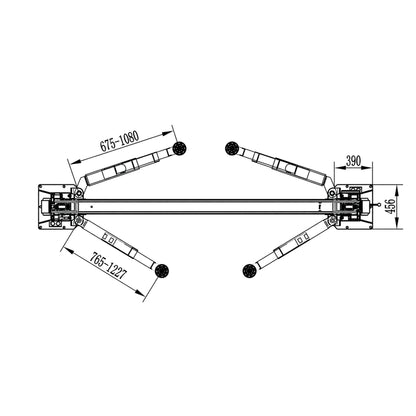

The asymmetric two-post lift configuration places front arms 20 inches closer to the center than rear arms, positioning vehicles rear-biased for improved door clearance and under-vehicle access. Combined with single-point mechanical lock release controlling both column locks from one side, this two-post asymmetric lift design reduces lowering steps and improves technician ergonomics during brake jobs, suspension work, and undercarriage repairs.

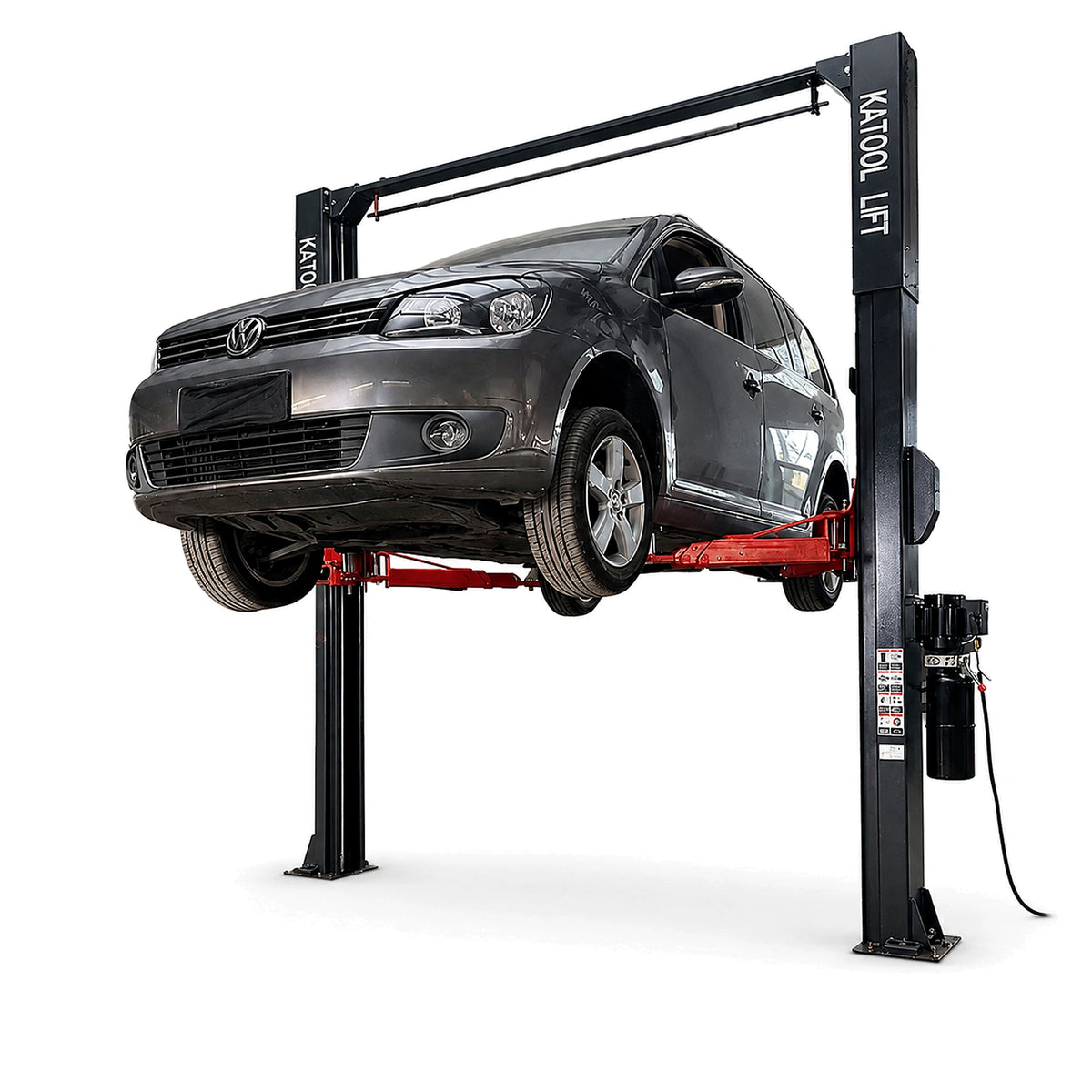

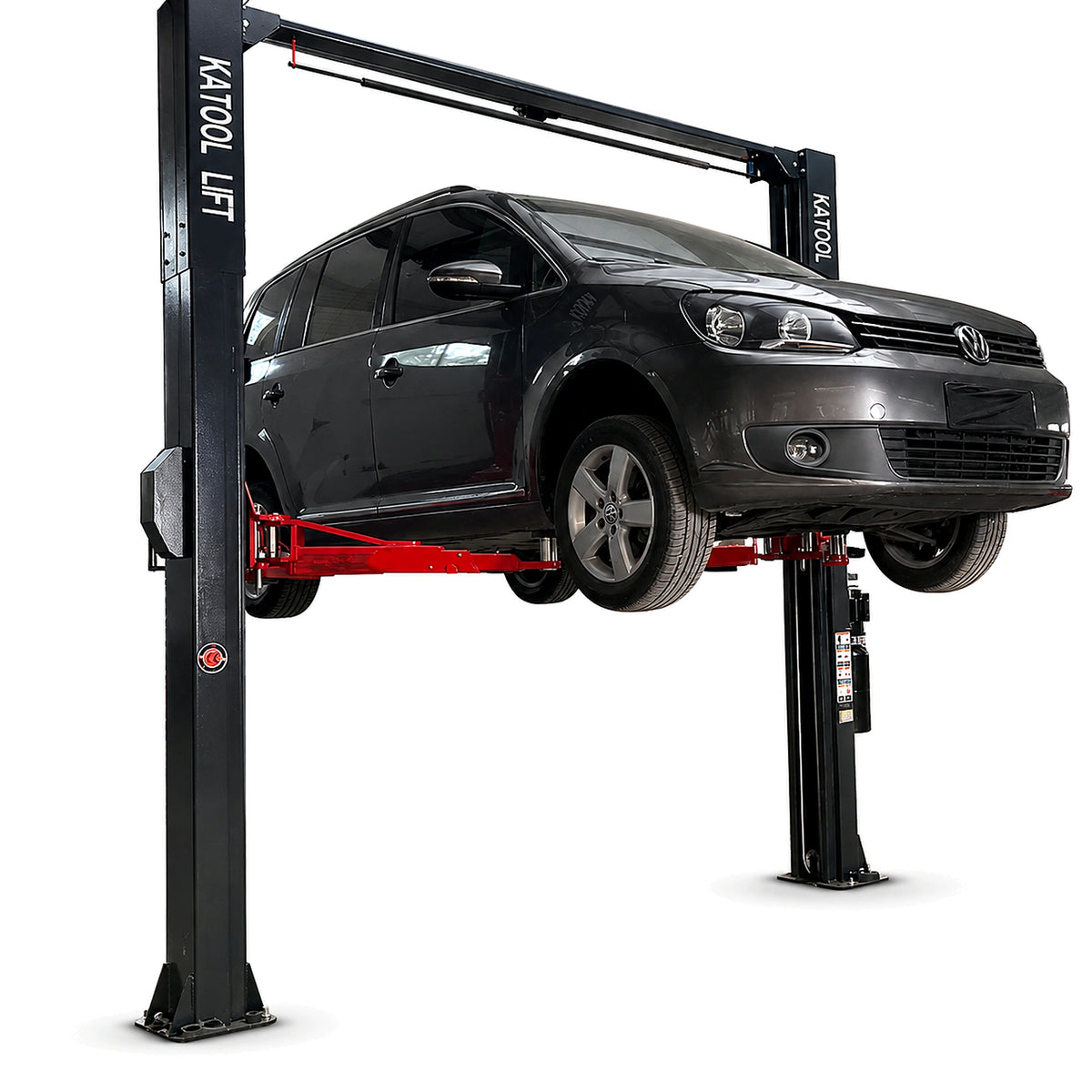

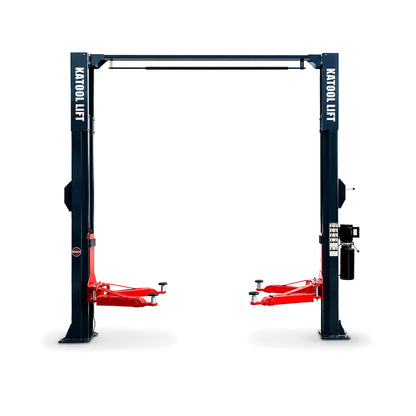

Clear-Floor Overhead Two-Post Lift Configuration
This clear-floor two-post lift uses an overhead two-post lift design with crossbeam structure spanning the columns above vehicle height, creating unobstructed floor space beneath the vehicle for easier technician movement and equipment positioning. The overhead configuration eliminates floor-level obstructions found in base-plate designs, enabling full bay access during service operations.
CE Certification with Quantified Load Testing
CE approved and independently tested to 115% dynamic load (12,650 lb equivalent) and 150% static load (16,500 lb equivalent), well above the 11,000 lb two-post lift working capacity. This third-party validation provides concrete evidence of structural safety margins, addressing shop requirements for documented safety records and enabling compliance verification for insurance and workplace safety audits.
Bundled Height-Adjustable Adapter Set
Ships with adjustable screw pad adapters with 3.94 in to 6 in height range, plus truck/frame cradle adapters, enabling the lift to work with both low-profile vehicles (sports cars, sedans at minimum height) and higher-frame vehicles (SUVs, light trucks) without requiring separate adapter purchases. The bundled approach reduces initial cost and accelerates first-lift usability.
Compact Overall Height for 11k Capacity
With an overall height of 141.25 inches (3,587 mm), the Katool 2-post lift is compact for an 11,000 lb asymmetric lift, requiring less ceiling clearance than larger-capacity competitors. Shops with lower ceilings (14–15 feet) can install this lift without facility retrofits, bridging the gap between standard 9,000–10,000 lb lifts and premium 12,000+ lb models with taller overhead profiles.
Safety Systems & Workplace Protection

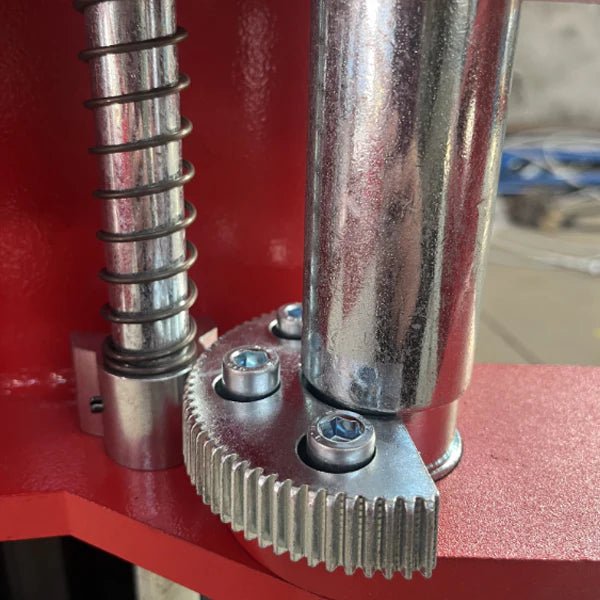

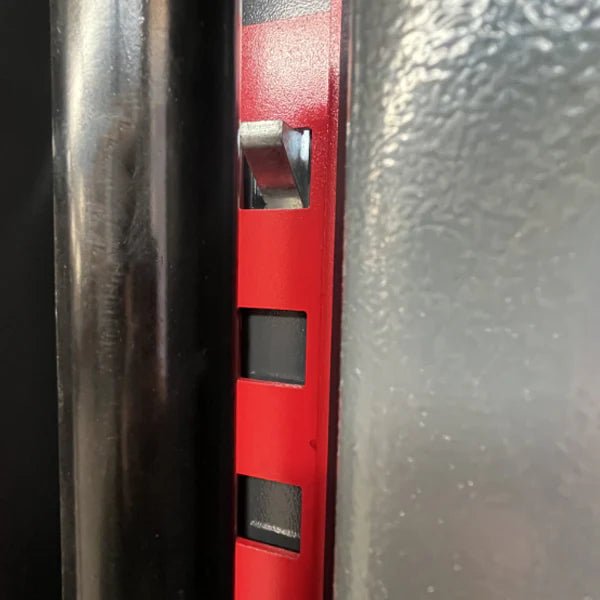

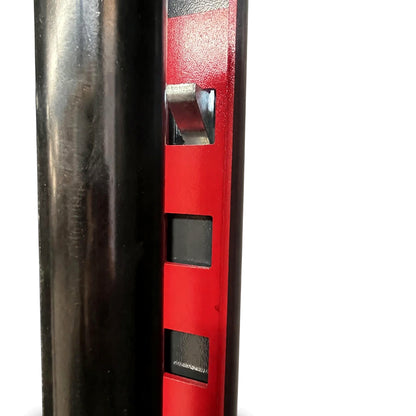

Safety features include multiple mechanical lock positions at incremental heights (toothed lock bars engaging at each step), an overhead safety shutoff bar that stops lift motion if a vehicle or component contacts it, and rubber door protection pads. The lift also includes feet-protection guardrails at column bases, often combined with an integrated toolbox tray.
Product Demonstration

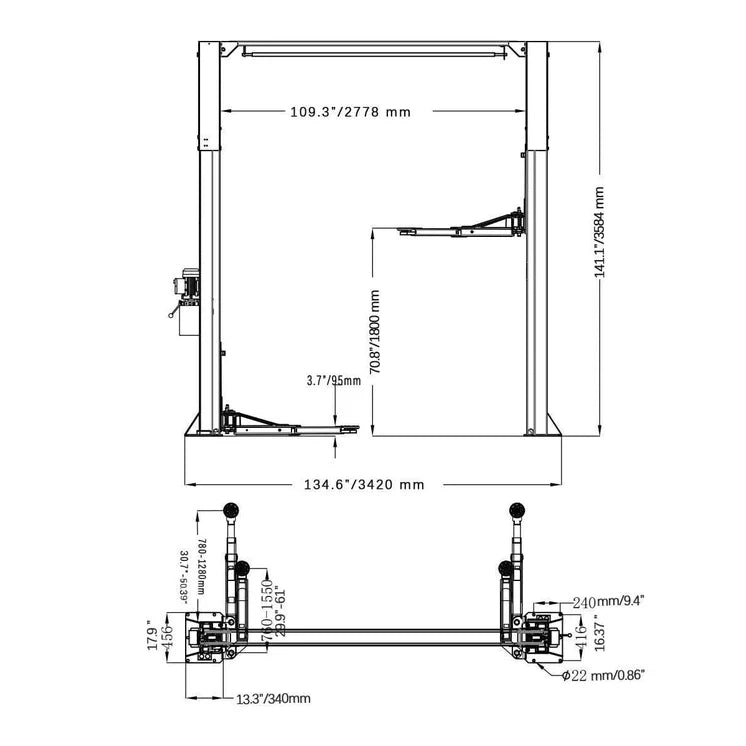

Technical Specifications
| Specification | Value |
|---|---|
| Maximum Lifting Capacity | 11,000 lb (4,990 kg) |
| Maximum Lifting Height (to Pad) | 70.75 inches (1,800 mm) |
| Overall Height | 141.25 inches (3,587 mm) |
| Overall Width | 134.65 inches (3,420 mm) |
| Outside Column Spacing | 120.4 inches (3,058 mm) |
| Inside (Clear) Column Width | 109.37 inches (2,778 mm) |

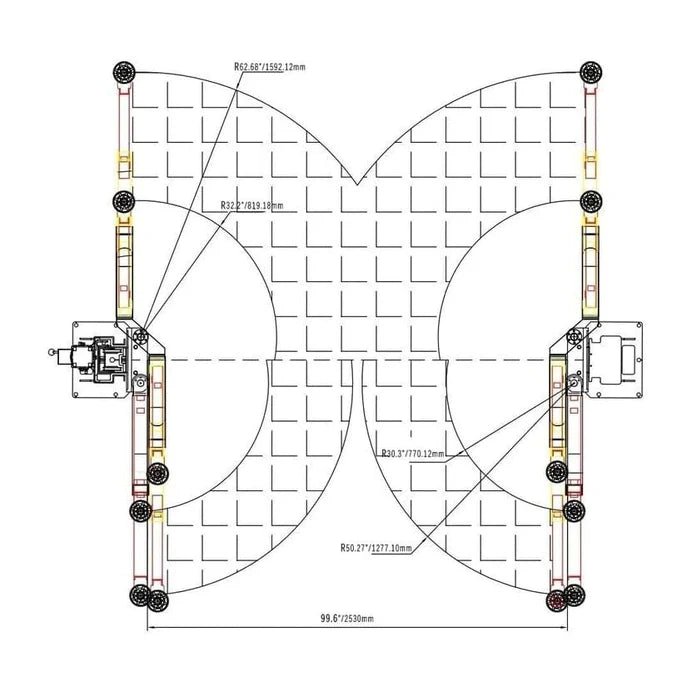

| Drive-Through Clearance | 99.61 inches (2,530 mm) |
| Net Weight (Uncrated) | 1,323 lb (600 kg) |
| Specification | Value |
|---|---|
| Rise Time to Maximum Height | 50 seconds or less |
| Descent Time from Maximum Height | 20 seconds or more |
| Operating Noise Level | 75 dB(A) or less |
| Pad Height Adjustment Range | 3.94 inches to 6 inches (100-152 mm) |
| Minimum Pad Height | 4 inches (100-110 mm) |
| Dynamic Load Test | 115% of rated capacity (12,650 lb equivalent) |
| Static Load Test | 150% of rated capacity (16,500 lb equivalent) |
| Specification | Value |
|---|---|
| Motor (Standard North American) | 220 V, 60 Hz, single-phase |
| Motor Power Class | Approximately 2.2 kW |

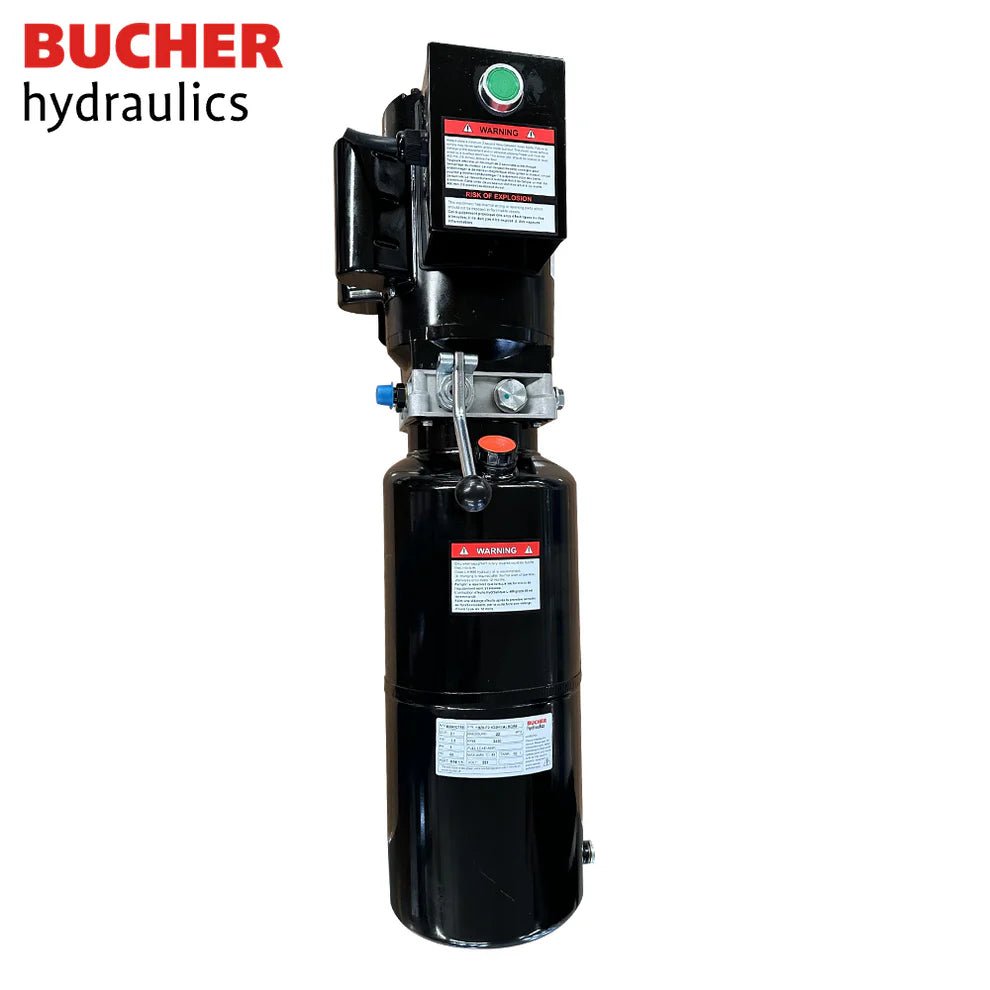

| Lift Drive Type | Dual direct-drive hydraulic cylinders |

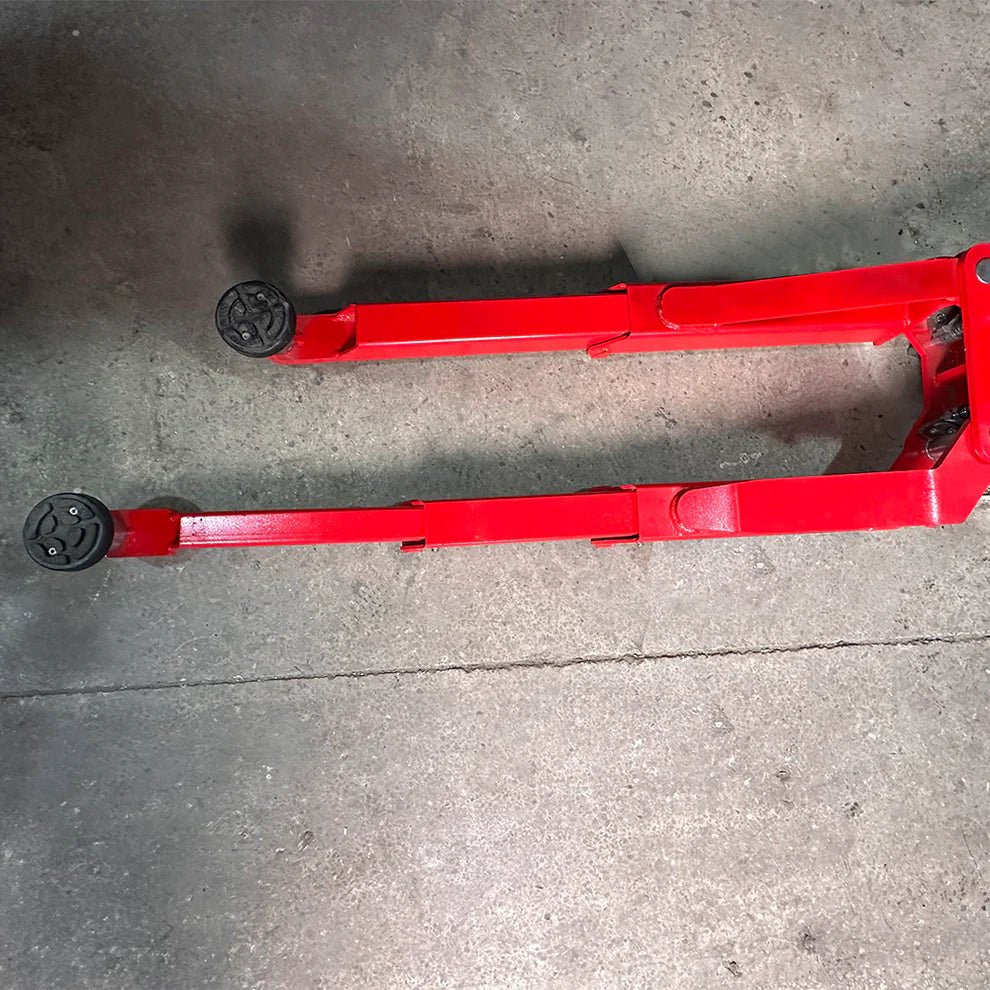

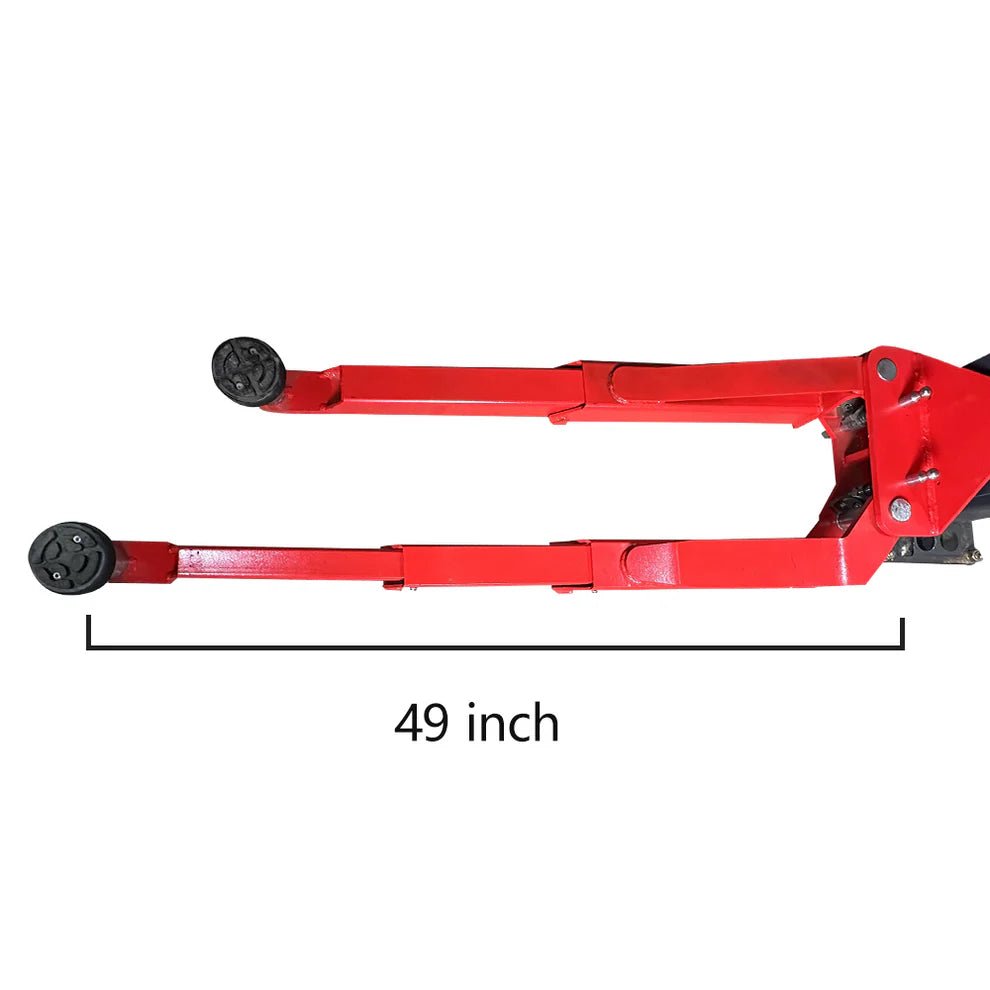

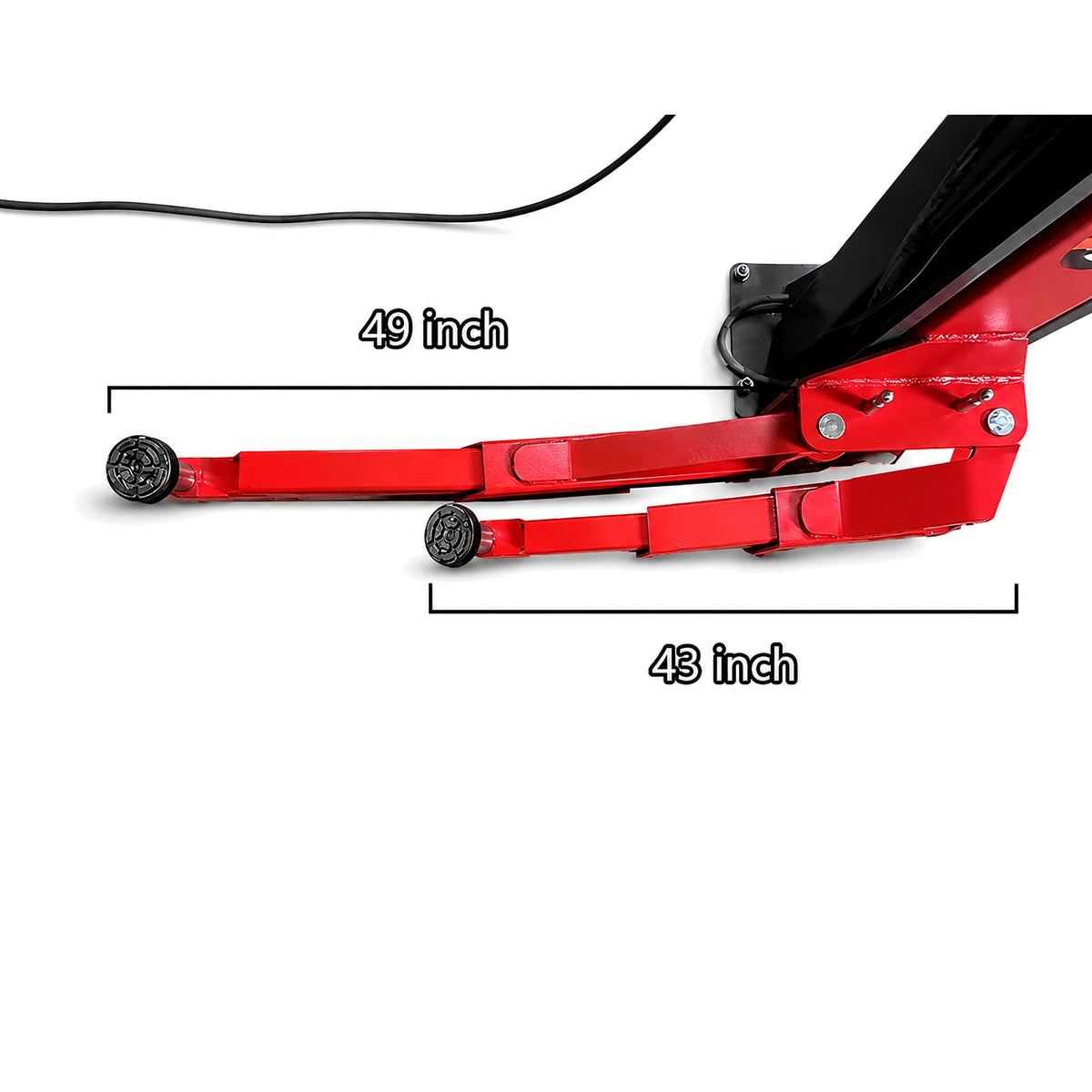

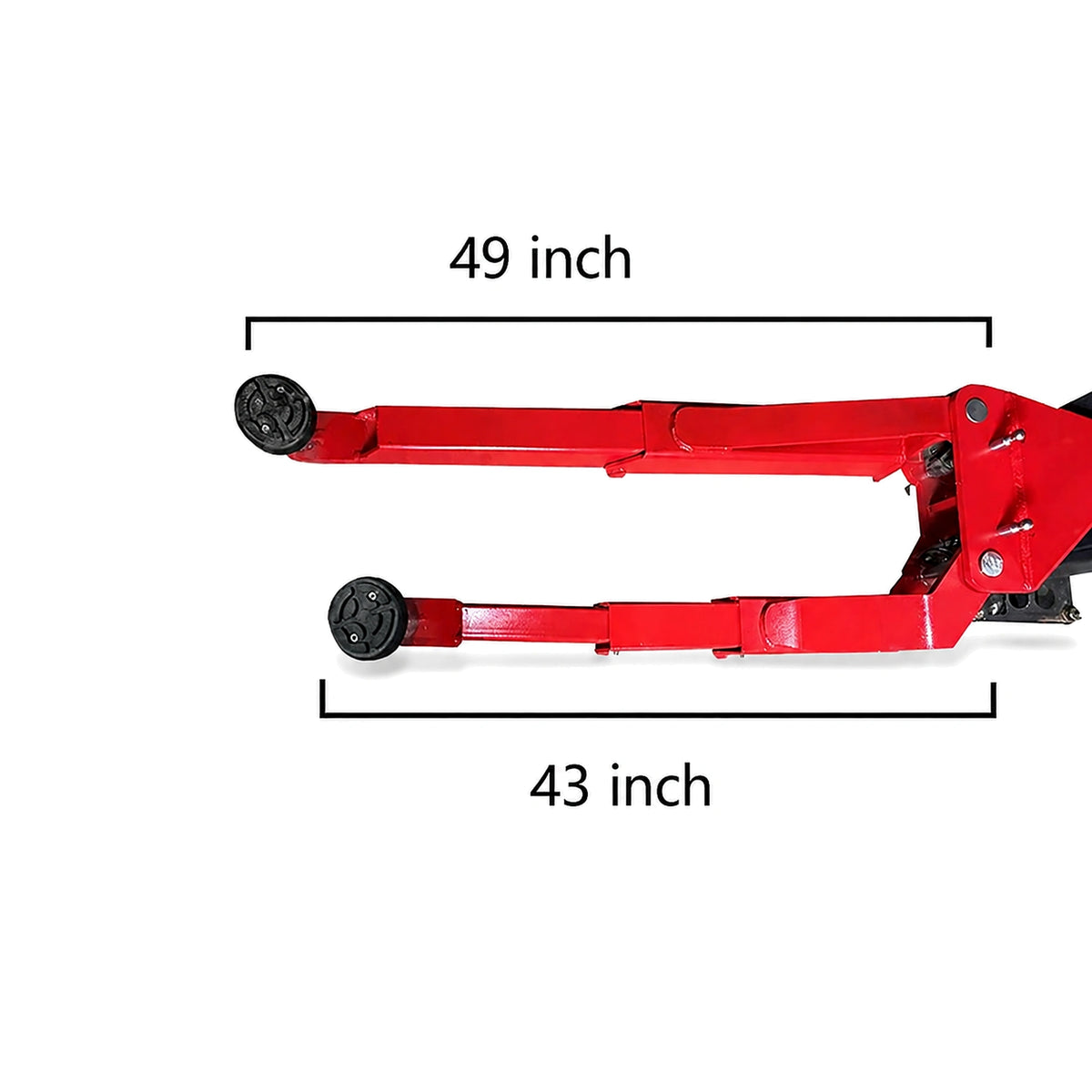

| Arm Configuration | Asymmetric (front 3-stage, rear 2-stage) |
| Operating Temperature Range | 5°C to 40°C (41°F to 104°F) |
| Maximum Operating Altitude | 2,000 meters (6,560 feet) |
| Specification | Value |
|---|---|
| Certification | CE approved (EN 1493, Machinery Directive) |
| Safety Lock Mechanism | Single-point mechanical lock release, multiple toothed positions |
| Overhead Safety System | Overhead shutoff bar / limit switch |
| Door Protection | Rubber contact pads |
| Additional Protection | Feet-protection guardrails, integrated toolbox/tray |
Installation Requirements
Installation & Operation Manual
Download the complete manual: Katool KT-AS110D Installation & Operation Manual (PDF)
The full manual includes detailed assembly diagrams, hydraulic system schematics, electrical wiring instructions, cable routing guides, maintenance schedules, troubleshooting FAQs, and safety procedures. Review the complete manual before beginning installation.
Foundation & Concrete Specifications
- Minimum Slab Thickness: 5.9 inches (150 mm)
- Minimum Compressive Strength: 3,000 PSI
- Concrete Curing: Fully cured concrete (minimum 28 days for new pours recommended)
- Surface Conditions: Level within acceptable tolerance, free of major cracks or defects
- Not Recommended: Installation on asphalt, pavers, or across expansion joints without structural engineering approval
Electrical Requirements
- Standard Configuration: 220 V, 60 Hz, single-phase circuit
- Dedicated Circuit: Requires dedicated electrical line; shared circuits not recommended
- Optional Voltages: 110 V single-phase and other configurations available; must be specified at order
- Installation Note: Breaker size, wire gauge, and connections must be determined by qualified electrician per installation manual and local code
Environmental & Facility Clearances
- Indoor Use Only: Not rated for outdoor exposure
- Operating Temperature: 5°C to 40°C (41°F to 104°F)
- Maximum Altitude: 2,000 meters (6,560 feet)
- Ceiling Clearance: Minimum 141.25 inches overhead. Additional clearance required for vehicle height—consult installation diagrams
- Bay Width: Overall width 134.65 inches; ensure bay accommodates this plus wall clearance
Installation Notes
- Assembly & Anchoring: Must be anchored to concrete using provided mounting hardware. Follow installation manual exactly
- Qualified Installation: Performed by personnel experienced with 2-post lifts or authorized dealer team
- Pre-Use Inspection: Complete inspection of mechanical components, hydraulics, and safety systems required before first use
- Local Codes: Verify building codes, electrical codes, and safety requirements. Permits may be required
Shipping & Delivery
Freight Coverage
Shipping: Ships via LTL freight to commercial addresses in 48 contiguous U.S. states. Many dealers offer free shipping to commercial locations; residential and Alaska/Hawaii may incur surcharges.
Timeframe: Standard LTL timelines from regional warehouses (5-10 business days). Exact duration dealer-dependent.
Delivery Requirements
Equipment: Forklift with 2,500 lb capacity required to unload. Liftgate typically unavailable for this size/weight.
Delivery Type: Standard LTL drop (curbside; customer unloads). Inside delivery sometimes available for additional fee.
Damage Inspection: Inspect before driver departs. Note visible damage on bill of lading and photograph damaged areas.
Damage Reporting
Within 15 Days: 100% coverage for replacement parts/freight.
Within 30 Days: 50% coverage (shared cost).
After 30 Days: No coverage (customer responsible).
Warranty Coverage
Multi-Tier Warranty
1 Year Parts: All parts including hydraulics, power unit, cylinders covered against defects.
3 Years Structural: Columns, main welded assemblies, primary support structures covered against structural defects.
Terms: Non-transferable, original purchaser only. Proof of purchase required. Labor not included; parts replacement only.
Warranty Requirements
Eligibility: Original purchaser, non-transferable, proof of purchase required.
Installation: Must follow manufacturer manual. Improper installation may void coverage.
Maintenance: Periodic maintenance per operation manual required for warranty validity.
Extended Warranty: Some dealers offer extended options; inquire at purchase.
Ready to Upgrade Your Shop?
Get expert guidance on the Katool AS110D, installation planning, and technical specifications. Our team can help evaluate fit for your application and support through ordering and installation.
Frequently Asked Questions
What is an asymmetric two-post lift?
An asymmetric two-post lift positions front arms closer to the column centerline than rear arms, creating rear-biased vehicle placement in the bay. This two-post asymmetric lift design improves door clearance and technician access compared to symmetric lifts where arms are equidistant from columns. The Katool AS110D places front arms 20 inches closer to center for optimal door opening space during service operations.
What is a clear-floor two-post lift?
A clear-floor two-post lift uses an overhead crossbeam structure spanning the columns above vehicle height, creating unobstructed floor space beneath the vehicle. This clear-floor overhead two-post lift design eliminates floor-level obstructions found in base-plate lifts, enabling easier technician movement and equipment positioning during service operations.
What is the lifting capacity of the Katool AS110D?
The Katool AS110D has a rated capacity of 11,000 lb (4,990 kg) and has been independently tested to 115% dynamic load (12,650 lb equivalent) and 150% static load (16,500 lb equivalent), providing proven safety margins.
What concrete specifications are required?
Minimum 5.9 inches (150 mm) thickness with 3,000 PSI strength. Concrete must be fully cured (minimum 28 days for new pours), level within tolerance, and free of major cracks. Installation on asphalt or pavers not recommended without structural engineering approval.
What is included with the Katool AS110D?
Two main columns, overhead cross-beam with safety shutoff bar, four asymmetric lift arms (front 3-stage, rear 2-stage), four rubber contact pads, frame/truck adapters, two direct-drive hydraulic cylinders with power unit, feet-protection guardrails with toolbox tray, mounting hardware, and installation manual.
What electrical power is required?
Standard configuration requires 220 V, 60 Hz, single-phase on dedicated circuit. Motor is 2.2 kW class. Optional 110 V single-phase available; verify at order. Qualified electrician must determine breaker size and wire gauge per manual and local code.
What is the warranty for the Katool 2-post lift?
1 year parts coverage on all components and 3 years structural warranty on columns and assemblies. Non-transferable, original purchaser only. Proof of purchase required. Labor not included; parts replacement only.
Will the Katool AS110D fit 14-foot ceilings?
Overall height is 141.25 inches (11.77 feet). With 14-foot ceilings, you have 2.23 feet clearance above installed lift. Must also account for vehicle height when lifted. Consult installation manual for specific vehicle mix clearance requirements.
Is the Katool AS110D ALI-certified?
CE approved (EN 1493, Machinery Directive) and tested to 115% dynamic/150% static load. Not ALI (American Lift Institute) certified. If ALI required for your operation, verify status with manufacturer or dealer.
