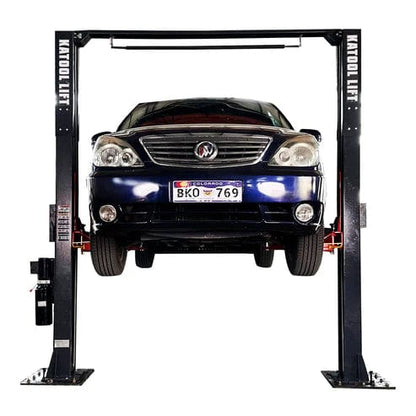

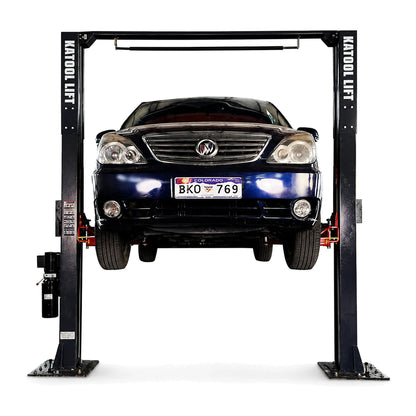

Katool KT-AM120SD - 2-Post Car Lift (12,000 lb, Asymmetric Arms)
SKU: KT-AM120SD
$2,799.00
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Product highlights
- A-Series 12,000 lb Clearfloor
- Clean Slab Between Posts
- Asymmetric Three-Stage Arms
Talk to a lift specialist
Expert product and freight support before you order
855-498-2147
- Authorized Katool Dealerdirect manufacturer relationship
- Manufacturer Warrantyincluded with purchase
- Price Match Guaranteefind it lower and we will beat it
- No Sales Tax Collected Outside PAPA orders include sales tax
Doors and drive-through decide more two-post purchases than capacity does. The Katool AM120SD answers with asymmetric three-stage arms: staggered reach that sets the vehicle back so doors open clear, at a 12,000 lb rating.
Against the symmetric M120 it's a genuinely different machine: single-point lock release, twelve lock positions, and direct-drive cylinders. The M120 counters with more lock positions and a wider drive-through.
Asymmetric geometry changes the install layout, so run your bay past us before ordering.
Features
A-Series 12,000 lb Clearfloor
Overhead cable routing with the A-series column and carriage details.
Clean Slab Between Posts
No plate to roll over; trans jacks and drain carts pass straight through.

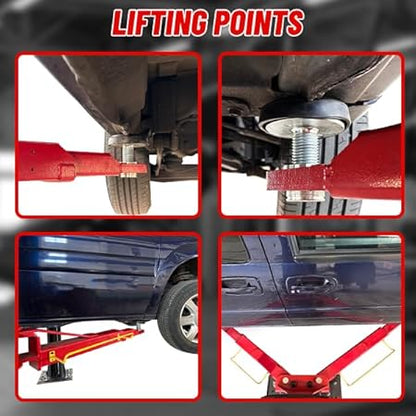

Asymmetric Three-Stage Arms
Staggered arm reach sets the vehicle rearward so doors swing clear of the columns.

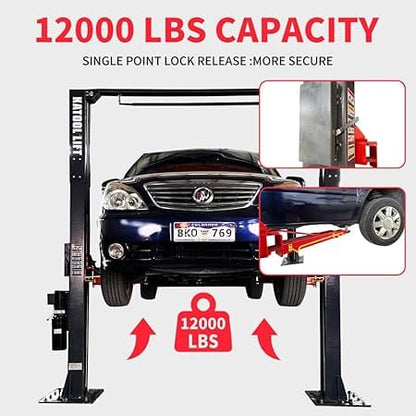

Twelve Lock Positions
Mechanical locks at twelve heights, released from a single point.
Overhead Limit Switch
The travel stop protects tall vehicles at full rise.
Specifications
| Maximum Lifting Capacity | 12,000 lbs (5,443 kg) |
|---|---|
| Arm Configuration | Asymmetric, three-stage telescoping |

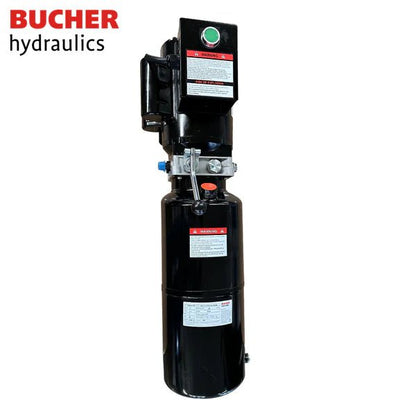

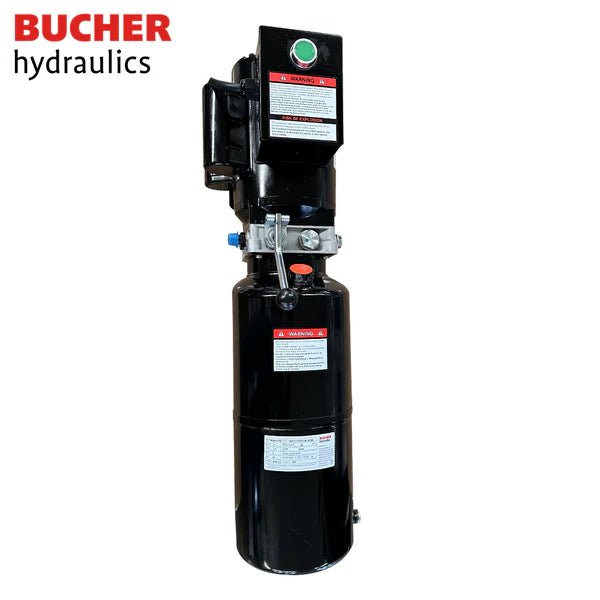

| Hydraulic Drive | Direct Drive Cylinders (dual) |

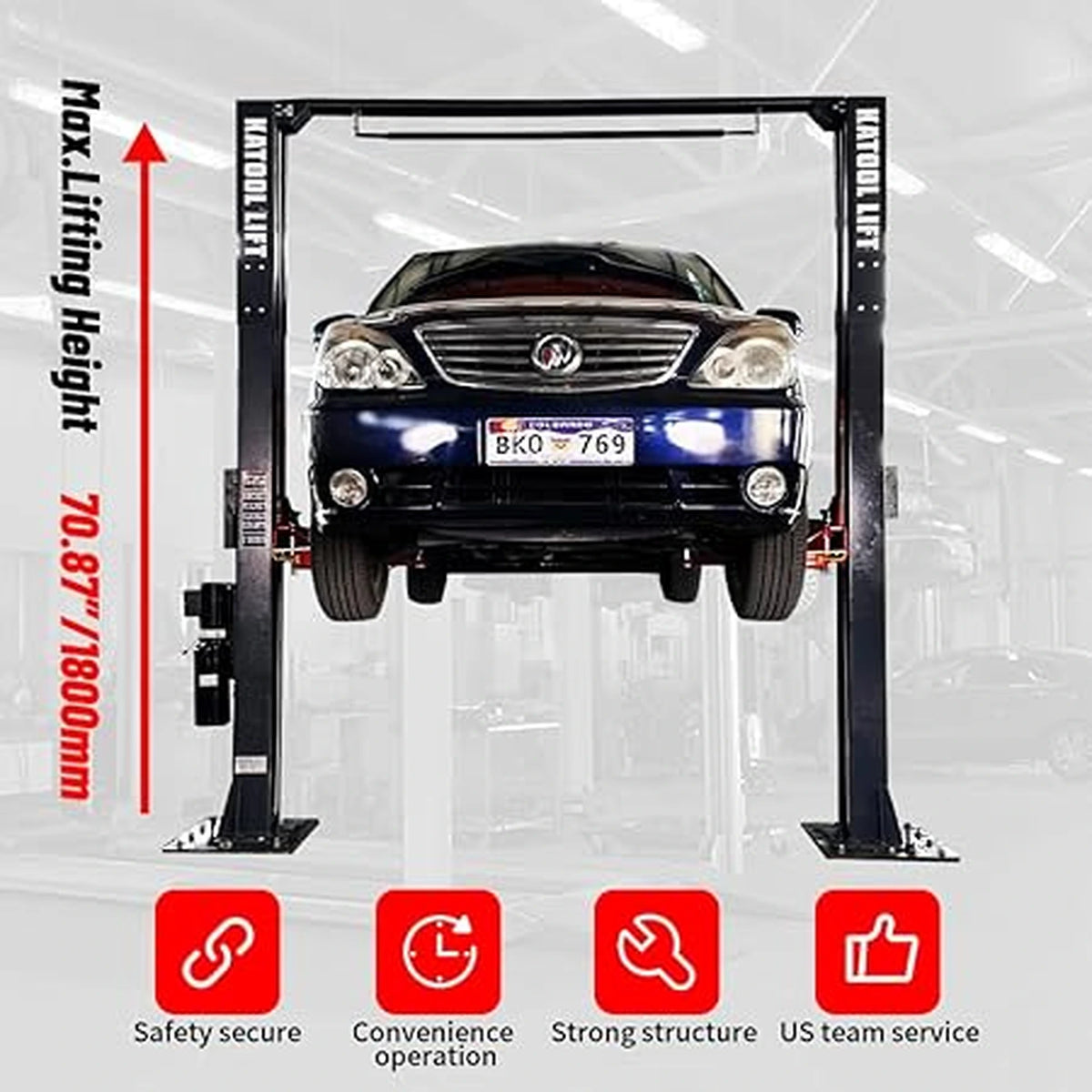

| Maximum Lifting Height | 70.87" (1800mm) |
| Minimum Pad Height | 4.25" (110mm) |
| Full Rise Time | 50 seconds |
| Safety Lock Positions | 12 mechanical positions |
| Overhead Protection | Overhead limit switch |
| Overall Height | 144" (12 feet) |
| Inside Column Width | ~110" (post-to-post) |
| Drive-Through Clearance | ~94" usable opening |

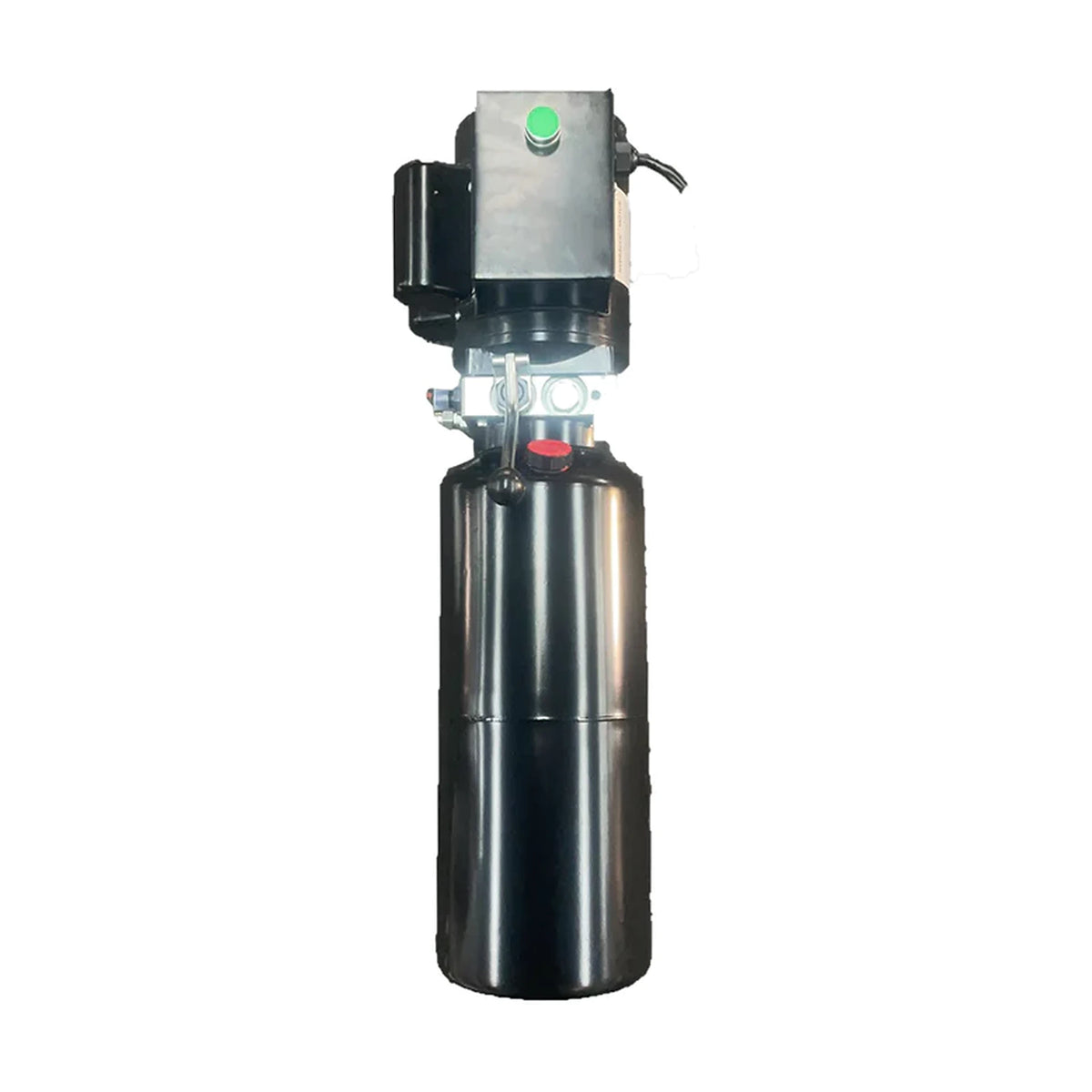

| Motor Power | 3.0 HP (2.2 kW) |
| Hydraulic Oil Capacity | 8L tank capacity |
Shipping & Delivery
Warranty
Questions About This Product?
Our team can help with installation planning, freight coordination, and configuration.
Call (855) 498-2147Frequently Asked Questions
How does the Katool AM120SD differ from the M120?
They're genuinely different machines sharing a rating. This one runs asymmetric three-stage arms with a single-point lock release and twelve lock positions; the M120 runs symmetric arms, twenty positions at 2.8-inch intervals, and a wider drive-through. Doors-clear loading picks this lift; lock granularity and pass-through width pick the M120.
What decides whether a clearfloor fits my bay?
Ceiling height, in one word. Your tallest vehicle raised has to clear beneath the overhead assembly, and the manual's figures govern. We confirm your ceiling and slab against them before you order.
