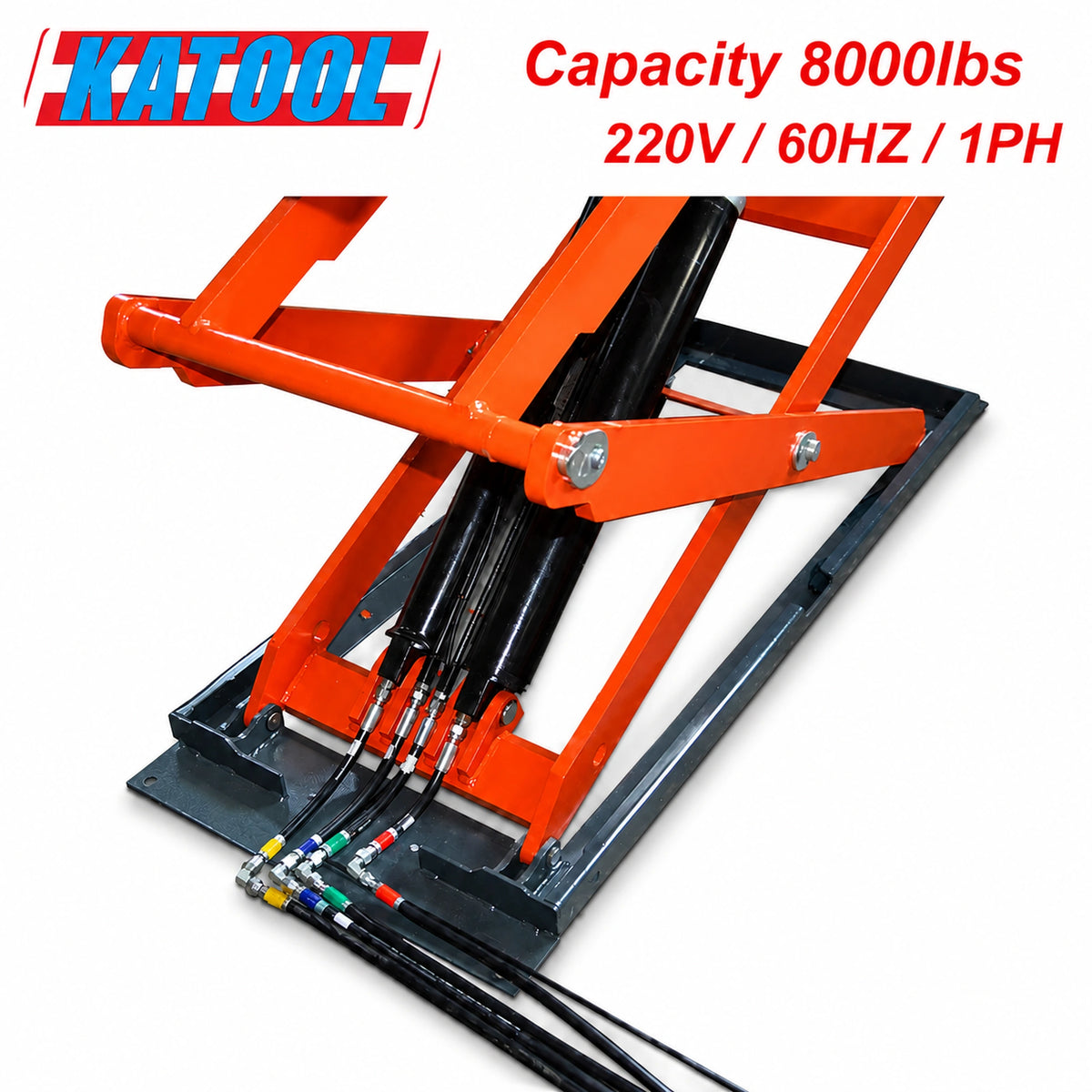

Katool AK-X95 – Scissor Lift (8,000 lb, Full-Rise)
Katool AK-X95 8,000 lb Full Rise Scissor Lift
Also known as: KT-X95, AK-X95, Katool X95

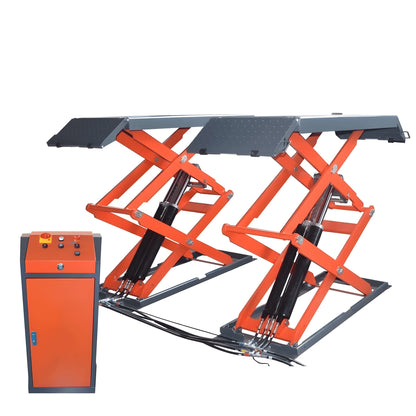

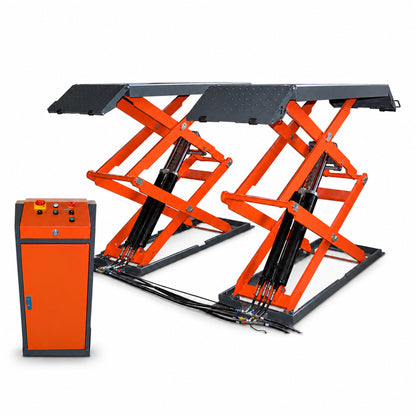

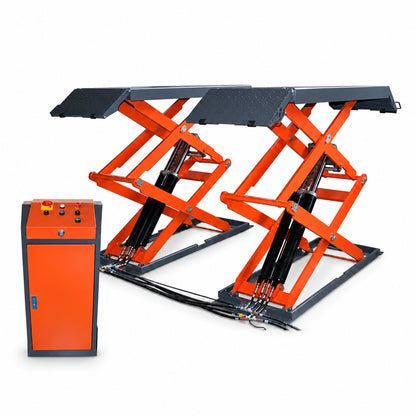

The Katool AK-X95 is an 8000 lb full rise scissor lift with flush-mount in-floor installation. This katool full rise scissor lift reaches 72.3" working height in 50 seconds, featuring pneumatic safety locks, 24V control system, and CE certification with 115% dynamic / 150% static load testing. The full rise in-floor scissor lift design preserves floor space when lowered and eliminates bay clutter from posts or above-ground equipment.
Key Features
CE-Certified with 115% / 150% Load Testing
The AK-X95 carries CE certification with 115% dynamic loading and 150% static load testing. The 24V control system operates at low voltage for operator safety, while the height limit switch prevents over-extension. Pneumatic safety release (85-113 PSI shop air required) provides instant lowering control.
Flush-Mount In-Floor Design

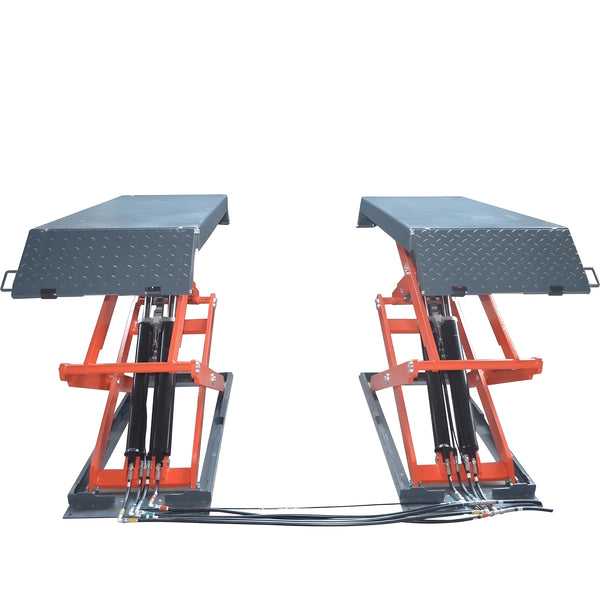

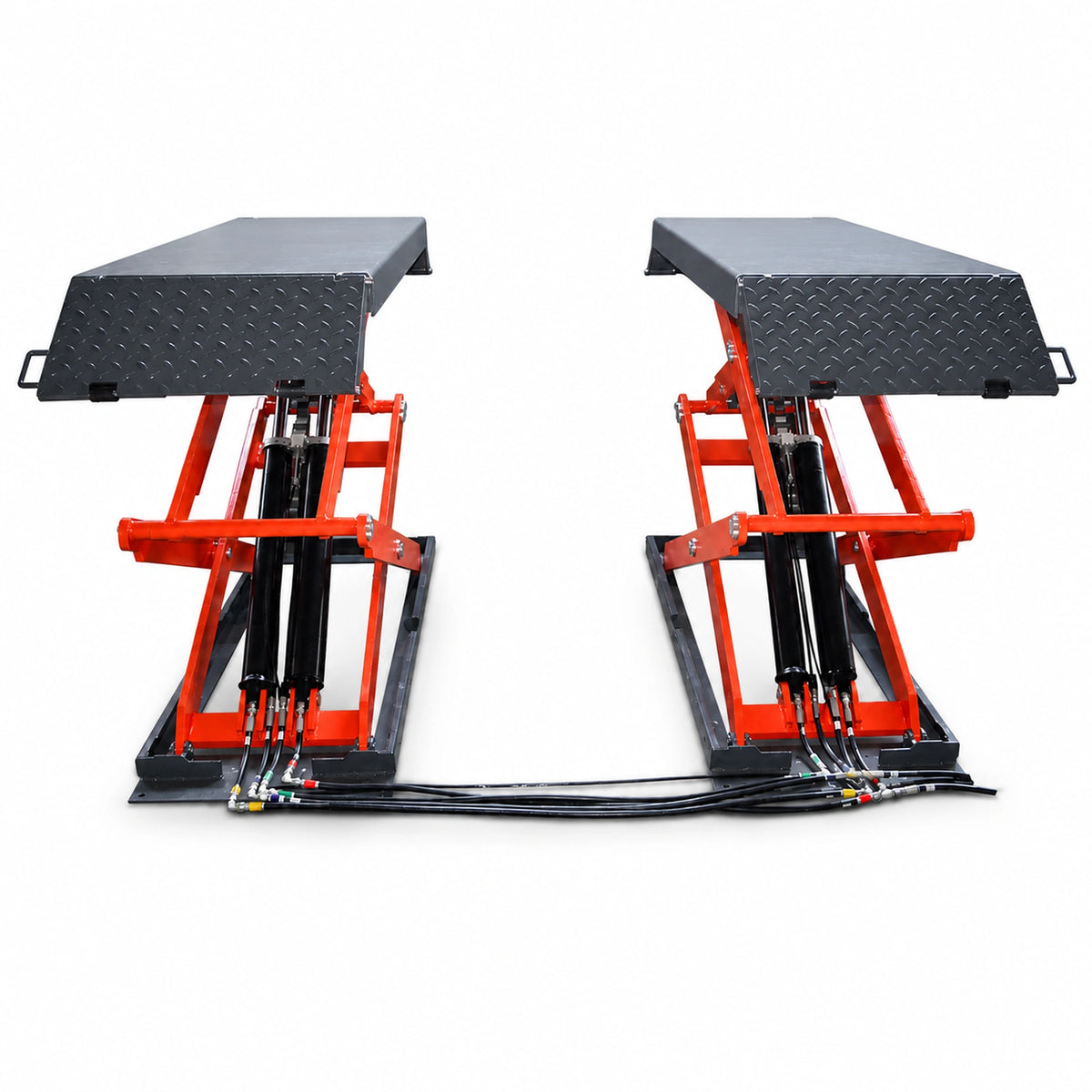

When lowered, the platforms sit level with the concrete, eliminating trip hazards and allowing unrestricted bay access. Use the space for alignment work, detailing, or storage when the lift isn't in use. The 58.9" x 24.4" platforms with 31.5" runway spacing provide undercarriage access without obstruction. This full rise scissor car lift delivers post-free working space.
72.3" Lift Height in 50 Seconds

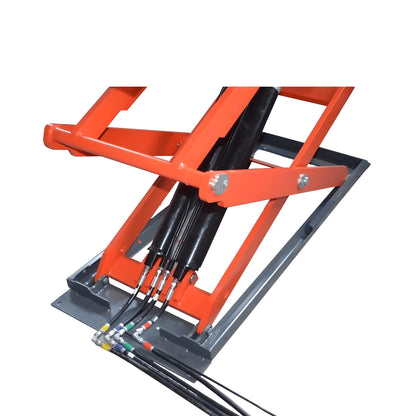

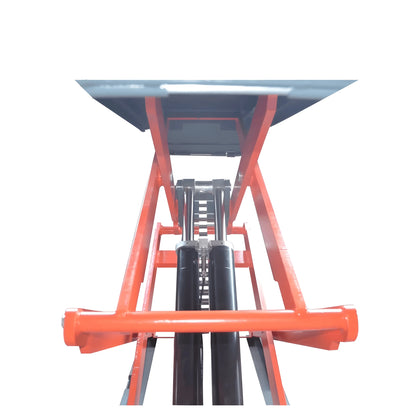

The 2.2kW motor delivers full 72.3" rise in 50 seconds or less. Aluminum motor housing with integrated cooling fan maintains performance during back-to-back lifts. The 20MPa hydraulic system ensures smooth, controlled movement. 220V single-phase power works with standard shop electrical systems.
Self-Lubricating Components
Self-lubricating bushings and bearings at every pivot point reduce maintenance requirements. Included composite rubber lifting blocks resist oil absorption and compression. Hydraulic system uses AW-46 oil (AW-32 in cold climates).
Extended Platform Design
Drive-up ramps lock as platform extensions for longer vehicles. Accommodates full-size trucks, SUVs, and extended wheelbase vans up to the 8,000 lb capacity. Textured ramp surface provides traction in wet or oily conditions.
Installation & Operation Video
Applications
Professional Auto Repair Shops
The flush-mount design maximizes bay efficiency. 50-second cycle time keeps vehicles moving. 8,000 lb capacity handles compacts to three-quarter ton pickups. Ideal for tire rotations, brake service, suspension work, and exhaust repairs.
Home Garage Workshops
220V single-phase power works with standard home electrical panels (dedicated circuit required). Flush-mount installation preserves garage functionality when not lifting. Suitable for restoration projects, maintenance, and performance modifications.
Fleet Maintenance Facilities
Self-lubricating components reduce service schedules. CE certification ensures safety compliance. Extended platform design accommodates various vehicle sizes in mixed fleets.
Technical Specifications

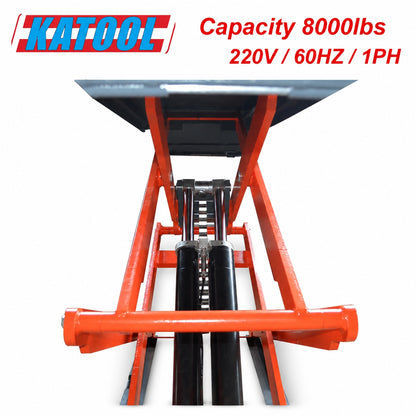

| Capacity | 8,000 lb (3,500 kg) |
|---|---|
| Maximum Height | 72.3" (1,850 mm) |
| Lifting Time | 50 seconds or less |
| Platform Length | 58.9" (1,500 mm) |
| Platform Width | 24.4" (620 mm) |
| Runway Spacing | 31.5" (800 mm) |
| Certification | CE Approved |
| Dynamic Load Test | 115% |
| Static Load Test | 150% |
| Motor | 2.2 kW |
|---|---|
| Power | 220V Single-Phase |
| Control Voltage | 24V Safety System |
| Oil Pressure | 20 MPa |
| Hydraulic Oil | AW-46 (AW-32 cold climate) |
| Air Pressure Required | 85-113 PSI (6-8 kgf/cm²) |
| Lock Release | Pneumatic |
| Weight | 2,095 lb (950 kg) |
| Installation | Flush-Mount |
Installation Requirements
Concrete Foundation
- Minimum thickness: 5.9" (150 mm)
- Minimum strength: 3,000 PSI
- Condition: Level, free from cracks or damage
- Professional installation recommended
Electrical
- Power: 220V single-phase
- Circuit: Dedicated circuit - consult licensed electrician
- Control: 24V low-voltage system
Compressed Air
- Pressure: 85-113 PSI (6-8 kgf/cm²)
- Supply: Continuous for pneumatic safety release
Space Requirements
- Bay width: Minimum 12' (3.7 m)
- Bay depth: Minimum 20' (6.1 m)
- Ceiling height: Minimum 11' (3.4 m) for full-rise operation
Shipping
Freight Details
- Lift Platform Pallet: 67" x 26" x 17" - 1,658 lb
- Control Unit Pallet: 43" x 23" x 18" - 144 lb
- Combined Weight: ~1,802 lb
Delivery
- Forklift or equivalent required for unloading
- Commercial address recommended
- Lift gate available for residential (additional fee)
- Curbside delivery standard
Warranty
Coverage
- 12 months: All components (cylinders, motors, electronics)
- 36 months: Structural components
- Parts shipping: Free for approved claims
- Labor: Not included
Requirements
- Original purchase documentation required
- Do not disassemble before claim approval
- Installation must meet requirements
- Non-transferable
Extended Warranty
2-year extended warranty available at purchase. Contact dealer for details.
Questions?
Our lift specialists can help determine if the AK-X95's flush-mount design meets your shop requirements.
Frequently Asked Questions
What concrete thickness is required?
Minimum 5.9" (150 mm) thickness with 3,000 PSI rating. Professional installation recommended for proper anchoring.
How fast does it reach full height?
The AK-X95 reaches 72.3" in 50 seconds or less. The 2.2kW aluminum motor with cooling fan maintains speed during continuous use.
What accessories are included?
Includes composite rubber lifting blocks designed to resist oil absorption and compression. Blocks provide secure frame engagement and last longer than standard rubber pads.
What electrical service is required?
220V single-phase on a dedicated circuit. Consult a licensed electrician for breaker requirements. Control system operates at 24V for safety.
Can it handle full-size trucks?
Yes. Drive-up ramps lock as platform extensions for longer vehicles. Safely supports trucks, SUVs, and extended wheelbase vans up to 8,000 lb.
What air pressure is required?
85-113 PSI (6-8 kgf/cm²) continuous shop air supply for pneumatic safety lock operation.
How much maintenance is required?
Minimal maintenance. Self-lubricating bushings and bearings at all pivot points. Periodic hydraulic oil checks (AW-46 or AW-32 in cold climates) and annual safety inspections.
What warranty is included?
12-month warranty on all components plus 36-month structural warranty. 2-year extended warranty available. Labor not included.
