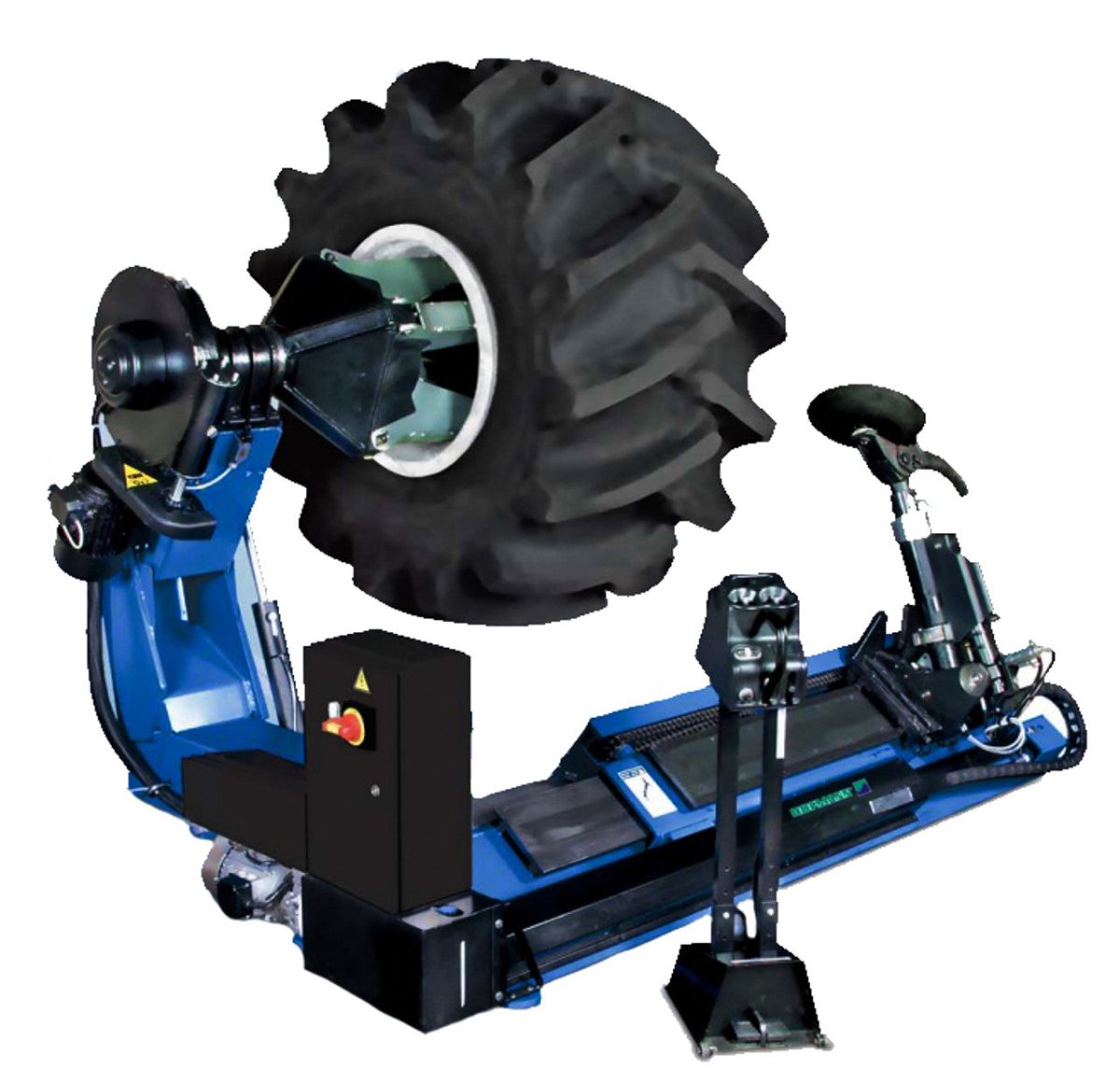

Hofmann Monty 5800B Heavy-Duty OTR & Agricultural Tire Changer 14–58 Inch Rim

The Hofmann Monty 5800B can accommodate wheel assemblies up to 98.5 inches in diameter and 4,409 lb in weight, representing the extreme upper end of heavy-duty tire changing capacity. The rim clamping range is an expansive 14-58 inches without any extensions required, while maximum tire width capacity is 59 inches. This makes it suitable for the largest mining equipment, agricultural tractors, forestry machinery, earthmoving vehicles, and heavy commercial trucks. If you're servicing massive mining trucks or the largest agricultural equipment, the 5800B provides the capacity needed to handle these challenging applications safely and efficiently.

The dual-speed chuck system provides two operator-selectable rotation speeds: 4 RPM for slow, controlled operation during critical phases and 8 RPM for faster operation during routine mounting and demounting. The slow speed allows thorough monitoring of critical operations like bead seating, alignment checks, and initial tire positioning where precision is essential. The fast speed accelerates less critical phases like spinning the wheel to the desired position or completing final mounting steps, significantly improving overall productivity. This intelligent speed control optimizes both safety and efficiency, giving operators the precise control needed on massive wheel assemblies while reducing overall service time.

The Hofmann Monty 5800B requires 208V 3-phase 60Hz electrical service to power its substantial hydraulic systems. A licensed electrician must install a dedicated circuit with appropriate wire gauge and overcurrent protection based on local electrical codes and the machine's power requirements. The three-phase power is necessary to drive the powerful hydraulic cylinders that operate the mounting tool, bead breaker, and chuck systems. Verify that your facility has three-phase power available before ordering, as voltage conversion or electrical service upgrades can be costly. Proper electrical installation is critical for safe operation and warranty coverage.

Yes, the Monty 5800B is specifically designed for safe single-technician operation through its mobile wired remote control unit. The operator can control all tire changing functions from a safe distance, which is especially critical when working with wheel assemblies weighing over 4,000 lb and approaching 100 inches in diameter. The remote control allows the technician to maintain optimal viewing angles and safe positioning throughout the service process. However, for positioning and maneuvering the largest and heaviest wheel assemblies onto the machine, having additional personnel to assist with material handling is recommended for both safety and efficiency, though the actual tire changing operations can be performed by a single operator.

The semi-automatic mounting tool combines hydraulic power with operator control to optimize the tire changing process. The system allows for independent hydraulic management of tool positioning and rotation, with the operator directing these movements via the remote control unit. The 180-degree rotational capacity enables the tool to work on both sides of the tire without repositioning the wheel assembly, while the bead breaker disk and lever tool provide the versatility needed for different tire types and service procedures. Unlike fully manual systems that require significant physical effort, or fully automatic systems that may lack flexibility, the semi-automatic design provides the perfect balance of power, control, and adaptability for challenging heavy-duty applications.

Hofmann provides comprehensive limited warranty coverage on the Monty 5800B, protecting against defects in materials and workmanship under normal use. Complete warranty terms, coverage periods, and conditions are detailed in the warranty documentation included with your equipment. Warranty coverage requires proper equipment registration, professional installation per manufacturer specifications, regular maintenance per the service schedule, and operation within rated capacity. The warranty does not cover damage from improper use, lack of maintenance, unauthorized modifications, or normal wear items. Given the substantial investment in this top-tier tire changer, review the complete warranty documentation carefully and maintain proper service records to protect your warranty coverage.

The Monty 5800B has a substantial footprint of 167 inches wide x 83 inches deep x 79 inches high, requiring significant bay space. Provide minimum 48 inches of clearance on all sides for safe operation, wheel maneuvering, and maintenance access. When servicing wheels up to 98.5 inches in diameter, ceiling height becomes critical - you'll need minimum 12-foot ceiling clearance, with 14-16 feet preferred for comfortable operation. The total service area should also account for staging space for large wheel assemblies, tire storage, and technician movement. This is professional heavy-duty equipment requiring a properly sized and equipped service bay. Professional installation services can help assess your facility and determine optimal placement.

The Monty 5800B is specifically designed for the most demanding heavy-duty tire service applications including mining and earthmoving equipment, large agricultural machinery (tractors, combines, sprayers), forestry equipment (skidders, feller bunchers), heavy commercial trucks, and specialized industrial vehicles. Its extreme capacity makes it essential for equipment dealers, mining operations, large agricultural dealers, forestry companies, and heavy equipment rental operations that service the largest machinery. The 14-58 inch clamping range without extensions and 98.5-inch diameter capacity cover virtually any commercial or industrial tire application. If your operation regularly services wheel assemblies over 60 inches in diameter or 2,000 lb, the 5800B provides the capacity and capability you need.

Typical delivery time for the Hofmann Monty 5800B is 6-8 weeks from order confirmation due to the specialized manufacturing processes required for this extreme-capacity equipment. Lead times may vary based on current production schedules and component availability. Free freight shipping is included to commercial addresses with loading dock or heavy-duty forklift access in the 48 contiguous United States. The equipment ships in large crates requiring specialized handling. Contact us before ordering if you have specific timing requirements, and we'll provide the most current lead time estimate. International shipping, export documentation, and specialized rigging services are available for additional fees with extended lead times.

The Monty 5800B requires a heavily reinforced concrete floor with minimum 8-inch thickness and compressive strength of at least 4,000 PSI due to the extreme forces generated when servicing massive wheel assemblies. The floor must be level within 1/4 inch across the machine footprint. Some facilities may require additional reinforcement beyond standard industrial concrete floors, particularly if servicing the very largest mining or earthmoving equipment. Proper anchoring using the specified anchor bolts is absolutely critical for safe operation and warranty coverage. A structural engineer should evaluate your floor if there's any question about its ability to handle the loads. Professional installation services can assist with foundation assessment and ensure proper anchoring.

Professional installation by factory-trained technicians is strongly recommended and likely required to maintain warranty coverage for the Monty 5800B. The substantial size, weight, and complexity of this equipment necessitates specialized expertise for safe installation. Professional installation includes uncrating with heavy rigging equipment, precision positioning and leveling, anchoring to reinforced concrete, electrical connection by licensed electrician, hydraulic system commissioning, and comprehensive operational testing and technician training. The investment in professional installation protects your substantial equipment investment and ensures safe, reliable operation. Contact Garage Supply Guys or an authorized Hofmann dealer to arrange installation services, which should be coordinated with delivery for optimal scheduling.

The Monty 5800B and 4400 serve different segments of the heavy-duty tire service market. The 4400 handles wheels up to 90.5 inches in diameter and 3,300 lb with a 14-44 inch rim clamping range (expandable to 56 inches), making it ideal for heavy commercial trucks, buses, and many agricultural applications. The 5800B extends capacity to 98.5 inches in diameter and 4,409 lb with an expansive 14-58 inch clamping range requiring no extensions, specifically designed for the largest mining equipment, forestry machinery, and extreme agricultural applications. The 5800B adds the semi-automatic mounting tool with 180-degree rotation and dual-speed chuck for enhanced capability on the most challenging applications. Choose the 4400 for heavy commercial truck and agricultural service, and the 5800B when you need maximum capacity for mining, large forestry equipment, or the biggest agricultural machinery.
