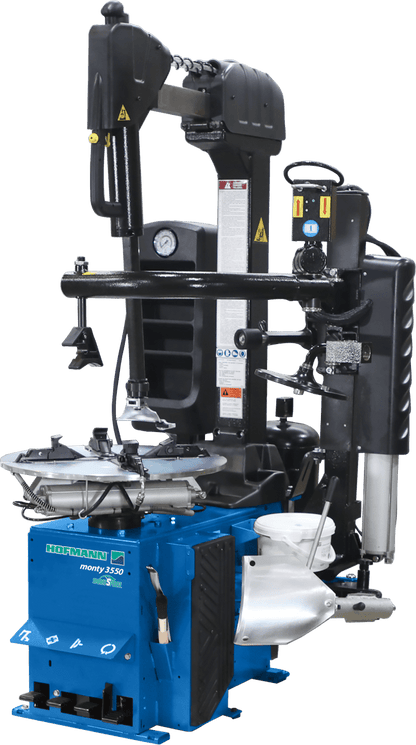

Hofmann Monty 3550 SmartSpeed Tilt-Tower Tire Changer

The Monty 3550 accommodates rim diameters up to 26 inches (66 cm), tire widths up to 17 inches (43 cm), rim widths from 16 inches to 47 inches (41-119 cm), and maximum wheel diameters up to 47 inches (119 cm). This capacity range covers passenger vehicles, SUVs, crossovers, and light trucks commonly serviced in automotive repair facilities. The adjustable self-centering clamping jaws adapt to this full size range without requiring different adapters or tooling changes.

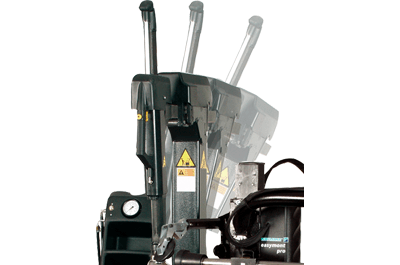

The pneumatic tilt-tower raises and lowers automatically to provide maximum clearance for wheel loading and unloading, eliminating the awkward maneuvering required with fixed-height turntables. When lowered, the tower brings the turntable close to floor level for easy wheel placement, then raises to optimal working height for tire mounting and demounting operations. This ergonomic design significantly reduces technician fatigue during high-volume operations by eliminating repetitive heavy lifting while reducing the risk of dropping or damaging wheels during placement.

The Monty 3550 requires a compressed air system capable of delivering 116-174 PSI (8-12 bar) continuously to operate the tilt-tower mechanism, EasyMont system, and rim clamping bead seater. Your shop's air compressor must maintain this pressure range during operation with sufficient capacity to supply both the tire changer and other pneumatic tools simultaneously. Install a dedicated air line with appropriate filtration and moisture separation to prevent water contamination and debris from damaging pneumatic components and ensuring reliable operation.

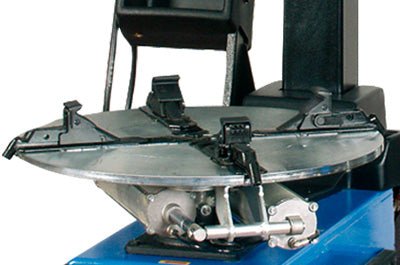

The self-centering clamping jaws feature protective nylon coverings that create a cushioned contact surface between the metal jaws and wheel rim. This protective layer prevents scratching, gouging, or marring of finished wheel surfaces including chrome, painted, powder-coated, and polished aluminum wheels. The self-centering mechanism automatically positions the wheel concentrically on the turntable for balanced rotation during tire mounting and demounting, while the adjustable jaw design accommodates rim widths from 16 to 47 inches without requiring different clamp sets.

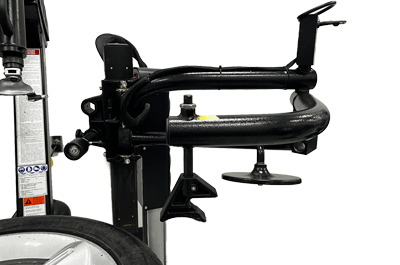

The EasyMont system is a comprehensive pneumatic assist package that includes three main components working together to streamline challenging tire installations. The top roller applies controlled pressure to guide tire beads over rim edges during mounting. The pressing foot holds tire sections in position during demounting operations. The lifting disk assists in elevating tire beads during removal. Together, these pneumatically-powered tools enable a single technician to efficiently service low-profile and ultra-high-performance tires that would typically require excessive force or additional assistance with manual methods.

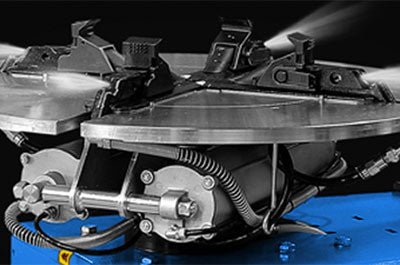

The Monty 3550 ships complete with the tire changer base unit, pneumatic tilt-tower mechanism, self-centering clamping jaws with nylon protection, complete EasyMont system (top roller, pressing foot, lifting disk), pedal-operated on-floor bead breaker, rim clamping bead seater, pneumatic vertical arm for mounting head positioning, integrated tool box with air pressure gauge and four storage shelves, installation hardware, anchor bolts, and complete documentation including owner's manual and installation guide. Optional accessories available separately through the Hofmann accessory catalog.

The Monty 3550 ships via freight carrier on a pallet and requires either a forklift or loading dock for safe unloading. Standard curbside delivery means the freight driver will unload the pallet to ground level at the delivery location but cannot move it into your facility or position it for installation. The substantial weight and dimensions make manual unloading unsafe and impractical. Arrange for appropriate material handling equipment to be available at your facility on the scheduled delivery day, and inspect all packaging for shipping damage before signing the bill of lading.

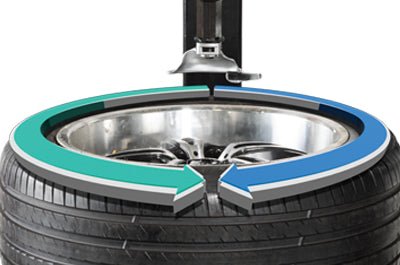

SmartSpeed is a patent-protected system that continuously monitors wheel characteristics and automatically adjusts both motor torque and rotational speed in real-time to match each specific tire type. Rather than operating at a fixed speed for all tires, SmartSpeed optimizes performance for standard passenger tires, stiff-sidewall performance tires, and specialty applications without requiring manual speed adjustments between jobs. This intelligent control reduces the risk of tire or wheel damage from excessive speed while maximizing efficiency by applying the optimal force for each specific tire changing operation.

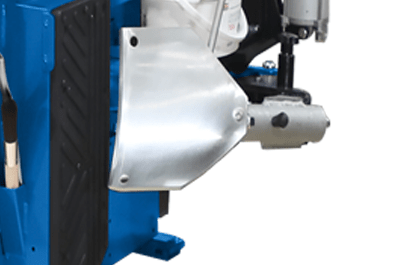

The pedal-operated on-floor bead breaker positions the breaking mechanism at ground level where wheels rest naturally, eliminating the need to lift heavy wheel assemblies onto elevated breaking platforms. The conventional side-shovel design with ergonomically positioned pedal control allows technicians to operate the breaker from a comfortable standing position without bending or straining. This configuration efficiently breaks beads on tires ranging from passenger car applications through light trucks without requiring excessive force, while the floor-mounted design provides stable support during breaking operations.

Yes, the Monty 3550 is well-equipped for low-profile and high-performance tire service through the pneumatic EasyMont system. The combination of top roller, pressing foot, and lifting disk specifically addresses the challenges of mounting and demounting tires with short, stiff sidewalls that resist traditional manual mounting methods. The SmartSpeed technology automatically adjusts torque and speed for performance tire construction, while the nylon-covered clamping jaws protect expensive performance wheels. This comprehensive feature set enables efficient service of challenging tire types without risking wheel damage or requiring excessive technician effort.

Hofmann provides comprehensive limited warranty coverage protecting against defects in materials and workmanship under normal commercial use. Warranty terms vary by component and application, with specific coverage details provided in the Hofmann warranty documentation included with your tire changer. Warranty activation requires equipment registration within 30 days of installation and compliance with installation requirements including professional setup, proper compressed air supply, and adherence to the manufacturer's maintenance schedule. Warranty service is performed by authorized Hofmann service centers using genuine replacement parts.

Regular maintenance includes daily inspection of pneumatic connections for air leaks, weekly lubrication of moving components including tilt-tower mechanism and turntable bearings per the maintenance schedule, periodic inspection and cleaning of nylon jaw coverings for wear or damage, and replacement of air filters and moisture separators in the compressed air supply system. The bead breaker mechanism requires periodic lubrication, and the EasyMont system components need inspection for proper operation and wear. Following the manufacturer's maintenance schedule documented in the operation manual ensures reliable long-term performance and maintains warranty coverage.
