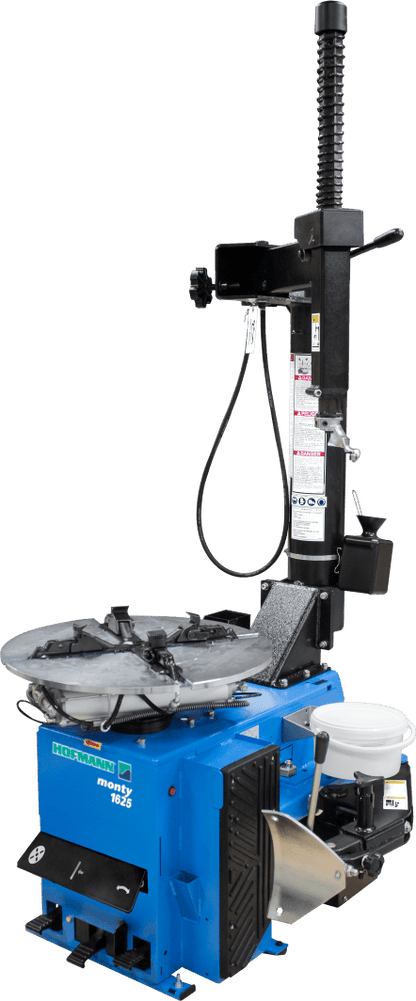

Hofmann Monty 1625 Swing-Arm Tire Changer 24 Inch Rim

The Monty 1625 accommodates rim diameters up to 24 inches (61 cm), tire widths up to 15 inches (38 cm), rim widths from 14 inches to 50 inches (36-127 cm), and maximum wheel diameters up to 50 inches (127 cm). This capacity range covers the majority of passenger vehicles, crossovers, SUVs, and light trucks commonly serviced in automotive repair facilities. The self-centering clamping jaws adapt to this full size range without requiring different adapters or tooling changes.

The swing-arm mounting head pivots to the side rather than extending straight forward like traditional tire changers, allowing the Monty 1625 to be installed with its back directly against a shop wall. This configuration reclaims valuable floor space that would otherwise be lost to clearance requirements behind the machine. In space-constrained facilities, this design enables tire changing capabilities without sacrificing room for vehicle positioning, technician movement, or other essential shop equipment.

The Monty 1625 requires a compressed air system capable of delivering 116-174 PSI (8-12 bar) continuously to operate the patented two-cylinder clamping system, bead breaker, and rim clamping bead seater. Your shop's air compressor must maintain this pressure range during operation with sufficient capacity to supply both the tire changer and other pneumatic tools simultaneously. Install a dedicated air line with appropriate filtration and moisture separation to prevent water contamination and debris from damaging pneumatic components.

The built-in pressure monitoring system automatically limits tire inflation to a maximum of 55 PSI during bead seating operations, preventing dangerous overinflation that could cause tire or wheel failure. This safety feature continuously monitors inflation pressure and automatically stops air flow when the 55 PSI threshold is reached, protecting technicians from burst hazards while ensuring controlled, consistent bead seating across all tire types. This eliminates the need for technicians to manually monitor inflation pressure during the critical bead seating phase.

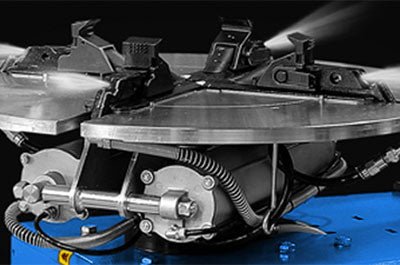

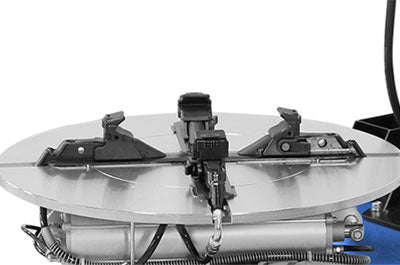

The self-centering clamping jaws feature protective nylon coverings that create a cushioned contact surface between the metal jaws and wheel rim, preventing scratching, gouging, or marring of finished wheel surfaces. This protective layer is particularly important for chrome, painted, powder-coated, and polished aluminum wheels where cosmetic damage creates customer dissatisfaction. The patented two-cylinder clamping system applies controlled, consistent force without excessive pressure that could damage rims, while the self-centering mechanism automatically positions wheels concentrically for balanced rotation.

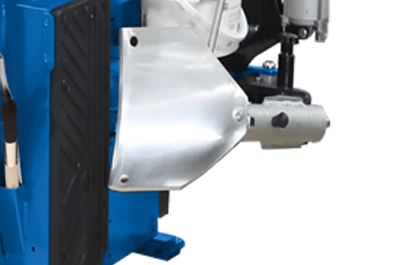

The Monty 1625 ships complete with the tire changer base unit, swing-arm mounting head, self-centering clamping jaws with nylon protection, patented two-cylinder clamping system, integrated pressure monitoring system (55 PSI maximum), pedal-operated on-floor bead breaker, rim clamping bead seater, installation hardware, anchor bolts, and complete documentation including owner's manual and installation guide. The optional pneumatic EasyMont system (top roller, pressing foot, lifting disk) is available separately for enhanced low-profile tire service capabilities.

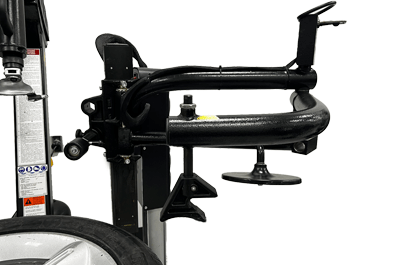

The optional pneumatic EasyMont system significantly enhances the Monty 1625's capability when servicing low-profile and ultra-high-performance tires with stiff sidewalls. If your shop regularly services performance vehicles, luxury cars with large-diameter wheels, or run-flat tires, the EasyMont system's top roller, pressing foot, and lifting disk streamline these challenging tire changes and reduce technician effort. For shops primarily servicing standard passenger vehicle tires, the base Monty 1625 provides adequate tire changing capabilities without the additional investment.

The Monty 1625 ships via freight carrier on a pallet and requires either a forklift or loading dock for safe unloading. Standard curbside delivery means the freight driver will unload the pallet to ground level at the delivery location but cannot move it into your facility or position it for installation. The substantial weight makes manual unloading unsafe and impractical. Arrange for appropriate material handling equipment to be available at your facility on the scheduled delivery day, and inspect all packaging for shipping damage before signing the bill of lading.

The swing-arm design allows installation with the rear of the unit directly against a shop wall, maximizing floor space efficiency. However, ensure the wall installation location provides adequate electrical outlet access for shop lighting and allows minimum 36 inches clearance on the front and operating side for wheel handling, technician movement, and safe pedal operation. The wall should be structurally sound and not interfere with the tire changer's compressed air line connection. Avoid locations near rolling doors or high-traffic walkways where the swing-arm could create safety hazards during operation.

The patented dual-cylinder clamping mechanism delivers consistent, controlled clamping force across the full range of wheel sizes from 14 to 50 inches without requiring manual force adjustments for different wheel dimensions. This system provides sufficient grip strength to prevent wheel slippage during turntable rotation while avoiding excessive pressure that could damage rims. The two-cylinder design works in conjunction with the self-centering mechanism to ensure proper wheel alignment and balanced rotation throughout mounting and demounting operations, improving both safety and efficiency.

Hofmann provides comprehensive limited warranty coverage protecting against defects in materials and workmanship under normal commercial use. Warranty terms vary by component and application, with specific coverage details provided in the Hofmann warranty documentation included with your tire changer. Warranty activation requires equipment registration within 30 days of installation and compliance with installation requirements including professional setup, proper compressed air supply, and adherence to the manufacturer's maintenance schedule. Warranty service is performed by authorized Hofmann service centers using genuine replacement parts.

Regular maintenance includes daily inspection of pneumatic connections for air leaks, weekly lubrication of moving components including swing-arm pivot points and turntable bearings per the maintenance schedule, periodic inspection and cleaning of nylon jaw coverings for wear or damage, verification of pressure monitoring system calibration, and replacement of air filters and moisture separators in the compressed air supply system. The bead breaker mechanism requires periodic lubrication, and the two-cylinder clamping system needs inspection for proper operation. Following the manufacturer's maintenance schedule documented in the operation manual ensures reliable long-term performance and maintains warranty coverage.
