Hofmann Monty 1575 Swing-Arm Tire Changer 24 Inch Rim

The Monty 1575 accommodates rim diameters up to 24 inches (61 cm), tire widths up to 13 inches (33 cm), rim widths from 12 inches to 40 inches (31-101 cm), and maximum wheel diameters up to 40 inches (101 cm). This capacity range covers the majority of passenger vehicles, compact crossovers, and smaller SUVs commonly serviced in general automotive repair facilities. The twin-cylinder self-centering clamping jaws adapt to this full size range without requiring different adapters or tooling changes.

The Monty 1575 features an exceptionally compact footprint of just 72 inches height x 47 inches width x 44 inches depth, making it one of the smallest professional tire changers available while maintaining full functionality. The swing-arm design further reduces space requirements by allowing wall-adjacent installation, and the column-integrated air tank eliminates the need for separate floor-mounted air tanks. This compact configuration is ideal for shops with limited floor space, multi-bay facilities maximizing vehicle capacity, or mobile service operations requiring portable professional equipment.

The Monty 1575 operates on standard 115V single-phase 60Hz electrical supply with 12-amp draw, meaning it can plug into existing shop electrical outlets without requiring expensive electrical service upgrades or dedicated circuits. This standard power requirement eliminates a major barrier to bringing tire changing capabilities in-house for shops operating in leased facilities or older buildings where electrical infrastructure upgrades would be cost-prohibitive or impractical.

The column-integrated air tank is built into the vertical column structure of the tire changer, providing substantial compressed air storage capacity without consuming additional floor space. This large-volume tank stores compressed air for powerful bead seating operations, delivering the air volume necessary for reliable bead seating across all tire sizes within the machine's capacity range. The integrated design eliminates the need for separate floor-mounted bead seater tanks that occupy valuable shop space and require additional plumbing connections.

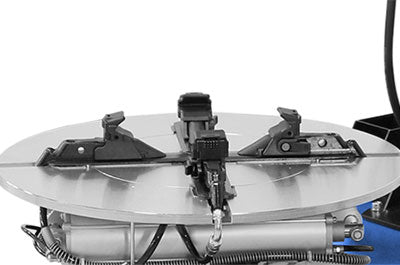

The twin-cylinder clamping mechanism drives self-centering jaws covered in protective nylon material that creates a cushioned contact surface between the metal jaws and wheel rim. This protective covering prevents scratching, gouging, or marring of finished wheel surfaces including chrome, painted, powder-coated, and polished aluminum wheels. The dual-cylinder system provides consistent, controlled clamping force without excessive pressure that could damage rims, while the self-centering mechanism automatically positions wheels concentrically on the turntable for balanced rotation during mounting and demounting operations.

The Monty 1575 ships complete with the tire changer base unit, swing-arm mounting head, twin-cylinder self-centering clamping jaws with nylon protection, column-integrated air tank, pedal-operated on-floor bead breaker, rim clamping bead seater, installation hardware, anchor bolts, and complete documentation including owner's manual and installation guide. Optional accessories such as rim protectors, valve tool sets, and mounting lubricants are available separately through the Hofmann accessory catalog.

The swing-arm design allows installation with the rear of the unit directly against a shop wall, maximizing floor space efficiency. However, ensure the wall installation location provides adequate access for compressed air line connections and allows minimum 36 inches clearance on the front and operating side for wheel handling, technician movement, and safe pedal operation. The wall should be structurally sound, and the location should avoid high-traffic walkways where the swing-arm could create safety hazards during operation or interfere with vehicle movement.

The Monty 1575 is designed as a reliable workhorse for general automotive service facilities rather than dedicated high-volume tire specialty shops. Its 24-inch rim capacity and 40-inch wheel diameter capacity handle the vast majority of passenger vehicle tire service requirements, but shops regularly servicing larger SUVs, trucks, or performance vehicles with oversized wheels may require tire changers with greater capacity. The compact design and efficient operation make it ideal for independent repair shops, quick service centers, and facilities where tire changing is one of several service offerings rather than the primary business focus.

The Monty 1575 ships via freight carrier on a pallet and requires either a forklift or loading dock for safe unloading. Standard curbside delivery means the freight driver will unload the pallet to ground level at the delivery location but cannot move it into your facility or position it for installation. Despite its compact operating footprint, the substantial weight makes manual unloading unsafe and impractical. Arrange for appropriate material handling equipment to be available at your facility on the scheduled delivery day, and inspect all packaging for shipping damage before signing the bill of lading.

The Monty 1575 requires a compressed air system capable of delivering 116-174 PSI (8-12 bar) continuously to operate the twin-cylinder clamping system, bead breaker, and column-integrated air tank. Your shop's air compressor must maintain this pressure range during operation with sufficient capacity to supply both the tire changer and other pneumatic tools simultaneously. Install a dedicated air line with appropriate filtration and moisture separation to prevent water contamination and debris from damaging pneumatic components and ensuring reliable operation of the integrated air tank.

Hofmann provides comprehensive limited warranty coverage protecting against defects in materials and workmanship under normal commercial use. Warranty terms vary by component and application, with specific coverage details provided in the Hofmann warranty documentation included with your tire changer. Warranty activation requires equipment registration within 30 days of installation and compliance with installation requirements including professional setup, proper electrical and compressed air supply, and adherence to the manufacturer's maintenance schedule. Warranty service is performed by authorized Hofmann service centers using genuine replacement parts.

Regular maintenance includes daily inspection of pneumatic connections for air leaks, weekly lubrication of moving components including swing-arm pivot points and turntable bearings per the maintenance schedule, periodic inspection and cleaning of nylon jaw coverings for wear or damage, column-integrated air tank drain to remove moisture accumulation, and replacement of air filters and moisture separators in the compressed air supply system. The bead breaker mechanism requires periodic lubrication, and the twin-cylinder clamping system needs inspection for proper operation. Following the manufacturer's maintenance schedule documented in the operation manual ensures reliable long-term performance and maintains warranty coverage.
