Hofmann Monty 1270 Swing-Arm Tire Changer 20 Inch Rim

The Monty 1270 accommodates rim diameters up to 20 inches (51 cm), tire widths up to 13 inches (33 cm), rim widths from 12 inches to 39 inches (31-99 cm), and maximum wheel diameters up to 39 inches (99 cm). This capacity range covers the core passenger vehicle market including compact cars, sedans, and smaller crossovers commonly serviced in general automotive repair facilities. The 20-inch rim capacity limitation means this tire changer is best suited for shops primarily servicing standard passenger vehicles rather than larger SUVs or trucks with oversized wheels.

The Monty 1270 features a compact footprint of 68 inches height x 47 inches width x 49 inches depth, making it one of the smallest professional tire changers available while maintaining essential functionality. The swing-arm design further reduces space requirements by allowing wall-adjacent installation where the rear of the unit sits directly against shop walls. This space-efficient configuration is ideal for shops with limited floor space, multi-service facilities where tire changing is one of several offerings, or entry-level operations establishing tire service capabilities without dedicating excessive space to equipment.

The Monty 1270 operates on standard 115V single-phase 60Hz electrical supply, meaning it can plug into existing shop electrical outlets without requiring expensive electrical service upgrades or dedicated circuits. This standard power requirement eliminates a significant barrier to bringing tire changing capabilities in-house for shops operating in leased facilities, older buildings where electrical infrastructure upgrades would be cost-prohibitive, or locations where electrical capacity is limited. A licensed electrician should verify the electrical supply meets local codes before operation.

The Monty 1270 is designed as an entry-level tire changer for general automotive repair facilities rather than dedicated high-volume tire specialty shops. Its 20-inch rim capacity and straightforward functionality handle the core passenger vehicle market effectively, but shops regularly servicing larger vehicles, performance cars with oversized wheels, or processing high daily tire change volume may benefit from tire changers with greater capacity and advanced features. The Monty 1270 excels in shops where tire changing is one of several automotive services rather than the primary business focus.

The self-centering clamping jaws automatically position wheels concentrically on the turntable through mechanical linkage that equalizes clamping force on all sides simultaneously. As the jaws close, they naturally center the wheel on the turntable axis for balanced rotation during mounting and demounting operations. This self-centering action accommodates rim widths from 12 to 39 inches without requiring extensive manual adjustment between different wheel sizes, reducing setup time and ensuring proper wheel alignment for smooth turntable rotation throughout the tire changing process.

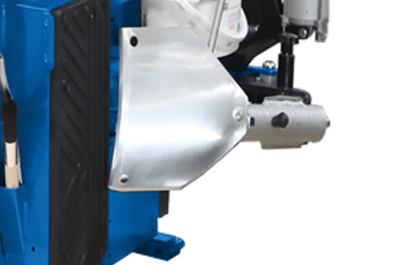

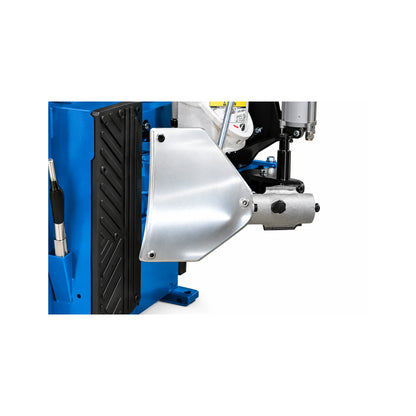

The Monty 1270 ships complete with the tire changer base unit, swing-arm mounting head, self-centering adjustable clamping jaws, pedal-operated on-floor bead breaker, installation hardware, anchor bolts, and complete documentation including owner's manual and installation guide. Optional accessories such as rim protectors, valve tool sets, and mounting lubricants are available separately through the Hofmann accessory catalog. The Monty 1270 includes the essential components needed for basic tire changing operations without premium features or accessories.

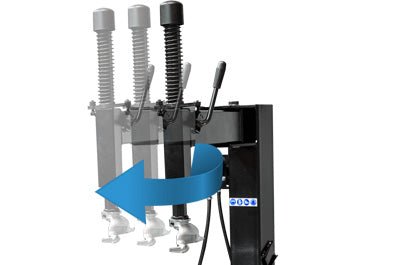

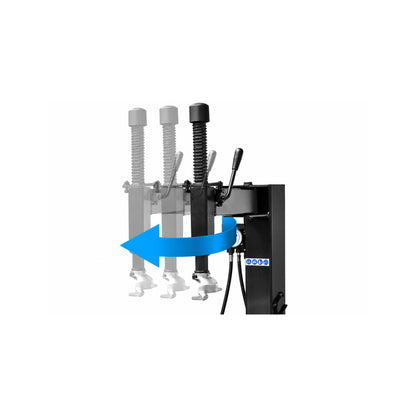

The swing-arm design allows installation with the rear of the unit directly against a shop wall, maximizing floor space efficiency. However, ensure the wall installation location allows minimum 36 inches clearance on the front and operating side for wheel handling, technician movement, and safe pedal operation. The location should provide adequate access for compressed air line connections and avoid high-traffic walkways where the swing-arm could create safety hazards during operation. The wall should be structurally sound and the floor level for proper tire changer operation and stability.

The Monty 1270 ships via freight carrier on a pallet and requires either a forklift or loading dock for safe unloading. Standard curbside delivery means the freight driver will unload the pallet to ground level at the delivery location but cannot move it into your facility or position it for installation. Despite its compact operating footprint, the substantial weight makes manual unloading unsafe and impractical. Arrange for appropriate material handling equipment to be available at your facility on the scheduled delivery day, and inspect all packaging for shipping damage before signing the bill of lading.

The Monty 1270 requires a compressed air system capable of delivering 116-174 PSI (8-12 bar) continuously to operate the clamping system and bead breaker. Your shop's air compressor must maintain this pressure range during operation with sufficient capacity to supply both the tire changer and other pneumatic tools simultaneously. Install a dedicated air line with appropriate filtration and moisture separation to prevent water contamination and debris from damaging pneumatic components and ensuring reliable operation throughout the workday.

The Monty 1270 emphasizes straightforward, user-friendly operation with conventional tire changing procedures and intuitive controls. Technicians familiar with basic tire changing concepts can typically become proficient with the Monty 1270 after minimal training, as it employs traditional swing-arm design without complex automated features or specialized controls. This accessibility makes it an excellent entry point for shops establishing tire changing capabilities or training new technicians in tire service operations. The operation manual provides complete guidance on proper procedures and safety practices.

Hofmann provides comprehensive limited warranty coverage protecting against defects in materials and workmanship under normal commercial use. Warranty terms vary by component and application, with specific coverage details provided in the Hofmann warranty documentation included with your tire changer. Warranty activation requires equipment registration within 30 days of installation and compliance with installation requirements including professional setup, proper electrical and compressed air supply, and adherence to the manufacturer's maintenance schedule. Warranty service is performed by authorized Hofmann service centers using genuine replacement parts.

Regular maintenance includes daily inspection of pneumatic connections for air leaks, weekly lubrication of moving components including swing-arm pivot points and turntable bearings per the maintenance schedule, periodic inspection of clamping jaw operation and adjustment, and replacement of air filters and moisture separators in the compressed air supply system. The bead breaker mechanism requires periodic lubrication for smooth operation. Following the manufacturer's maintenance schedule documented in the operation manual ensures reliable long-term performance, minimizes downtime, and maintains warranty coverage for your tire changer investment.
