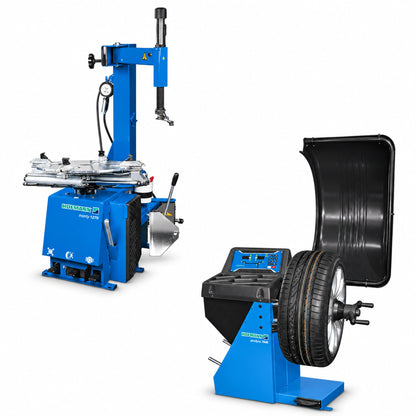

Hofmann COMBO Monty 1270 Tire Changer + Geodyna 7100 Wheel Balancer for Professional Tire Service
The Hofmann COMBO pairs the innovative monty 1270 swing-arm tire changer with the geodyna 7100 semi-automatic wheel balancer to deliver a complete tire servicing solution for general repair shops and automotive service centers. This space-saving package combines precision tire changing with accurate wheel balancing capabilities, handling passenger cars and light trucks up to 39.3" tire diameter and 154 lb wheel weight. The monty 1270 features 20" outside clamping capacity with a compact footprint design, while the geodyna 7100 offers 2D SAPE data entry, QuickBAL technology, and LED digital display. Both machines are backed by Hofmann's 85+ year heritage as part of the Snap-on family, featuring robust German engineering and American manufacturing quality.
Hofmann COMBO Monty 1270 + Geodyna 7100 Features

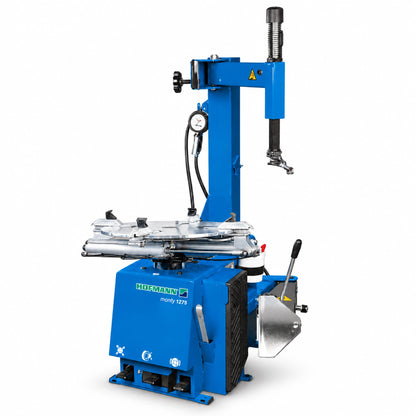

Monty 1270 Swing-Arm Tire Changer Design
The monty 1270 features an innovative swing-arm design that allows the mounting arm to pivot to the side, enabling installation directly against a wall to maximize floor space efficiency. The compact footprint makes this tire changer ideal for shops with limited space while maintaining professional-grade capabilities. With 20" outside clamping capacity and 10-22" inside clamping range, the monty 1270 handles a wide variety of passenger car and light truck wheels with precision and reliability.

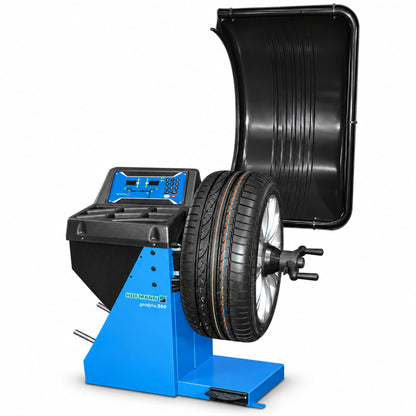

Geodyna 7100 Semi-Automatic Wheel Balancer
The geodyna 7100 offers space-saving usability with belt-driven one-spin balance and the VPI measuring system for uncompromised accuracy. The intuitive LED digital display integrated into the weight tray provides clear, easy-to-read information during operation. User-friendly 2D SAPE data entry with a gauge arm eliminates manual entry errors by automatically measuring rim diameter and offset, while technicians manually input rim width. The system handles wheels from 8" to 32" rim diameter (manual entry mode) and supports wheel weights up to 154 lbs.
QuickBAL Technology for Faster Service
The geodyna 7100 features QuickBAL technology that intelligently adjusts the number of revolutions according to each wheel's specifications, operating at maximum speed to reduce cycle time by 30%. With a start-stop cycle time of just 6.5 seconds for a 15" rim, this feature delivers swift and efficient results without compromising accuracy. The measuring speed operates at less than 100 RPM with 0.035 oz (1g) balancing accuracy, ensuring precision while maintaining productivity.
Ergonomic Pedal-Operated Bead Breaker
The monty 1270 incorporates a conventional side-shovel bead breaker with an ergonomically positioned pedal control situated a small distance from the shovel, providing the quickest solution for efficiently handling a range of tire types. The 5,500 lb (25 kN) bead breaker force handles stubborn beads with ease, while the specially shaped bead breaker blade handles rims gently and facilitates operation considerably. A large anti-skid rubber protective pad on the bead breaker head protects both tires and rims during operation.
Precision Mount/Demount Head Protection
The monty 1270 features a precision mount/demount head with plastic protectors that safeguard delicate alloy rims during tire changing operations. The mount/demount head is manually adjusted for non-rim contact operation, ensuring the highest level of protection for expensive wheels. Self-centering jaws clamp the wheel securely with the appropriate setup range, while the high-torque electric turntable provides increased performance at 7 RPM for efficient tire changing.
Split Weight Mode and EZ-Collets App
The geodyna 7100 includes Split Weight Mode that ensures accurate balancing and discreet weight concealment behind spokes, maintaining the wheel's aesthetic appeal and visual presentation. The free EZ-Collets mobile app helps technicians identify the best collet, flange plate, or quick plate for their job by selecting the vehicle, comparing available tools and their benefits. The app also provides information about the tire and rim for the selected vehicle, streamlining the setup process and reducing errors.
Hofmann COMBO Monty 1270 + Geodyna 7100 Applications
- General Automotive Repair Shops: The complete tire service package is ideal for independent repair shops offering comprehensive tire mounting, dismounting, and balancing services for passenger vehicles and light trucks. The space-saving design maximizes valuable shop floor space while maintaining professional capabilities.
- Tire Service Centers: Perfect for dedicated tire shops handling moderate to high volumes of tire changes and wheel balancing. The QuickBAL technology reduces cycle times while maintaining accuracy, allowing technicians to serve more customers efficiently without sacrificing quality.
- Quick Lube and Service Facilities: Excellent choice for quick service facilities expanding their tire service offerings. The user-friendly controls and semi-automatic data entry reduce training time for technicians while ensuring consistent, accurate results across all services.
- Fleet Maintenance Operations: Well-suited for fleet maintenance facilities servicing company vehicles, delivery vans, and light commercial trucks. The rugged design ensures long service life in high-volume operations, while the compact footprint fits efficiently into existing shop layouts.
- Dealership Service Departments: Appropriate for automotive dealerships handling warranty tire work and customer tire services. The precision mount/demount head and Split Weight Mode protect expensive OEM wheels while maintaining the aesthetic appeal critical for dealership-level service standards.
Hofmann COMBO Monty 1270 + Geodyna 7100 Specifications
| Specification | Value |
|---|---|
| Outside Clamping Capacity | Up to 20" |
| Inside Clamping Capacity | 10" to 22" |
| Maximum Tire Diameter | 39.3" (1000 mm) |
| Maximum Wheel Width | 14" (355 mm) |
| Bead Breaker Force | 5,500 lbs (25 kN) |
| Specification | Value |
|---|---|
| Turntable Rotation Speed | 7 RPM |
| Power Supply | 110V / 230V, 50/60 Hz |
| Design Type | Swing-arm |
| Bead Breaker Type | On-floor, pedal-operated side-shovel |
| Clamping Method | Self-centering jaws |
| Specification | Value |
|---|---|
| Manual Rim Diameter Range | 8" to 32" (20 to 81.2 cm) |
| Semi-Automatic Rim Diameter Range (SAPE) | 8" to 25" (20 to 63.5 cm) |
| Rim Width Range | 1" to 20" (2.54 to 50.8 cm) |
| Offset Range | 1" to 20" |
| Maximum Wheel Diameter | 37.8" (960 mm) |
| Maximum Wheel Weight | 154 lbs (70 kg) |
| Specification | Value |
|---|---|
| Measuring Speed | Less than 100 RPM |
| Balancing Accuracy | 0.035 oz (1g) |
| Angular Resolution | ±0.35 degrees |
| Start/Stop Time - Check Spin | 6 seconds |
| QuickBAL Cycle Time Reduction | 30% faster |
| Specification | Value |
|---|---|
| Display Technology | Digital LED display with integrated weight tray touchpad |
| Data Entry System | 2D SAPE (semi-automatic diameter and offset), manual width |
| Wheel Clamping | Quick nut manual clamping device |
| Measuring System | VPI (Virtual Plane Indexing) |
| Drive System | Belt-driven, one-spin balance |
| Split Weight Mode | Yes |
| Minimization/Optimization Programs | Yes |
| Specification | Value |
|---|---|
| Monty 1270 Power Requirement | 110V / 230V, 50/60 Hz |
| Geodyna 7100 Power Requirement | 115 VAC or 230 VAC, 1-Phase, 50/60 Hz, 5A |
| Geodyna 7100 Dimensions (H x W x L) | 59" x 51.5" x 52" (150 x 131 x 132 cm) |
| Geodyna 7100 Shaft Diameter | 40 mm |
| Geodyna 7100 Shaft Length | 8.85" (225 mm) |
Hofmann COMBO Monty 1270 + Geodyna 7100 Installation Requirements
Electrical Requirements
Tire Changer Power: 110V or 230V, single-phase, 50/60 Hz electrical supply required. Wheel Balancer Power: 115 VAC or 230 VAC, single-phase, 50/60 Hz, 5A circuit required. A licensed electrician must install dedicated circuits and verify electrical supply meets manufacturer specifications before installation. Ensure proper grounding for both machines to prevent electrical hazards and ensure safe operation.
Compressed Air Requirements
Tire Changer Air Supply: The monty 1270 requires a compressed air supply for bead breaker and turntable operation. Minimum air pressure and CFM requirements must be verified from the installation manual. An air dryer and filter/regulator/lubricator (FRL) unit is recommended to prevent moisture and contaminants from damaging pneumatic components and ensure consistent performance.
Concrete Foundation and Anchoring
Foundation Requirements: Both machines must be installed on a level, reinforced concrete foundation with minimum 4" thickness and 3,000 PSI strength. Concrete must be fully cured (minimum 28 days) before installation and anchoring. The tire changer requires secure anchoring with properly sized concrete anchor bolts to prevent movement during operation. The wheel balancer must be leveled precisely using the adjustable feet provided.
Space Requirements and Shop Layout
Tire Changer Clearance: Allow adequate clearance around the monty 1270 for operator movement and tire handling. The swing-arm design allows installation close to walls, maximizing space efficiency. Wheel Balancer Clearance: The geodyna 7100 measures 59" H x 51.5" W x 52" L and requires clearance on all sides for wheel loading/unloading and technician access. Consider workflow patterns between the tire changer and wheel balancer for maximum efficiency. Ensure adequate lighting for both workstations.
Professional Installation
Professional installation by trained technicians is strongly recommended to ensure proper setup, calibration, and safety compliance. Hofmann offers installation and training services through their dealer network. Proper installation is required to maintain warranty coverage and ensure equipment performs to specifications. Installation includes machine positioning, leveling, anchoring, electrical and air connections, calibration, and operator training.
What's Included with the Hofmann COMBO Monty 1270 + Geodyna 7100
Monty 1270 Tire Changer Includes:
- Monty 1270 swing-arm tire changer with electric turntable
- Self-centering jaw system with outside and inside clamping capability
- Pedal-operated side-shovel bead breaker with protective rubber pad
- Precision mount/demount head with plastic rim protectors
- Tire lever tool for manual assistance
- Standard mounting accessories and hardware
- Installation and operation manual
Geodyna 7100 Wheel Balancer Includes:
- Geodyna 7100 wheel balancer with LED digital display
- 2D SAPE gauge arm for semi-automatic data entry
- Quick nut wheel clamping device
- Integrated weight tray with touchpad controls
- Wheel cover for operator safety
- Standard collet set for common wheel types
- Calibration weight for accuracy verification
- Installation and operation manual
Optional Accessories: Quick-exchange device with plastic mounting head for the tire changer, additional collet sets, flange plates, speed plates for specialized wheel types, wheel weight assortments (clip-on and adhesive), tire mounting lubricant, and tire pressure monitoring system (TPMS) service kits are available separately.
Not Included: Electrical installation and wiring, compressed air line installation for tire changer, concrete foundation preparation, anchor bolts and installation hardware, professional installation labor, initial setup and calibration service, operator training beyond basic manual instructions, wheel weights, tire mounting lubricant, and ongoing maintenance supplies.
Hofmann COMBO Monty 1270 + Geodyna 7100 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses with loading dock or forklift capability in the 48 contiguous United States. Lead Time: Typically 5-10 business days from order confirmation, subject to availability. Carrier: Ships via common carrier freight service in multiple crates. International: International shipping available to Canada, Mexico, and other countries. Contact sales for international freight quotes and customs documentation requirements.
Delivery Requirements
Unloading Equipment: A forklift or loading dock is required to unload both machines from the freight truck. The tire changer and wheel balancer ship as separate crates and require material handling equipment. Delivery Type: Standard curbside delivery included. Inside delivery and unpacking services may be available for an additional fee depending on location. Inspection: Carefully inspect all packages and crates for shipping damage before signing the bill of lading (BOL). Note any visible damage, crushed corners, or broken crating on the delivery receipt and have the driver acknowledge it.
Receiving and Claims
Concealed Damage: If damage is discovered after the carrier has left, note it on the delivery receipt as "concealed damage" and contact us within 48 hours. Take photographs of all damaged items and packaging materials. Freight Claims: Report any shipping damage to Garage Supply Guys immediately so we can assist with filing freight claims. Keep all original packaging materials until the claim is resolved. Refused Shipments: Refusal of shipment due to buyer's remorse or order changes may result in freight charges being billed to the customer.
Returns
Returns accepted within 30 days of delivery for unused equipment in original, unopened packaging with all accessories and documentation included. Product must be in resalable condition. A 20% restocking fee applies to all returns. Buyer is responsible for return freight costs and must use freight carrier with lift gate service. Return authorization must be obtained before shipping equipment back. Opened, installed, or used equipment cannot be returned. Electrical or mechanical damage voids return eligibility.
Hofmann COMBO Monty 1270 + Geodyna 7100 Warranty
Hofmann Limited Warranty
Hofmann equipment is backed by comprehensive warranty coverage as part of the Snap-on Equipment family. Warranty terms cover defects in materials and workmanship under normal use and proper maintenance. Complete warranty details are provided in the included warranty documentation with your equipment.
- Structural Components: Coverage for major structural components and housings
- Mechanical Components: Coverage for mechanical assemblies, turntable, bead breaker, and balancer spindle
- Electrical Components: Coverage for motors, control panels, and electrical systems
- Calibration: Initial calibration and accuracy verification included
Requirements: Warranty requires proper installation by qualified technicians following manufacturer specifications. Equipment must be installed on appropriate foundation with correct electrical and air supply connections. Regular maintenance must be performed according to the operation manual maintenance schedule. Warranty is void if equipment is modified, damaged through misuse or negligence, or installed improperly. Commercial use in automotive service facilities is covered. Warranty does not cover consumable items such as plastic rim protectors, mounting heads, or normal wear items.
Documents
Click to open in a new tab.
Questions About the Hofmann COMBO Monty 1270 + Geodyna 7100?
Our equipment specialists can help with installation planning, specifications, workflow optimization, and selecting the right tire service equipment package for your shop's needs.
Hofmann COMBO Monty 1270 + Geodyna 7100 FAQ
What wheel sizes can the Monty 1270 tire changer handle?
The Hofmann Monty 1270 handles wheels with 20" outside clamping capacity and 10-22" inside clamping range. Maximum tire diameter is 39.3" (1000mm) with maximum wheel width of 14" (355mm). This capacity covers the vast majority of passenger car, SUV, and light truck applications found in general repair shops. The swing-arm design and self-centering jaws ensure secure clamping across the full range of wheel sizes.
How does the QuickBAL technology improve balancing speed?
QuickBAL technology on the Geodyna 7100 intelligently adjusts the number of spin revolutions according to each wheel's specifications, operating at maximum speed while maintaining 0.035 oz (1g) accuracy. This reduces cycle time by 30% compared to standard balancing operations. The start-stop cycle time is just 6 seconds for a 15" rim, allowing technicians to balance more wheels per hour without sacrificing precision or quality.
What are the electrical requirements for this combo package?
The Monty 1270 tire changer requires 110V or 230V, single-phase, 50/60 Hz power supply. The Geodyna 7100 wheel balancer requires 115 VAC or 230 VAC, single-phase, 50/60 Hz, 5A circuit. Both machines require dedicated circuits installed by a licensed electrician. Verify that your shop's electrical service has adequate capacity and proper grounding before installation. Electrical specifications must be verified from the installation manual before wiring.
Does the tire changer require compressed air?
Yes, the Monty 1270 tire changer requires a compressed air supply for the bead breaker and turntable operation. Specific air pressure and CFM requirements are detailed in the installation manual. An air dryer and FRL (filter/regulator/lubricator) unit is strongly recommended to prevent moisture and contaminants from damaging pneumatic components. The Geodyna 7100 wheel balancer does not require compressed air and operates on electrical power only.
How much space does this combo package require in my shop?
The Monty 1270's swing-arm design allows installation close to walls, maximizing floor space efficiency. The Geodyna 7100 measures 59" H x 51.5" W x 52" L and requires clearance on all sides for operation. When planning your layout, allow adequate space between the tire changer and wheel balancer for efficient workflow, plus clearance for tire handling and technician movement. The compact footprint makes this combo ideal for shops with limited space while maintaining professional capabilities.
What is included in the Hofmann warranty?
Hofmann equipment includes comprehensive warranty coverage as part of the Snap-on Equipment family. The warranty covers defects in materials and workmanship under normal commercial use, including structural components, mechanical assemblies, and electrical systems. Warranty requires proper installation following manufacturer specifications, correct electrical and air connections, and regular maintenance per the operation manual. Complete warranty terms and coverage periods are provided in the included warranty documentation. Professional installation is recommended to ensure warranty compliance.
Can this equipment handle low-profile and run-flat tires?
Yes, the Monty 1270 tire changer is designed to handle low-profile and run-flat tires with its precision mount/demount head and protective plastic rim protectors. The pedal-operated bead breaker delivers 5,500 lbs of force to handle stubborn run-flat beads. The Geodyna 7100's VPI measuring system and Split Weight Mode ensure accurate balancing of low-profile wheels while keeping weights hidden behind spokes for aesthetic appeal. Proper technique and tire mounting lubricant are essential for low-profile and run-flat applications.
How does the 2D SAPE data entry system work?
The 2D SAPE (Semi-Automatic Parameter Entry) system on the Geodyna 7100 uses a gauge arm that technicians touch to the rim. The system automatically measures and enters rim diameter and offset, then selects the appropriate weight-balancing mode. Technicians manually input rim width using the touchpad controls. This semi-automatic process eliminates manual entry errors for diameter and offset measurements, speeds up the data entry process, and ensures accuracy. The system handles rim diameters from 8" to 25" in SAPE mode, with manual entry extending the range to 32".
What is the EZ-Collets mobile app and how does it help?
The EZ-Collets mobile app is a free tool available for iOS and Android that helps technicians identify the best collet, flange plate, or quick plate for specific vehicle wheels. Users select a vehicle to see compatible options and compare their benefits. The app also provides tire and rim information for the selected vehicle. This reduces setup errors, minimizes the need to test multiple adapters, and helps shops maintain the right inventory of mounting accessories. The app requires free user email activation through the Apple or Google app stores.
Is professional installation required for this equipment?
Professional installation is strongly recommended and may be required for warranty coverage. Installation includes positioning machines on a proper concrete foundation, leveling, anchoring the tire changer, electrical wiring for both machines, compressed air line connection for the tire changer, initial calibration of the wheel balancer, and verification of proper operation. Many Hofmann dealers offer installation and training services. Improper installation can affect equipment performance, void warranty coverage, and create safety hazards. A licensed electrician must perform all electrical work to meet local codes.
What maintenance does this equipment require?
Regular maintenance includes daily inspection of plastic rim protectors and replacement when worn, weekly lubrication of moving parts on the tire changer per the manual, monthly inspection and cleaning of the wheel balancer spindle and mounting surfaces, periodic calibration verification of the wheel balancer using the included calibration weight, and checking air line connections and pneumatic components for leaks. The operation manuals provide detailed maintenance schedules. Proper maintenance extends equipment life, maintains accuracy, and ensures warranty coverage. Keep service records documenting maintenance performed.
How does this Hofmann combo compare to other brands?
Hofmann brings 85+ years of tire service equipment experience as part of the Snap-on Equipment family, combining German engineering precision with American manufacturing quality. The Monty 1270's swing-arm design maximizes space efficiency while the Geodyna 7100's QuickBAL technology and VPI measuring system deliver accuracy and speed. Key differentiators include the 2D SAPE semi-automatic data entry system that reduces operator errors, Split Weight Mode for aesthetic wheel appearance, and the free EZ-Collets mobile app. Hofmann equipment is backed by Snap-on's extensive dealer network and technical support infrastructure.
