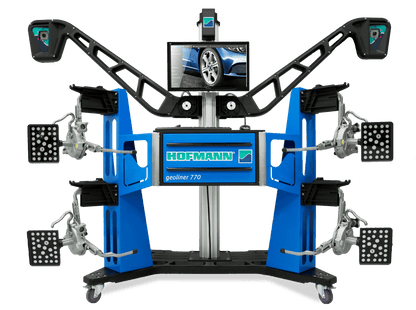

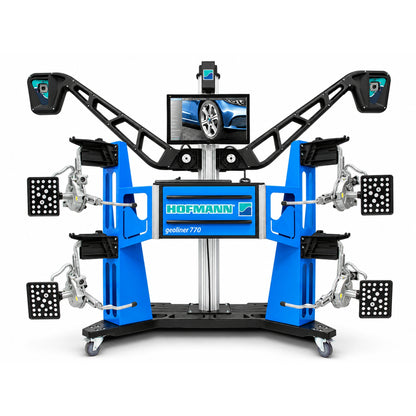

Hofmann Geoliner 770 Fully-Mobile Imaging Wheel Aligner for Professional Shops
The Hofmann Geoliner 770 is a fully-mobile diagnostic wheel aligner featuring cutting-edge XD camera technology and intelligent software that guides technicians through the alignment process with minimal errors. Designed with a compact one-piece construction and foldable camera beam, this system delivers fast, accurate measurements for vehicles with wheelbases ranging from 79"-180" (201-457cm) and track widths from 48"-96" (122-244cm). Powered by 110-240V 50/60Hz universal voltage, the Geoliner 770 includes advanced features like Auto Height Tracking, VODI LED guidance, and Audit Mode for fast vehicle verification. Backed by Hofmann's comprehensive warranty, this aligner is engineered to maximize shop productivity and revenue through increased throughput and diagnostic capabilities.
Hofmann Geoliner 770 Features

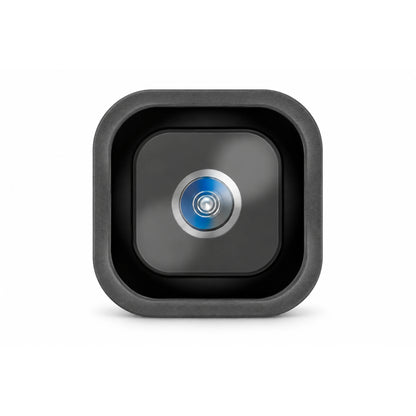

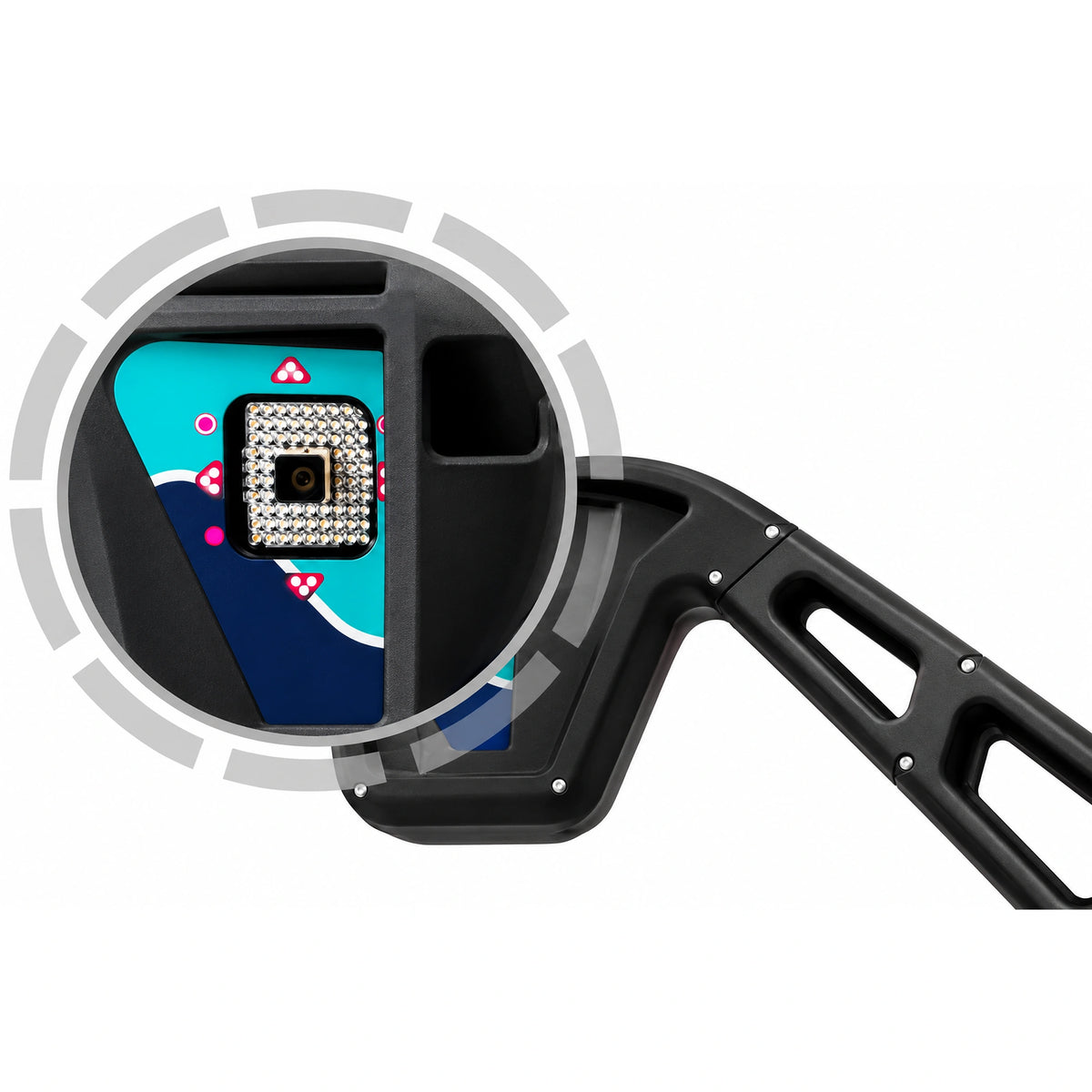

XD Camera Technology
High-definition video speed cameras continuously monitor the alignment process and instantly detect common environmental conditions or vehicle issues that could cause misalignment. This advanced imaging system ensures accurate measurements throughout the entire alignment procedure, reducing the risk of errors caused by suspension stress or environmental factors.

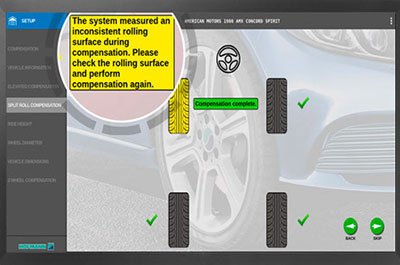

Smart Notification System
The intelligent notification system maximizes efficiency by automatically identifying and correcting issues like suspension stress or environmental errors. The system either fixes problems automatically or alerts the technician only when additional input is needed, minimizing interruptions and ensuring consistent accuracy across all alignments.

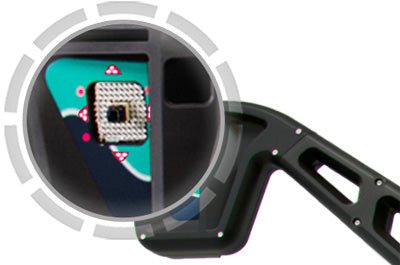

VODI LED Guidance
The patented Vehicle Orientation Directional Indicator (VODI) uses simple red and green LED lights to guide technicians through the measurement procedure while away from the monitor. This visual guidance system dramatically reduces time spent walking between the vehicle and aligner console, improving workflow efficiency and technician productivity.

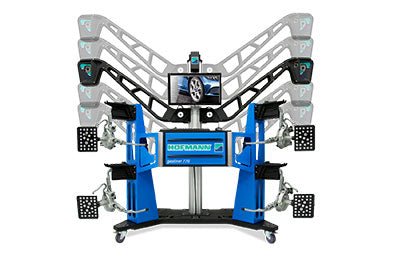

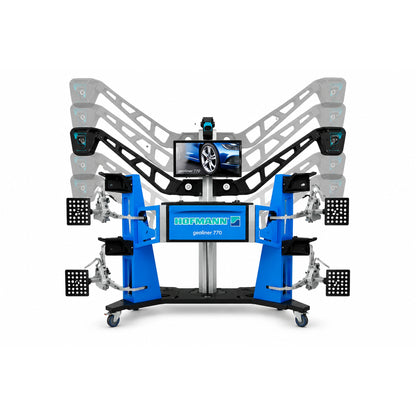

Auto Height Tracking
Automatic height tracking follows the vehicle as it is raised and lowered on the lift, eliminating the need for manual camera readjustment. This feature reduces time spent at the console and allows technicians to focus on adjustments rather than equipment calibration, streamlining the entire alignment process.

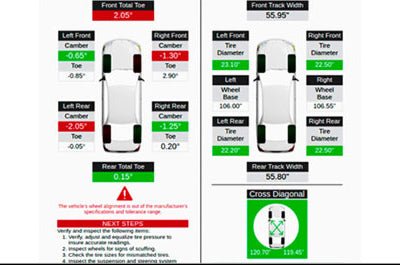

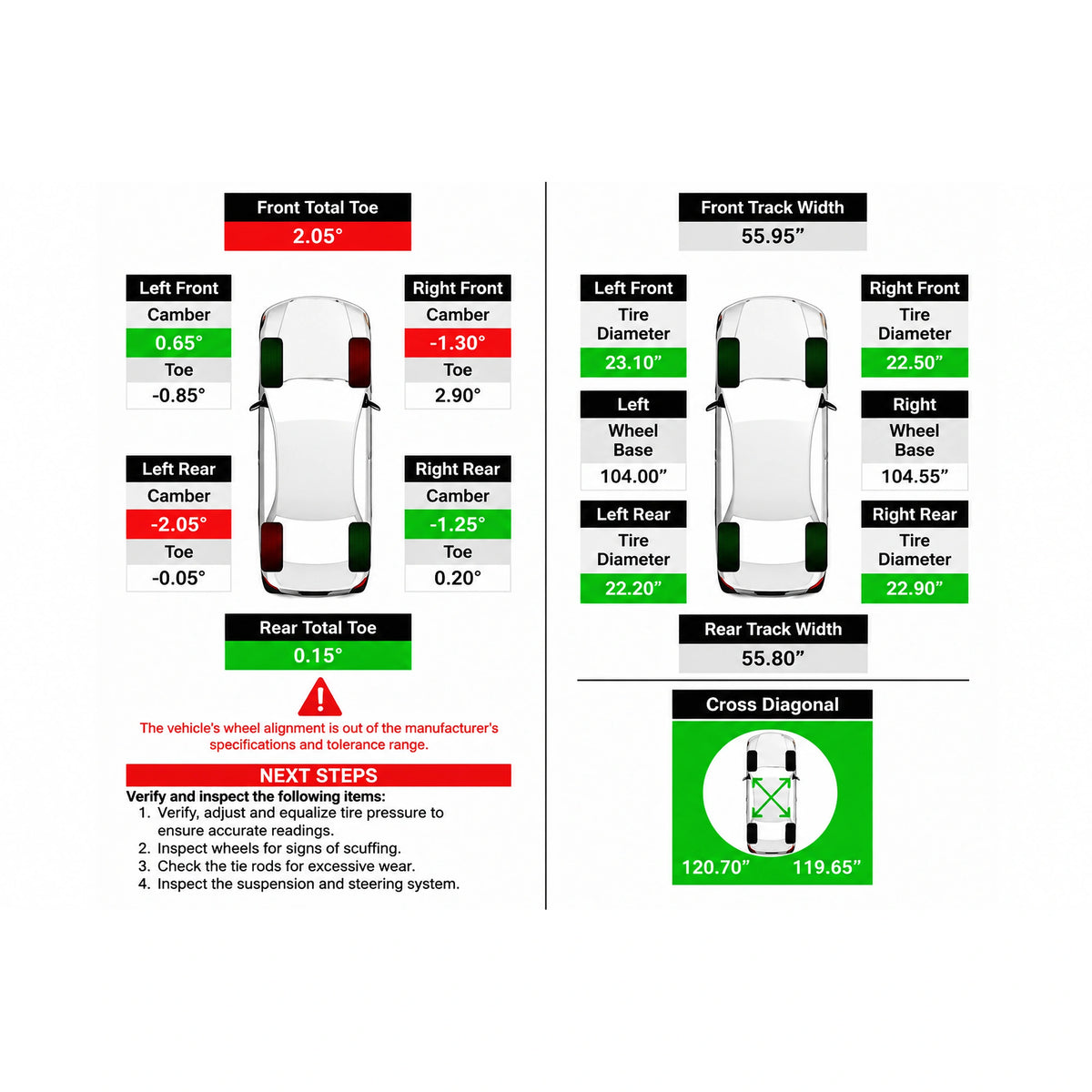

Audit Mode

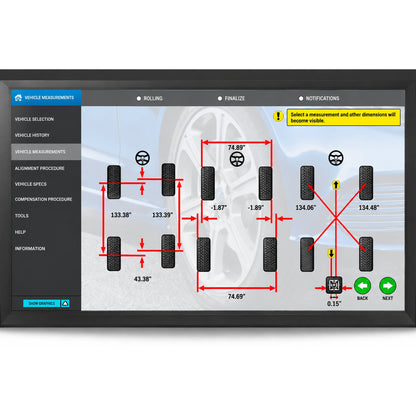

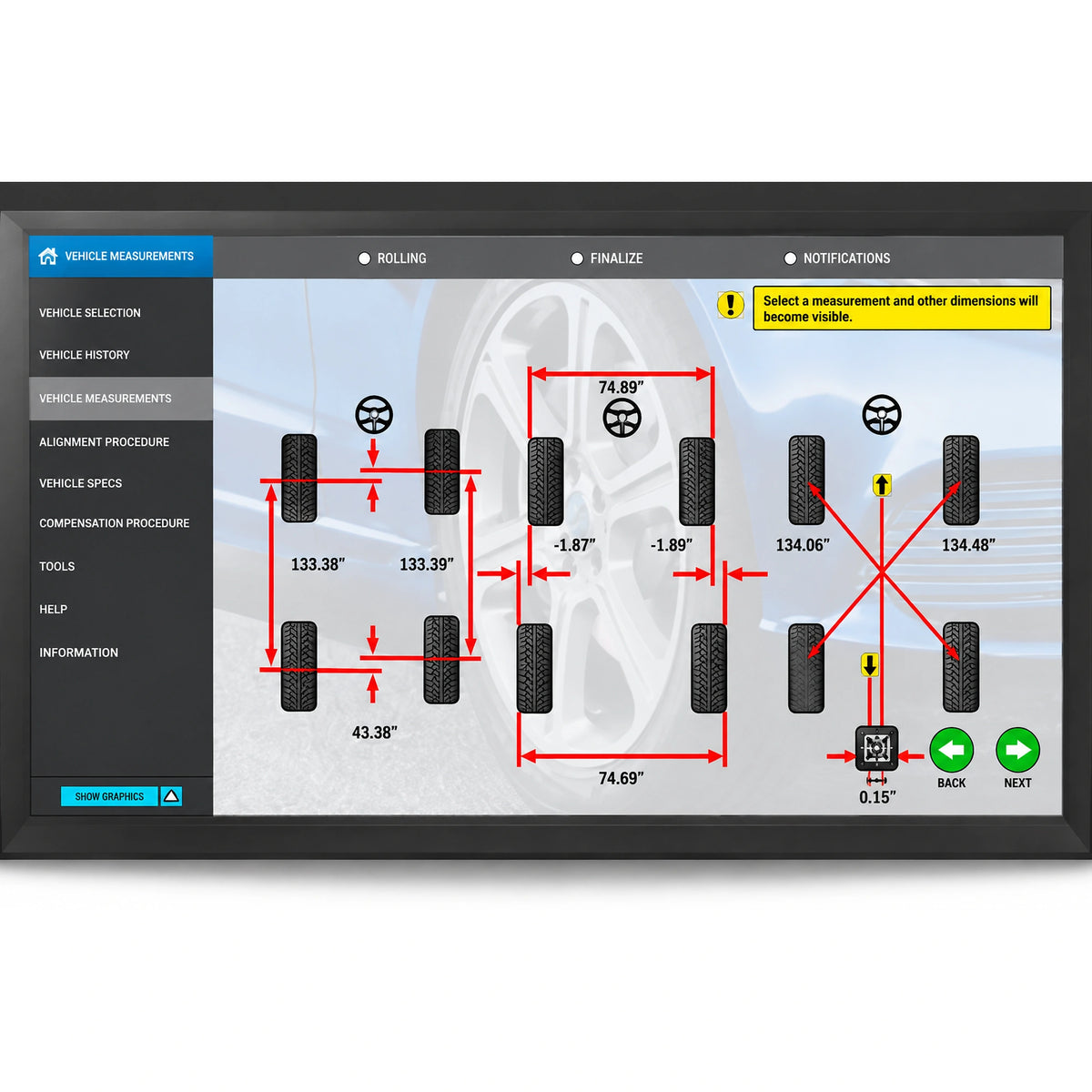

The unique Audit Mode function performs fast verification by measuring front and rear toe, track width, camber, wheelbase, wheel diameter, and cross dimensions. This comprehensive scan helps identify alignment problems quickly, enabling shops to sell more services while keeping the aligner operating at full capacity to maximize revenue.

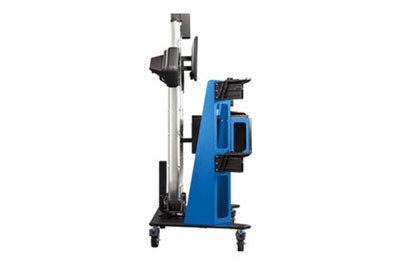

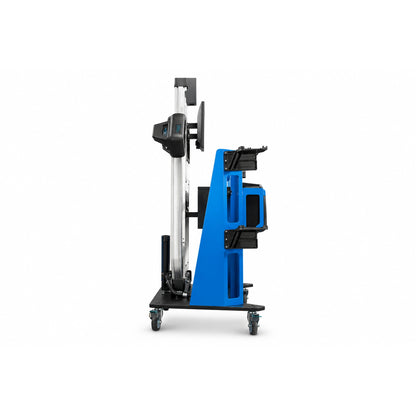

Compact Mobile Design
The one-piece design with foldable camera beam makes it easy to maneuver the entire system wherever needed in the shop. This compact configuration eliminates the need for fixed installation positions, providing maximum flexibility for multi-bay operations and allowing the aligner to be moved out of the way when not in use.

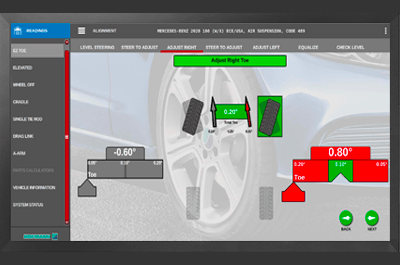

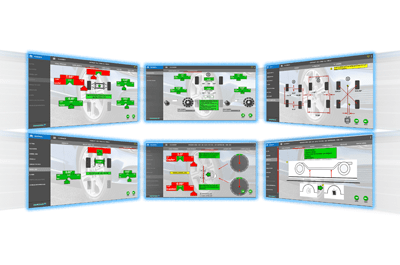

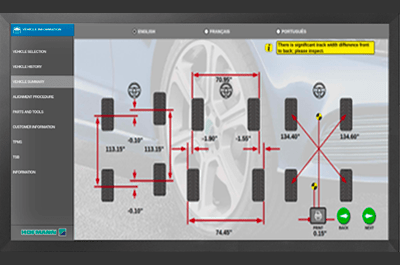

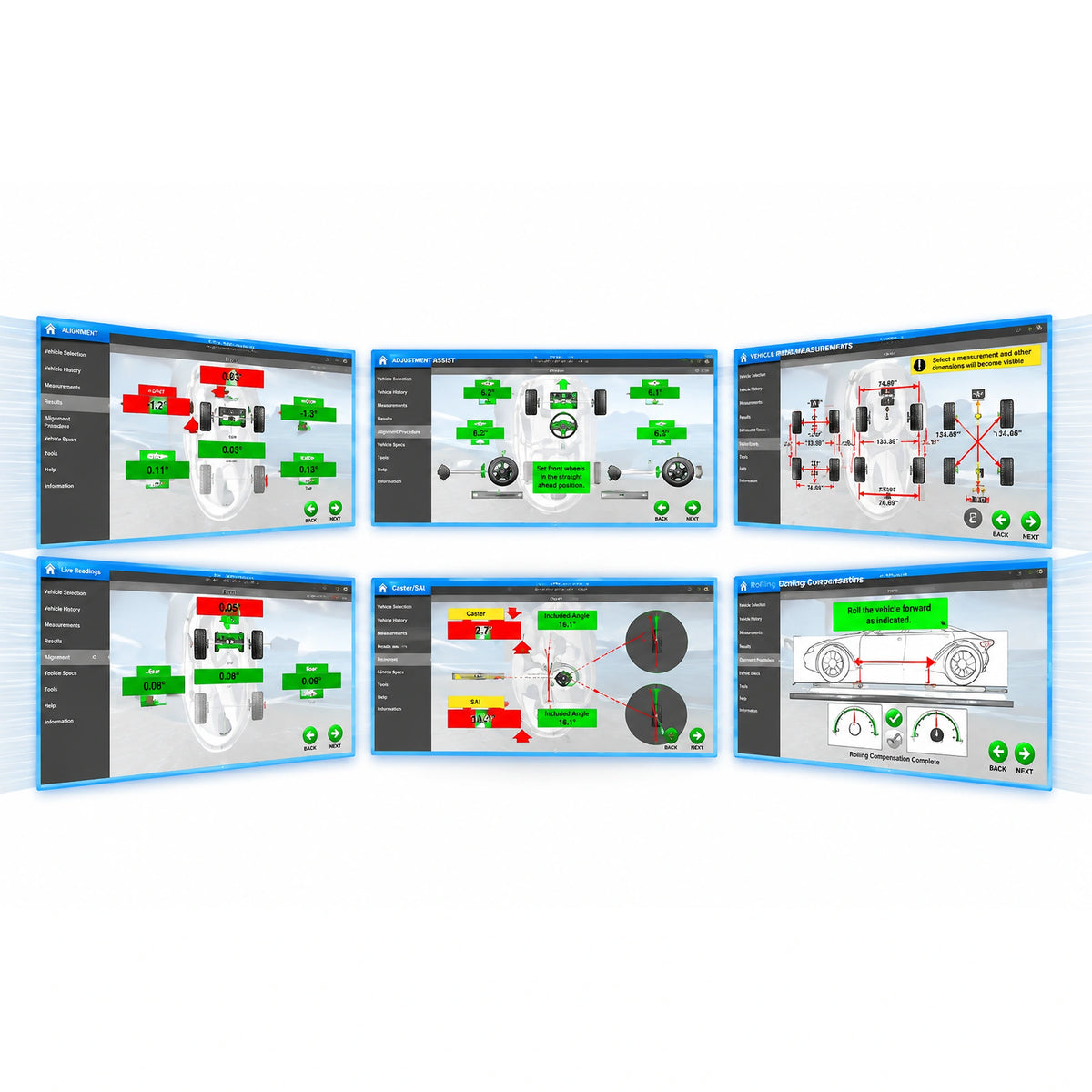

Advanced Adjustment Capabilities

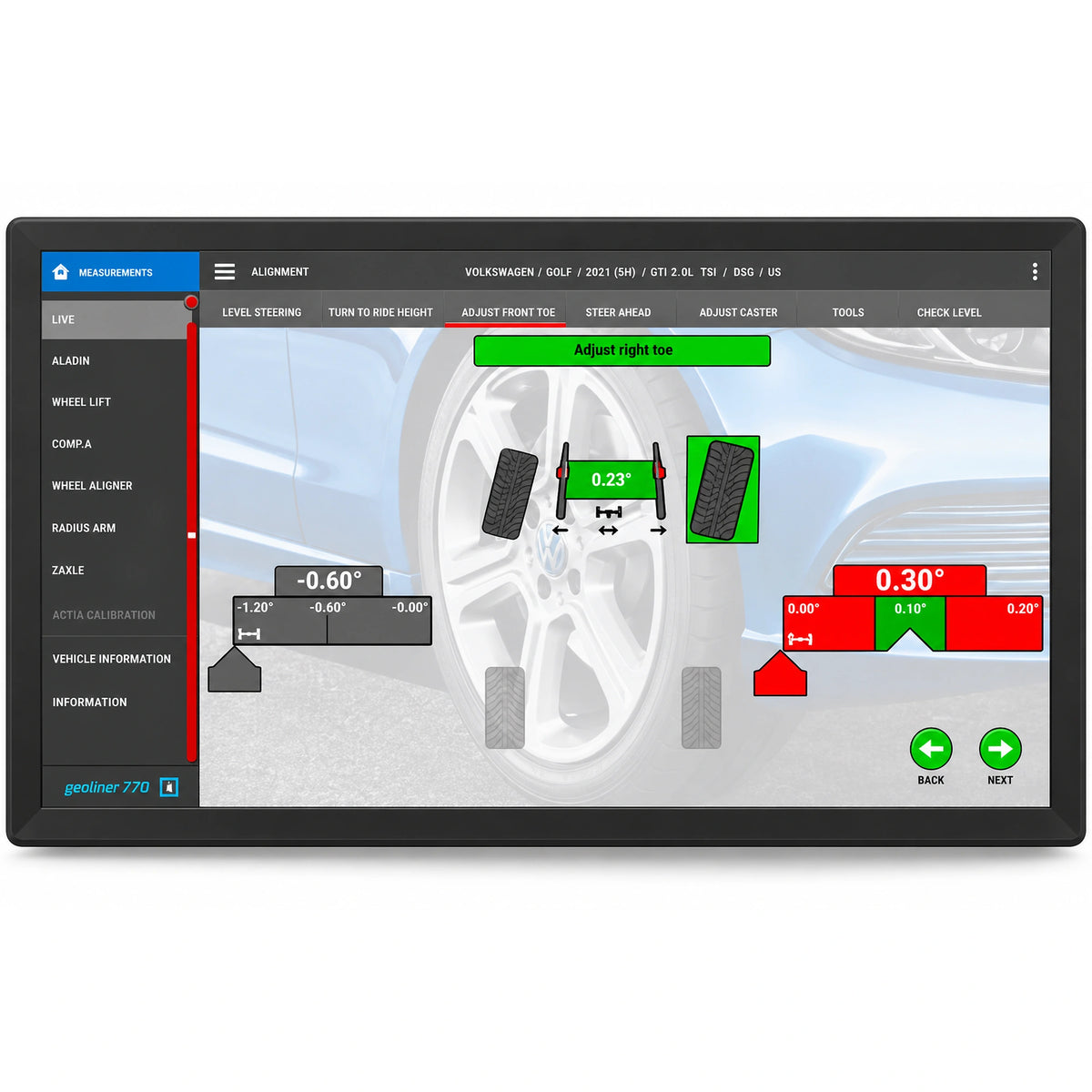

The cutting-edge software measures advanced settings including EZ-Toe, A-Arm, Cradle, Single Tie Rod, Drag Link, Toe Curve, Elevated, Wheels Off, and includes Parts Calculator and Parts & Tools features. These advanced capabilities support complex suspension work and modified vehicles that standard aligners cannot accommodate.

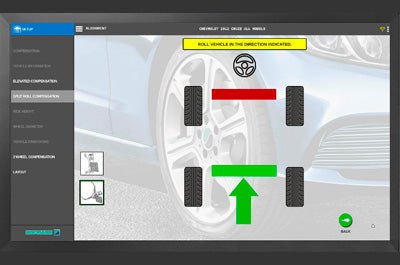

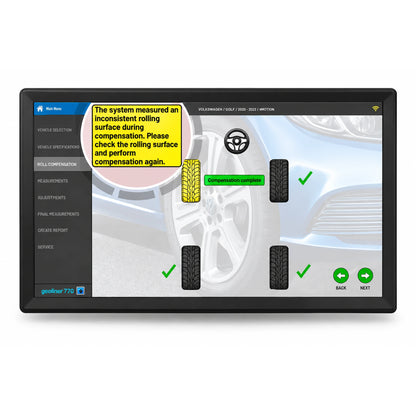

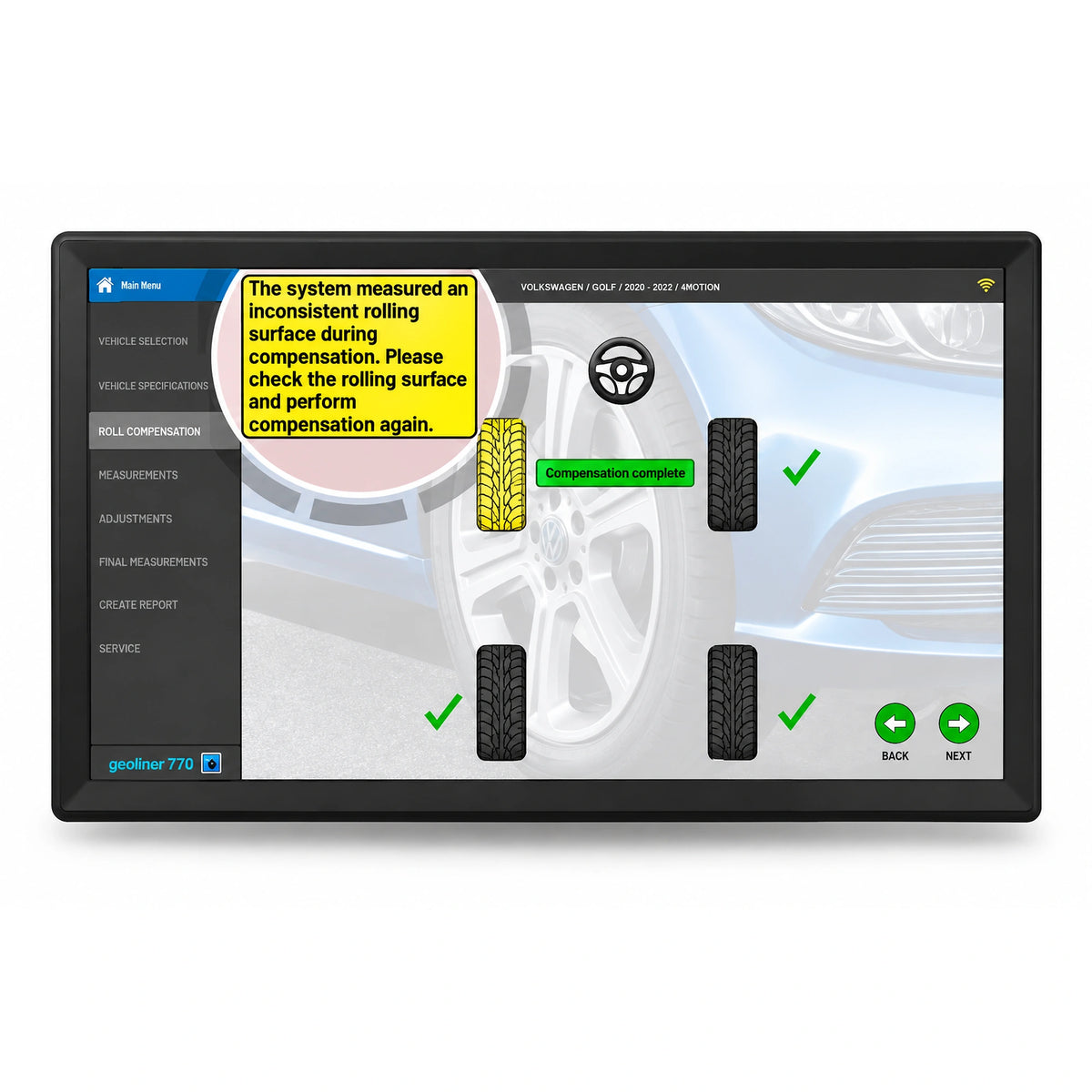

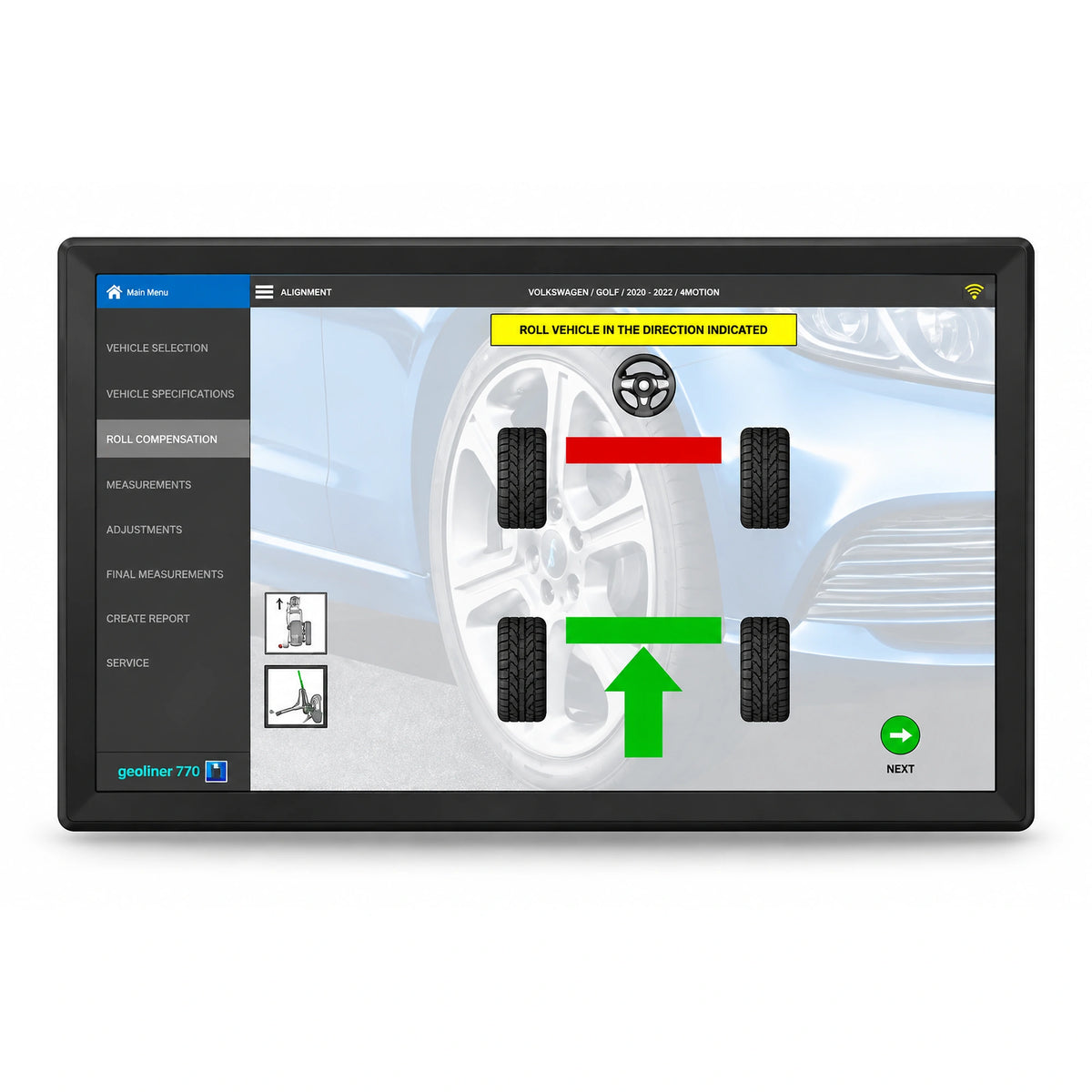

Quick Compensation and Optimized Flow
The alignment process is enhanced by quick measurement compensation and optimized workflow that eliminates unnecessary steps. This streamlined approach boosts productivity by reducing the time per alignment, enabling shops to complete more jobs per day and grow their alignment business through increased throughput.
Hofmann Geoliner 770 Applications
- High-Volume Independent Repair Shops: The fully-mobile design and fast compensation system allow busy shops to move the aligner between bays and complete more alignments per day, maximizing equipment utilization and revenue generation.
- Dealership Service Departments: Mitchell1 database access and comprehensive vehicle coverage ensure technicians can quickly align any make and model with factory specifications, while cloud services enable remote report access for customer communication.
- Specialty Performance Shops: Advanced measurements including ride height, SAI, frame angle, and toe out on turns support custom suspension work and modified vehicles that require precision alignment beyond standard specifications.
- Tire and Alignment Centers: Audit Mode enables fast vehicle scanning to identify alignment issues during tire installation, helping technicians sell additional services while the quick workflow increases daily alignment capacity.
- Fleet Maintenance Facilities: The smart notification system and VODI guidance reduce the skill level required for accurate alignments, allowing fleet shops to train new technicians quickly while maintaining consistent quality across multiple service bays.
- Multi-Bay Operations: The compact mobile design allows the aligner to be shared across multiple service bays, eliminating the need for dedicated alignment bays and reducing capital equipment costs while maintaining high productivity.
Hofmann Geoliner 770 Specifications
| Specification | Value |
|---|---|
| Wheelbase Range | 79"-180" (201-457cm) |
| Track Width Range | 48"-96" (122-244cm) |
| Tire Diameter (AC400 Clamps) | 19"-39" (48-99cm) |
| Wheel Diameter (AC200 Clamps) | 12"-24" (30-61cm) |
| Specification | Value |
|---|---|
| Power Supply | 110-240V 50/60Hz (Universal Voltage) |
| Part Number | EEWA752BV3 |
| Feature | Description |
|---|---|
| Camera System | XD High-Definition Video Speed Cameras |
| Guidance System | VODI (Vehicle Orientation Directional Indicator) |
| Height Tracking | Automatic (follows vehicle on lift) |
| Notification System | Smart Auto-Correction with Technician Alerts |
| Database Access | Mitchell1 Alignment Specifications |

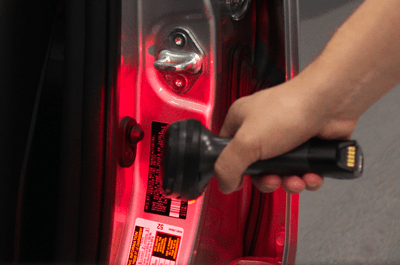

| VIN Scanner | Integrated |
| Cloud Services | Secure Server with Remote Report Access |
| Secondary Screen | Optional (tablet not included) |
| Clamp Type | Description |
|---|---|
| AC200 Clamps | Self-centering design with two-sided claws for hub cap compatibility (12"-24" wheels) |
| AC400 Clamps | Tire-mount design attaches to tire without rim contact (19"-39" tires) |
| Measurement Type | Parameters |
|---|---|
| Standard Measurements | Toe, Camber, Caster, Track Width, Wheelbase |
| Advanced Suspension | Ride Height, SAI, Frame Angle, Max Turn, Toe Out on Turns |
| Advanced Adjustments | EZ-Toe, A-Arm, Cradle, Single Tie Rod, Drag Link, Toe Curve, Elevated, Wheels Off |
| Audit Mode Scan | Front/Rear Toe, Track Width, Camber, Wheelbase, Wheel Diameter, Cross Dimensions |
Hofmann Geoliner 770 Video
Hofmann Geoliner 770 Installation Requirements
Electrical Requirements
Power Supply: 110-240V 50/60Hz universal voltage. The Geoliner 770 accepts both North American and international voltage standards without modification. A licensed electrician must install and verify the electrical supply meets local codes and provides adequate circuit protection for diagnostic equipment operation.
Space Requirements
Operating Space: Sufficient bay space to accommodate vehicles with wheelbases up to 180" (457cm) and track widths up to 96" (244cm). Clearance: Additional clearance around the vehicle for technician movement and camera positioning. The foldable camera beam allows the unit to be stored compactly when not in use, reducing the footprint in multi-use service bays.
Floor Requirements
Surface: Level, clean concrete floor free from debris and excessive surface irregularities. While the Geoliner 770 is fully mobile and does not require permanent anchoring, the floor must be sufficiently level to ensure accurate measurements. The caster wheels allow easy repositioning, but the work area should provide stable support during alignment procedures.
Environmental Considerations
Location: Indoor installation in a climate-controlled environment protected from direct sunlight, excessive dust, and temperature extremes. The XD camera system requires consistent lighting conditions for optimal performance. Avoid installation near overhead doors or areas with significant drafts that could affect measurement accuracy.
Professional Installation
Professional installation and setup are recommended to ensure proper calibration and integration with your shop's workflow. Hofmann-certified technicians can perform initial setup, calibration verification, and technician training to maximize the system's capabilities. Contact Garage Supply Guys for installation service options and certified installer referrals in your area.
What's Included with the Hofmann Geoliner 770
- Geoliner 770 main console unit with integrated computer and display
- XD high-definition camera system with foldable beam
- VODI (Vehicle Orientation Directional Indicator) LED guidance system
- Choice of AC200 wheel clamps (12"-24") or AC400 tire clamps (19"-39")

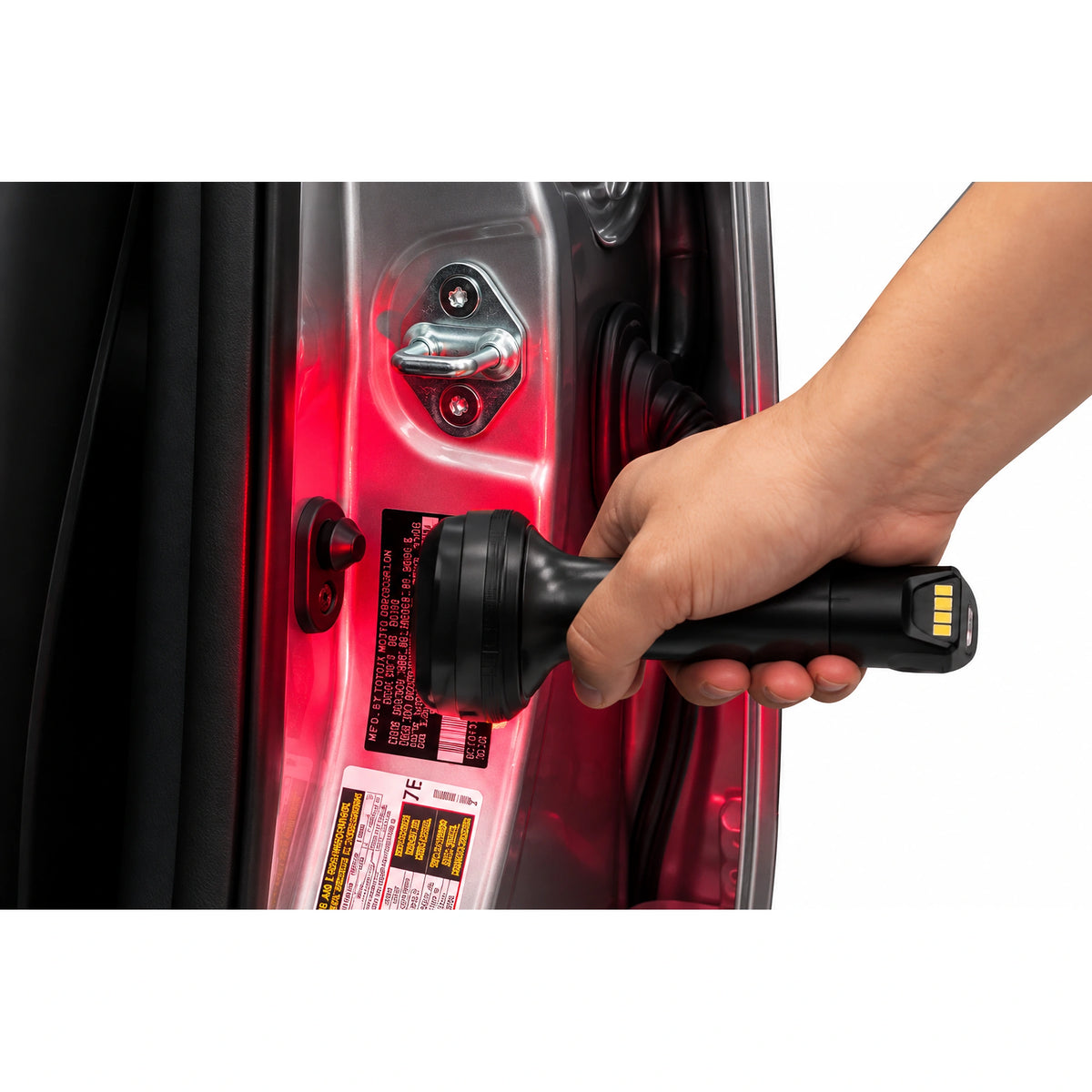

- VIN scanner for automatic vehicle identification
- Mitchell1 database subscription for alignment specifications
- Cloud services access for remote report management
- Auto height tracking system
- Audit Mode software for fast vehicle verification
- Advanced adjustment software (EZ-Toe, A-Arm, Cradle, etc.)
- Parts Calculator and diagnostic tools
- Quick compensation and optimized workflow software
- Power cord and connection cables
- User manual and quick reference guides
Optional Accessories: Secondary display screen (tablet not included), additional wheel clamp sets, extended warranty coverage, installation service, technician training programs.
Not Included: Electrical installation and wiring, vehicle lift or service platform, secondary display tablet, extended database subscriptions beyond initial term, on-site installation labor, technician training (available separately).
Hofmann Geoliner 770 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses with loading dock or forklift access in the 48 contiguous United States. Lead Time: 3-5 business days for in-stock units; contact sales for current availability. Residential Delivery: Additional fees apply for residential addresses without commercial unloading equipment. International: Contact sales for international shipping quotes to Canada, Mexico, and other destinations.
Delivery Requirements
Unloading Equipment: Forklift or loading dock required for safe unloading. The Geoliner 770 ships on a pallet with protective packaging. Delivery Type: Curbside delivery to the first accessible point is standard; liftgate service available for additional fee if loading dock is not available. Receiving: Inspect all packages for shipping damage before signing the bill of lading. Document any visible damage with photos and note details on the delivery receipt. Concealed damage must be reported within 5 business days of delivery.
Returns and Exchanges
Returns accepted within 30 days of delivery for unused equipment in original packaging with all accessories and documentation. Product must be unopened with factory seals intact. A 20% restocking fee applies to all returns. Buyer is responsible for return freight costs and proper packaging. Equipment showing signs of installation, use, or missing components cannot be returned. Contact customer service before initiating any return to obtain a Return Merchandise Authorization (RMA) number.
Hofmann Geoliner 770 Warranty
Hofmann Manufacturer's Warranty
The Hofmann Geoliner 770 is backed by Hofmann's comprehensive manufacturer's warranty, covering defects in materials and workmanship under normal use and proper maintenance. Warranty coverage includes the main console, camera system, software, and all included components.
Warranty Terms: Specific warranty duration and coverage details are provided in the included warranty documentation. Coverage typically includes parts and technical support, with service performed through Hofmann's authorized service network.
Requirements: Warranty requires proper installation by qualified personnel, regular maintenance per manufacturer specifications, and operation within published parameters. Warranty does not cover damage from misuse, accidents, unauthorized modifications, environmental damage, or normal wear items. Professional installation is recommended to ensure warranty compliance. Registration may be required within 30 days of installation.
Claims: For warranty service, contact Hofmann's technical support team or Garage Supply Guys customer service. Proof of purchase and equipment serial number are required for all warranty claims. Extended warranty coverage and service plans are available for purchase.
Documents
Click to open in a new tab.
Questions About the Hofmann Geoliner 770?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Hofmann Geoliner 770 FAQ
What vehicles can the Geoliner 770 align?
The Geoliner 770 accommodates vehicles with wheelbases from 79"-180" (201-457cm) and track widths from 48"-96" (122-244cm), covering virtually all passenger cars, light trucks, SUVs, and commercial vans. The system includes both AC200 clamps for wheels 12"-24" and AC400 clamps for tires 19"-39", providing flexibility for different wheel and tire configurations. Mitchell1 database access ensures you have factory alignment specifications for virtually any make and model, including domestic, import, and specialty vehicles.
Does the Geoliner 770 require permanent installation?
No, the Geoliner 770 is fully mobile with a compact one-piece design and foldable camera beam. The unit rolls on caster wheels and can be easily repositioned wherever needed in your shop. This eliminates the need for dedicated alignment bays and allows you to share the equipment across multiple service locations. While the floor must be level for accurate measurements, no anchoring or permanent mounting is required. This mobility makes it ideal for shops that want flexibility in bay usage or need to store equipment when not in use.
What electrical power does the Geoliner 770 need?
The Geoliner 770 operates on universal voltage: 110-240V 50/60Hz. This means it works with standard North American 120V power or international 240V systems without modification. A dedicated circuit with appropriate amperage and proper grounding is required. The power connection should be verified by a licensed electrician to ensure compliance with local electrical codes and to provide adequate circuit protection for the diagnostic equipment.
How does the VODI system work?
VODI (Vehicle Orientation Directional Indicator) is Hofmann's patented LED guidance system that uses simple red and green lights to guide technicians through the measurement procedure. When you're at the vehicle making adjustments, the VODI lights show you what steering movements to make without having to look at the console screen. Red lights indicate an action is needed, green lights confirm correct positioning. This reduces the time spent walking between the vehicle and the aligner console, improving workflow efficiency and allowing one technician to complete alignments faster.
What is Auto Height Tracking?
Auto Height Tracking is an advanced feature that automatically adjusts the camera system as the vehicle is raised or lowered on your lift. Traditional aligners require manual camera readjustment when the vehicle height changes, but the Geoliner 770 continuously tracks the vehicle position and adjusts automatically. This eliminates time-consuming manual adjustments and reduces the number of trips to the console during the alignment process, significantly improving efficiency when working on lifted vehicles or making suspension-related adjustments.
How does Audit Mode increase revenue?
Audit Mode performs a fast verification scan measuring front and rear toe, track width, camber, wheelbase, wheel diameter, and cross dimensions in seconds. This allows you to quickly scan every vehicle that enters the shop for tire service, identifying alignment problems that customers may not know they have. By catching these issues early, you can sell more alignment services instead of letting customers drive away with undiagnosed problems. The fast scan takes minimal time, so you can check alignment on every vehicle without impacting service bay efficiency.
What makes the Smart Notification System different?
The Smart Notification System uses artificial intelligence to automatically identify and correct common alignment errors. If the system detects suspension stress, environmental interference, or measurement issues, it either corrects the problem automatically or alerts the technician only when additional input is needed. This reduces alignment errors caused by technician oversight and minimizes interruptions during the alignment process. The system essentially acts as a quality control assistant, ensuring consistent accuracy across all alignments regardless of technician experience level.
Can the Geoliner 770 measure modified suspensions?
Yes, the Geoliner 770 includes advanced measurement capabilities designed specifically for modified suspensions and suspension troubleshooting. The system measures ride height, SAI (Steering Axis Inclination), frame angle, max turn, and toe out on turns. It also includes advanced adjustment software for EZ-Toe, A-Arm, Cradle, Single Tie Rod, Drag Link, Toe Curve, Elevated positions, and Wheels Off measurements. These capabilities allow you to work on lowered vehicles, lifted trucks, performance cars, and custom suspension setups that standard aligners cannot accommodate.
Is Mitchell1 database access included?
Yes, the Geoliner 770 includes Mitchell1 database access, providing the largest alignment specification database in the market. You can access factory alignment specifications for virtually any vehicle in seconds, including domestic, import, and specialty vehicles. The system also provides alignment repair information, helping technicians identify which components to adjust to achieve proper alignment. Initial database subscription is included with the purchase; extended subscriptions are available for ongoing access to updates and new vehicle specifications.
What are the differences between AC200 and AC400 clamps?
AC200 clamps feature a self-centering design with two-sided claws that grip the wheel rim, accommodating wheel diameters from 12"-24" (30-61cm). They work well with most wheel designs and can grip over hub caps. AC400 clamps use a different approach, attaching to the tire sidewall without contacting the rim, accommodating tire diameters from 19"-39" (48-99cm). The AC400 design prevents rim damage and works well with expensive aftermarket wheels or wheels with unusual spoke patterns. Your Geoliner 770 includes one set of clamps; additional sets are available separately.

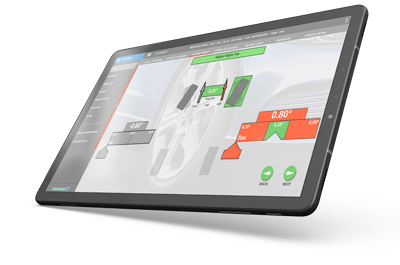

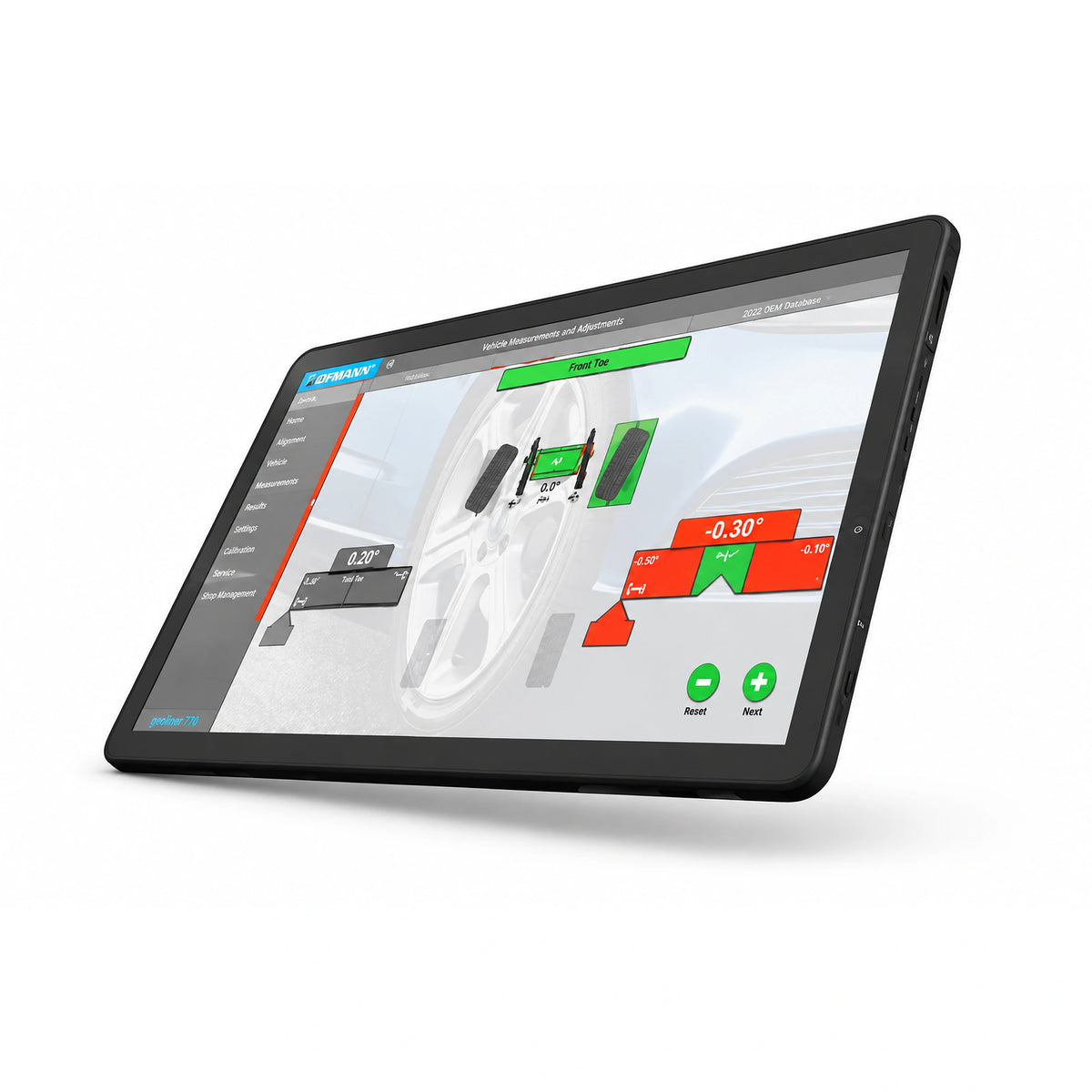

Does the optional secondary screen improve efficiency?
Yes, the optional secondary screen allows technicians to view all alignment readings from anywhere in the shop. Instead of walking back to the main console to check measurements, you can position the tablet near the vehicle and see real-time data while making adjustments. This is particularly useful in large bays or when multiple technicians are working, as it eliminates trips to the console and allows faster alignment completion. The tablet is not included with the secondary screen option and must be purchased separately or provided by your shop.

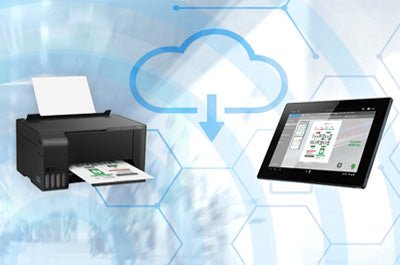

How does cloud service integration work?
The Geoliner 770 includes cloud services that save alignment data to a secure server, allowing you to access reports remotely from anywhere with internet connection. You can email alignment reports directly to customers from the system, print reports from any location in your shop, or review historical alignment data for vehicles that return for service. This cloud integration improves customer communication, provides documentation for warranty claims, and creates a digital service record that can help build customer trust and repeat business.
