Hofmann Geoliner 770 Aligner + 14K Alignment Lift Combo - GEO77014K
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147
Hofmann Geoliner 770 Mobile Imaging Wheel Alignment System with 14,000 lb Scissor Alignment Lift Combo for High-Volume Alignment Shops

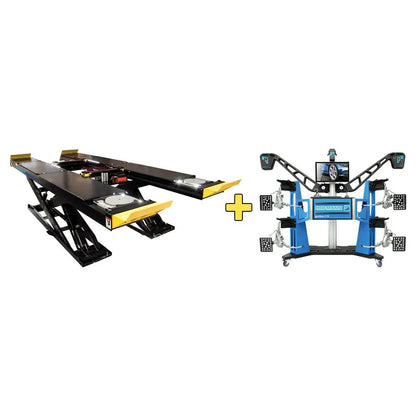

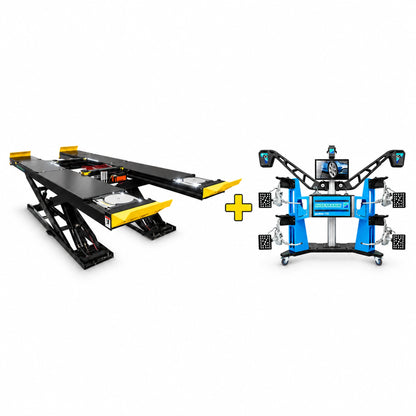

The Hofmann Geoliner 770 Aligner + 14K Alignment Lift Combo combines advanced mobile imaging alignment technology with a surface mount scissor lift to deliver sophisticated alignment capabilities in a compact footprint. This complete alignment bay package features the Geoliner 770 Mobile Imaging Diagnostic Wheel Alignment System with XD camera technology and AC400 wheel clamps, paired with the EELR789APKG 14,000 lb capacity scissor alignment lift with integrated turnplates, LED lighting, and rolling jacks. The system accommodates wheelbases from 79 inches to 180 inches, tire diameters from 19 inches to 39 inches, and requires 230 VAC, 1 Phase, 20 Amp electrical service for the lift and 115V for the alignment system. Hofmann provides comprehensive warranty coverage with this professional-grade alignment solution designed for dealerships and high-volume service centers.
Hofmann Geoliner 770 + 14K Lift Combo Features
Next-Generation Mobile Alignment System

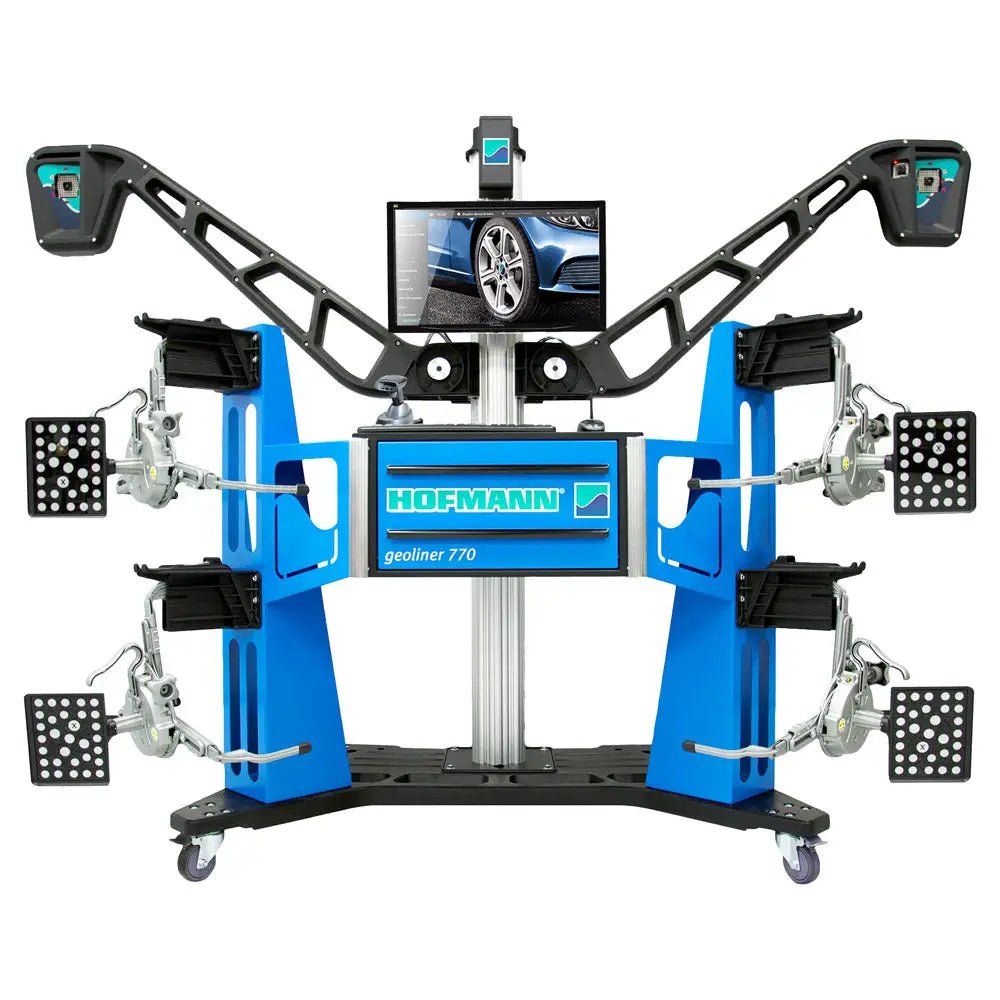

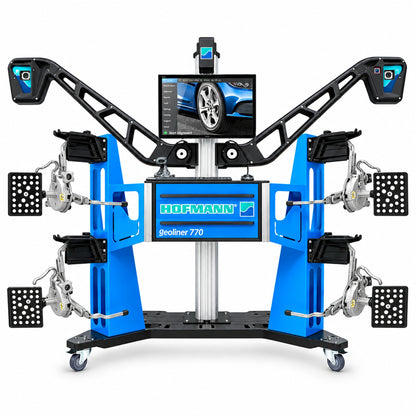

The Geoliner 770 Mobile Imaging Diagnostic Wheel Alignment System features a groundbreaking user interface optimized for high-volume operations with one-click-away design for instant access to critical tasks. The folding camera beam design with low-profile construction fits through standard doorways and protects the highly accurate XD camera technology during transport. Wireless communication eliminates cable management hassles while video speed cameras constantly monitor alignments and provide critical information at every step of the diagnostic process.
Diagnostic Alignment with Compensate-Warn-Alert System
The Geoliner 770 employs a Compensate-Warn-Alert intervention system that gets alignments right the first time by actively monitoring the alignment process and providing real-time feedback. Quick-select language support for procedures and printouts enables efficient service in multilingual shop environments, while all-new graphic displays present alignment data clearly for faster diagnosis and adjustment decisions.
14K Scissor Lift with Integrated Alignment Features
The EELR789APKG scissor lift uses four hydraulic cylinders in cross-aligned arrangement for secure lifting power and added safety, with mechanical locking and pneumatic safety lock release from the control console. The lift includes two EAK0336V49A premium front radius turnplates and EAK0277J28A rollback paddle kit with lights and locks feature, plus locking control activation from the lift console to reduce walking and effort when resetting alignment plates.
Integrated LED Lighting System

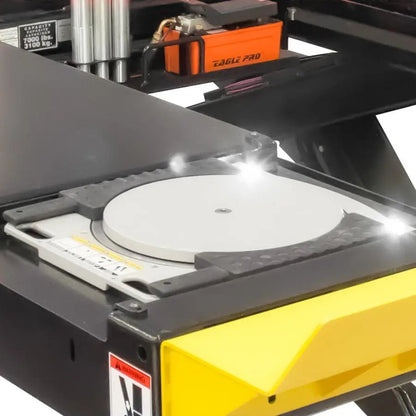

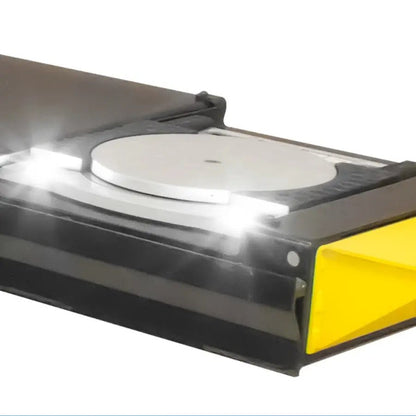

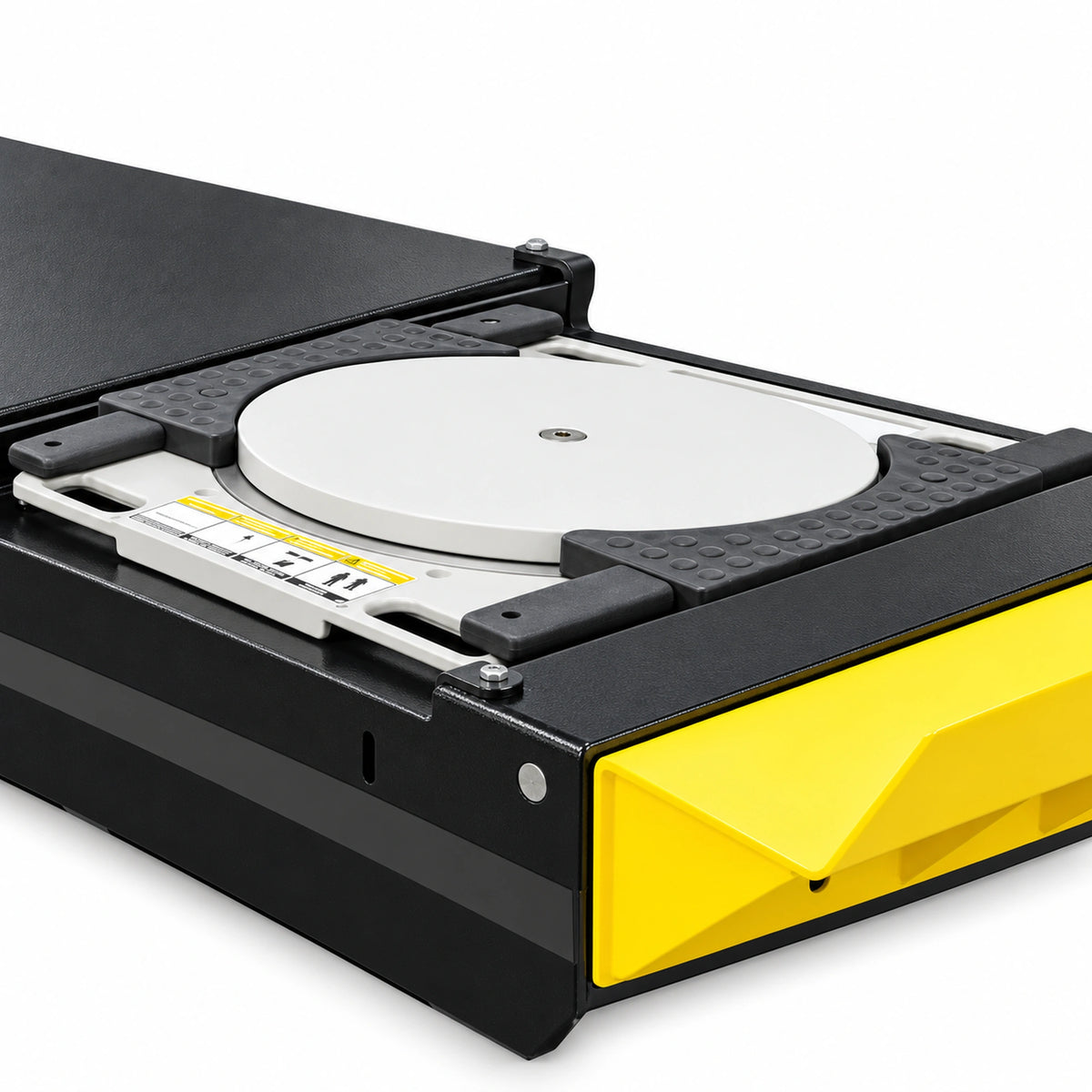

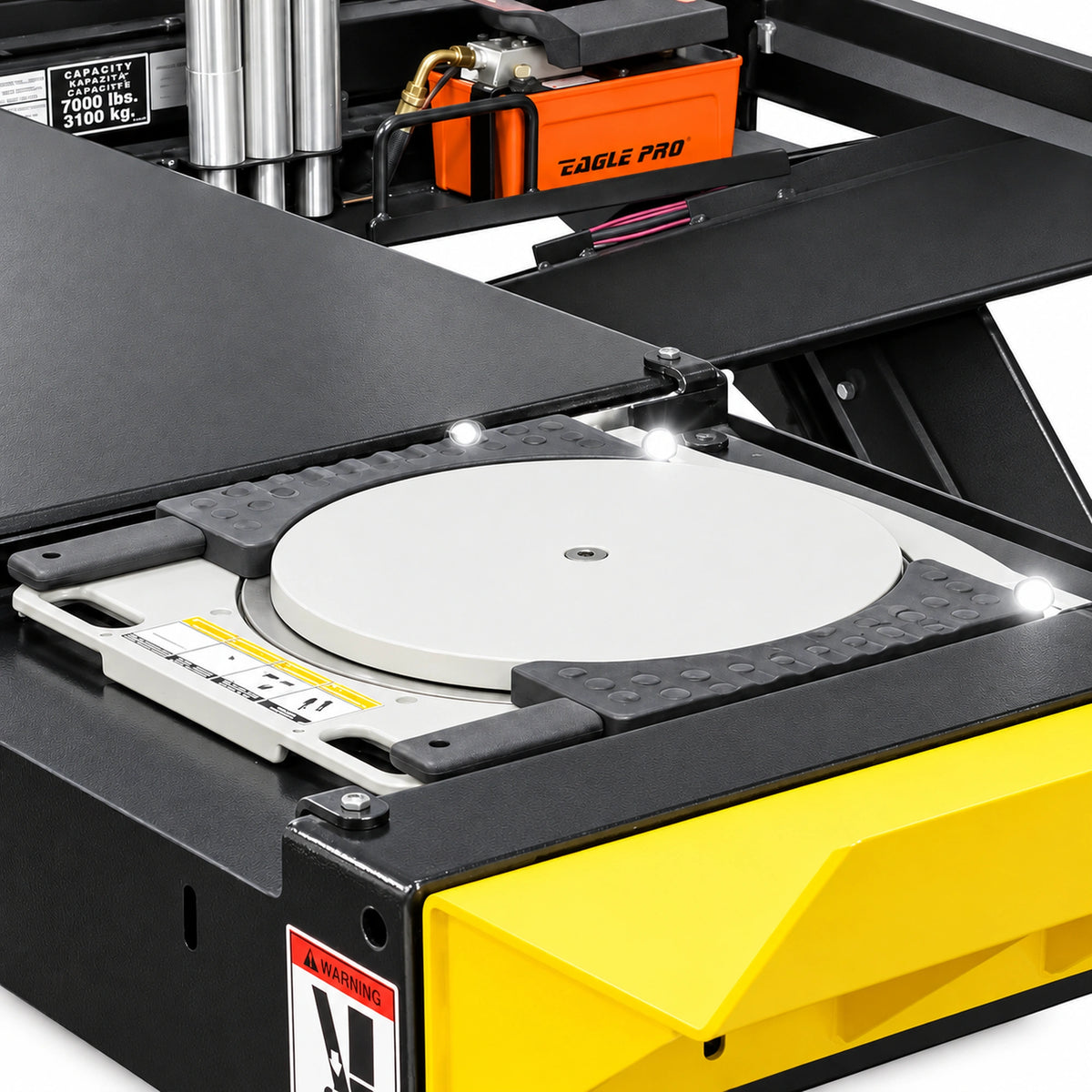

Strategic LED placement illuminates alignment adjustment and calibration areas with front LEDs mounted in the turnplate base to accommodate varying vehicle wheel tracks and rear LEDs positioned on slip plates for optimal viewing. The patented auto on/off light feature ensures no power when operating in the hazard zone, and the system is approved for use in Class 1 Division 1 environments for both surface and flush mount applications.
Maintenance-Reduced Design Elements

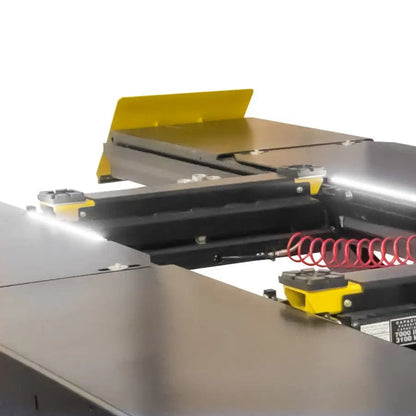

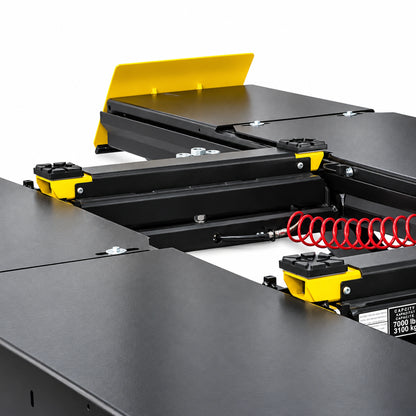

Rear slip plates use oversized, encapsulated bearings that roll upward to protect against environmental debris and reduce maintenance intervals. The on-board Filter/Regulator/Lubricator system provides clean and lubricated air to help reduce maintenance and protect pneumatic systems. Approach ramps are equipped with end sliders to minimize noise and reduce floor damage during vehicle positioning.
AC400 Wheel Clamps with Automatic Height Tracking

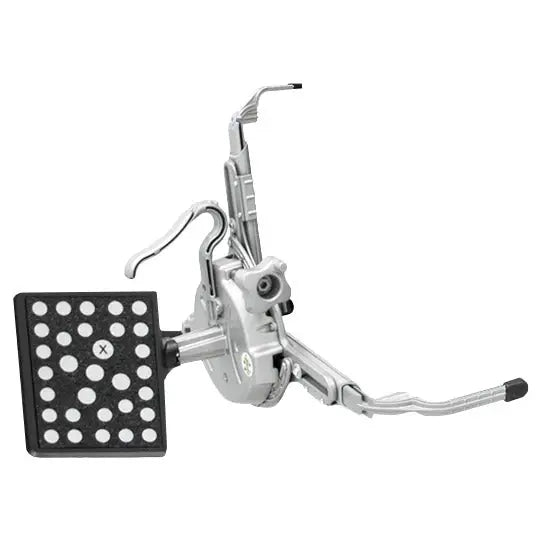

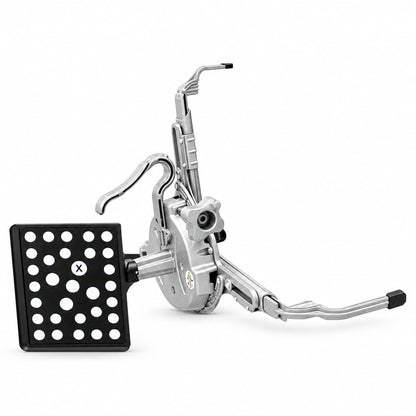

The lightweight cast magnesium AC400 wheel clamps weigh only 7 lbs each while providing 37 lbf clamping force for secure target mounting. Automatic height tracking continuously monitors wheel position during the alignment process, accommodating tire diameters from 19 inches to 39 inches without manual adjustments, which speeds up the alignment workflow and improves measurement accuracy.
Hofmann Geoliner 770 + 14K Lift Combo Applications
- High-Volume Alignment Shops: The mobile Geoliner 770 system with quick boot-up and fast measurements maximizes throughput in shops specializing in alignment and wheel service, while the 14K lift capacity handles the full range of passenger vehicles and light trucks with wheelbases up to 180 inches.
- Multi-Bay Service Centers: The compact footprint and mobile design allow the alignment system to move between bays or be repositioned as shop layout needs change, while the scissor lift provides stable alignment platform with integrated turnplates and lighting eliminating the need for separate drive-on ramps.
- Dealership Service Departments: The diagnostic alignment capabilities with Compensate-Warn-Alert system ensure first-time-right alignments for warranty work and customer satisfaction, while the professional-grade equipment handles the heavy daily use typical of dealership environments.
- Tire and Wheel Specialists: The combination of precision alignment equipment with capacity for tire diameters up to 39 inches makes this system ideal for shops that specialize in custom wheel and tire packages, performance upgrades, and alignment services requiring accurate adjustments.
- Full-Service Automotive Repair Facilities: The 14,000 lb capacity lift accommodates general service work when not performing alignments, with adjustable maximum lift height to suit locations with low ceilings and robust construction for daily use across multiple service types including suspension work, brake service, and general maintenance.
Hofmann Geoliner 770 + 14K Lift Combo Specifications
| Specification | Value |
|---|---|
| Tire Diameter Range | 19" - 39" (48.3 cm - 99.1 cm) |
| Track Width Range | 48" - 96" (121.9 cm - 243.8 cm) |
| Wheel Base Range | 79" - 180" (200.7 cm - 457.2 cm) |
| Camera Technology | XD Camera Technology with Video Speed Monitoring |
| Communication | Wireless |
| Monitor | 24" Flat Panel Monitor |
| Printer | Color Inkjet Printer (Included) |
| Power Supply | 115V, 50/60 Hz, 1 Phase |
| Power Requirements | 100/230 VAC (must have Earth ground), 50/60 Hz, 15 Amp Circuit |
| Specification | Value |
|---|---|
| Tire Diameter Range | 19" - 39" (48.3 cm - 99.1 cm) |
| Weight per Clamp | 7 lbs (3.2 kg) |
| Clamping Force | 37 lbf (164.6 N) |
| Construction | Cast Magnesium |
| Height Tracking | Automatic |
| Specification | Value |
|---|---|
| Hofmann Part Number | EELR789APKG |
| Maximum Capacity | 14,000 lbs (6,350 kg) |
| Lifting System | Four Hydraulic Cylinders, Cross-Aligned Arrangement |
| Safety System | Mechanical Locking with Pneumatic Safety Lock Release |
| Lifting Time at Full Load | 75 to 85 seconds |
| Specification | Value |
|---|---|
| Overall Width | 92.5" (234.95 cm) |
| Width Between Runways | 38" (96.52 cm) |
| Overall Length | 270" (685.8 cm) |
| Runway Surface Length | 210" (533.4 cm) |
| Runway Surface Width | 26" (66 cm) |
| Maximum Raised Height | 72" (182.9 cm) |
| Minimum Lowered Height | 10" (25.4 cm) |
| Console Dimensions (DxWxH) | 16.5" x 14.125" x 45.75" |
| Configuration | Wheelbase Range |
|---|---|
| 4 Wheel Alignment | 88" - 155" (223.52 cm - 393.70 cm) |
| 2 Wheel Alignment | Up to 180" (457 cm) |
| General Service | Up to 194" (492.8 cm) |
| Specification | Value |
|---|---|
| Power Supply | 230 VAC, 50/60 Hz, 1 Phase, 20 Amp |
| Motor | 3 hp |
| Air Supply Requirements | 90 - 120 psi |
| On-Board FRL | Filter/Regulator/Lubricator System Included |
| Specification | Value |
|---|---|
| Capacity per Jack | 7,000 lbs (3,175 kg) |
| Minimum Arm Reach | 31" (787 mm) |
| Maximum Arm Reach | 53" (1,346 mm) |
| Minimum Lowered Height | 1" (25 mm) above deck surface |
| Maximum Raised Height | 12.75" (324 mm) above deck surface |
| Air Supply Requirements | 90 - 120 psi (6 - 8 bar) |
| Maximum Operating Pressure | 5,210 psi (359 bar) |
| Weight per Jack | 329 lbs (149 kg) |
| Component | Weight |
|---|---|
| EELR789APKG Lift (without Jacks) | 6,387 lbs (2,897 kg) |
| RJ217 Rolling Jacks (2) | 658 lbs total (329 lbs each) |
| Geoliner 770 System | Contact for details |
Hofmann Geoliner 770 + 14K Lift Combo Installation Requirements
Electrical Requirements
Scissor Lift Power: 230 VAC, 50/60 Hz, 1 Phase, 20 Amp dedicated circuit with proper grounding. Alignment System Power: 115V, 50/60 Hz, 1 Phase, 15 Amp dedicated circuit with Earth ground. A licensed electrician must install and verify the electrical supply meets all local codes and manufacturer specifications. Separate circuits are required for the lift and alignment system.
Compressed Air Requirements
Air Supply: 90-120 psi shop air for lift operation and rolling jacks with minimum 5,210 psi maximum operating pressure for jack hydraulics. The on-board FRL system requires clean, dry air. Ensure adequate CFM capacity for continuous operation during alignment procedures.
Concrete Foundation Requirements
Surface Mount Installation: Minimum 6 inches thick reinforced concrete floor with 3,000 PSI minimum compressive strength, properly cured for at least 28 days. Steel reinforcement required per manufacturer specifications. Foundation must be level within manufacturer tolerances. Consult installation manual for specific anchor bolt patterns and depths.
Space and Clearance Requirements
Overall Footprint: 270" long x 92.5" wide for lift installation. Ceiling Height: Minimum 10 feet recommended for maximum 72-inch lift height plus vehicle height. Bay Width: Sufficient clearance for 96-inch maximum track width vehicles plus operator access. Adequate space required for mobile Geoliner 770 positioning and storage. Door width must accommodate folding camera beam passage.
Professional Installation
Professional installation by certified technicians is strongly recommended for proper setup, calibration, and testing of both the scissor lift and alignment system. Installation includes mechanical assembly, electrical hookup, system calibration, and operator training. Proper installation is required for warranty coverage and ensures safe operation and accurate alignment results.
What's Included with the Hofmann Geoliner 770 + 14K Lift Combo
Geoliner 770 Mobile Imaging Alignment System Includes:
- Geoliner 770 Mobile Imaging Diagnostic Wheel Alignment System with XD Camera Technology
- AC400 Wheel Clamps with XD Targets (Set of 4)
- 24" Flat Panel Monitor
- Color Inkjet Printer
- VIN Code Reader
- Steering Wheel Holder
- Brake Pedal Depressor
- Two Wheel Chocks
- Wireless Communication System
- Folding Camera Beams with Protective Design
EELR789APKG 14K Scissor Alignment Lift Includes:
- EELR789APKG Surface Mount 14,000 lb Capacity Scissor Lift with Lights and Locks
- Two RJ217 Rolling Jacks (7,000 lb capacity each)
- Two EAK0336V49A Premium Front Radius Turnplates with Lights and Locks Feature
- One EAK0277J28A Rollback Paddle Kit
- LED Lights in Front Turnplate Base
- LED Lights on Rear Slip Plates
- Locking Control Activation Feature from Lift Console
- Four Hydraulic Cylinders with Cross-Aligned Safety System
- Mechanical Locking with Pneumatic Safety Release
- On-Board Filter/Regulator/Lubricator (FRL) System
- Control Console with Integrated Safety Controls
- Approach Ramps with End Sliders
Optional Accessories: Additional turnplate configurations, extended warranty coverage, alignment software upgrades, and specialized adapters available separately.
Not Included: Electrical installation and hookup, compressed air line installation, concrete anchoring and foundation work, calibration and setup labor (unless purchased as part of installation package), alignment system software updates beyond initial version, replacement consumables.
Hofmann Geoliner 770 + 14K Lift Combo Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses with loading dock or forklift in the 48 contiguous United States. Lead Time: 4-8 weeks from order confirmation due to factory build schedule and coordination of multiple components. Residential Delivery: Additional fees apply for residential addresses. International: Contact sales for international shipping quotes and lead times.
Delivery Requirements
Unloading Equipment: Forklift with minimum 8,000 lb capacity or loading dock required for safe unloading. Lift ships on pallets weighing over 6,000 lbs without jacks. Delivery Type: Curbside freight delivery standard - driver is not responsible for unloading or placement. Receiving: Inspect all crates and pallets for shipping damage before signing Bill of Lading. Note any visible damage on delivery receipt and contact carrier immediately.
Delivery Coordination
Multiple Shipments: Alignment system and lift may ship separately from different warehouses. Coordinate delivery timing to ensure all components arrive when installation team is available. Access Requirements: Ensure delivery location has adequate clearance for freight truck access and maneuvering space for forklift operations.
Returns
Returns accepted within 30 days of delivery for unopened equipment in original packaging with receipt. Due to the specialized nature of alignment equipment, 20% restocking fee applies. Buyer responsible for return freight costs. Opened or installed equipment may not be eligible for return. Contact sales before initiating return to verify eligibility and obtain RMA number.
Hofmann Geoliner 770 + 14K Lift Combo Warranty
Hofmann Limited Warranty
Hofmann provides comprehensive warranty coverage for both the Geoliner 770 alignment system and EELR789APKG scissor lift. Specific warranty terms vary by component and are detailed in the complete warranty documentation.
- Alignment System: Limited warranty coverage on electronic components, cameras, and mechanical systems per manufacturer specifications
- Scissor Lift: Structural warranty on lift frame and mechanical components with separate coverage for hydraulic, electrical, and pneumatic systems
- AC400 Clamps: Warranty coverage on clamp bodies, XD targets, and electronic components
- Rolling Jacks: Limited warranty on hydraulic cylinders, frames, and pneumatic controls
Requirements: Warranty requires professional installation by certified technicians following manufacturer specifications. Regular maintenance must be performed and documented per maintenance schedule. Warranty does not cover damage from improper use, lack of maintenance, unauthorized modifications, or failure to follow operating instructions. Complete warranty terms provided with equipment and available in warranty documentation.
Documents
Click to open in a new tab.
Questions About the Hofmann Geoliner 770 + 14K Lift Combo?
Our equipment specialists can help with bay layout planning, installation coordination, specifications, and product selection for your alignment shop.
Hofmann Geoliner 770 + 14K Lift Combo FAQ
What vehicles can the Geoliner 770 + 14K lift combo accommodate?
This combo handles passenger vehicles and light trucks with tire diameters from 19 inches to 39 inches, track widths from 48 inches to 96 inches, and wheelbases up to 180 inches for two-wheel alignment or up to 155 inches for four-wheel alignment. The 14,000 lb lift capacity accommodates vehicles up to 79 inches tall when raised to the maximum 72-inch height, making it suitable for most sedans, SUVs, crossovers, pickup trucks, and commercial vans used in high-volume alignment shops.
What electrical service is required for this alignment combo?
The system requires two separate electrical circuits: a 230 VAC, 50/60 Hz, 1 Phase, 20 Amp dedicated circuit for the EELR789APKG scissor lift with 3 hp motor, and a 115V, 50/60 Hz, 1 Phase, 15 Amp dedicated circuit with Earth ground for the Geoliner 770 alignment system. Both circuits must be installed by a licensed electrician following all local electrical codes. The alignment system requires proper grounding (Earth ground) for accurate operation of the XD camera technology and electronic components.
How much floor space is needed for installation?
The EELR789APKG scissor lift requires 270 inches (22.5 feet) of length and 92.5 inches (7.7 feet) of width for the base installation. Additional clearance is needed around the lift for vehicle approach, operator access, and rolling jack storage. The mobile Geoliner 770 system requires space for positioning during alignments and storage when not in use, with the folding camera beam design allowing it to fit through standard doorways for flexible placement. Minimum ceiling height of 10 feet is recommended to accommodate the 72-inch maximum lift height plus typical vehicle heights.
What makes the Geoliner 770 system mobile?
The Geoliner 770 features folding camera beams, low-profile design with lowered center of gravity for stability, and integrated casters that allow the entire alignment system to roll through standard doorways. This mobility lets shops move the system between alignment bays, reposition it for optimal workflow, or store it when not in use. The wireless communication eliminates cable management issues during repositioning, and the compact footprint when folded makes it easy to maneuver in typical shop environments.
What warranty coverage comes with this combo?
Hofmann provides limited warranty coverage for both the Geoliner 770 alignment system and the EELR789APKG scissor lift, with specific terms varying by component. The warranty requires professional installation by certified technicians following manufacturer specifications and regular maintenance performed per the maintenance schedule. Warranty does not cover damage from improper use, lack of maintenance, unauthorized modifications, or failure to follow operating instructions. Complete warranty terms are detailed in the warranty documentation included with the equipment.
What's included in the complete combo package?
The combo includes the complete Geoliner 770 Mobile Imaging Diagnostic Wheel Alignment System with AC400 wheel clamps, XD targets, 24-inch monitor, color printer, VIN code reader, steering wheel holder, brake pedal depressor, and wheel chocks. The lift package includes the EELR789APKG 14,000 lb scissor lift with lights and locks, two RJ217 rolling jacks (7,000 lb capacity each), two premium front radius turnplates with lights and locks, rollback paddle kit, LED lighting in turnplate base and rear slip plates, and locking control activation from the lift console. All alignment accessories and lift components needed for complete alignment bay setup are included.
How long does the alignment process take with this system?
The Geoliner 770 is optimized for high-volume operations with quick boot-up time that gets technicians to every job quickly and video speed cameras that provide faster measurements for more efficient alignments. The diagnostic alignment system with Compensate-Warn-Alert intervention helps get alignments right the first time, reducing comebacks and rework. Actual alignment time varies based on vehicle condition, required adjustments, and technician experience, but the system is designed to maximize throughput in shops specializing in alignment services.
What compressed air requirements does the lift have?
The EELR789APKG scissor lift and RJ217 rolling jacks require shop air supply of 90-120 psi for operation. The rolling jacks have a maximum operating pressure of 5,210 psi for the hydraulic systems. The lift includes an on-board Filter/Regulator/Lubricator (FRL) system that requires clean, dry air to protect pneumatic components and reduce maintenance. Ensure your shop's air compressor has adequate CFM capacity to support continuous operation during alignment procedures while maintaining proper pressure.
Can the lift be used for general service work when not doing alignments?
Yes, the EELR789APKG scissor lift accommodates general service work with wheelbase capacity up to 194 inches for non-alignment applications. The 14,000 lb capacity handles most passenger vehicles and light trucks for brake service, suspension work, and general maintenance. The adjustable maximum lift height suits locations with low ceilings, and the robust construction with four hydraulic cylinders in cross-aligned arrangement provides stable platform for various service procedures. The integrated turnplates and alignment features don't interfere with general service operations.
What training is provided with the alignment system?
Professional installation packages typically include operator training on the Geoliner 770 system operation, calibration procedures, and proper use of the AC400 wheel clamps and alignment features. The next-generation user interface is optimized for intuitive operation, and the system includes quick-select language support for procedures. Training covers diagnostic alignment capabilities, the Compensate-Warn-Alert system, wireless communication features, and proper maintenance procedures. Contact your equipment specialist about available training options and certification programs for your technicians.
How does the LED lighting system improve alignment work?
The integrated LED lighting illuminates critical alignment adjustment and calibration areas with front LEDs mounted in the turnplate base to accommodate varying vehicle wheel tracks and rear LEDs strategically positioned on slip plates for optimal viewing angles. The patented auto on/off light feature ensures no power when operating in the hazard zone for safety. The lighting system is approved for Class 1 Division 1 environments and helps technicians see adjustment points clearly, reducing eye strain and improving efficiency during alignment procedures.
What foundation is required for the scissor lift installation?
Surface mount installation of the EELR789APKG scissor lift requires a minimum 6 inches thick reinforced concrete floor with 3,000 PSI minimum compressive strength that has been properly cured for at least 28 days. Steel reinforcement is required per manufacturer specifications, and the foundation must be level within specified tolerances. Consult the installation manual for specific anchor bolt patterns, depths, and spacing requirements. Professional installation ensures proper anchoring for safe operation and warranty compliance.
