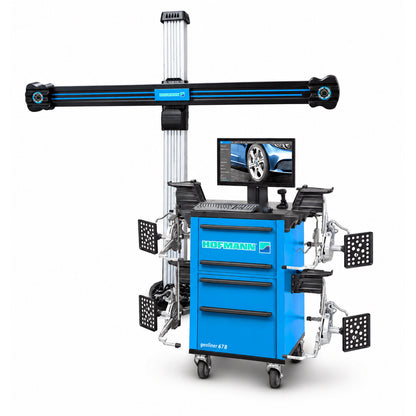

Hofmann Geoliner 678 Cross-Beam Imaging Wheel Aligner
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

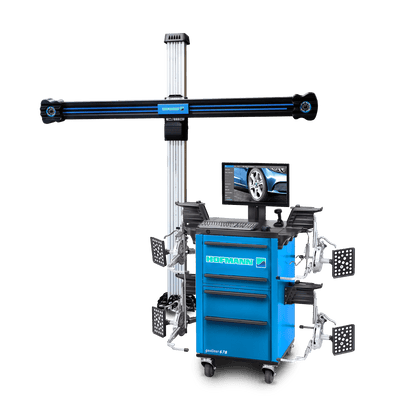

Hofmann Geoliner 678 Cross-Beam Imaging Wheel Aligner for Professional Automotive Shops
The Hofmann Geoliner 678 is a professional cross-beam imaging wheel aligner designed to maximize shop profitability through advanced technology and streamlined workflow. Featuring XD camera technology, smart notification systems, and quick compensation software, this system reduces operating costs while increasing alignment productivity. The cross-beam design accommodates vehicles with wheelbases from 79"-180" (201-457cm) and track widths from 48"-96" (122-244cm), with universal 110-240V 50/60Hz power compatibility. Available with optional mobility kit (EAK0320J78C) for flexible bay installation. Backed by Hofmann's comprehensive warranty, the Geoliner 678 delivers precision results faster than ever before.
Hofmann Geoliner 678 Features

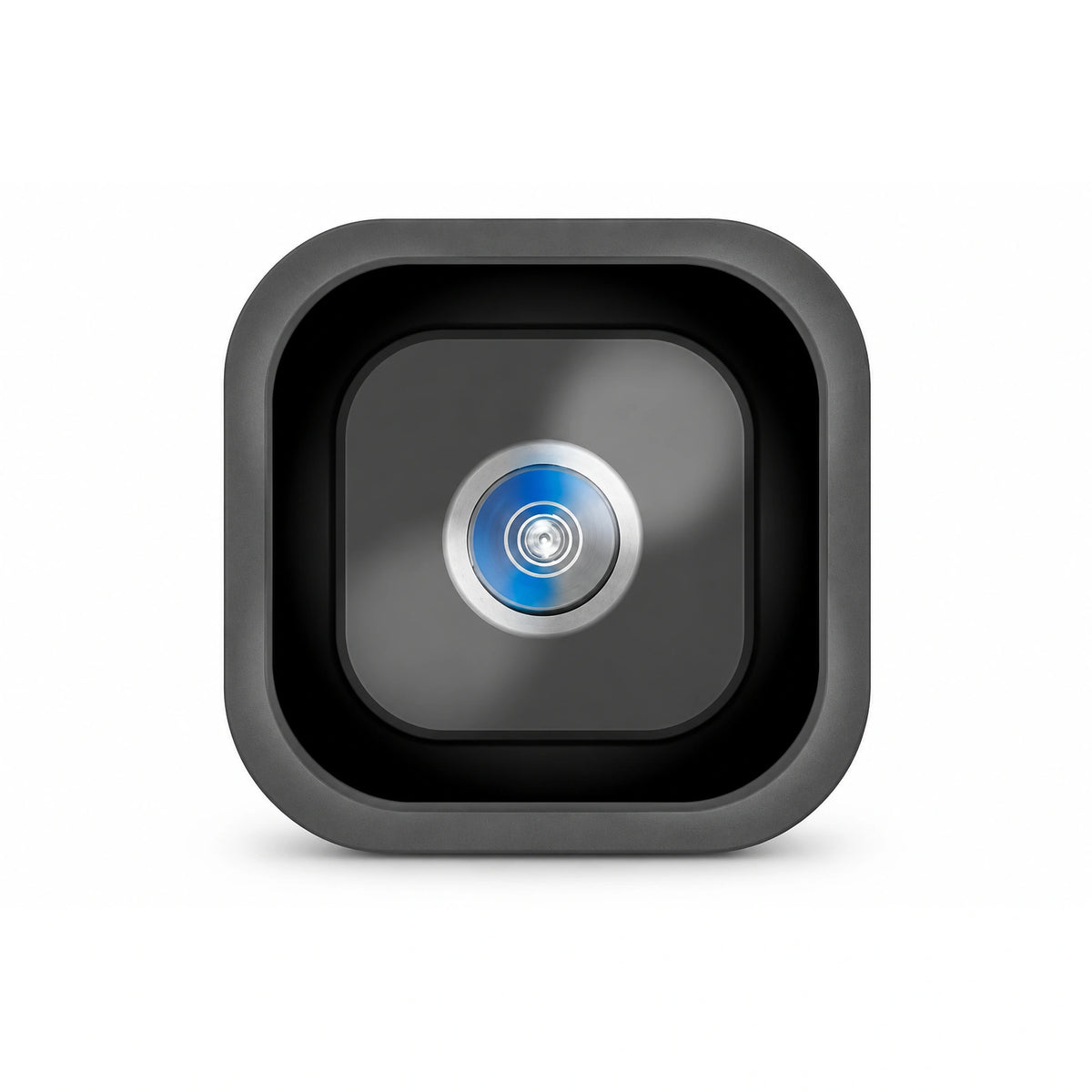

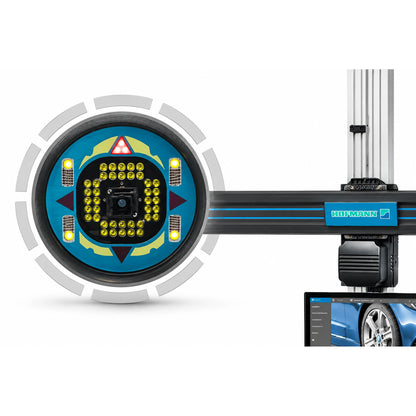

XD Camera Technology
Cutting-edge high-definition video speed cameras continuously monitor the alignment process and instantly detect common environmental conditions or vehicle issues with the potential to cause misalignment. This advanced imaging system provides real-time feedback throughout the entire alignment procedure, ensuring accuracy and identifying problems before they result in incorrect measurements or wasted time.

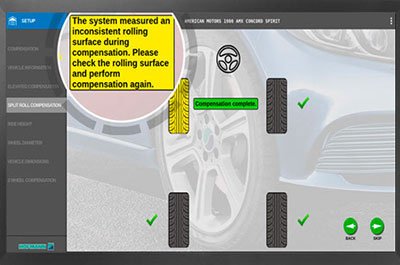

Smart Notification System
The intelligent notification system maximizes efficiency and accuracy by automatically identifying and fixing issues like suspension stress or environmental errors. The system requires technician intervention only when additional information is needed to take corrective action, reducing interruptions and maintaining workflow momentum while ensuring consistent alignment quality across all service jobs.

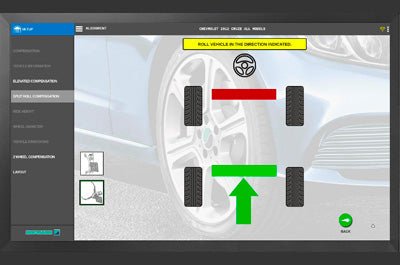

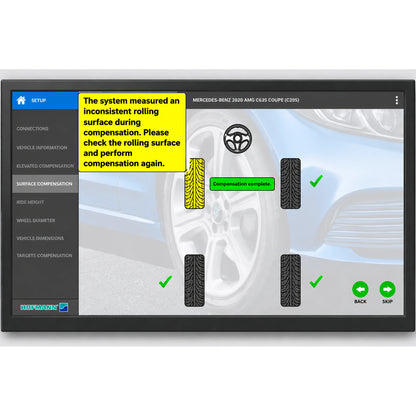

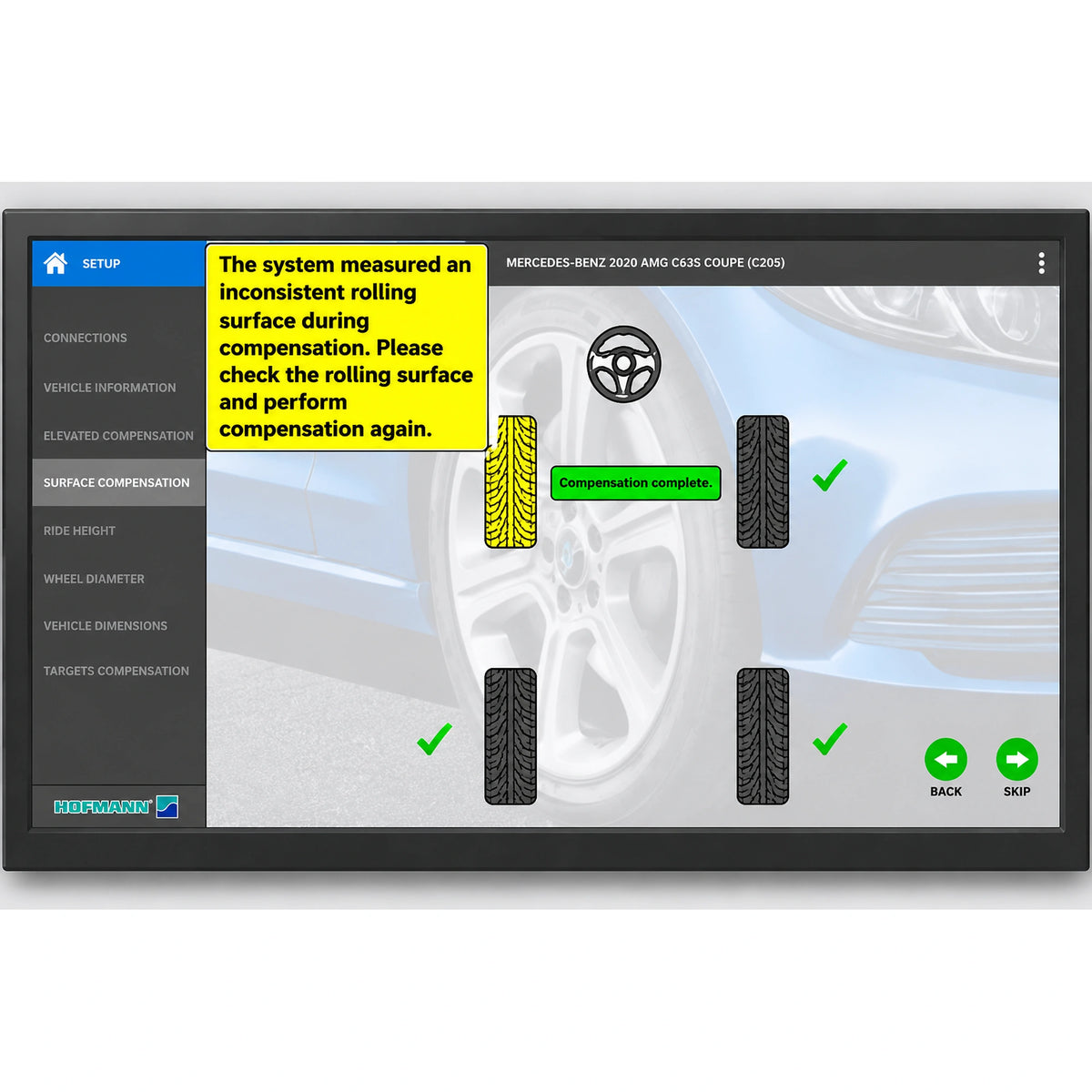

Quick Compensation and Optimized Alignment Flow
Boost productivity by eliminating unnecessary steps in the alignment process. The quick measurement compensation and optimized alignment flow enable shops to complete more alignments per day, growing the alignment business through increased throughput. The streamlined workflow reduces the time per alignment without sacrificing accuracy, maximizing revenue potential from your equipment investment.

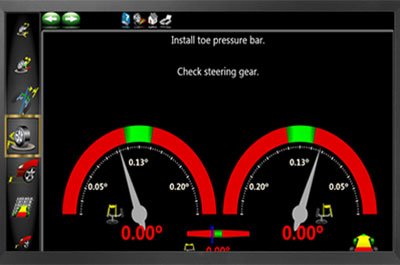

OEM Aftermarket Procedures

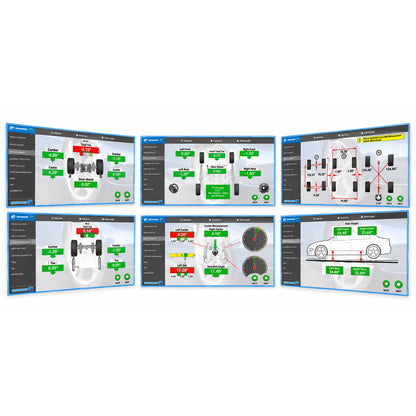

Advanced software offers instant access to real-time aftermarket OEM recommended adjustments and repair information, as well as the correct clamps required for precise, OEM-specified wheel alignment service. This integration ensures technicians can quickly reference manufacturer specifications and procedures without leaving the alignment bay, reducing research time and improving first-time completion rates.

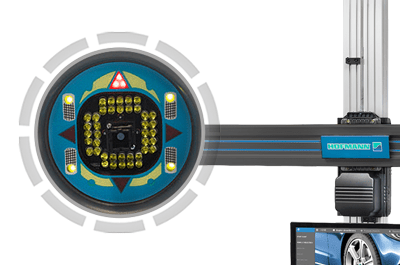

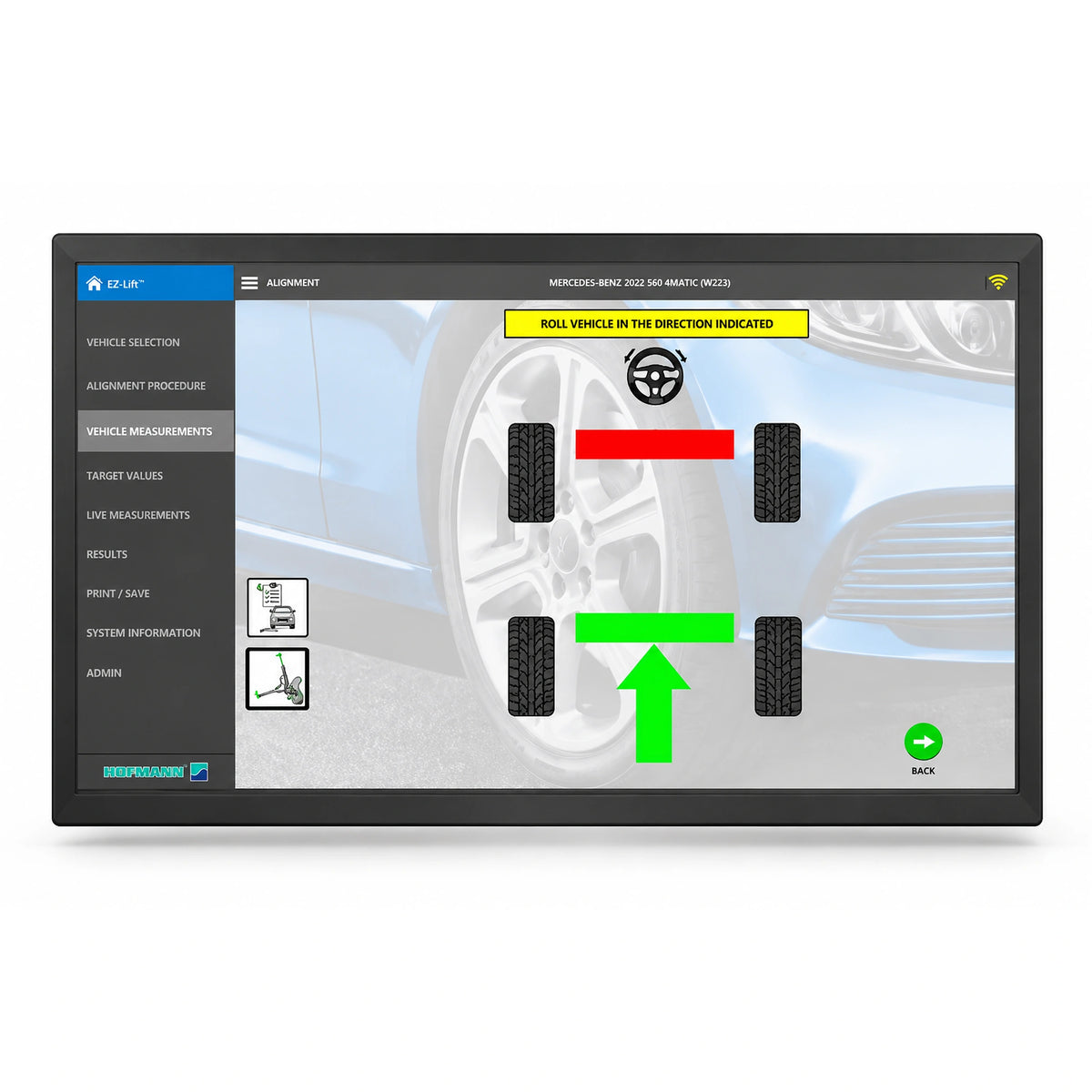

VODI LED Guidance System
The patented Vehicle Orientation Directional Indicator (VODI) uses simple red and green LED lights to guide technicians through the measuring procedure while the monitor is not in view. This visual guidance system decreases time spent moving back and forth between the vehicle and aligner console, allowing technicians to perform alignment procedures more efficiently while maintaining accuracy.

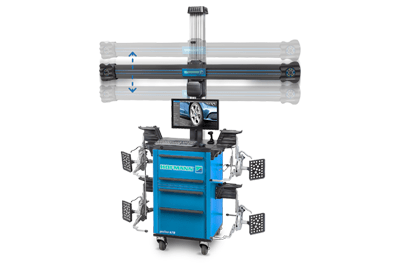

Automatic Height Tracking
Automatic height tracking follows the vehicle as it is raised and lowered on the lift, eliminating the need for manual readjustment of the camera and reducing time spent at the console. This feature maintains measurement accuracy throughout height changes, streamlining the alignment process when working on vehicles requiring suspension adjustments or when technicians need to access undercarriage components.

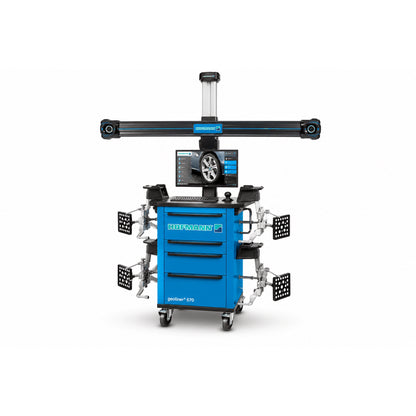

Cross-Beam Design with Mobility Option
The cross-beam configuration provides stable, accurate measurements with the option to add the mobility kit (EAK0320J78C) for flexible installation. When equipped with the mobility kit, the cross-beam can be mounted to the cabinet for easy repositioning between service bays, providing shops with installation flexibility while maintaining the structural stability and measurement accuracy of a traditional cross-beam system.

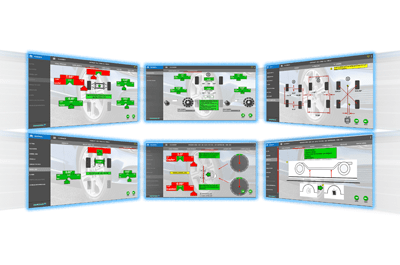

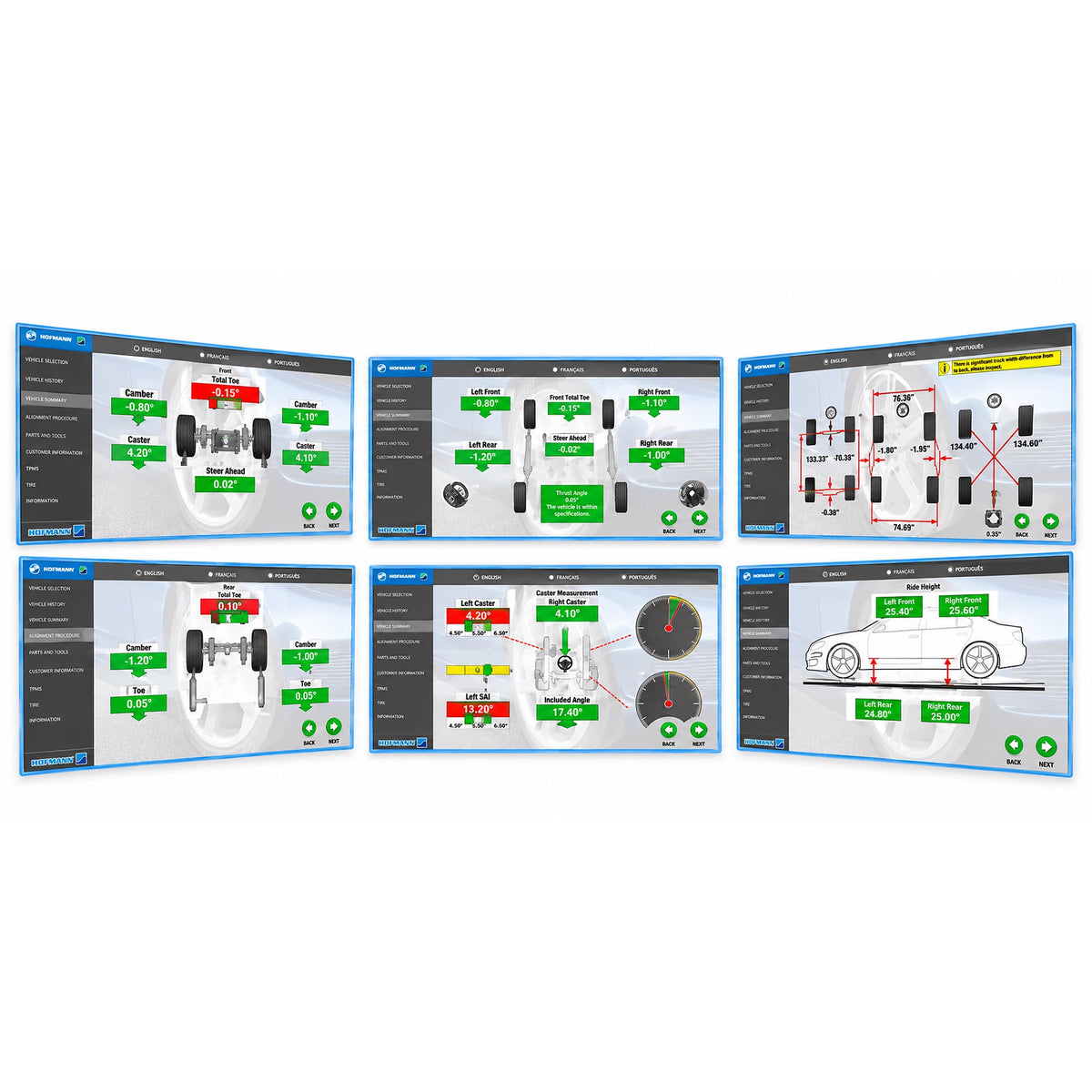

Advanced Adjustment Capabilities

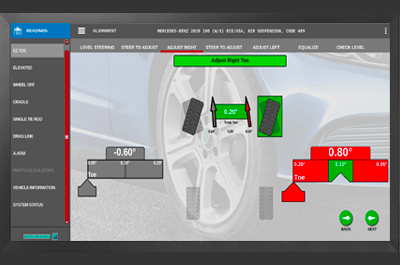

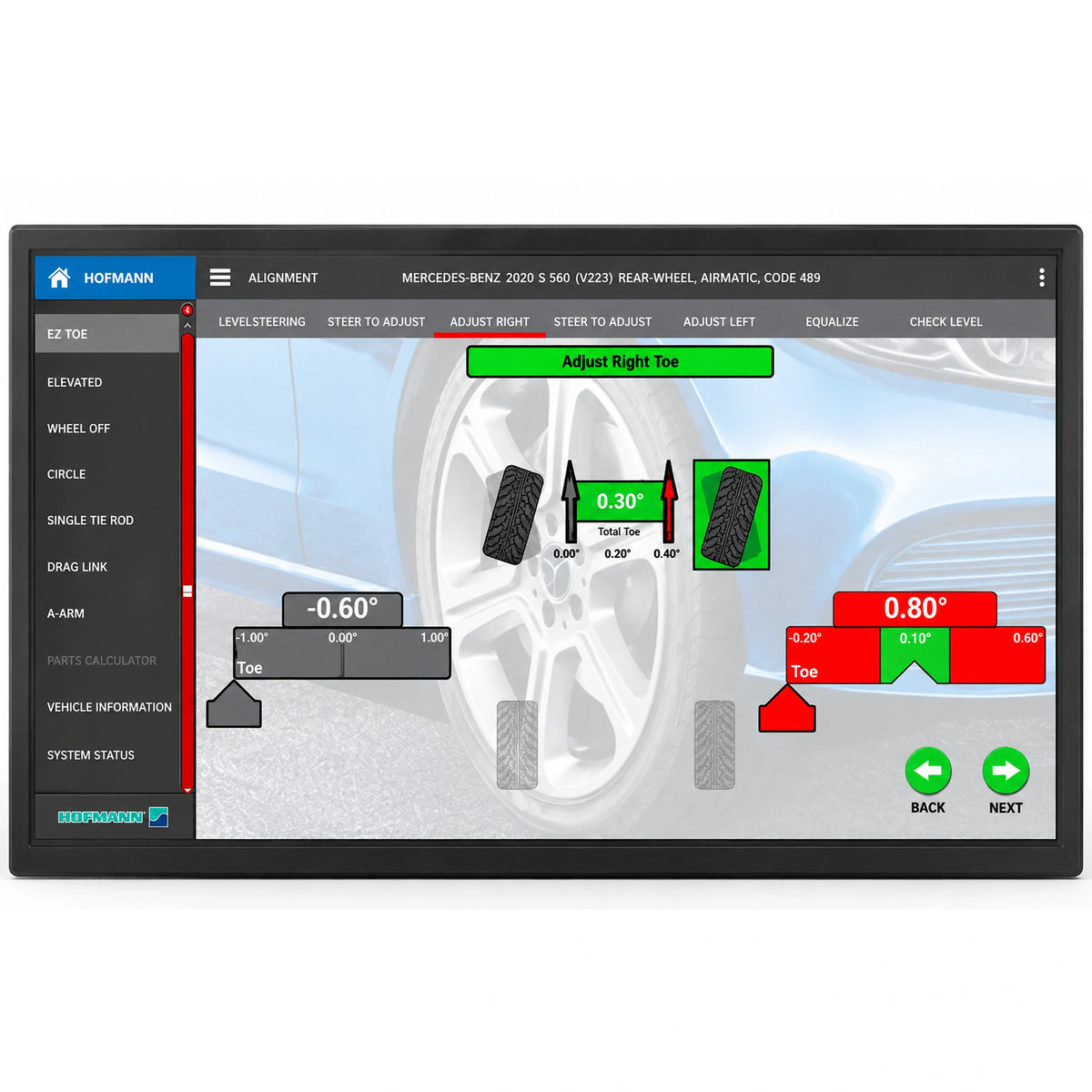

The cutting-edge software measures advanced settings including EZ-Toe, A-Arm, Cradle, Single Tie Rod, Drag Link, Toe Curve, Elevated, Wheels Off, and includes Parts Calculator and Parts & Tools features. These capabilities support complex suspension work, modified vehicles, and specialty alignment situations that standard aligners cannot accommodate, expanding your shop's service capabilities.
Hofmann Geoliner 678 Applications
- Multi-Bay Service Centers: The optional mobility kit allows the cross-beam system to be shared across multiple service bays, maximizing equipment utilization while reducing capital costs compared to installing dedicated aligners in each bay.
- Independent Repair Shops: Quick compensation and optimized workflow enable busy independent shops to complete more alignments per day, increasing revenue while the smart notification system ensures consistent quality regardless of technician experience level.
- Dealership Service Departments: OEM aftermarket procedures provide instant access to manufacturer specifications and repair information, ensuring dealership technicians can perform alignments to exact factory standards while Mitchell1 database integration covers all makes and models.

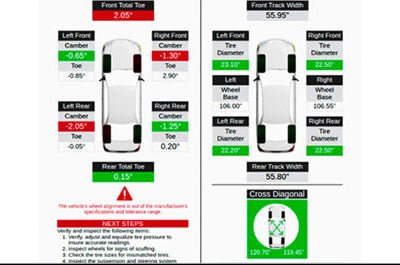

- High-Volume Tire Centers: Audit Mode enables fast vehicle scanning during tire installation, identifying alignment issues that can be sold as additional services while the streamlined workflow keeps alignment bays productive throughout the day.

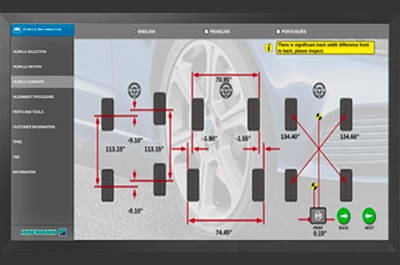

- Performance and Custom Shops: Advanced measurements including ride height, SAI, frame angle, and toe out on turns support custom suspension setups, lowered vehicles, and performance modifications that require precision alignment beyond standard specifications.
- Fleet Maintenance Facilities: Cloud services enable remote report access for fleet documentation while the VODI guidance system and automatic error correction reduce the training time required for new technicians to perform accurate alignments on commercial vehicles.
Hofmann Geoliner 678 Specifications
| Specification | Value |
|---|---|
| Wheelbase Range | 79"-180" (201-457cm) |
| Track Width Range | 48"-96" (122-244cm) |
| Tire Diameter (AC400 Clamps) | 19"-39" (48-99cm) |
| Wheel Diameter (AC200 Clamps) | 12"-24" (30-61cm) |
| Specification | Value |
|---|---|
| Power Supply | 110-240V 50/60Hz (Universal Voltage) |
| Part Number | EEWA715TBV3 |
| Feature | Description |
|---|---|
| Camera System | XD High-Definition Video Speed Cameras |
| Guidance System | VODI (Vehicle Orientation Directional Indicator) |
| Height Tracking | Automatic (follows vehicle on lift) |
| Notification System | Smart Auto-Correction with Technician Alerts |
| Database Access | Mitchell1 Alignment Specifications |
| OEM Procedures | Real-Time Aftermarket OEM Adjustments |

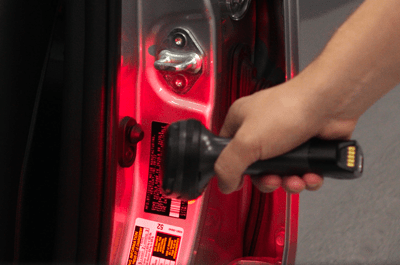

| VIN Scanner | Integrated |
| Cloud Services | Secure Server with Remote Report Access |
| Design Type | Cross-Beam (Optional Mobility Kit Available) |

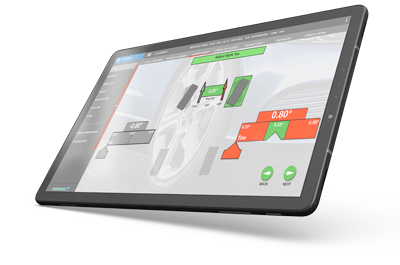

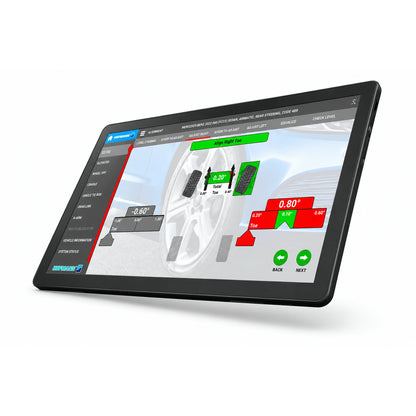

| Secondary Screen | Optional (tablet not included) |
| Ride Height Targets | Optional (eliminates manual data entry) |
| Clamp Type | Description |
|---|---|

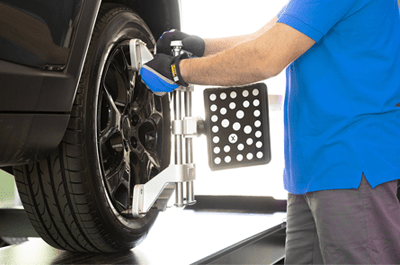

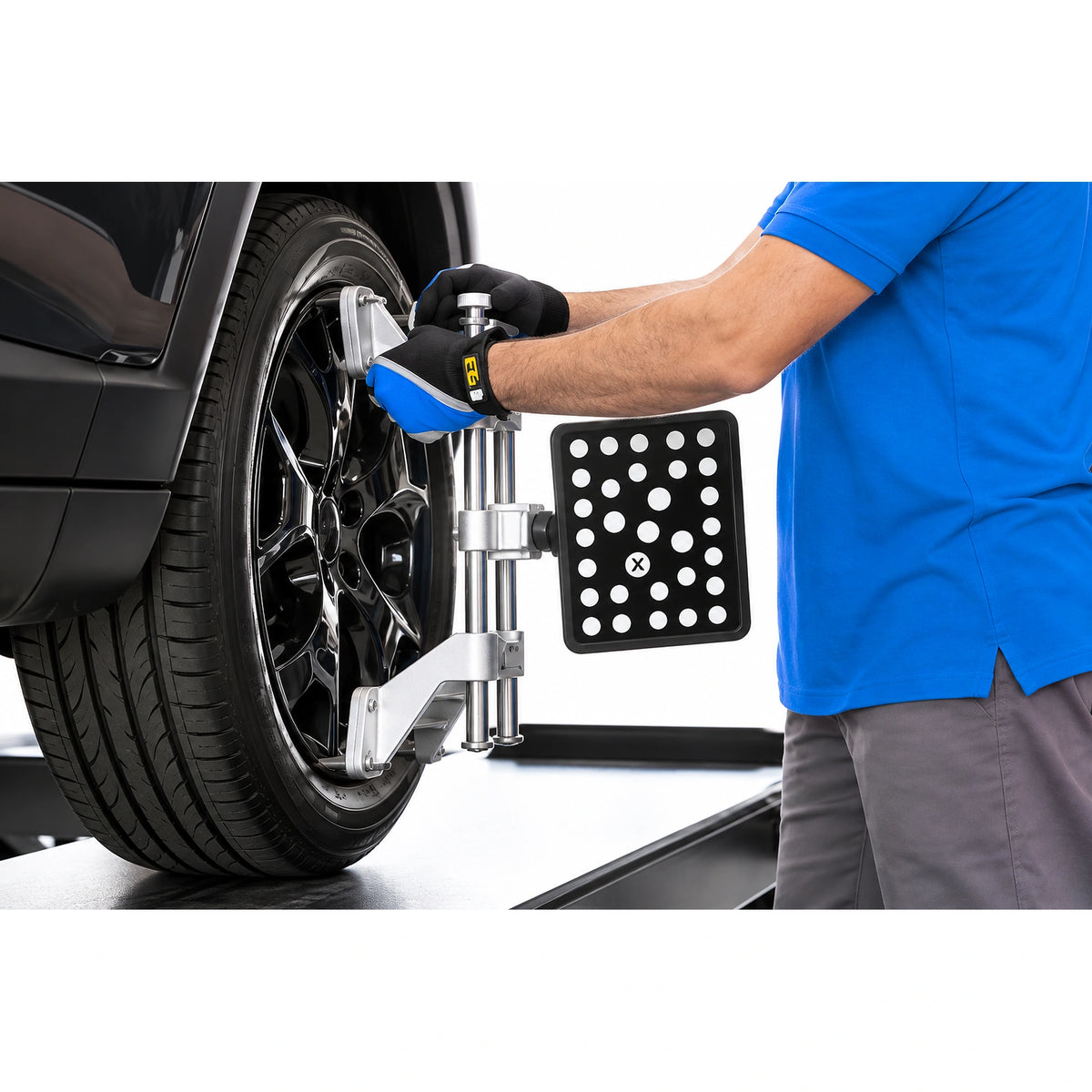

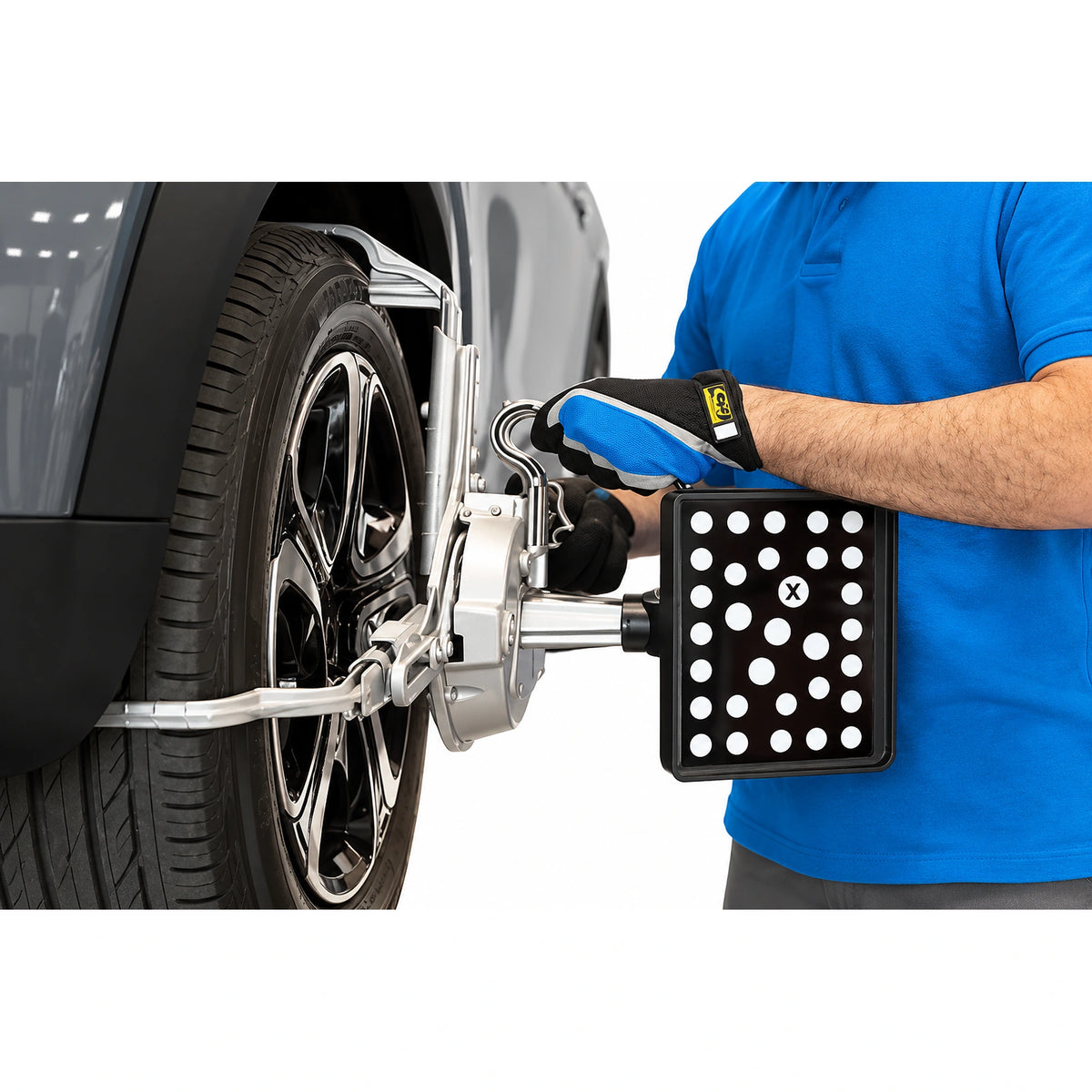

| AC200 Clamps | Self-centering design with two-sided claws for hub cap compatibility (12"-24" wheels) |

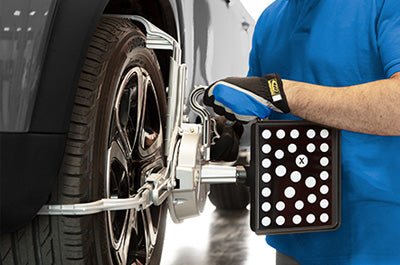

| AC400 Clamps | Tire-mount design attaches to tire without rim contact (19"-39" tires) |
| Measurement Type | Parameters |
|---|---|

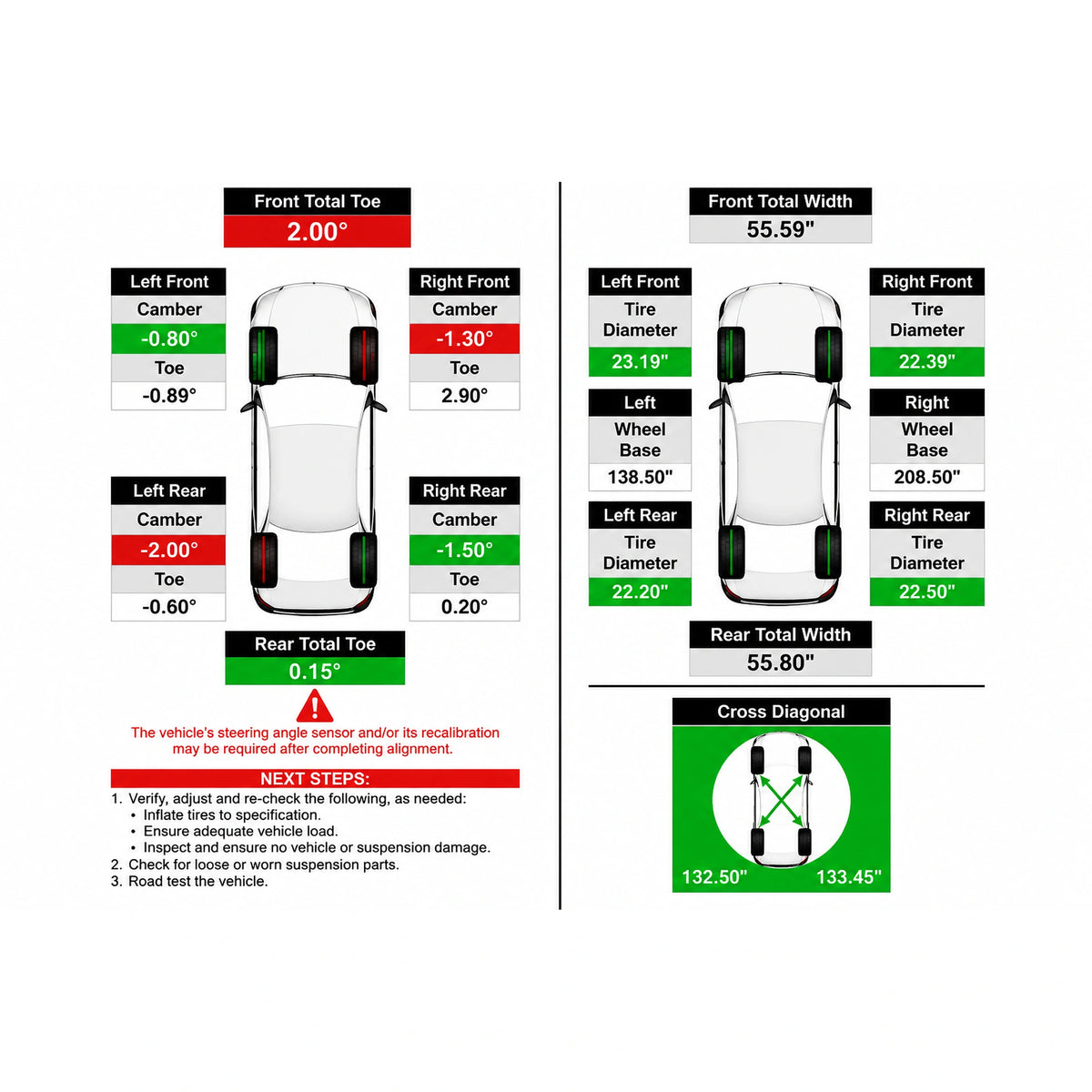

| Standard Measurements | Toe, Camber, Caster, Track Width, Wheelbase |
| Advanced Suspension | Ride Height, SAI, Frame Angle, Max Turn, Toe Out on Turns |
| Advanced Adjustments | EZ-Toe, A-Arm, Cradle, Single Tie Rod, Drag Link, Toe Curve, Elevated, Wheels Off |
| Audit Mode Scan | Front/Rear Toe, Track Width, Camber, Wheelbase, Wheel Diameter, Cross Dimensions |
| Accessory | Part Number |
|---|---|
| Mobility Kit | EAK0320J78C |
| Ride Height Targets | Contact for availability |
| Secondary Screen | Contact for availability |
Hofmann Geoliner 678 Video
Hofmann Geoliner 678 Installation Requirements
Electrical Requirements
Power Supply: 110-240V 50/60Hz universal voltage. The Geoliner 678 accepts both North American and international voltage standards without modification. A licensed electrician must install and verify the electrical supply meets local codes and provides adequate circuit protection for diagnostic equipment operation.
Cross-Beam Installation
Mounting: The cross-beam can be installed as a permanent ceiling or wall-mounted system, or mounted to the included cabinet. Optional Mobility Kit: When equipped with the mobility kit (EAK0320J78C), the cross-beam mounts to the cabinet for repositioning between service bays. Ceiling Height: Adequate ceiling clearance required for cross-beam installation; consult installation manual for specific requirements based on mounting configuration.
Space Requirements
Operating Space: Sufficient bay space to accommodate vehicles with wheelbases up to 180" (457cm) and track widths up to 96" (244cm). Clearance: Additional clearance around the vehicle for technician movement and camera positioning. When using the mobility kit, allow space for cabinet repositioning and storage between alignment jobs.
Floor Requirements
Surface: Level, clean concrete floor free from debris and excessive surface irregularities. If using the mobility kit, the floor must be sufficiently level and smooth to allow cabinet movement while maintaining measurement stability. Traditional ceiling-mounted installations require level floor surface in the alignment area but do not require cabinet mobility considerations.
Professional Installation
Professional installation and setup are strongly recommended to ensure proper calibration, secure mounting, and integration with your shop's workflow. Hofmann-certified technicians can perform cross-beam mounting, electrical connection, system calibration, and technician training. Contact Garage Supply Guys for installation service options and certified installer referrals in your area.
What's Included with the Hofmann Geoliner 678
- Geoliner 678 main console unit with integrated computer and display
- XD high-definition camera system with cross-beam mounting hardware
- VODI (Vehicle Orientation Directional Indicator) LED guidance system
- Choice of AC200 wheel clamps (12"-24") or AC400 tire clamps (19"-39")
- Cabinet for console and equipment storage

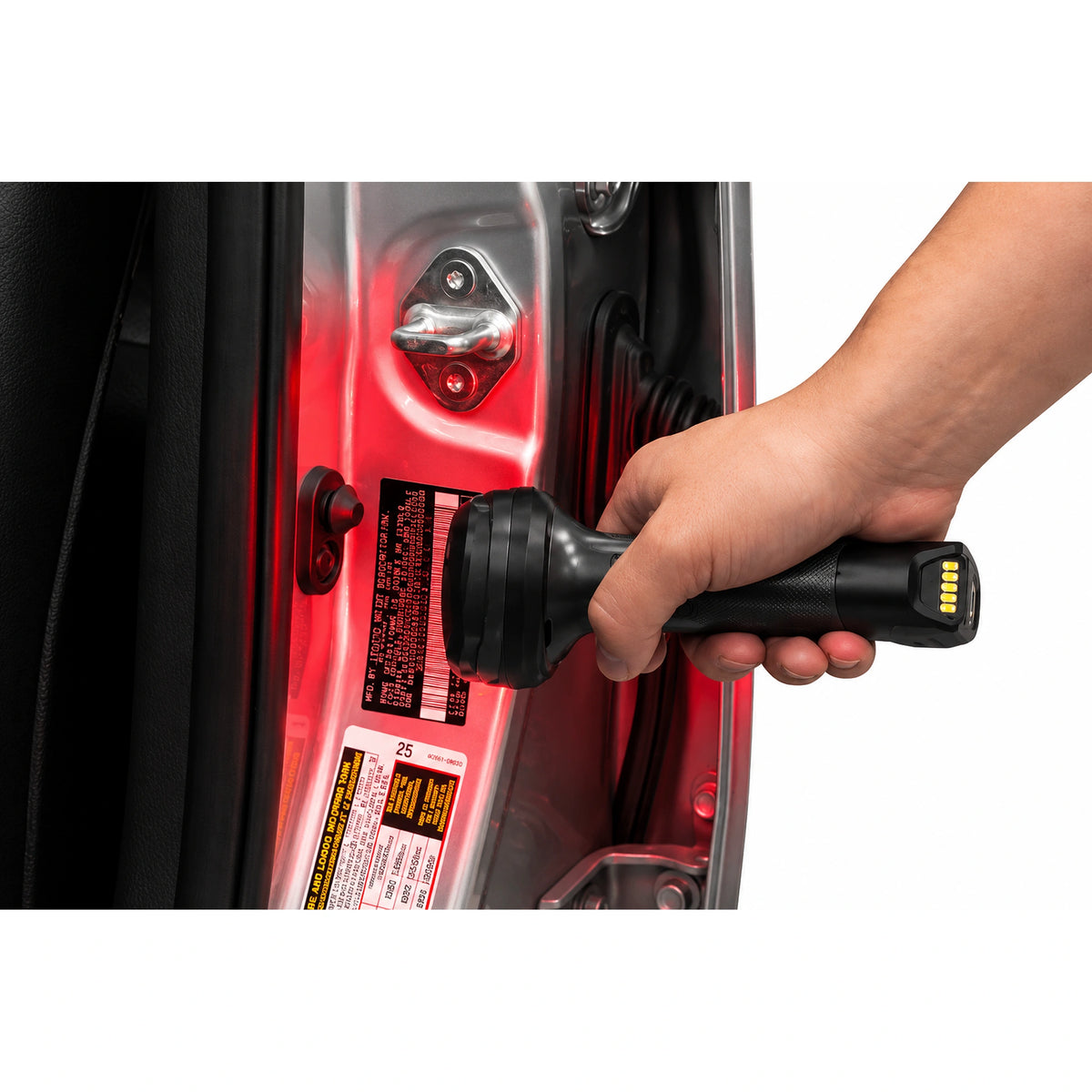

- VIN scanner for automatic vehicle identification
- Mitchell1 database subscription for alignment specifications
- OEM aftermarket procedures software with repair information
- Cloud services access for remote report management
- Auto height tracking system
- Audit Mode software for fast vehicle verification
- Advanced adjustment software (EZ-Toe, A-Arm, Cradle, etc.)
- Parts Calculator and diagnostic tools
- Quick compensation and optimized workflow software
- Power cord and connection cables
- User manual and quick reference guides
Optional Accessories: Mobility kit (EAK0320J78C) for cabinet-mounted cross-beam portability, secondary display screen (tablet not included), ride height targets for automatic measurement, additional wheel clamp sets, extended warranty coverage, installation service, technician training programs.
Not Included: Electrical installation and wiring, cross-beam mounting hardware for permanent ceiling/wall installation (if not using cabinet mount), mobility kit (sold separately), secondary display tablet, ride height targets (sold separately), extended database subscriptions beyond initial term, on-site installation labor, technician training (available separately).
Hofmann Geoliner 678 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses with loading dock or forklift access in the 48 contiguous United States. Lead Time: 3-5 business days for in-stock units; contact sales for current availability. Residential Delivery: Additional fees apply for residential addresses without commercial unloading equipment. International: Contact sales for international shipping quotes to Canada, Mexico, and other destinations.
Delivery Requirements
Unloading Equipment: Forklift or loading dock required for safe unloading. The Geoliner 678 ships in multiple packages including console, cross-beam, cabinet, and accessories. Delivery Type: Curbside delivery to the first accessible point is standard; liftgate service available for additional fee if loading dock is not available. Receiving: Inspect all packages for shipping damage before signing the bill of lading. Document any visible damage with photos and note details on the delivery receipt. Concealed damage must be reported within 5 business days of delivery.
Returns and Exchanges
Returns accepted within 30 days of delivery for unused equipment in original packaging with all accessories and documentation. Product must be unopened with factory seals intact. A 20% restocking fee applies to all returns. Buyer is responsible for return freight costs and proper packaging. Equipment showing signs of installation, use, or missing components cannot be returned. Contact customer service before initiating any return to obtain a Return Merchandise Authorization (RMA) number.
Hofmann Geoliner 678 Warranty
Hofmann Manufacturer's Warranty
The Hofmann Geoliner 678 is backed by Hofmann's comprehensive manufacturer's warranty, covering defects in materials and workmanship under normal use and proper maintenance. Warranty coverage includes the main console, camera system, cross-beam components, software, and all included accessories.
Warranty Terms: Specific warranty duration and coverage details are provided in the included warranty documentation. Coverage typically includes parts and technical support, with service performed through Hofmann's authorized service network.
Requirements: Warranty requires proper installation by qualified personnel, regular maintenance per manufacturer specifications, and operation within published parameters. Warranty does not cover damage from misuse, accidents, unauthorized modifications, environmental damage, or normal wear items. Professional installation is recommended to ensure warranty compliance. Registration may be required within 30 days of installation.
Claims: For warranty service, contact Hofmann's technical support team or Garage Supply Guys customer service. Proof of purchase and equipment serial number are required for all warranty claims. Extended warranty coverage and service plans are available for purchase.
Documents
Click to open in a new tab.
Questions About the Hofmann Geoliner 678?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Hofmann Geoliner 678 FAQ
What is the difference between the Geoliner 678 and the fully-mobile Geoliner 770?
The Geoliner 678 features a cross-beam design that can be ceiling-mounted, wall-mounted, or cabinet-mounted using the optional mobility kit (EAK0320J78C). The cross-beam provides structural stability and is ideal for shops that prefer traditional mounting or want the option to make the system portable. The Geoliner 770 is fully-mobile from the factory with an integrated one-piece design and foldable camera beam, requiring no mounting and offering maximum portability. Both models share the same core technology including XD cameras, VODI guidance, smart notifications, and vehicle capacity ranges, but differ in their physical configuration and mounting approach.
What vehicles can the Geoliner 678 align?
The Geoliner 678 accommodates vehicles with wheelbases from 79"-180" (201-457cm) and track widths from 48"-96" (122-244cm), covering virtually all passenger cars, light trucks, SUVs, and commercial vans. The system includes both AC200 clamps for wheels 12"-24" and AC400 clamps for tires 19"-39", providing flexibility for different wheel and tire configurations. Mitchell1 database access and OEM aftermarket procedures ensure you have factory alignment specifications and repair information for virtually any make and model, including domestic, import, and specialty vehicles.

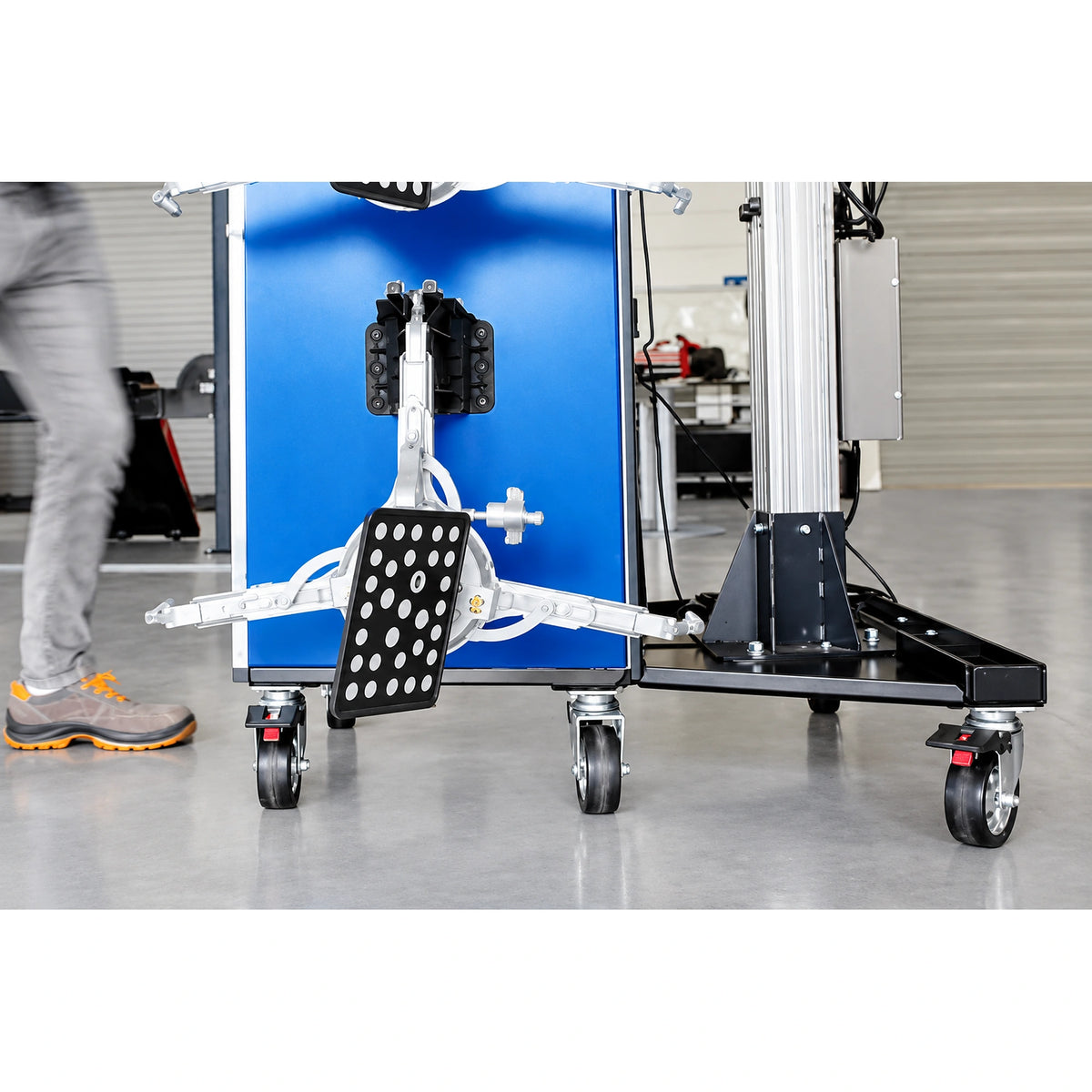

How does the optional mobility kit work?

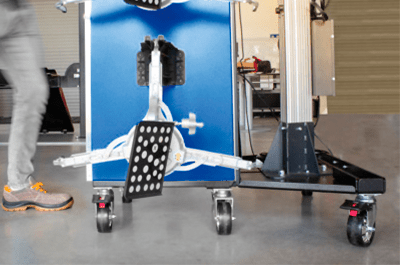

The optional mobility kit (part number EAK0320J78C) allows the cross-beam to be mounted to the included cabinet rather than permanently installed on the ceiling or wall. When equipped with the mobility kit, the entire system can be wheeled between service bays or moved out of the way when not in use. This provides installation flexibility for shops that want to share the aligner across multiple bays or prefer not to permanently install ceiling-mounted equipment. The mobility kit maintains the structural stability and measurement accuracy of the cross-beam design while adding portability similar to the fully-mobile Geoliner 770.
What electrical power does the Geoliner 678 require?
The Geoliner 678 operates on universal voltage: 110-240V 50/60Hz. This means it works with standard North American 120V power or international 240V systems without modification. A dedicated circuit with appropriate amperage and proper grounding is required. The power connection should be verified by a licensed electrician to ensure compliance with local electrical codes and to provide adequate circuit protection for the diagnostic equipment.
How do OEM aftermarket procedures improve alignment service?
The OEM aftermarket procedures feature provides instant access to real-time manufacturer-recommended adjustments and repair information without requiring technicians to search through separate reference materials. The system identifies the correct clamps required for each vehicle and displays OEM-specific procedures for achieving precise alignment to factory specifications. This integration reduces the time spent researching procedures, ensures compliance with manufacturer standards for dealership work, and improves first-time completion rates by providing technicians with all necessary information at the console.
What makes the Smart Notification System different from standard aligners?
The Smart Notification System uses artificial intelligence to automatically identify and correct common alignment errors caused by suspension stress or environmental conditions. Unlike standard aligners that simply alert technicians to problems, the Geoliner 678 system attempts to automatically correct issues before they affect measurements. The system only interrupts the technician when additional information is needed to take corrective action, maintaining workflow efficiency while ensuring measurement accuracy. This reduces alignment errors caused by technician oversight and maintains consistent quality regardless of experience level.
How does Automatic Height Tracking improve efficiency?
Automatic Height Tracking continuously monitors the vehicle position as it's raised or lowered on the lift and automatically adjusts the camera system to maintain proper alignment. Traditional aligners require technicians to stop, return to the console, and manually readjust the cameras each time vehicle height changes. The Geoliner 678 eliminates these manual adjustments, reducing time spent at the console and allowing technicians to focus on making suspension adjustments rather than camera positioning. This is particularly valuable when working on vehicles that require multiple height adjustments during the alignment process.
Can the Geoliner 678 measure modified suspensions and custom builds?
Yes, the Geoliner 678 includes advanced measurement capabilities for modified suspensions and suspension troubleshooting. The system measures ride height, SAI (Steering Axis Inclination), frame angle, max turn, and toe out on turns. Advanced adjustment software supports EZ-Toe, A-Arm, Cradle, Single Tie Rod, Drag Link, Toe Curve, Elevated positions, and Wheels Off measurements. These capabilities allow you to work on lowered vehicles, lifted trucks, performance cars with custom suspension geometry, and specialty builds that standard aligners cannot accommodate. Optional ride height targets further streamline measurements on modified vehicles.
What are the benefits of the VODI guidance system?
VODI (Vehicle Orientation Directional Indicator) uses red and green LED lights to guide technicians through the measurement procedure without requiring them to look at the console screen. When you're at the vehicle making adjustments or positioning wheels, the VODI lights show what actions are needed through simple visual cues. Red lights indicate an action is required, while green lights confirm correct positioning. This dramatically reduces the time spent walking between the vehicle and console, allows one technician to complete alignments more efficiently, and helps maintain proper procedure sequence even when the display screen is not visible.

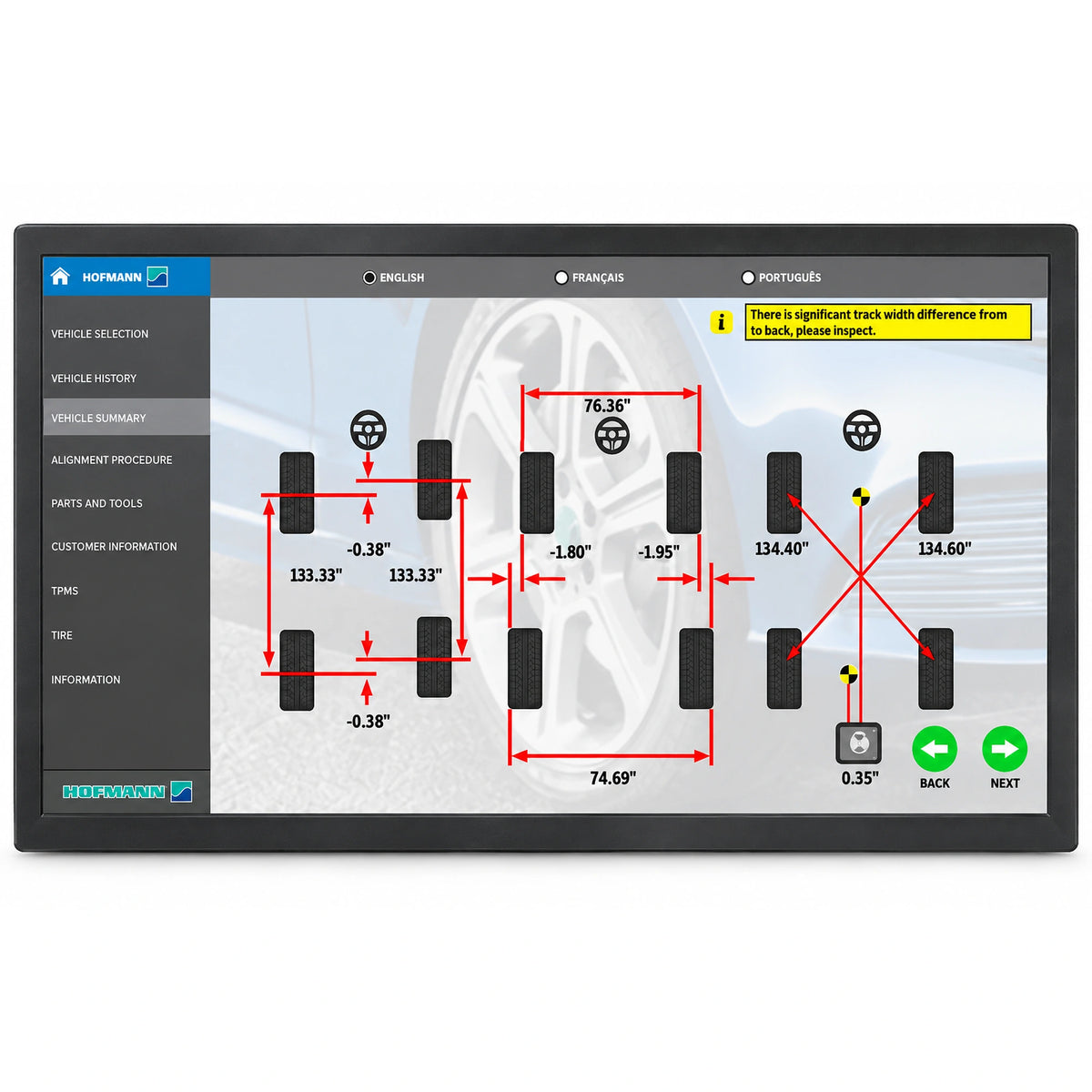

How does Audit Mode help sell more alignment services?
Audit Mode performs a fast verification scan measuring front and rear toe, track width, camber, wheelbase, wheel diameter, and cross dimensions in seconds. This allows you to quickly scan every vehicle that enters the shop for any service, not just alignment requests. By catching alignment problems during routine service like tire installation or oil changes, you can show customers documented evidence of alignment issues they didn't know existed. This evidence-based approach increases alignment sales by identifying problems before customers experience symptoms, while the fast scan speed means you can check every vehicle without impacting service bay productivity.
Are optional ride height targets worth the investment?

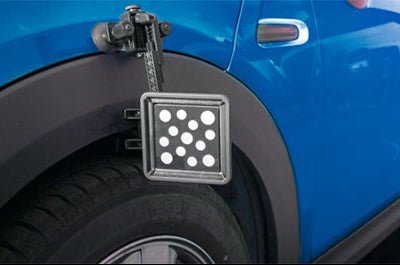

Optional ride height targets eliminate manual data entry for ride height measurements, significantly speeding up the measurement process while increasing accuracy. Rather than technicians manually measuring and entering ride height values, the camera system automatically reads the targets and records measurements. This is particularly valuable for shops that frequently work on modified vehicles, perform suspension work, or need ride height documentation for warranty claims. The time savings and reduced potential for entry errors can quickly justify the investment for shops performing regular ride height measurements, though many shops successfully operate without them using traditional manual measurement methods.
How does cloud service integration benefit my shop?
The Geoliner 678 includes cloud services that save alignment data to a secure server, enabling remote access to reports from anywhere with internet connection. You can email alignment reports directly to customers from any device, print reports from any location in your shop, or review historical alignment data for vehicles returning for service. This cloud integration improves customer communication by making it easy to share before-and-after alignment data, provides documentation for warranty claims and insurance purposes, creates a digital service record that helps build customer trust, and supports multi-location operations where management needs visibility into alignment work across different facilities.
