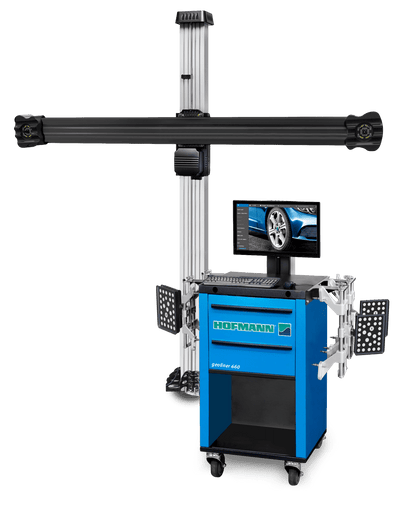

Hofmann Geoliner 660 Cross-Beam Imaging Wheel Aligner - Premium Technology at an Affordable Price
The Hofmann Geoliner 660 delivers cutting-edge wheel alignment technology with an intuitive software interface at an affordable price point, making professional alignment services accessible to shops without requiring extensive technician training or complicated equipment. Featuring XD camera technology, smart notification systems, and quick compensation workflow, this cross-beam aligner streamlines the alignment process to boost shop revenue and customer retention. The system integrates Mitchell1 database access, VODI LED guidance, and automatic height tracking to maximize efficiency. Available with optional mobility cart (EAK0320J78D) for flexible bay installation. Backed by Hofmann's comprehensive warranty, the Geoliner 660 makes it easy to add revenue-boosting alignment services to your shop.
Hofmann Geoliner 660 Features
Premium Technology at Affordable Price
The Geoliner 660 integrates cutting-edge wheel alignment technology with an intuitive software interface, delivering professional-grade capabilities at a price point accessible to growing shops. This value-focused approach allows auto repair businesses to add revenue-boosting alignment services without the capital investment required by higher-tier systems, while still maintaining the accuracy, speed, and reliability needed for professional service work.
Minimal Training Required
The intuitive software interface and guided workflow mean shops can train technicians quickly without extensive alignment experience. The system guides users through each step of the alignment process, reducing the learning curve and enabling shops to get productive quickly. This accessibility makes it practical for shops to cross-train technicians or add alignment services without hiring specialized personnel.

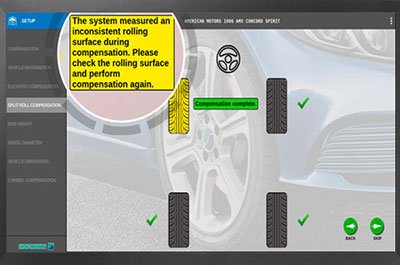

Smart Notification System
The intelligent notification system maximizes efficiency and accuracy by automatically identifying and fixing issues like suspension stress or environmental errors. The system detects and compensates for nearly every alignment error in real-time, reducing the likelihood of mistakes and providing necessary steps for corrective action only when technician intervention is needed. This automated error detection ensures consistent quality regardless of technician experience level.

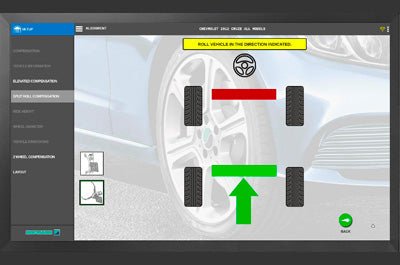

Quick Compensation and Optimized Workflow
Quick compensation enhances the alignment workflow by streamlining the process and eliminating unnecessary steps. This optimized alignment flow increases productivity, enabling shops to complete more alignments per day and grow their alignment business through improved throughput. The efficient workflow reduces time per alignment while maintaining accuracy, maximizing revenue potential from the equipment investment.

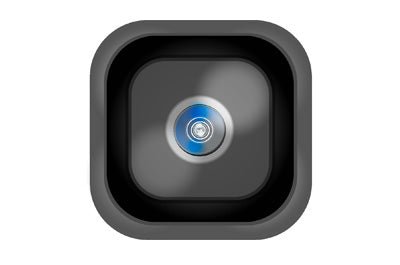

XD Camera Technology
Cutting-edge high-definition video speed cameras continuously monitor the alignment process and instantly detect common environmental conditions or vehicle issues with the potential to cause misalignment. This advanced imaging system provides real-time feedback throughout the alignment procedure, ensuring accuracy and identifying problems before they affect measurements or result in comebacks.

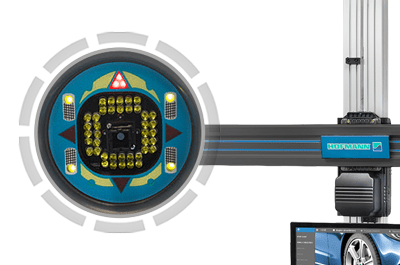

VODI LED Guidance System
The patented Vehicle Orientation Directional Indicator (VODI) uses simple red and green LED lights to guide technicians through the measuring procedure while the monitor is not in view. This visual guidance system decreases time spent moving back and forth between the vehicle and aligner, allowing technicians to perform alignment procedures more efficiently while maintaining proper sequence and accuracy.

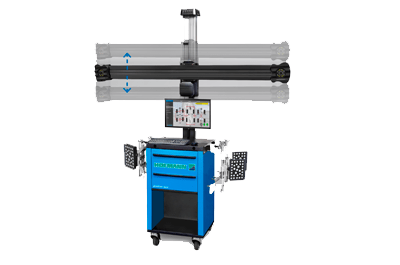

Automatic Height Tracking
Automatic height tracking follows the vehicle as it is raised and lowered on the lift, eliminating the need for manual readjustment of the camera and reducing time spent at the console. This feature maintains measurement accuracy throughout height changes, streamlining the alignment process when technicians need to access undercarriage components or make suspension adjustments.

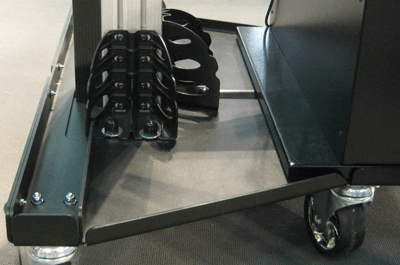

Optional Mobility Cart
The optional mobility cart (part number EAK0320J78D) allows the cross-beam system to be relocated freely around the shop, providing installation flexibility for multi-bay operations. This mobility option enables shops to share the aligner across service bays or move it out of the way when not in use, maximizing bay utilization without permanent ceiling mounting requirements.
Hofmann Geoliner 660 Applications
- Growing Independent Shops: The affordable price point and minimal training requirements make the Geoliner 660 ideal for independent shops looking to add alignment services without major capital investment or hiring specialized technicians, enabling them to capture additional revenue from existing customers.
- Multi-Service Repair Centers: The optional mobility cart allows busy repair centers to share the aligner across multiple service bays, maximizing equipment utilization while the intuitive interface ensures any trained technician can operate it effectively regardless of alignment experience.
- Tire Installation Centers: The quick compensation workflow and smart notification system enable tire centers to complete alignments quickly and accurately, increasing daily throughput while the ease of use allows tire technicians to perform alignments with minimal additional training.
- Budget-Conscious Shops: Shops seeking professional-grade alignment capabilities at an accessible price point benefit from the Geoliner 660's premium technology without the cost of higher-tier systems, making alignment services financially viable even for smaller operations.
- Training-Intensive Operations: Shops with high technician turnover or those training apprentices benefit from the intuitive interface and guided workflow, which reduces training time and enables less experienced technicians to perform accurate alignments under supervision.
- Shops Adding Alignment Services: Auto repair businesses expanding into alignment work for the first time find the Geoliner 660's ease of use, affordable price, and comprehensive features provide everything needed to launch successful alignment services without overwhelming complexity or investment.
Hofmann Geoliner 660 Specifications
| Feature | Description |
|---|---|
| Camera System | XD High-Definition Video Speed Cameras |
| Guidance System | VODI (Vehicle Orientation Directional Indicator) |
| Height Tracking | Automatic (follows vehicle on lift) |
| Notification System | Smart Auto-Correction with Real-Time Error Detection |
| Database Access | Mitchell1 Alignment Specifications |
| Cloud Services | Secure Server with Remote Report Access |
| Design Type | Cross-Beam (Optional Mobility Cart Available) |
| EZ-Toe | Access adjustment points with centered readings |

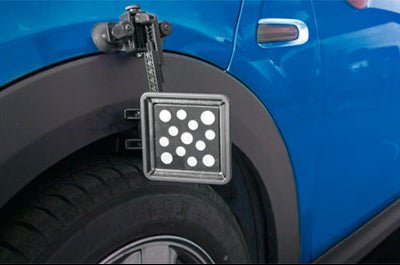

| Ride Height Targets | Optional (eliminates manual data entry) |

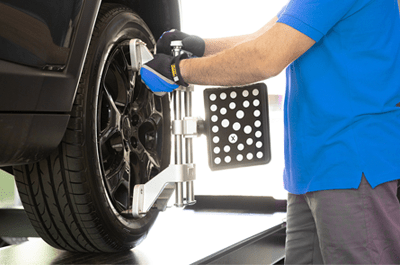

| Clamp Type | Description |
|---|---|
| AC200 Clamps | Self-centering design with two-sided claws for solid, swift gripping over hub caps |
| Feature | Description |
|---|---|
| User Interface | Intuitive software interface for minimal training |
| Workflow | Quick compensation and optimized alignment flow |
| Error Detection | Real-time detection and compensation |
| Guided Process | Step-by-step technician guidance |
| Report Generation | Professional alignment reports with cloud access |
| Accessory | Part Number |
|---|---|
| Mobility Cart | EAK0320J78D |
| Ride Height Targets | Contact for availability |
Hofmann Geoliner 660 Video
Hofmann Geoliner 660 Installation Requirements
Electrical Requirements
Power Supply: Standard electrical service required; specific voltage requirements provided in installation documentation. A licensed electrician must install and verify the electrical supply meets local codes and provides adequate circuit protection for diagnostic equipment operation. The Geoliner 660 is designed for straightforward electrical installation typical of automotive shop equipment.
Cross-Beam Installation Options
Standard Mounting: The cross-beam can be installed as a ceiling-mounted or wall-mounted system for permanent installation. Optional Mobility Cart: When equipped with the mobility cart (EAK0320J78D), the system can be relocated freely around the shop for flexible bay assignments. Ceiling Height: Adequate ceiling clearance required for cross-beam installation; consult installation manual for specific requirements based on mounting configuration.
Space Requirements
Operating Space: Sufficient bay space to accommodate standard passenger vehicles, light trucks, and SUVs. Clearance: Additional clearance around the vehicle for technician movement and camera positioning. When using the mobility cart, allow space for system repositioning and storage between alignment jobs. The compact footprint makes the Geoliner 660 suitable for shops with limited bay space.
Floor Requirements
Surface: Level, clean concrete floor free from debris and excessive surface irregularities. If using the mobility cart, the floor must be sufficiently level and smooth to allow system movement while maintaining measurement stability. Traditional ceiling-mounted installations require level floor surface in the alignment area but do not require cart mobility considerations.
Professional Installation
Professional installation and setup are recommended to ensure proper calibration, secure mounting, and optimal performance. Hofmann-certified technicians can perform cross-beam mounting, electrical connection, system calibration, and operator training. The straightforward installation process and intuitive setup make the Geoliner 660 faster to deploy than more complex systems. Contact Garage Supply Guys for installation service options and certified installer referrals in your area.
What's Included with the Hofmann Geoliner 660
- Geoliner 660 main console unit with integrated computer and display
- XD high-definition camera system with cross-beam mounting hardware
- VODI (Vehicle Orientation Directional Indicator) LED guidance system
- AC200 self-centering wheel clamps with hub cap compatibility
- Mitchell1 database subscription for alignment specifications
- Cloud services access for remote report management
- Auto height tracking system
- EZ-Toe software for accessing adjustment points
- Smart notification system with real-time error detection
- Quick compensation and optimized workflow software
- Intuitive user interface with guided alignment process
- Power cord and connection cables
- User manual and quick reference guides
- Professional alignment report templates
Optional Accessories: Mobility cart (EAK0320J78D) for cross-beam portability between bays, ride height targets for automatic measurement, extended warranty coverage, installation service, operator training programs.
Not Included: Electrical installation and wiring, cross-beam mounting hardware for permanent ceiling/wall installation (if not using mobility cart), mobility cart (sold separately), ride height targets (sold separately), extended database subscriptions beyond initial term, on-site installation labor, operator training (available separately).
Hofmann Geoliner 660 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses with loading dock or forklift access in the 48 contiguous United States. Lead Time: 3-5 business days for in-stock units; contact sales for current availability. Residential Delivery: Additional fees apply for residential addresses without commercial unloading equipment. International: Contact sales for international shipping quotes to Canada, Mexico, and other destinations.
Delivery Requirements
Unloading Equipment: Forklift or loading dock required for safe unloading. The Geoliner 660 ships in multiple packages including console, cross-beam, and accessories. Delivery Type: Curbside delivery to the first accessible point is standard; liftgate service available for additional fee if loading dock is not available. Receiving: Inspect all packages for shipping damage before signing the bill of lading. Document any visible damage with photos and note details on the delivery receipt. Concealed damage must be reported within 5 business days of delivery.
Returns and Exchanges
Returns accepted within 30 days of delivery for unused equipment in original packaging with all accessories and documentation. Product must be unopened with factory seals intact. A 20% restocking fee applies to all returns. Buyer is responsible for return freight costs and proper packaging. Equipment showing signs of installation, use, or missing components cannot be returned. Contact customer service before initiating any return to obtain a Return Merchandise Authorization (RMA) number.
Hofmann Geoliner 660 Warranty
Hofmann Manufacturer's Warranty
The Hofmann Geoliner 660 is backed by Hofmann's comprehensive manufacturer's warranty, covering defects in materials and workmanship under normal use and proper maintenance. Warranty coverage includes the main console, camera system, cross-beam components, software, and all included accessories.
Warranty Terms: Specific warranty duration and coverage details are provided in the included warranty documentation. Coverage typically includes parts and technical support, with service performed through Hofmann's authorized service network.
Requirements: Warranty requires proper installation by qualified personnel, regular maintenance per manufacturer specifications, and operation within published parameters. Warranty does not cover damage from misuse, accidents, unauthorized modifications, environmental damage, or normal wear items. Professional installation is recommended to ensure warranty compliance. Registration may be required within 30 days of installation.
Claims: For warranty service, contact Hofmann's technical support team or Garage Supply Guys customer service. Proof of purchase and equipment serial number are required for all warranty claims. Extended warranty coverage and service plans are available for purchase.
Documents
Click to open in a new tab.
Questions About the Hofmann Geoliner 660?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Hofmann Geoliner 660 FAQ
What makes the Geoliner 660 ideal for shops adding alignment services?
The Geoliner 660 combines premium alignment technology with an affordable price point and intuitive interface, making it ideal for shops expanding into alignment work. The minimal training requirements mean you can train existing technicians without hiring alignment specialists, while the smart notification system ensures accurate results even from less experienced operators. The quick compensation workflow enables profitable throughput, and the optional mobility cart provides installation flexibility without permanent ceiling mounting. This combination of affordability, ease of use, and professional capabilities makes alignment services accessible and financially viable for growing shops.
How much training do technicians need to operate the Geoliner 660?
The Geoliner 660 is designed for minimal training requirements thanks to its intuitive software interface and guided workflow. Most technicians with basic automotive knowledge can learn to perform alignments in 1-2 days of training, compared to weeks required for more complex systems. The software guides users through each step of the alignment process, while the smart notification system automatically detects and corrects common errors. VODI LED guidance provides visual cues at the vehicle, reducing the need to constantly reference the console screen. This accessibility allows shops to cross-train tire technicians or general repair technicians without extensive alignment backgrounds.
What is the difference between the Geoliner 660, 678, and 770 models?
The Geoliner 660 is the value-focused model emphasizing affordability and ease of use with intuitive interface and essential features. The Geoliner 678 is the mid-tier cross-beam model adding OEM aftermarket procedures, advanced adjustment capabilities, and comprehensive diagnostic features. The Geoliner 770 is the premium fully-mobile model with integrated one-piece design and foldable camera beam for maximum portability. All three models share core technology including XD cameras, VODI guidance, smart notifications, and Mitchell1 database access. The 660 provides professional alignment capabilities at an accessible price point for shops prioritizing value and simplicity over advanced features.
Can I move the Geoliner 660 between service bays?
Yes, when equipped with the optional mobility cart (part number EAK0320J78D), the Geoliner 660 can be relocated freely around the shop. The mobility cart allows the cross-beam system to roll between service bays or be moved out of the way when not in use, maximizing bay utilization and equipment efficiency. This is particularly valuable for shops that want to share the aligner across multiple bays or prefer not to dedicate a bay exclusively to alignment work. Without the mobility cart, the system requires permanent ceiling or wall mounting like traditional cross-beam aligners.
How does the Smart Notification System reduce errors?
The Smart Notification System continuously monitors the alignment process and automatically detects issues like suspension stress, environmental interference, or measurement problems. Unlike standard aligners that simply alert technicians to problems, the Geoliner 660 system automatically compensates for nearly every alignment error in real-time without requiring technician intervention. When the system cannot automatically correct an issue, it provides specific steps for corrective action rather than generic error messages. This intelligent error detection and compensation reduces comebacks caused by measurement errors, ensures consistent quality regardless of technician experience, and maintains workflow efficiency by minimizing interruptions.
What is included with the Mitchell1 database subscription?
The Geoliner 660 includes Mitchell1 database subscription providing access to the largest alignment specification database in the market. You can quickly look up factory alignment specifications for virtually any vehicle including domestic, import, and specialty vehicles. The database provides toe, camber, caster, and other alignment specifications directly at the console, eliminating the need to search through separate reference materials or service information systems. Initial subscription is included with the purchase; extended subscriptions are available for ongoing access to updates and specifications for new vehicle models as they're released.

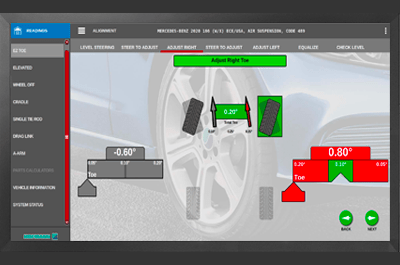

How does EZ-Toe improve the alignment process?
EZ-Toe allows technicians to turn the front wheels to access difficult adjustment points while the system still displays centered toe readings on the console. Many vehicles have adjustment points that are difficult to reach when wheels are straight ahead, requiring technicians to turn the wheels for access. Without EZ-Toe, turning the wheels changes the toe readings, making it difficult to achieve proper adjustment. The EZ-Toe feature compensates for the wheel angle and displays what the toe reading would be with wheels centered, allowing technicians to make adjustments more easily and accurately without constant repositioning.
Can the Geoliner 660 handle modified vehicles and custom suspensions?
The Geoliner 660 focuses on standard alignment services for passenger vehicles, light trucks, and SUVs rather than extensive modified vehicle capabilities. While it can perform alignments on vehicles with mild modifications, shops specializing in performance vehicles, heavily modified suspensions, or custom builds may benefit from the advanced measurement capabilities of the Geoliner 678 or 770 models. The 660 is designed to efficiently handle the majority of alignment work encountered by general repair shops, tire centers, and multi-service facilities rather than specialty performance shops.
How does Automatic Height Tracking save time?
Automatic Height Tracking continuously monitors vehicle position as it's raised or lowered on the lift and automatically adjusts the camera system to maintain proper alignment measurement. Traditional aligners require technicians to stop work, return to the console, and manually readjust cameras each time vehicle height changes. The Geoliner 660 eliminates these manual adjustments, reducing time spent at the console and allowing technicians to focus on making suspension adjustments rather than camera positioning. This is particularly valuable when working on vehicles requiring multiple height changes during the alignment process or when accessing undercarriage components.
What advantages does cloud service integration provide?
Cloud services save alignment data to a secure server, enabling remote access to reports from anywhere with internet connection. You can email professional alignment reports directly to customers from the system, demonstrating the value of alignment services with before-and-after measurements. Reports can be printed from any location in your shop without being at the console. Historical alignment data for returning vehicles helps identify patterns and support warranty claims. For multi-location operations, management can review alignment work across different facilities. This cloud integration improves customer communication, provides documentation for warranty purposes, and creates digital service records that build customer trust.
Is professional installation required for the Geoliner 660?
Professional installation is strongly recommended to ensure proper calibration, secure mounting, and optimal performance. Hofmann-certified technicians can perform cross-beam mounting (ceiling/wall or mobility cart configuration), electrical connection, system calibration, and operator training. The Geoliner 660 is designed for straightforward installation compared to more complex systems, but proper setup is critical for measurement accuracy and reliable operation. Professional installation also ensures warranty compliance and allows technicians to receive hands-on training during the setup process. Contact Garage Supply Guys for installation service options and certified installer referrals in your area.
How quickly can the Geoliner 660 pay for itself?
Payback period depends on your alignment pricing and volume, but many shops see return on investment within 6-12 months. With typical alignment pricing of 75-150 dollars and alignment completion times of 30-45 minutes using the quick compensation workflow, completing just 2-3 alignments per day generates significant revenue. The smart notification system and intuitive interface reduce comebacks and rework, improving profitability per alignment. Shops already performing tire installations can capture alignment revenue from existing customers rather than referring work to competitors. The affordable price point and minimal training requirements make the business case accessible even for smaller shops, while the professional capabilities ensure you can deliver quality service that builds customer loyalty and repeat business.
