Hofmann Geoliner 609 Tablet-Controlled Cross-Beam Imaging Wheel Aligner for Space-Constrained Shops
The Hofmann Geoliner 609 is a compact, tablet-controlled wheel aligner designed for shops with limited space seeking core alignment functionality in a flexible, efficient package. Featuring complete tablet control, a rotating camera beam, and innovative imaging software with optimized alignment flow, this system enables technicians to work from anywhere in the shop without being tethered to a fixed console. The pre-assembled design arrives ready for simple installation, making it a versatile solution for adding professional alignment services to your in-house capabilities. Accommodates vehicles with wheelbases from 79"-180" (201-457cm) and track widths from 48"-96" (122-244cm), powered by universal 110-240V 50/60Hz electrical service. Backed by Hofmann's comprehensive warranty, the Geoliner 609 delivers effective, precise alignment procedures for entry-level shops.
Hofmann Geoliner 609 Features
Complete Tablet Control

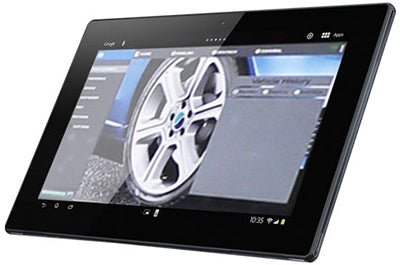

Full tablet control provides the most flexible mobility options for alignment services, allowing technicians to work from anywhere in the shop without being restricted to a fixed console location. The wireless tablet interface eliminates the need to move back and forth between vehicle and console, enabling technicians to view measurements, adjust settings, and complete alignments while remaining at the vehicle. This tablet-based approach works with any type of lift and provides maximum operational flexibility for shops with varying bay configurations.
Rotating Camera Beam Design

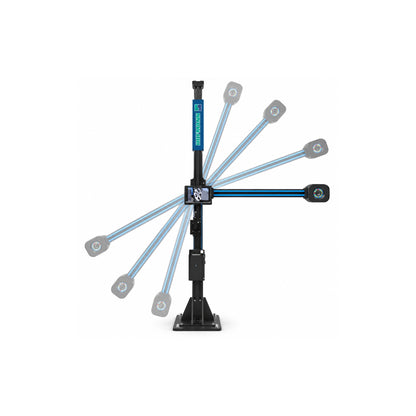

The simplified rotating camera beam design enhances versatility and streamlined operation in smaller establishments. Unlike traditional fixed cross-beams, the rotating design allows the system to adapt to different vehicle positions and bay configurations while maintaining measurement accuracy. This compact configuration makes the Geoliner 609 ideal for shops with limited space or non-dedicated alignment bays, providing professional alignment capabilities without requiring extensive bay modifications or permanent installations.
Pre-Assembled for Simple Installation
The Geoliner 609 arrives already assembled, dramatically reducing installation time and complexity compared to systems requiring extensive on-site assembly. This pre-assembled design enables faster deployment, getting your alignment services operational quickly without prolonged downtime or complicated setup procedures. The straightforward installation process makes the system accessible to shops without specialized installation expertise, reducing both time and cost to begin offering alignment services.
Quick Compensation and Optimized Workflow

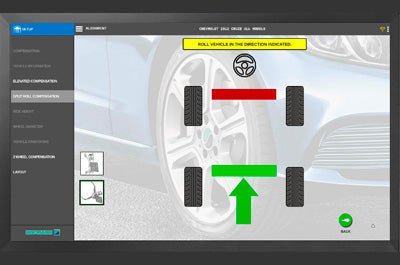

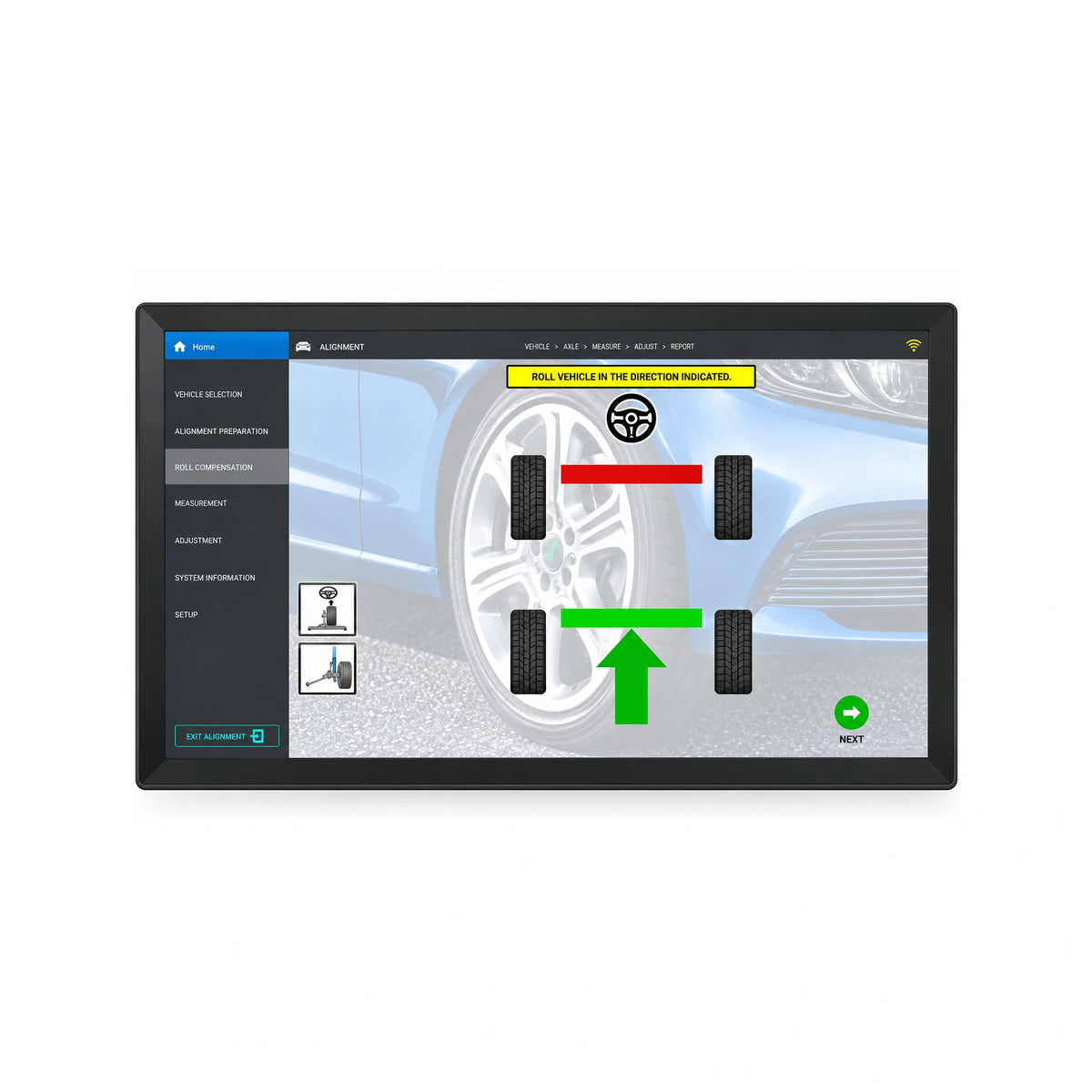

Quick compensation boosts productivity by eliminating unnecessary steps in the alignment process. The optimized alignment flow streamlines procedures from start to finish, enabling technicians to complete alignments more efficiently while maintaining accuracy. This efficient workflow is particularly valuable for entry-level shops building their alignment business, as it maximizes the number of alignments that can be completed per day without sacrificing quality or requiring extensive technician experience.
Smart Notification System

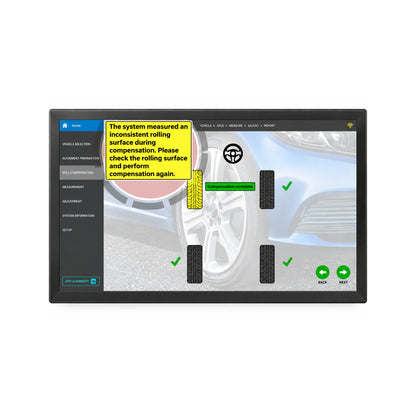

The intelligent notification system maximizes efficiency and accuracy by automatically identifying and fixing issues like suspension stress or environmental errors. The system requires technician intervention only when additional information is needed to take corrective action, reducing interruptions and maintaining workflow momentum. This automated error detection ensures consistent alignment quality and reduces comebacks caused by measurement errors, even when operated by technicians with limited alignment experience.
VODI LED Guidance

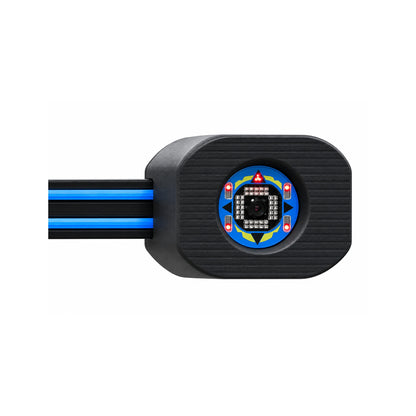

The patented Vehicle Orientation Directional Indicator (VODI) uses simple red and green LED lights to guide technicians through the measuring procedure while the tablet is not in view. This visual guidance system decreases time spent checking the tablet for next steps, allowing technicians to maintain workflow efficiency while ensuring proper procedure sequence. The intuitive LED cues make the system accessible to technicians of varying experience levels, reducing training time and improving consistency.
Optional Mobility Cart

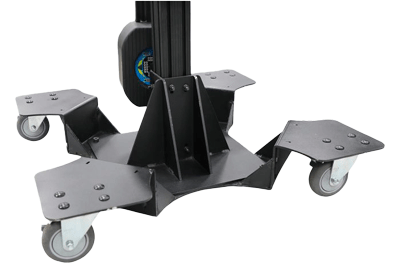

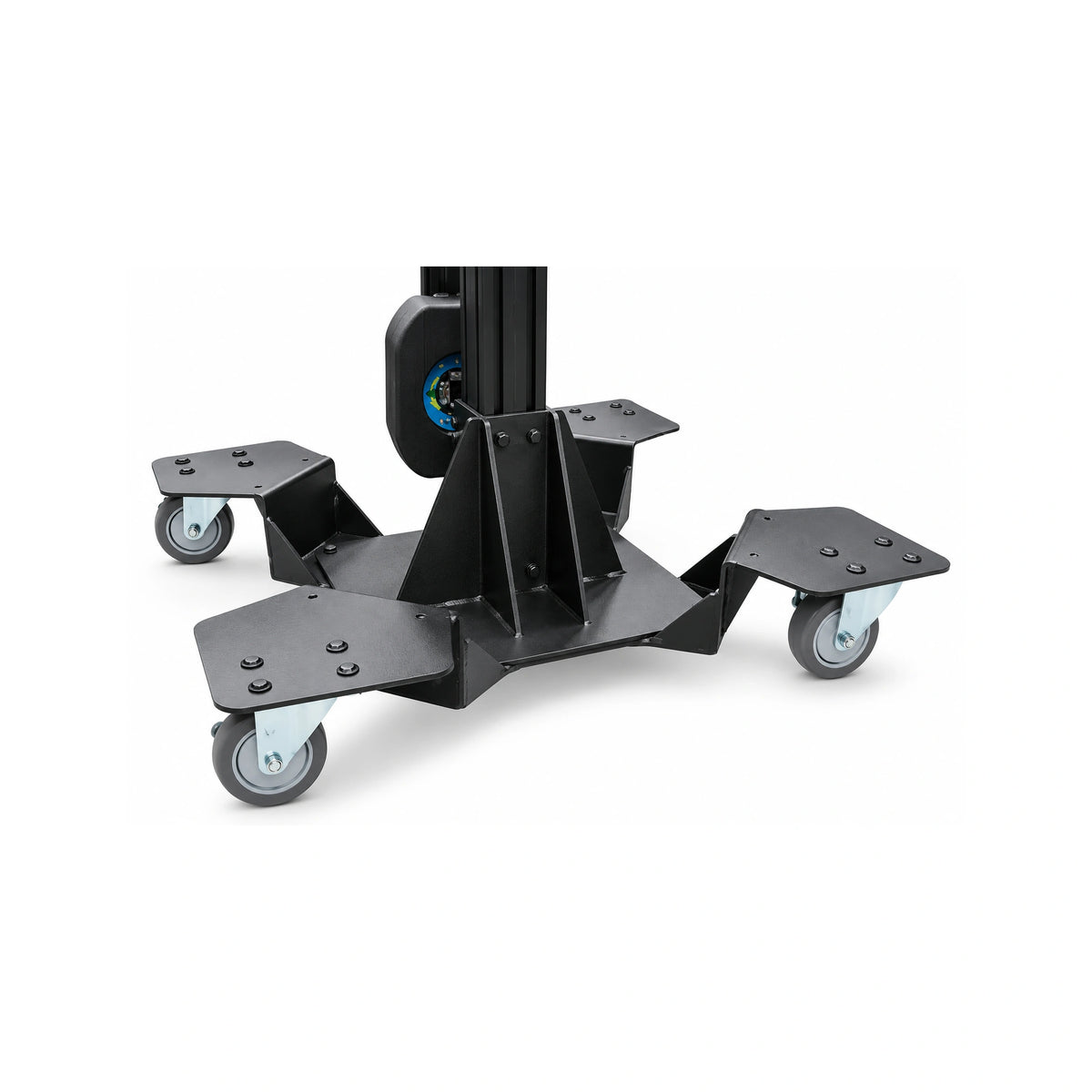

The optional mobility cart allows shops greater flexibility by mounting the cross-beam to the cabinet, enabling technicians to relocate the system freely around the shop. This mobility option is ideal for multi-bay operations that want to share the aligner across service locations or shops that need to move the equipment out of the way when not in use. The mobility cart maximizes equipment utilization and bay flexibility without permanent ceiling mounting requirements.
Cloud Services Integration
Save alignment information to a secure cloud server and access reports remotely to send to customers via email or print from anywhere in the shop. Cloud services enable professional customer communication with before-and-after alignment reports, supporting documentation for warranty claims, and creating digital service records that build customer trust. Remote access allows alignment data to be reviewed from any location with internet connectivity, supporting multi-location operations or remote management oversight.
Hofmann Geoliner 609 Applications
- Space-Constrained Shops: The compact rotating camera beam design and tablet control make the Geoliner 609 ideal for shops with limited bay space or non-dedicated alignment areas, enabling professional alignment services without extensive shop modifications or dedicated alignment bays.
- Entry-Level Alignment Shops: Shops adding alignment services for the first time benefit from the pre-assembled design, simple installation, and core functionality focus, providing essential alignment capabilities at an accessible price point without overwhelming complexity or feature sets they won't use.
- Mobile Technicians: The complete tablet control and optional mobility cart enable technicians to move freely around the shop, making the system practical for shops using various lift types or bay configurations where a fixed console location would be inconvenient or impractical.
- Multi-Service Repair Centers: The optional mobility cart allows busy repair centers to share the aligner across multiple service bays or relocate it when bay space is needed for other services, maximizing equipment utilization and bay flexibility without requiring dedicated alignment space.
- Budget-Conscious Operations: Shops seeking professional alignment capabilities at an entry-level investment benefit from the Geoliner 609's focus on core functionality, pre-assembled design that reduces installation costs, and simplified operation that minimizes training requirements and ongoing operational complexity.
- General Repair Shops Expanding Services: Independent repair shops looking to capture alignment revenue from existing tire and suspension customers find the Geoliner 609's compact design, simple installation, and tablet-based operation enable them to add alignment services without major facility changes or specialized technician hiring.
Hofmann Geoliner 609 Specifications
| Specification | Value |
|---|---|
| Wheelbase Range | 79"-180" (201-457cm) |
| Track Width Range | 48"-96" (122-244cm) |
| Wheel Diameter (AC200 Clamps) | 12"-24" (30-61cm) |
| Specification | Value |
|---|---|
| Power Supply | 110-240V 50/60Hz (Universal Voltage) |
| Part Number | EEWA741TH3 |
| Feature | Description |
|---|---|
| Control System | Complete Tablet Control (Wireless) |
| Camera Beam Design | Rotating Camera Beam (Compact) |
| Guidance System | VODI (Vehicle Orientation Directional Indicator) |
| Notification System | Smart Auto-Correction with Error Detection |
| Cloud Services | Secure Server with Remote Report Access |
| Assembly | Pre-Assembled (Simple Installation) |

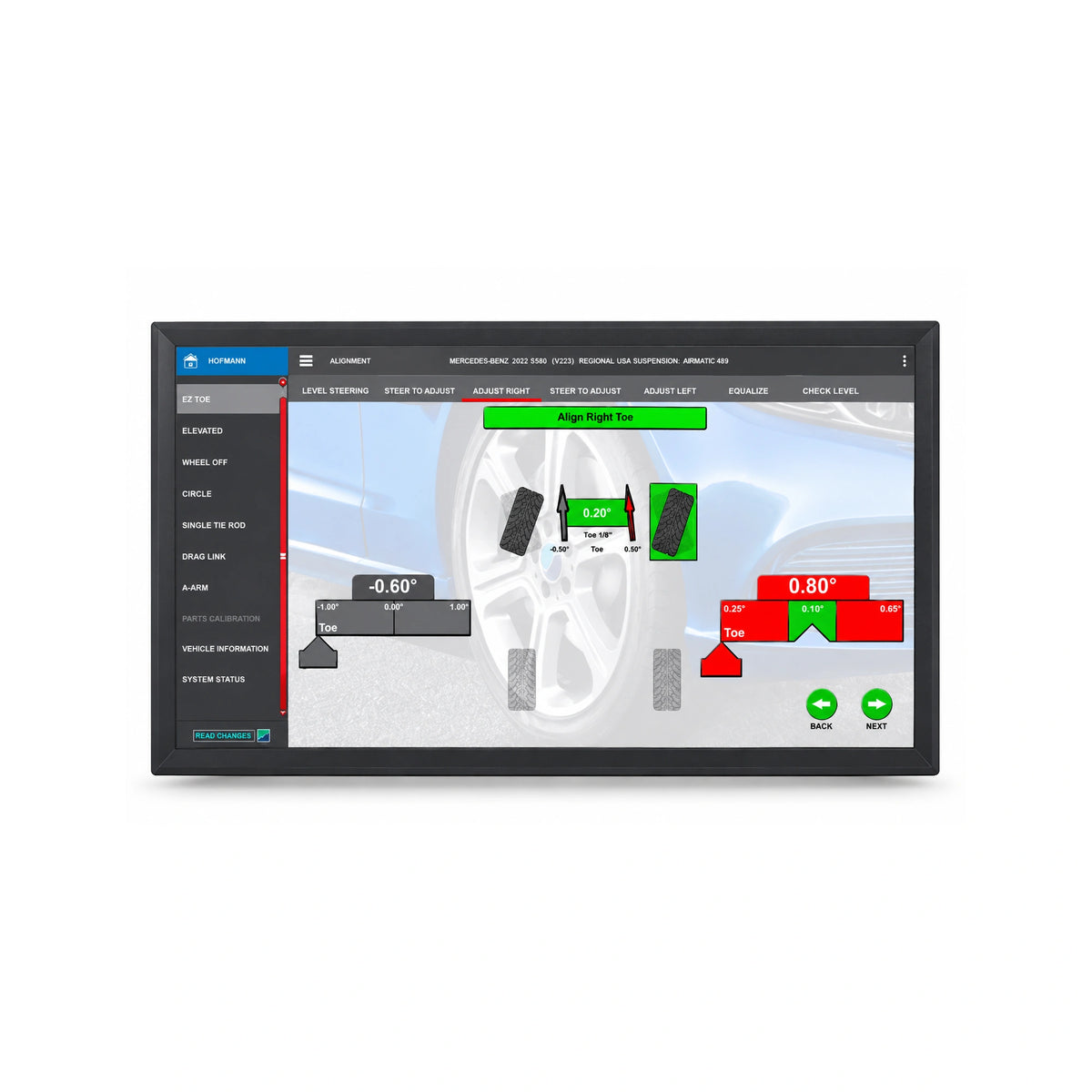

| EZ-Toe | Access adjustment points with centered readings |
| Mobility Option | Optional Mobility Cart Available |
| Clamp Type | Description |
|---|---|

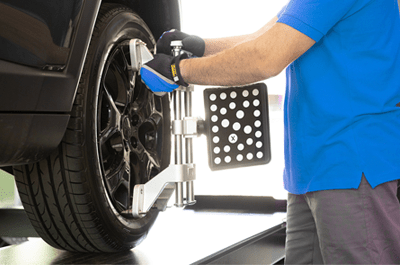

| AC200 Clamps | Self-centering design with two-sided claws for solid, swift gripping over hub caps |
| Feature | Description |
|---|---|
| Workflow | Quick compensation and optimized alignment flow |
| Error Detection | Smart notification with automatic correction |
| User Interface | Tablet-based control system |
| Report Generation | Professional alignment reports with cloud access |
Hofmann Geoliner 609 Video
Hofmann Geoliner 609 Installation Requirements
Electrical Requirements
Power Supply: 110-240V 50/60Hz universal voltage. The Geoliner 609 accepts both North American and international voltage standards without modification. A licensed electrician must install and verify the electrical supply meets local codes and provides adequate circuit protection. The straightforward electrical requirements make installation accessible for most shop environments.
Space Requirements
Operating Space: The compact rotating camera beam design requires minimal bay space compared to traditional cross-beam systems. Sufficient space needed to accommodate vehicles with wheelbases up to 180" (457cm) and track widths up to 96" (244cm). Clearance: Additional clearance for technician movement and tablet operation. The rotating beam design adapts to various bay configurations, making the system practical for shops with limited or irregular bay space.
Installation Configuration
Mounting Options: The rotating camera beam can be ceiling-mounted or cabinet-mounted depending on shop configuration. Optional Mobility Cart: When equipped with the optional mobility cart, the system can be relocated freely around the shop for maximum flexibility. Pre-Assembled Design: The system arrives pre-assembled, significantly reducing installation time and complexity compared to systems requiring extensive on-site assembly.
Floor Requirements
Surface: Level, clean concrete floor free from debris and excessive surface irregularities. If using the optional mobility cart, the floor must be sufficiently level and smooth to allow system movement while maintaining measurement stability. The compact design and flexible mounting options make the Geoliner 609 adaptable to various shop floor configurations.
Professional Installation
Professional installation is recommended to ensure proper setup, calibration, and optimal performance. The pre-assembled design reduces installation time compared to traditional systems, but professional setup ensures measurement accuracy and reliable operation. Hofmann-certified technicians can perform mounting, electrical connection, system calibration, and tablet setup. Contact Garage Supply Guys for installation service options and certified installer referrals in your area.
What's Included with the Hofmann Geoliner 609

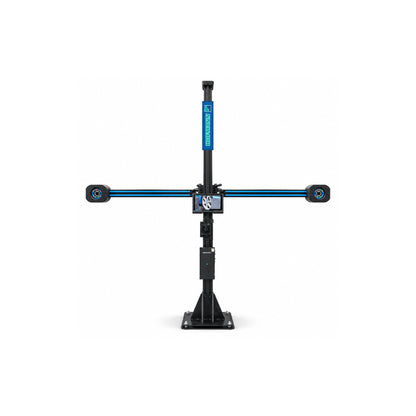

- Geoliner 609 main unit with rotating camera beam (pre-assembled)

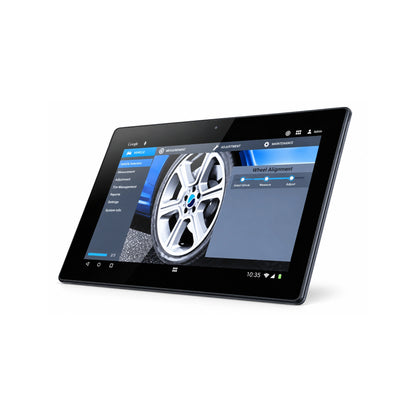

- Wireless tablet for complete system control
- VODI (Vehicle Orientation Directional Indicator) LED guidance system

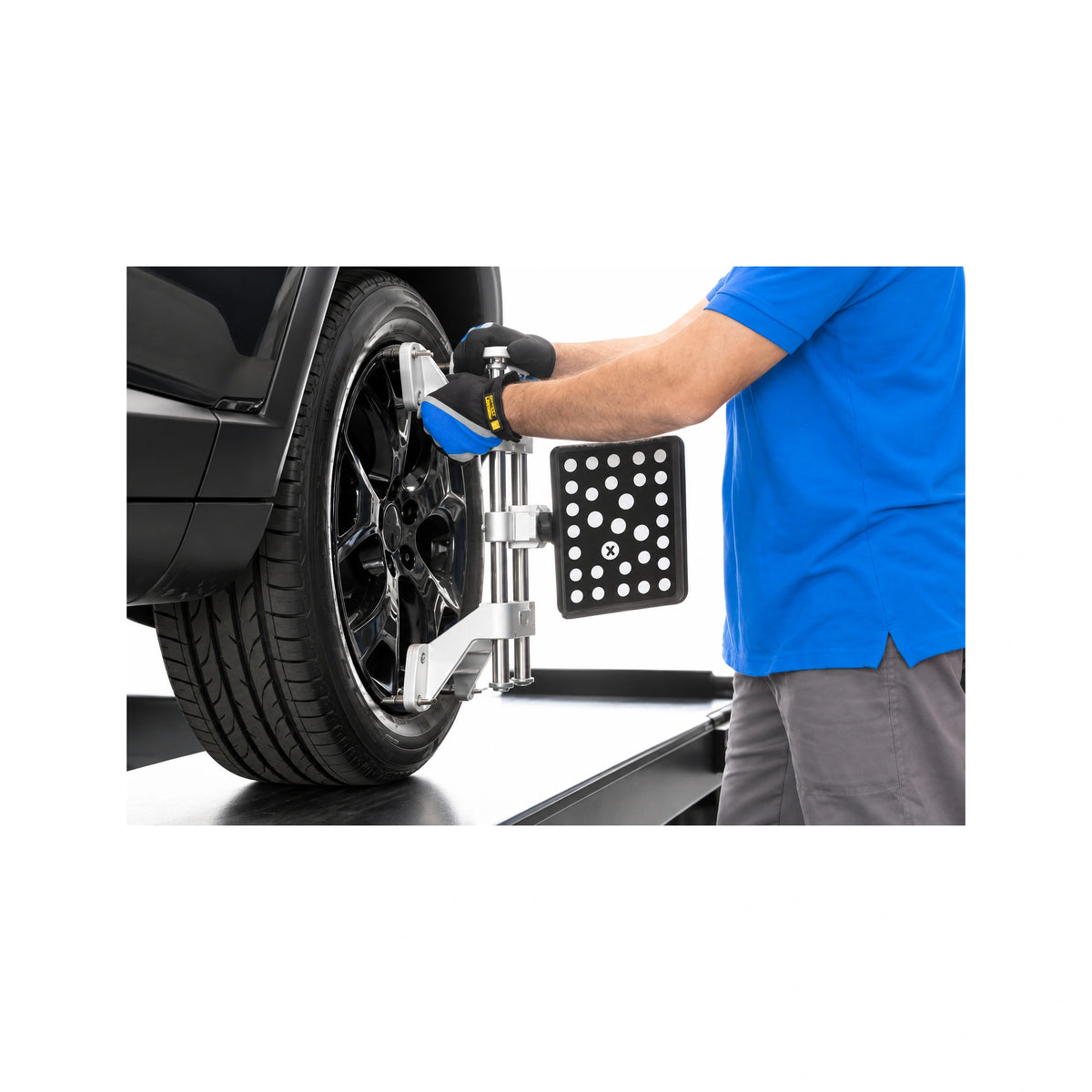

- AC200 self-centering wheel clamps with hub cap compatibility
- Cloud services access for remote report management
- Smart notification system with automatic error correction
- EZ-Toe software for accessing adjustment points
- Quick compensation and optimized workflow software
- Innovative imaging software with optimized alignment flow
- Power cord and connection cables
- User manual and quick reference guides
- Professional alignment report templates
Optional Accessories: Mobility cart for relocating the system around the shop, extended warranty coverage, installation service, operator training programs.
Not Included: Electrical installation and wiring, mounting hardware for permanent ceiling installation (if not using mobility cart), mobility cart (sold separately), extended cloud service subscriptions beyond initial term, on-site installation labor, operator training (available separately).
Hofmann Geoliner 609 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses with loading dock or forklift access in the 48 contiguous United States. Lead Time: 3-5 business days for in-stock units; contact sales for current availability. Residential Delivery: Additional fees apply for residential addresses without commercial unloading equipment. International: Contact sales for international shipping quotes to Canada, Mexico, and other destinations.
Delivery Requirements
Unloading Equipment: Forklift or loading dock required for safe unloading. The Geoliner 609 ships pre-assembled in protective packaging, reducing the number of separate packages compared to systems shipped unassembled. Delivery Type: Curbside delivery to the first accessible point is standard; liftgate service available for additional fee if loading dock is not available. Receiving: Inspect all packages for shipping damage before signing the bill of lading. Document any visible damage with photos and note details on the delivery receipt. Concealed damage must be reported within 5 business days of delivery.
Returns and Exchanges
Returns accepted within 30 days of delivery for unused equipment in original packaging with all accessories and documentation. Product must be unopened with factory seals intact. A 20% restocking fee applies to all returns. Buyer is responsible for return freight costs and proper packaging. Equipment showing signs of installation, use, or missing components cannot be returned. Contact customer service before initiating any return to obtain a Return Merchandise Authorization (RMA) number.
Hofmann Geoliner 609 Warranty
Hofmann Manufacturer's Warranty
The Hofmann Geoliner 609 is backed by Hofmann's comprehensive manufacturer's warranty, covering defects in materials and workmanship under normal use and proper maintenance. Warranty coverage includes the main unit, rotating camera beam, tablet, software, and all included accessories.
Warranty Terms: Specific warranty duration and coverage details are provided in the included warranty documentation. Coverage typically includes parts and technical support, with service performed through Hofmann's authorized service network.
Requirements: Warranty requires proper installation by qualified personnel, regular maintenance per manufacturer specifications, and operation within published parameters. Warranty does not cover damage from misuse, accidents, unauthorized modifications, environmental damage, or normal wear items. Professional installation is recommended to ensure warranty compliance. Registration may be required within 30 days of installation.
Claims: For warranty service, contact Hofmann's technical support team or Garage Supply Guys customer service. Proof of purchase and equipment serial number are required for all warranty claims. Extended warranty coverage and service plans are available for purchase.
Documents
Click to open in a new tab.
Questions About the Hofmann Geoliner 609?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Hofmann Geoliner 609 FAQ
What makes the tablet control system different from traditional aligners?
The Geoliner 609's complete tablet control eliminates the need for a fixed console, providing maximum mobility and flexibility during alignment procedures. Technicians can view measurements, adjust settings, and complete the entire alignment process while remaining at the vehicle, using the wireless tablet from any location in the shop. This is particularly valuable when working with different lift types or bay configurations where a fixed console would be inconvenient. The tablet interface works seamlessly with the rotating camera beam design, enabling technicians to position themselves optimally for making adjustments without constant trips to a stationary console.
How does the rotating camera beam design save space?
The rotating camera beam design is simplified for better versatility and streamlined operation in smaller establishments compared to traditional fixed cross-beams. The compact rotating configuration adapts to different vehicle positions and bay layouts while maintaining measurement accuracy, requiring less dedicated bay space than conventional cross-beam systems. This design makes the Geoliner 609 practical for shops with limited square footage, non-standard bay configurations, or facilities that cannot dedicate a bay exclusively to alignment work. The rotating beam can be positioned to accommodate varying vehicle sizes and bay constraints that would challenge traditional fixed-beam systems.
What does pre-assembled mean and how does it speed up installation?
The Geoliner 609 arrives already assembled at the factory, with the rotating camera beam, sensors, and core components integrated and ready for installation. This eliminates hours of on-site assembly work required by systems that ship as separate components, dramatically reducing installation time and complexity. The pre-assembled design means your shop can get the aligner operational faster, reducing downtime and enabling you to start offering alignment services sooner. Installation focuses on mounting the assembled unit, electrical connection, and calibration rather than extensive component assembly, making the process more straightforward and accessible to shops without specialized installation expertise.
Can I use the Geoliner 609 with any type of vehicle lift?
Yes, the tablet control system provides the most flexible mobility options for alignment services, working effectively with any type of lift including two-post, four-post, scissor lifts, or alignment racks. The wireless tablet interface and rotating camera beam design adapt to various lift configurations without requiring specific lift types or permanent console installations. This flexibility is particularly valuable for shops using different lift types across multiple bays or facilities that need to perform alignments on different lift platforms depending on vehicle size or service requirements. The system's adaptability eliminates the need to purchase specialized alignment-specific lifts.
How does the Geoliner 609 compare to the 660, 678, and 770 models?
The Geoliner 609 is the most compact, entry-level model featuring tablet control, rotating camera beam, and core alignment functionality for space-constrained shops. The Geoliner 660 adds a more traditional cross-beam design with intuitive software interface at an affordable price. The Geoliner 678 is the mid-tier cross-beam model with OEM aftermarket procedures and advanced diagnostic capabilities. The Geoliner 770 is the premium fully-mobile model with integrated design and foldable camera beam. The 609 prioritizes compact design, tablet mobility, and simple installation for shops with limited space or budget, while higher models add features, advanced capabilities, and different physical configurations for shops with different needs.
What are the advantages of the optional mobility cart?
The optional mobility cart allows the cross-beam to be mounted to the cabinet rather than permanently installed on the ceiling, enabling the entire system to be relocated freely around the shop. This mobility is ideal for shops that want to share the aligner across multiple service bays, move it out of the way when not in use, or lack the ceiling structure for permanent mounting. The mobility cart maximizes equipment utilization by allowing the aligner to go where it's needed rather than dedicating a bay exclusively to alignment work. For shops with varying service volumes or seasonal alignment demand, the ability to reposition the equipment provides operational flexibility that fixed installations cannot match.
Does the tablet need to be purchased separately?
No, the wireless control tablet is included with the Geoliner 609 system. The tablet comes pre-configured with the alignment software and is ready to connect to the system upon installation. The included tablet is specifically designed for alignment work with appropriate screen size, durability, and wireless connectivity for shop environments. You do not need to provide your own tablet or purchase one separately, and the system is calibrated to work with the included tablet hardware to ensure optimal performance and reliability.
How does EZ-Toe improve workflow efficiency?

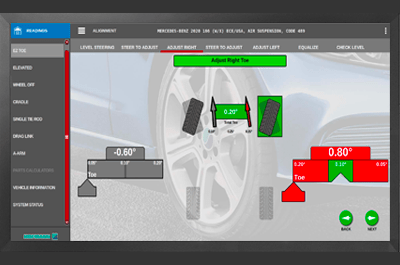

EZ-Toe allows technicians to turn the front wheels to access difficult adjustment points while the system still displays centered toe readings on the tablet. Many vehicles have toe adjustment points that are difficult or impossible to reach when wheels are straight ahead, requiring technicians to turn the wheels for access. Without EZ-Toe, turning the wheels changes the toe readings, making it challenging to achieve proper adjustment without repeatedly straightening the wheels to check measurements. The EZ-Toe feature compensates for wheel angle and displays what the toe reading would be with wheels centered, enabling technicians to make accurate adjustments more easily without constant wheel repositioning.
What level of technician experience is required to operate the Geoliner 609?
The Geoliner 609 is designed for accessibility, enabling technicians with basic automotive knowledge to perform alignments with moderate training. The tablet interface provides guided workflow, VODI LED guidance shows next steps visually, and the smart notification system automatically detects and corrects common errors. While some alignment understanding is beneficial, the system's intuitive operation and automated features reduce the skill level required compared to traditional aligners. Most shops find that existing tire or general repair technicians can learn to operate the system effectively within a few days of training, rather than requiring experienced alignment specialists or extensive training programs.
How does cloud service integration benefit my shop?
Cloud services save alignment data to a secure server, enabling you to access reports remotely from any device with internet connection. You can email professional alignment reports directly to customers, demonstrating the value of alignment services with before-and-after measurements that build trust and justify pricing. Reports can be accessed and printed from anywhere in the shop using the tablet or other devices, eliminating the need to return to a fixed console location. Historical alignment data helps identify patterns for returning vehicles, supports warranty claims, and creates digital service records. For shops with multiple locations, management can review alignment work across different facilities remotely.
Is professional installation required for the pre-assembled system?
While the pre-assembled design significantly reduces installation complexity compared to systems requiring extensive on-site assembly, professional installation is still strongly recommended. The system arrives assembled, but proper mounting, electrical connection, and calibration are critical for measurement accuracy and reliable operation. Hofmann-certified technicians ensure the rotating camera beam is mounted correctly, the tablet is paired and configured properly, and the system is calibrated to deliver accurate measurements. Professional installation also ensures warranty compliance and provides operator training during the setup process, helping your technicians get productive quickly with proper understanding of system operation and maintenance requirements.
What is the typical return on investment timeline for the Geoliner 609?
Return on investment depends on your alignment pricing and volume, but the Geoliner 609's entry-level price point and efficient workflow enable faster payback than higher-tier systems. With typical alignment pricing of 75-150 dollars and the quick compensation workflow enabling completion in 30-45 minutes, completing just 2-3 alignments per day generates significant revenue. The pre-assembled design reduces installation costs, and the tablet control system's efficiency minimizes labor per alignment. Many shops performing tire installations can capture alignment revenue from existing customers rather than referring work to competitors, with the equipment investment recovering within 6-12 months. The compact design and mobility options also enable shops to add alignment services without facility expansion costs that would extend payback periods.
