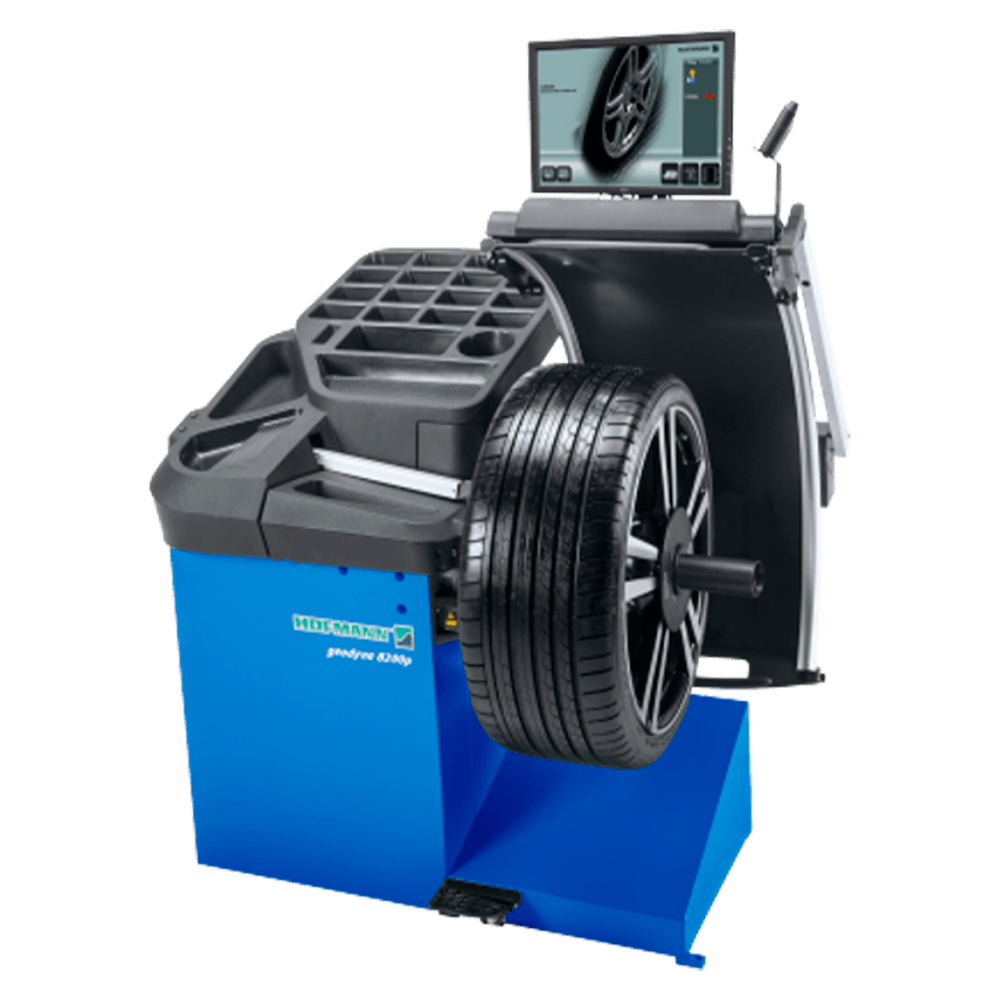

Hofmann Geodyna 8200p Wheel Balancer with Automatic Data Entry

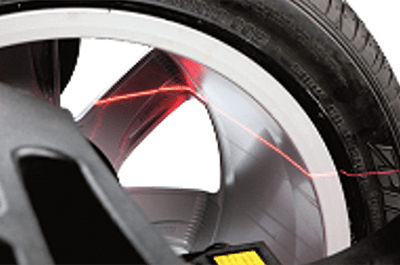

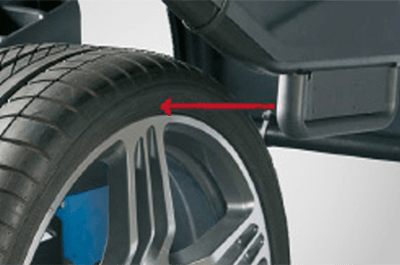

The Geodyna 8200p automatically balances wheels from 14" to 26" in diameter and 3" to 15" in width without requiring manual dimension input. The SmartSonar technology and automatic measurement system detect these dimensions and select appropriate balancing modes automatically. For wheels outside this range, the unit offers manual data entry capability for diameters from 8" to 32" and widths from 1" to 20", making it suitable for everything from compact car wheels to light truck applications.

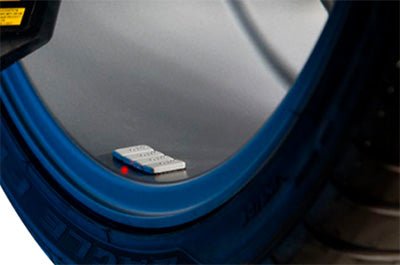

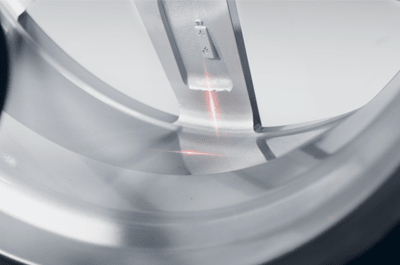

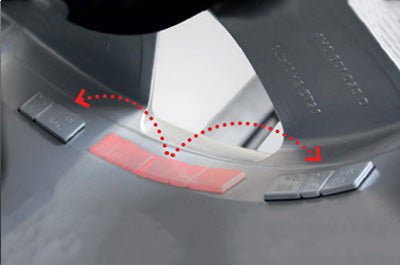

The easyWeight system uses an integrated laser to project the precise location where wheel weights should be placed on the rim. After the balancer determines the optimal weight position, it activates the laser to indicate exactly where the technician should apply the weight, eliminating guesswork and ensuring accurate placement. This system is particularly valuable for split-weight applications where the automatic spoke detection feature identifies spoke positions and guides weight placement behind them for a clean, professional appearance while maintaining optimal balance.

The Geodyna 8200p requires a 230V single-phase 60 Hz electrical supply with a dedicated circuit. A licensed electrician should install the electrical service according to the manufacturer's specifications and local electrical codes. The unit should be connected to a properly grounded outlet with appropriate circuit protection. Consult the installation manual for specific amperage requirements and ensure the electrical supply matches your facility's available power before installation.

While not strictly required, professional installation is strongly recommended to ensure proper electrical connections, initial calibration, and optimal performance. Qualified technicians can verify the unit is level, properly powered, and calibrated to manufacturer specifications. Professional installation also helps ensure warranty compliance, as improper installation may affect warranty coverage. The unit arrives fully assembled but requires electrical connection and initial setup procedures detailed in the installation manual. Many dealers offer installation services or can recommend qualified installers in your area.

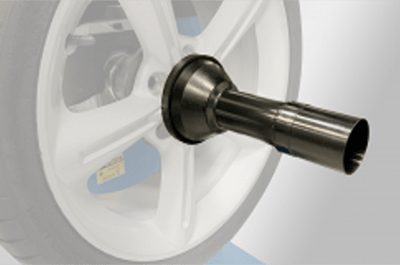

The Power Clamp is an electromechanical clamping system that secures wheels with consistent, repeatable force automatically. Unlike manual clamps that can vary in tightness depending on technician application, the Power Clamp applies the same precise clamping force every time, ensuring exceptional accuracy and repeatable results across multiple balance cycles. This technology also protects delicate alloy wheels from over-tightening damage while providing the secure mounting necessary for accurate high-speed measurement. The consistent clamping force is essential for shops performing high-volume work where repeatability and accuracy are critical.

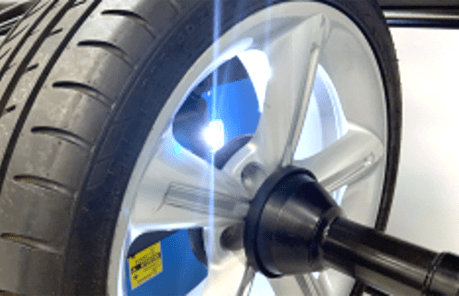

The Geodyna 8200p includes standard wheel mounting accessories such as a cone set, flange plate, and wing nut for securing most passenger vehicle wheels. It also includes the integrated Power Clamp system, easyWeight laser guidance, SmartSonar sensors, spoke detection laser, LED rim lighting, wheel weight tray, and tool holders. The installation and operation manual and warranty documentation are also included. Optional accessories available separately include additional cone sets for different wheel types, truck adapters, motorcycle wheel adapters, pressure rollers for sticky weights, and EZ-Collets specialized mounting accessories for specific vehicle applications.

Yes, the Geodyna 8200p is EV-ready and designed to balance wheels for electric and hybrid vehicles with the precision required by their sensitive suspension systems and advanced driver assistance features. The unit's 0.004" measurement resolution and 3D runout analysis capabilities provide the detailed diagnostics necessary for modern vehicles where even minor imbalances can affect range, comfort, and ADAS sensor accuracy. The automatic measurement and precision balancing features ensure EV wheels are balanced to the exacting standards these vehicles demand.

Freight shipping for the Geodyna 8200p typically takes 5-10 business days to commercial addresses in the 48 contiguous United States for in-stock units. Actual delivery time depends on current inventory levels, your location, and carrier schedules. The unit ships via common carrier on a pallet and requires a forklift or loading dock for unloading. Residential deliveries may require additional time and fees. You will receive tracking information once your order ships, and you can contact customer service for more specific delivery estimates based on your location.

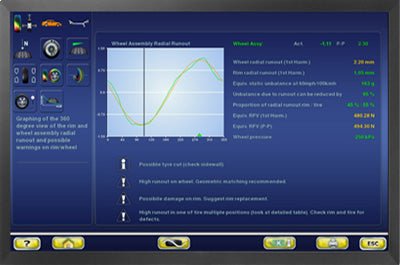

The 3D runout measurement system captures hundreds of measurement points with 0.004" resolution to create a three-dimensional model of the tire and wheel assembly. This comprehensive analysis determines radial runout (high and low spots) across the tire's circumference, presenting peak-to-peak measurements spanning the first through third harmonics. This advanced diagnostic capability helps identify issues beyond simple imbalance, such as wheel or tire irregularities, bent rims, or manufacturing variations that can cause vibration even after balancing. Technicians can use this data to diagnose complex vibration problems and determine whether issues stem from the tire, wheel, or balance condition.

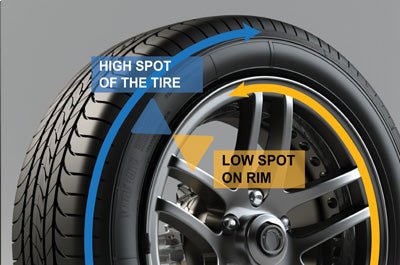

Yes, the Geodyna 8200p includes match mounting capability, which optimizes the assembly of the tire onto the rim by identifying the high point of the wheel and the low point of the tire, then guiding their alignment during installation. This sophisticated technique reduces the total amount of weight needed to achieve proper balance by creating a more naturally balanced tire-wheel assembly. Match mounting is particularly beneficial for high-performance applications, run-flat tires, and situations where excessive weight would be required without optimization, resulting in better overall performance and reduced vibration potential.

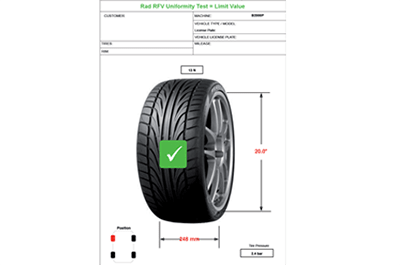

Yes, the Geodyna 8200p includes reporting capability that allows you to generate detailed balance reports for customer documentation. Reports can be saved as PDFs to a USB flash drive for easy sharing and archiving, or printed to a network printer with additional hardware. These reports provide professional documentation of the balancing service, including before and after measurements, runout data, and balance specifications, which can enhance customer confidence and support warranty claims. The reporting feature is valuable for fleet maintenance operations and shops that want to provide comprehensive service documentation.

The Geodyna 8200p requires minimal routine maintenance to ensure continued accuracy and performance. Regular maintenance includes cleaning the shaft and mounting surfaces, inspecting cones and adapters for wear, verifying LED lighting function, and keeping sensors and laser components clean and unobstructed. Periodic calibration verification is recommended according to the manufacturer's schedule, typically annually or when accuracy concerns arise. The operation manual provides detailed maintenance procedures and schedules. Many shops also opt for annual service contracts with authorized technicians who perform comprehensive inspections, calibration verification, and preventive maintenance to maximize equipment lifespan and ensure ongoing accuracy.
