Product highlights
- 115V Single-Phase Power
- Semi-Automatic easyALU and smartSonar Entry
- Electromechanical Power Clamp

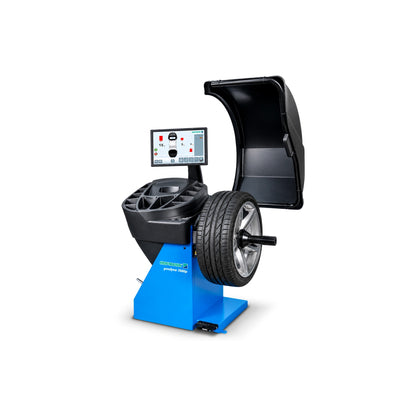

Hofmann Geodyna 7600p - Semi-Automatic Wheel Balancer with Touchscreen
SKU: EEWB765AP
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
- Authorized Hofmann Dealer
- Manufacturer Warrantyincluded with purchase
- Price Match Guaranteefind it lower and we will beat it
- No Sales Tax Collected Outside PAPA orders include sales tax
Hofmann Geodyna 7600p gives busy tire shops a semi-automatic balancing workflow, a large touchscreen, and a straightforward 115V single-phase, 60 Hz power requirement. The easyALU gauge arm enters rim dimensions and selects the balancing mode after the technician touches the rim, while smartSonar detects rim width automatically.
Power Clamp holds the wheel with constant electromechanical clamping force. easyWeight laser guidance identifies the correction location, LED rim lighting improves visibility, and Stop in Position rotates the wheel to the indicated application point from a touchscreen command. QuickBAL adjusts the number of revolutions to the wheel, and Split Weight Mode supports concealed placement behind spokes.
The EEWB765AP configuration accepts wheel assemblies up to 154 lb and 42 in in overall diameter. Its 20 in maximum rim width is a physical capacity, not a data-entry range. Semi-automatic entry covers 8-25 in rim diameters and 3-15 in rim widths; manual entry covers 8-32 in diameters and 1-20 in widths.
Features

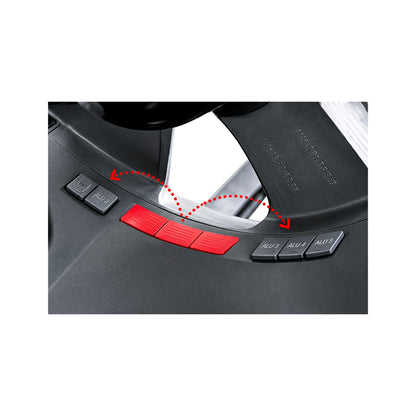

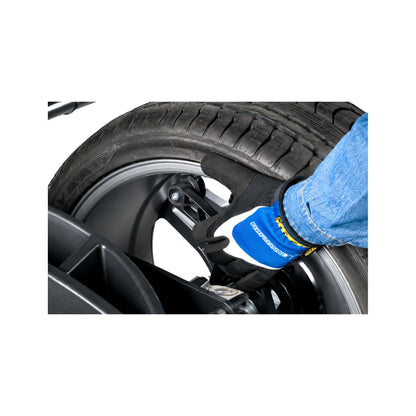

Semi-Automatic easyALU Entry
Touch the rim with the gauge arm and easyALU enters the rim dimensions and selects the appropriate balancing mode. The published semi-automatic entry ranges are 8-25 in for rim diameter and 3-15 in for rim width.

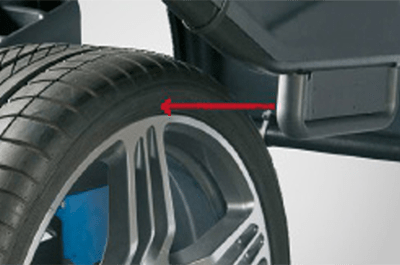

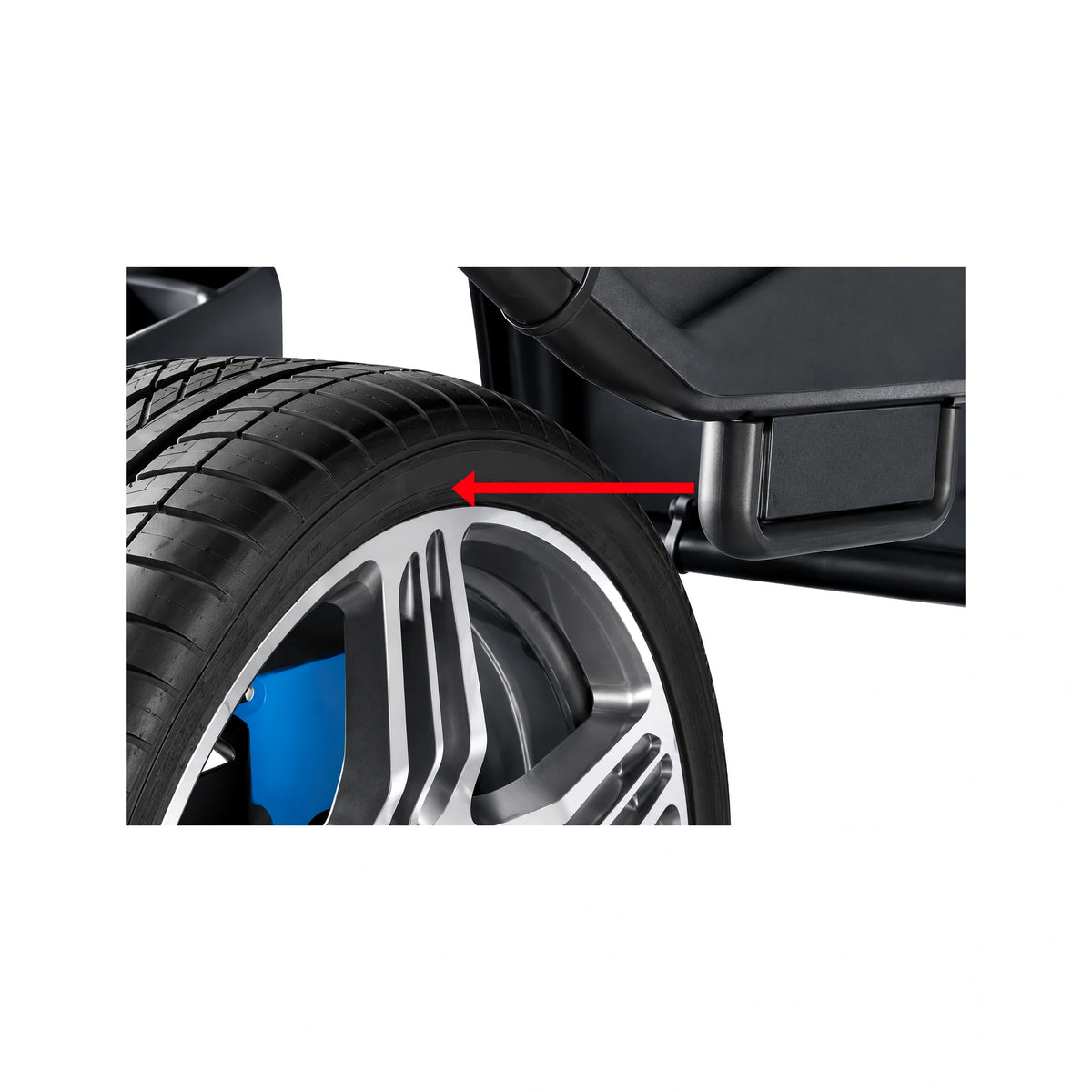

smartSonar Rim Width Detection
smartSonar uses a sonar sensor to detect rim width automatically, removing that manual input from the normal workflow.

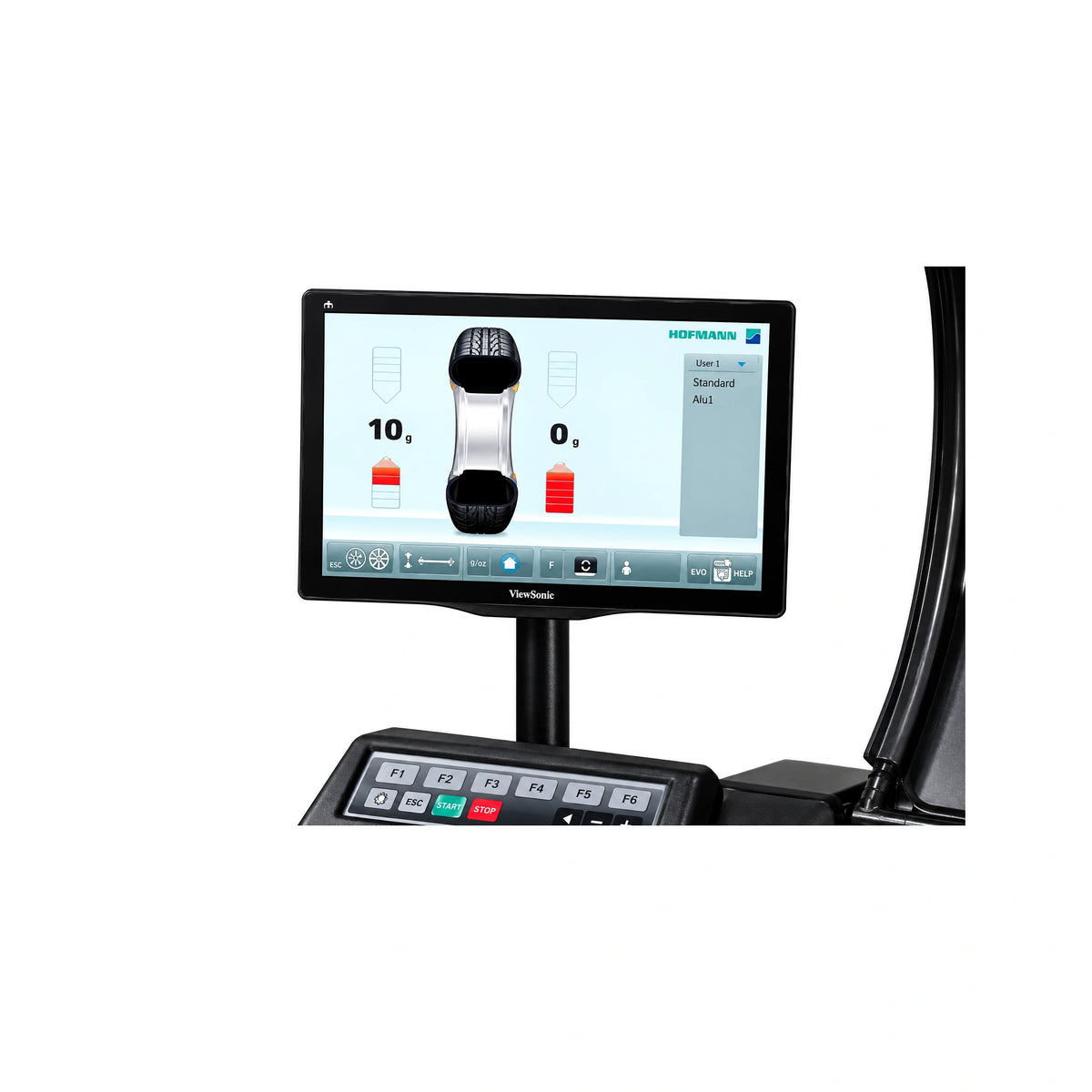

Large Touchscreen Interface
The 19-inch touchscreen presents large digits and colored weight-position indicators for a clear, guided daily workflow.

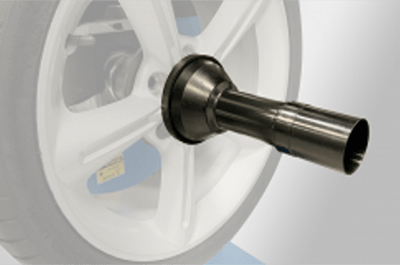

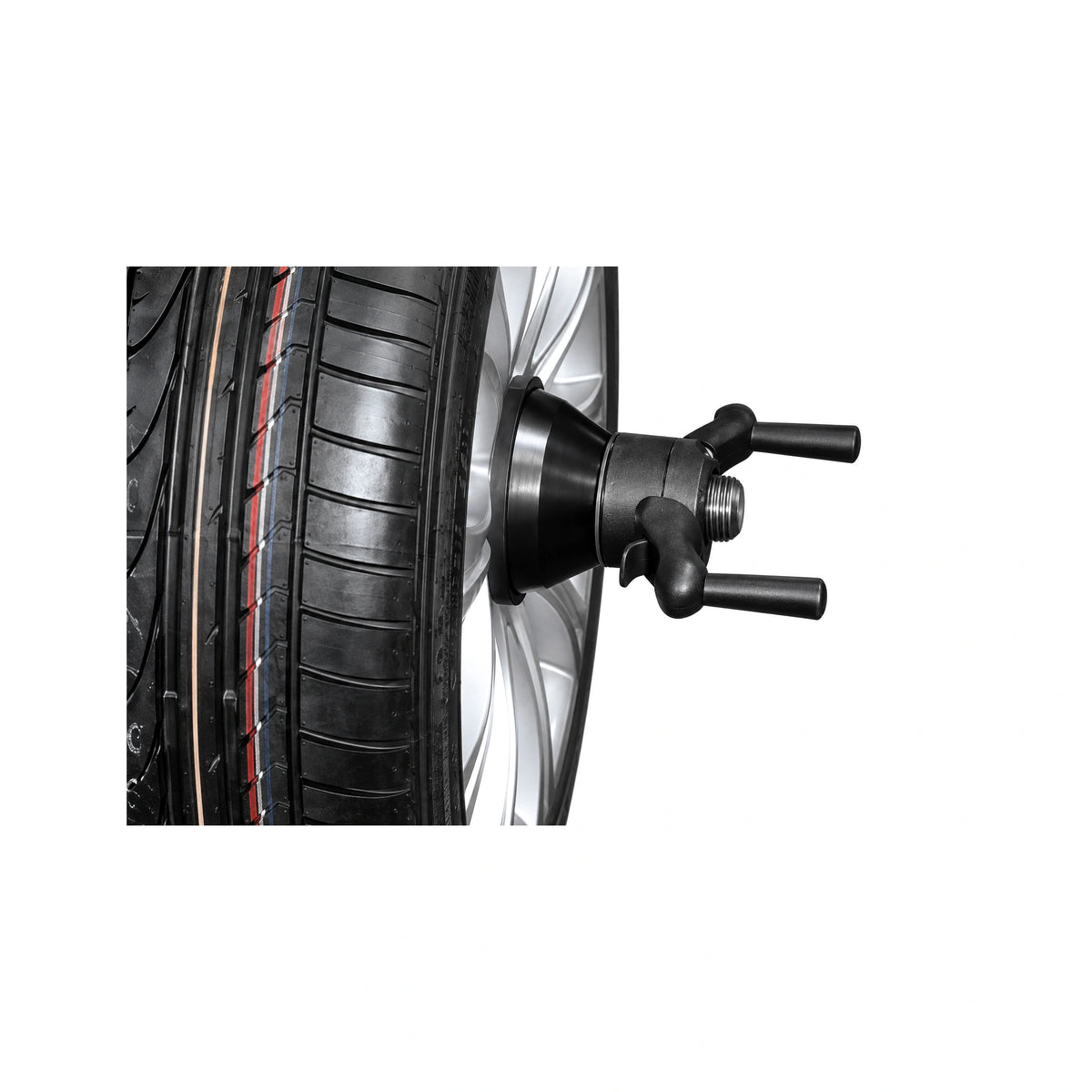

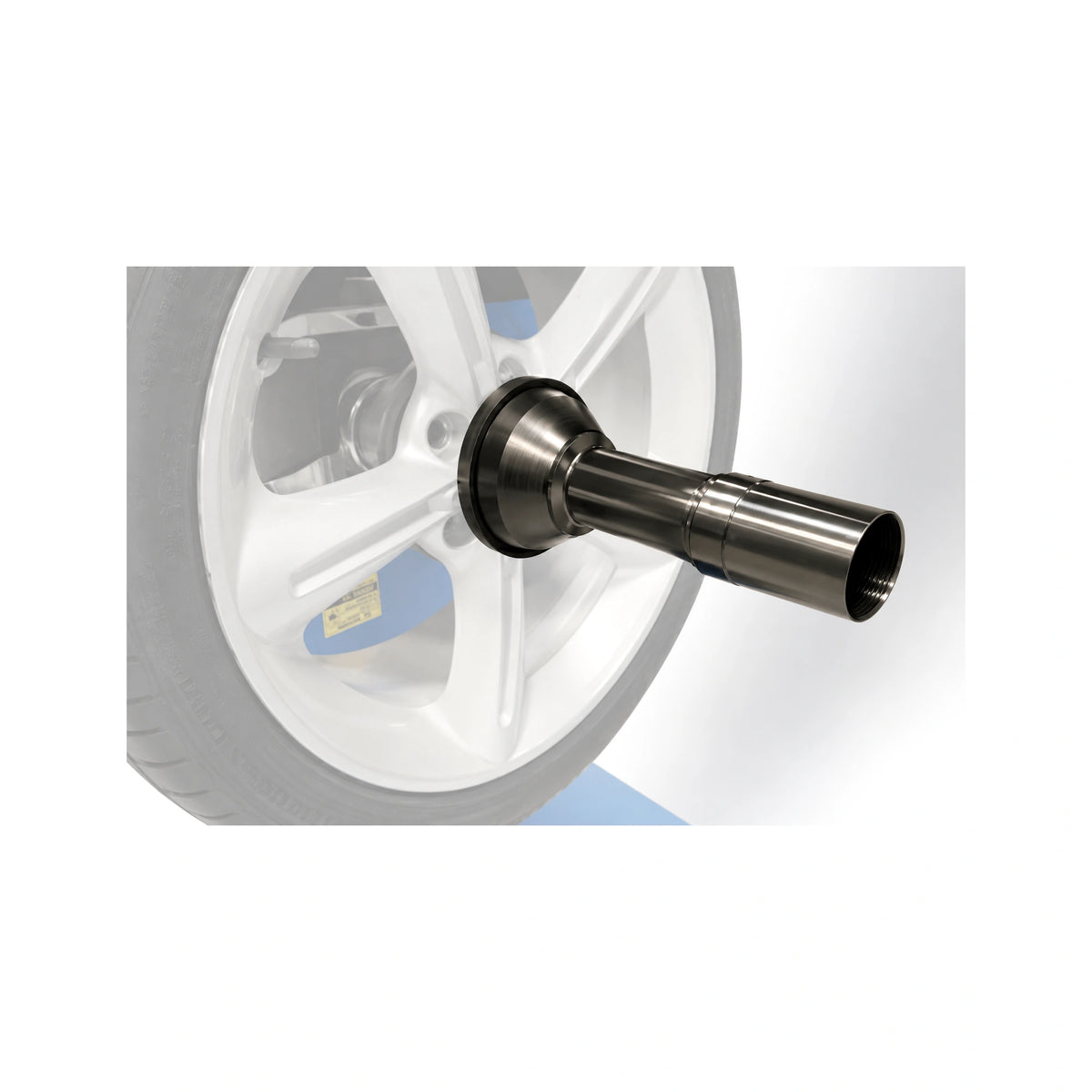

Electromechanical Power Clamp
Power Clamp secures the wheel with constant electromechanical clamping force for consistent mounting through the balancing process.

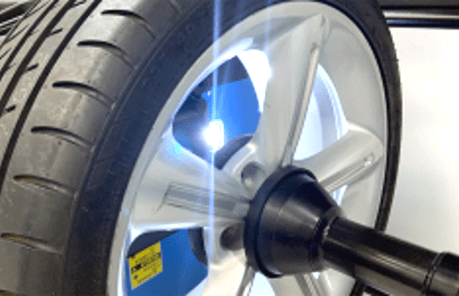

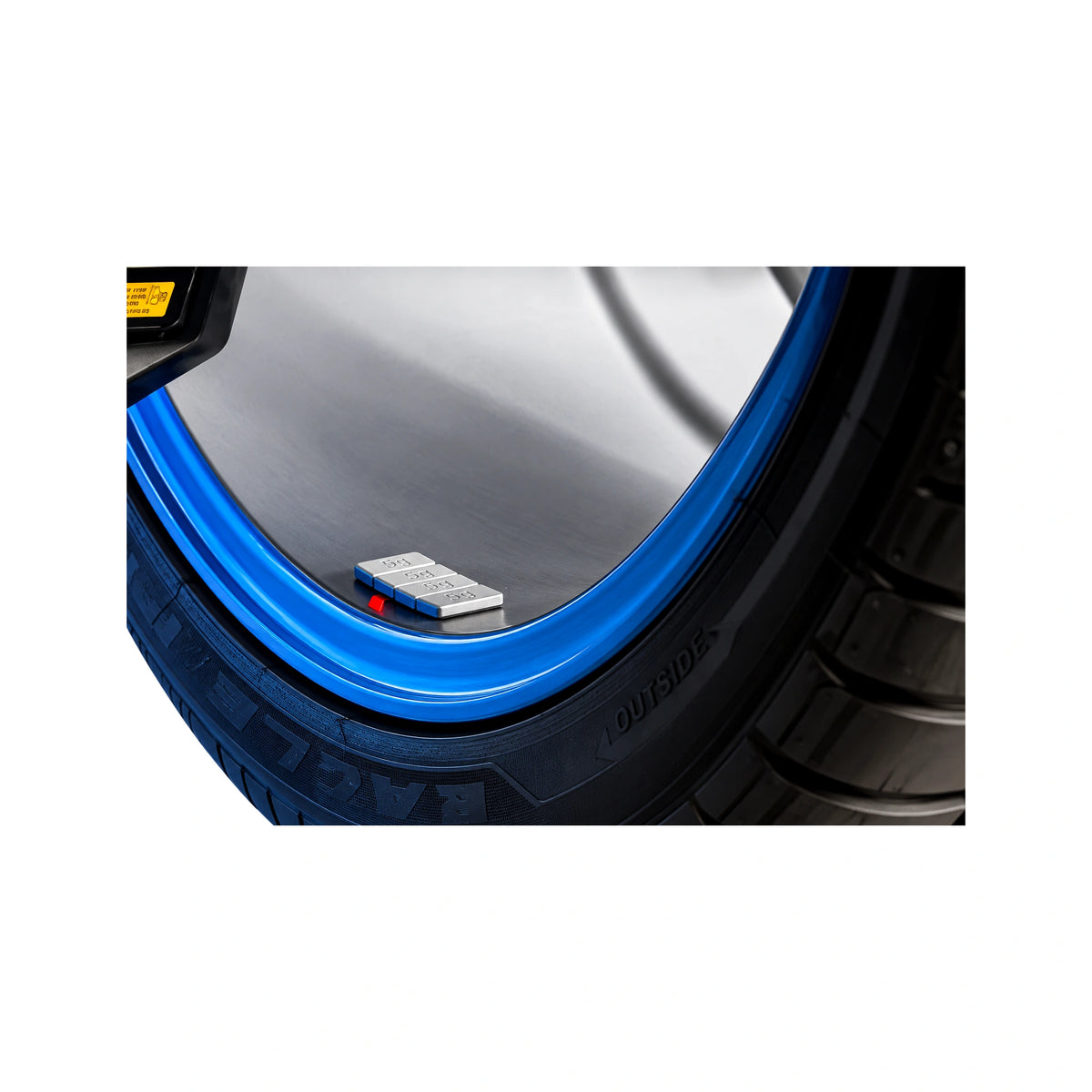

easyWeight Laser Guidance and Rim Lighting
easyWeight projects the correction location onto the rim, while LED rim lighting helps with rim cleaning and weight placement.

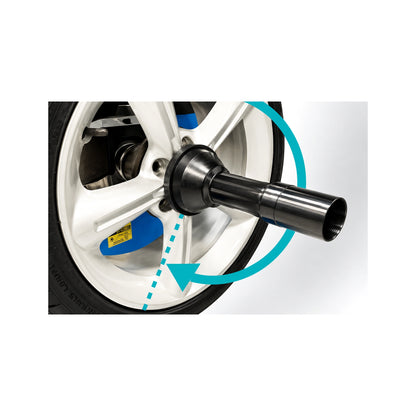

Stop in Position and QuickBAL
Stop in Position rotates the wheel to the correction point after a touchscreen command. QuickBAL adjusts the number of revolutions to the wheel to reduce cycle time.

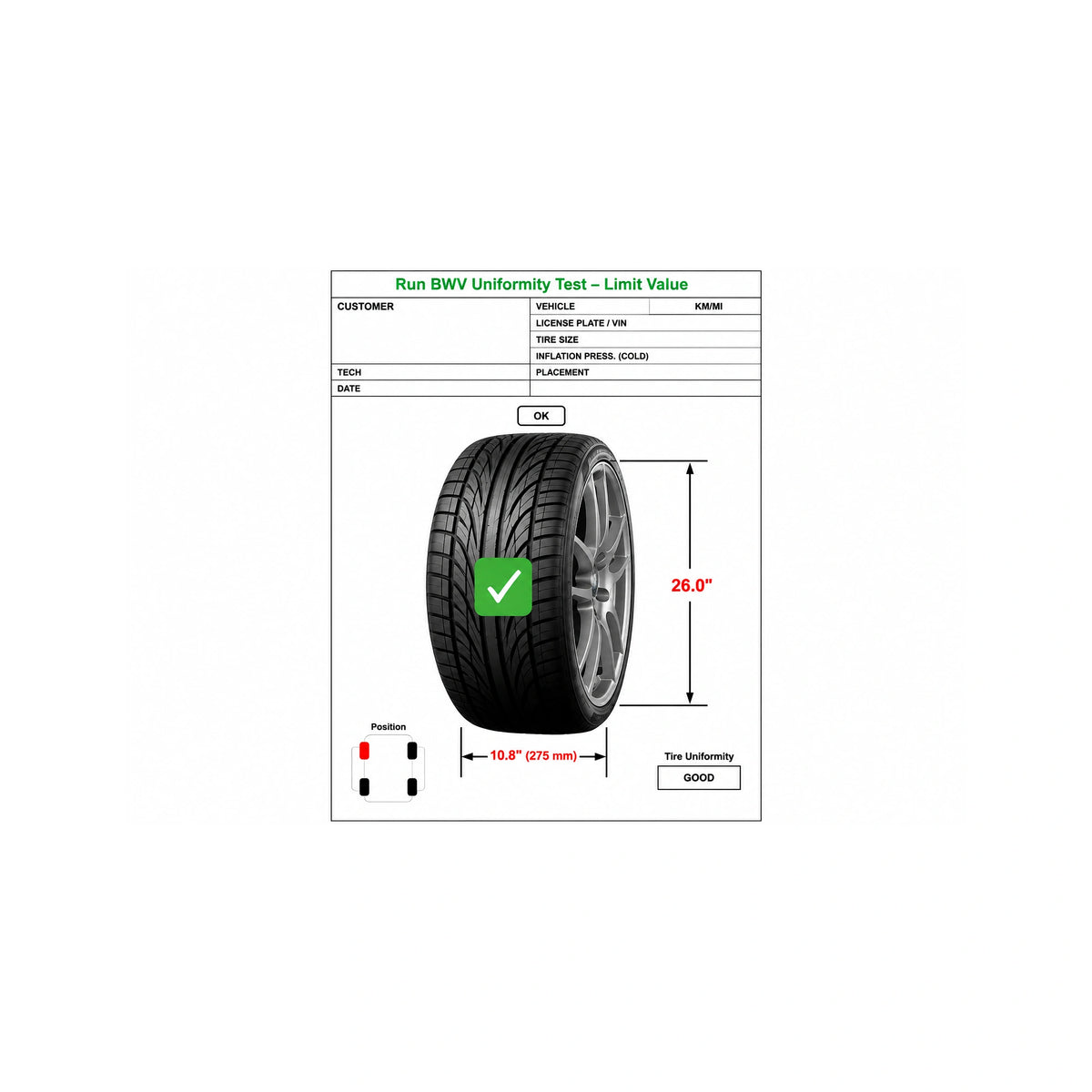

Split Weights and Customer Reports
Split Weight Mode supports concealed correction placement behind spokes. Results can also be saved as PDF files to a flash drive; local-network reporting requires additional hardware.
Best For
Hofmann positions the Geodyna 7600p for tire shops, car dealerships, and garages with medium to high tire-service volume. Its gauge-arm entry, automatic width detection, touchscreen guidance, and laser-assisted weight placement reduce repeated technician inputs without assigning an unsupported daily wheel count.
This EEWB765AP configuration is specified for 115V single-phase, 60 Hz power. It does not call for the 230V supply used by the separately listed EEWB765AP230 configuration, making the electrical requirement an important first check when planning the bay.
Specifications
| Maximum Wheel Weight | 154 lb / 70 kg |
|---|---|
| Maximum Wheel Diameter | 42 in / 106.6 cm |
| Maximum Physical Rim Width | 20 in / 51 cm |
| Semi-Automatic Rim Diameter Entry Range | 8-25 in / 20-63.5 cm |
| Semi-Automatic Rim Width Entry Range | 3-15 in / 7.6-38 cm |
| Manual Rim Diameter Entry Range | 8-32 in / 20.3-81.2 cm |
| Manual Rim Width Entry Range | 1-20 in / 2.54-50.8 cm |
| Overall Dimensions H x W x L | 71 x 60 x 53 in / 180 x 152 x 135 cm |
|---|---|
| Net Machine Weight | 254 lb / 115 kg |
| Gross Shipping Weight | 374 lb / 170 kg |
| Packaging Dimensions W x D x H | 41.7 x 44.1 x 45.3 in / 106 x 112 x 115 cm |
| Floor Level Tolerance | Within 1 degree |
| Floor Flatness Tolerance | Within 2 mm |
| Power Supply | 115V, 1 phase, 60 Hz |
|---|---|
| Data Entry | Semi-automatic easyALU gauge arm plus automatic smartSonar rim-width detection; manual entry available |
| Wheel Clamping | Electromechanical Power Clamp |
| Display | 19-inch touchscreen |
What's Included
- Four-cone set x1
- Weight pliers x1
- Rim width caliper x1
- Weight remover tool x1
Optional Accessories
- Basic Light Truck Cone Kit8100068Listed by Hofmann as an optional accessory for the Geodyna 7600p; includes a 107.19-174 mm light-truck cone, large spacer disc, and spacer ring.
- Nine Collet SetEAK0375G07AListed by Hofmann as an optional accessory for the Geodyna 7600p; nine collets cover published ranges from 48.3 mm through 121.9 mm.
- Power Clamp Speed Plate Kit with Collets and Storage StandEAK0309J33CListed by Hofmann as an optional accessory for the Geodyna 7600p; includes Power Clamp speed plates, seat studs, nine collets, spacer kit, and storage stand.
- Storage StandEAK0309J67AListed by Hofmann as an optional accessory for the Geodyna 7600p and described as a mobile stand for wheel-balancing accessories.
Not Included
- Additional hardware for local-network reporting
Installation Requirements
Provide 115V Single-Phase Power
The EEWB765AP configuration requires 115V single-phase, 60 Hz power. It is a different order configuration from the separately listed 230V model. The official installation guidance calls for an approved wall outlet; confirm that the installation location meets applicable electrical requirements before delivery.
Plan the Floor and Working Area
The floor must be horizontal within 1 degree, flat within 2 mm, able to support the balancer, and isolated from transmitted vibration. Position the machine directly on the floor without spacers. When these conditions are satisfied, Hofmann states that floor fastening is not required.
Plan Pallet Receiving and Final Placement
The balancer is supplied on a pallet, with a published gross shipping weight of 374 lb. Use a suitable pallet truck to bring it to the work area, remove the pallet securing bolts, and do not lift or move the machine by its main shaft or measuring unit.
Confirm Utility Requirements Before Delivery
The base EEWB765AP configuration uses an electromechanical Power Clamp and does not list a pneumatic connection in its installation requirements. Confirm final utility requirements before delivery.
