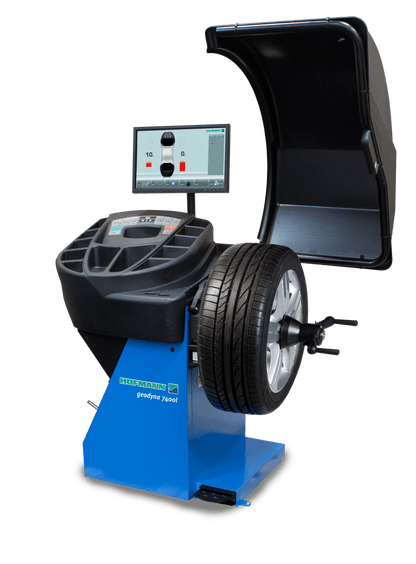

Hofmann Geodyna 7400l Semi-Automatic Wheel Balancer with LCD Monitor

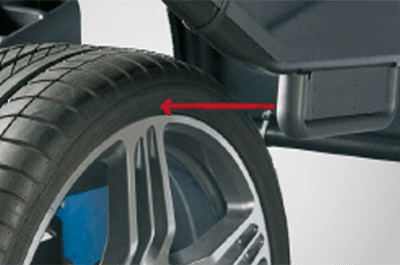

The Geodyna 7400l is designed as a reliable workhorse solution with robust construction that withstands daily use in professional shop environments. Its combination of semi-automatic operation, proven technology, and efficient functionality provides dependable performance for shops processing 20-30 wheels daily. The raised LCD monitor with integrated touchpad, SmartSonar automatic width detection, and easyALU gauge arm deliver professional-grade results without the complexity or cost of fully automatic systems, making it an excellent balance of capability, reliability, and value for independent repair facilities and general service shops.

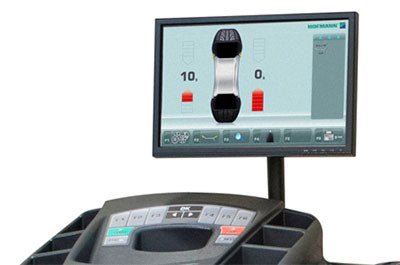

The raised LCD monitor is positioned at an ergonomic height for optimal visibility during the balancing process, eliminating the need for technicians to bend or crouch to view readings. The integrated touchpad provides convenient control right where technicians need it, optimizing workflow by keeping controls and display together in a comfortable viewing and operating position. This design reduces technician fatigue during extended service periods, improves efficiency by minimizing unnecessary movement, and enhances accuracy by ensuring readings are clearly visible throughout the balancing cycle. The combination simplifies the balancing process while maintaining professional control and precision.

The Geodyna 7400l handles wheels up to 42" in diameter, 20" in width, and 154 lb in weight capacity. In semi-automatic mode using the easyALU gauge arm, it accommodates rim diameters from 8" to 25" and widths from 3" to 15", covering the vast majority of passenger car, SUV, and light truck applications. For wheels outside the semi-automatic range, the balancer can operate in manual mode with rim diameters from 8" to 32" and widths from 1" to 20", providing flexibility for specialized applications. This versatile capacity range makes it suitable for general automotive service shops handling diverse vehicle types.

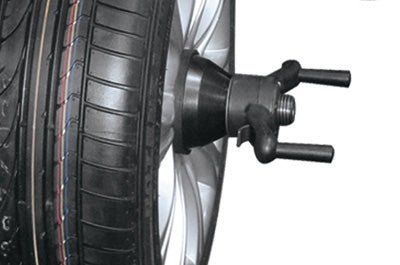

The QuickNut is a user-friendly manual clamping device that secures wheels to the balancer shaft with reliable, consistent force. Unlike powered clamping systems, the QuickNut provides direct tactile feedback to technicians while ensuring secure attachment throughout the high-speed measurement cycle. Designed for ease of use and efficient operation, it facilitates quick wheel mounting and removal between balance cycles, which is important for maintaining productivity in busy shops. The manual design also provides long-term reliability with minimal maintenance requirements, making it a proven solution for shops seeking dependable performance without the complexity of electromechanical clamping systems.

The Geodyna 7400l operates on standard 115V single-phase 60 Hz power, which is the common electrical service found in virtually all North American facilities. This standard voltage requirement means installation is typically straightforward in most shops without requiring special electrical upgrades or three-phase power. While the unit does require a dedicated circuit with appropriate amperage rating and proper grounding, a licensed electrician can typically complete the installation quickly using existing electrical infrastructure. Consult the installation manual for specific amperage requirements, and ensure the circuit is properly sized and protected according to local electrical codes.

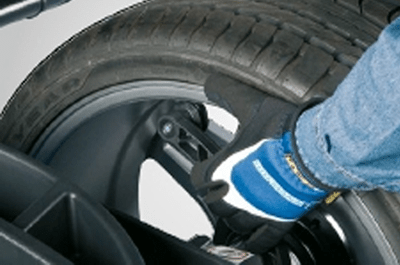

The easyALU gauge arm is a hand-operated measurement device that combines the speed of automatic measurement with the versatility of manual operation. To use it, technicians position the gauge arm and touch it to the rim surface at specific measurement points. The system uses assisted rim measurement technology to automatically detect the wheel dimensions, enter them into the balancer, and select the appropriate weight-balancing mode based on the detected parameters. This semi-automatic approach is faster than fully manual data entry while offering more flexibility than fully automatic systems, as technicians can easily accommodate wheels with unusual configurations or measurement challenges that might confuse fully automatic sensors.

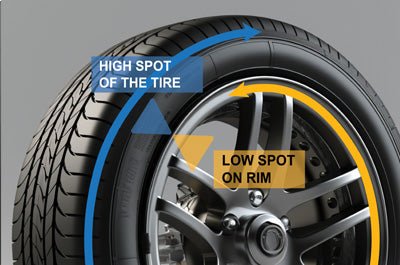

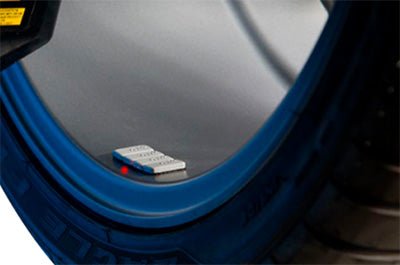

Yes, the Geodyna 7400l is EV-ready and designed to balance wheels for electric and hybrid vehicles with the precision these vehicles demand. Electric vehicles are particularly sensitive to wheel balance due to their quiet operation, which makes vibrations more noticeable, and their instant torque delivery, which can amplify imbalance effects. The Geodyna 7400l's laser-guided easyWeight placement, SmartSonar accuracy, and precision measurement capabilities ensure EV wheels are balanced to the exacting standards required for optimal range, comfort, and proper operation of advanced driver assistance systems. The match mounting feature also helps minimize weight requirements, which is beneficial for EV wheel aesthetics and performance.

The Geodyna 7400l includes the main balancer unit with raised LCD monitor and integrated touchpad, QuickNut manual wheel clamp, easyALU gauge arm, easyWeight laser guidance system, SmartSonar sensors, split-weight mode capability, QuickBal high-speed operation, and standard wheel mounting accessories including cone set, flange plate, and wing nut for most passenger vehicle applications. It also includes a wheel weight tray, tool holders, installation and operation manual, and warranty documentation. Optional accessories available separately include additional cone sets for different wheel types, truck adapters, motorcycle wheel adapters, pressure rollers for sticky weights, EZ-Collets specialized mounting accessories, and network printing hardware for generating customer reports.

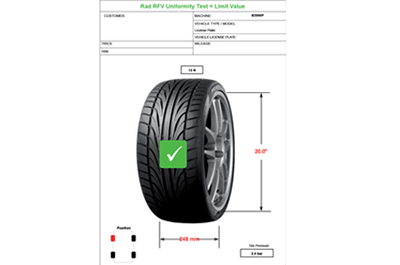

Yes, the Geodyna 7400l includes reporting capability that allows you to generate detailed balance reports for customer documentation and shop records. Reports can be saved as PDFs to a USB flash drive for easy sharing, archiving, and email distribution, or printed to a network printer with additional hardware sold separately. These professional reports provide comprehensive documentation of the balancing service, including measurements and specifications, which can enhance customer confidence and provide valuable records for warranty claims and service history documentation. This reporting feature is particularly useful for shops that want to differentiate their service quality and build customer trust through professional documentation.

Freight shipping for the Geodyna 7400l typically takes 5-10 business days to commercial addresses in the 48 contiguous United States for in-stock units. Actual delivery time depends on current inventory levels, your location relative to the distribution center, and carrier schedules. The unit ships via common carrier on a pallet with a net weight of 254 lb plus packaging, and requires a forklift or loading dock for safe unloading. Residential deliveries may require additional time and may incur extra fees for liftgate service or special handling. You will receive tracking information once your order ships, and you can contact customer service for more specific delivery estimates based on your location.

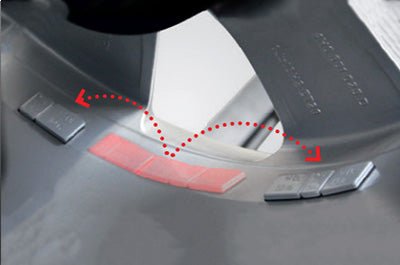

Split-weight mode is specifically designed for balancing alloy rims while maintaining their aesthetic appeal by concealing weights behind wheel spokes where they're not visible from the side. When activated, the system calculates optimal weight placement that positions correction weights behind the spokes rather than on the visible outer rim flange. This feature is essential for high-performance and custom wheels where visible weights would compromise the wheel's appearance and reduce customer satisfaction. The laser guidance system works in conjunction with split-weight mode to show technicians exactly where to place weights behind spokes, allowing shops to deliver professional-grade results that meet customer expectations for premium wheel service.

The Geodyna 7400l requires minimal routine maintenance to ensure continued accuracy and reliable performance. Regular maintenance includes cleaning the shaft and mounting surfaces after each service day to prevent buildup that could affect accuracy, inspecting cones and adapters for wear or damage that could compromise wheel mounting, verifying laser system function, keeping sensors and LCD monitor clean and unobstructed, ensuring the gauge arm moves smoothly, checking that SmartSonar sensors are clean and functioning properly, and verifying the QuickNut clamp operates correctly. Periodic calibration verification is recommended according to the manufacturer's schedule, typically annually or when accuracy concerns arise. The operation manual provides detailed maintenance procedures and schedules. Many shops opt for annual service contracts with authorized technicians who perform comprehensive inspections and preventive maintenance.
