Hofmann 14K Scissor Alignment Lift 14000 lb Open Front Rear

The Hofmann 14K Scissor Alignment Lift has a rated capacity of 14,000 lb (6,350 kg) as certified by the Automotive Lift Institute. This capacity handles full-size pickup trucks, heavy-duty SUVs, commercial vans, delivery vehicles, and most Class 2 trucks. For reference, a Ford F-250 Super Duty crew cab weighs 6,500-7,500 lb, a Chevrolet Express 3500 cargo van weighs around 6,000-6,500 lb, and most full-size SUVs weigh 5,500-6,500 lb. The 14K capacity provides a safety margin over standard 12K lifts for heavy-duty applications. Always verify vehicle weight before lifting and never exceed the 14,000 lb rated capacity.

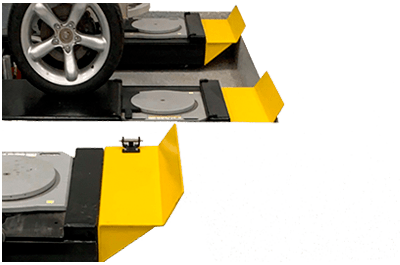

Surface mount installation positions the lift on top of your existing concrete floor and is bolted down with anchors. It requires less installation work, lower cost, and no floor excavation, but the lift remains visible when lowered and reduces floor clearance by 10". Maximum lift height is 72". Flush mount installation requires cutting into your floor, excavating a pit, building reinforced concrete forms with drainage, but the lift retracts below floor level when lowered for maximum usable floor space. Maximum lift height is 63" due to pit depth. Surface mount is preferred for existing shops with established layouts; flush mount is ideal for new construction or major renovations where maximizing floor space is critical.

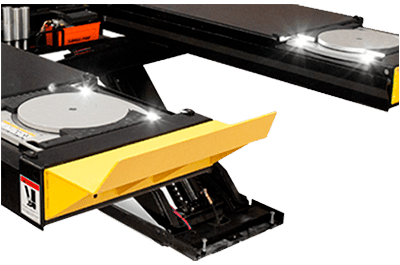

The Locked and Lighted system (models EELR789APKG and EELR790APKG) includes strategically positioned LED lighting that illuminates alignment adjustment and calibration areas, plus console-controlled locking that allows technicians to activate alignment plate locks directly from the lift console without walking around the vehicle. Front LEDs are mounted in the turnplate base to accommodate varying wheel tracks, while rear LEDs are positioned on slip plates. This system significantly improves productivity in high-volume alignment shops by reducing technician walking, improving visibility in adjustment areas, and streamlining the alignment workflow. If you perform 5 or more alignments daily, the productivity gains typically justify the upgrade cost within the first year.

Hofmann recommends a minimum bay size of 16' wide x 33' long (488 cm x 1006 cm) to accommodate the lift plus clearance for vehicle doors, technician movement, and alignment equipment. The lift itself measures 93" wide and 256"-271" long depending on runway extension position. You also need adequate ceiling height: 72" minimum for surface mount at full extension, or 63" for flush mount. Always add extra clearance for overhead lighting, HVAC ducts, ceiling-mounted equipment, tool carts, and alignment machine positioning. Measure your bay carefully and account for door swing clearances and workflow space before ordering.

This lift requires a dedicated 230V 60Hz single-phase circuit with 20-amp breaker and 2HP (1.5kW) motor installed by a licensed electrician following National Electrical Code. Do not connect to 208V three-phase circuits or undersized service. For compressed air, your shop air system must supply 90-140 PSI at 5-10 CFM for pneumatic safety lock release and locking system operation (Locked and Lighted models). Install a dedicated air line with water separator and pressure regulator; the lift includes an on-board Filter/Regulator/Lubricator (FRL) to protect pneumatic components. Without proper air pressure, safety locks and locking systems will not function correctly.

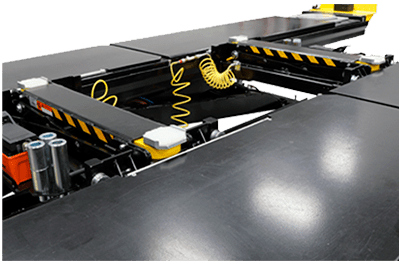

The standard package includes turn plates for alignment measurements, jack beam with extended-reach lifting arms and rolling jack functionality, rollback kit for rear wheel positioning, work step for technician access, 14K steel line cover kit, on-board Filter/Regulator/Lubricator (FRL), installation and operation manual, and warranty documentation. Locked and Lighted models (EELR789APKG and EELR790APKG) also include LED lighting system and console-controlled locking system. Optional accessories like drive-through kit, approach ramp extensions, and pocket inserts are sold separately. The package does not include electrical installation, air line installation, concrete work, professional installation labor, or alignment equipment (sensors, cameras, computers).

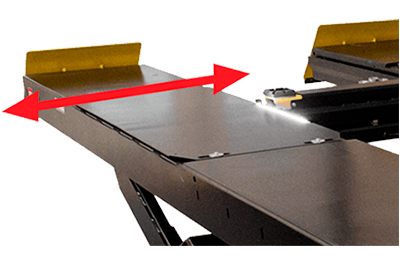

The ultra-wide 26" runways (compared to 24" on standard lifts) provide several advantages: easier drive-on for large vehicles, better stability for heavy trucks and SUVs, accommodation of dual rear wheel configurations without tire overhang concerns, more surface area for weight distribution on heavy vehicles, and easier positioning during alignment setup. This wider design is particularly beneficial for shops servicing commercial fleets, full-size pickup trucks, or vehicles with aftermarket suspension lifts that increase track width. The additional 2" per runway may seem small but makes a significant difference in vehicle stability and technician confidence when working on heavy vehicles.

Surface mount requires minimum 4" thick reinforced concrete with 3,000 PSI compressive strength, fully cured for at least 28 days before anchor installation. The foundation must support the lift's 5,863 lb weight plus 14,000 lb vehicle capacity (total 19,863 lb) without settling or cracking. Flush mount requires excavation and pit construction with reinforced concrete, proper drainage system, waterproofing, and pit depth per installation manual specifications. Poor quality concrete or improper curing can lead to anchor failure, lift instability, and serious safety hazards. Always consult the installation manual for complete foundation specifications, anchor spacing, rebar placement, and drainage requirements before beginning installation.

Professional installation by factory-trained certified technicians is strongly recommended and may be required to maintain full warranty coverage. Installation involves multiple critical steps: anchor placement and drilling with precise spacing, electrical connection by licensed electrician, pneumatic system connection with FRL setup, lift assembly with proper torque specifications, hydraulic system setup and bleeding, load testing to verify capacity, safety inspection of all locking mechanisms, LED lighting setup and calibration (Locked and Lighted models), and comprehensive operator training. Improper installation can result in lift malfunction, safety hazards, inaccurate alignment measurements, and warranty denial. Unless you have professional lift installation experience, specialized equipment, and proper training, hire certified installers.

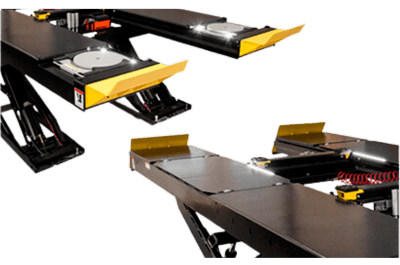

The 14K model offers 2,000 lb additional capacity (14,000 lb vs 12,000 lb), wider 26" runways (vs 24" on 12K), open front AND rear construction (12K has open front only), optional Locked and Lighted system with LED lighting and console locking (not available on 12K), and larger bay size requirement (16'x33' vs 15'x25'). The 14K is designed for shops servicing heavier vehicles including full-size trucks, commercial vans, and fleet vehicles, while the 12K is suited for passenger cars, SUVs, and light-duty trucks. The 14K's dual-access design and advanced features make it ideal for high-volume alignment shops, while the 12K is more cost-effective for shops with lighter-duty service needs.

The Hofmann factory warranty provides 1 year of parts and labor coverage for all components including hydraulic systems, electrical systems, pneumatic systems, LED lighting (Locked and Lighted models), and workmanship defects, plus 5 years of structural warranty covering the scissor mechanism, lift arms, runways, crossbeams, and main structural steel. Warranty requires professional installation, proper electrical and air connections, suitable concrete foundation, routine maintenance per manufacturer schedule, and operation within rated capacity. Labor costs after the first year are not covered. Warranty does not cover equipment altered by unauthorized personnel, equipment subject to abuse or overloading, consumable items, or damage from improper installation or use.

Available optional accessories include drive-through kit for flush mount installations (model EAK0299T32A) that allows vehicles to exit forward without backing up, approach ramp extension kit 14K (model JBC0102) for extremely low-profile vehicles or steep approach angles, pocket insert (model EAK0336V52A) for customized turnplate positioning, and extended warranty coverage. These accessories can be ordered with the lift or added later, though it is more cost-effective to include them with your original order to save on separate shipping. Contact our equipment specialists for guidance on which accessories best suit your shop's specific needs and vehicle service mix.
