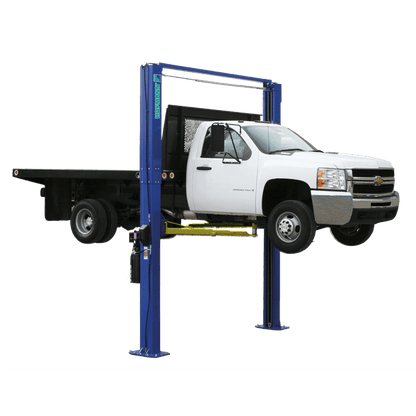

Hoffman 12K Two-Post Symmetric Automotive Lift for Professional Shops
The Hoffman 12K Two-Post lift delivers professional-grade vehicle lifting capability with a 12,000 lb capacity and 78" maximum lifting height, making it ideal for servicing large trucks, SUVs, and cargo vans. This ALI-certified symmetric lift features heavy-duty two-stage arms, adjustable urethane screw pads for safe lifting at factory-recommended points, and an adjustable column height configuration that provides up to two additional feet of workspace. Powered by a 2HP motor with 61-second lifting time, this unit requires a 14' x 24' bay and 208-230V single-phase power. Backed by Hoffman's warranty, this two-post lift represents a reliable investment for automotive service facilities handling higher-profile vehicles.
Hoffman 12K Two-Post Lift Features

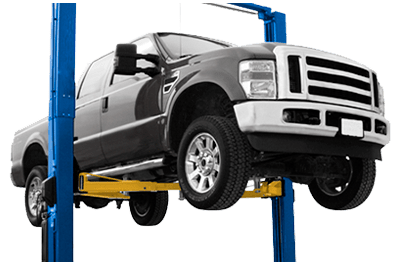

Increased Capacity for Larger Vehicles
With a 12,000 lb lifting capacity and adjustable column height providing up to two additional feet of workspace, this lift is specifically engineered for servicing large trucks, SUVs, and cargo vans. The extended height capability ensures technicians can work comfortably under taller vehicles while maintaining full access to undercarriage components, frame rails, and suspension systems.
ALI/ETL Certification
This lift is certified in accordance with the requirements of the Automotive Lift Institute's ETL Certification Program, meeting stringent safety and performance standards for automotive lifting equipment. ALI certification ensures compliance with ANSI/ALI ALCTV safety standards, providing shop owners with confidence in equipment safety and reducing liability concerns for professional service facilities.

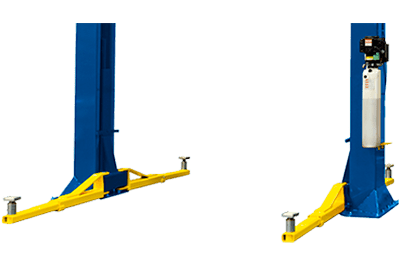

Two-Stage Front and Rear Arms
Heavy-duty two-stage telescoping arms on both front and rear positions enable symmetric lifting across a wide range of vehicle wheelbases and configurations. The adjustable arm design provides the flexibility to position lift points precisely at manufacturer-recommended locations, ensuring safe and stable lifting for everything from compact trucks to full-size commercial vans.

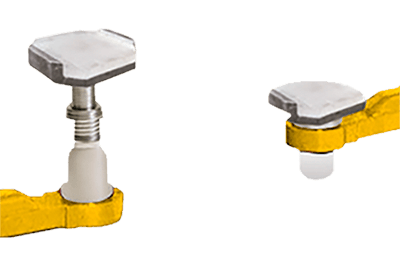

Adjustable Urethane Screw Pads
Heavy-duty polyurethane lifting pads with telescoping capability facilitate quick vehicle setup while protecting frame rails and lift points from damage. The adjustable screw pads provide fine-tuning capability to reach factory-recommended lift points on various vehicle designs, while the urethane construction prevents slipping and reduces the risk of paint or coating damage during lifting operations.

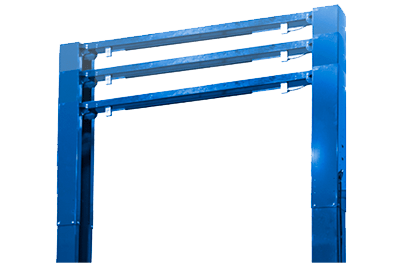

Adjustable Column Height Extension
The adjustable column height feature maximizes workspace under higher-profile vehicles, providing technicians with increased clearance for exhaust work, transmission service, and undercarriage repairs. This configuration option allows shops to optimize the lift for their specific service mix, whether focusing on standard passenger vehicles or specializing in larger commercial trucks and fleet vehicles.
Efficient 2HP Motor with 61-Second Lifting
Powered by a robust 2HP hydraulic motor, this lift achieves full height in just 61 seconds, minimizing wait time and maximizing shop productivity. The efficient lifting system operates on standard 208-230V single-phase power, eliminating the need for three-phase electrical service while delivering reliable performance throughout continuous daily use in high-volume service environments.
Hoffman 12K Two-Post Lift Applications
- Full-Size Truck and SUV Service: The 12,000 lb capacity and extended height configuration make this lift ideal for servicing heavy-duty pickup trucks, large SUVs, and commercial utility vehicles that exceed the capability of standard 10,000 lb lifts.
- Fleet Maintenance Operations: Perfect for fleet shops servicing cargo vans, delivery vehicles, and light commercial trucks, providing the capacity and reach needed for routine maintenance, brake service, and exhaust system work on higher-profile vehicles.
- Independent Repair Facilities: Well-suited for general repair shops that handle a diverse mix of passenger vehicles and light trucks, offering the flexibility to service everything from sedans to full-size pickups with a single lift.
- Tire and Alignment Shops: The symmetric configuration and adjustable arms facilitate efficient tire service, suspension work, and alignment preparation on vehicles ranging from compact cars to heavy SUVs and trucks.
- Specialty Truck Upfitting: Excellent for shops that install accessories, running boards, hitches, and upfitting equipment on trucks and SUVs, providing safe and stable access to vehicle undercarriages during installation work.
Hoffman 12K Two-Post Lift Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 12,000 lbs (5,443 kg) |
| Configuration | Symmetric |
| Max. Lifting Height | 78" (198 cm) |
| Lifting Time | 61 seconds |
| Specification | Value |
|---|---|
| Overall Height (Standard) | 140" (356 cm) |
| Overall Height (Extended) | 190"-199" (483-505 cm) |
| Overall Width | Symmetric |
| Minimum Bay Size (Standard) | 14' x 24' (427 x 732 cm) |
| Minimum Bay Size (Extended) | 14' x 24' (427 x 732 cm) |
| Specification | Value |
|---|---|
| Power Supply | 208-230V 60Hz 1Ph 30A |
| Motor | 2HP (1.5kW) |
| Specification | Value |
|---|---|
| Safety Certification | ALI/ETL Certified |
Hoffman 12K Two-Post Lift Installation Requirements
Electrical Requirements
Power: 208-230V 60Hz single-phase 30A electrical service with dedicated circuit breaker. A licensed electrician must install and verify the electrical supply meets local electrical codes and manufacturer specifications. Proper grounding is required for safe operation.
Concrete Foundation
Anchoring: Minimum 4" thick reinforced concrete floor with 3,000 PSI compressive strength. Floor must be level and free from significant cracks or structural defects. Anchor bolts must be properly torqued per manufacturer specifications to ensure lift stability and safety during operation.
Space Requirements
Minimum Bay Size: 14' x 24' (width x length) for both standard and extended height configurations. Overhead Clearance: 140" minimum for standard height, up to 199" for extended height configuration. Allow additional clearance for vehicle entry/exit and arm swing radius. Adequate workspace around the lift is essential for safe operation.
Professional Installation
Professional installation by qualified technicians is strongly recommended to ensure proper assembly, alignment, electrical connection, and safety testing. Improper installation may void warranty coverage and create serious safety hazards. Installation typically requires 6-8 hours with specialized tools and lift-handling equipment.
What's Included with the Hoffman 12K Two-Post Lift
- Two-post lift columns (pair) with adjustable height capability
- Overhead crossbeam assembly
- Two-stage front and rear lifting arms (set of 4)
- Adjustable urethane screw pads with telescoping adapters
- 2HP hydraulic power unit with 61-second lift cycle
- Control pendant with up/down operation
- Safety lock system with multiple engagement positions
- Anchor bolt kit for concrete installation
- Installation and operation manual
- Warranty documentation
Optional Accessories: Extended-reach adapters, truck adapter sets, drip trays, jack tray accessories, and caster kits available separately.
Not Included: Electrical installation and wiring, concrete anchoring installation labor, professional assembly and setup, freight unloading equipment (forklift required), and any facility modifications needed for installation.
Hoffman 12K Two-Post Lift Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses with loading dock or forklift in the 48 contiguous United States. Lead Time: 5-10 business days for in-stock units. International: Contact sales for international shipping quotes and lead times.
Delivery Requirements
Unloading: Forklift or loading dock required - lift ships on pallet(s) weighing several hundred pounds each. Delivery Type: Curbside freight delivery standard - driver is not responsible for unloading. Inspection: Inspect all packages for shipping damage before signing the bill of lading. Note any damage on the delivery receipt and contact us immediately.
Returns
Returns accepted within 30 days of delivery for unused lifts in original packaging with all components. Product must be unopened and unassembled. 20% restocking fee applies to all returns. Buyer responsible for return freight costs, packaging, and coordination of return pickup.
Hoffman 12K Two-Post Lift Warranty
Hoffman Warranty Coverage
Hoffman provides comprehensive warranty coverage on the 12K Two-Post lift, protecting your investment against defects in materials and workmanship. Warranty terms vary by component to reflect the different service requirements and wear patterns of hydraulic, structural, and electrical systems.
- Complete Warranty Terms: Refer to the warranty documentation PDF for full coverage details, exclusions, and claim procedures.
Requirements: Warranty coverage requires professional installation by qualified technicians, proper electrical supply meeting specifications, adequate concrete foundation, and adherence to manufacturer maintenance schedules. Misuse, overloading, improper installation, or lack of maintenance will void warranty coverage. Contact manufacturer for warranty claims and service support.
Documents
Click to open in a new tab.
Questions About the Hoffman 12K Two-Post Lift?
Our equipment specialists can help with installation planning, electrical requirements, and determining if this lift is the right fit for your shop's needs.
Hoffman 12K Two-Post Lift FAQ
What types of vehicles can the Hoffman 12K lift handle?
The 12,000 lb capacity and extended height configuration make this lift suitable for full-size pickup trucks, large SUVs, cargo vans, delivery vehicles, and light commercial trucks. The symmetric design with two-stage arms accommodates various wheelbases, while the 78" lifting height and adjustable column extensions provide clearance for taller vehicles. It also handles standard passenger cars, crossovers, and midsize trucks with ease.
How much space does this lift require for installation?
The Hoffman 12K requires a minimum bay size of 14 feet wide by 24 feet long for both standard and extended configurations. Ceiling height requirements are 140 inches for standard configuration and up to 199 inches for extended height setup. Additional clearance should be allowed around the lift for vehicle entry and exit, as well as technician workspace. Consider door heights and overhead obstructions when planning installation.
What electrical service is required for this lift?
The lift requires 208-230V single-phase 60Hz electrical service with a dedicated 30-amp circuit breaker. Single-phase power is standard in most commercial facilities, eliminating the need for three-phase service. A licensed electrician must install the electrical connection and verify proper grounding. The 2HP motor provides efficient operation while drawing reasonable power during the 61-second lift cycle.
Is professional installation required?
Professional installation is strongly recommended to ensure proper assembly, column alignment, electrical connection, and safety system testing. Improper installation can create serious safety hazards and may void warranty coverage. Installation requires specialized tools, lift-handling equipment, and knowledge of proper anchor bolt torque specifications. Most installations are completed in 6-8 hours by experienced technicians with appropriate equipment.
What warranty coverage is included with this lift?
Hoffman provides warranty coverage on the 12K Two-Post lift with terms varying by component system. Complete warranty details, coverage periods, exclusions, and claim procedures are provided in the warranty documentation PDF. Warranty validity requires professional installation, proper electrical supply, adequate concrete foundation, and adherence to maintenance schedules. Refer to the warranty PDF for specific coverage terms and conditions.
What's included with the lift purchase?
The lift includes both columns with adjustable height capability, overhead crossbeam, four two-stage arms, adjustable urethane screw pads with telescoping adapters, 2HP hydraulic power unit, control pendant, safety lock system, anchor bolt kit, installation manual, and warranty documentation. Professional installation labor, electrical wiring, concrete work, unloading equipment, and optional accessories are not included and must be arranged separately.
How long does shipping take?
In-stock units typically ship within 5-10 business days to commercial addresses in the 48 contiguous United States. Free freight shipping is provided to locations with forklift or loading dock capability. Residential delivery or liftgate service may incur additional charges. International shipping is available with custom quotes - contact our sales team for lead times and freight costs to locations outside the continental US.
What concrete specifications are required?
The lift requires installation on a reinforced concrete floor with minimum 4-inch thickness and 3,000 PSI compressive strength. The floor must be level, structurally sound, and free from significant cracks or deterioration. Proper anchor bolt installation and torquing is critical for lift stability and safety. If your floor does not meet these specifications, consult with a concrete contractor about reinforcement or repair options before installation.
Can this lift be used for wheel alignment work?
Yes, the symmetric configuration and adjustable two-stage arms make this lift suitable for pre-alignment lifting and suspension service. The precise positioning capability allows you to lift vehicles at manufacturer-recommended points without interfering with suspension geometry measurements. Many shops use two-post lifts like this for alignment prep work, though dedicated alignment lifts with slip plates and turnplates provide additional features for precision alignment work.
What's the difference between standard and extended height configurations?
The standard height configuration provides 140 inches of overall column height, while the extended configuration offers 190-199 inches. The extended height provides up to two additional feet of workspace beneath lifted vehicles, which is beneficial for servicing taller trucks, commercial vans, and vehicles with lifted suspensions. Both configurations offer the same 78-inch maximum lifting height and require the same 14' x 24' bay size.
How fast does the lift operate?
The 2HP hydraulic motor raises the lift to full 78-inch height in 61 seconds, providing efficient cycle times for high-volume shop operations. The controlled lifting speed ensures smooth, stable operation while minimizing hydraulic system stress. Descent speed is controlled by the hydraulic system and safety mechanisms. Fast cycling reduces vehicle turnaround time and maximizes shop productivity throughout the workday.
Is this lift ALI certified?
Yes, the Hoffman 12K Two-Post lift is ALI/ETL certified in accordance with the Automotive Lift Institute's certification program requirements. This certification verifies compliance with ANSI/ALI ALCTV safety standards for automotive lifting equipment. ALI certification provides assurance of proper design, manufacturing quality, and safety system performance, which is important for liability protection, insurance requirements, and regulatory compliance in professional shop environments.
