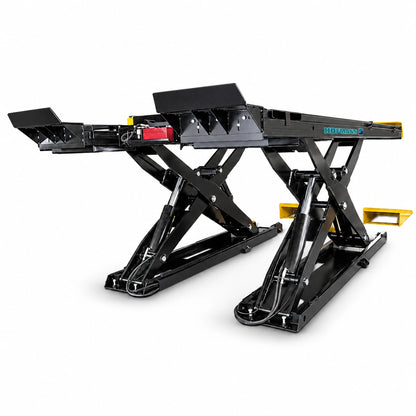

Hofmann 12K Scissor Alignment Lift 12000 lb Open Front
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147
Hofmann 12K Scissor Alignment Lift for Professional Wheel Alignment and Service
The Hofmann 12K Scissor Alignment Lift combines engineering precision with practical efficiency for professional automotive service. This 12,000 lb capacity scissor lift features an open-front design that provides unrestricted access to alignment service and calibration areas, making it ideal for shops performing wheel alignments, tire service, and general repair work. With a 70" maximum lifting height, 90" overall width, and 95-second lifting time, this lift delivers the performance and accessibility technicians need. Available in both surface mount and flush mount configurations, the lift requires 230V 60Hz 1Ph 20A 2HP power and includes ALI certification for professional shop applications. Backed by a 1-year parts and labor warranty plus 5-year structural warranty.
Hofmann 12K Scissor Alignment Lift Features
ALI Certified Safety Compliance
This lift is certified in accordance with the requirements of the Automotive Lift Institute's ETL Certification Program, meeting ANSI/ALI ALCTV standards for automotive lift safety. ALI certification ensures the lift has been independently tested and validated to current industry safety standards, providing peace of mind for shop owners and technicians working underneath vehicles daily.
Open-Front Design for Maximum Accessibility
The open-front configuration eliminates front crossbeam obstructions, granting technicians unrestricted access to steering components, suspension systems, and alignment adjustment points. This ergonomic layout significantly improves workflow efficiency during wheel alignment procedures, calibration work, and front-end service tasks by allowing direct approach from any angle.

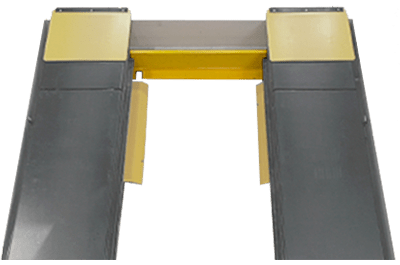

Integrated Rear Synchronization Bar
A sturdy, high-strength steel rod maintains level lifting performance throughout the entire range of motion. The integrated rear synchronization bar supports steady vertical travel during operational procedures, ensuring consistent lift height across both runways and preventing uneven loading that could compromise alignment measurements or technician safety.

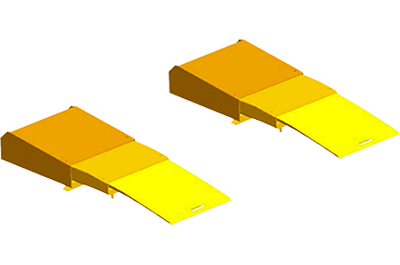

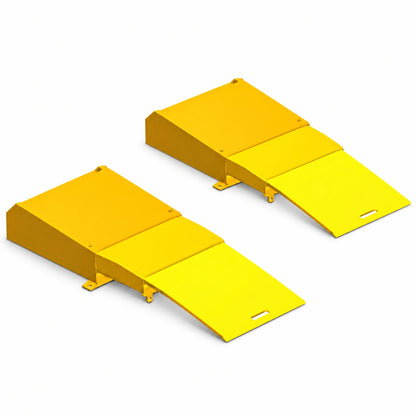

Retractable Approach Ramps
Approach ramps extend to a generous 87" to accommodate vehicles with low ground clearance, then retract to a compact 35" when not in active use to optimize shop floor space. This expandable design provides multi-tiered drive-on approach angles to suit various vehicle clearances and bay lengths without requiring multiple ramp sets.

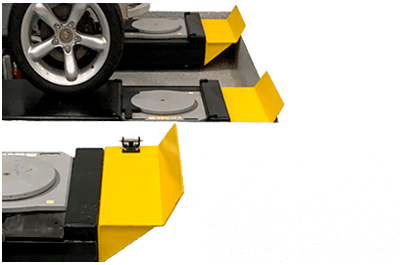

Flush or Surface Mount Installation Options
Choose between flush mount installation that seamlessly integrates into your shop floor and retracts when not in use, or surface mount installation known for stability, low profile, ease of use, and reliability. Flush mounting maximizes workspace by keeping the lift below floor level, while surface mounting offers cost-effective installation without excavation requirements.

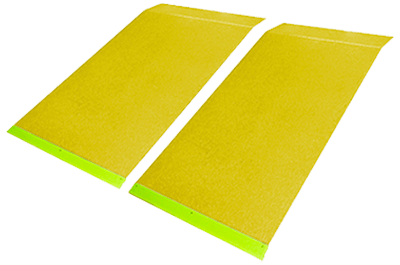

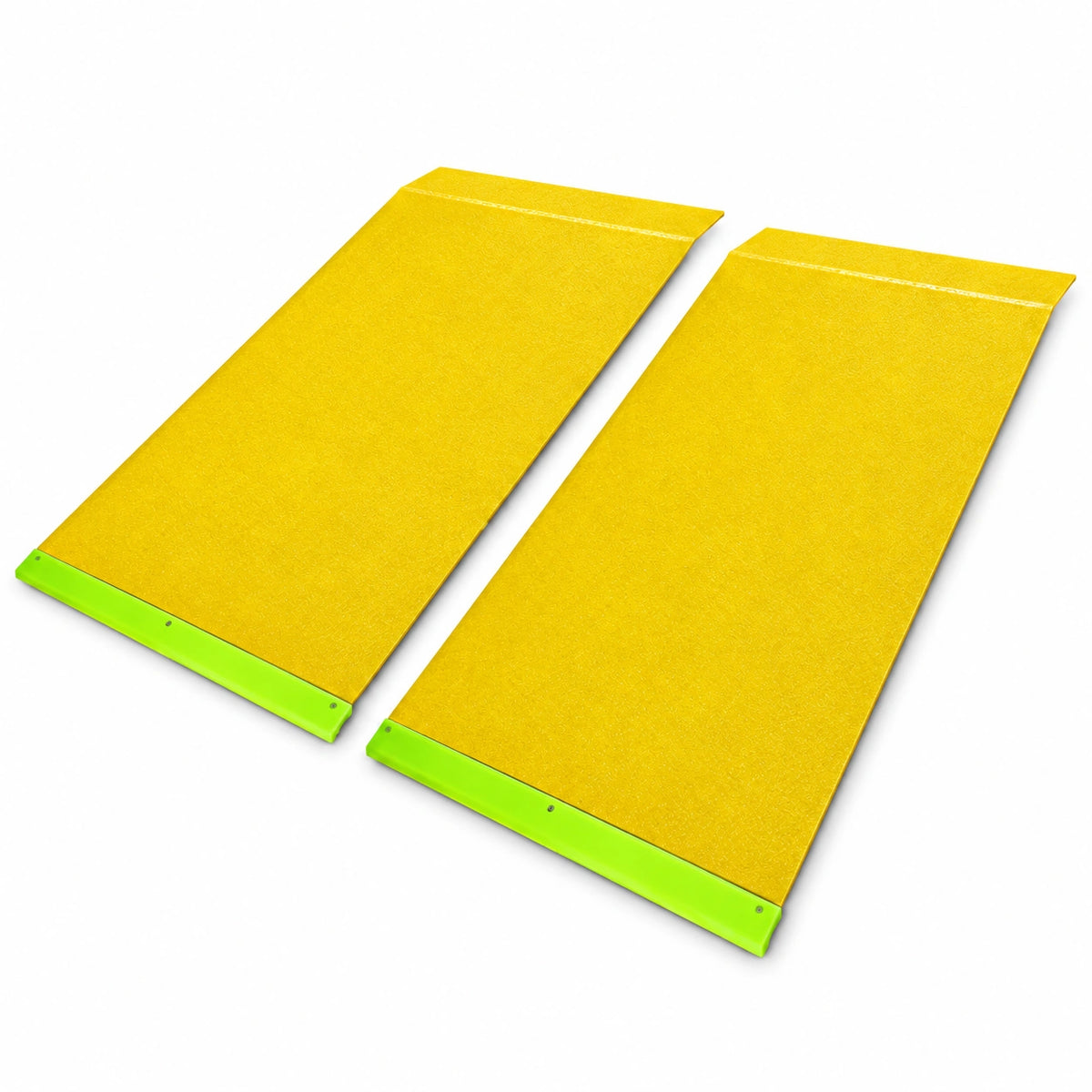

Drive-Through Capability with Optional Kit
Enhance lift functionality by adding an optional set of front ramps, enabling vehicles to exit from the front without reverse maneuvering. Drive-through capability improves shop workflow efficiency and eliminates the need for technicians to back vehicles off the lift after service completion, reducing the risk of vehicle damage and speeding up bay turnover.
Hofmann 12K Scissor Alignment Lift Applications

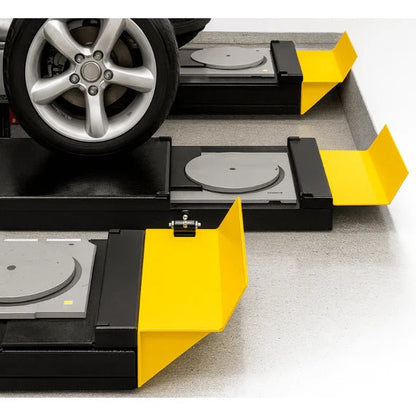

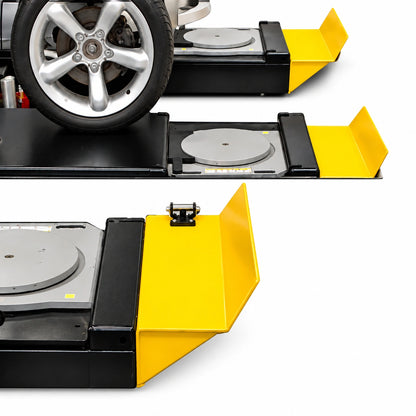

- Wheel Alignment Services: The open-front design and flush-mounted rear slip plates with heavy-duty encapsulated bearings provide optimal access to alignment adjustment points and enable smooth vehicle movement during alignment procedures. Turn plates and rollback kits allow precise positioning for accurate alignment measurements on passenger vehicles, SUVs, and light trucks up to 12,000 lb.
- Tire Service and Replacement: The 70" maximum lifting height provides comfortable working clearance for tire removal, installation, and rotation tasks. The 24" wide runways accommodate vehicles with wide track widths, while retractable ramps enable easy loading of low-profile performance vehicles and sports cars without scraping.
- Brake System Inspection and Repair: Elevate vehicles to ergonomic working height for brake pad replacement, rotor service, caliper work, and brake line inspection. The jack beam included with standard accessories allows technicians to lift individual axles for wheel removal while the vehicle remains securely supported on the scissor lift.
- Suspension Service and Diagnostics: Perform comprehensive suspension inspections, shock and strut replacement, control arm work, and ball joint service with full underbody access. The open-front configuration eliminates obstructions when working on steering linkage, tie rods, and front suspension components.
- General Automotive Repair and Maintenance: From oil changes and exhaust system work to undercarriage inspections and fluid leak diagnosis, this lift provides versatile support for daily shop operations. The pullout step included with the lift enables safe technician access to engine compartments on lifted vehicles.
Hofmann 12K Scissor Alignment Lift Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 12,000 lb (5,443 kg) |
| Configuration | Open Front |
| Specification | Value |
|---|---|
| Overall Width | 90" (229 cm) |
| Overall Height | 70" (178 cm) |
| Overall Length | 242" - 294" (adjustable) |
| Max Lifting Height | 70" (178 cm) |
| Minimum Recommended Bay Size (W x L) | 15' x 25' (457 cm x 762 cm) |
| Specification | Value |
|---|---|
| Power Supply | 230V 60Hz 1Ph 20A 2HP (1.5kW) |
| Air Supply Required | 90-140 PSI @ 5-10 CFM |
| Lifting Time | 95 seconds |
| Installation Type | Model Number |
|---|---|
| Surface Mount Package | EELR709APKG |
| Flush Mount Package | EELR724APKG |
Hofmann 12K Scissor Alignment Lift Installation Requirements
Electrical Requirements
Power: 230V 60Hz single-phase 20A circuit with 2HP (1.5kW) motor. A licensed electrician must install dedicated electrical service and verify proper voltage, grounding, and circuit protection. Incorrect electrical installation may void warranty and create serious safety hazards.
Air Supply Requirements
Compressed Air: 90-140 PSI at 5-10 CFM for pneumatic safety lock release and optional accessories. Shop air system must provide consistent pressure and adequate volume. Install air supply line with water separator and pressure regulator near lift location.
Concrete Foundation Requirements
Surface Mount: Minimum 4" thick reinforced concrete with 3,000 PSI compressive strength. Concrete must be fully cured (minimum 28 days) before installation. Flush Mount: Requires excavation and reinforced pit construction with proper drainage. Foundation must support lift weight plus maximum vehicle capacity without settling or cracking.
Space Requirements
Minimum Bay Size: 15' wide x 25' long (457 cm x 762 cm). Allow additional clearance for vehicle doors, technician movement, and alignment equipment positioning. Ceiling Height: Verify adequate overhead clearance for lifted vehicles plus technician working space. Consider lighting fixtures, HVAC ducts, and ceiling-mounted equipment.
Professional Installation
Professional installation by certified technicians is strongly recommended and may be required to maintain warranty coverage. Installation includes anchor placement, electrical connection, pneumatic connection, lift assembly, load testing, and technician training. Improper installation can compromise lift safety and performance.
What's Included with the Hofmann 12K Scissor Alignment Lift
- Turn plates (pair) for alignment measurements
- Jack beam for individual axle lifting
- Rollback kit for rear wheel positioning
- Pullout step for technician access
- 14K steel line cover kit
- Installation and operation manual
- Warranty documentation
Optional Accessories: Drive-through kit for front exit capability (model EAK0299T31A for surface mount), additional rolling jacks, extended warranty coverage.
Not Included: Electrical installation and wiring, compressed air line installation, concrete work for surface mount or pit excavation for flush mount, professional installation labor, alignment equipment (sensors, cameras, computers), wheel balancer or tire changer equipment.
Hofmann 12K Scissor Alignment Lift Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses with loading dock or forklift in the 48 contiguous United States. Lead Time: 2-4 weeks from order confirmation. International: Contact sales for international shipping quotes and customs documentation.
Delivery Requirements
Unloading: Forklift or comparable lifting equipment rated for pallet weight is mandatory. Lift ships on pallets weighing 1,800-2,400 lb each. Delivery Type: Curbside delivery to street level is standard. Liftgate service may be available for additional fee. Inspection: Thoroughly inspect all packages and pallets before signing bill of lading. Note any visible damage, shortages, or discrepancies on delivery receipt and take photographs.
Returns and Damage Claims
Returns accepted within 30 days of delivery for unopened products in original packaging with all materials and documentation. Product must not have been installed or assembled. 20% restocking fee applies to all returns. Buyer responsible for return freight costs. For shipping damage, file claim immediately with carrier and contact Garage Supply Guys within 48 hours with photos and delivery receipt documentation.
Hofmann 12K Scissor Alignment Lift Warranty
Hofmann Factory Warranty
Hofmann warrants to the original purchaser that this lift will be free from defects in materials and workmanship when properly handled, stored, installed, and operated:
- 1 Year: Parts and labor coverage for all components and workmanship defects
- 5 Years: Structural component warranty covering scissor mechanism, lift arms, runways, and main structural steel
Requirements: Warranty requires professional installation by authorized technicians, proper electrical and pneumatic connections meeting specifications, installation on suitable concrete foundation, routine maintenance per manufacturer schedule, and use within rated capacity. Warranty does not cover equipment altered or repaired by unauthorized personnel, or equipment subject to abuse, misuse, or negligence. Service labor for repairs after the first year is not covered under warranty. Warranty valid only for equipment delivered and used within the United States.
Documents
Click to open in a new tab.
Questions About the Hofmann 12K Scissor Alignment Lift?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Hofmann 12K Scissor Alignment Lift FAQ
What is the actual lifting capacity and can it handle heavy trucks?
The Hofmann 12K Scissor Alignment Lift has a rated capacity of 12,000 lb (5,443 kg) as certified by the Automotive Lift Institute. This capacity handles most passenger vehicles, SUVs, and light-duty pickup trucks. For reference, a Ford F-150 crew cab typically weighs 4,500-5,500 lb, a Chevrolet Suburban weighs around 5,600-6,000 lb, and most full-size sedans weigh 3,500-4,500 lb. The lift cannot safely handle commercial trucks, medium-duty trucks, or vehicles exceeding 12,000 lb. Always verify vehicle weight before lifting and never exceed rated capacity.
What are the exact dimensions and will it fit in my bay?
The lift measures 90" wide (229 cm), 70" tall (178 cm), and 242"-294" long depending on runway extension position. Hofmann recommends a minimum bay size of 15' wide x 25' long (457 cm x 762 cm) to accommodate the lift plus clearance for vehicle doors, technician movement, and alignment equipment. Measure your bay carefully and account for wall clearances, tool cart storage, and workflow space around the lift before ordering.
What electrical service do I need for installation?
This lift requires a dedicated 230V 60Hz single-phase circuit with 20-amp breaker and 2HP (1.5kW) motor power. The circuit must be installed by a licensed electrician following National Electrical Code requirements and local building codes. Do not connect the lift to 208V three-phase circuits or undersized electrical service. Improper electrical installation can damage the motor, void warranty coverage, and create serious safety hazards.
Do I need compressed air and what pressure is required?
Yes, this lift requires compressed air for the pneumatic safety lock release mechanism. Your shop air system must supply 90-140 PSI at 5-10 CFM. Install an air line with water separator and pressure regulator near the lift location. The lift will not operate safely without adequate air pressure for the safety lock system. If your shop does not have compressed air, you will need to install an air compressor system before installing this lift.
What type of concrete foundation is required?
Surface mount installation requires minimum 4" thick reinforced concrete with 3,000 PSI compressive strength, fully cured for at least 28 days before anchor installation. Flush mount installation requires excavation and pit construction with reinforced concrete and proper drainage system. Consult the installation manual for complete foundation specifications, anchor spacing requirements, and rebar placement details. Poor quality concrete can lead to anchor failure, lift instability, and serious safety hazards.
What comes included with the lift package?
The standard package includes turn plates for alignment measurements, jack beam for individual axle lifting, rollback kit for rear wheel positioning, pullout step for technician access, 14K steel line cover kit, and all necessary hardware for installation. The package also includes installation and operation manual and warranty documentation. Optional accessories like the drive-through kit are sold separately. The package does not include electrical installation, air line installation, concrete work, professional installation labor, or alignment equipment.
How long does shipping take and what are delivery requirements?
Lead time is typically 2-4 weeks from order confirmation to delivery. Free freight shipping applies to commercial addresses with loading dock or forklift capability in the 48 contiguous United States. You must have forklift or comparable lifting equipment rated for 2,400 lb pallets to unload the delivery truck. The lift ships on multiple heavy pallets and cannot be hand-unloaded safely. Residential delivery may be possible with liftgate service for additional fee. International orders require custom shipping quotes.
Should I get surface mount or flush mount installation?
Surface mount installation is faster, less expensive, and requires no floor excavation. The lift sits on top of your concrete floor and is bolted down with anchors. Flush mount installation requires cutting into your floor, excavating a pit, building reinforced concrete forms, and installing drainage, but the lift retracts below floor level when lowered for maximum floor space. Surface mount is preferred for shops with established floor layouts, while flush mount is ideal for new construction or major shop renovations where you want to maximize usable floor space.
Do I need professional installation or can I install it myself?
Professional installation by factory-trained technicians is strongly recommended and may be required to maintain full warranty coverage. Installation involves anchor placement and drilling, electrical connection, pneumatic system connection, lift assembly, hydraulic system setup, load testing, safety inspection, and operator training. Improper installation can result in lift malfunction, safety hazards, and warranty denial. Unless you have professional lift installation experience and proper equipment, hire certified installers.
What is covered under warranty and for how long?
The Hofmann factory warranty provides 1 year of parts and labor coverage for all components and defects in materials or workmanship, plus 5 years of structural warranty covering the scissor mechanism, lift arms, runways, and main structural steel. Warranty requires professional installation, proper electrical and air connections, suitable concrete foundation, routine maintenance, and operation within rated capacity. Labor costs after the first year are not covered. Warranty does not cover equipment altered by unauthorized personnel or equipment subject to abuse or misuse.
Can I add the drive-through option later or must I order it now?
The drive-through kit (model EAK0299T31A for surface mount) can be added as an aftermarket accessory after initial installation. However, it is more cost-effective to include it with your original order to save on separate shipping costs. The drive-through kit includes an additional set of front ramps that allow vehicles to exit forward without backing up, improving workflow efficiency in busy shops.
How does this compare to a four-post alignment lift?
Scissor lifts like this model offer open-front access for easier work on steering and suspension components, require less shop floor space than four-post lifts, and provide a lower profile for loading low-clearance vehicles. Four-post lifts offer more stability for extended vehicle storage, easier drive-on loading without precise positioning, and simpler installation. Scissor lifts are preferred for active alignment work where technician access is critical, while four-post lifts are better for shops needing vehicle storage capacity or safer for less experienced operators.
