Hofmann 12K Four-Post Alignment Lift 12000 lb Capacity
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

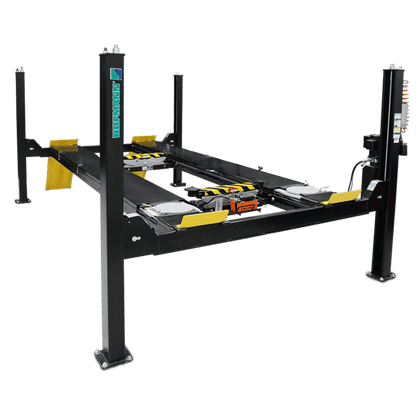

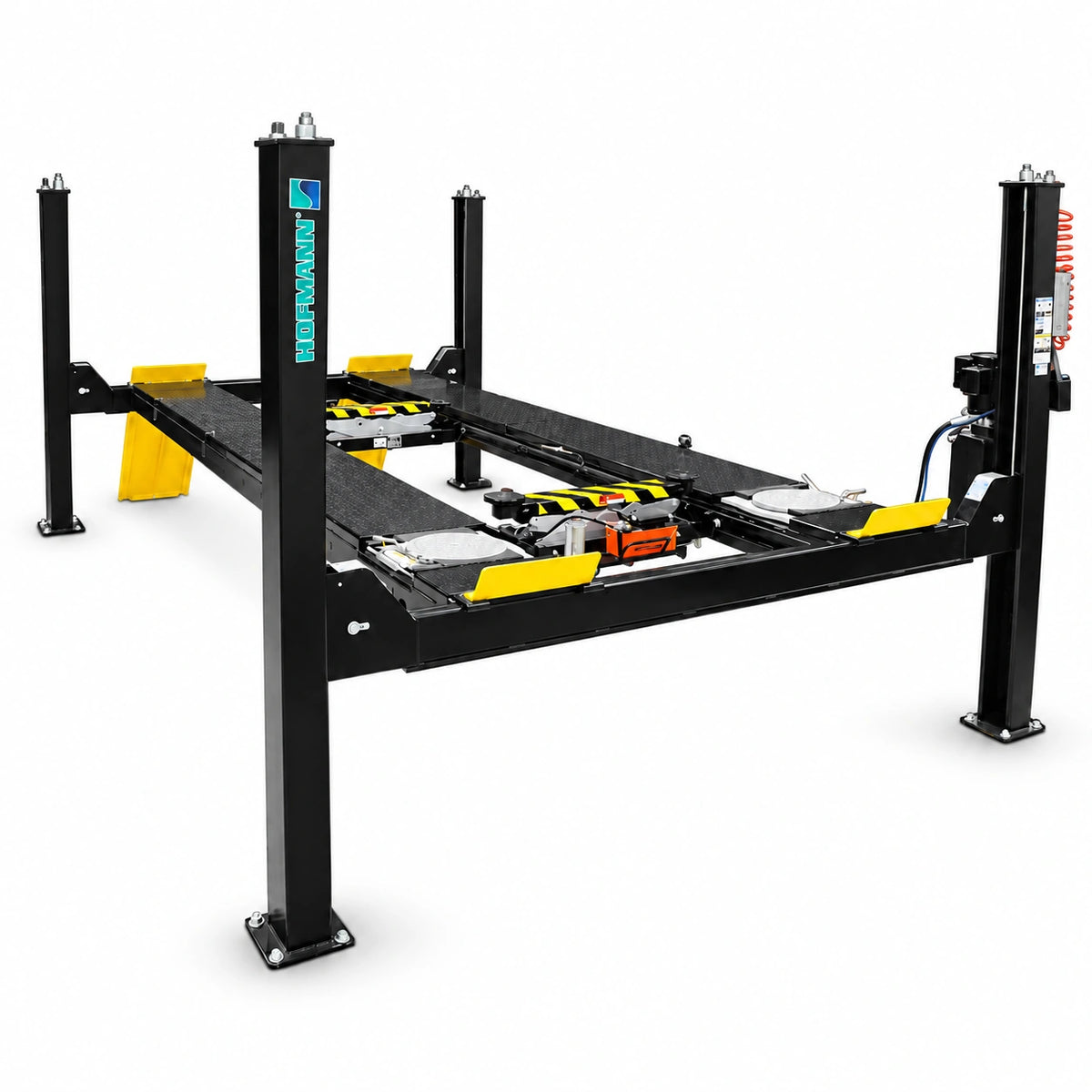

Hofmann 12K Four-Post Alignment Lift for Professional Wheel Alignment and Full-Service Work
The Hofmann 12K Four-Post Alignment Lift delivers professional four-wheel alignment capabilities with an impressive 12,000 lb capacity in a compact, exceptionally stable configuration. This closed-front design alignment lift accommodates everything from microcars to heavy-duty pickup trucks with 78" maximum lift height, ultra-low 8" profile runways, and adjustable turn plate pockets for diverse wheelbases. Powered by 208-230V single-phase electrical and requiring 90-120 PSI air supply, this lift features ALI certification and premium components including rolling jack beams, professional turn plates, and an innovative slack cable retention system. Backed by Hofmann's comprehensive 5-year structural warranty, 1-year parts, and 1-year labor coverage, this alignment lift maximizes shop efficiency with its space-saving 12'x24' footprint.
Hofmann 12K Four-Post Alignment Lift Features

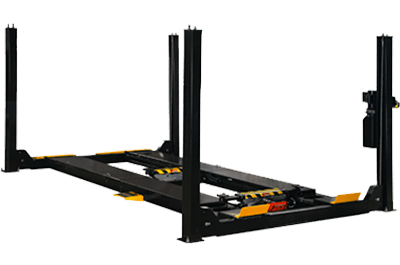

Small Footprint Design
Efficiently maximize your work area potential with a space-efficient 12'x24" minimum bay size footprint that's compact in size but provides substantial 12,000 lb lifting capacity. The 135" overall width and 252" overall length allow professional alignment work in shops with limited space, eliminating the need for multiple lifts to handle diverse vehicle types from compact cars to full-size pickups.

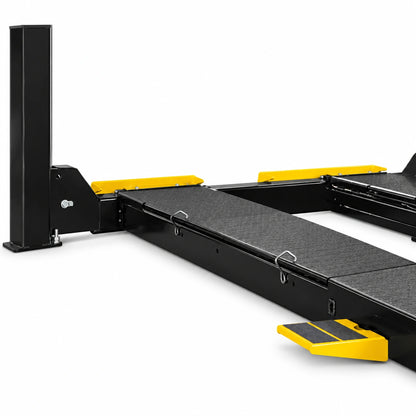

Ultra-Low Profile Runways
With ultra-low-profile 8" runways, this unit provides an easy-on approach angle that is especially favorable to low-profile vehicles including sports cars, modified vehicles, and cars with air suspension. The low entry angle reduces scraping risk and allows shops to service the widest possible range of vehicles without clearance concerns or special ramps.

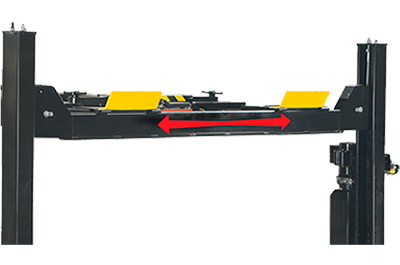

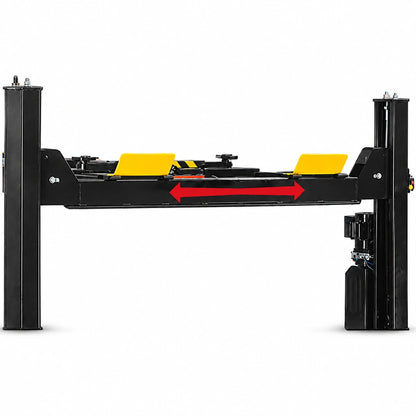

Closed-Front Crossbeam Construction
Enhance work efficiency and reduce operational concerns with the addition of a closed-front crossbeam design that reinforces the structural integrity of the lift for heightened stability. This robust construction method provides superior rigidity during alignment procedures, minimizes frame flex during measurements, and ensures consistent, repeatable alignment results for improved customer satisfaction.

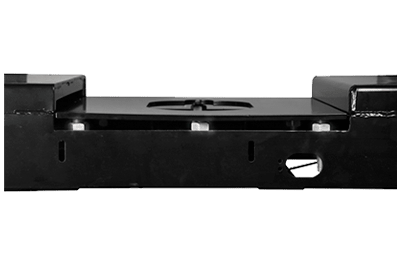

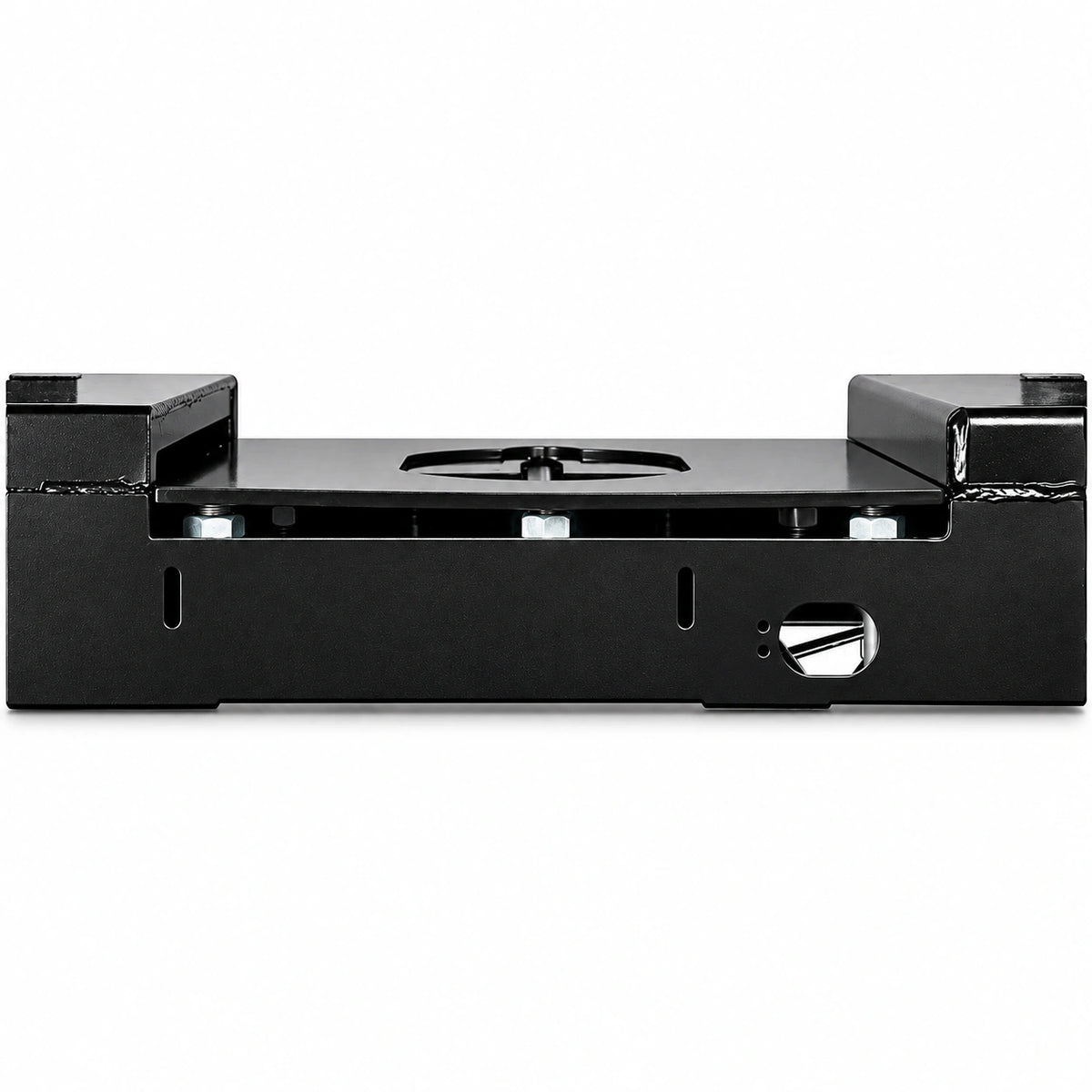

Adjustable Turn Plate Pockets
Effortlessly service vehicles of diverse wheelbases with user-friendly adjustable turn plate pockets that accommodate short-wheelbase compact cars through extended-wheelbase trucks and SUVs. The adjustable design eliminates time-consuming repositioning, streamlines the alignment setup process, and ensures proper turn plate placement for accurate toe and camber measurements across your entire customer base.

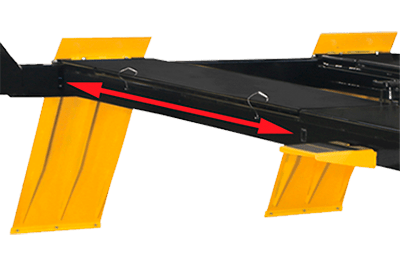

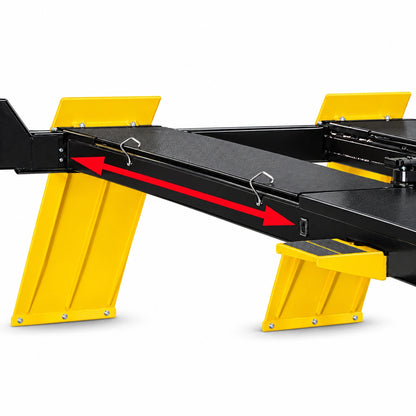

Longer Slip Plates with Oversized Bearings
To minimize maintenance requirements and maximize uptime, the rear slip plates employ oversized, encapsulated bearings that move upward during the alignment process, eliminating the need to reposition front turn plates. This intelligent design reduces technician effort, speeds up alignment procedures, and extends bearing service life through superior load distribution and contamination protection.

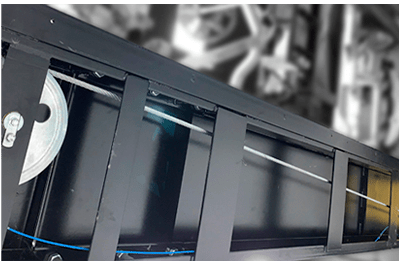

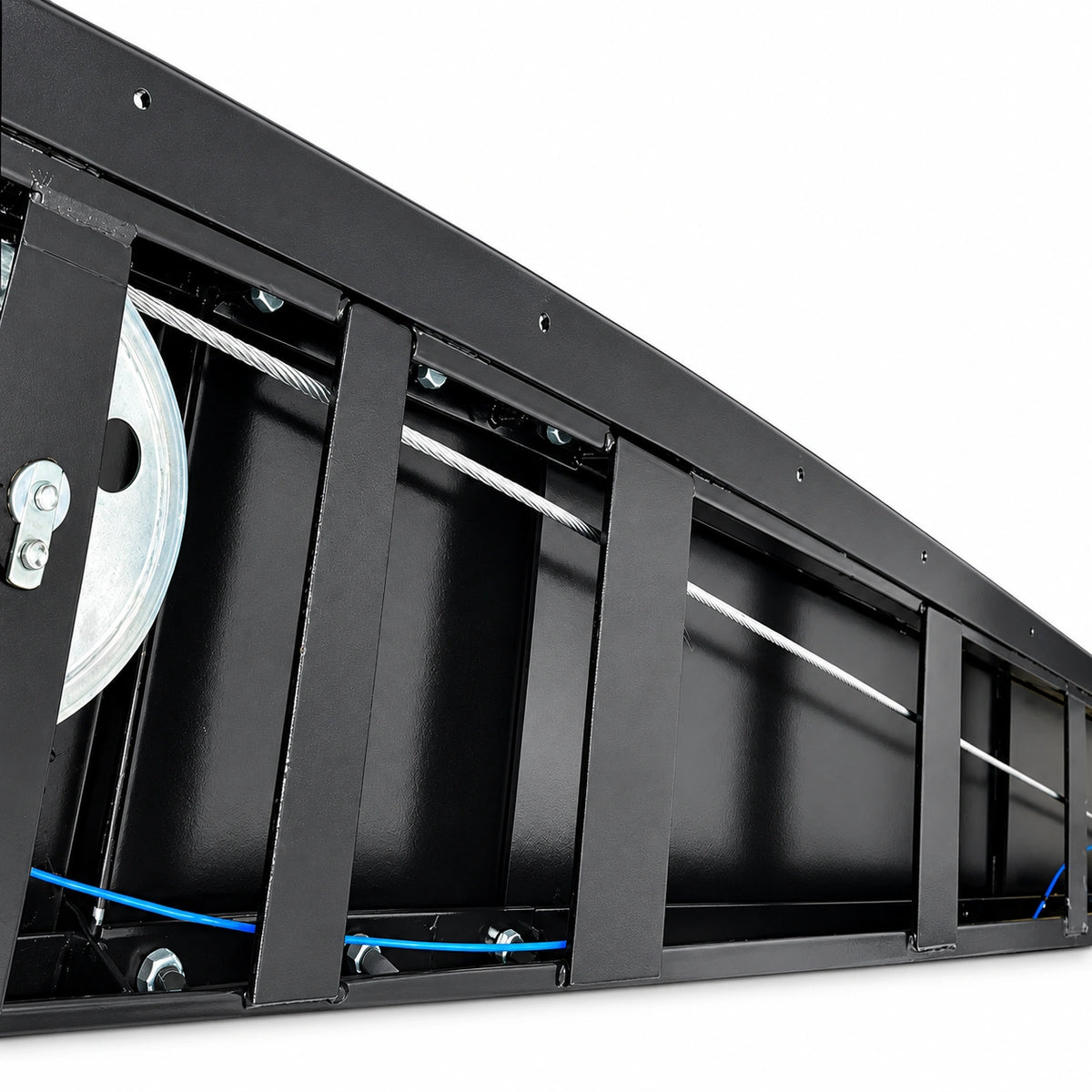

Slack Cable Retention System
Eliminate concerns about cable maintenance and excessive slack with Hofmann's innovative slack cable retention system that effectively manages cable slack even while the lift is securely locked in position. This patented design prevents cable damage from improper tensioning, reduces maintenance interventions, extends cable service life, and maintains consistent lifting synchronization for safer operation.
ALI Certified Safety Standards
This lift is certified in accordance with the requirements of the Automotive Lift Institute's ETL Certification Program to ANSI/ALI ALCTV-2011 standards. ALI certification verifies that the lift meets rigorous safety, structural, and performance standards established by the industry's leading safety organization, providing shop owners with confidence in equipment reliability and helping satisfy insurance requirements.
Hofmann 12K Four-Post Alignment Lift Applications
- Four-Wheel Alignment Services: Primary application for precision four-wheel alignment work on passenger cars, SUVs, and light trucks. The stable four-post design provides the rigid platform required for accurate alignment measurements, while adjustable turn plates and slip plates allow full steering and suspension articulation during alignment procedures.
- Full-Service Vehicle Maintenance: Versatile platform for comprehensive undercar service including brake service, suspension repair, exhaust system work, and drivetrain maintenance. The 78" maximum lift height provides comfortable standing workspace, while the closed-front design allows easy access to all undercar components without column obstruction.
- Tire and Wheel Service: Ideal for tire rotation, wheel balancing setup, and tire replacement when combined with rolling jack beams. The four-post design supports the entire vehicle weight during tire service, eliminating the need for jack stands and providing safer working conditions than traditional two-post lifts for tire-related work.
- Vehicle Storage and Display: Space-efficient vehicle storage solution for shops, dealerships, and collectors requiring secure elevated storage. The 12,000 lb capacity accommodates classic cars, performance vehicles, and collector automobiles, while the 78" lift height maximizes vertical space utilization for double-stacking storage configurations.
- Diagnostic and Inspection Work: Comprehensive vehicle inspection platform for pre-purchase inspections, state safety inspections, and diagnostic troubleshooting. The full-length runways provide complete vehicle support during inspection procedures, while the stable platform allows technicians to safely access all undercar areas for thorough visual and hands-on examination.
Hofmann 12K Four-Post Alignment Lift Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 12,000 lb (5,443 kg) |
| Configuration | Closed Front |
| Maximum Lifting Height | 78" (198 cm) |
| Lifting Time | 74 seconds |
| Specification | Value |
|---|---|
| Overall Width | 135" (342 cm) |
| Overall Length | 252" |
| Overall Height | 91" (231 cm) |
| Runway Profile Height | 8" |
| Minimum Recommended Bay Size (W x L) | 12' x 24' (366 x 732 cm) |
| Shipping Weight | 3,307 lb (1,500 kg) |
| Specification | Value |
|---|---|
| Power Supply | 208-230V 60Hz 1Ph 30A 2HP / 1.5kW |
| Motor | 2HP Single Phase |
| Voltage Options | 208-230V (factory wired) |
| Specification | Value |
|---|---|
| Air Supply Required | 90-120 PSI (6-8 BAR) |
| Specification | Value |
|---|---|
| Safety Certification | ALI Certified to ANSI/ALI ALCTV-2011 |
| Model Number | EELR728APKG |
Hofmann 12K Four-Post Alignment Lift Installation Requirements
Electrical Requirements
Power: 208-230V, 60Hz, single-phase, 30A dedicated circuit with circuit breaker or time-delay fuse. A licensed electrician must install and verify the electrical supply meets NEC requirements. The 2HP motor requires proper circuit sizing per the wiring diagram included with the lift. Ensure adequate wire gauge for the distance from the electrical panel to prevent voltage drop.
Concrete Foundation
Anchoring: Minimum 4" thick concrete with steel reinforcement, 3,500 PSI compressive strength, cured for 28 days per local commercial practice. Floor must be level within 3/8" over the installation area. No anchors should be installed within 8" of any crack, edge, or expansion joint. Use 3/4" diameter anchor bolts torqued to 150 ft-lb. If floor conditions are inadequate, a reinforced concrete pad must be poured to accommodate the lift.
Pneumatic Requirements
Air Supply: 90-120 PSI (6-8 BAR) compressed air supply required for alignment equipment operation. Install a dedicated air line with moisture separator and pressure regulator to ensure consistent air pressure. Minimum 1/2" air line recommended with quick-disconnect fitting for alignment head connections and pneumatic accessories.
Space Requirements
Minimum Bay Size: 12' x 24' (366 x 732 cm). Ceiling Height: Minimum 167"-176" (13'10"-14'7") for standard height configuration. Drive-Through Clearance: 103" (2,616 mm) between columns. Additional clearance recommended around the lift perimeter for safe operation, vehicle maneuvering, and alignment equipment positioning. Verify adequate overhead clearance for the tallest vehicles you service.
Professional Installation
Professional installation is strongly recommended. Installation requires specialized tools including hammer drill with 3/4" carbide bits, torque wrench capable of 150 ft-lb, and proper lifting equipment for assembly. Improper installation can result in lift malfunction, structural damage, or serious injury. Installation typically requires 8-12 hours for experienced installers. Contact authorized Hofmann distributors for professional installation services in your area.
What's Included with the Hofmann 12K Four-Post Alignment Lift
- Complete four-post lift structure with closed-front crossbeam design
- 2 rolling jack beams for tire service and undercar access
- Premium turn plates for front wheel alignment measurements
- Rollback kit for rear wheel slip plate operation
- Work step for safe technician access to lift platform
- Hydraulic power unit with 2HP single-phase motor
- Complete hydraulic hose pack and fittings
- Synchronizer cable assembly for balanced lifting
- Overhead safety shut-off bar with cushioned contact
- Lock release system with mechanical cable
- Safety lock pawls and engagement system
- All mounting hardware and anchor bolts
- Installation, operation, and maintenance manual
- ALI safety decals and warning labels
- Warranty documentation
Optional Accessories: Drive-through kit (EAK0359V12A) for creating additional workspace access.
Not Included: Electrical installation and wiring, concrete anchoring labor, compressed air supply line installation, alignment equipment (alignment heads, sensors, targets), wheel adapters beyond standard equipment, installation labor, freight delivery beyond curbside, forklift or unloading equipment. Professional installation services available through authorized Hofmann distributors.
Hofmann 12K Four-Post Alignment Lift Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 7-10 business days from order processing. International: Contact sales for international shipping quotes and delivery timelines. Shipping Weight: 3,307 lb (1,500 kg) shipped on pallets.
Delivery Requirements
Unloading: Forklift with minimum 4,000 lb capacity or loading dock required for safe unloading. Freight carrier provides curbside delivery only. Delivery Type: Motor freight common carrier with liftgate service not available due to weight and size. Inspection: Thoroughly inspect all packages for shipping damage before signing bill of lading. Note any damage, shortage, or discrepancy on the delivery receipt before driver departure.
Returns
Returns accepted within 30 days of delivery for unopened merchandise in original packaging with receipt. 20% restocking fee applies to all returns. Buyer responsible for return freight costs and proper packaging. Opened, installed, or electrically connected lifts are not eligible for return. Defective merchandise covered under manufacturer warranty rather than return policy. Contact customer service before initiating any return.
Hofmann 12K Four-Post Alignment Lift Warranty
Hofmann Comprehensive Warranty Coverage
Hofmann Equipment backs this four-post alignment lift with comprehensive warranty coverage providing peace of mind for your investment:
- 5 Years: Structural components including columns, overhead beam, runways, and crossbeams against defects in materials and workmanship
- 1 Year: Parts coverage for hydraulic components, electrical systems, cables, bearings, and all other mechanical parts
- 1 Year: Labor coverage for warranty repair and replacement performed by authorized service technicians
Requirements: Warranty requires professional installation by qualified personnel in accordance with installation manual specifications. Lift must be anchored to concrete meeting minimum specifications (4" thick, 3,500 PSI, steel reinforced). Routine maintenance must be performed per manufacturer schedule including monthly lubrication, hydraulic fluid checks, and annual inspections. Warranty does not cover damage from improper use, overloading beyond rated capacity, lack of maintenance, modifications, or accidents. Complete warranty terms available in warranty documentation PDF.
Documents
Click to open in a new tab.
Questions About the Hofmann 12K Four-Post Alignment Lift?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Hofmann 12K Four-Post Alignment Lift FAQ
What types of vehicles can the Hofmann 12K Four-Post Alignment Lift accommodate?
The 12,000 lb capacity accommodates a comprehensive range of vehicles including passenger cars, SUVs, crossovers, minivans, light-duty pickups, cargo vans, and performance vehicles. The adjustable turn plate pockets handle wheelbases from compact cars to extended-cab trucks. The ultra-low 8" runway profile allows safe loading of lowered vehicles, sports cars, and cars with modified suspension. Maximum vehicle dimensions supported are 78" lift height and 103" drive-through clearance between columns.
What are the minimum space requirements for installing this alignment lift?
The minimum recommended bay size is 12' x 24' (366 x 732 cm) for safe operation and vehicle maneuvering. Ceiling height requirement is 167"-176" (13'10"-14'7") for standard configuration. The lift's overall footprint is 135" wide x 252" long. Additional clearance of 2-3 feet around the perimeter is recommended for alignment equipment positioning, technician access, and safety. Verify your facility has adequate space for both the lift and ancillary alignment system components before ordering.
What electrical power does the Hofmann 12K Four-Post require?
This lift requires 208-230V, 60Hz, single-phase electrical power with a dedicated 30A circuit. The 2HP motor is factory-wired for 208-230V operation. A licensed electrician must install a dedicated circuit with proper circuit breaker or time-delay fuse per NEC requirements. Single-phase power makes this lift ideal for shops without three-phase electrical service. Wire gauge must be sized appropriately based on distance from electrical panel to prevent voltage drop and ensure optimal motor performance.
Is professional installation required for the Hofmann 12K Four-Post?
Professional installation is strongly recommended but not strictly required. Installation requires specialized tools including a hammer drill with 3/4" carbide bits, torque wrench capable of 150 ft-lb minimum, proper lifting equipment, and electrical knowledge. The installation process includes concrete anchoring with torque specifications, hydraulic system assembly and bleeding, cable synchronization, electrical connections, and final safety adjustments. Most installations require 8-12 hours for experienced installers. Improper installation voids warranty and can create serious safety hazards. Contact authorized Hofmann distributors for professional installation services.
What warranty coverage does Hofmann provide for this four-post lift?
Hofmann provides comprehensive warranty coverage including 5 years on structural components (columns, overhead beam, runways, crossbeams), 1 year on all parts (hydraulic, electrical, mechanical), and 1 year on labor for warranty repairs. Warranty requires professional installation meeting manufacturer specifications, anchoring to concrete meeting minimum requirements (4" thick, 3,500 PSI, steel reinforced), and routine maintenance per manufacturer schedule. Warranty excludes damage from improper use, overloading, lack of maintenance, modifications, or accidents. Complete warranty terms available in documentation.
What alignment equipment is included with the lift?
The lift includes premium turn plates for front wheel measurements, slip plates with rollback kit for rear wheel operation, and the structural platform required for alignment work. However, the lift does not include the electronic alignment system itself (alignment heads, cameras, sensors, targets, computer console). The lift provides the stable, adjustable platform while you supply your preferred brand of alignment equipment such as Hunter, John Bean, Hofmann, or other manufacturers. The 90-120 PSI air supply connection accommodates pneumatic alignment accessories.
How does shipping and delivery work for this lift?
Free freight shipping is provided to commercial addresses in the 48 contiguous United States with 7-10 business day lead time. The lift ships at 3,307 lb on pallets via motor freight common carrier. A forklift with minimum 4,000 lb capacity or loading dock is required for unloading - liftgate service is not available due to size and weight. The freight company will call to schedule delivery ensuring you have proper unloading equipment available. Thoroughly inspect all packages for damage before signing the bill of lading and note any issues on the delivery receipt.
What optional accessories are available for this alignment lift?
The primary optional accessory is the drive-through kit (part number EAK0359V12A) which creates additional workspace access by allowing removal of the front crossbeam section after vehicle positioning. Additional accessories available through Hofmann distributors include extended-height kits for taller vehicles, specialty adapters for unique vehicle lifting points, drip trays for fluid containment, and tool tray organizers. Rolling jack beams, premium turn plates, rollback kit, and work step are included standard with the lift package as shipped.
What are the concrete floor requirements for anchoring?
The floor must be minimum 4" thick concrete with steel reinforcement (rebar), 3,500 PSI compressive strength, and cured for 28 days per local commercial practice. Floor must be level within 3/8" over the installation area and in generally good condition with no large cracks, spalling, or deterioration. Anchor bolts cannot be installed within 8" of any crack, edge, or expansion joint. Use 3/4" diameter concrete anchor bolts torqued to 150 ft-lb. If existing floor does not meet these specifications, a reinforced concrete pad must be poured to accommodate the lift safely.
How does this four-post lift compare to a two-post lift for alignment work?
Four-post lifts provide superior stability for alignment work because the entire vehicle weight is supported by four runways rather than contact points, eliminating suspension loading that can affect alignment measurements. The four-post design allows wheels to hang freely for accurate camber and toe readings. However, two-post lifts offer better undercar access for simultaneous service work. Four-post lifts require more floor space but provide drive-on convenience without arm positioning. For dedicated alignment work, four-post lifts are the professional standard, while two-post lifts excel at general repair versatility.
What maintenance is required for the Hofmann 12K Four-Post?
Daily maintenance includes visual inspection for loose or damaged parts, checking hydraulic system for leaks, and verifying adapter condition. Weekly tasks include inspecting synchronizer cables and sheaves for wear and checking lock release cable adjustment. Monthly maintenance requires torquing anchor bolts to 80 ft-lb, testing overhead shutoff switch operation, lubricating carriage slide tracks with heavy viscous grease at all four corners of both columns, and visually inspecting concrete floor for cracks within 12" of base plates. Check hydraulic fluid level and bleed cylinders if lift stops short of full rise or chatters during operation.
Can this lift be used for vehicle storage in addition to alignment work?
Yes, this lift excels at both active alignment work and secure vehicle storage. The 12,000 lb capacity and 78" lift height make it ideal for storing classic cars, performance vehicles, and collector automobiles above ground level. The stable four-runway design safely supports vehicles for extended periods without the stress concentration of contact-point lifts. Many shops use four-post lifts for dual-purpose operations: alignment services during business hours and vehicle storage during off-hours to maximize floor space utilization. The closed-front design provides excellent stability for long-term storage applications.
