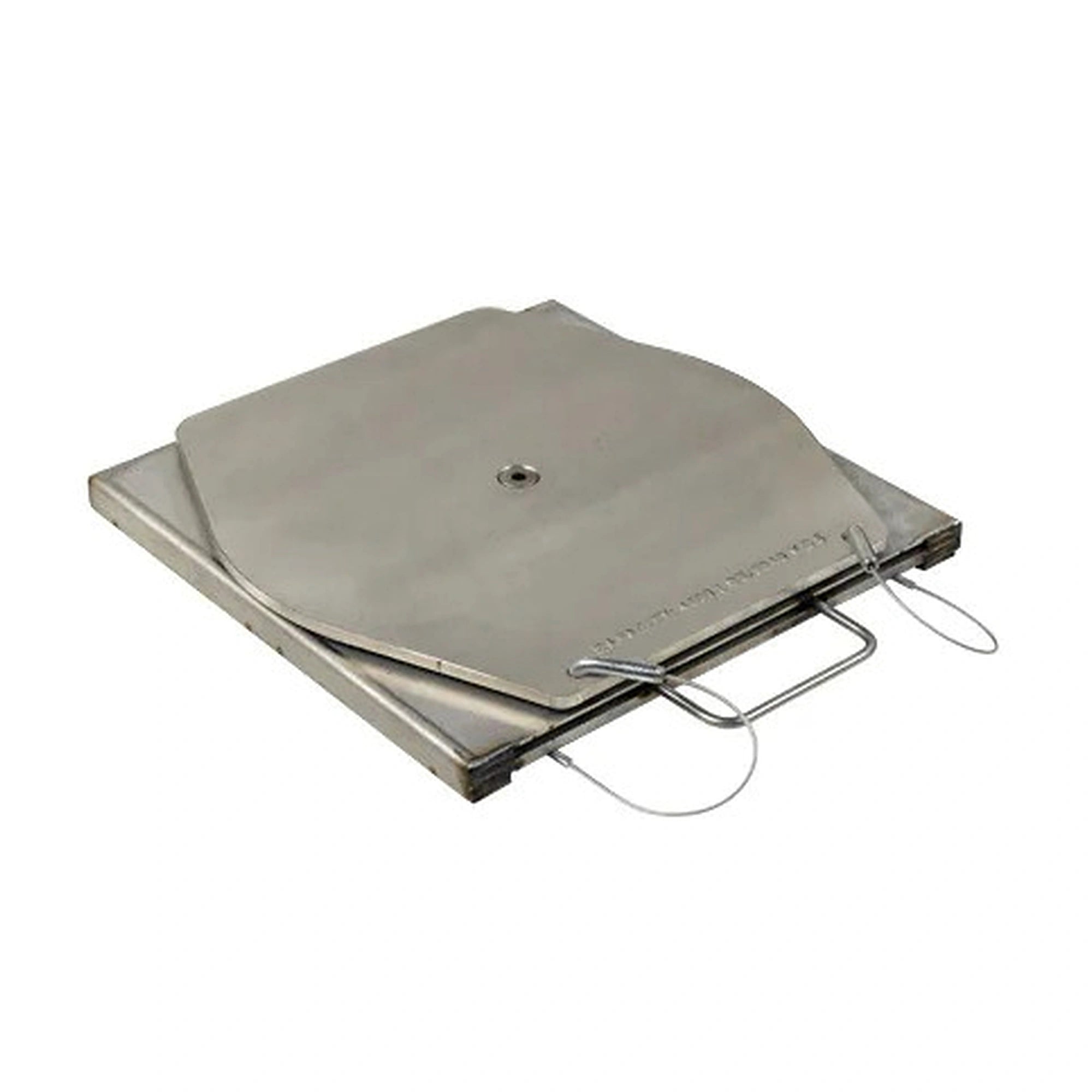

Forward TT1001KIT Stainless Steel Radius Gauge Kit for Alignments
- Authorized Forward Lifts Dealer direct manufacturer relationship
- Manufacturer Warranty included with purchase
- Expert Product & Freight Support +1 (855) 498-2147
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- No Sales Tax outside PA where applicable
Forward TT1001KIT Stainless Steel Radius Gauge Kit for Two-Wheel Alignments
This genuine Forward turning radius gauge kit delivers the precision measurement tools professional alignment shops need for accurate two-wheel alignment procedures. The kit includes two stainless steel radius gauges each rated at 3,000 lb capacity, plus all necessary retaining hardware for quick setup and consistent performance. Built to Rotary's manufacturing and quality standards, these gauges resist corrosion and wear through countless alignment jobs in high-volume service environments.
Forward TT1001KIT Features
Dual Gauge Configuration
Each radius gauge is rated at 3,000 lb capacity, with two gauges providing 6,000 lb combined capacity for full two-wheel alignment work. This configuration accommodates passenger cars, light trucks, and most vehicles processed on alignment racks, delivering the measurement precision professionals require for consistent results.
Stainless Steel Construction
Gauges and all fastening hardware are manufactured from premium stainless steel, resisting corrosion, moisture, and chemical exposure in demanding shop environments. The polished finish maintains its appearance through years of regular use while preventing rust and degradation that can compromise measurement accuracy.
Complete Kit with Hardware
Includes four retaining bars for gauge mounting and positioning, plus all fasteners and mounting hardware needed for immediate installation on compatible alignment lift systems. No additional parts required—everything necessary is provided in the kit for quick setup between alignment jobs.
Rotary Quality Standards
Built to the same manufacturing and quality standards as Rotary alignment equipment. Forward brings professional-grade measurement precision to shops seeking reliable equipment at accessible pricing, backed by Rotary's reputation for dependability and precision alignment tools.
Forward TT1001KIT Applications
- Two-Wheel Alignments: Precisely measure turning radius and wheel alignment angles on passenger cars and light trucks to ensure vehicles pull straight and handle properly.
- Professional Service Shops: Ideal for busy service environments processing high-volume alignment work, with dual gauges supporting continuous workflow without tool switching.
- Measurement Accuracy: Engineered to deliver repeatable, accurate readings that meet industry standards, allowing technicians to confidently dial in alignment specifications.
- Rotary and Compatible Lift Systems: Mounts to Forward, Rotary, and compatible two-post and four-post alignment lift equipment, integrating seamlessly into existing shop infrastructure.
- Passenger and Light Duty Vehicles: 3,000 lb per gauge capacity accommodates the weight range of most vehicles on alignment racks, from compact cars to mid-size trucks.
Forward TT1001KIT Specifications
| Specification | Value |
|---|---|
| Number of Gauges | Two (2) |
| Capacity Per Gauge | 3,000 lb (1,361 kg) |
| Total Kit Capacity | 6,000 lb (2,722 kg) combined |
| Retaining Bars Included | Four (4) |
| Material | Stainless steel gauges and fasteners |
| Specification | Value |
|---|---|
| Model Number | TT1001KIT |
| SKU | TT1001KIT |
| Manufacturer | Forward Lifts / Rotary Lift |
| Part Type | Measurement tool kit |
| Application | Two-wheel alignments |
| Condition | New |
Forward TT1001KIT Setup and Maintenance
Initial Setup
Mount the retaining bars to your alignment lift using the provided hardware according to your lift's setup instructions. Position the two radius gauges into the retaining bars, ensuring both gauges are level and secure before beginning any alignment work. Verify all hardware is tight and gauges are seated properly to maintain measurement accuracy throughout the service day.
Regular Inspection
Before each use, visually inspect the gauges for signs of damage, corrosion, or contamination. Check that all retaining bars and fasteners remain tight. Wipe gauges clean with a dry cloth if wet or contaminated. Replace any damaged components immediately to maintain measurement accuracy and prevent inaccurate alignment readings.
Stainless Steel Care
While stainless steel resists corrosion, occasional cleaning maintains appearance and prevents buildup. Use mild soap and water with a soft cloth, then dry thoroughly. Avoid abrasive cleaners or steel wool that can damage the polished surface. Regular maintenance preserves the professional appearance and extends the lifespan of your measurement tools.
Storage and Transportation
Store the kit in a clean, dry area when not in use. If temporary removal is needed, keep gauges and bars together in their kit packaging to prevent loss or mixing with other equipment. Protect from extreme temperature fluctuations and moisture exposure. Proper storage preserves measurement accuracy and prevents corrosion damage.
Forward TT1001KIT Warranty
Manufacturer's Warranty
- One Year: Parts and workmanship defects
- Two Years: Measurement accuracy under normal use conditions
Coverage Requirements: Warranty covers manufacturing defects and accuracy under normal professional use. Excludes damage from misuse, improper maintenance, or corrosion from inadequate care. Proof of purchase required. Warranty is non-transferable and applies only to the original purchaser.
Questions About the Forward TT1001KIT?
Get help with gauge specifications, lift system compatibility, and alignment measurement accuracy.
Forward TT1001KIT FAQ
Why does this kit include two gauges instead of one?
Two gauges provide complete flexibility for two-wheel alignment work on passenger vehicles and light trucks. Having dual gauges eliminates tool switching between alignment jobs, maximizing technician productivity in high-volume service environments. The two-gauge configuration delivers the measurement capability shops need for continuous workflow efficiency.
What is the maximum vehicle weight this kit can support?
The kit provides 3,000 lb capacity per gauge, with 6,000 lb combined capacity. This accommodates passenger cars, light trucks, and most vehicles typically processed on two-wheel alignment racks. For specific vehicle weight confirmation, consult your vehicle's manufacturer specifications and your alignment lift's rated capacity.
Is this kit compatible with all Rotary and Forward alignment lifts?
The TT1001KIT is designed for Forward, Rotary, and compatible two-post and four-post alignment lift systems. Mounting compatibility depends on your specific lift model's retaining bar configuration. Contact us with your lift model number for detailed compatibility confirmation before purchase.
What maintenance does this kit require?
Inspect gauges and hardware before each use for damage or corrosion. Tighten all fasteners regularly. Clean with mild soap and water, then dry thoroughly. Avoid abrasive cleaners that can damage the stainless steel finish. Store in a clean, dry area away from moisture and temperature extremes. These simple maintenance steps preserve accuracy and extend lifespan.
How accurate are these gauges?
Forward TT1001KIT gauges are engineered to deliver repeatable, accurate measurements that meet industry standards for two-wheel alignment work. Accuracy is maintained under normal professional use conditions with proper setup, regular inspection, and routine maintenance. Damaged or improperly maintained gauges may not provide accurate readings.
Can I replace individual gauges if one is damaged?
Yes, individual gauges and retaining bars can be replaced if damaged. Contact our sales team with the TT1001KIT model number and your specific needs. We can provide replacement gauge assemblies and hardware to restore your kit to full functionality without replacing the entire unit.
How do I ensure accurate measurements with this kit?
Mount gauges securely in the retaining bars before each alignment job. Verify both gauges are level and tightly seated. Inspect for damage or corrosion before use. Clean gauges if contaminated. Follow your alignment lift manufacturer's setup procedures. Maintain the kit according to care guidelines. Proper setup and maintenance preserve measurement accuracy throughout the service day.
What is included in the kit?
The kit includes two stainless steel radius gauges rated at 3,000 lb capacity each, four retaining bars for gauge mounting and positioning, and all fasteners and mounting hardware needed for installation. Everything required for two-wheel alignment measurement is provided, ready to install and use immediately on compatible lift systems.
What warranty does the Forward TT1001KIT include?
The kit includes a one-year warranty covering manufacturing defects and workmanship, plus a two-year warranty on measurement accuracy under normal professional use conditions. Warranty excludes damage from misuse, improper maintenance, or inadequate care. Proof of purchase required. Contact us for warranty service and support.
Is this kit backed by Rotary's reputation for quality?
Yes, the Forward TT1001KIT is built to Rotary's manufacturing and quality standards. Forward is the value-focused lift brand manufactured by Rotary, the maker of the world's most trusted lifts. Forward products are backed by Rotary's warranty and support infrastructure, delivering professional-grade precision at accessible pricing.
What should I do if my kit arrives damaged?
Inspect all packages before signing the delivery receipt. If damage is visible, note it on the BOL and contact us immediately with photos of the damage. We process damage claims promptly and will arrange replacement or repair. Always inspect freight shipments upon arrival to document any transit damage.
Can I upgrade or extend my measurement capabilities beyond two-wheel alignment?
The TT1001KIT is specifically designed for two-wheel alignment work. For four-wheel alignment measurement or other specialized applications, contact our alignment equipment specialists to discuss your shop's specific needs. We can recommend compatible Forward and Rotary equipment to expand your measurement capabilities.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including lead and styrene, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
