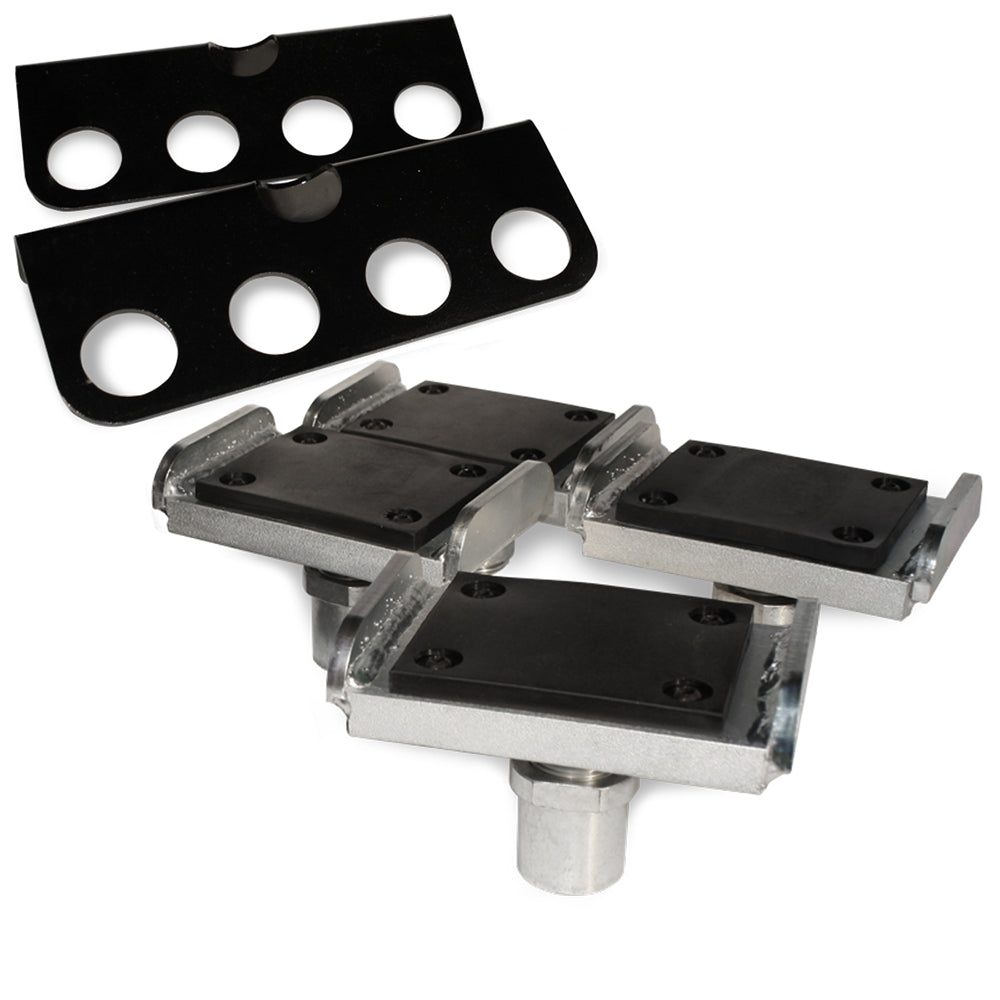

Forward T100285BK Adjustable Frame Contact Adapter Kit for I10, DP10
This comprehensive Forward adjustable frame contact adapter kit provides four precision-engineered adapters with fine-tuning capability for professional two-post lift operations. Each adapter features a threaded adjustable screw with a 1.25" adjustment range and frame cradle pads for secure vehicle positioning. The kit includes storage brackets and hardware, enabling technicians to reach manufacturer-recommended lifting points on a wide variety of vehicle frames, including difficult-to-lift trucks and body-on-frame vehicles.
Forward T100285BK Features
Precise Threaded Adjustment System
Each of the four adapters features a threaded adjustable screw with 1.25" range, enabling fine-tuning to reach exact manufacturer-recommended lifting points. This precision adjustment accommodates vehicles on uneven shop floors, vehicles with non-standard frame heights, and difficult-to-lift commercial vehicles requiring custom positioning.
Frame Cradle Pads for Secure Holding
Rubber-padded frame cradle pads mounted atop each adjustable screw securely grip vehicle frames during lifting operations. The padded design protects vehicle frames from damage while maintaining consistent holding power across thousands of lifts, ensuring both safety and vehicle finish preservation.
Complete Kit with Storage Solution
The T100285BK includes four adapters, two storage brackets, and all mounting hardware necessary for immediate installation. Storage brackets keep adapters organized and accessible when not in use, reducing setup time and maintaining workshop efficiency during high-volume service operations.
Universal Height Extension Compatibility
These adjustable adapters are engineered to fit into all height extension designs provided with Forward I10 and DP10 lifts, delivering seamless integration without modifications. The versatile design works with symmetric and asymmetric lift configurations, expanding the vehicle types your shop can safely service.
Forward T100285BK Applications
- Truck and Frame Vehicle Lifting: Essential for body-on-frame vehicles where precise frame contact points differ significantly from passenger car positioning, ensuring safe and damage-free lifting of trucks, SUVs, and commercial vehicles.
- Manufacturer-Recommended Lifting Point Access: Enable technicians to dial in exact OEM-specified lifting points, improving vehicle safety, reducing suspension and drivetrain stress, and preventing damage from improper lift positioning.
- Uneven Floor Compensation: Fine-tune adapter heights to maintain level lifting on shop floors that are not perfectly level, preventing vehicle tilt and ensuring balanced load distribution across lift arms during service operations.
- Symmetric and Asymmetric Vehicle Positioning: Accommodate both symmetrically-positioned vehicles and vehicles requiring asymmetric lift arm positioning, expanding your shop's capability to service diverse vehicle designs and configurations.
- Extended Service Versatility: Transform your Forward I10 or DP10 lift into a fully adaptable solution for light-duty and heavy-duty vehicles, increasing workshop utilization and enabling shops to serve a broader range of customers without investing in additional lift equipment.
Forward T100285BK Specifications
| Specification | Value |
|---|---|
| Number of Adapters | Four (4) adjustable adapters |
| Adjustment Range Per Adapter | 1.25" threaded screw adjustment |
| Pin Diameter with Collar | 1-1/2" |
| Contact Point Design | Rubber-padded frame cradle pads |
| Storage Brackets Included | Two (2) with mounting hardware |
| Material Construction | Heavy-duty steel with rubber pads |
| Specification | Value |
|---|---|
| Model Number | T100285BK |
| SKU | T100285BK |
| Manufacturer | Forward Lifts / Rotary Lift |
| Part Type | Lift accessory, adapter kit |
| Primary Application | Frame contact adapters for two-post lifts |
| Condition | New |
Forward T100285BK Installation and Setup
Mounting to Lift Height Extensions
Insert each adjustable adapter into the retaining slots on your Forward lift's height extension arms. The adapters are designed to fit all extension configurations on I10 and DP10 lifts. Secure adapters using the provided mounting hardware, ensuring all fasteners are tight and adapters are level before operating the lift with a vehicle positioned.
Height and Positioning Adjustment
Once mounted, use the threaded adjustable screws to raise or lower the frame cradle pads to precise heights required for your specific vehicle. Rotate the adjustment screws slowly to achieve exact positioning that matches manufacturer-recommended lifting points. Test positioning without vehicle weight before committing to a service operation.
Frame Contact Point Verification
Before lifting any vehicle, verify that rubber-padded frame cradle pads contact the vehicle frame securely and at the correct manufacturer-specified lifting points. Position pads to grip the frame without slipping during lift operation. For trucks and frame vehicles, confirm contact at both front and rear frame rails before raising the vehicle.
Storage Bracket Setup
Install the two storage brackets provided in the kit when adapters are not in use. Securely mount brackets in an accessible location on the lift or nearby wall, keeping adapters organized and ready for deployment. This prevents loss or damage to individual adapters and minimizes setup time between service operations.
Forward T100285BK Lift Compatibility
| Lift Model | Compatibility | Configuration |
|---|---|---|
| Forward I10 | Full compatibility | 10,000 lb capacity two-post lift |
| Forward DP10 | Full compatibility | 10,000 lb capacity two-post lift |
| Forward DP10A | Full compatibility | Asymmetric model, 10,000 lb capacity |
| Forward DP10S | Full compatibility | Symmetric model, 10,000 lb capacity |
| Forward F10 | Compatible | Verify height extension compatibility |
| All Height Extensions | Compatible | Fits all standard and optional extension designs |
Questions About the Forward T100285BK?
Get help with adapter positioning, lift compatibility, and reaching manufacturer-recommended lifting points for your service vehicles.
Forward T100285BK FAQ
What is the adjustment range for each adapter?
Each adapter features a threaded adjustable screw with a 1.25" total adjustment range. This allows technicians to raise or lower the frame cradle pad by up to 1.25 inches, providing fine-tuning capability to reach exact lifting points on vehicles with different frame heights and geometries.
Can these adapters be used on all Forward two-post lift models?
The T100285BK is fully compatible with Forward I10, DP10, DP10A, DP10S, and F10 models. These adapters fit into all standard and optional height extension designs provided with these lift models, ensuring seamless integration without modifications.
How do the rubber-padded frame cradle pads protect vehicle frames?
The rubber pads are designed to grip vehicle frames securely while protecting the frame finish from scratches and dents during lifting operations. The pads maintain contact integrity even with repeated use, preventing slipping during lift cycles and reducing potential frame damage from improper contact positioning.
What vehicles require these adjustable frame contact adapters?
These adapters are essential for body-on-frame vehicles including trucks, SUVs, and commercial vehicles where frame contact points differ significantly from passenger car positioning. They're also beneficial for shops on uneven floors, where precise height adjustment compensates for floor irregularities and maintains level lifting.
How do I adjust the adapters to reach manufacturer-recommended lifting points?
First, position the lift arms to approximate height. Then use the threaded adjustment screws to raise or lower the frame cradle pads until they contact the vehicle frame at OEM-specified lifting points. Consult the vehicle's service manual for exact lifting point locations. Test positioning without vehicle weight before lifting.
Can adapters be used for both symmetric and asymmetric vehicle positioning?
Yes, these adapters work with both symmetric and asymmetric lift arm configurations on DP10 and I10 lifts. They can be individually adjusted to accommodate vehicles that require different lifting heights on the left and right sides, expanding your shop's capability to service diverse vehicle designs.
How often should adapters be inspected for wear?
Inspect rubber pads before each shift for wear, cracks, or deterioration. Check that adjustment screws rotate smoothly and mounting hardware remains tight. Replace adapters if rubber pads become hard or split, if threads are stripped, or if fasteners cannot be tightened securely. Proper maintenance ensures consistent performance.
What maintenance do the adjustable screws require?
Rotate adjustment screws smoothly and periodically to prevent seizing. Keep screws clean of shop debris and oil. Apply a light machine oil if screws become stiff. Do not force threads if resistance is felt. Replace an adapter immediately if threads become stripped or damaged.
Are adapters included with Forward I10 and DP10 lifts?
Some Forward lift models include basic frame contact adapters as standard equipment. However, the adjustable T100285BK kit is an optional upgrade that provides significantly greater positioning flexibility. Check your lift's documentation or contact us to determine if your lift includes standard adapters.
Can individual adapters be replaced if one is damaged?
Yes, individual T110564ZN adapters can be purchased separately to replace damaged adapters in the kit. Contact our sales team with your specific needs and we can provide replacement adapters and rubber pads to restore your kit to full functionality.
How does adapter height adjustment improve lifting safety?
By enabling precise positioning at manufacturer-recommended lifting points, these adapters reduce stress on vehicle suspension components, prevent tilt during lifting, and distribute load evenly across both lift arms. Proper lifting point contact significantly improves vehicle and operator safety while protecting the vehicle from damage.
What is included in the storage bracket kit?
The kit includes two storage brackets and all necessary mounting hardware. These brackets keep adapters organized and protected when not in use, preventing loss and minimizing setup time during service operations. Brackets can be mounted on the lift frame or nearby wall.
